Log Grapples - for Cranes

DESCRIPTION

Intermercato Log Grapples are suited to cranes from 500kg to 40 tonne capacity. We are a leading supplier of grabs and grapples for HMF, HIAB, Palfinger, Fassi, Pfeffer, Ferrari, Maxilift and more.

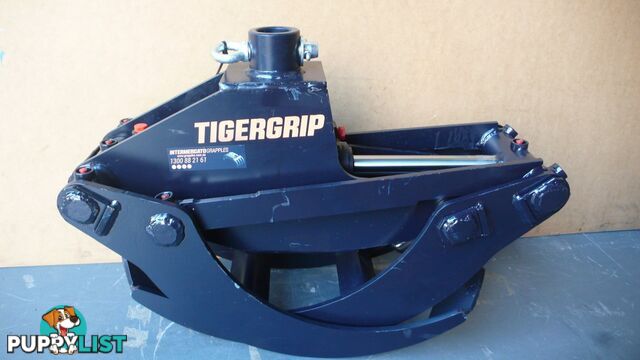

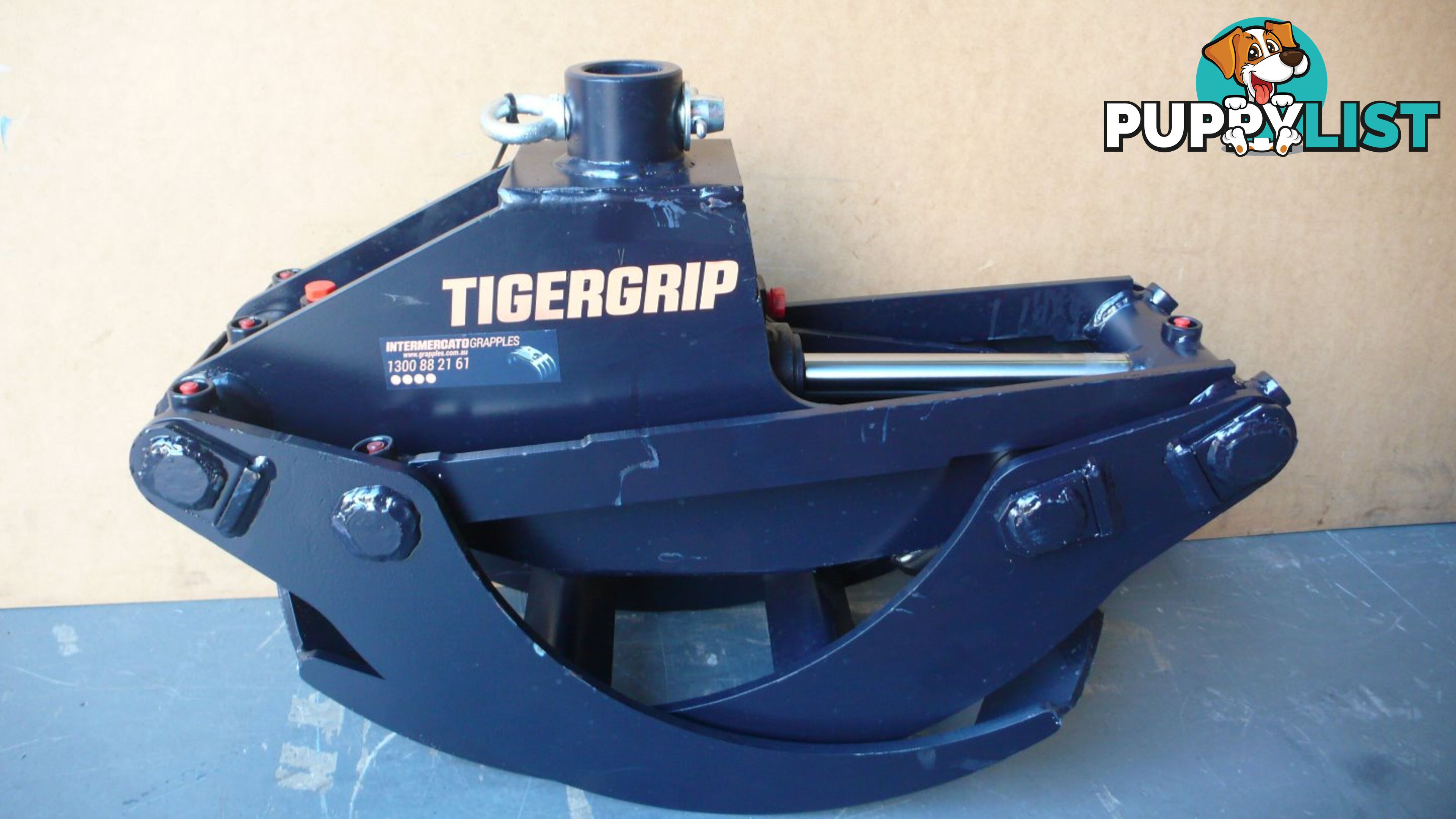

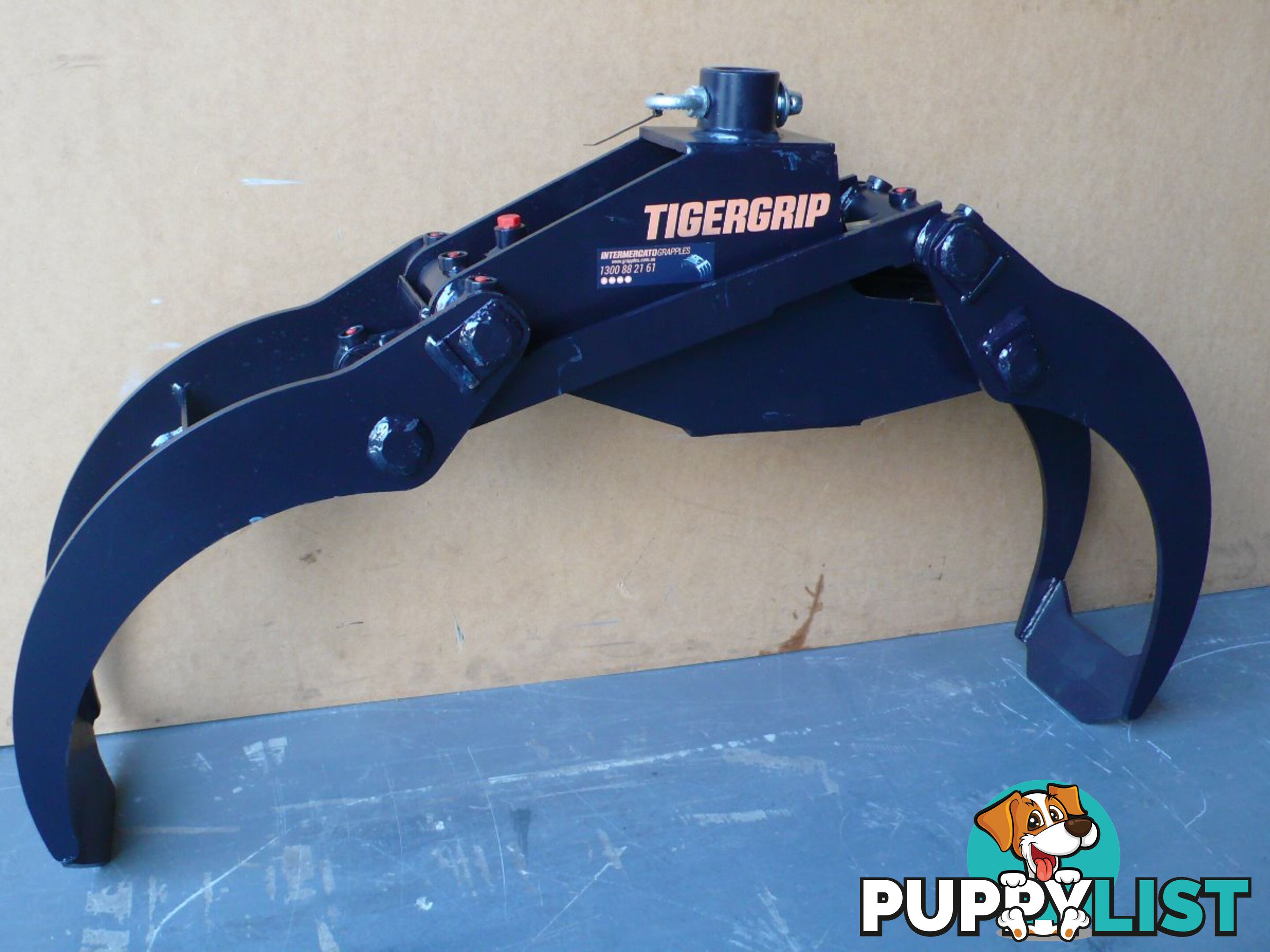

Log grapples are all of the modern bypass design, allowing wide opening widths & capacity but still allowing very tight closing for secure gripping of uneven loads. Intermercato log grapples are designed to grab and ACCUMULATE LOGS. The fixed teeth don't bite into logs giving faster bundling & high productivity.

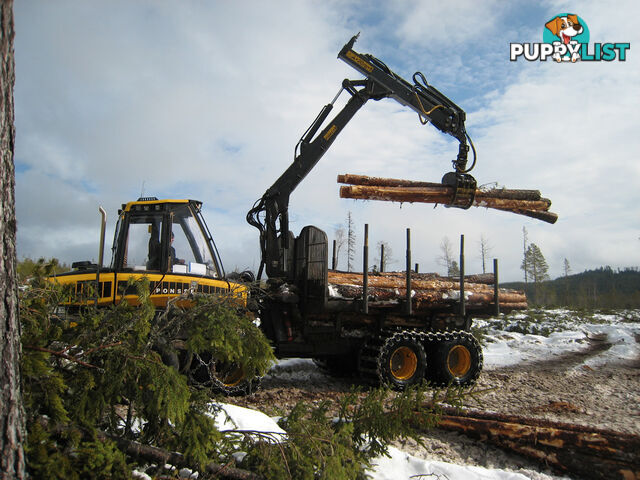

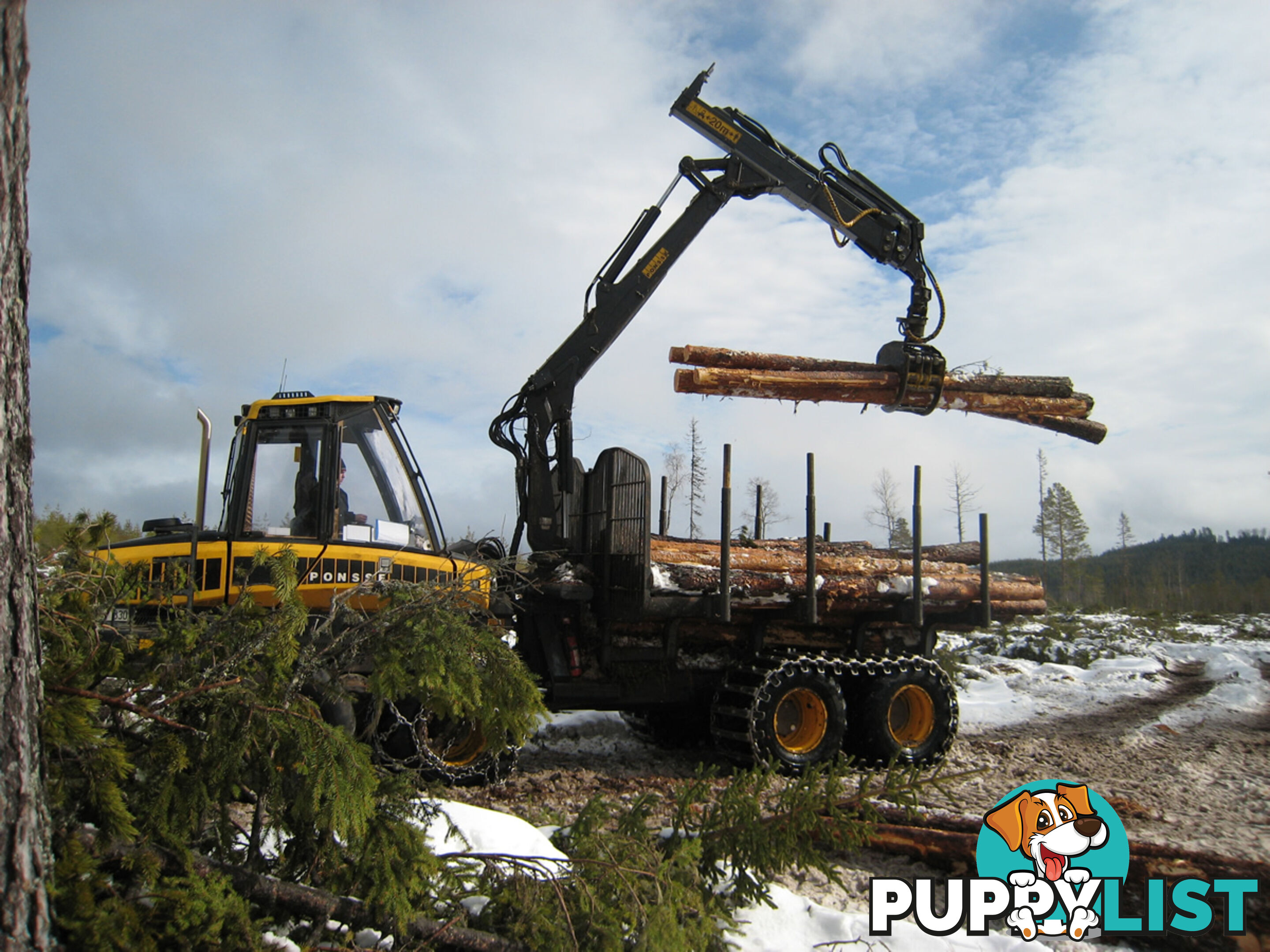

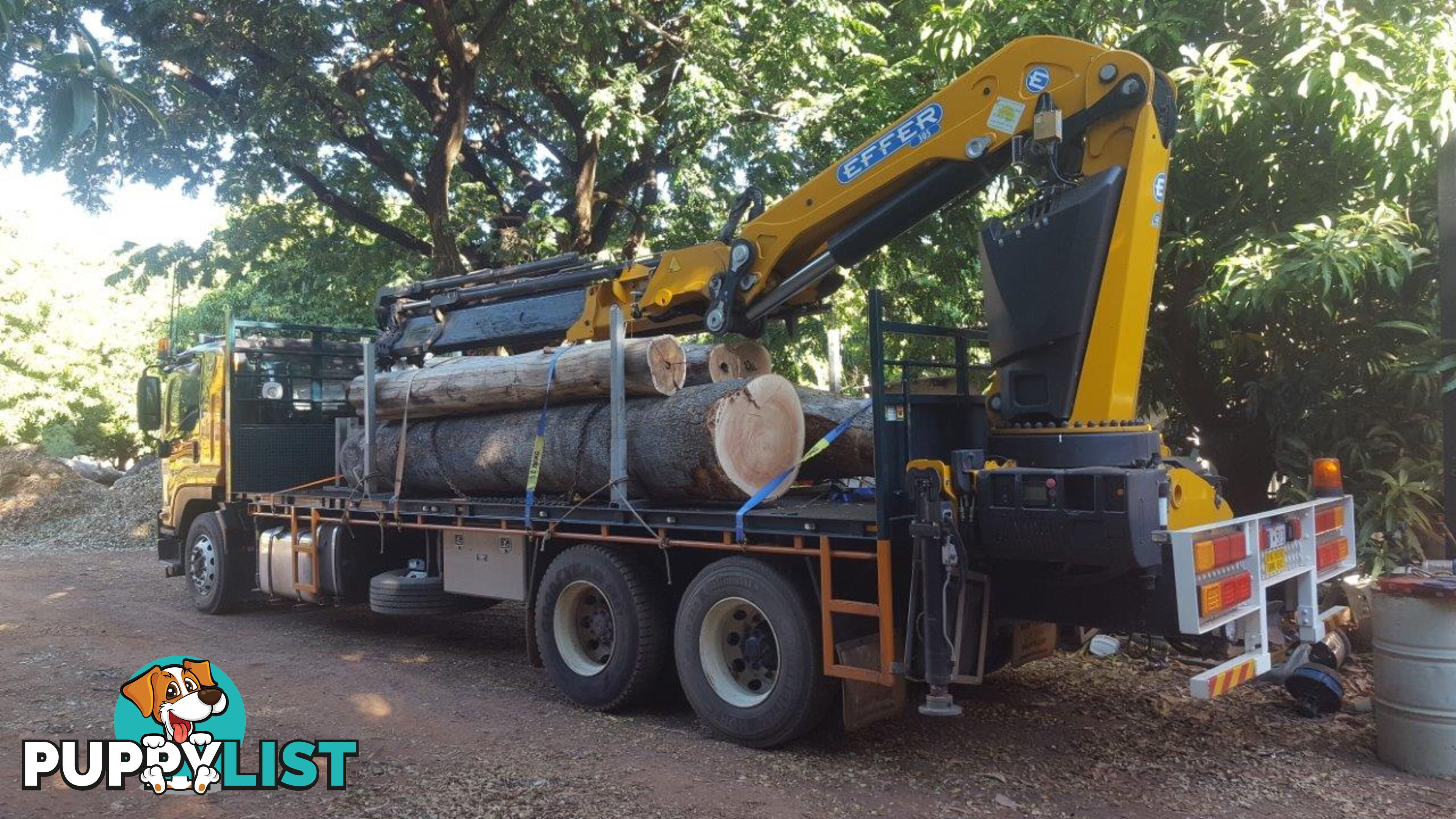

Log grapples are the choice for stacking logs with forwarders, log sorting and feeding chippers.
The Crane Log Grapple series is lighter duty than the Excavator models as a Crane grapple doesn't have to put up with the extra stresses of dragging logs. This maximizes the capacity of your Crane, yet still ensures a long life.

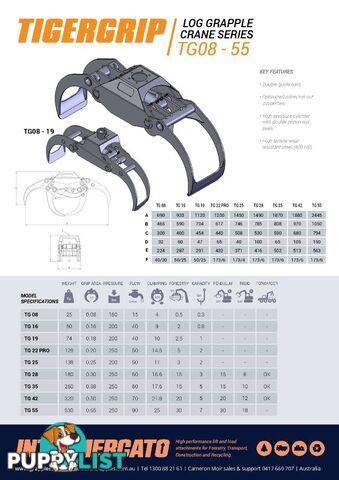

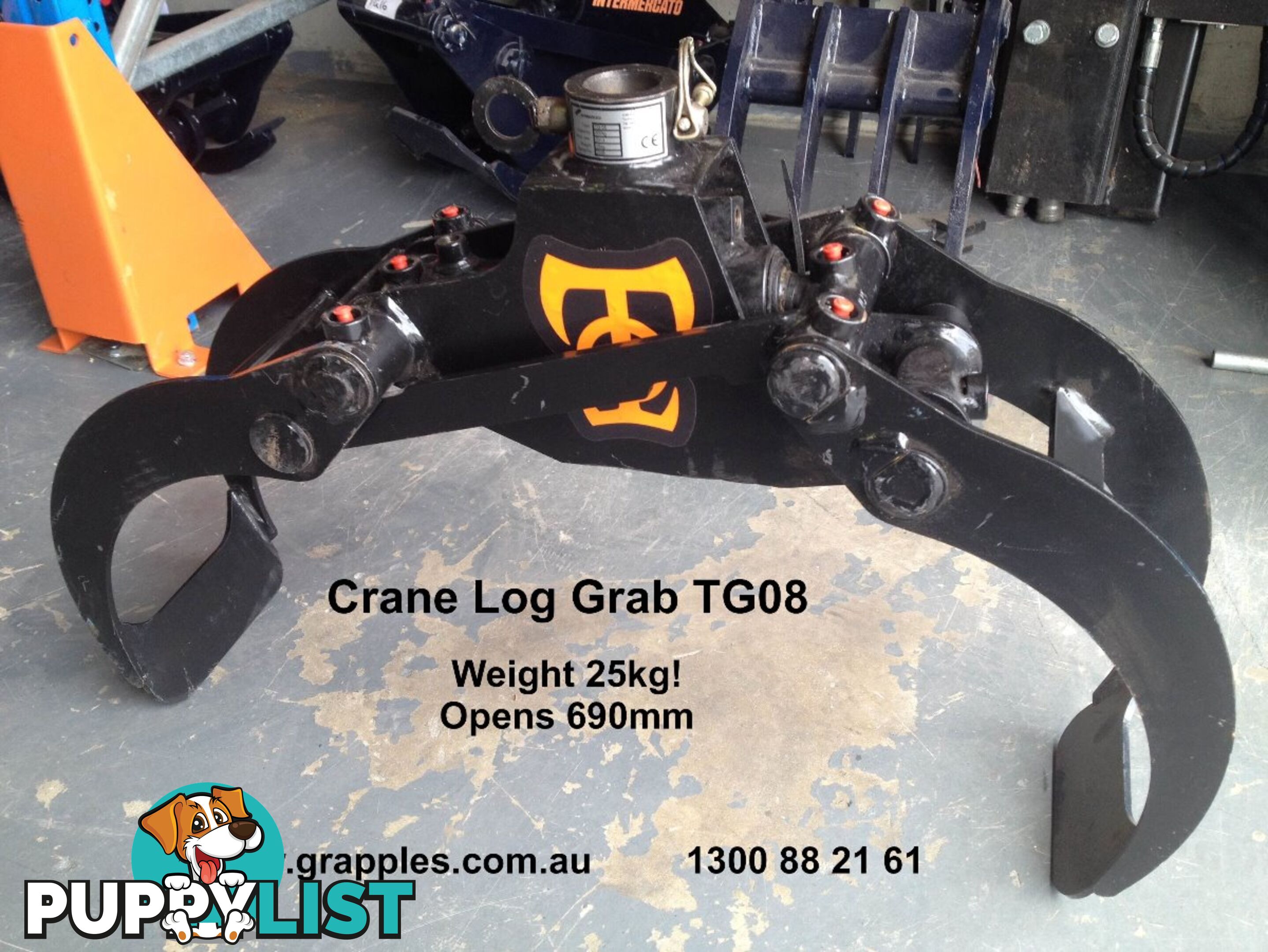

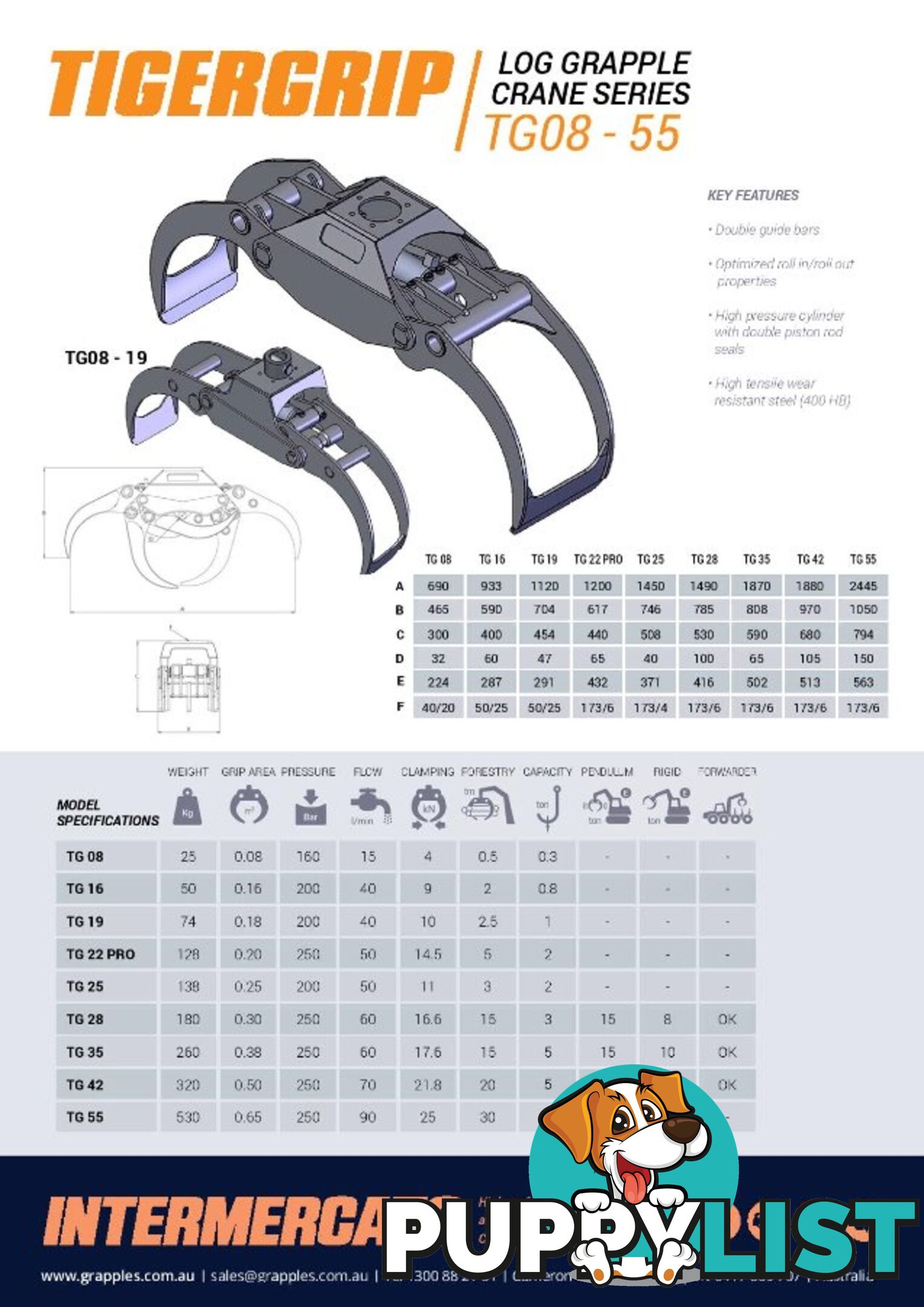

TG08 Weight:25kg Crane:0.5tm Opening width:690mm Closing width:32mm
TG16 Weight:50kg Crane:2tm Opening width:933mm Closing width:60mm
TG19 Weight:74kg Crane:2.5tm Opening width:1120mm Closing width:47mm
TG22PRO Weight:128kg Crane:5tm Opening width:1200mm Closing width:65mm
TG25 Weight:138kg Crane:3tm Opening width:1450mm Closing width:40mm
TG28 Weight:180kg Crane:15tm Opening width:1490mm Closing width:100mm
TG35 Weight:260kg Crane:15tm Opening width:1870mm Closing width:65mm
TG42 Weight:320kg Crane:20tm Opening width:1880mm Closing width:105mm
TG55 Weight:530kg Crane:30tm Opening width:2445mm Closing width:150mm
All Log Grapples - for Cranes have the following features:
Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.
High clamping forces with oversized pistons - allows secure gripping of any load.
Excellent bundling geometry - giving rapid productivity.
All excavator series made from the highest quality steel available - HARDOX.
Built by a company specializing in excavator grabs and grapples for over 20 years.

All grapples can be matched with Intermercato's line up of 360 degree continuous rotators.
