Stone - Rock Grab

DESCRIPTION

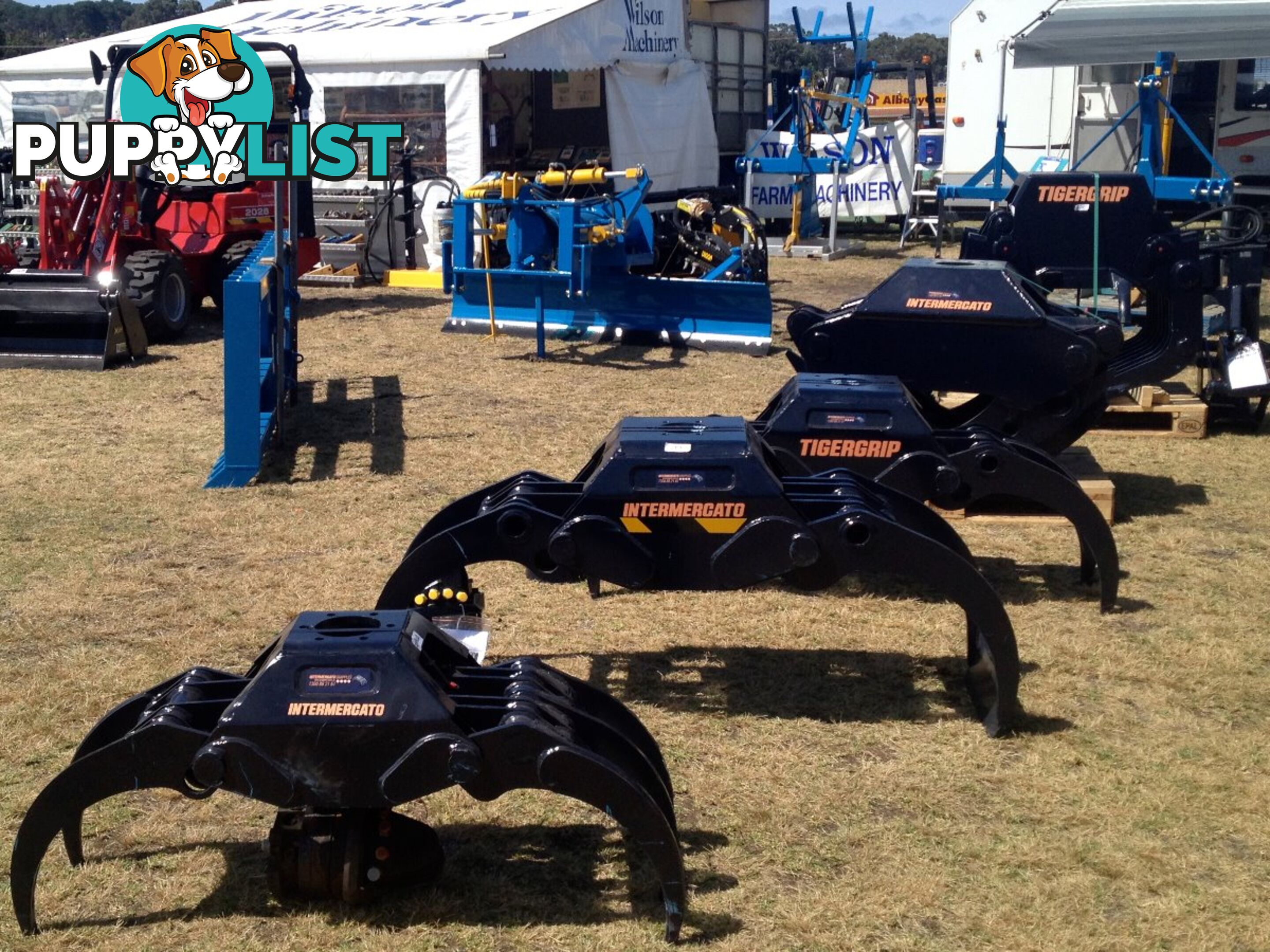

Intermercato stone rock grabs are suited to excavators and cranes from 2 tonne to over 30 tonne capacity.
If you work in stone, then a specialist stone rock grab or universal five finger grab is the best choice for you.
Specialist stone rock grabs have hard wearing faceplates for long term production work in harsh conditions. Customers use these grapples for hard wearing products including stone, mining, demolition, concrete sorting and bulk material transfer.
Stone rock grabs are of the modern bypass design, allowing wide opening widths to pick up large stone and give great capacity but still allowing very tight closing to handle a variety of sizes. Larger designs also use cutting edges for superior block handling. Intermercato stone rock grabs are designed to give high gripping forces on hard rock.

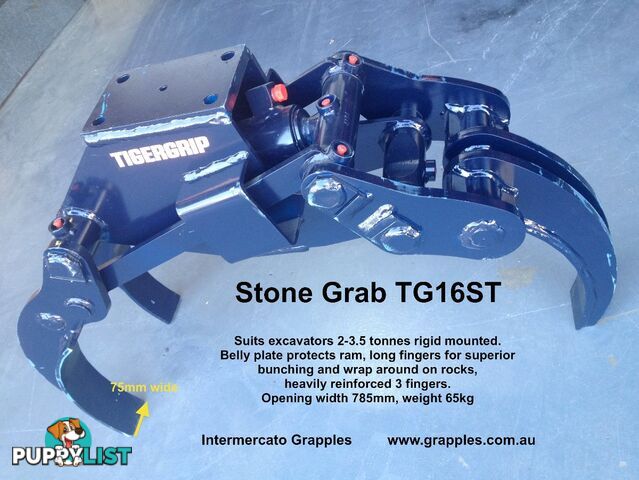

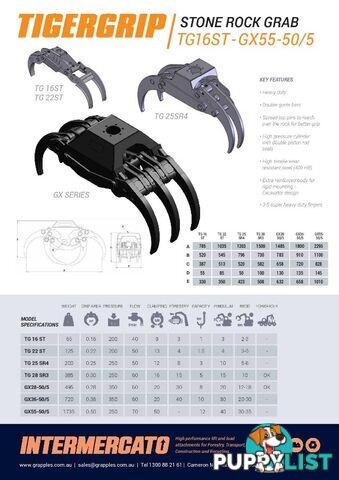

TG16ST Weight:65kg Excavator weight:2-3tonne Opening width:785mm Closing width:55mm

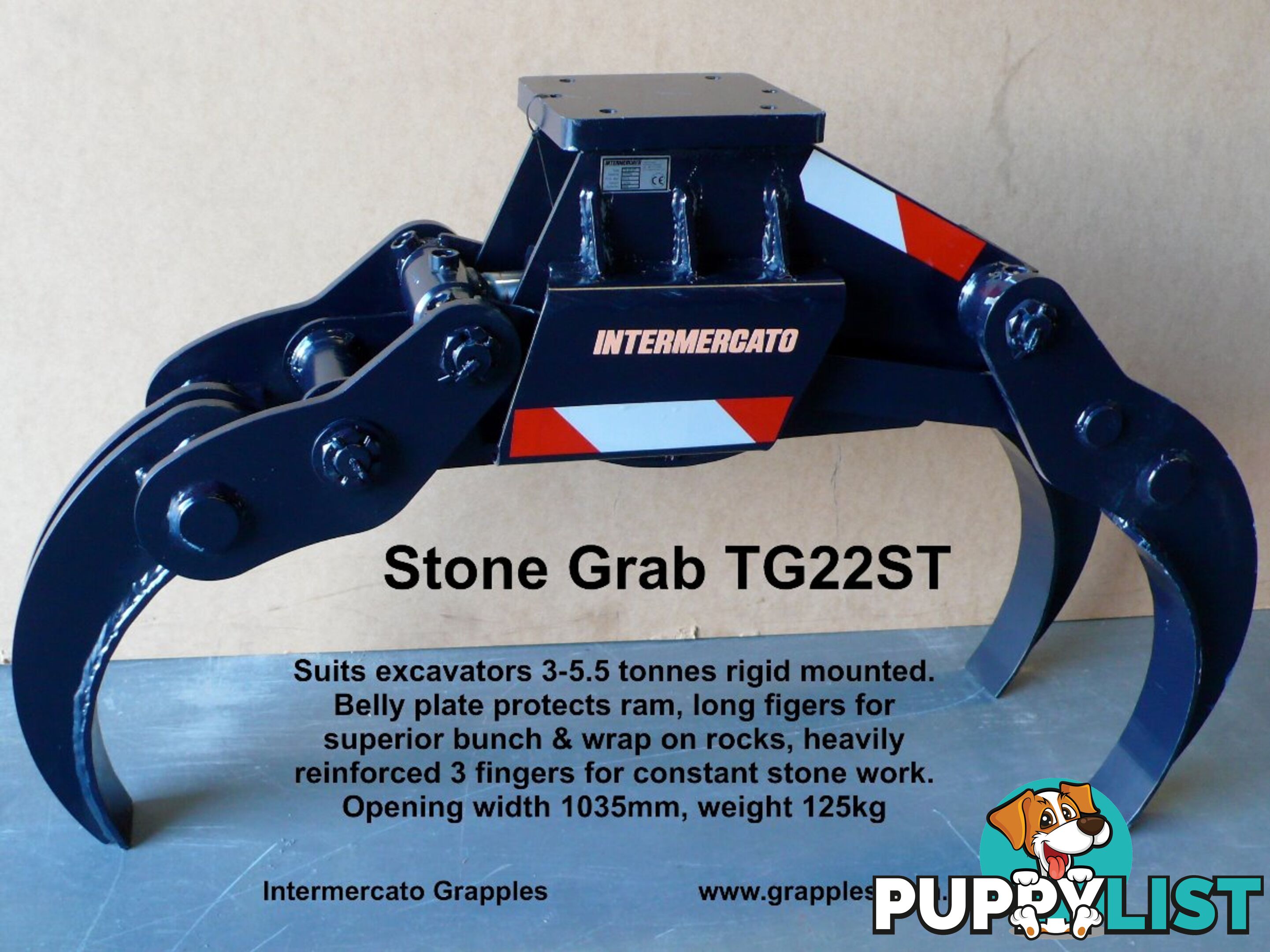

TG22ST Weight:125kg Excavator weight:3-5tonne Opening width:1035mm Closing width:85mm
TG25SR4 Weight:200kg Excavator weight:5-8tonne Opening width:1203mm Closing width:50mm
TG28SR3 Weight:385kg Excavator weight:10tonne Opening width:1500mm Closing width:100mm
GX28-50/5 Weight:495kg Excavator weight:12-18tonne Opening width:1485mm Closing weight:130mm

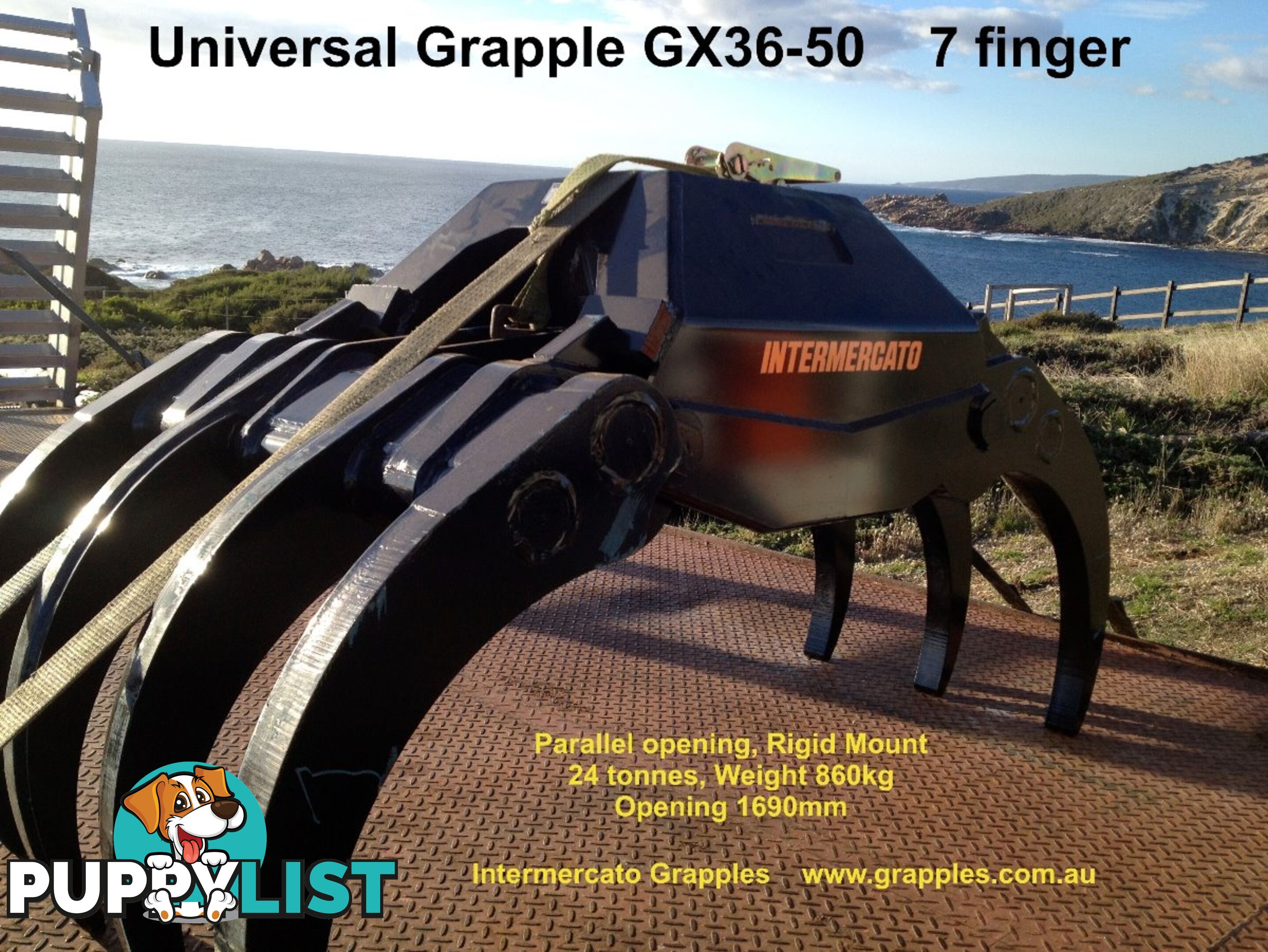

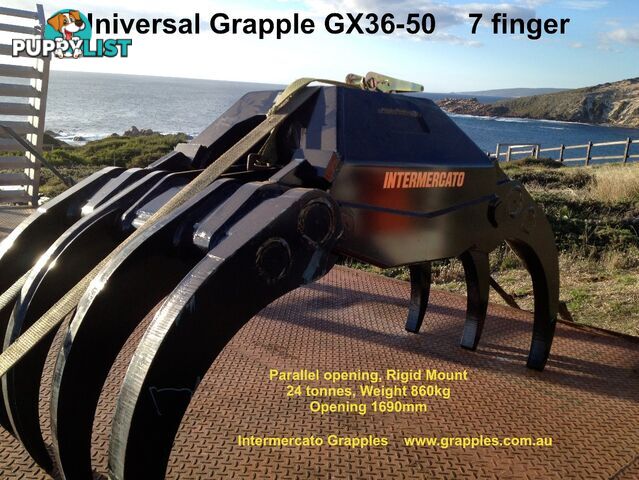

GX36-50/5 Weight:720kg Excavator weight:20-30tonne Opening width:1800mm Closing width:135mm
GX55-50/5 Weight:1735kg Excavator weight:30-35tonne Opening width:2295mm Closing width:145mm
All stone rock grabs have the following features:
Excellent GRIPPING FORCE for hard rock with 3 - 5 heavy duty fingers.
Extra reinforcing over the tines for maximum life in constant production work.
Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.
High clamping forces with oversized pistons - allows secure gripping of any load.
All excavator series made from the highest quality steel available - HARDOX.
Built by a company specialising in grabs and grapples for over 20 years.
Optional overcentre valves.

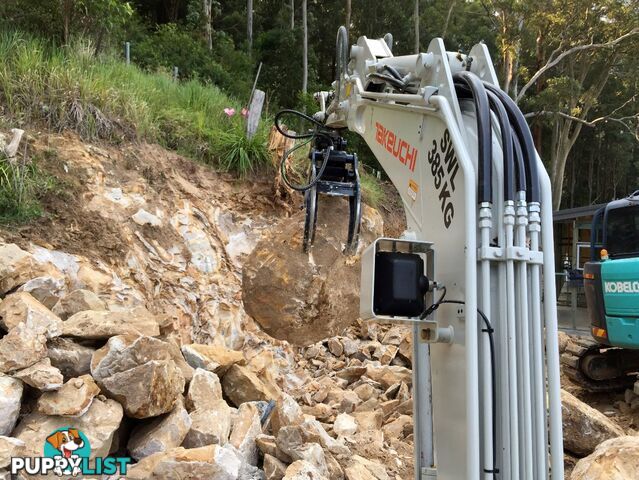

Intermercato's fully hydraulic stone rock grabs allow the operator to still have full control of the tilt cylinder so objects can be picked up and placed precisely with more ease.Tilt cylinder can be used for raking. Reach OVER the rock as the top pin are spread apart, allowing you a more secure grip on your load.
For more details see -http://www.grapples.com.au/stone-rock-grabs
