15-32 ton (80mm pin) Excavator Ripper suit Cat, JCB, Kobelco, Komatsu, Sumitomo

DESCRIPTION

Barely Used Kenbuilt Excavator Ripper, suit 15-32 Ton machine.

Designed for Case, Caterpillar, JCB, Kobelco, Komatsu, Liebherr, Link-Belt, New Holland, Sumitomo etc. but will fit other machines (see below list of machines we have found so far).

Great for ripping up tree roots, breaking up rock and loosening rocky ground, tarmac, paved areas etc.

Condition is Used but it has very little wear.

This is a strong, well engineered & reinforced Ripper with a solid 70mm thick shank.
Kenbuilt is a Brand of attachments by the Australian Company Melbourne Tractors Group / Meltrac Machinery.

*** Current Headstock configuration:

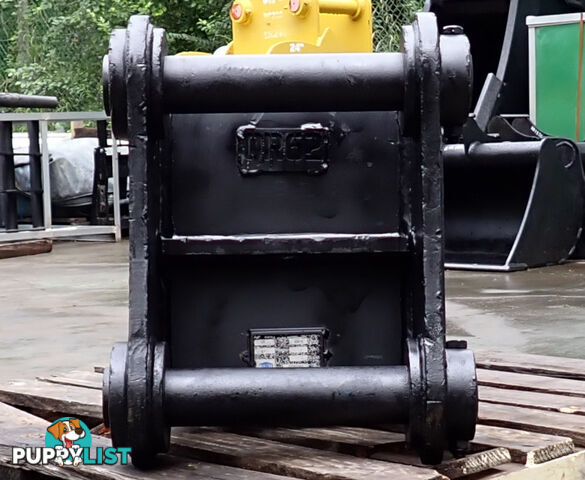

80mm Pin Diameter, 434mm Pin Center to Pin Center (CtoC), 328mm Between the inside Ear Bosses (which can be shaved back up to 370mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

* Should fit: Case CX160, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, JCB JS150LC / JS160 / JS160LC / JS180 / JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Komatsu PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, Link-Belt 160LX / 160X2 / 225SA / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200LC / SH215U-1 / SH215X-1.

* Maybe fit: Case 9021 / CX210 / CX210B / CX225SR, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX150 / EX150-1 / EX150-2 / EX150-3 / EX150-4 / EX150-5 / EX160 / EX165 / EX200 / EX215 / FH165 / FH200 / FH215, Hitachi Zaxis 160 / 200 / 200 LC / 210 / 225US LC / 225USR, Hyundai R210LC-7, John Deere 160C LC / 200C LC / 200D LC / 225C LC RTS, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PW210, Link-Belt 210LX, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Sumitomo SH200-3 / SH200LC-3 / SH210-5 / SH225X-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

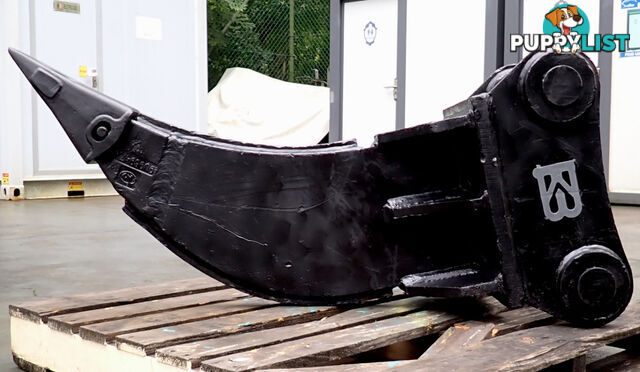

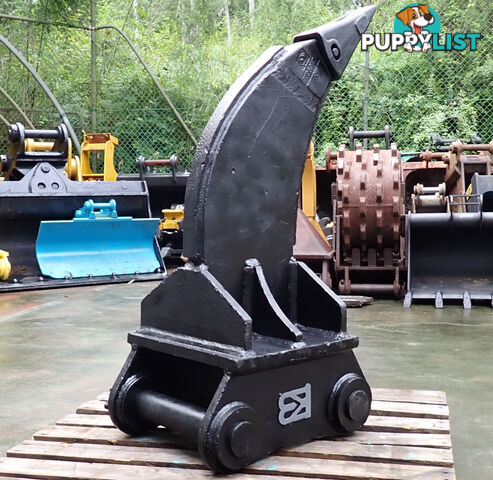

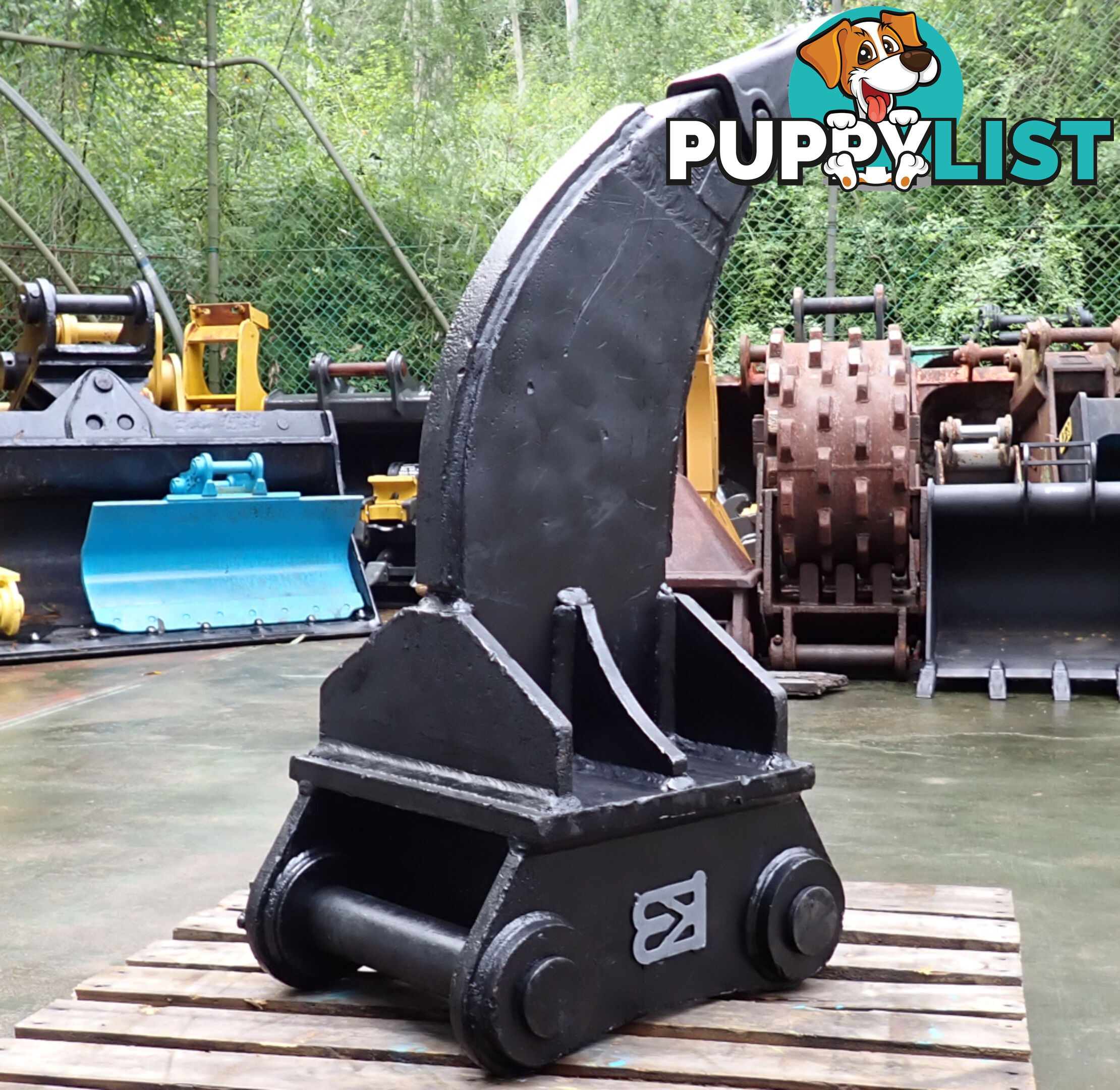

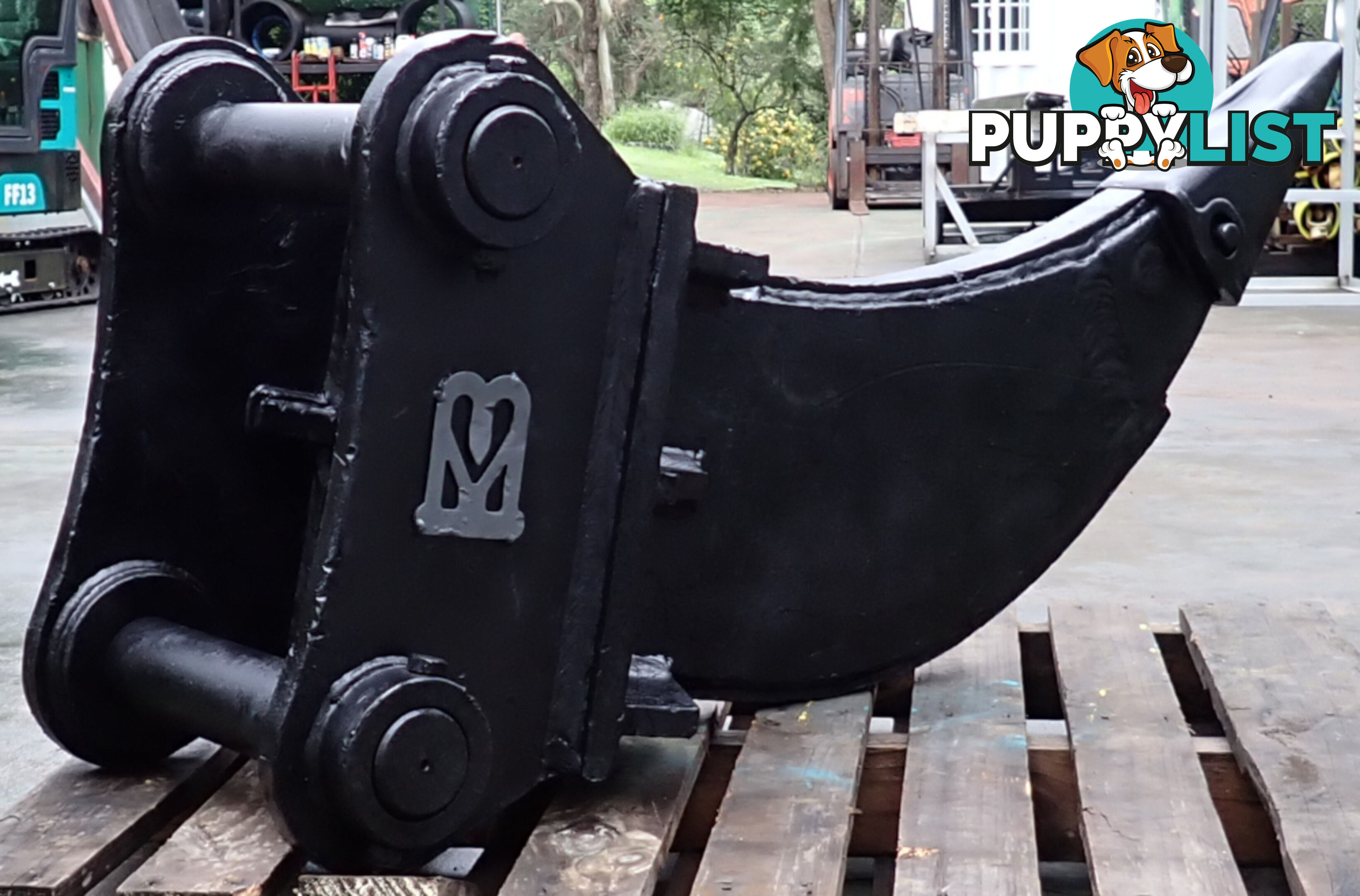

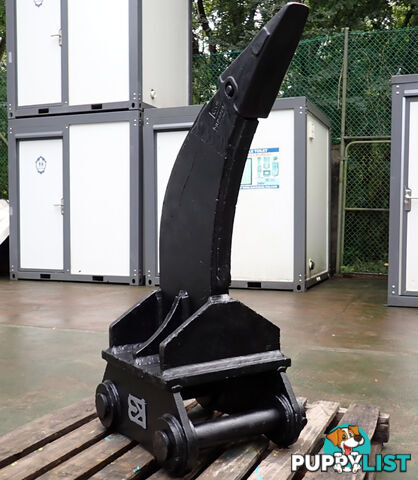

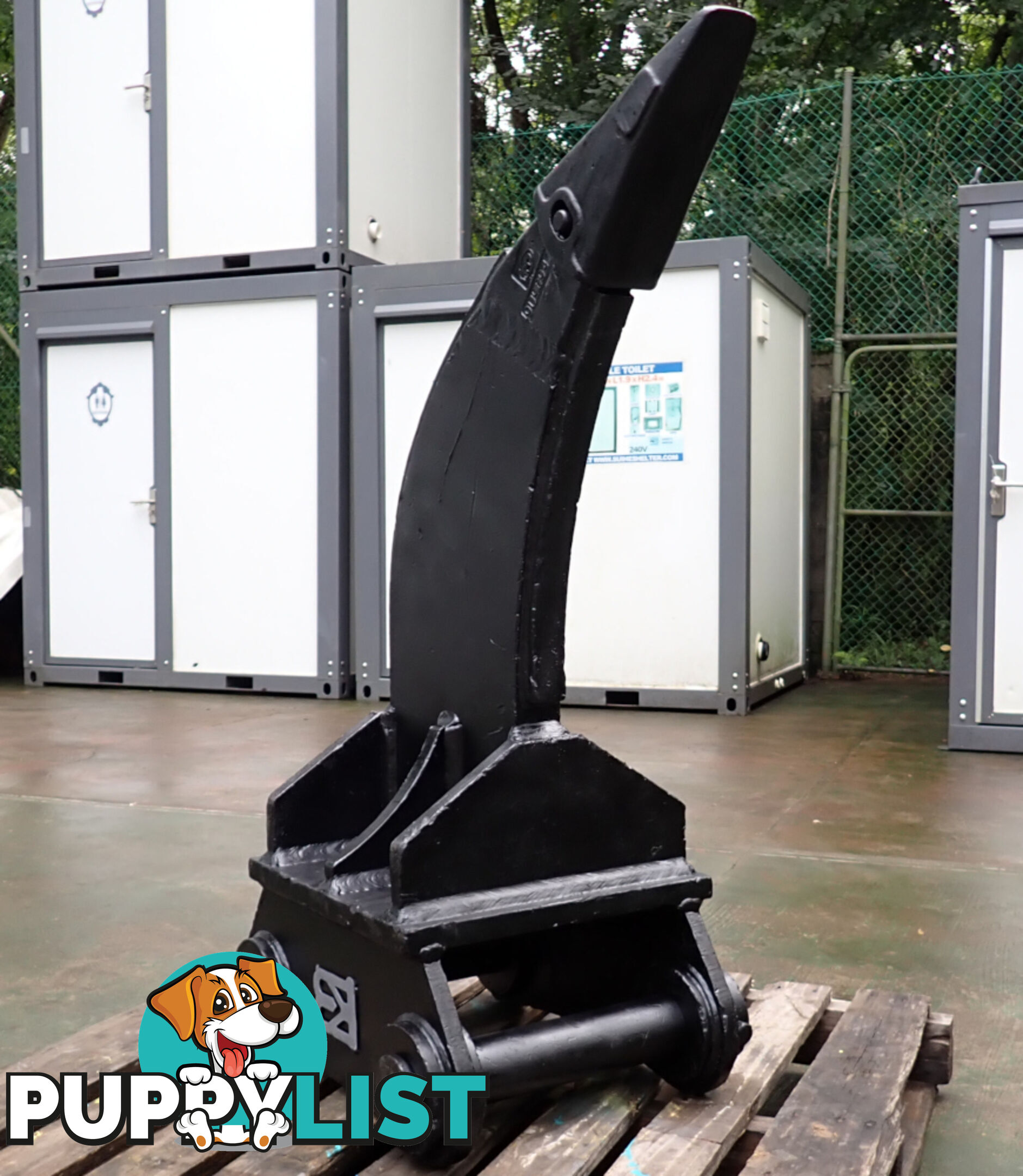

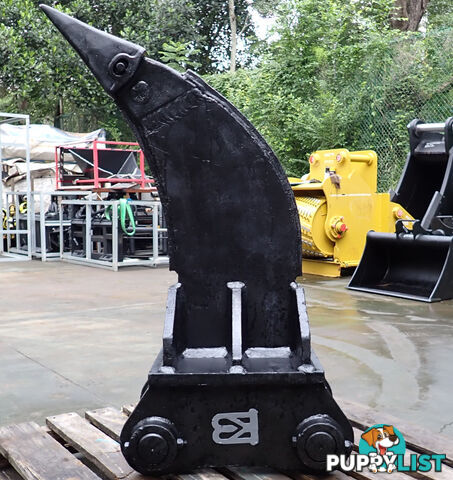

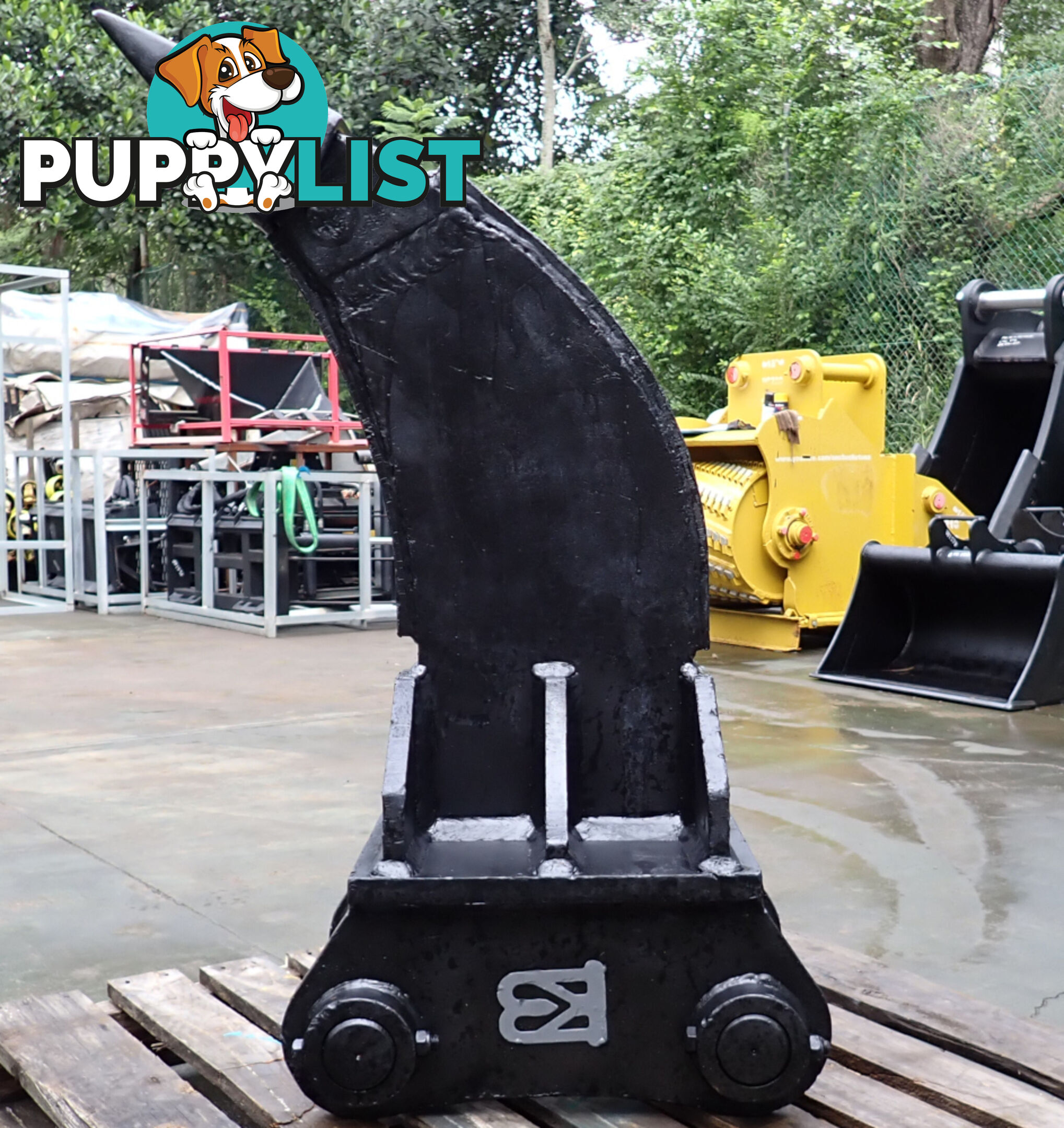

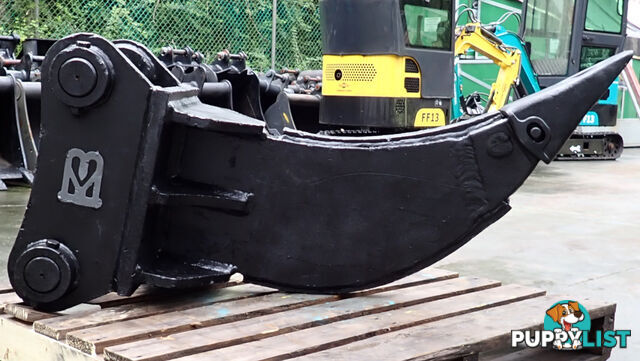

Dimensions (standing up as in pics# 1-5): 1270mm High, 505mm Wide, 860mm Deep (from back to front of tooth). Weight: 376kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
