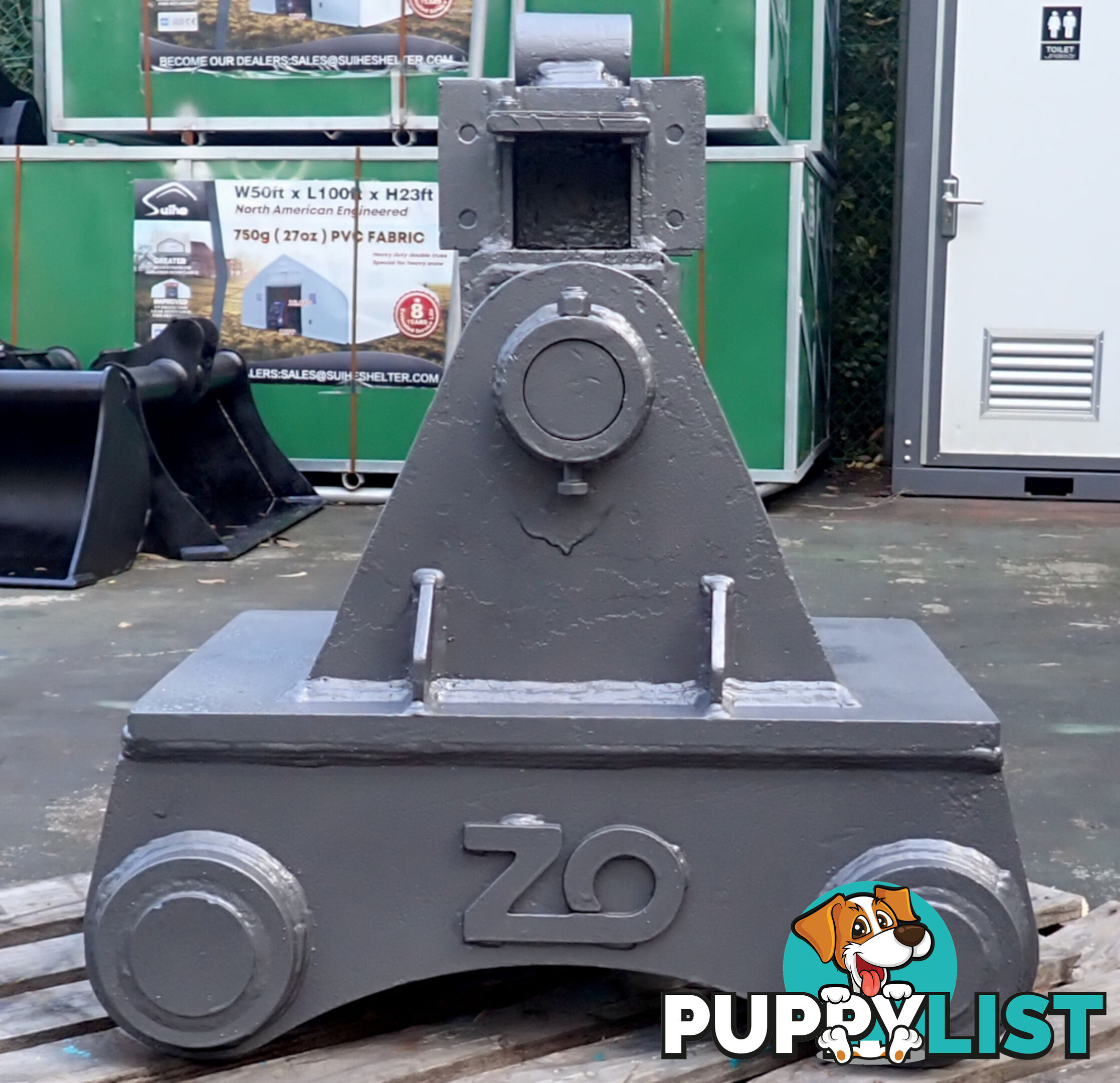

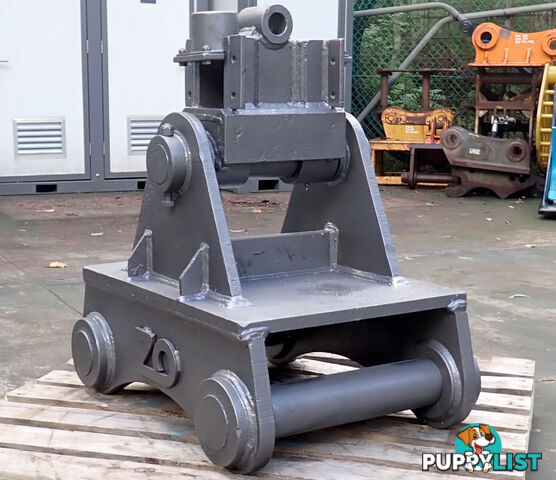

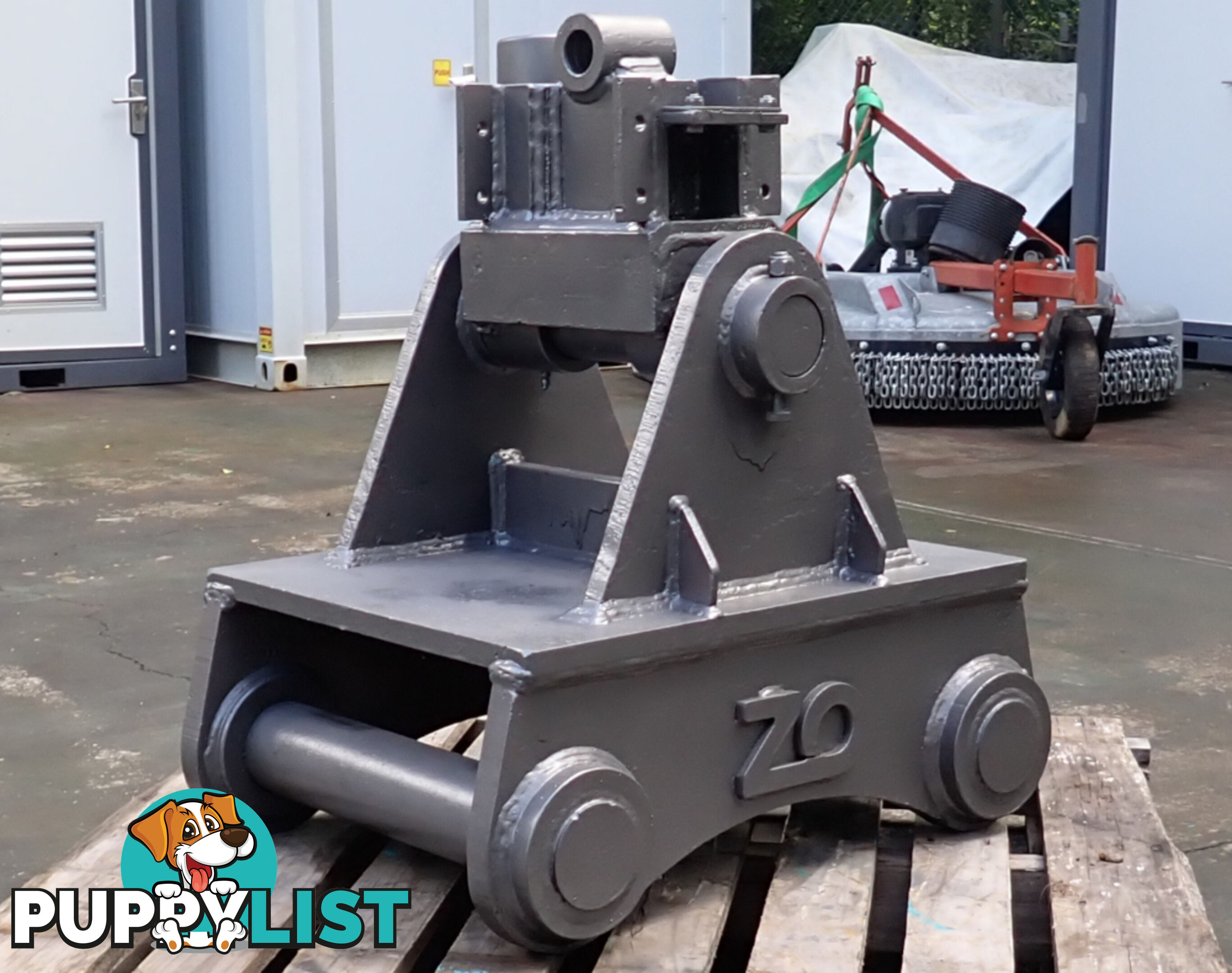

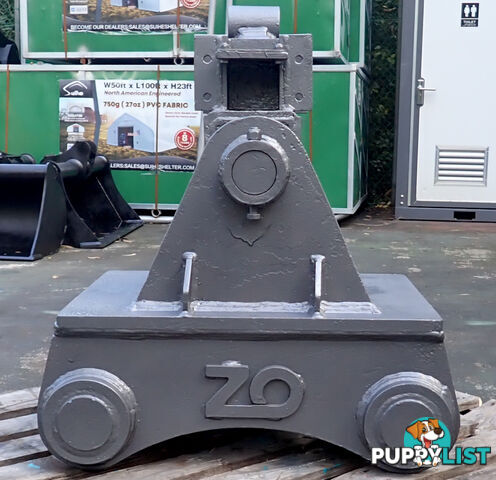

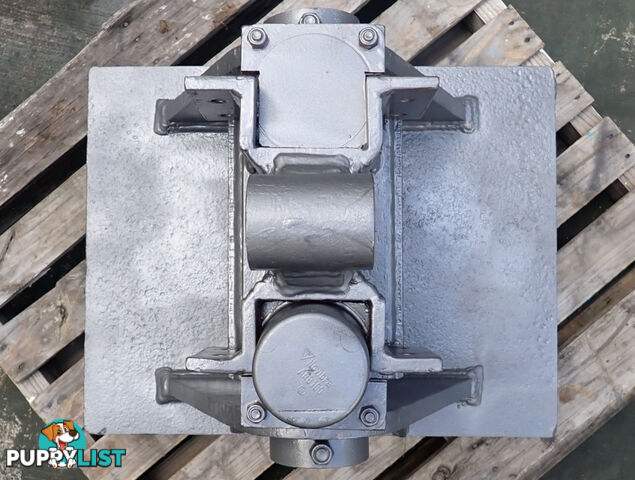

30-50 ton (100mm pin) OZ Buckets Excavator Auger Headstock Hitch Mount

DESCRIPTION

New 100mm pin Excavator / Backhoe Auger Headstock Hitch Mount to suit 30-50 ton machines.

Can be used for a mounting headstock for an Auger Motor Drive or similar hanging attachment.

This is a quality, well engineered Auger Headstock Made in Australia by OZ Buckets: Visit Website

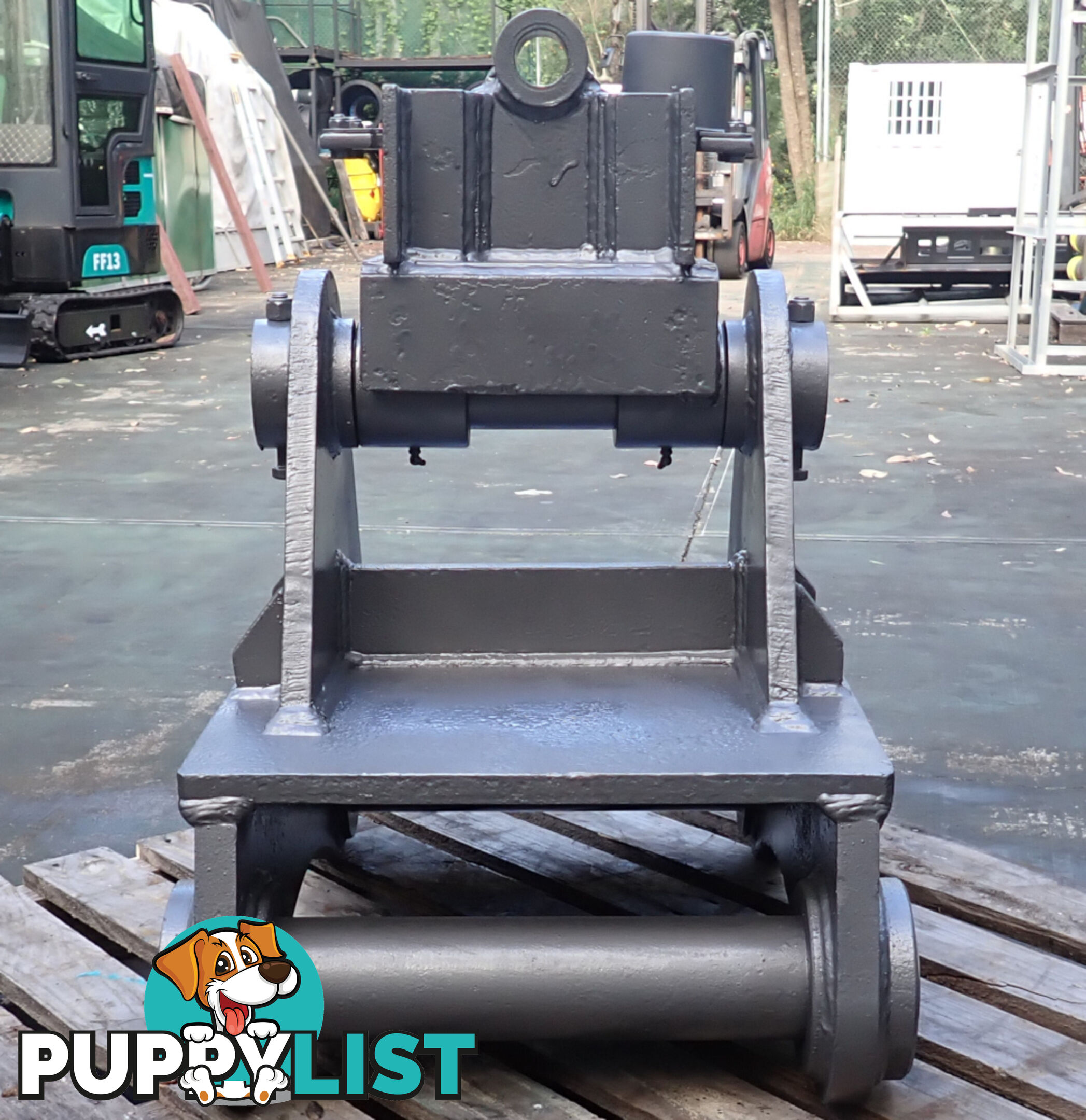

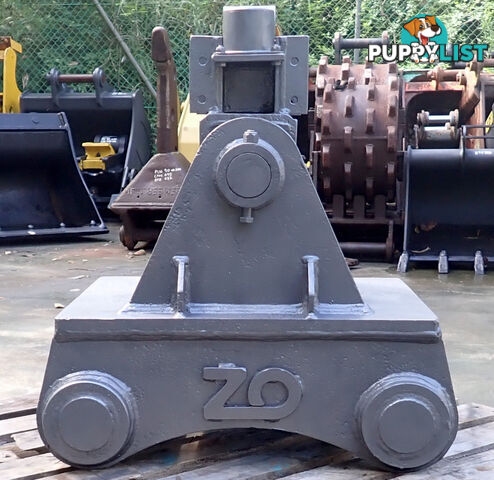

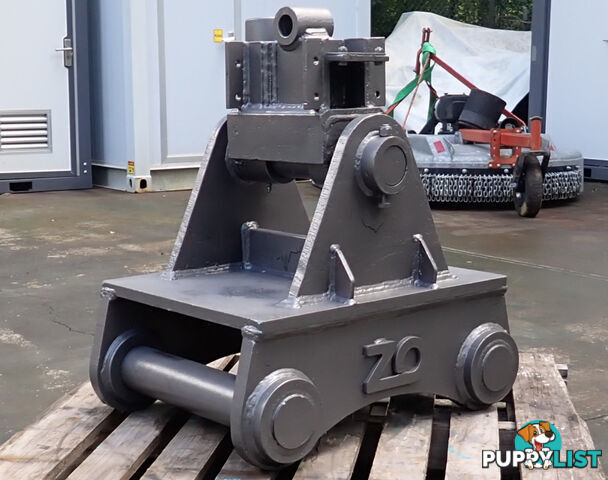

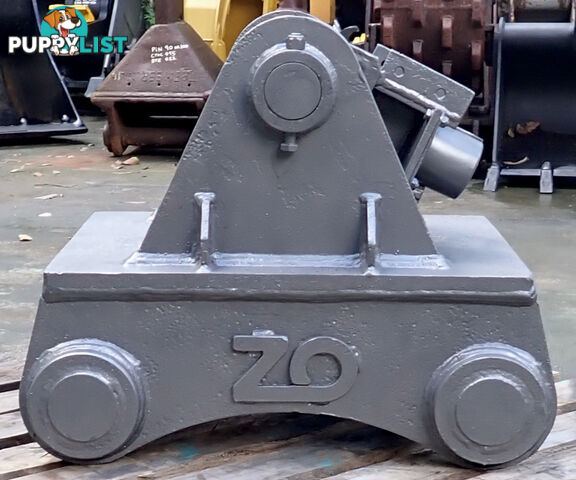

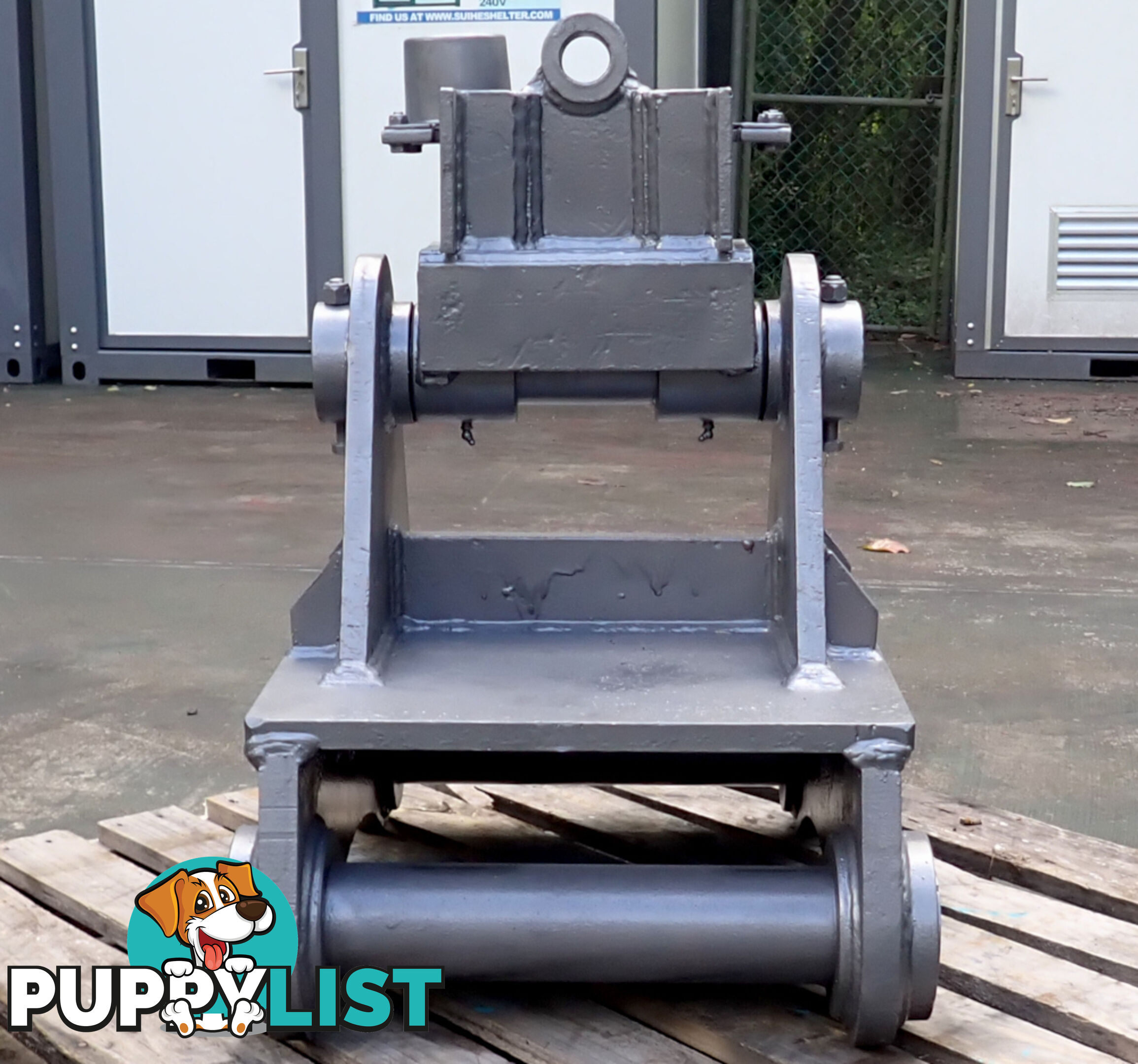

There are 2 grease nipples for lubricating the swivel mechanism (see pics# 3 & 7).

It is unused but had sat in the rain for a little and has some light pitting in a few places. We have given it a clean up and fresh paint to protect it while it waits to find a new home.

Unlike most Auger Headstocks, this model's design features 2 big round rubber stoppers to absorb impact shock if the drive motor swings wildly upward when connected to the machine (rare), or the headstock is dropped onto the Drive Motor when not connected to the machine (possible). The rubbers sit either side of the mounting hole to the Auger Drive Motor, but one of these Rubber stoppers has come off, though it is not necessary for normal Auger use (see pic# 10 looking from above).

It is in otherwise perfect unused condition.

***** Pin setup to Excavator Hitch:
100mm Pin Diameter, 584mm Pin Center to Pin Center (CtoC), 426mm Between the inside Ear Bosses (which can be shaved back up to 458mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Hitachi EX300 / EX310 / EX330 / EX350 / EX355, Hitachi Zaxis 300 / 330 & LC / 350 / 350LC / 350LC-3 / 370, John Deere 350D LC / 370C, Samsung SE350-3 / SE450-3.

Maybe fit: Caterpillar 330B w/E Link / 330C w/E Link / 330C w/Mass Linkage / 345B w/Reach Linkage / 345C w/TB Link / E Family Linkage, Daewoo DX340 LC, Daewoo Solar 330LC-V / 360LC-V, Doosan DX340 / DX350LC-3 / S340LC-V, Halla HE360, Hyundai R320L / R320LC-3 / R360LC / R360LC-3 / R420LC / R450LC-3 / R450LC-7, Kobelco SK450 / SK480, Komatsu PC400 / PC400 Mighty / PC400-3 / PC400-5 / PC400-7 / PC400-8 / PC450, Volvo EC330B / EC360 / EC360B / EC460 / EC460B / MX365LS / SE360LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

***** Single Pin setup on swivel to Auger Motor:
45mm Pin Diameter hole, 101mm hole depth.

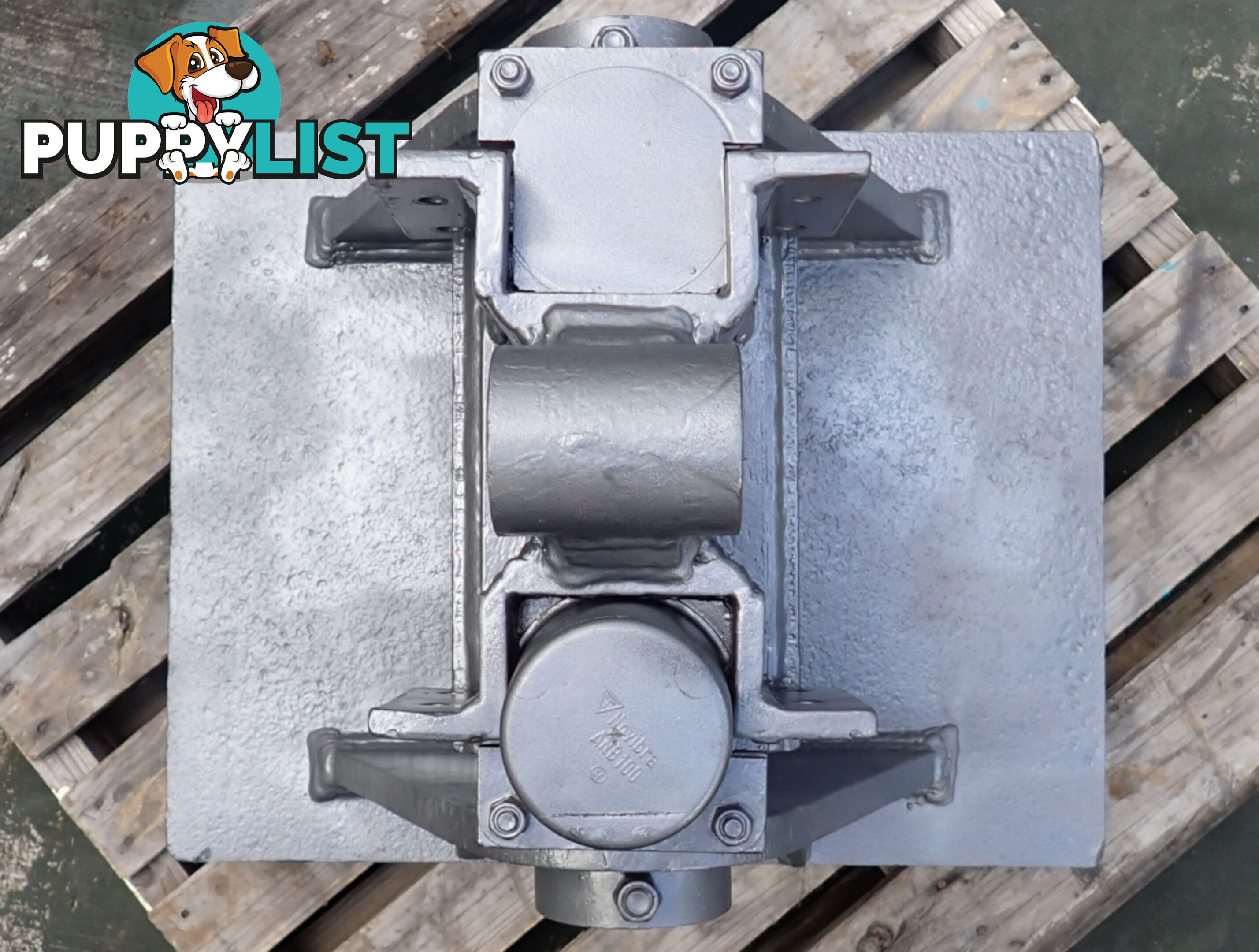

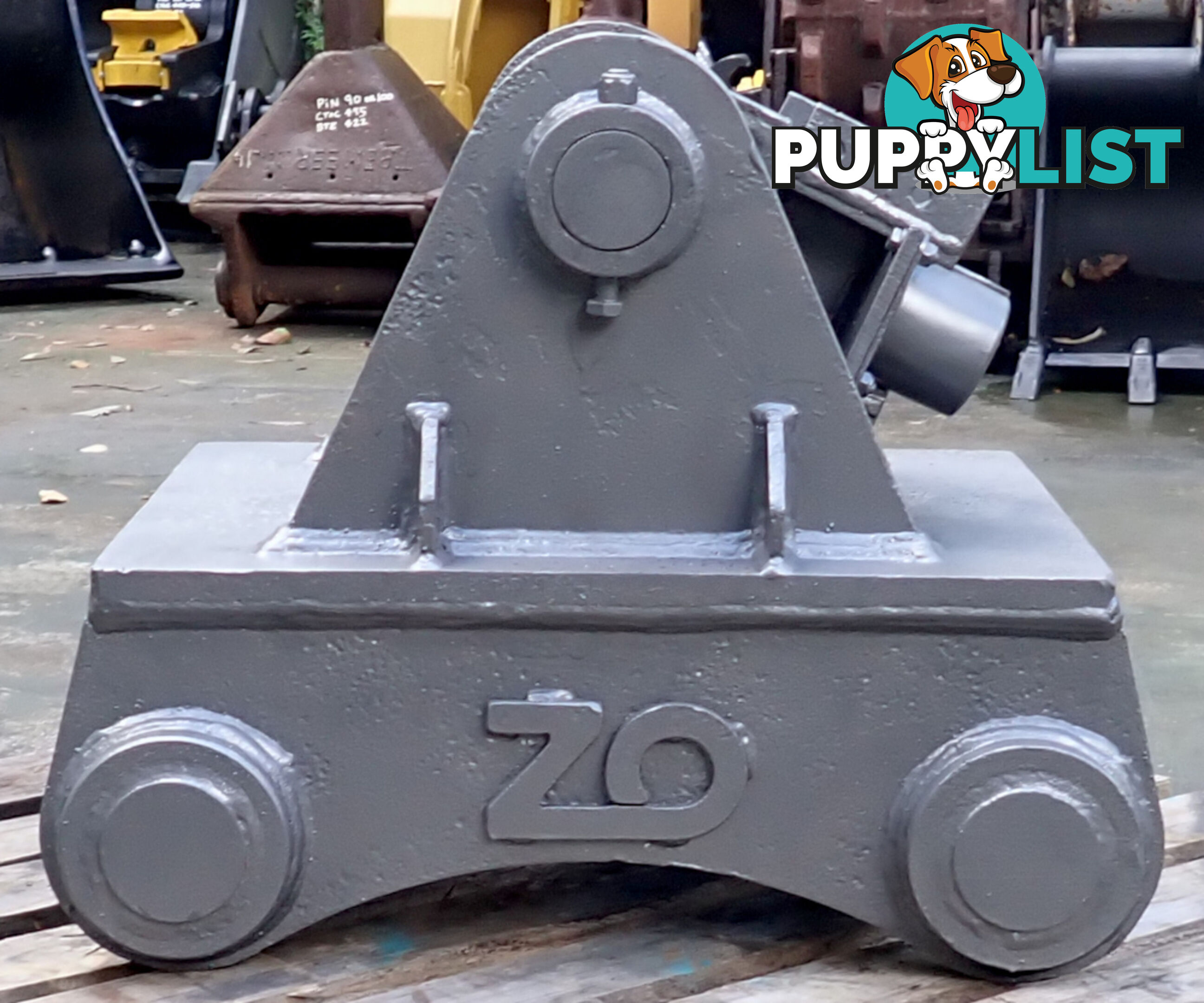

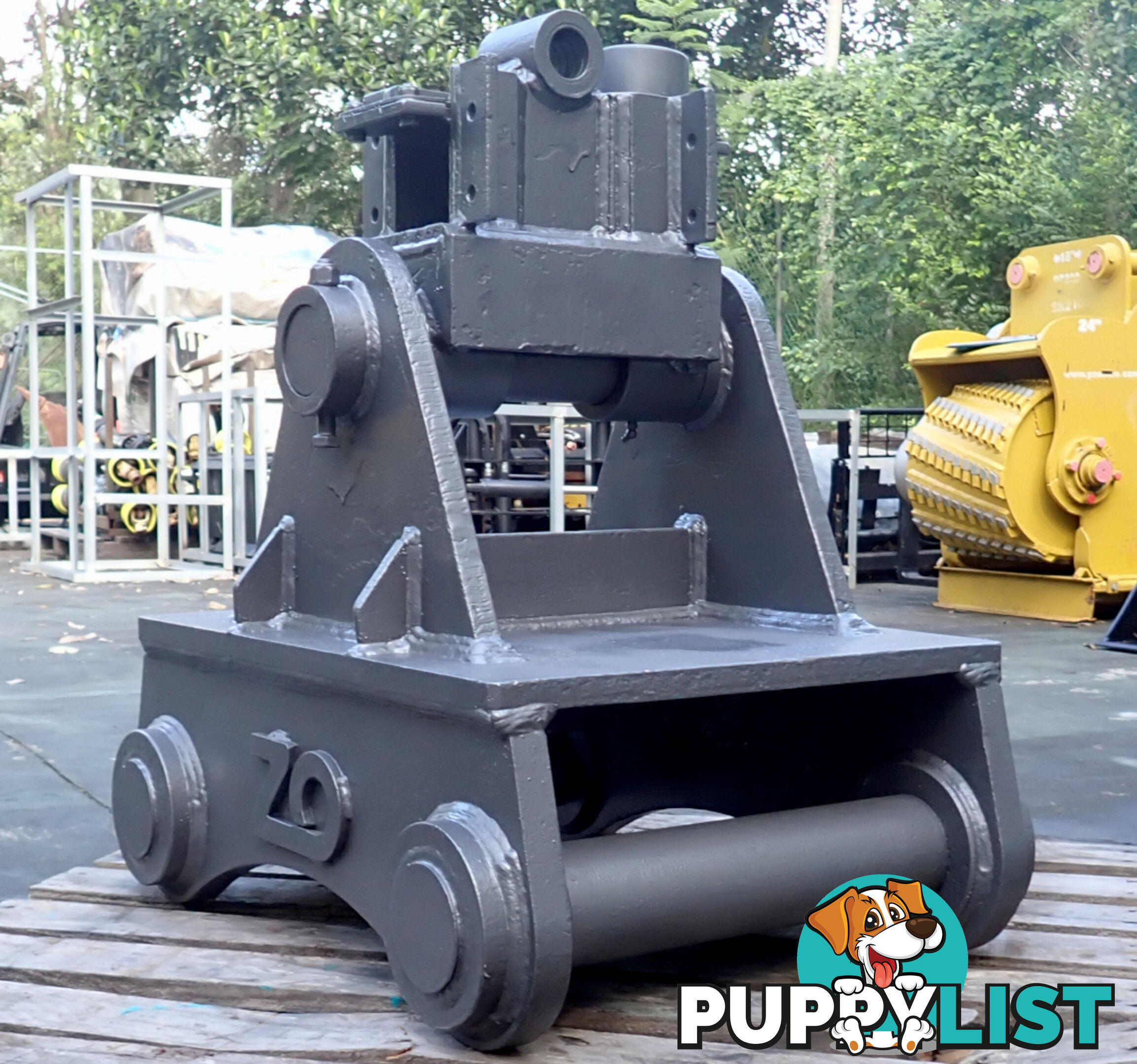

Shipping dimensions (upside down with swivel facing down (see pic# 6):
602mm Wide, 780mm Deep, 652mm High (875mm High with swivel upright). Weight: 376kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
