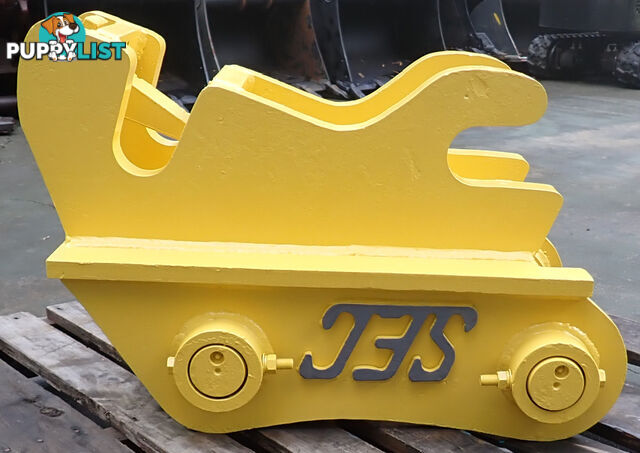

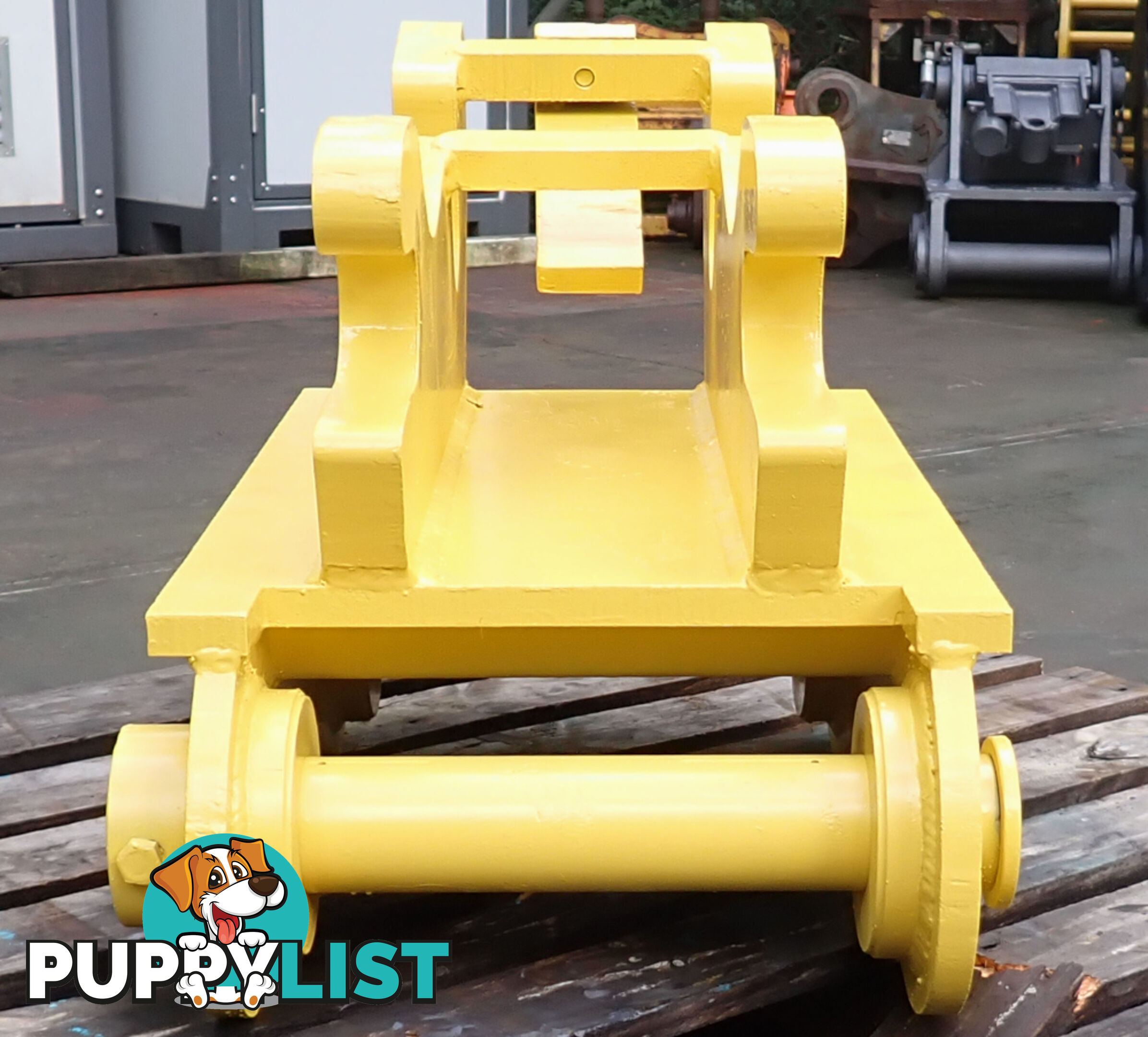

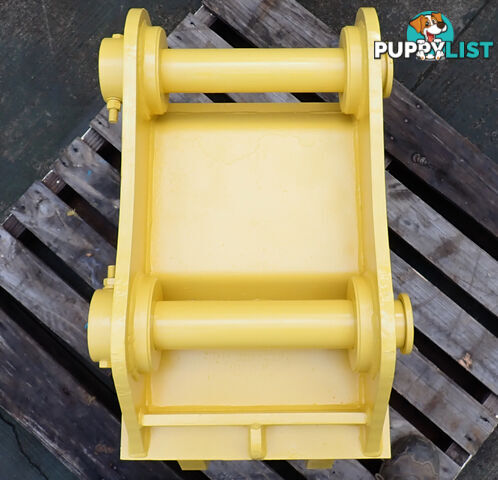

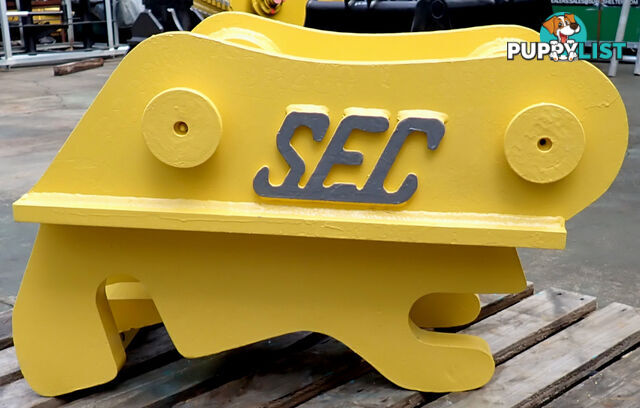

New 15-32 ton (80mm pin) SEC Excavator Mechanical Quick Hitch Coupler

DESCRIPTION

New SEC Excavator Mechanical Quick Hitch Coupling to suit 15-32 Ton machines.

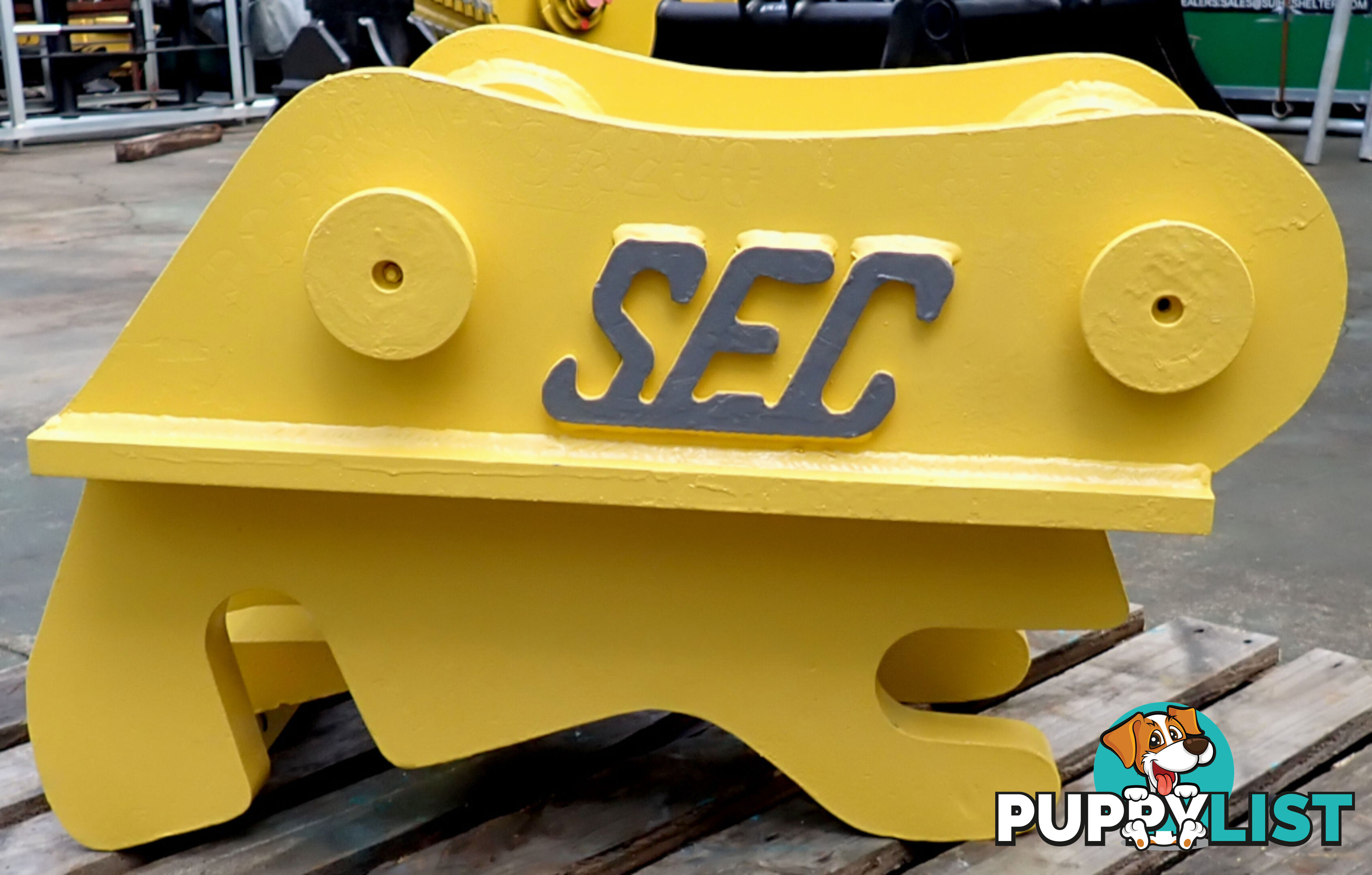

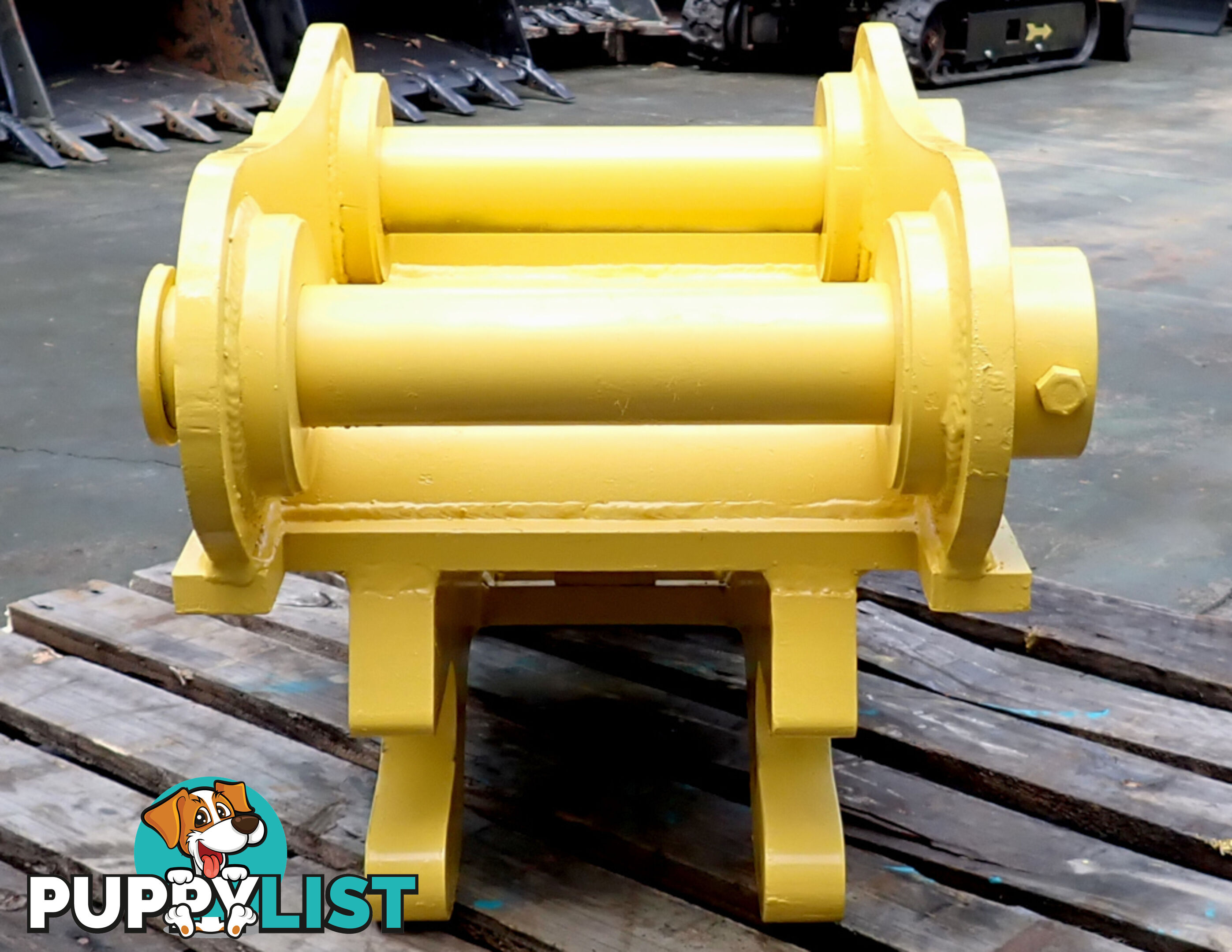

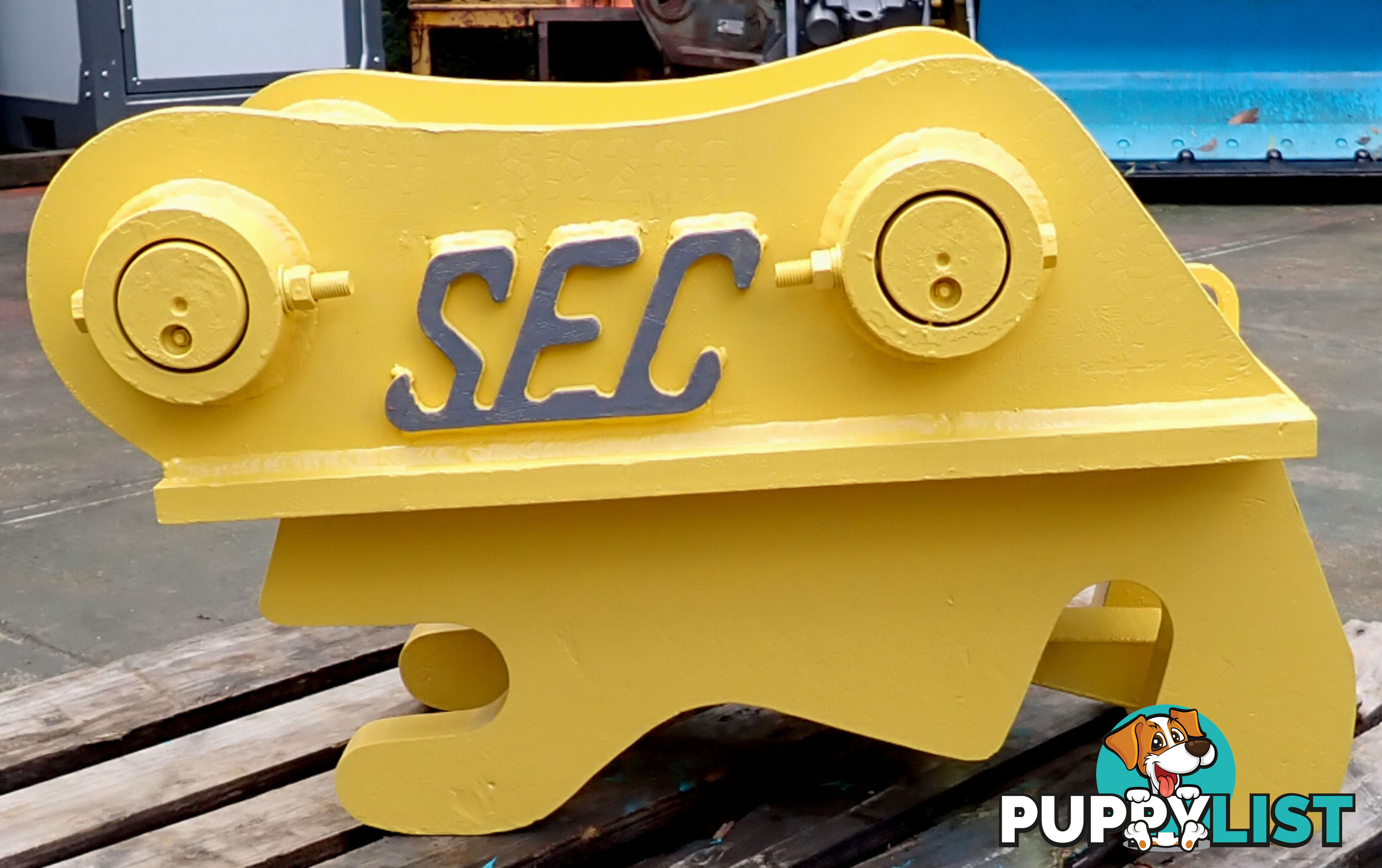

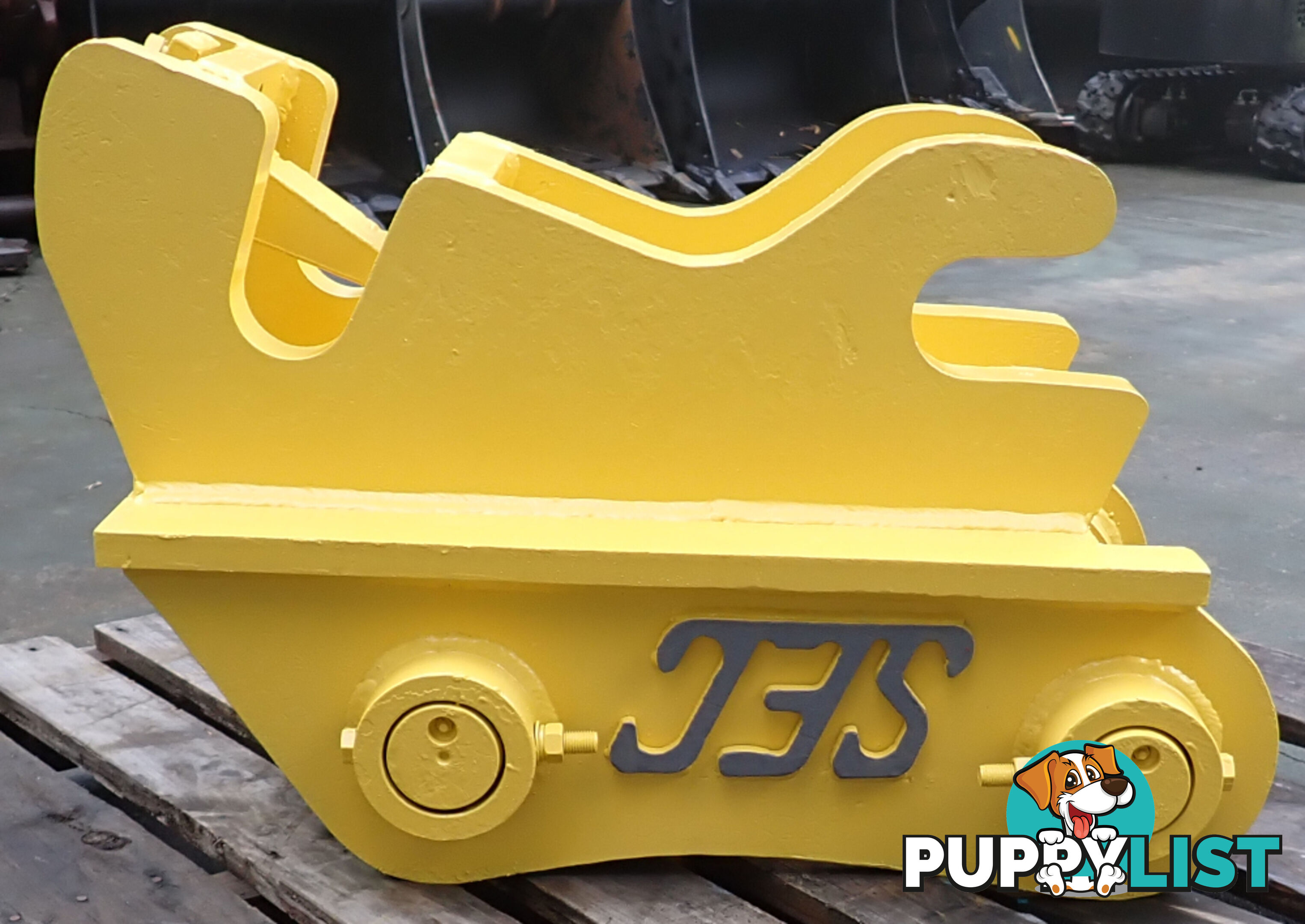

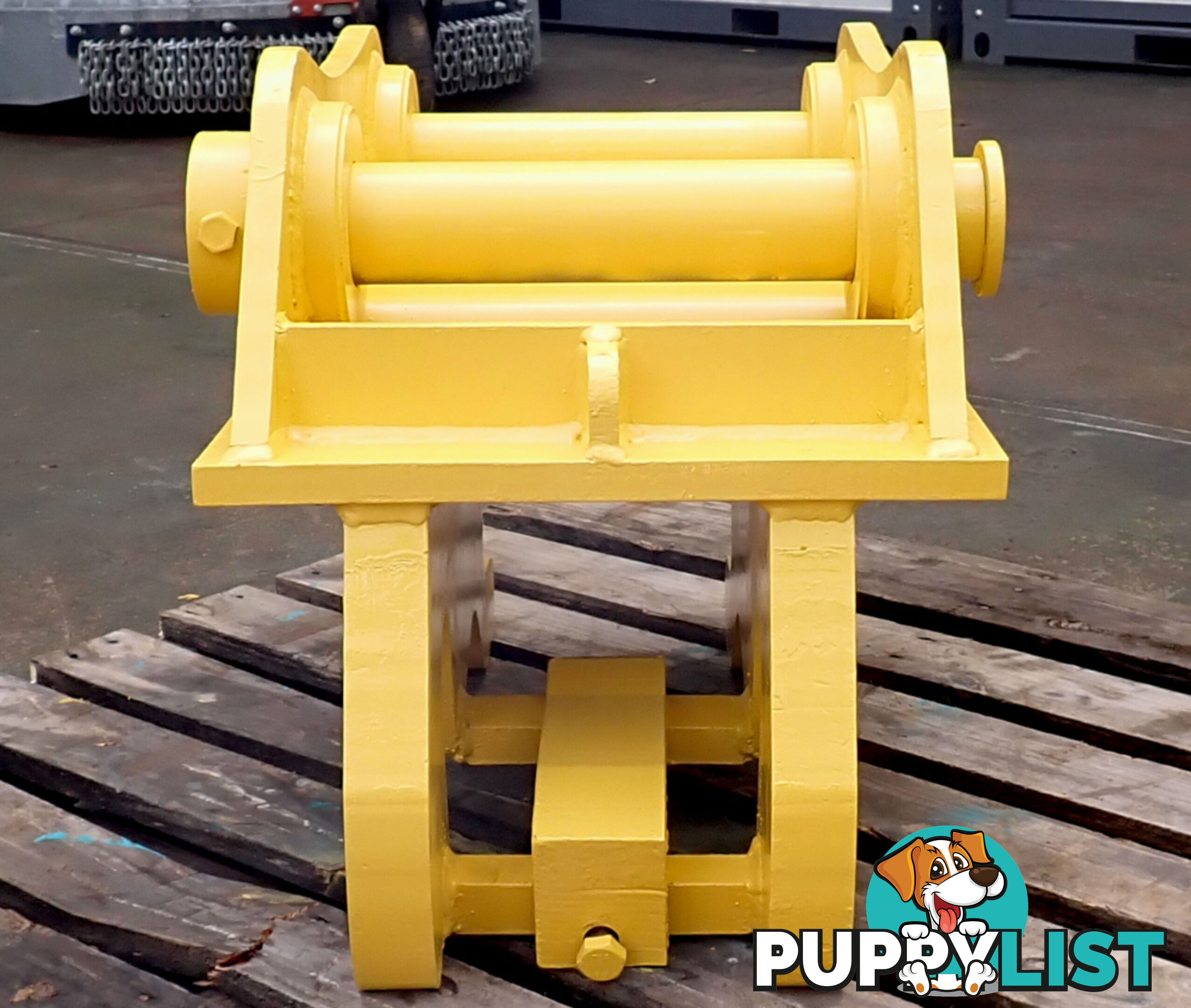

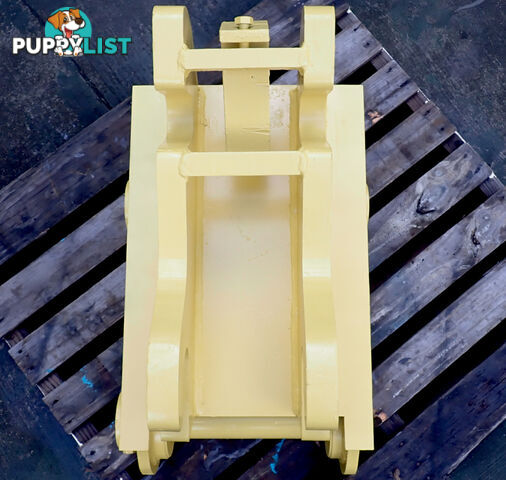

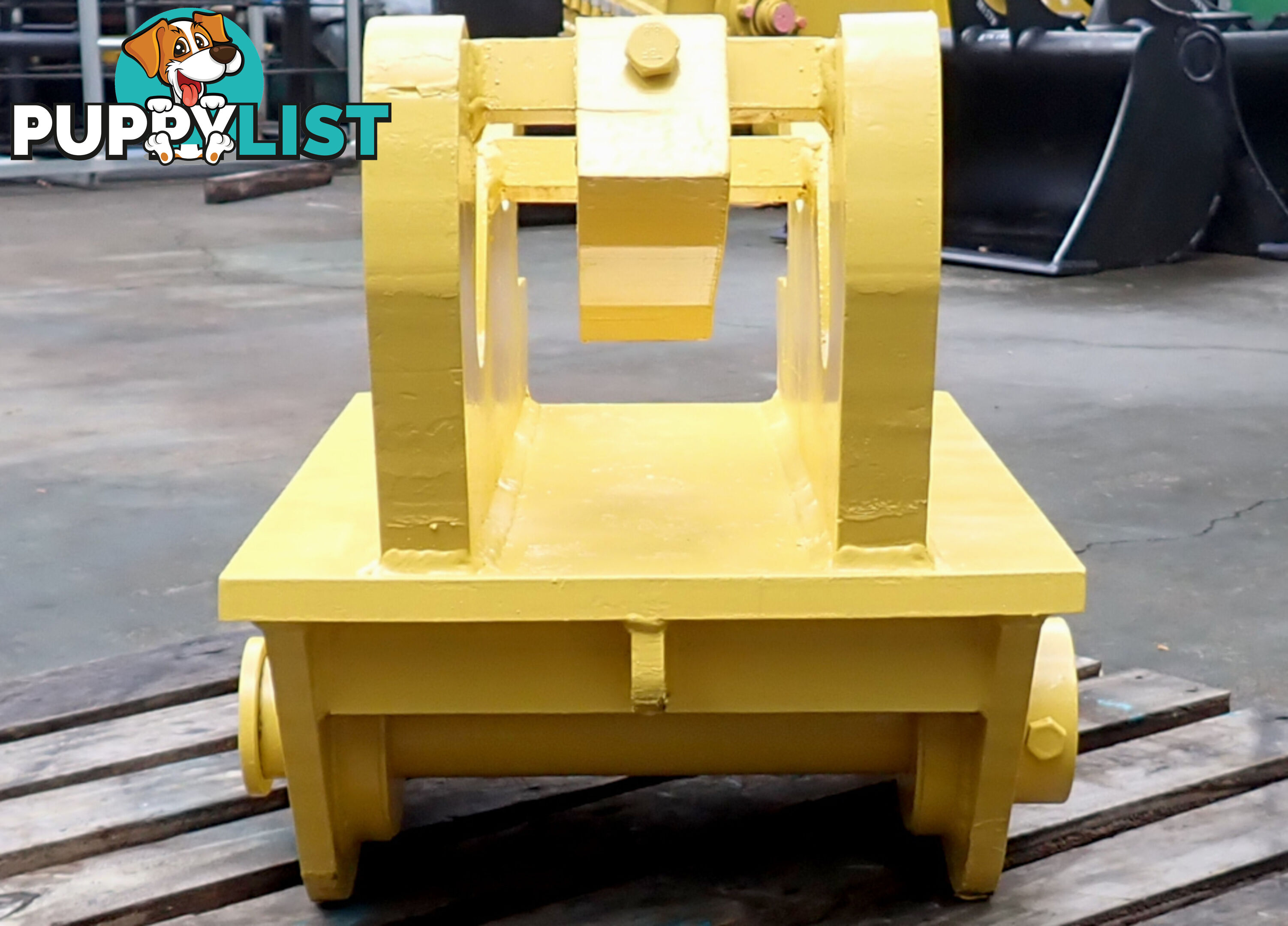

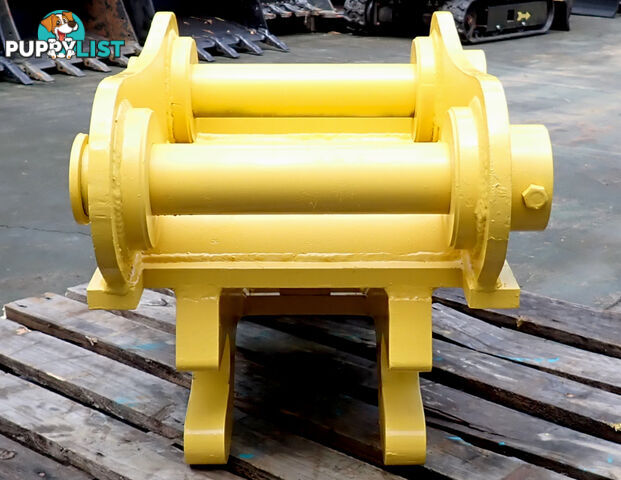

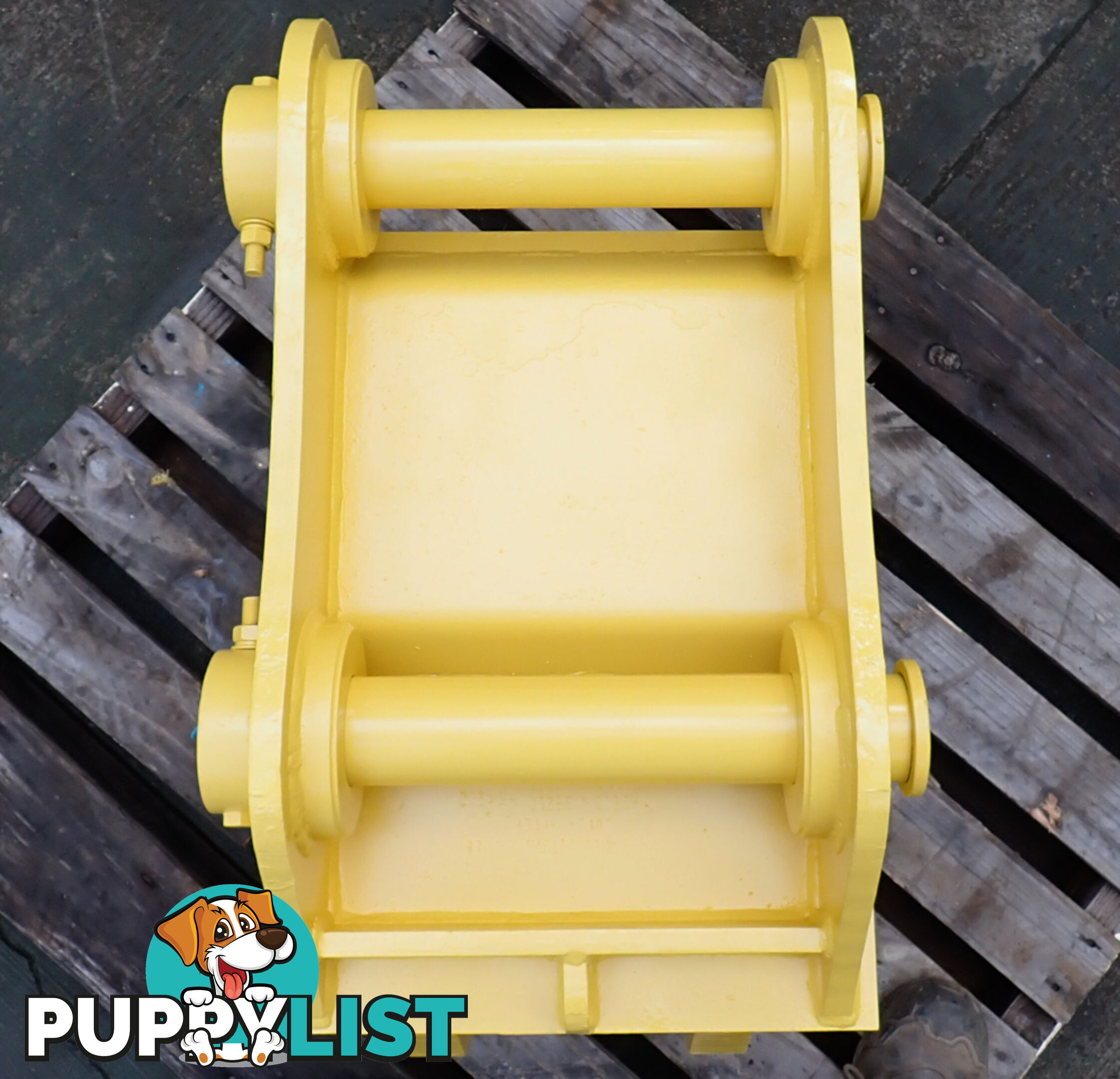

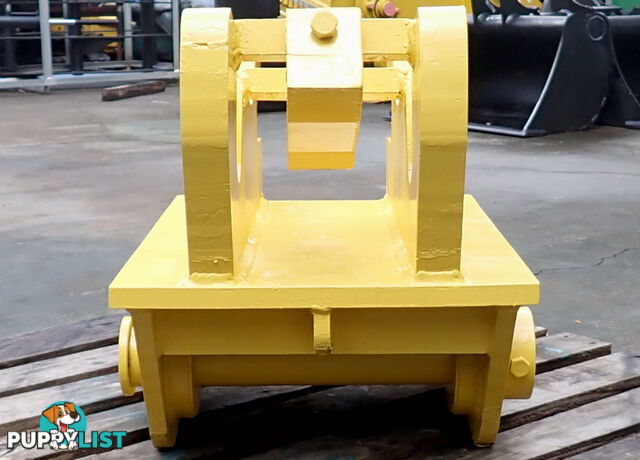

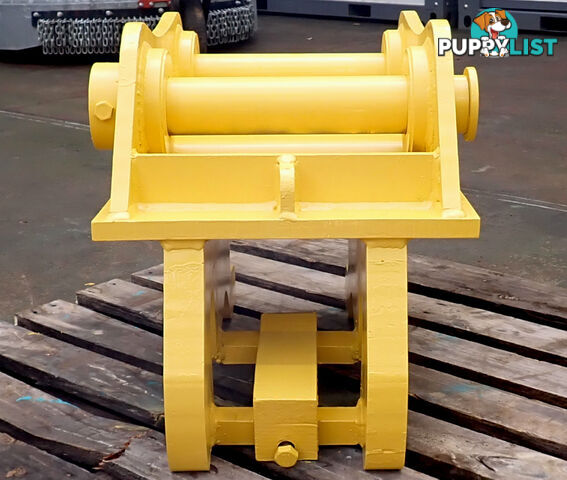

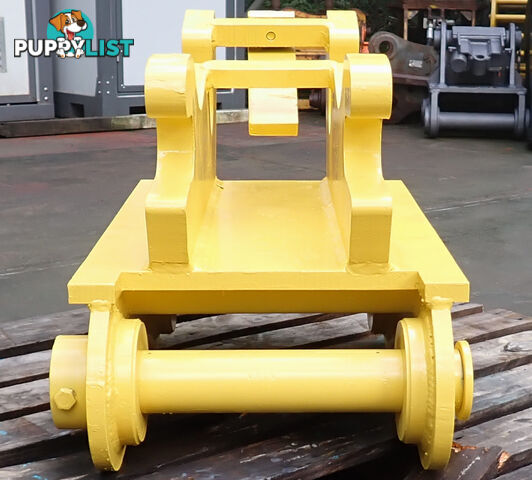

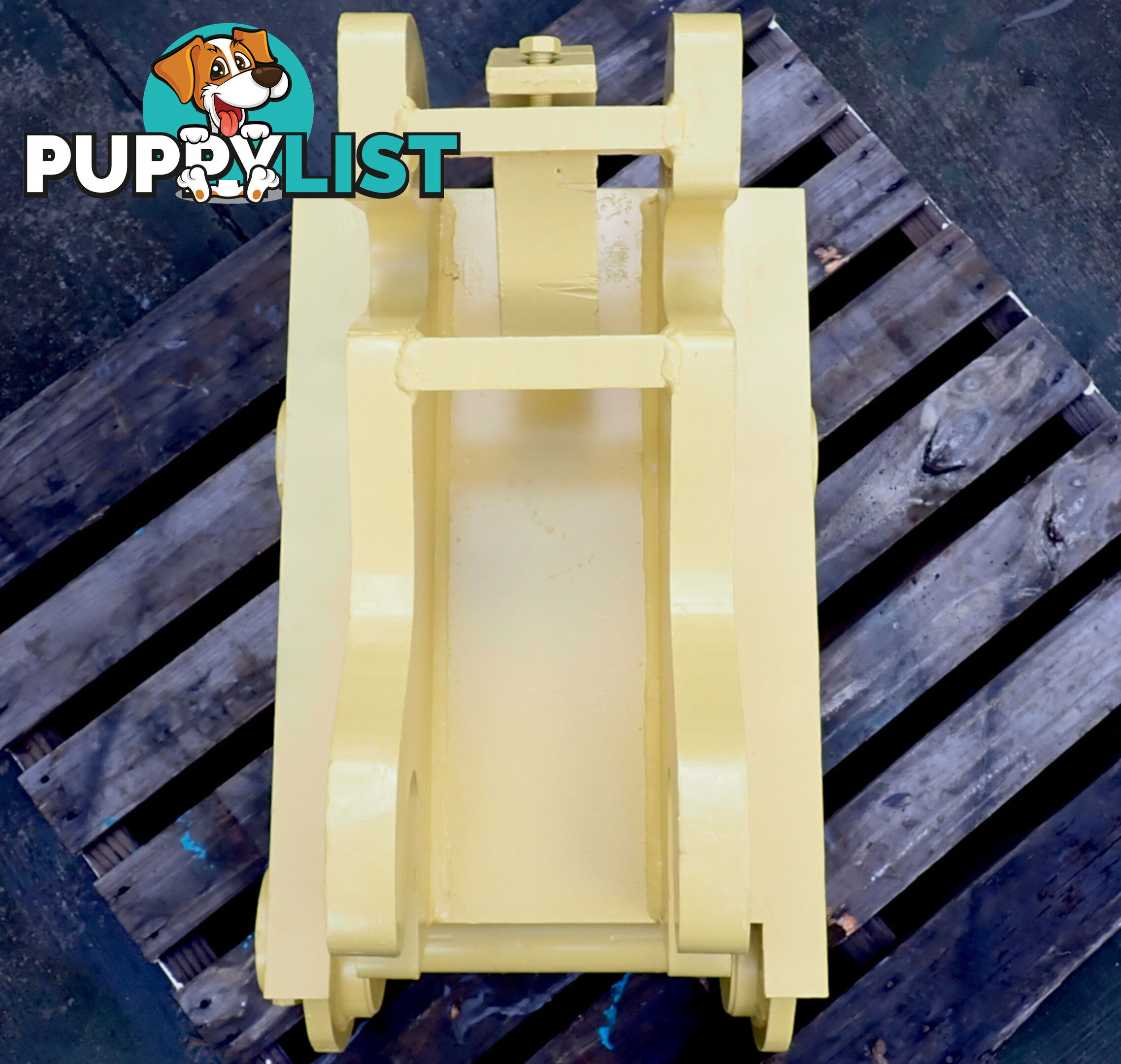

Want a quick hitch but don't have any spare auxiliary hydraulic lines for a hydraulic hitch? This hitch is identical to a hydraulic hitch setup except the rear bucket pin is held in place with a bolted wedge (see pics# 4, 6-10).

There is no need to pull either of the pins out of your buckets and try to line up the bucket holes with the hitch holes (like a half hitch requires). Instead you simply hook the hitch into your bucket's front pin just like a full hydraulic hitch, rock the hitch down to seat the rear pin in, then screw the bolt that holds the wedge to clamp the rear pin in the hitch.

It is New and well engineered. The Ear Plates that seat into your bucket's headstock are each a solid 50mm thick!

Made by the American Company SEC: https://www.secbucket.com

***** Current Headstock Setup:
*
*** Upper Hitch: (where your machine's Dipper Arm goes into the hitch):
* Pin Size: 80mm.
* Pin Center to Pin Center (CtoC): 456mm.
* Between the Ears (BTE): 325mm Between the inside Ear Bosses (which can be shaved back up to 389mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Lower Hitch: (where the hitch goes into the Bucket):
* Pin Size: 80mm.
* Pin Center to Pin Center (CtoC): 456mm.
* Between the Ears (BTE): 300mm width (your buckets/attachments need to have at least this much width or more gap between the ears).
*
* Should fit: Case 9021 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, Hyundai R210LC-7, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PW210, Link-Belt 210LX / 225SA, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Sumitomo SH200-3 / SH200LC-3 / SH210-5 / SH225X-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3.
*
* Maybe fit: Case CX160, Caterpillar 320B w/C Link / 320C w/C Link / 321 w/Mass Linkage / 322C w/Reach Linkage / 325B w/C Link / 325C w/C Link / 325C w/Reach Linkage / E300 Series / C Family Linkage, Doosan DX255 / DX255LC-3, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, JCB JS150LC / JS160 / JS160LC / JS180, John Deere 200C LC / 200D LC / 225C LC RTS, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, Link-Belt 160LX / 160X2 / 2700 QUANTUM / 2800 QUANTUM, LiuGong 922 / 925, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200LC / SH215U-1 / SH215X-1 and possibly other machines with similar pin spacings.

Hitch dimensions: 525mm Wide, 850mm Long, 563mm High. Weight: 312kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
