1-3 ton (32mm pin) Excavator Mechanical Quick Hitch Coupler suit Wacker Neuson

DESCRIPTION

Used Hogan Excavator Mechanical Quick Hitch Coupling to suit 1-3 Ton machines.

Designed for Wacker Neuson 1403 / 1404 / 1503 / 1903 / 2203 / 2503 etc. but may fit other 32mm pin machines with similar pin spacings.

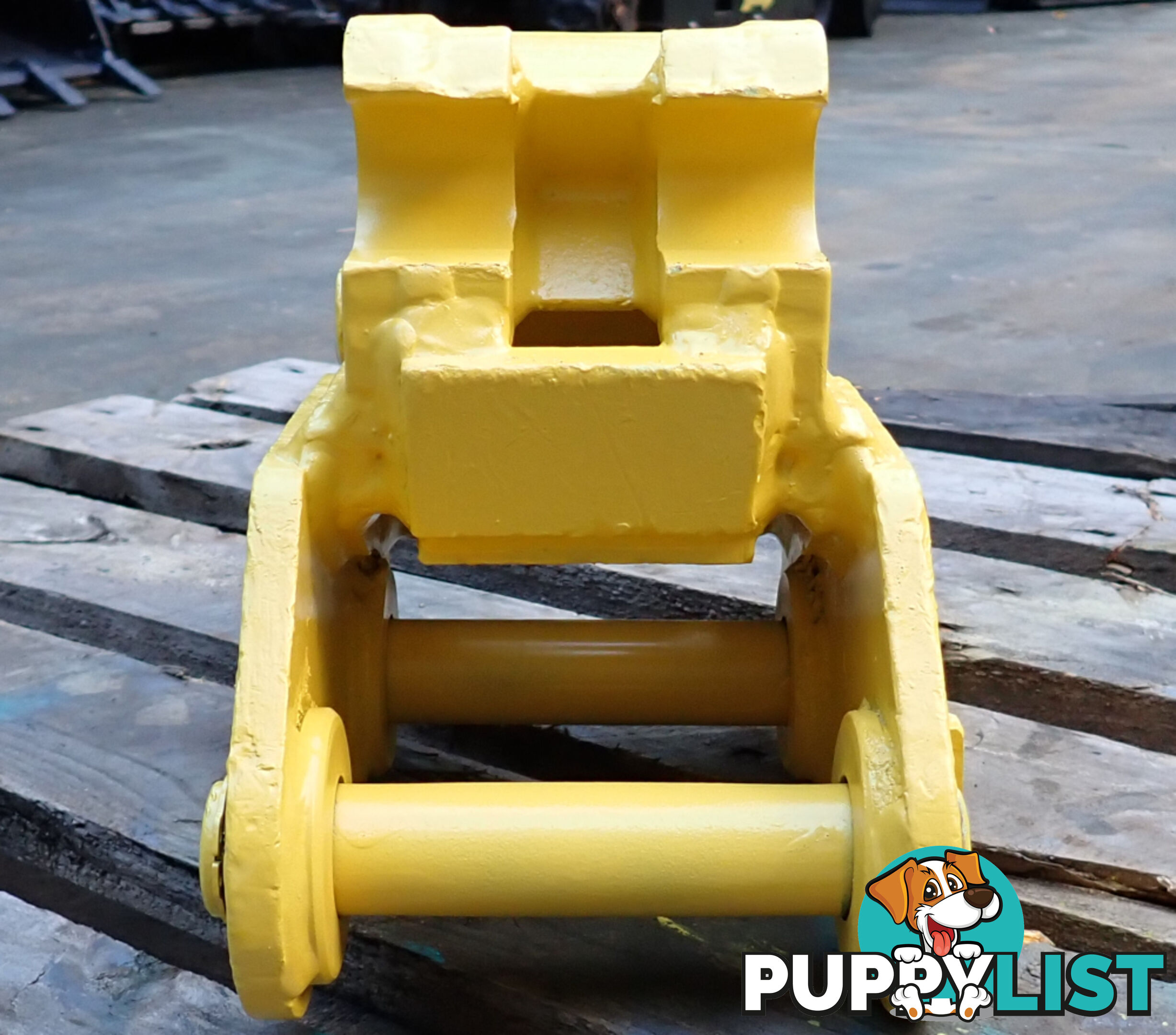

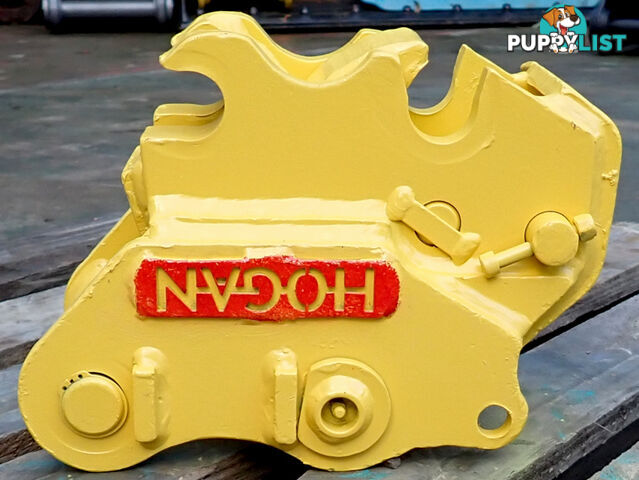

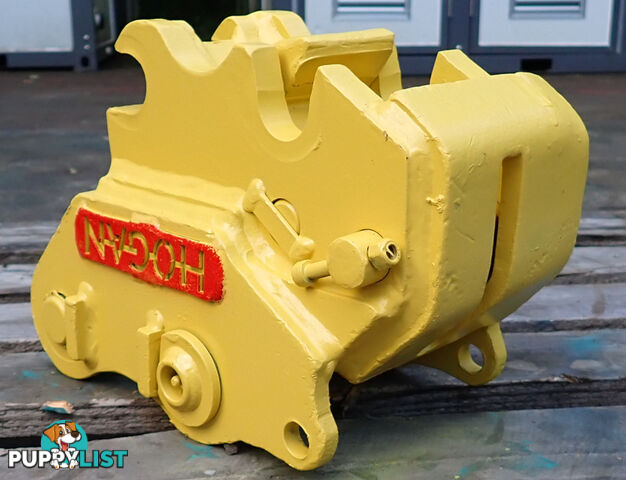

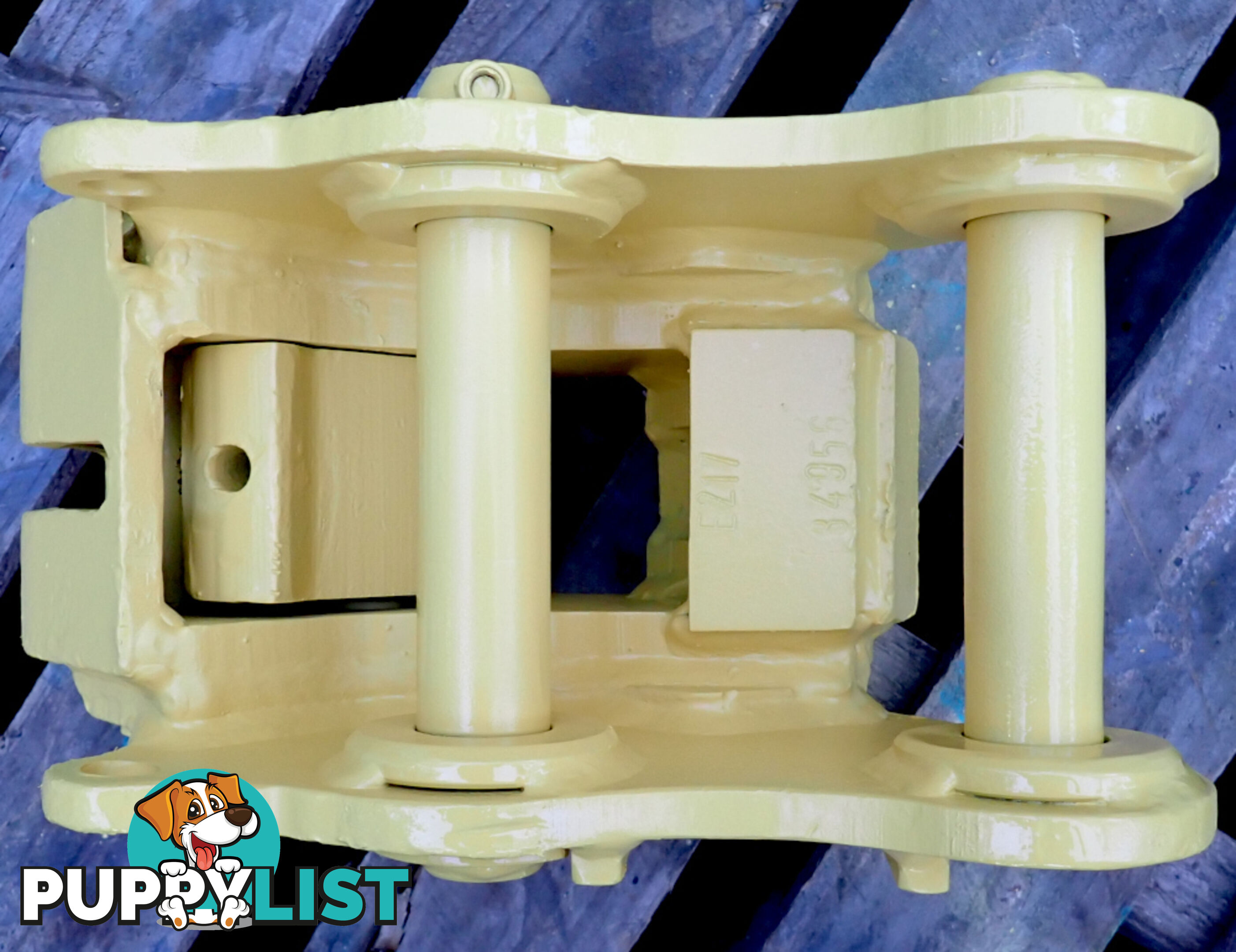

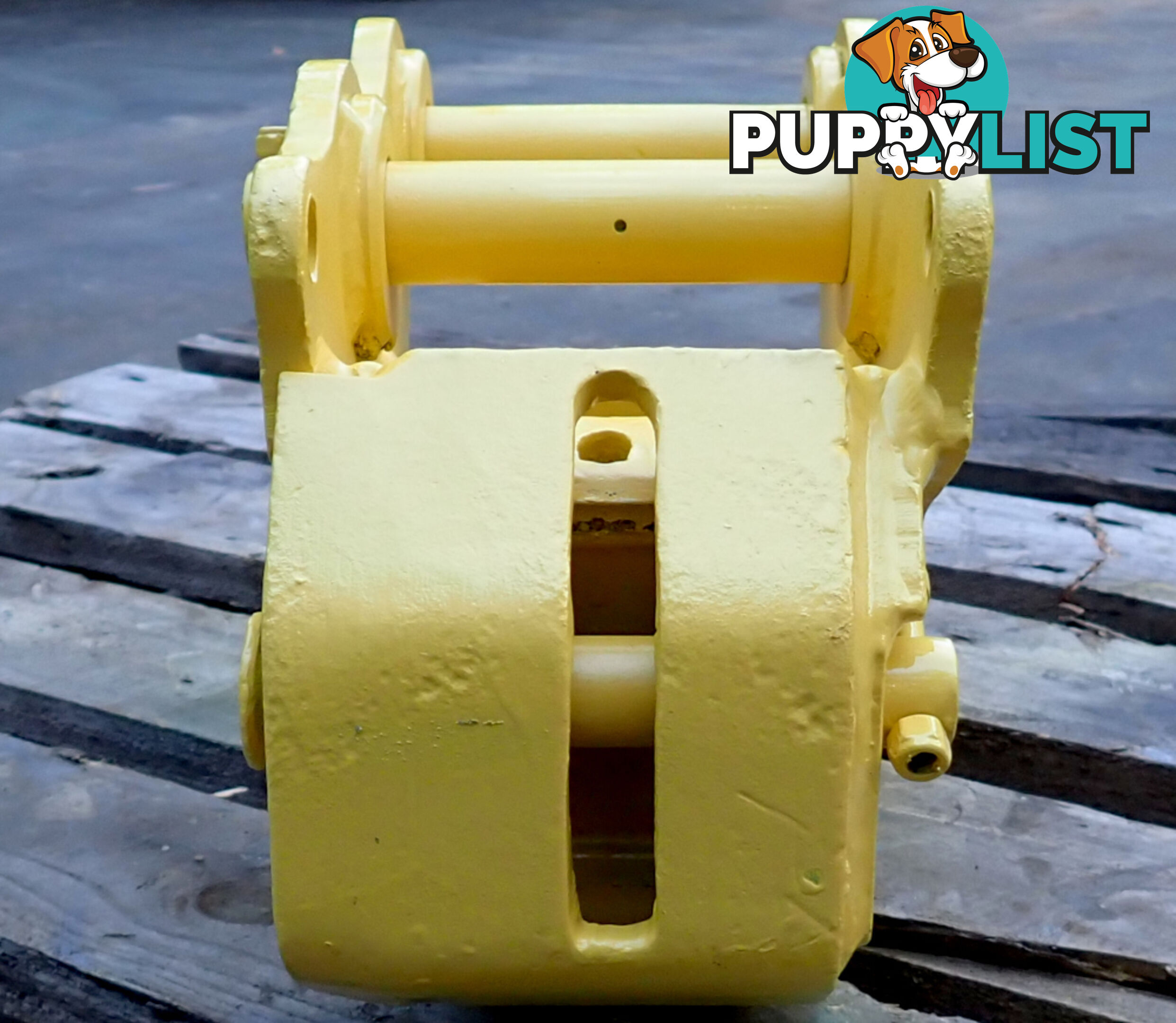

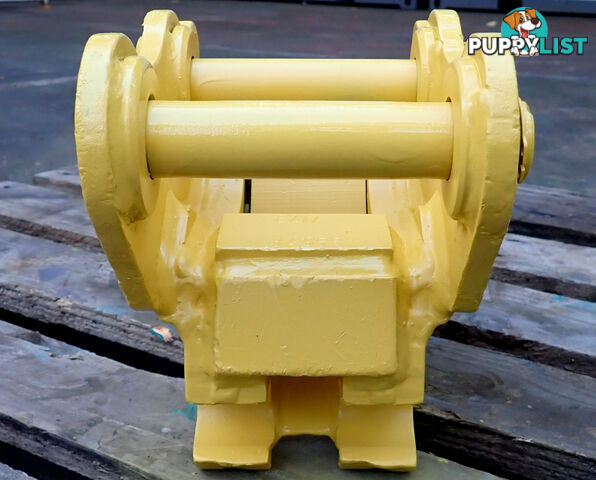

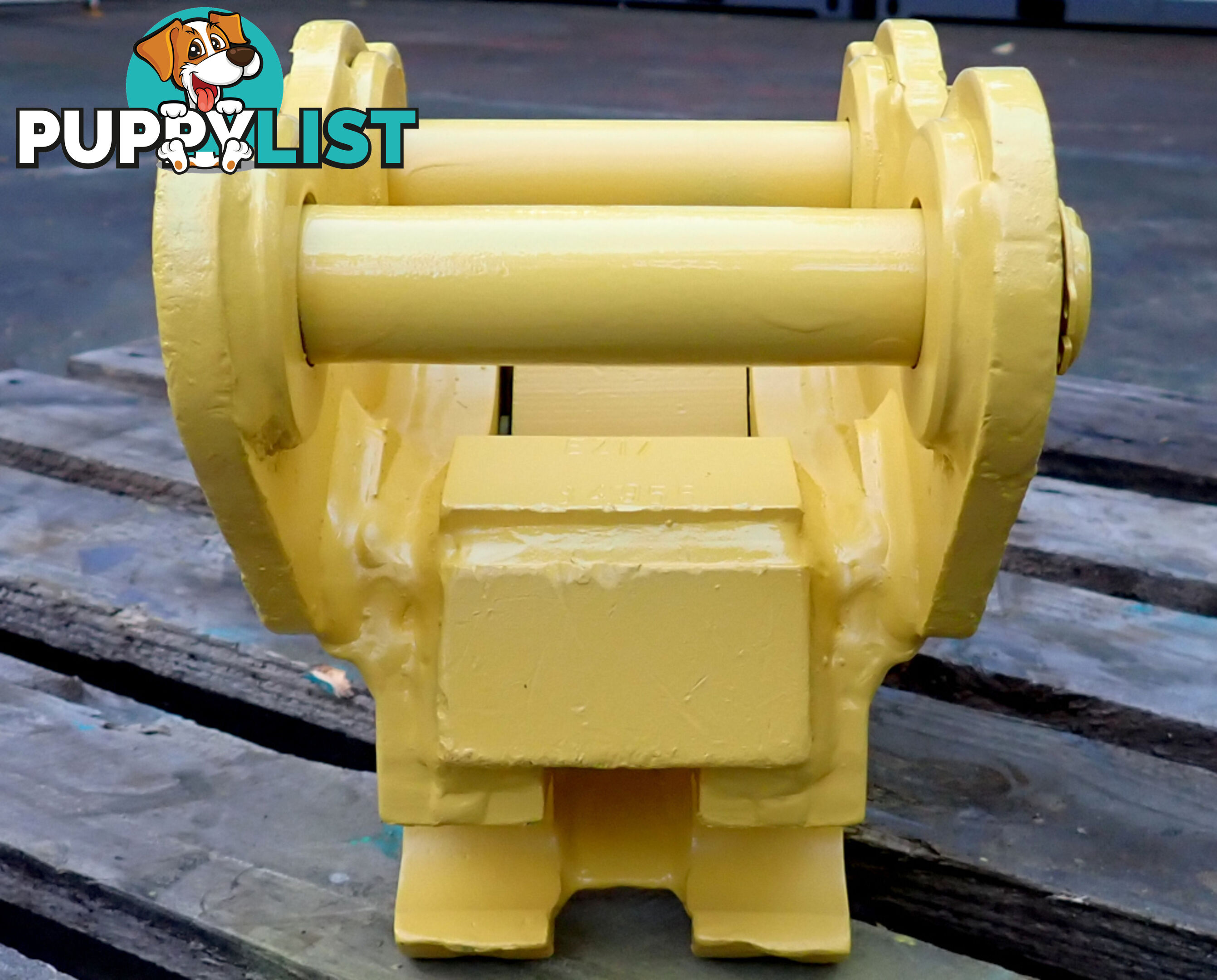

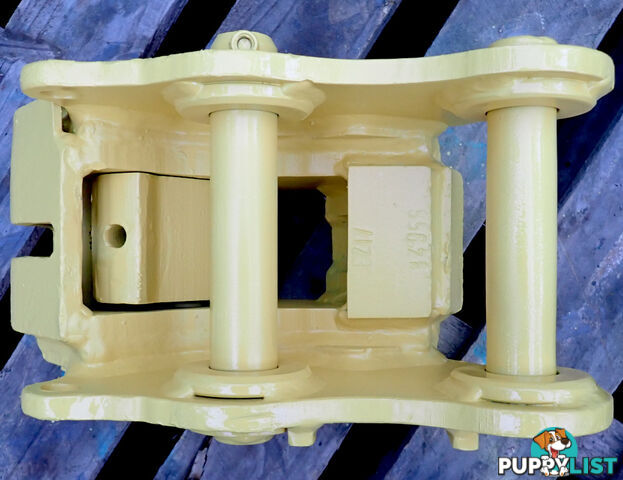

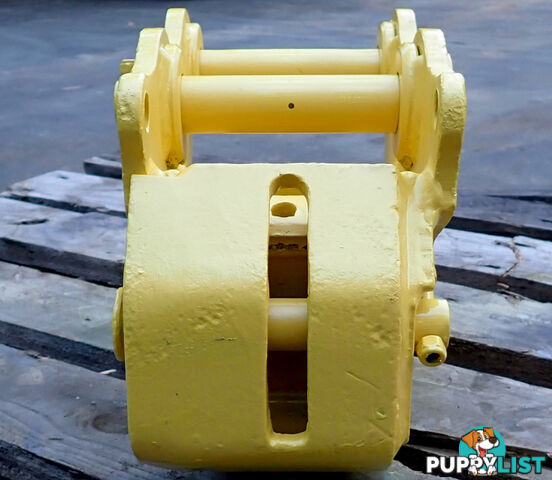

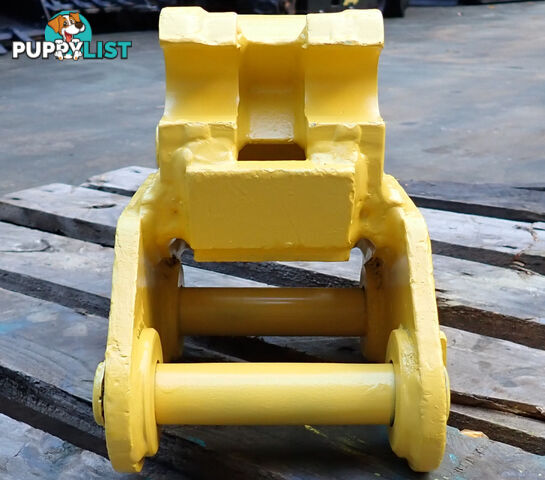

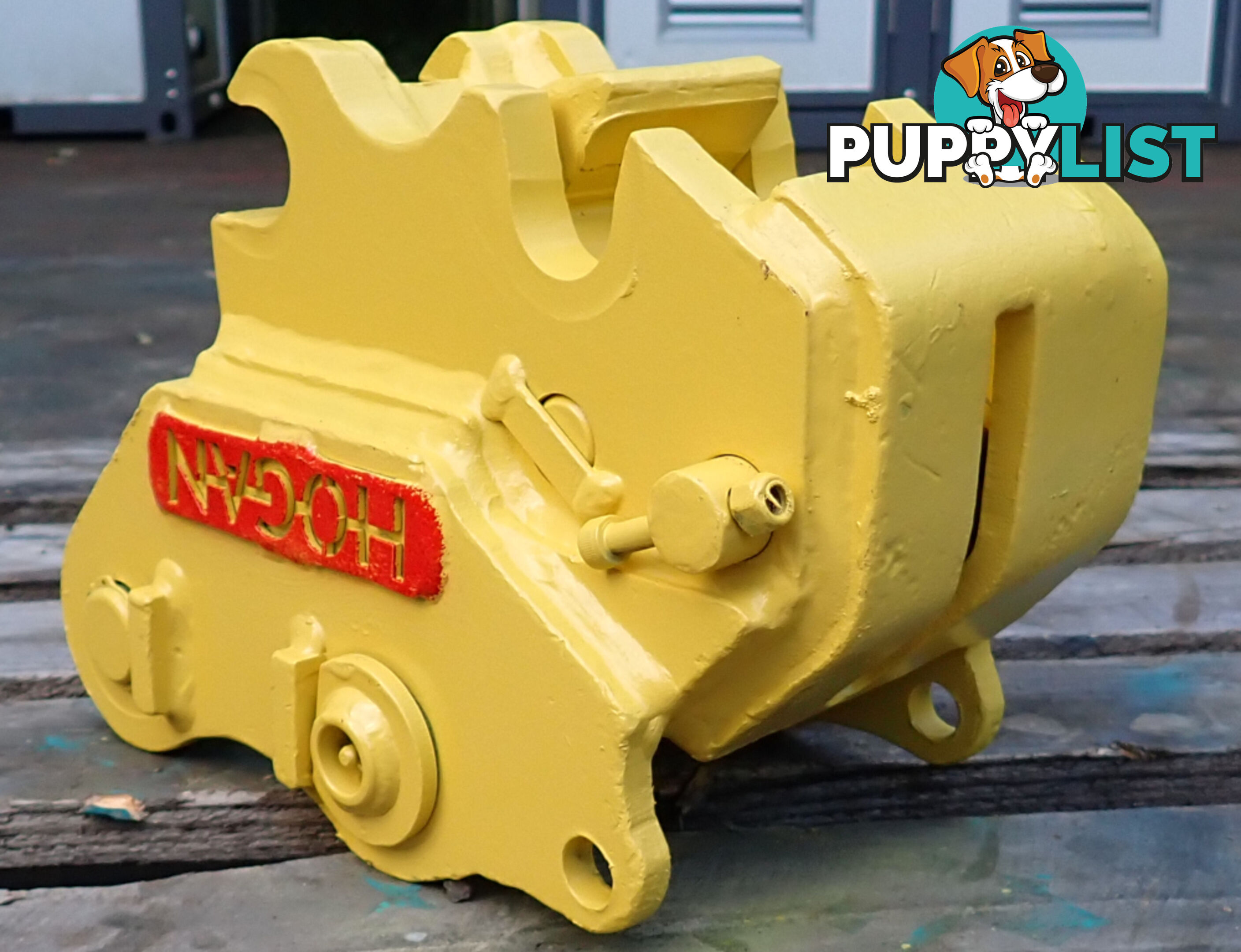

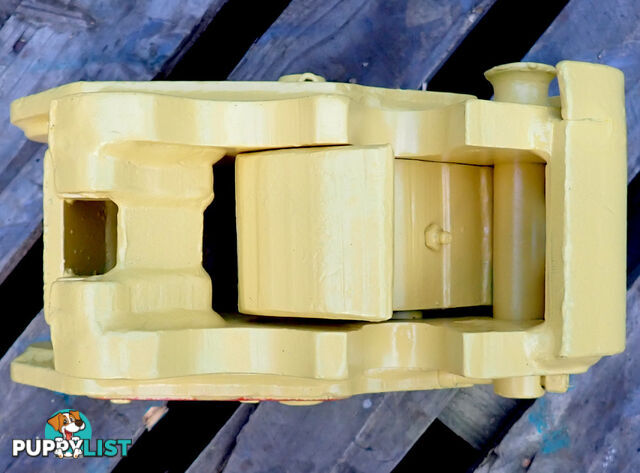

Want a quick hitch but don't have any spare auxiliary hydraulic lines for a hydraulic hitch? This hitch is identical to a hydraulic hitch setup except the rear bucket pin is held in place with a locking pin/rod (see pics# 1-3, 6, 8-10).

There is no need to pull either of the pins out of your buckets and try to line up the bucket holes with the hitch holes (like a half hitch requires). Instead you simply hook the hitch into your bucket's front pin just like a full hydraulic hitch, rock the hitch down to seat the rear bucket pin in, then insert the retaining rod.

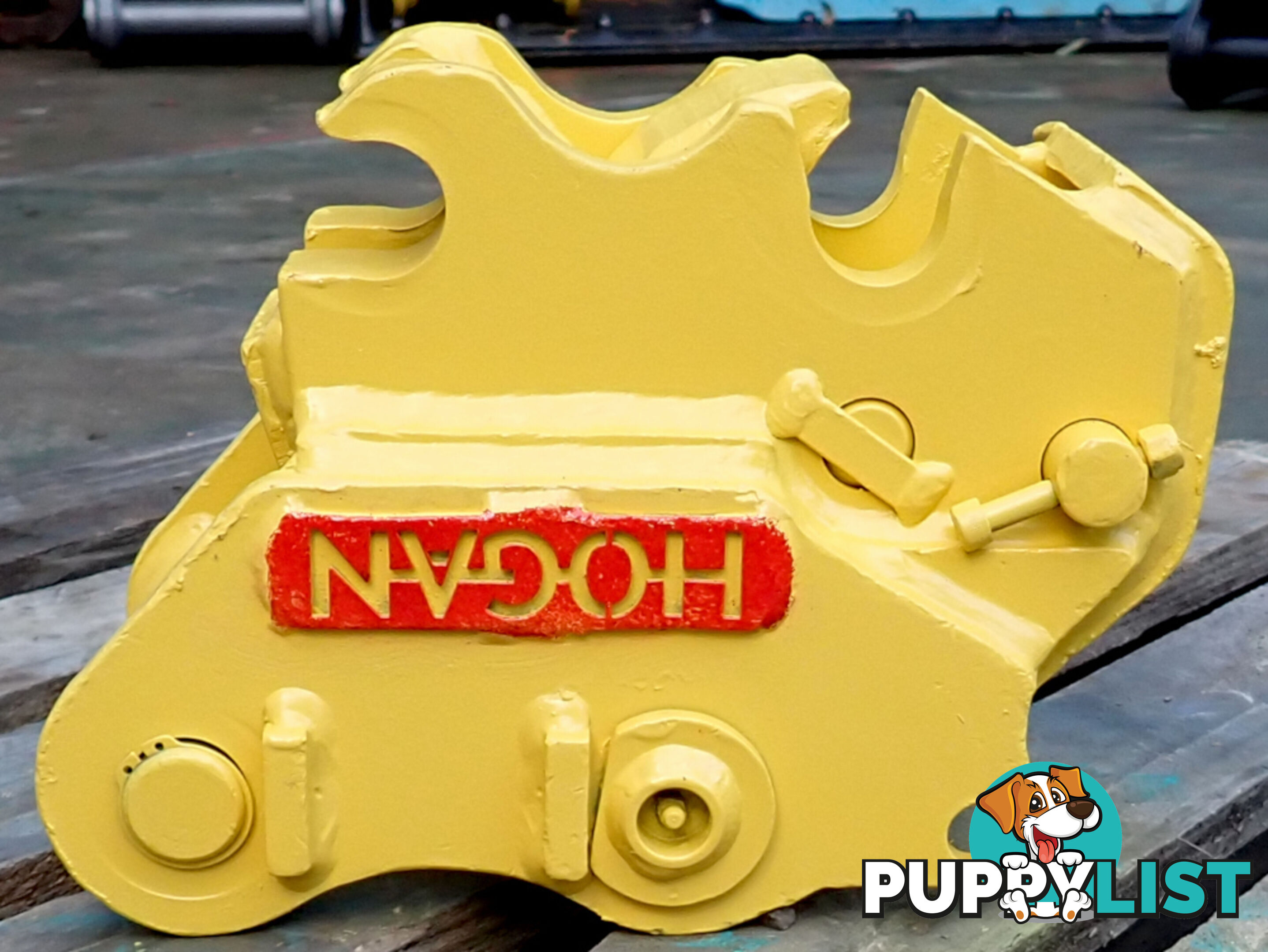

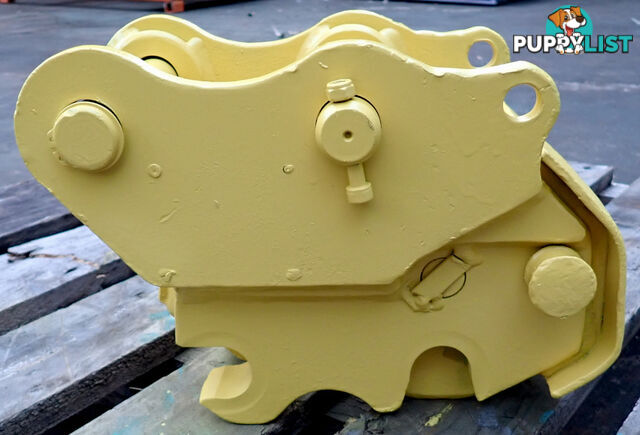

Has 2 Lifting Eye Hooks (see pics# 1-3, 5, 6, 8, 9).

Condition is used but it has had little use and is in great condition. We have given it a fresh paint to keep it protected while it waits to find its new home.

***** Current Headstock Setup:
*
* Pin Size: 32mm.
* Pin Center to Pin Center (CtoC): 130mm.
* Between the Ears (BTE):
* - Upper: (where your machine's Dipper Arm goes in the hitch): 119mm Between the inside Ear Bosses (which can be shaved back up to 137mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
* - Lower: (where the hitch sits in your bucket): 113mm width (your buckets/attachments need to have at least this width or more between the ears).
*
* Should fit: Wacker Neuson 1403, Wacker Neuson 1404, Wacker Neuson 1503, Wacker Neuson 1903, Wacker Neuson 2203, Wacker Neuson 2503 and possibly other machines with similar pin spacings.

Hitch dimensions: 190mm Wide, 320mm Long, 230mm High. Weight: 24.3kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.

(MIC_1774AR2411270814)
