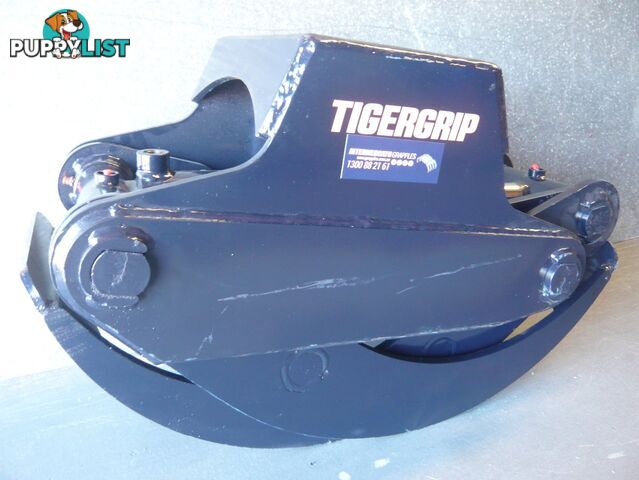

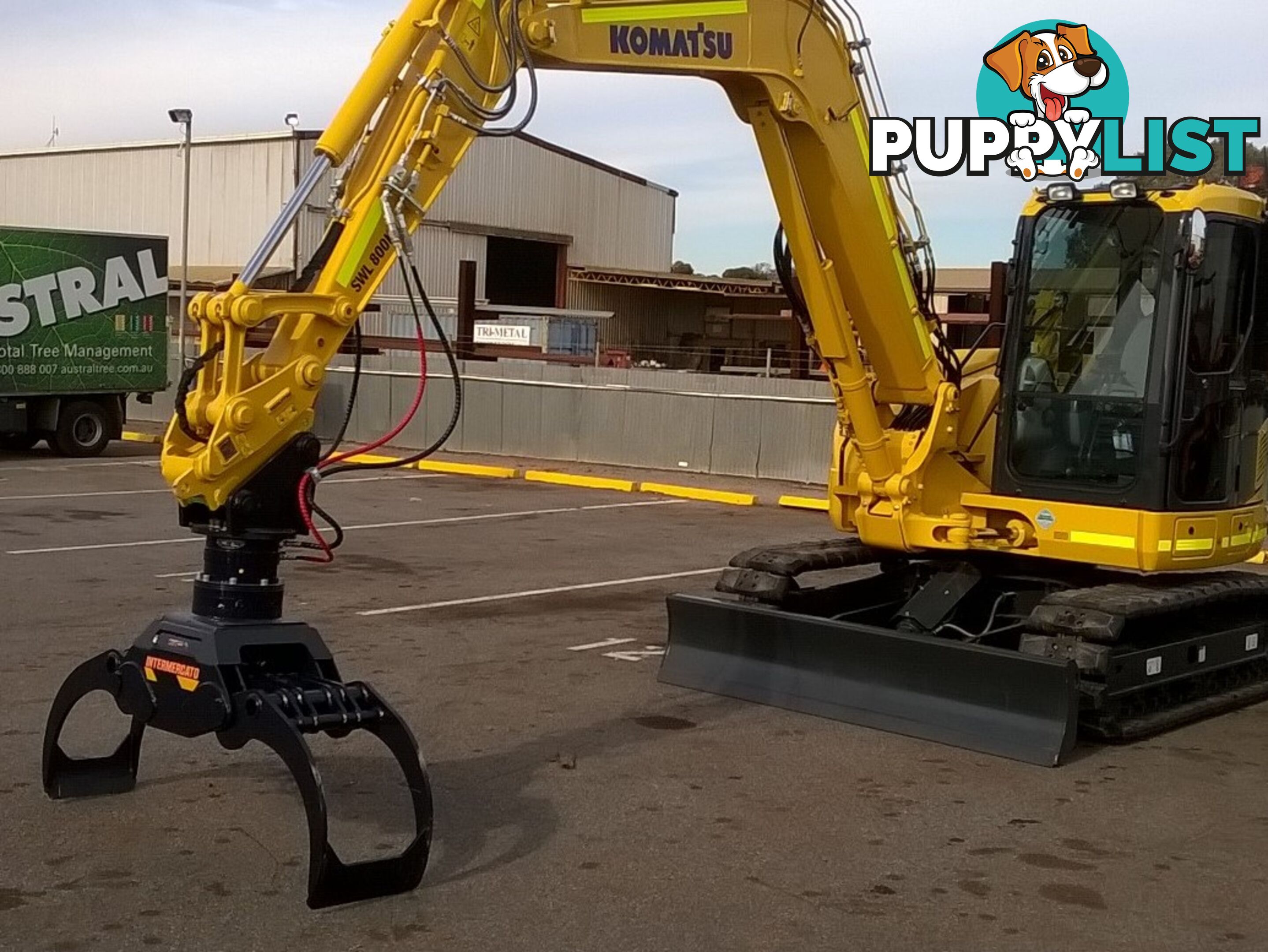

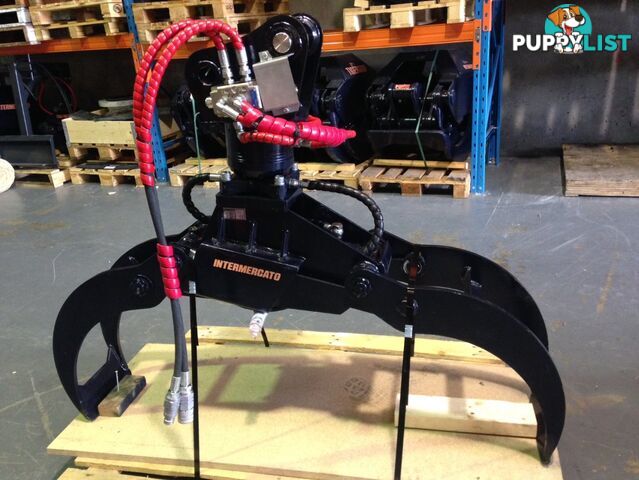

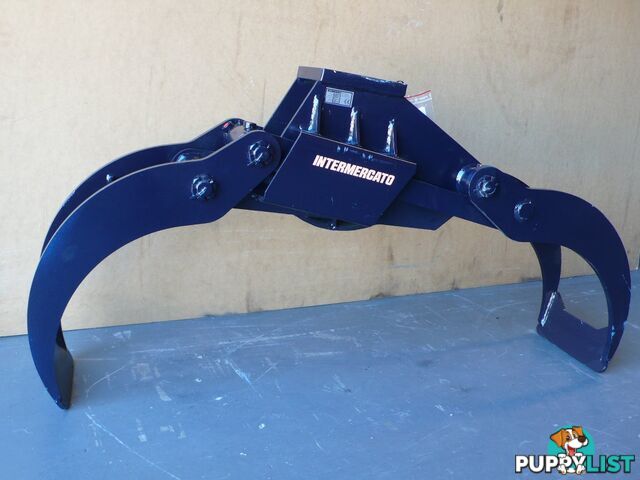

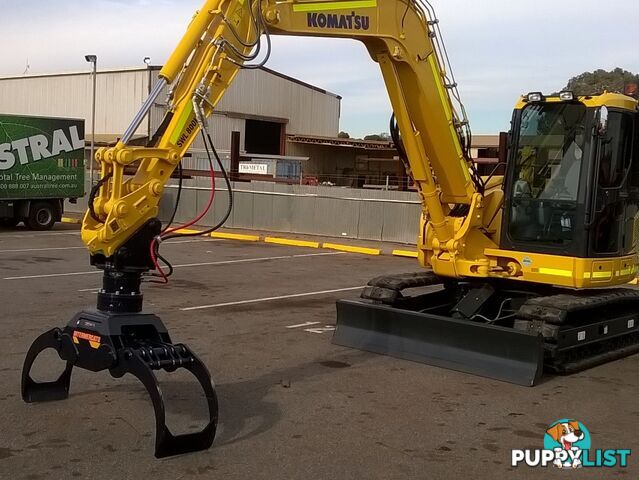

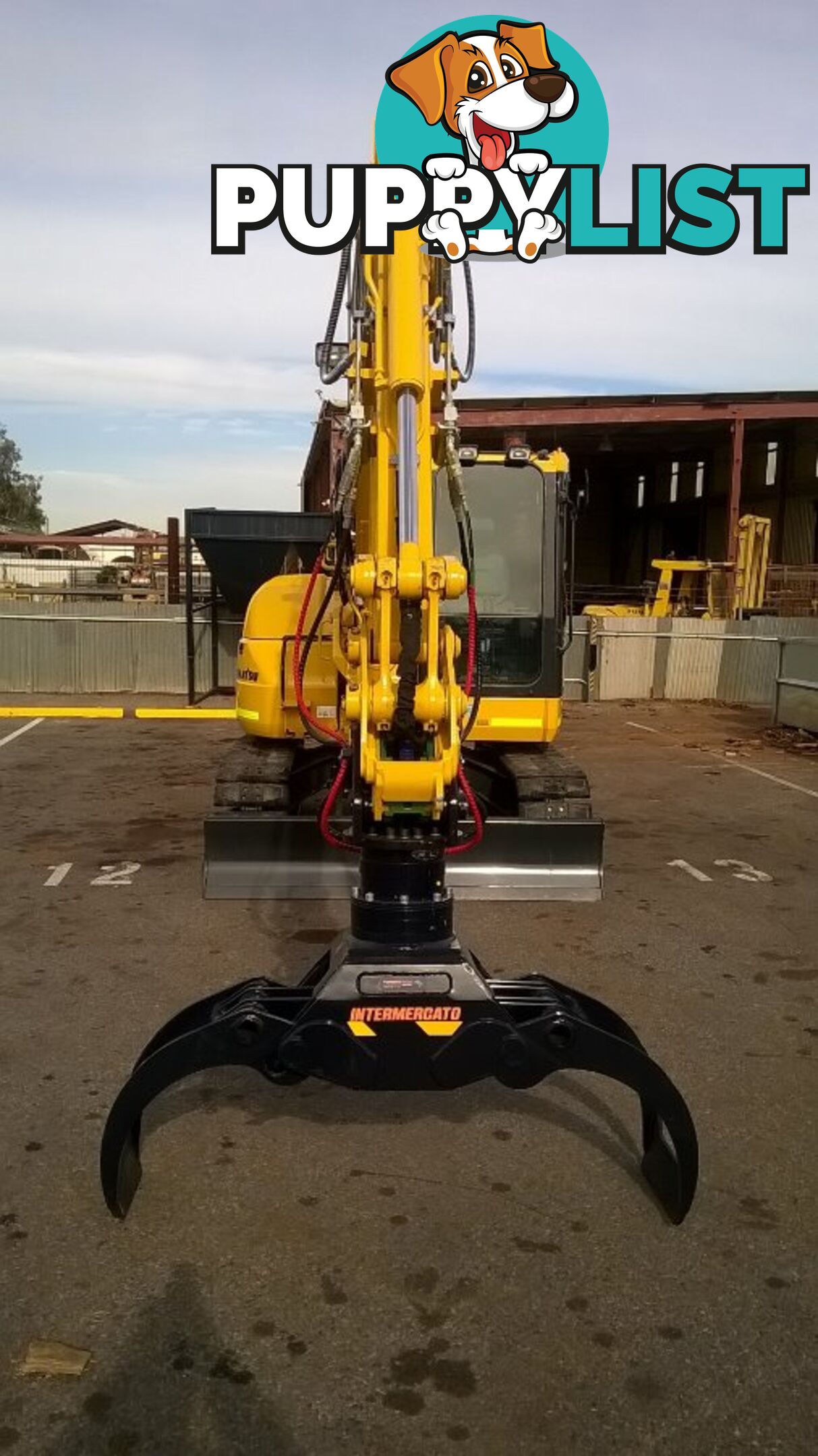

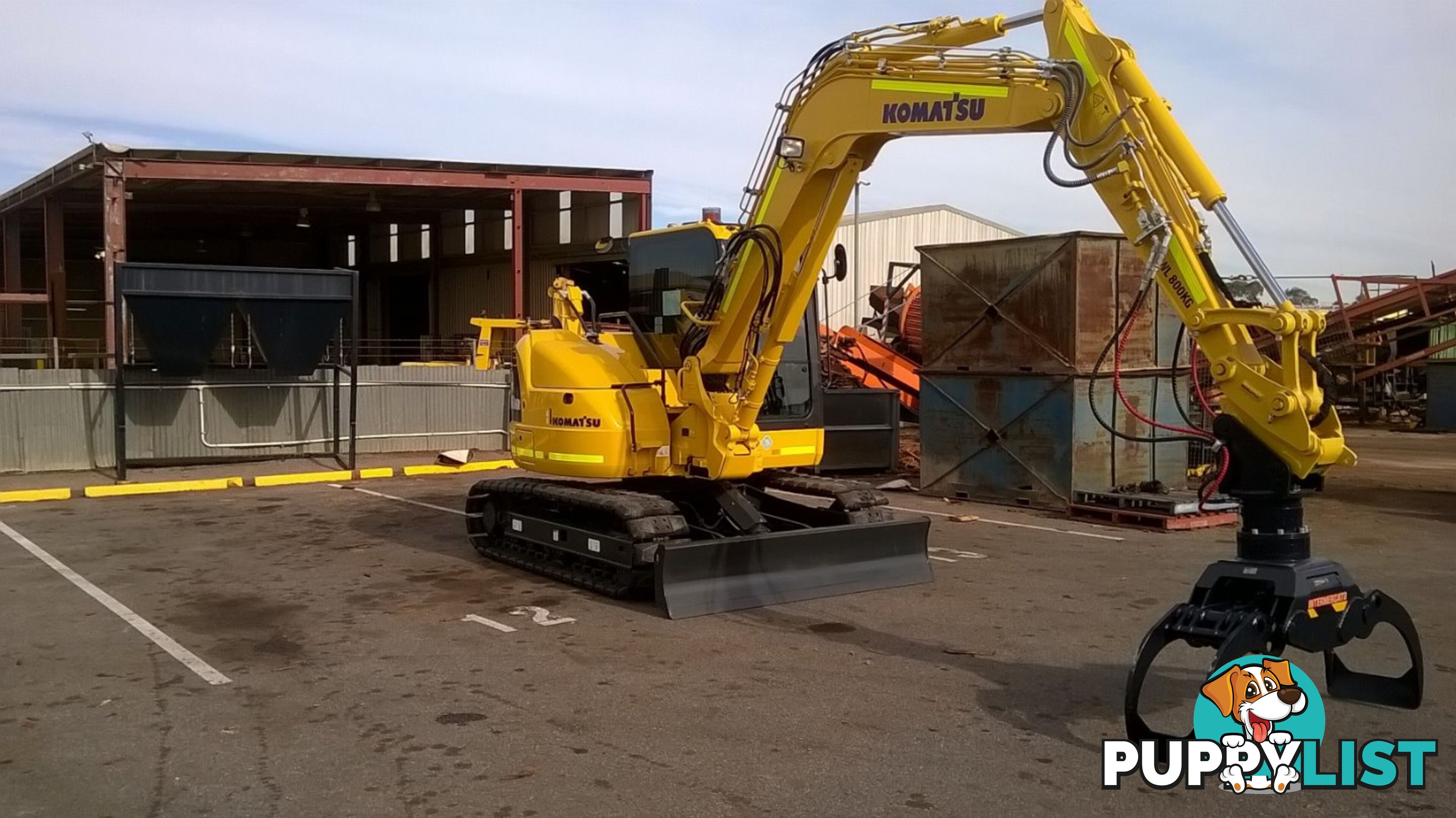

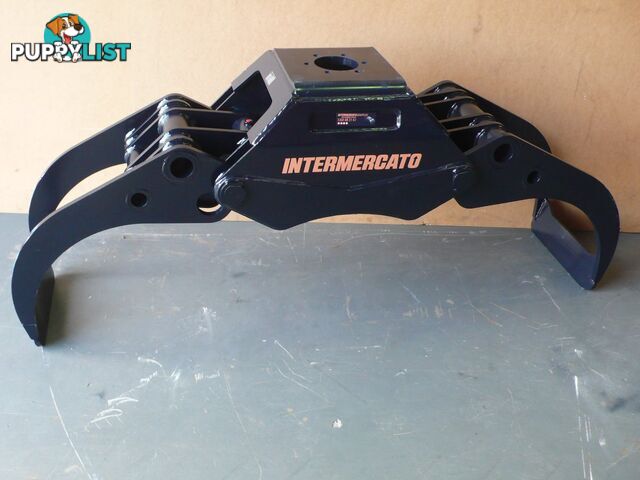

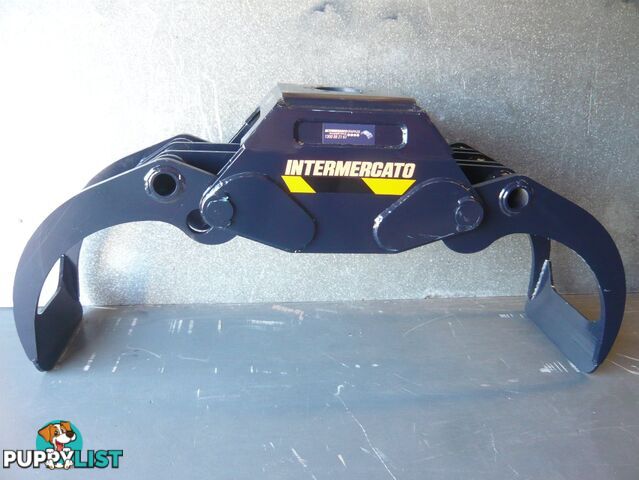

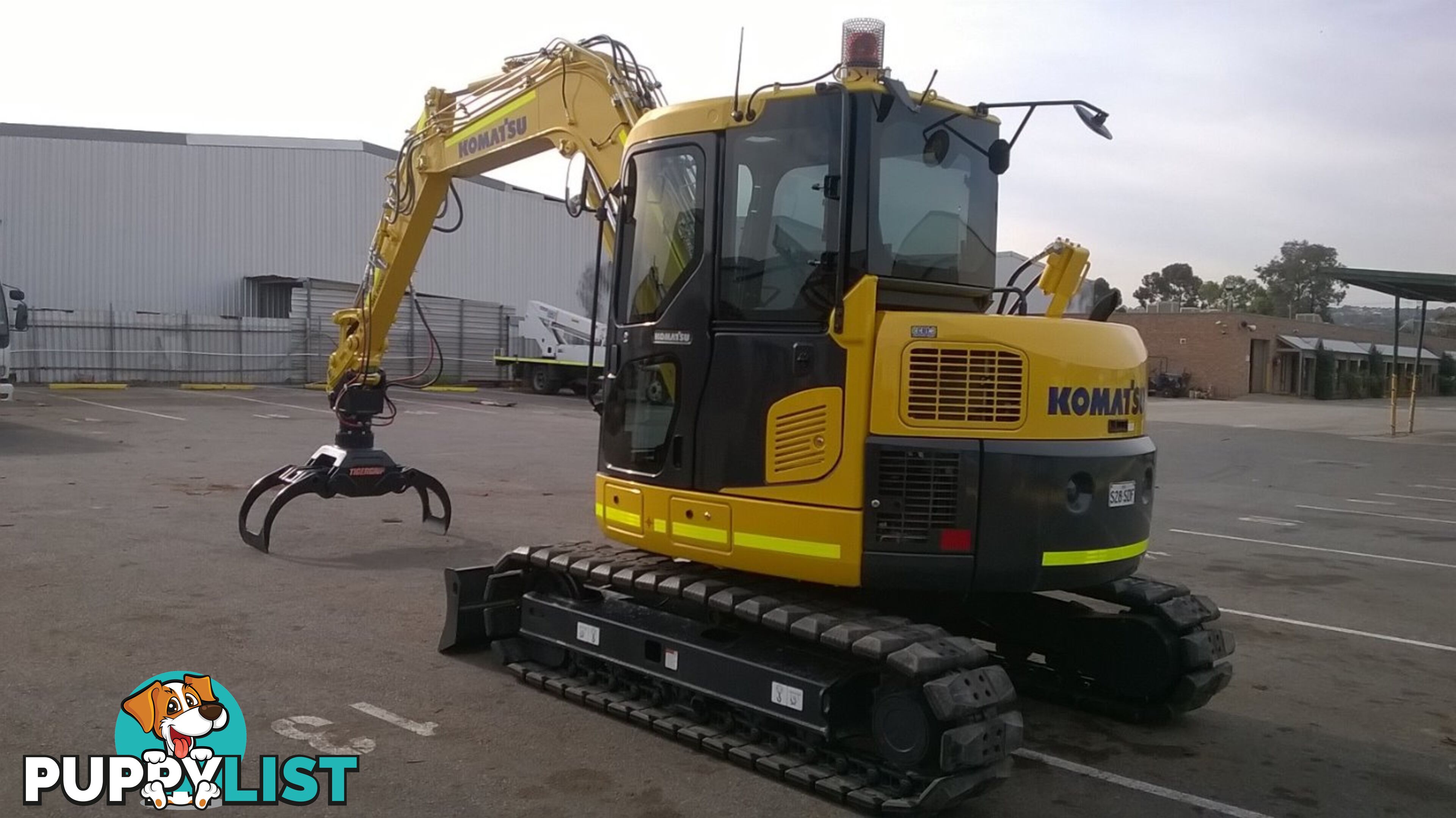

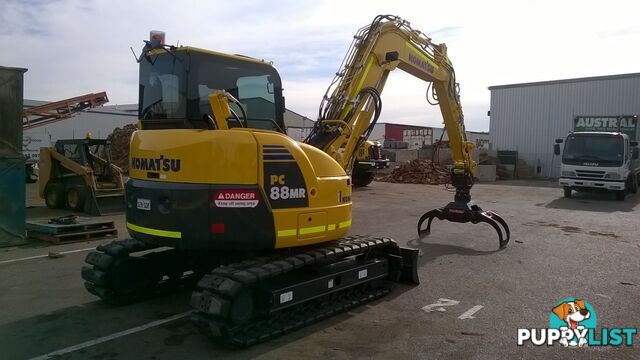

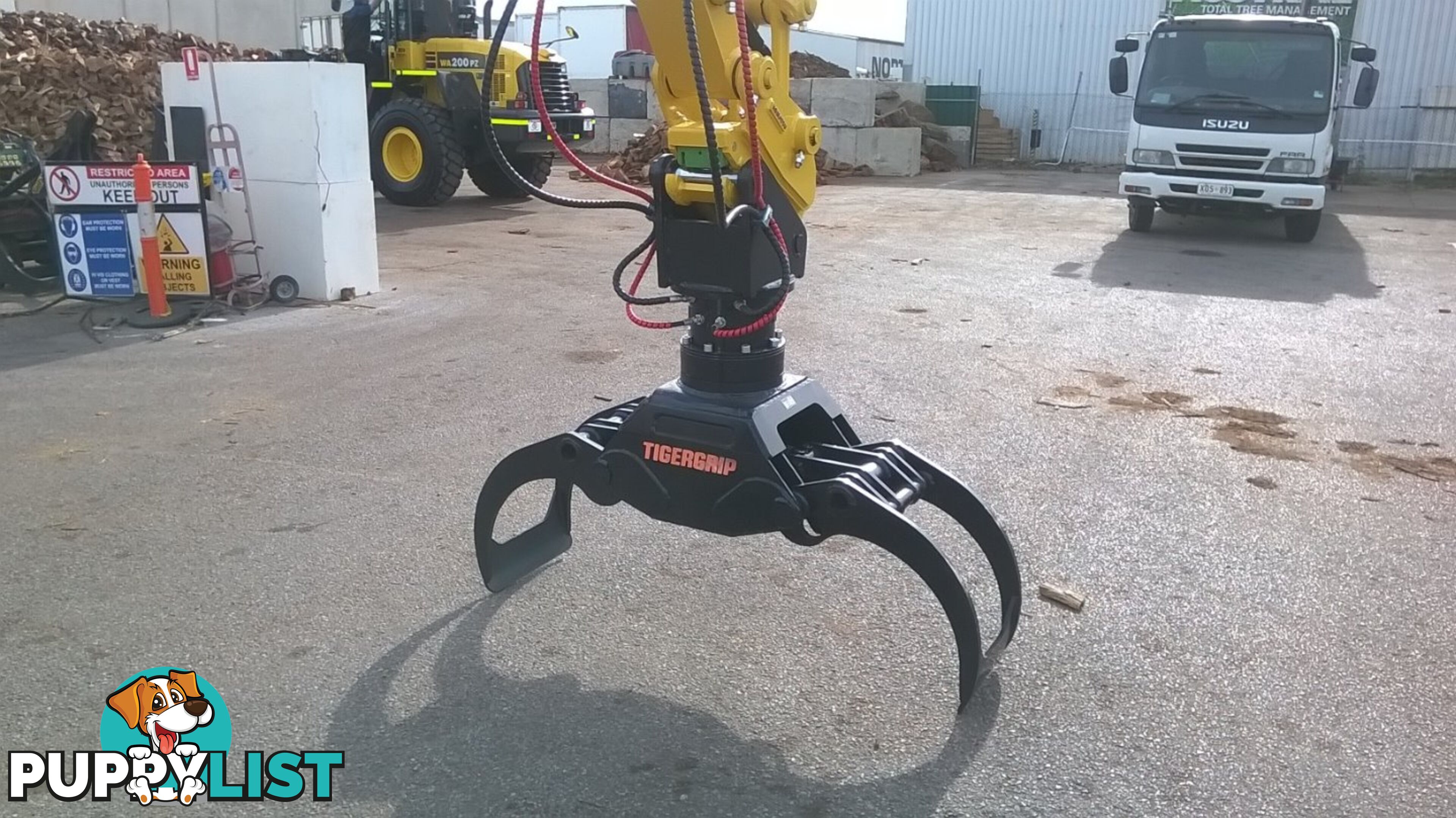

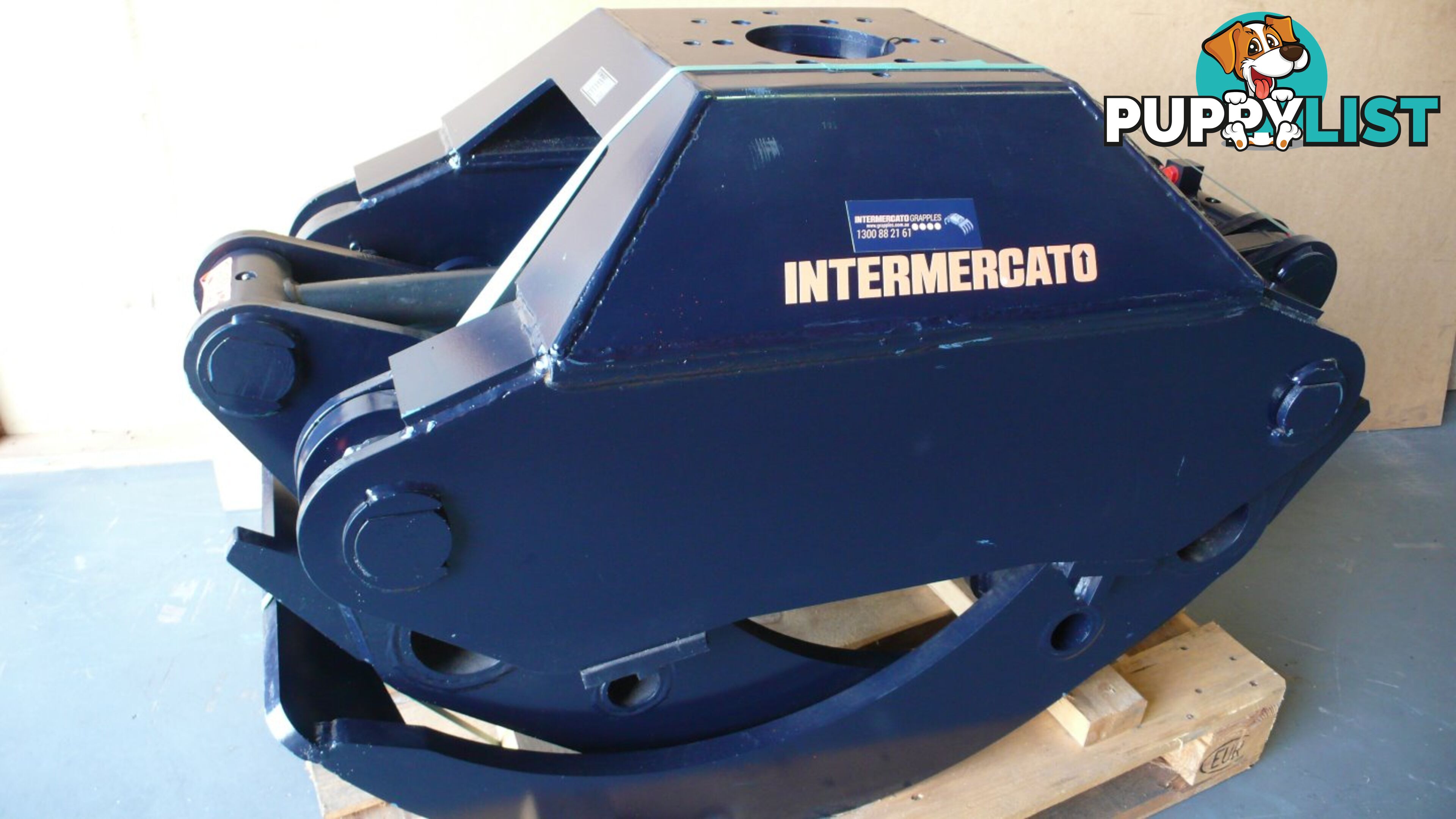

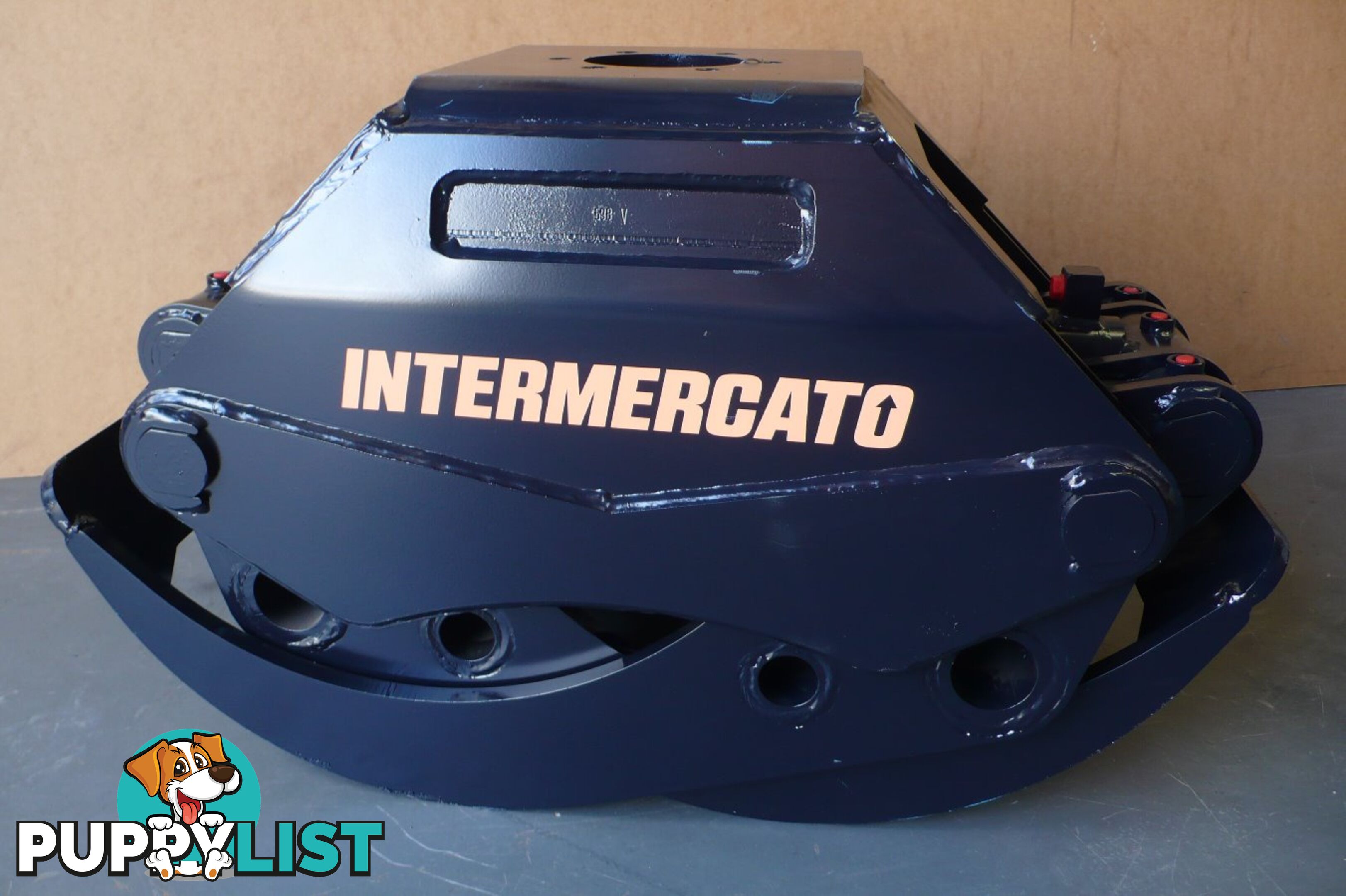

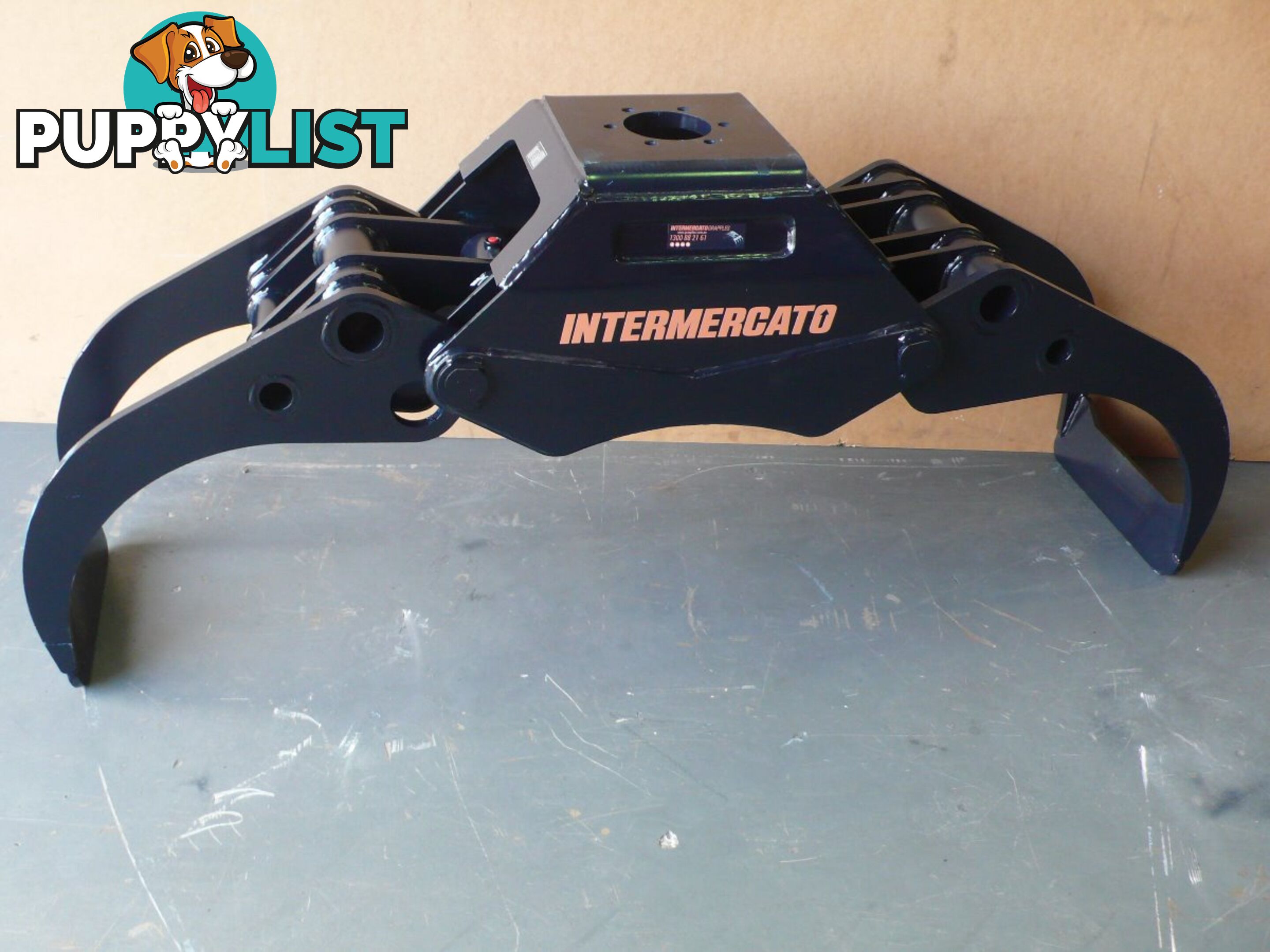

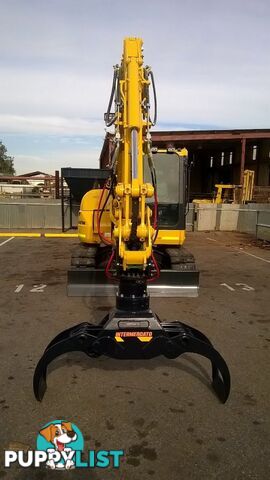

Log Grapples - for Excavators

DESCRIPTION

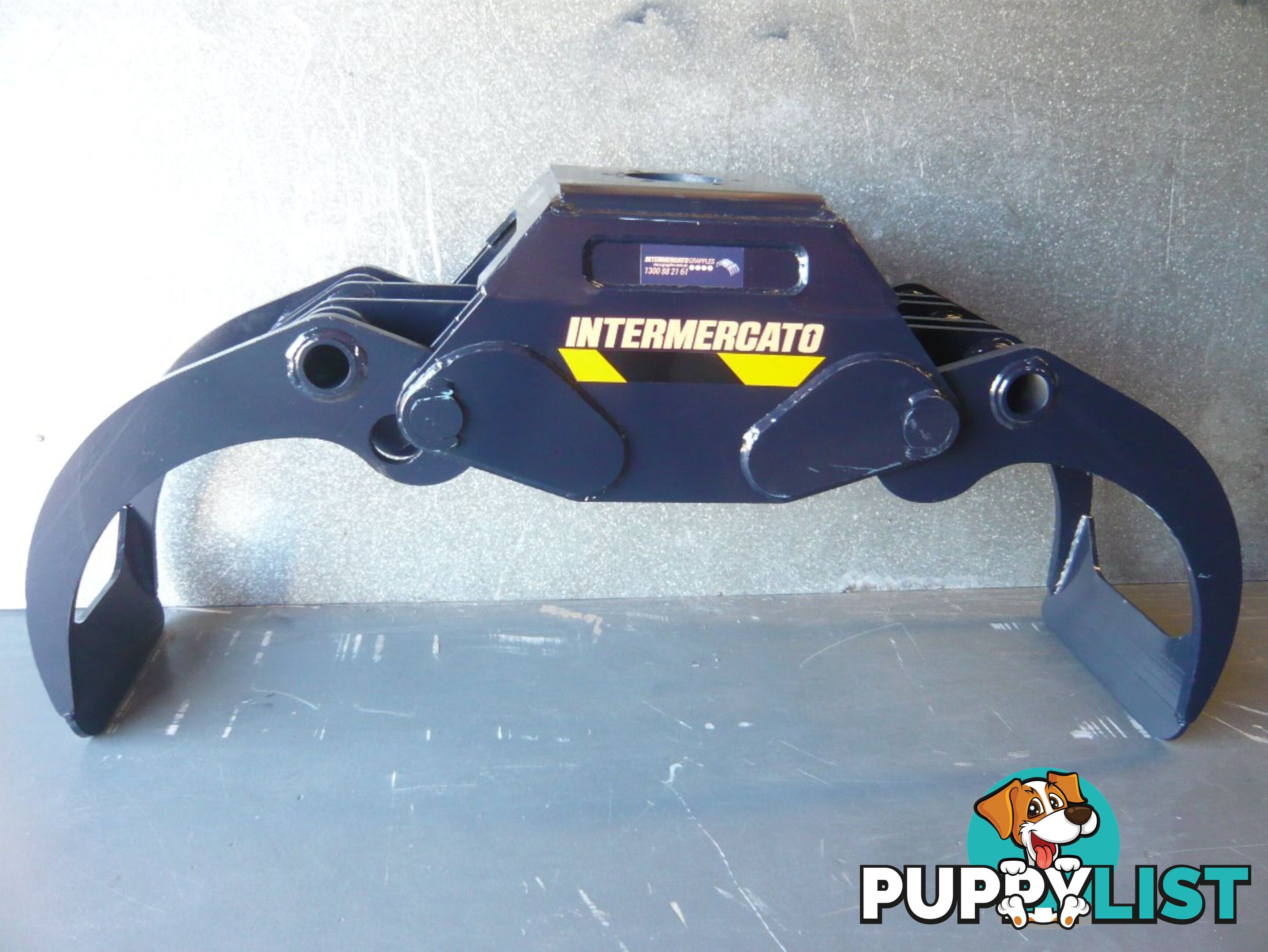

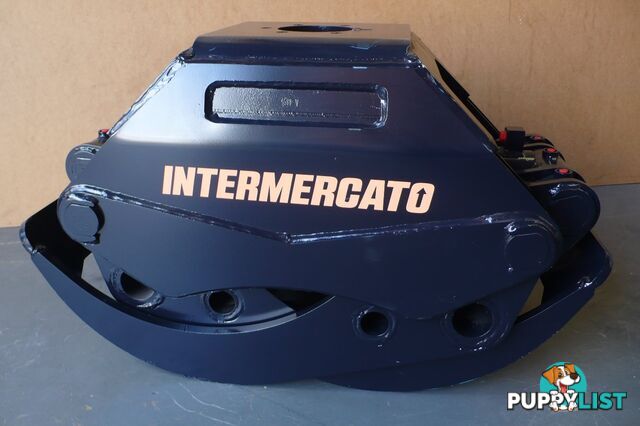

Log excavator grapples are all of the modern bypass design, allowing wide opening widths & capacity but still allowing very tight closing.
Intermercato log grapples are designed to grip and ACCUMULATE LOGS and the fixed teeth don't bite into logs giving faster bundling & high productivity.

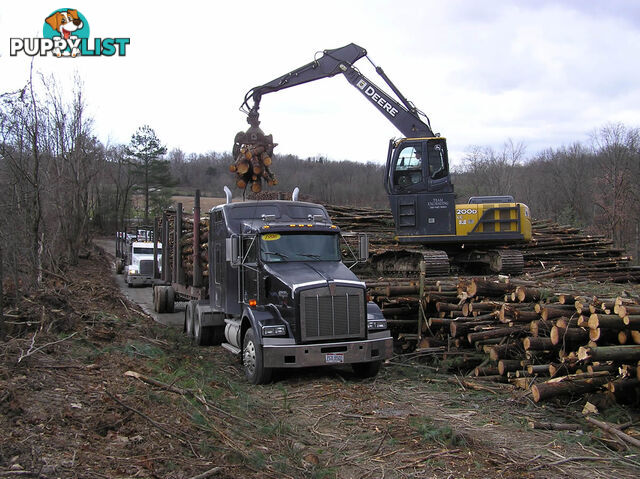

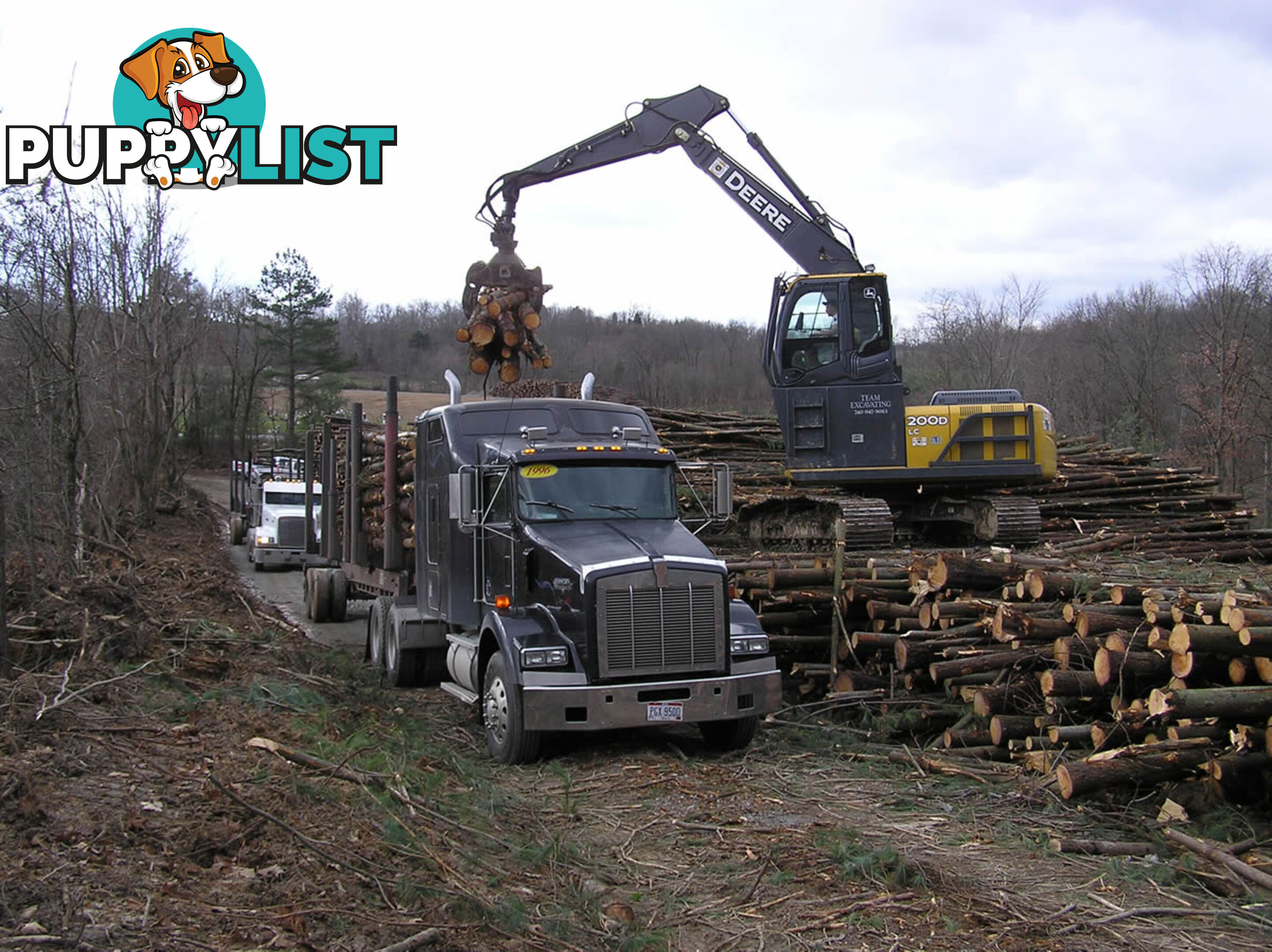

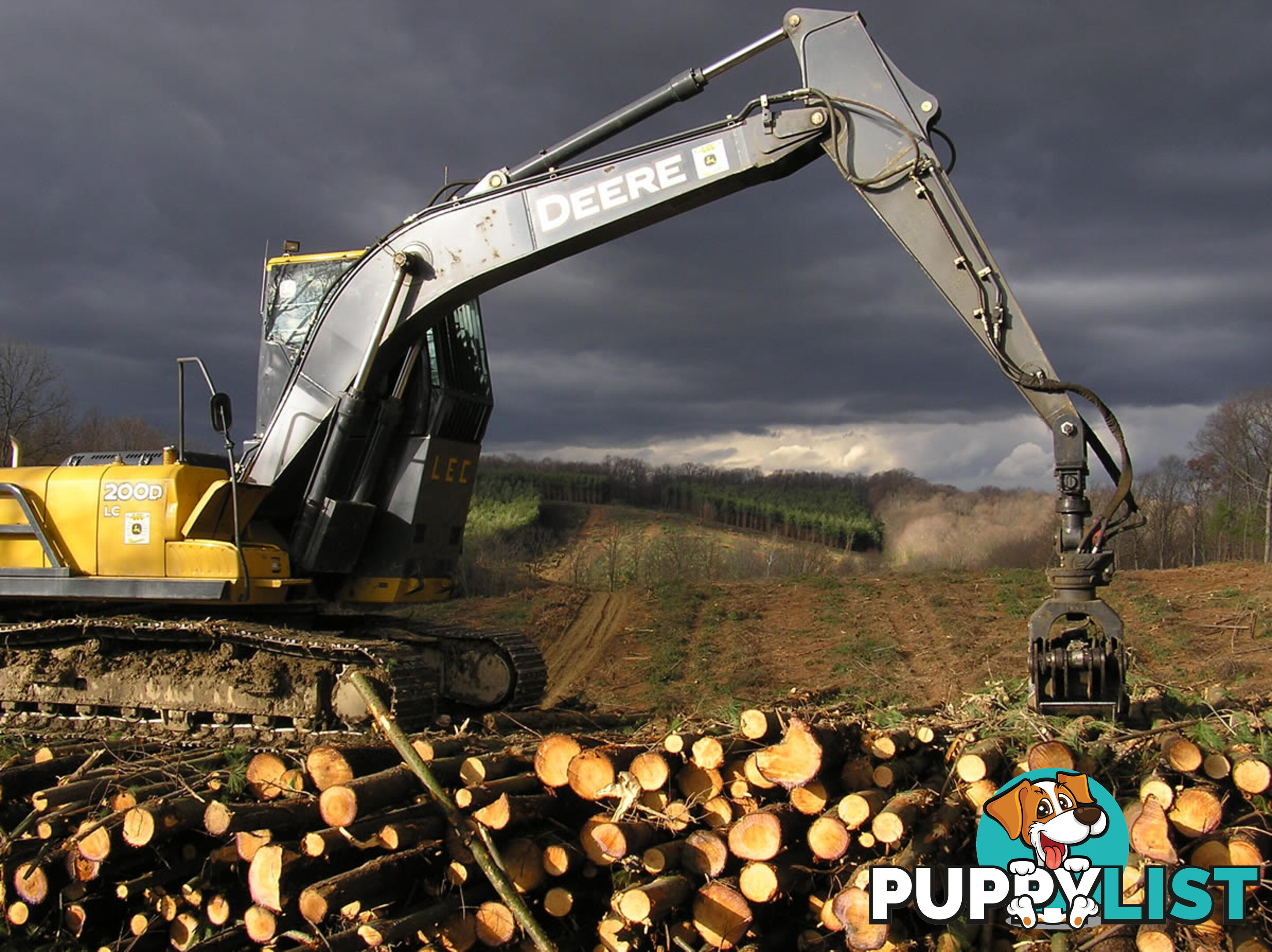

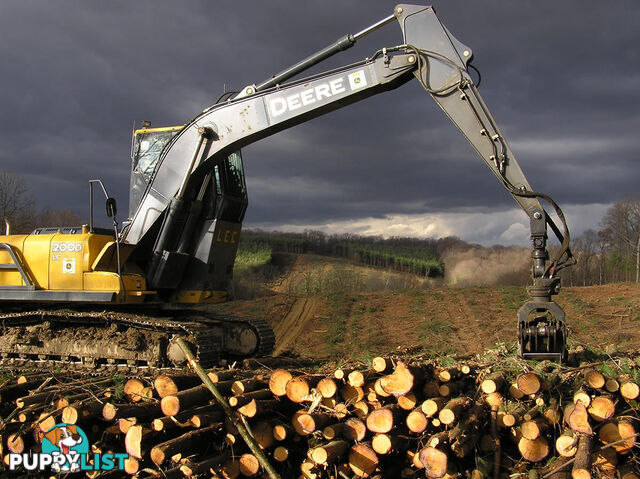

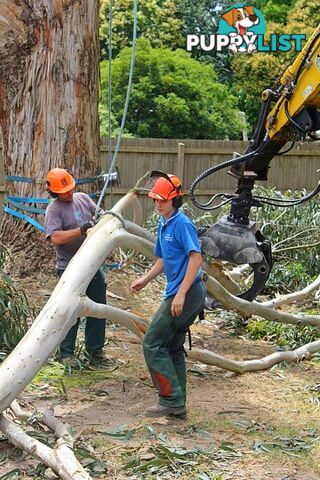

Log grapples are the choice for stacking logs with forwarders, log sorting and often for feeding chippers.

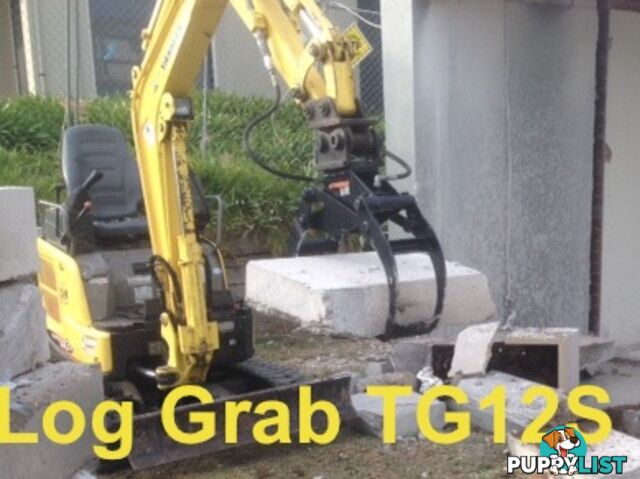

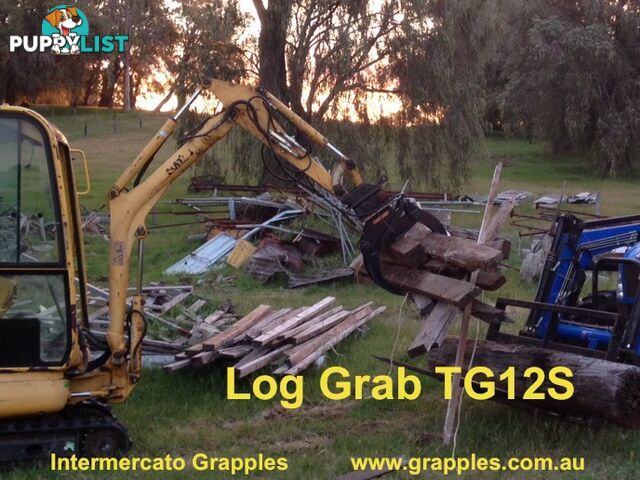

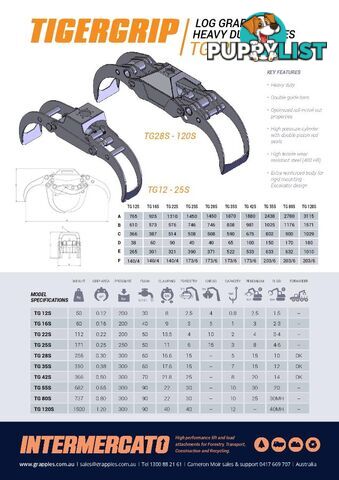

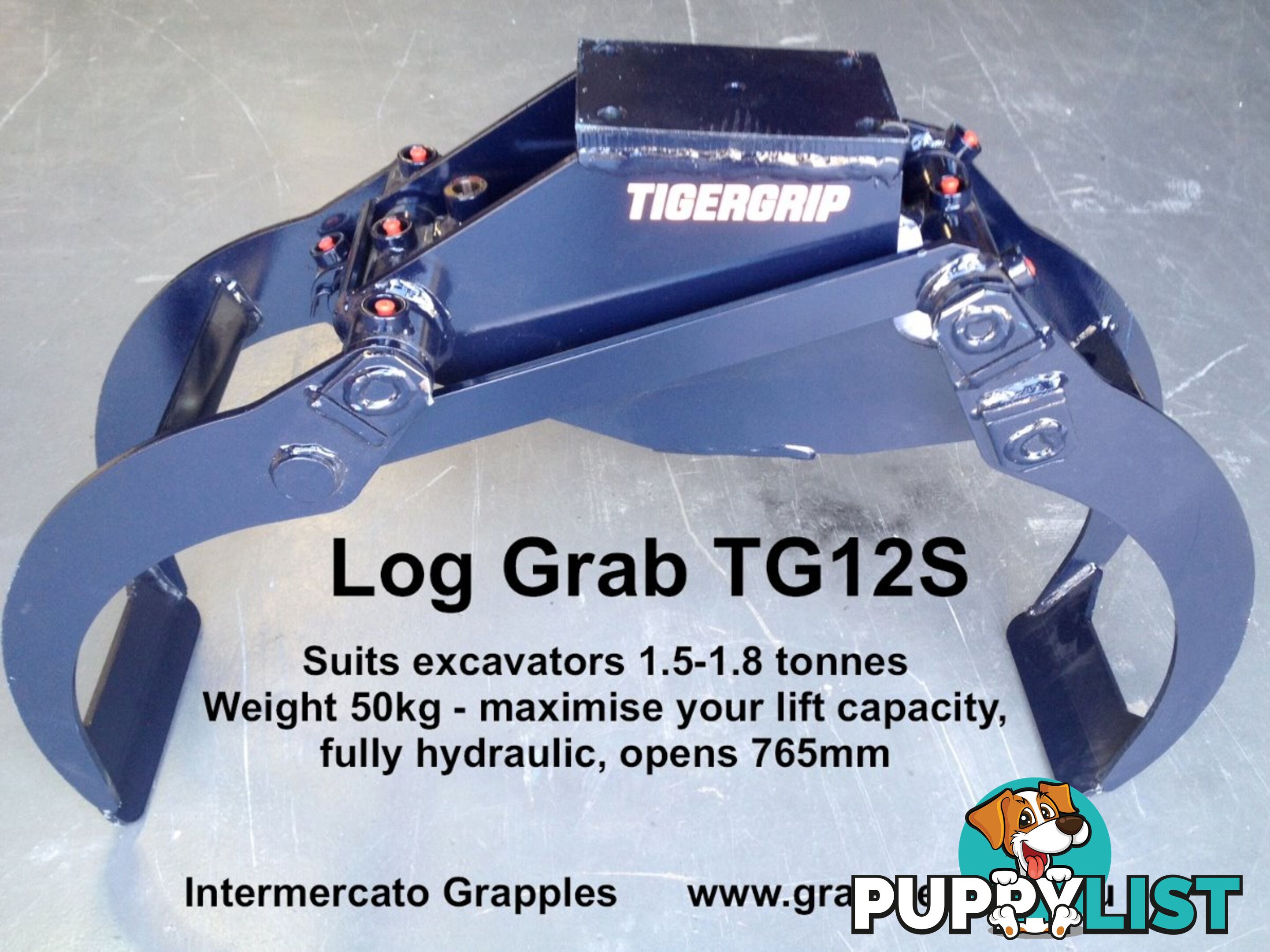

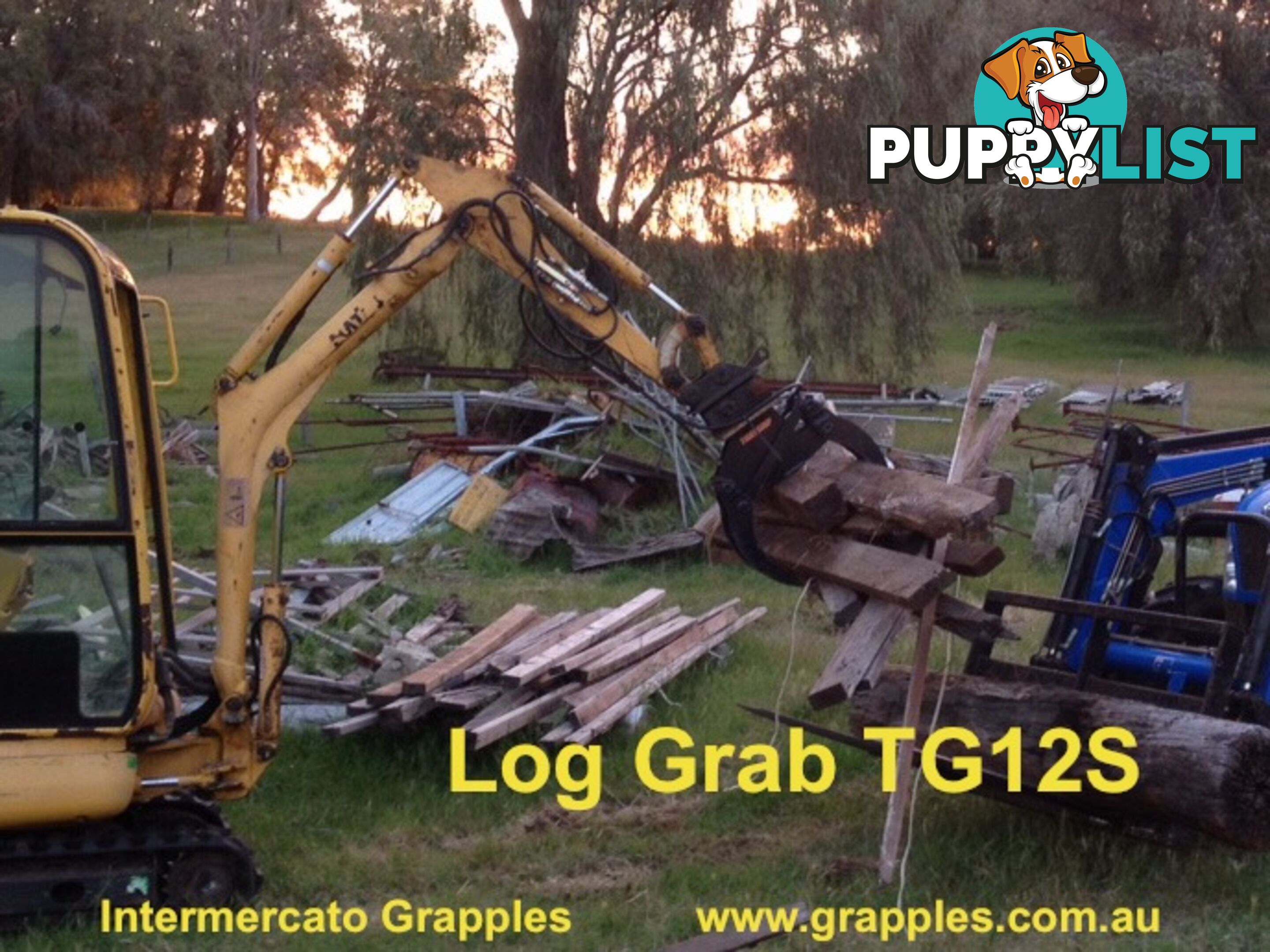

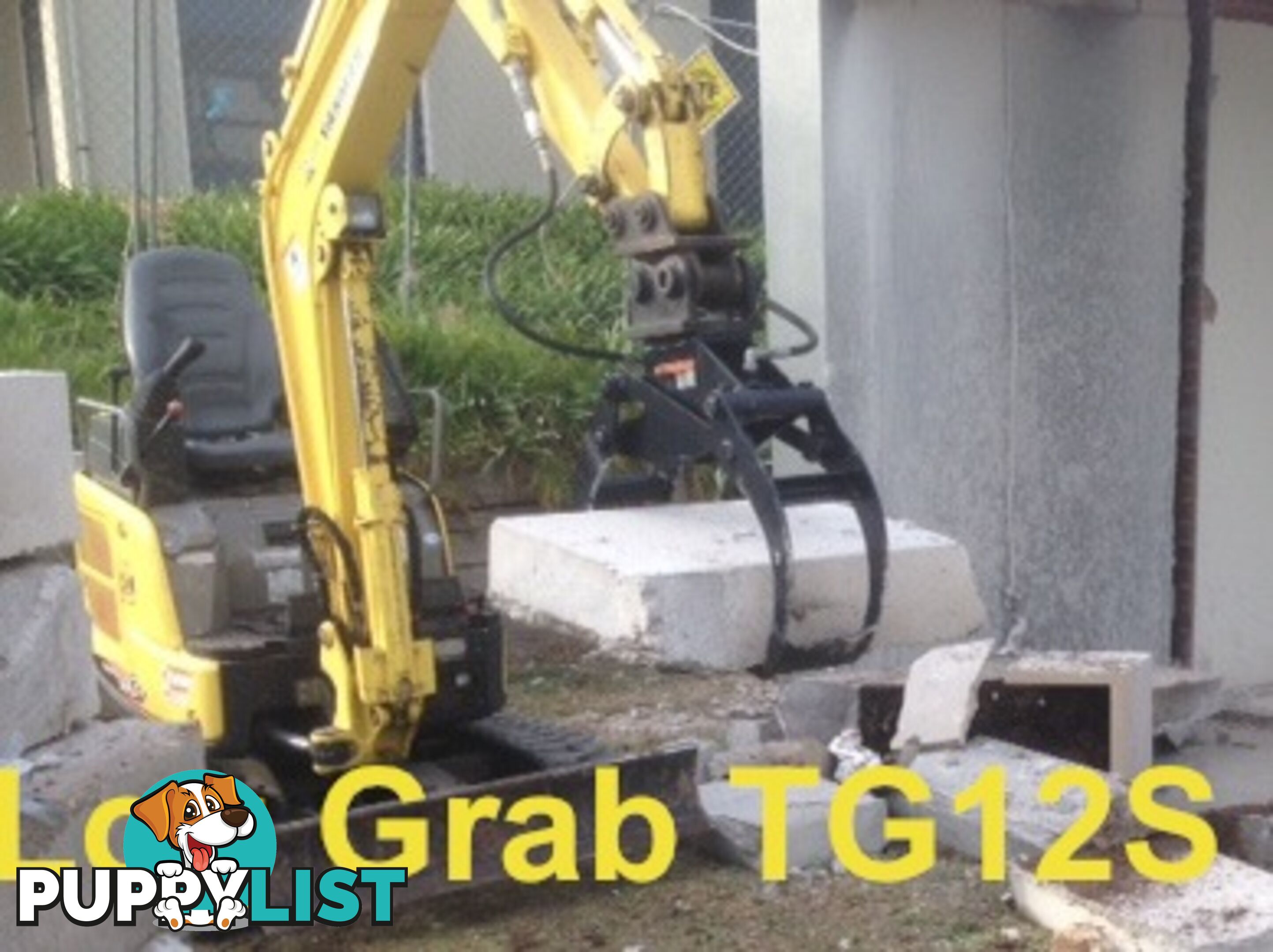

TG12S Weight:50kg Excavator weight:1.5tonne Opening width:765mm Closing width:38mm

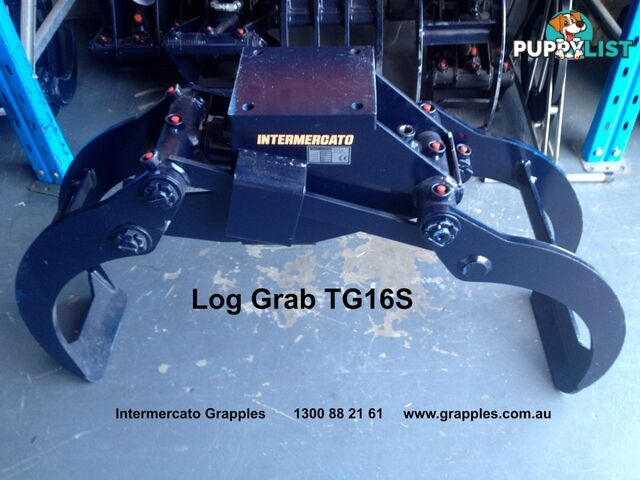

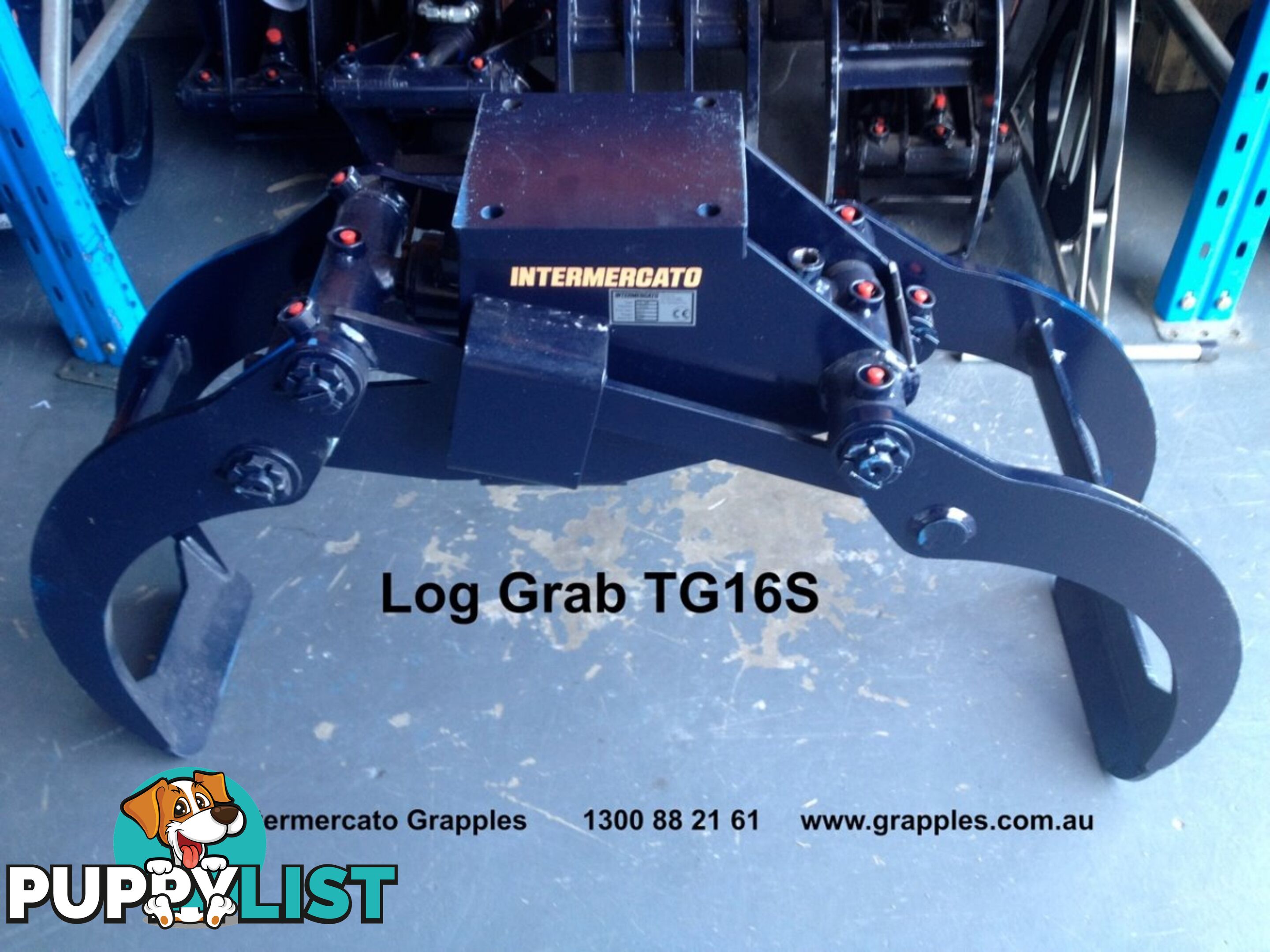

TG16S Weight:60kg Excavator weight:2-3tonne Opening width:925mm Closing width:60mm

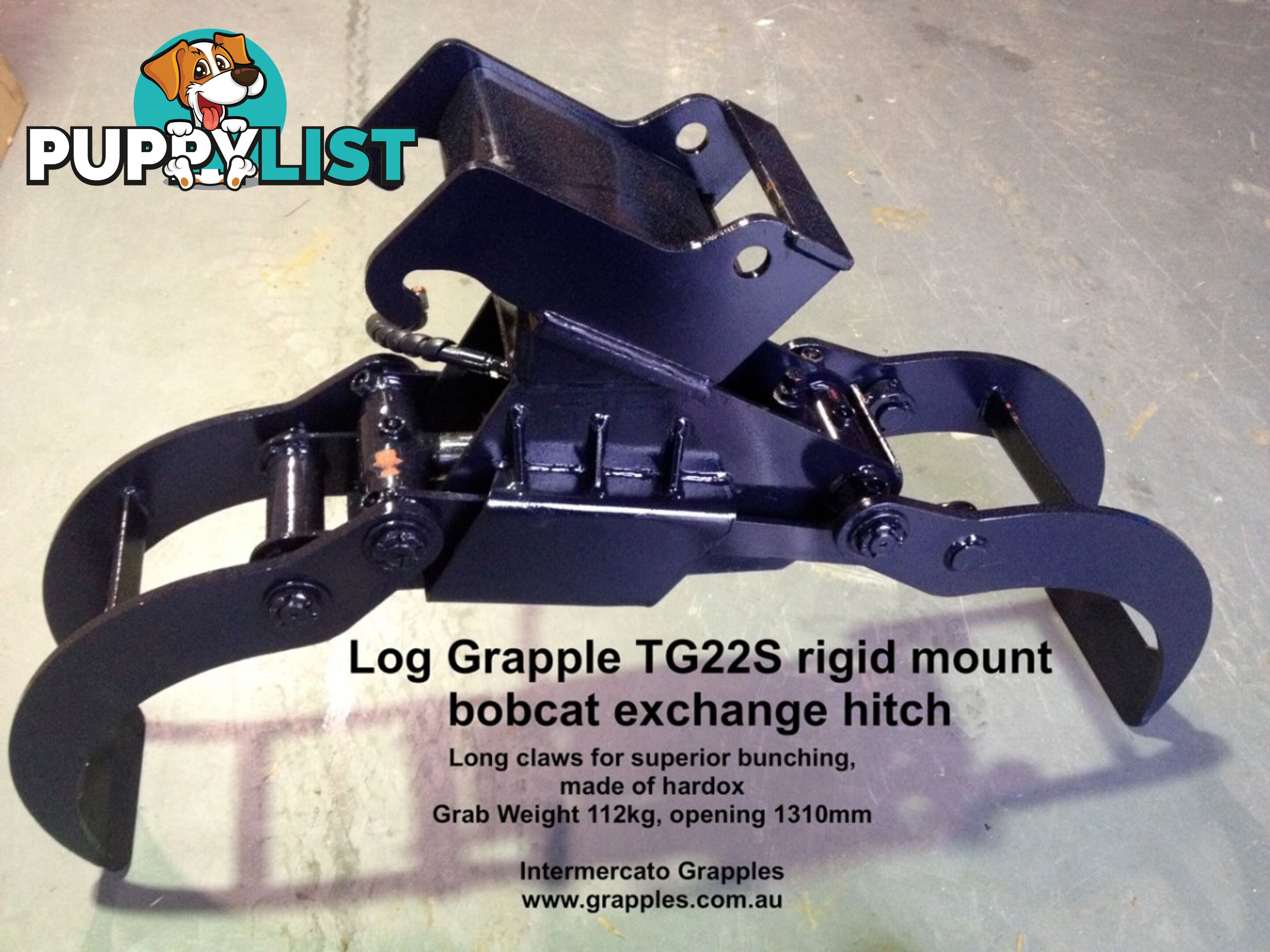

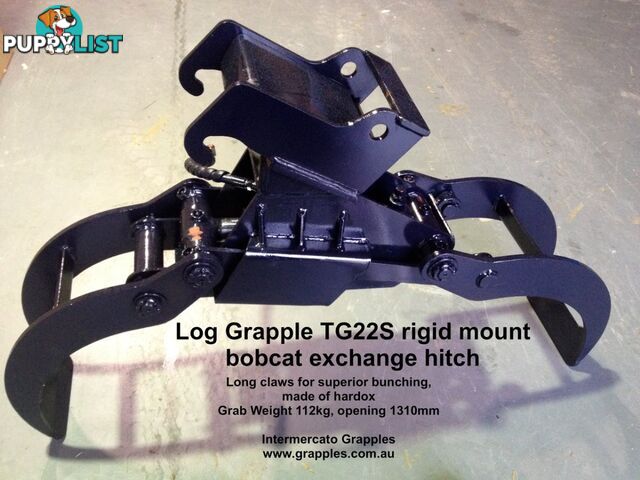

TG22S Weight:112kg Excavator weight:3-4tonne Opening width:1310mm Closing width:90mm

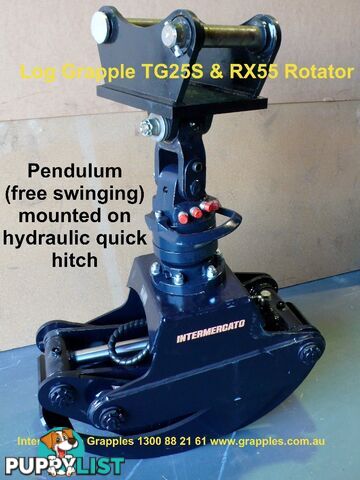

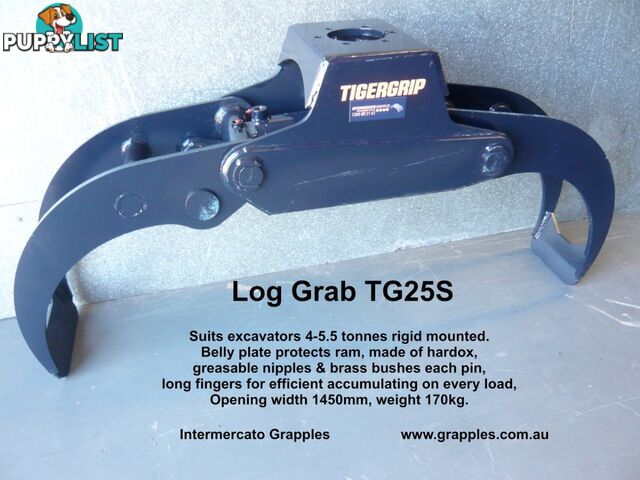

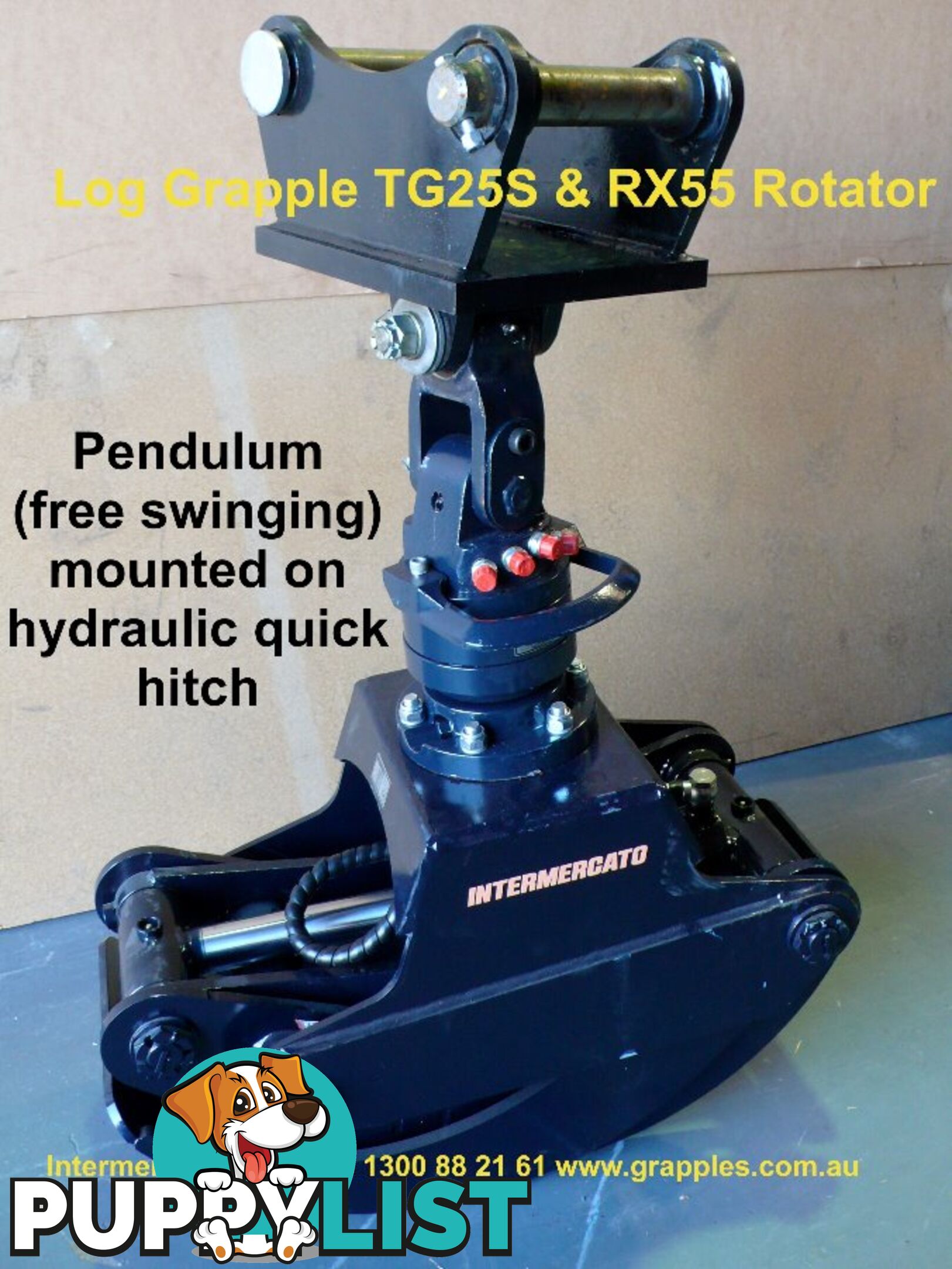

TG25S Weight:171kg Excavator weight:4-6tonne Opening width:1450mm Closing width:40mm

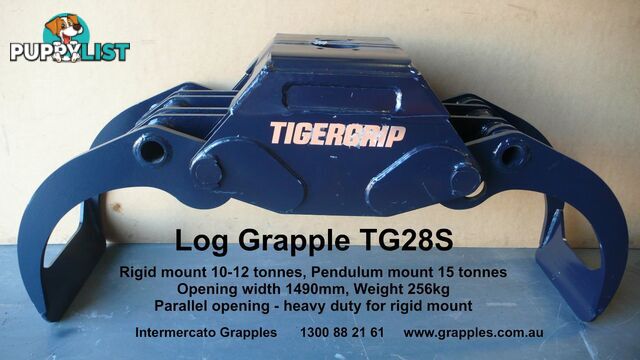

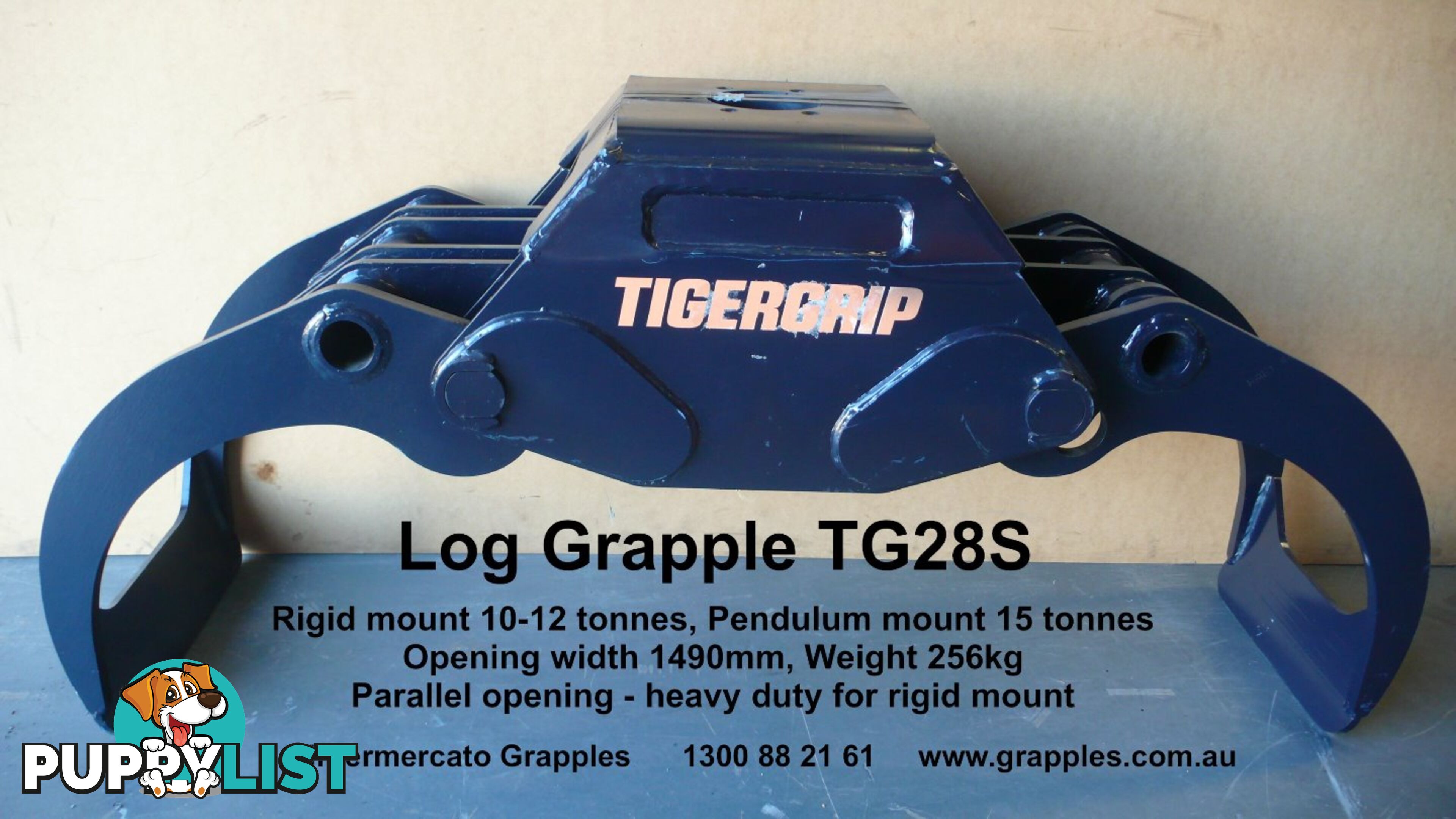

TG28S Weight:256kg Excavator weight:10tonne Opening width:1450mm Closing width:40mm
TG35S Weight:310kg Excavator weight:12tonne Opening width:1870mm Closing width:65mm
TG42S Weight:366kg Excavator weight:14tonne Opening width:1880mm Closing width:100mm
TG55S Weight:682kg Excavator weight:20tonne Opening width:2438mm Closing width:150mm
TG80S Weight:737kg Excavator weight:30MH Opening width:2780mm Closing width:170mm
TG120S Weight:1500kg Excavator weight:40MH Opening width:3115mm Closing width:180mm
All Log Excavator Grapples have the following features:
Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.
High clamping forces with oversized pistons - allows secure gripping of any load.
Excellent bundling geometry - giving rapid productivity.
All excavator series made from the highest quality steel available - HARDOX.
Built by a company specializing in excavator grabs and grapples for over 20 years.
For more details see - http://www.grapples.com.au/log-grapples-heavy-duty-for-excavators
