Universal Grab for excavators
Call for price
DESCRIPTION

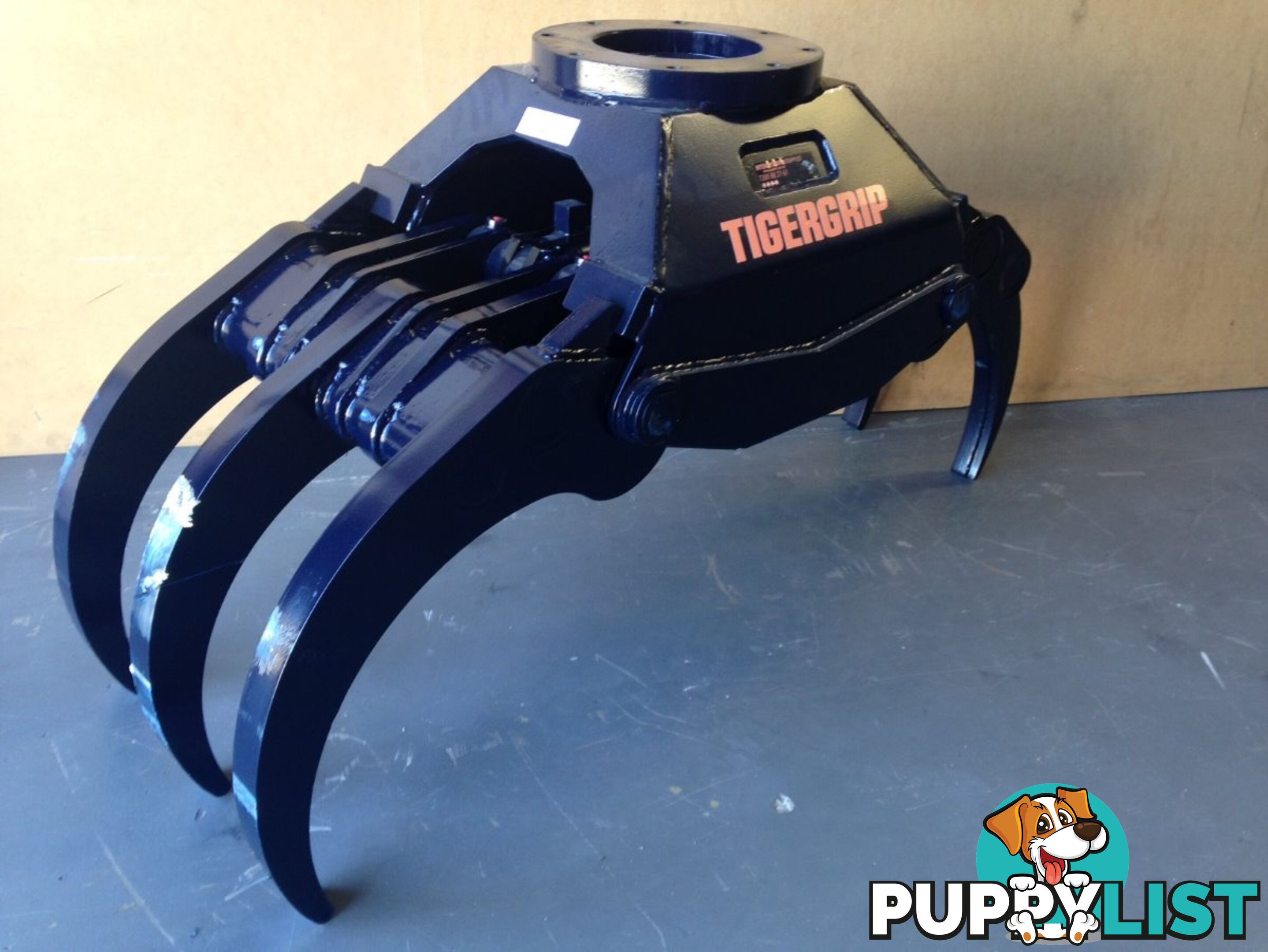

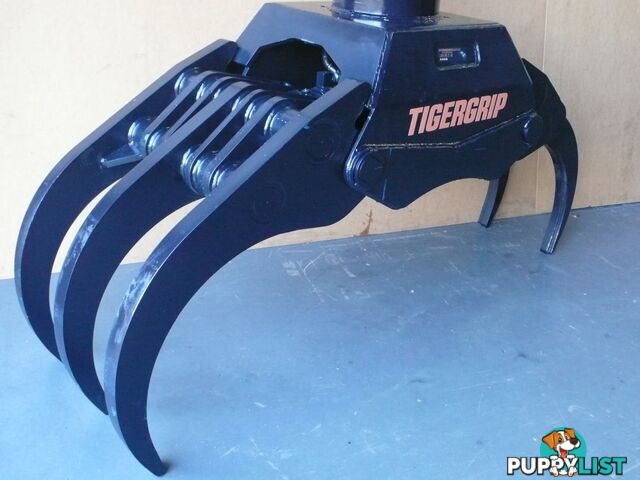

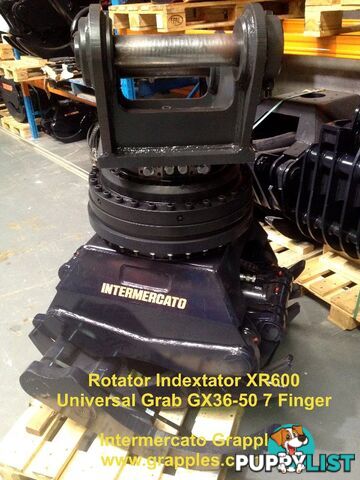

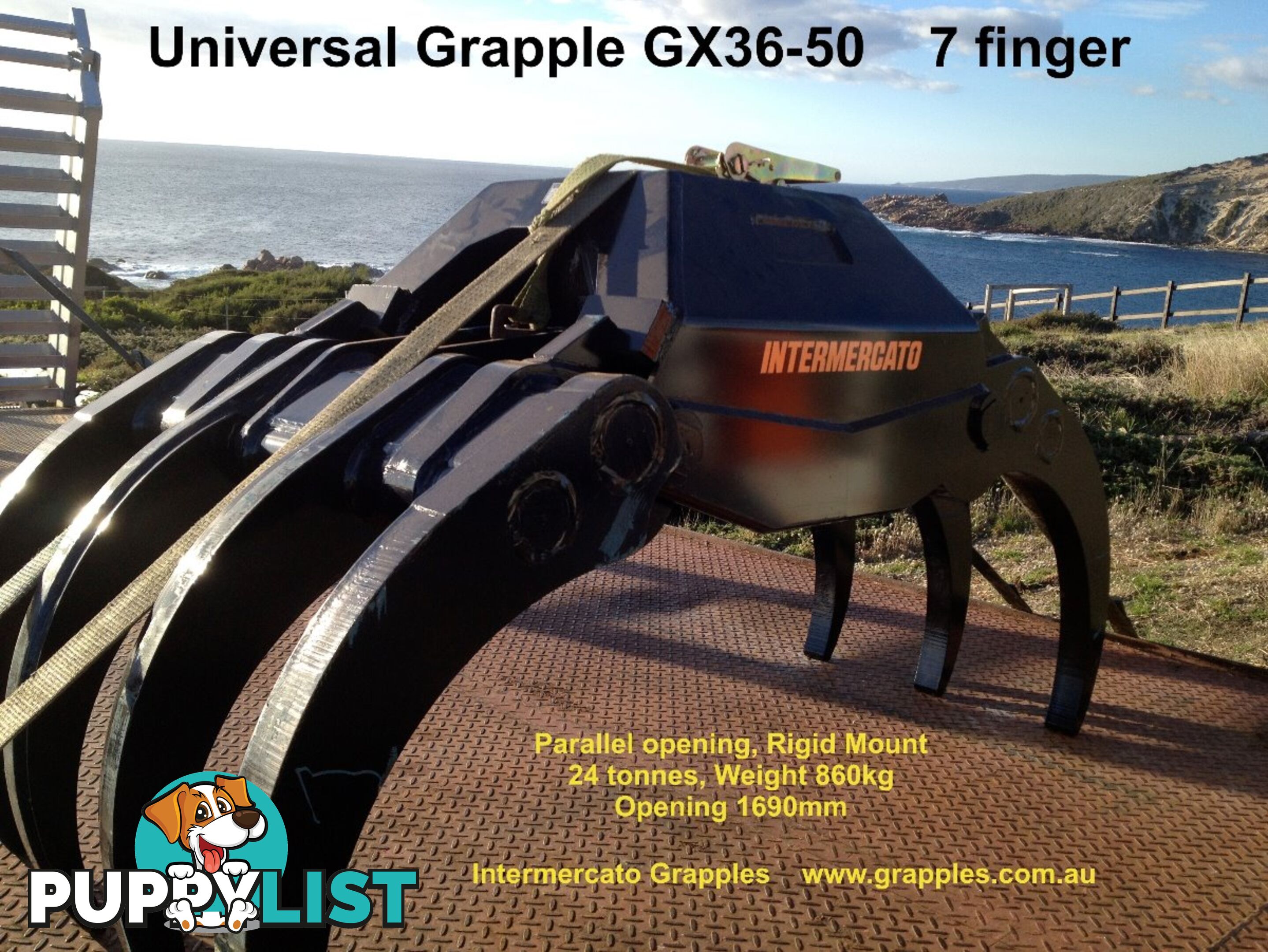

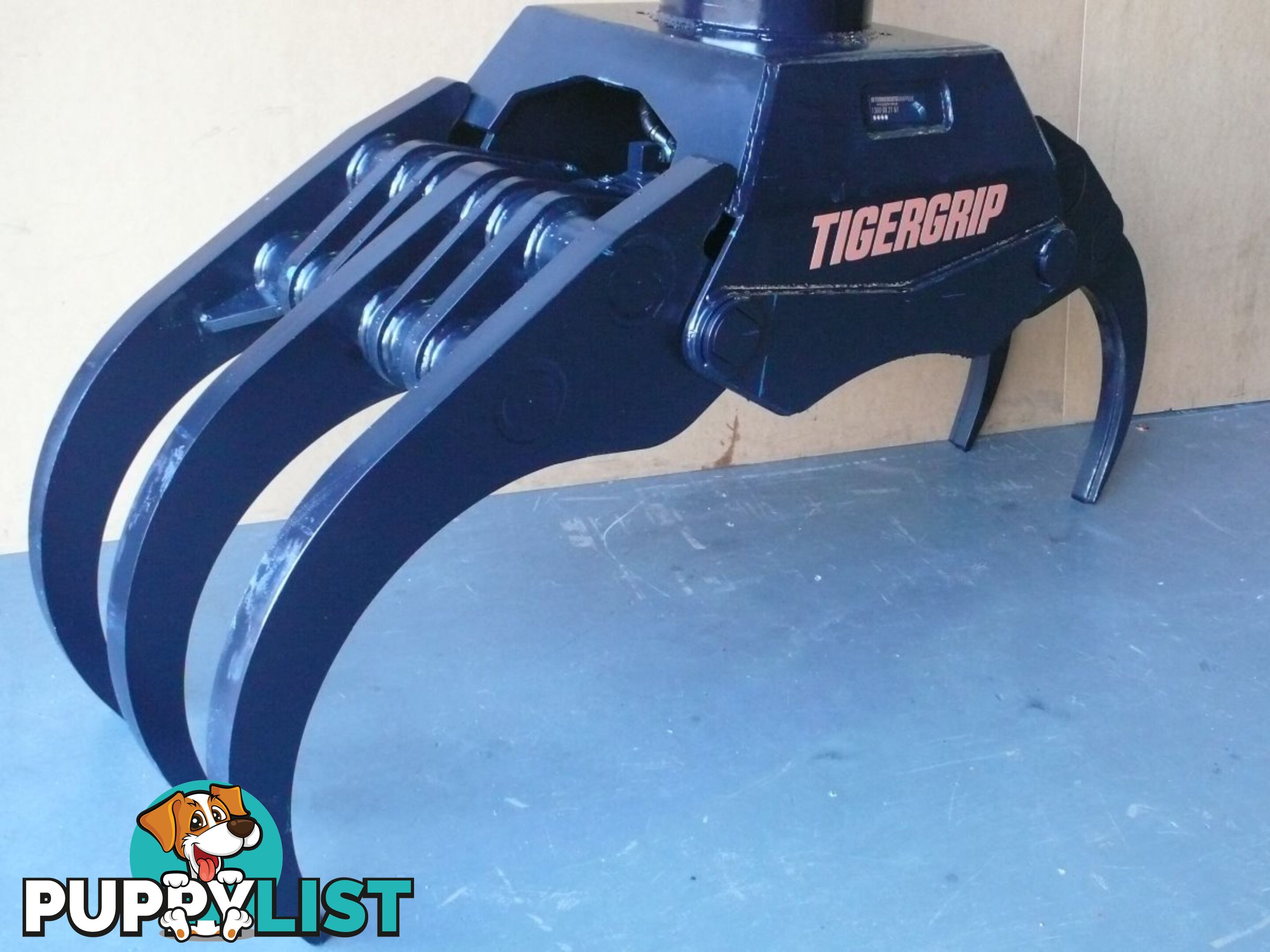

Intermercato universal grabs are suited to excavators for heavy duty applications between 12 and 30 tonnes.For smaller excavators see the 5 finger or stone series.The main GX series has 5 fingers but is also available in 7 fingers for extra width (ex-Sweden). Custom grabs are also available with up to 13 heavy duty tines.

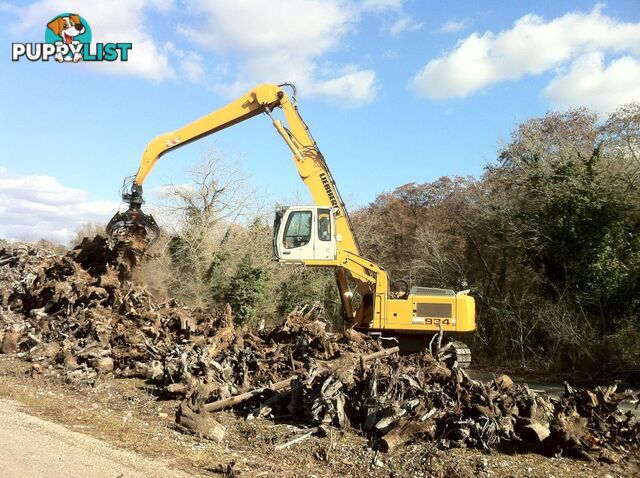

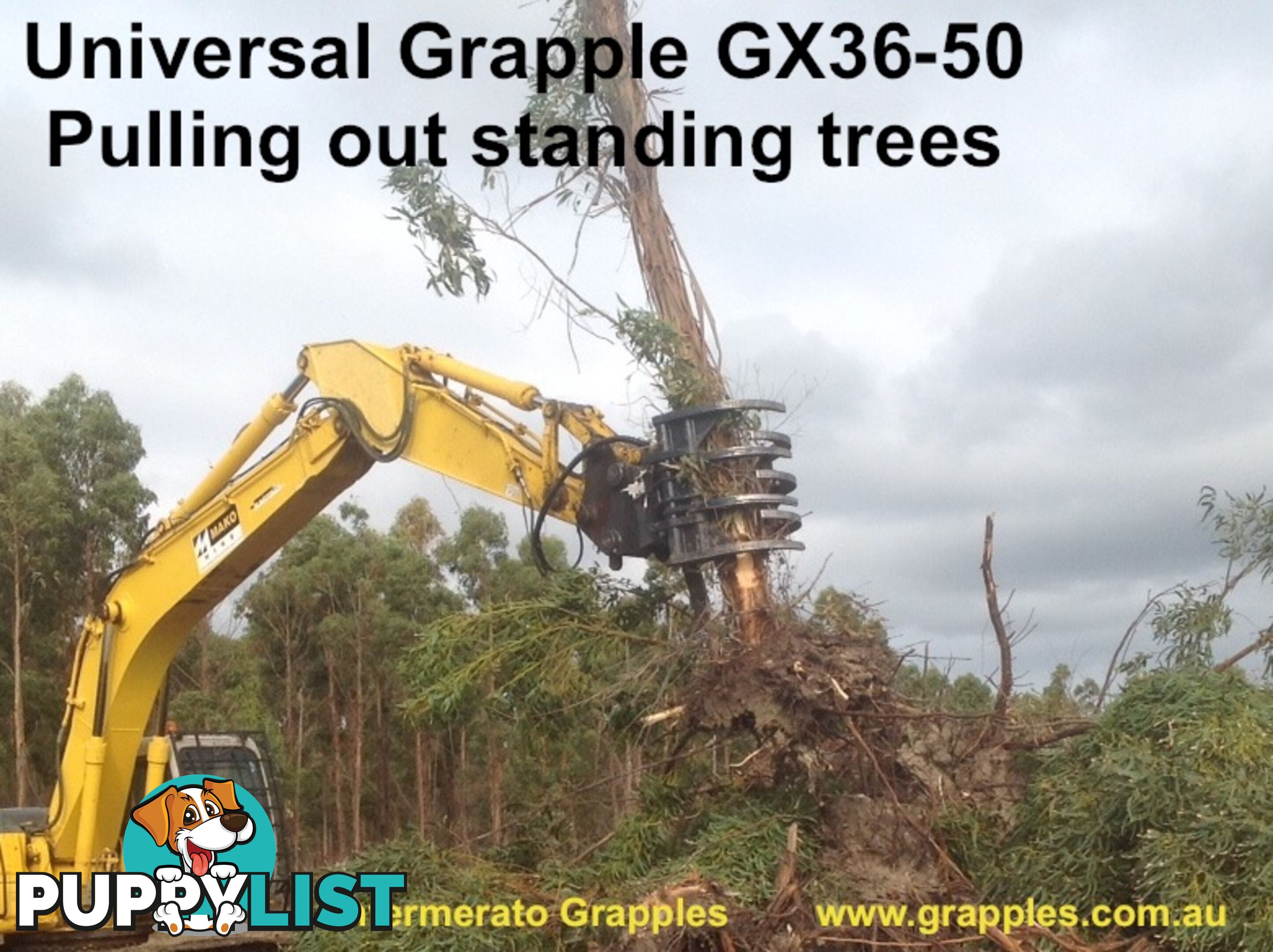

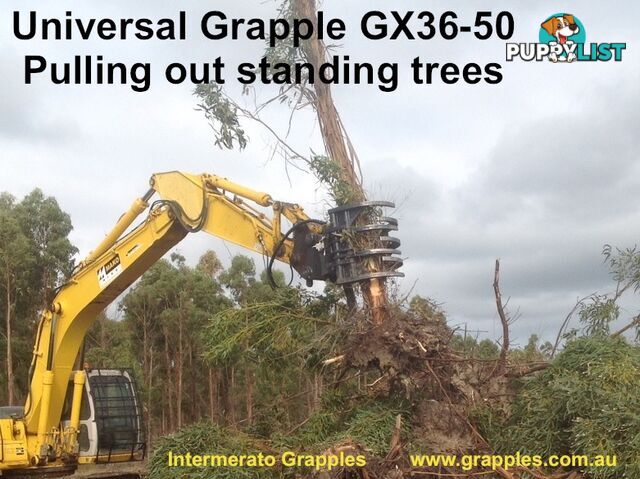

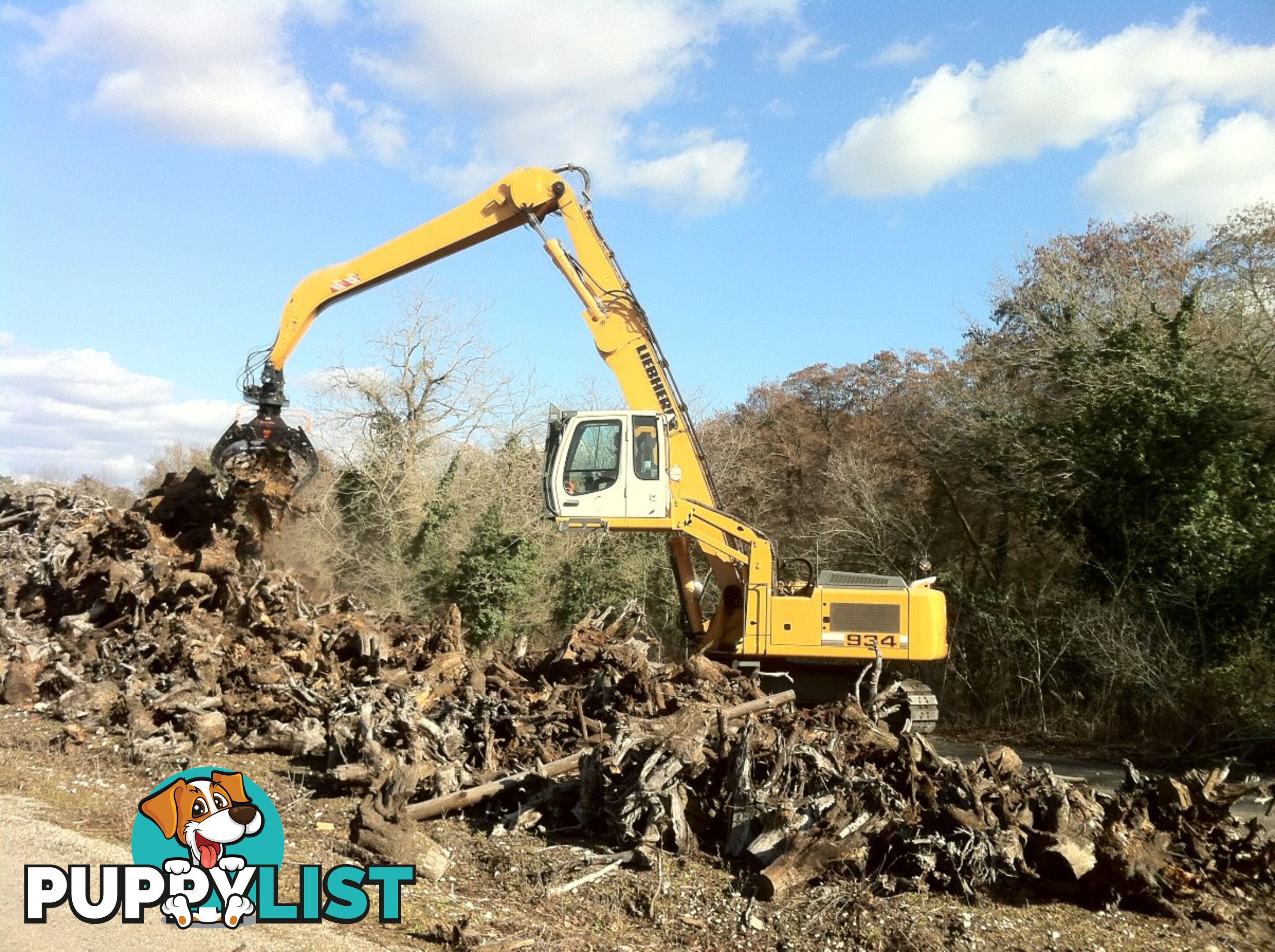

The universal grabs range were originally designed as stump pullers, so they are very strong. Now they are the choice in demolition, rock work and other applications where a super strong grab is required.All universal grabs are of the modern bypass design, allowing wide opening widths to pick up large amounts of material and give great capacity but still allowing very tight closing to handle a variety of sizes.
Intermercato universal grabs are designed to give high gripping forces and superior bunching on all materials.

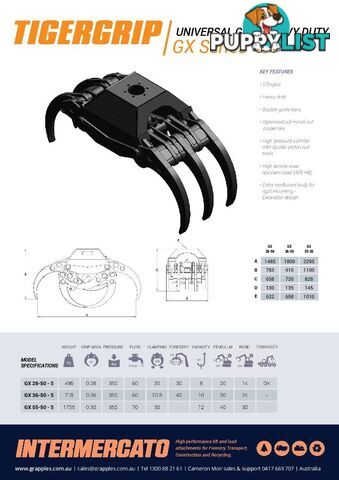

GX28-50-5 Weight:495kg Excavator weight:14tonne Opening width:1485mm Closing width:130mm
GX36-50-5 Weight:718kg Excavator weight:24tonne Opening width:1800mm Closing width:135mm

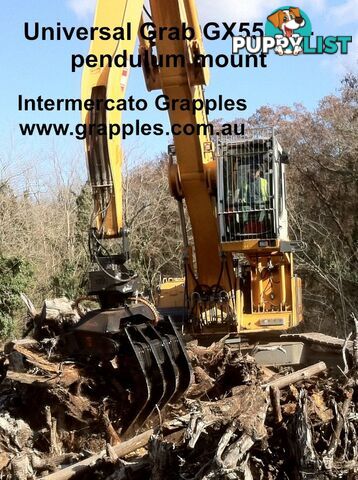

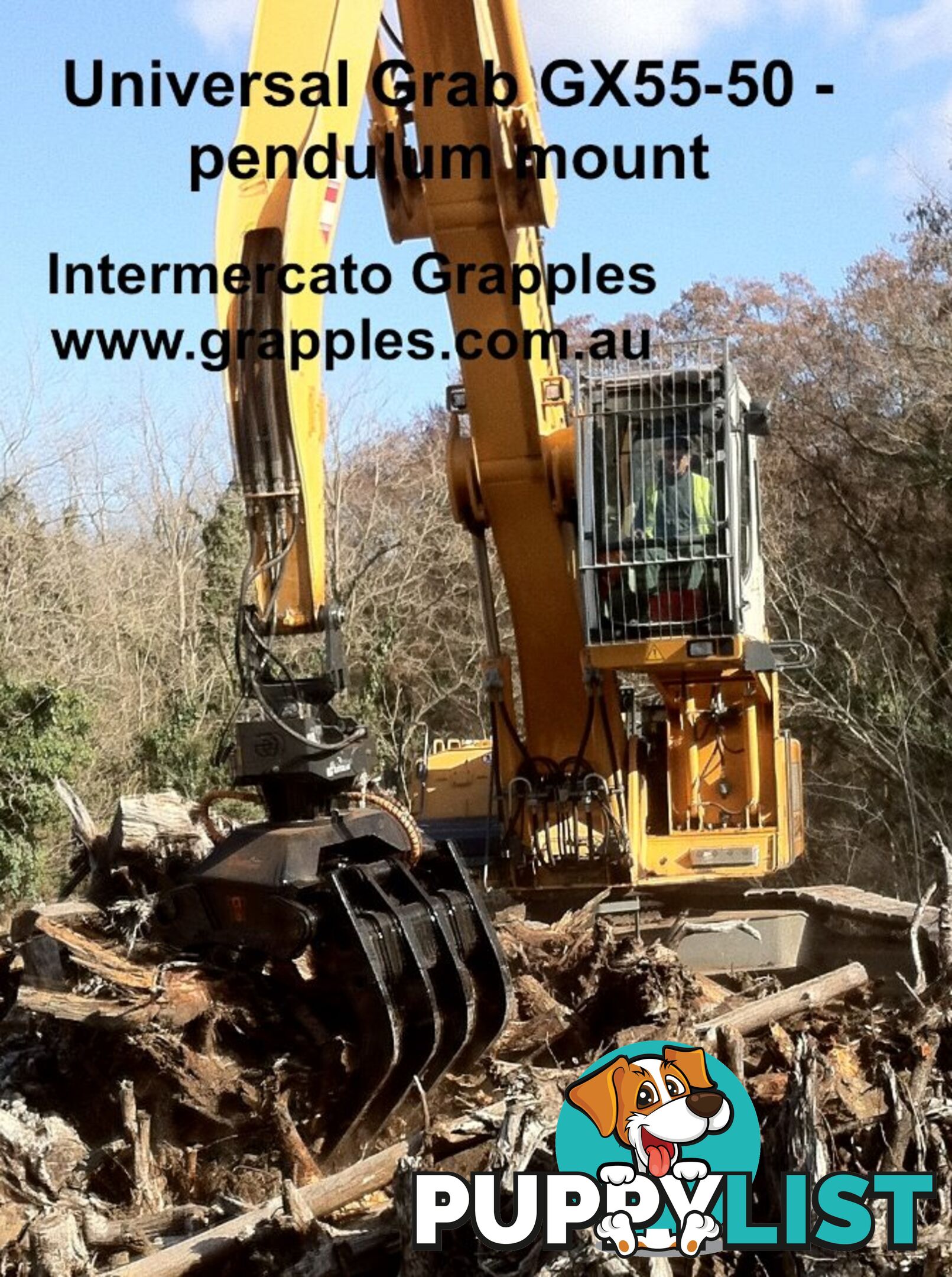

GX55-50-5 Weight:1735kg Excavator weight:30tonne Opening width:2295mm Closing width:145mm
All universal grabs have the following features:
Excellent GRIPPING FORCE for hard rock with 3, 4, 5 or up to 13 heavy duty tines.Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.High clamping forces with oversized pistons - allows secure gripping of any load.
All excavator series made from the highest quality steel available - HARDOX.
Built by a company specialising in grapples for over 20 years.Optional overcentre valves.
Intermercato's fully hydraulic universal grabs allow the operator to still have full control of the tilt cylinder so objects can be picked up and placed precisely with more ease. The tilt cylinder can also be used for efficient raking if desired.
For more details see - http://www.grapples.com.au/universal-grabs-heavy-duty
Call us now on 1300 88 21 61
ADDITIONAL INFORMATION
- Price
- Call for price
- Condition
- New
