Clamshell Buckets

DESCRIPTION

Intermercato Clamshell Buckets are suited to Excavators and Cranes from 500kg to over 30 tonne capacity.
TMC, TGO, TCB are designed for moving stockpiles. These are very efficient at loading, choose which style suits your crane and loading requirements.
TGO also has the advantage of removable side plates.
Mounting of most clamshell buckets is usually via a link - cardanic suspension. Some heavy duty clamshells are suited to rigid mounting.
Clamshell buckets are very efficient at loading, as both shells oppose each other - forcing their way into the material, whereas a standard bucket continually pushes the spoil outwards.
Clamshell buckets allows trucks to self-load with a crane, freeing up site machinery for other uses. Clamshell buckets are also able to load from the very bottom of the heap, and even clean up a site as everything can be clamped neatly into the bucket.
The clamshell faces and mountings are all made from HARDOX and reinforced to give extra strength and durability for longevity.

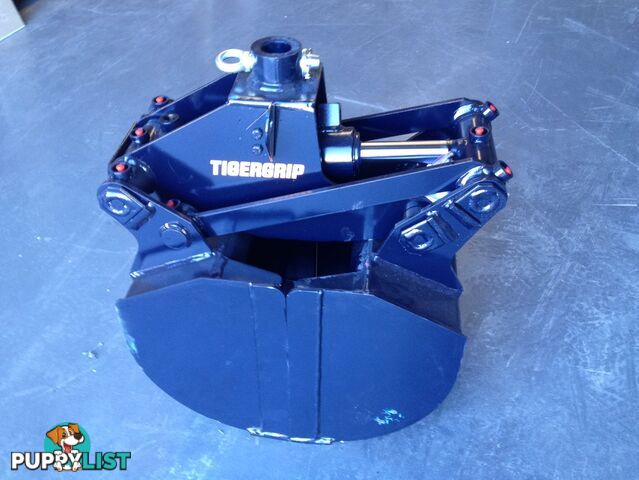

TGS12-40 Weight:60kg Opening width:1232mm
TGS12-50 Weight:65kg Opening width:1232mm
TMC40 Weight:142kg Opening width:1270mm
TMC50 Weight:152kg Opening width:1270mm
TMC60 Weight:162kg Opening width:1270mm
TMC80 Weight:202kg Opening width:1270mm

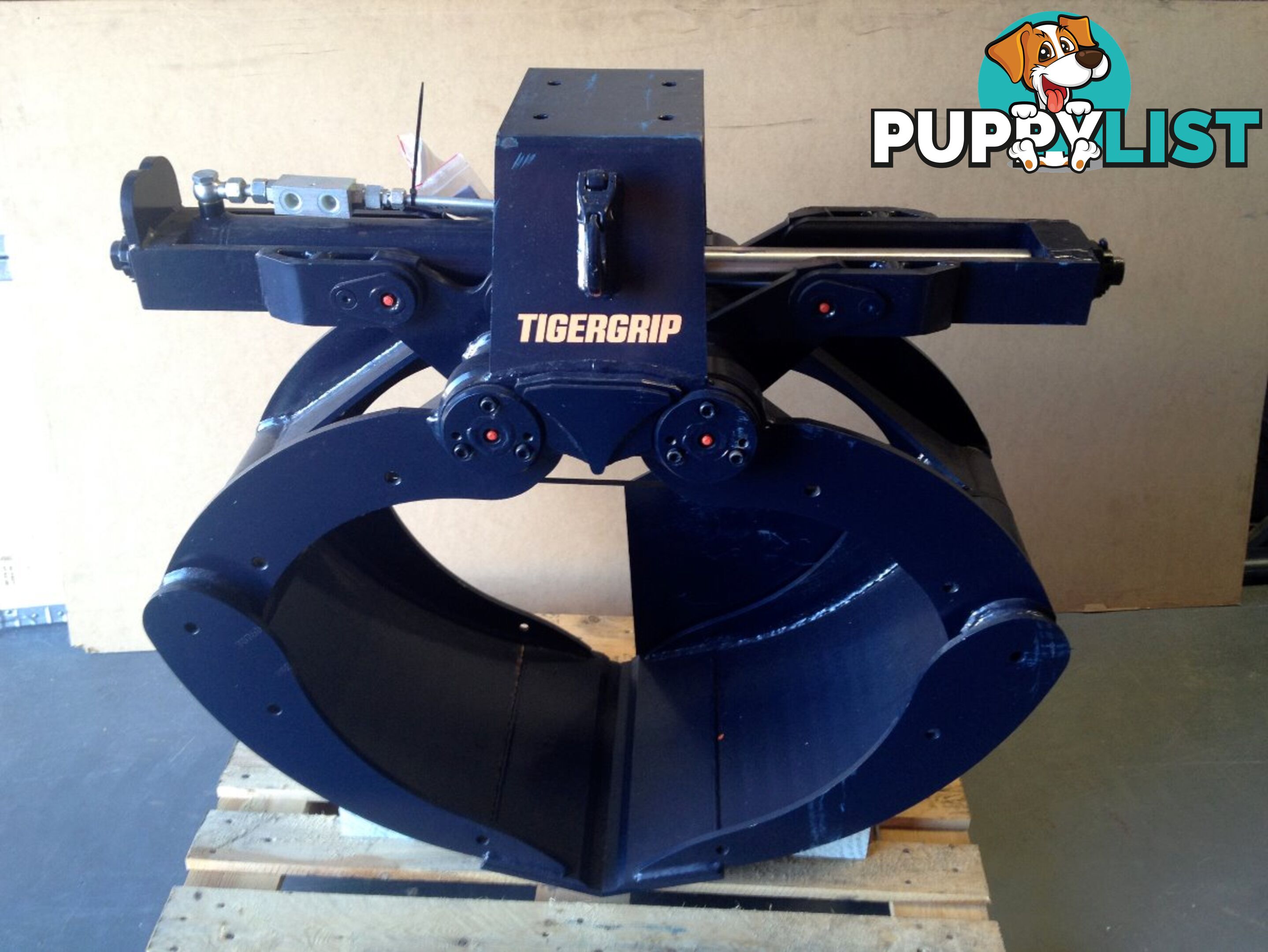

TGO500 Weight:315kg Opening width:1168mm
TGO650 Weight:340kg Opening width:1168m
TGO800 Weight:370kg Opening width:1168mm
TGO900 Weight:390kg Opening width:1168m
TGO1000 Weight:405kg Opening width:1168mm
TGO1200 Weight:440kg Opening width:1168mm

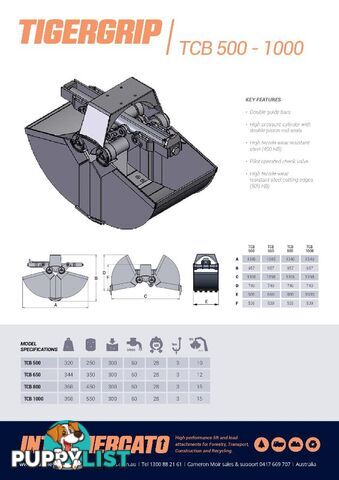

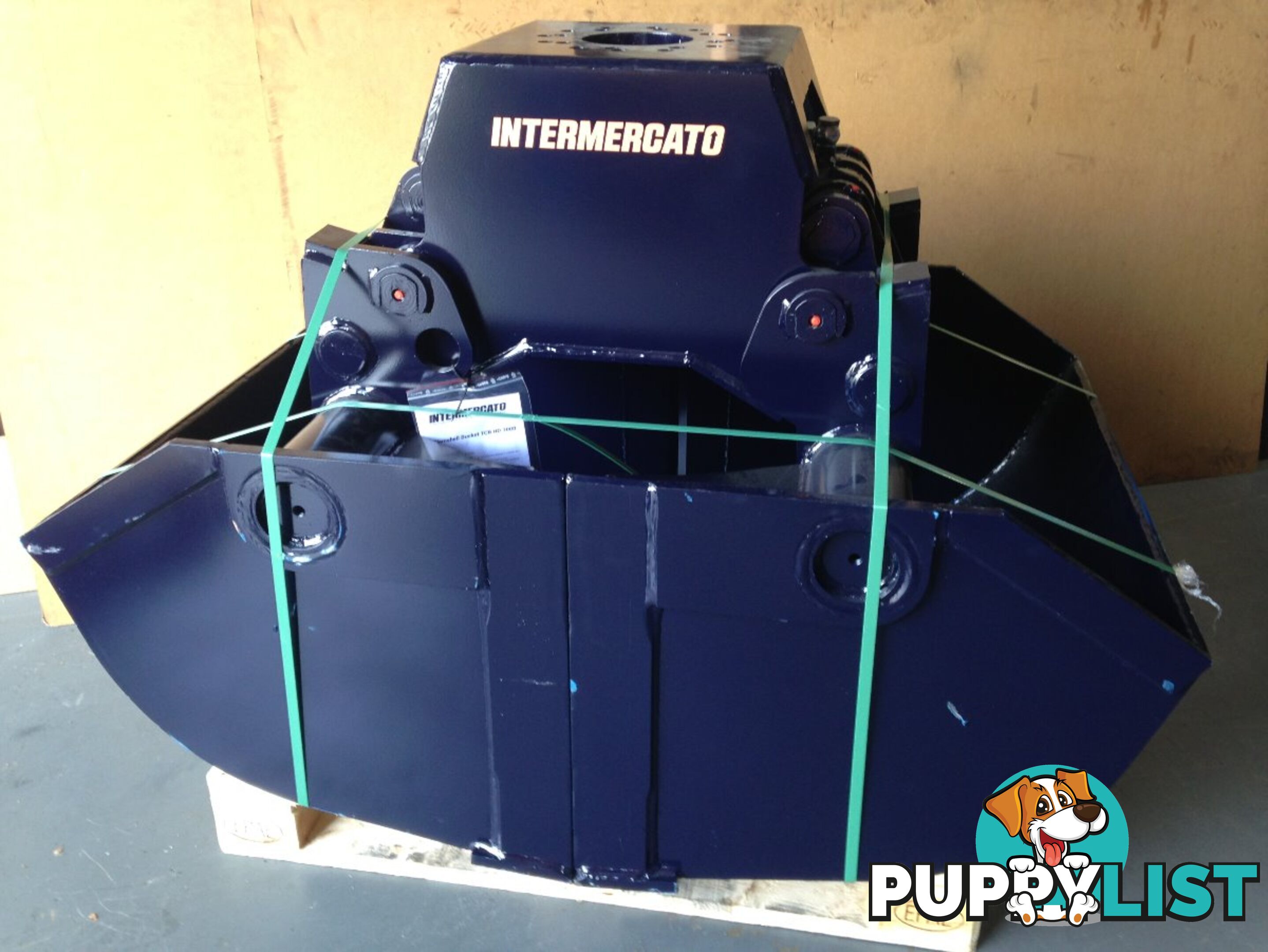

TCB500 Weight:320kg Opening width:1340mm
TCB650 Weight:344kg Opening width:1340mm
TCB800 Weight:368kg Opening width:1340mm
TCB1000 Weight:398kg Opening width:1340mm

TCB420L Weight:220kg Opening width:1340mm
TCB500L Weight:240kg Opening width:1340mm
TCB650L Weight:260kg Opening width:1340mm
TCB800L Weight:295kg Opening width:1340mm

TCBHD1000 Weight:520kg Opening width:1515mm
TCBHD1250 Weight:560kg Opening width:1944mm
TCBHD1500 Weight:1070kg Opening width:2243mm

Superchip Weight:710kg Opening width:2340mm

For more details see -http://www.grapples.com.au/clamshell-buckets
