Loader & Skid Steer Grapples

DESCRIPTION

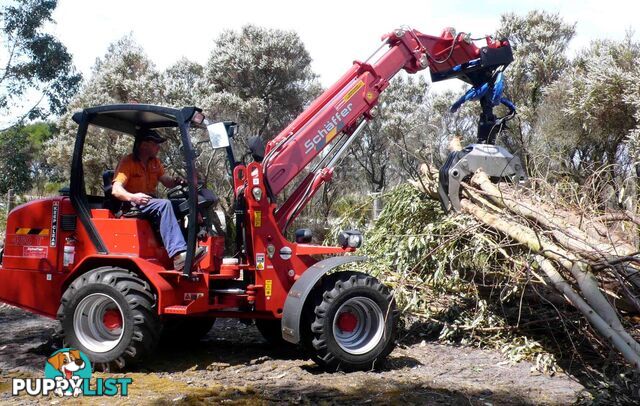

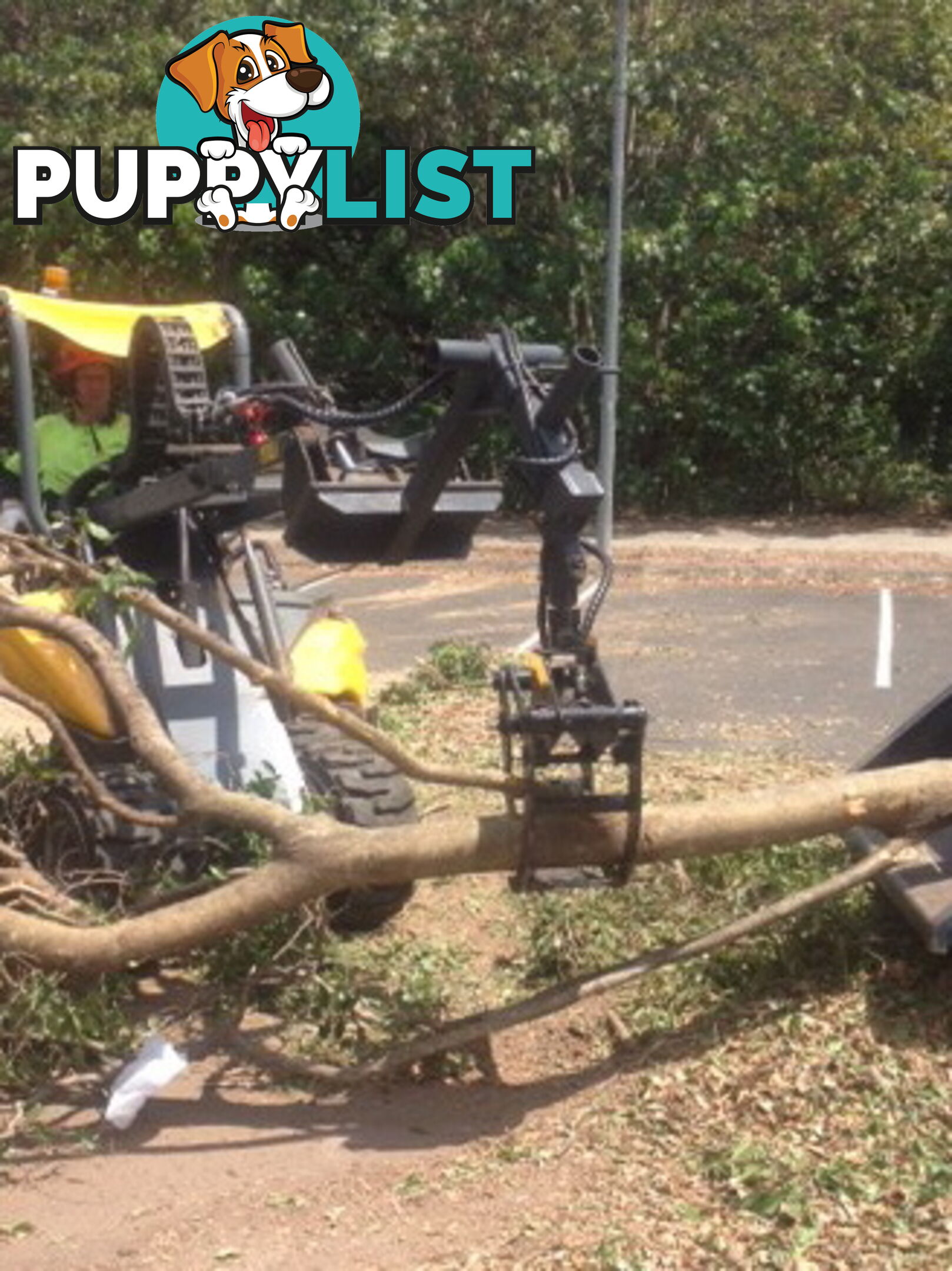

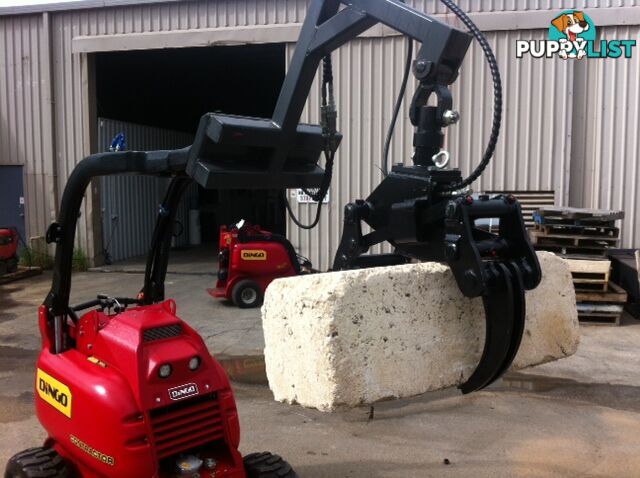

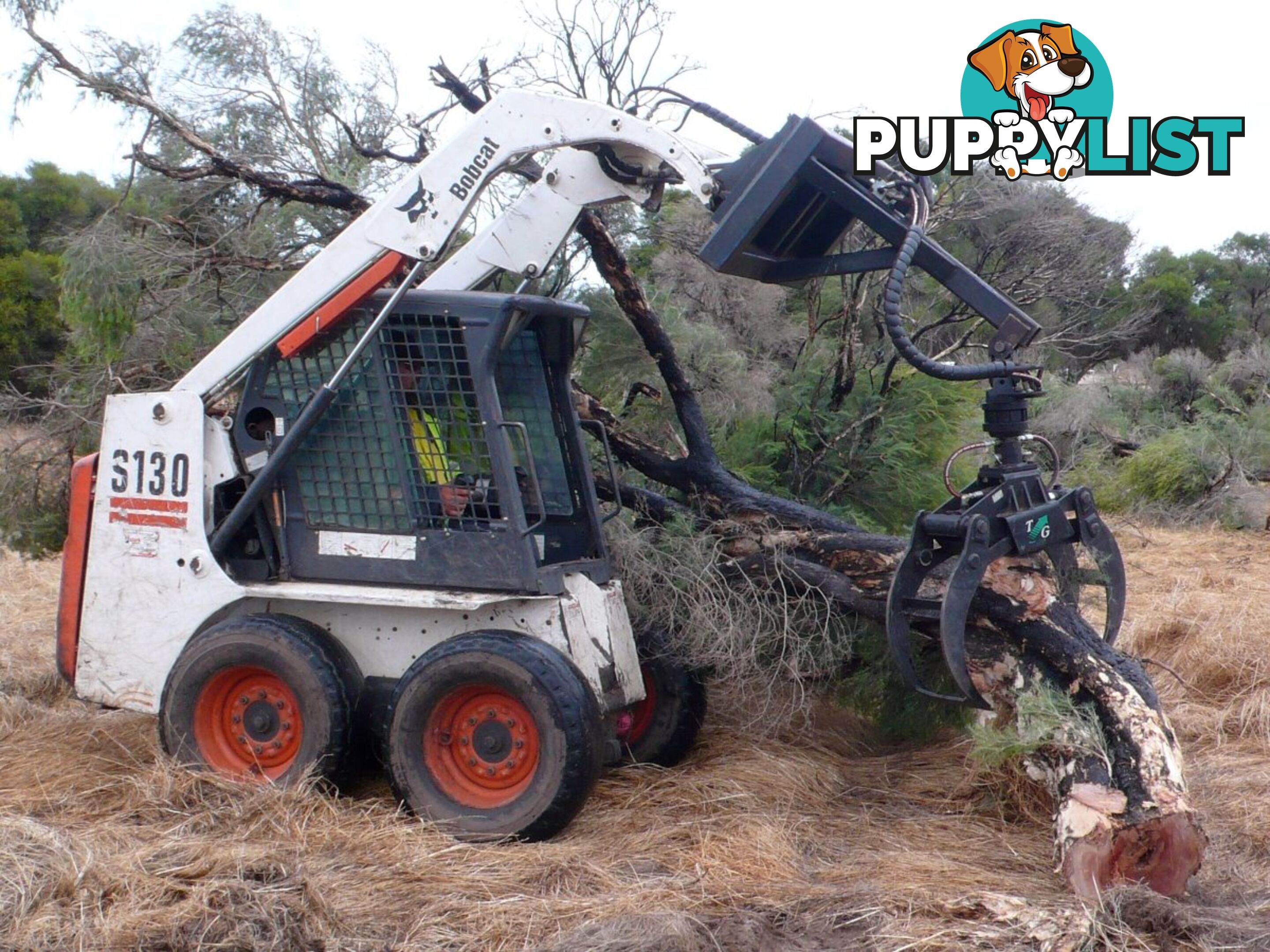

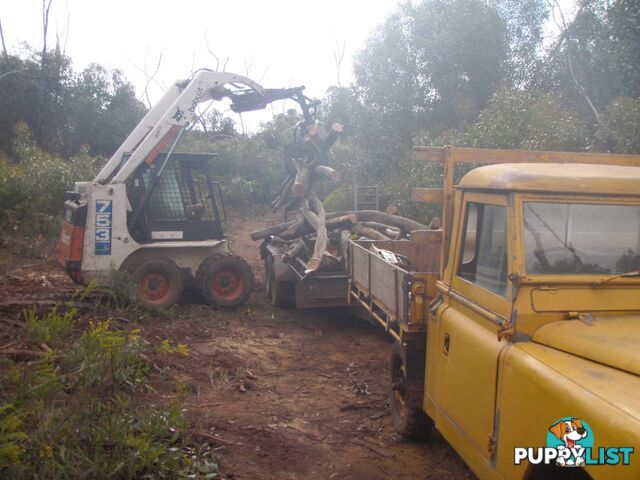

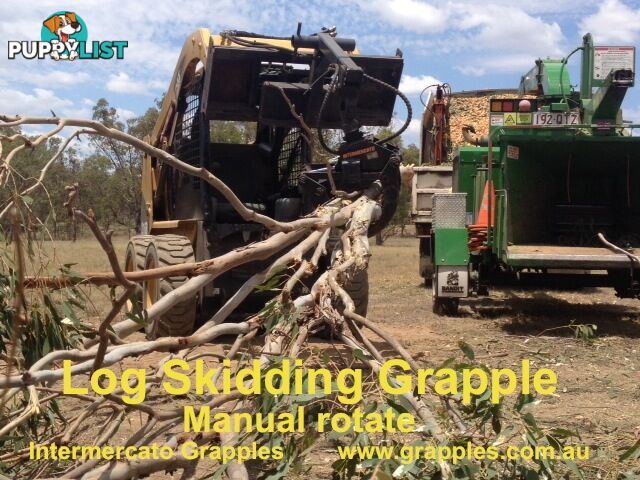

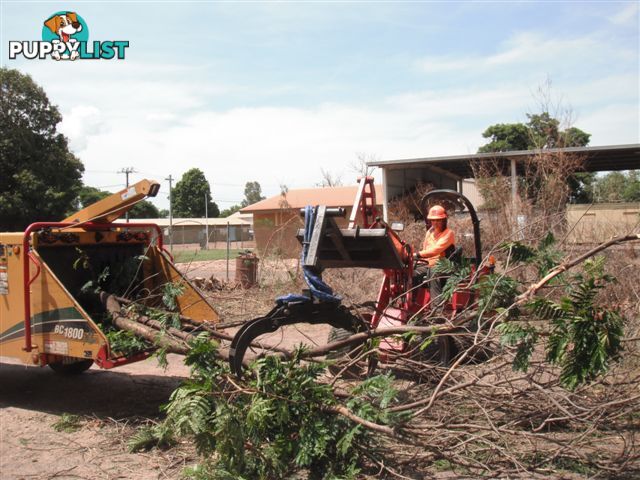

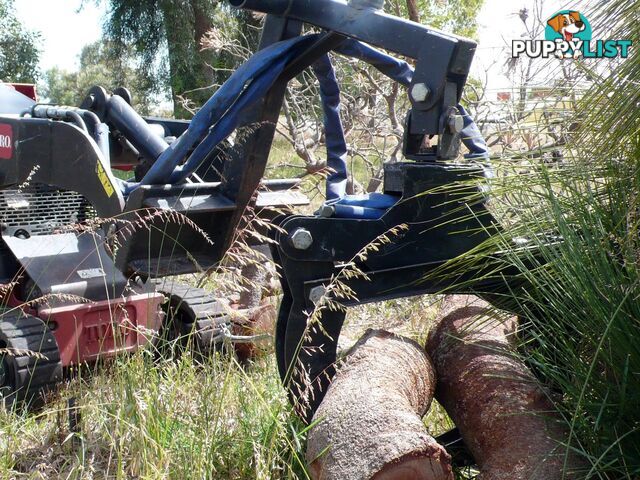

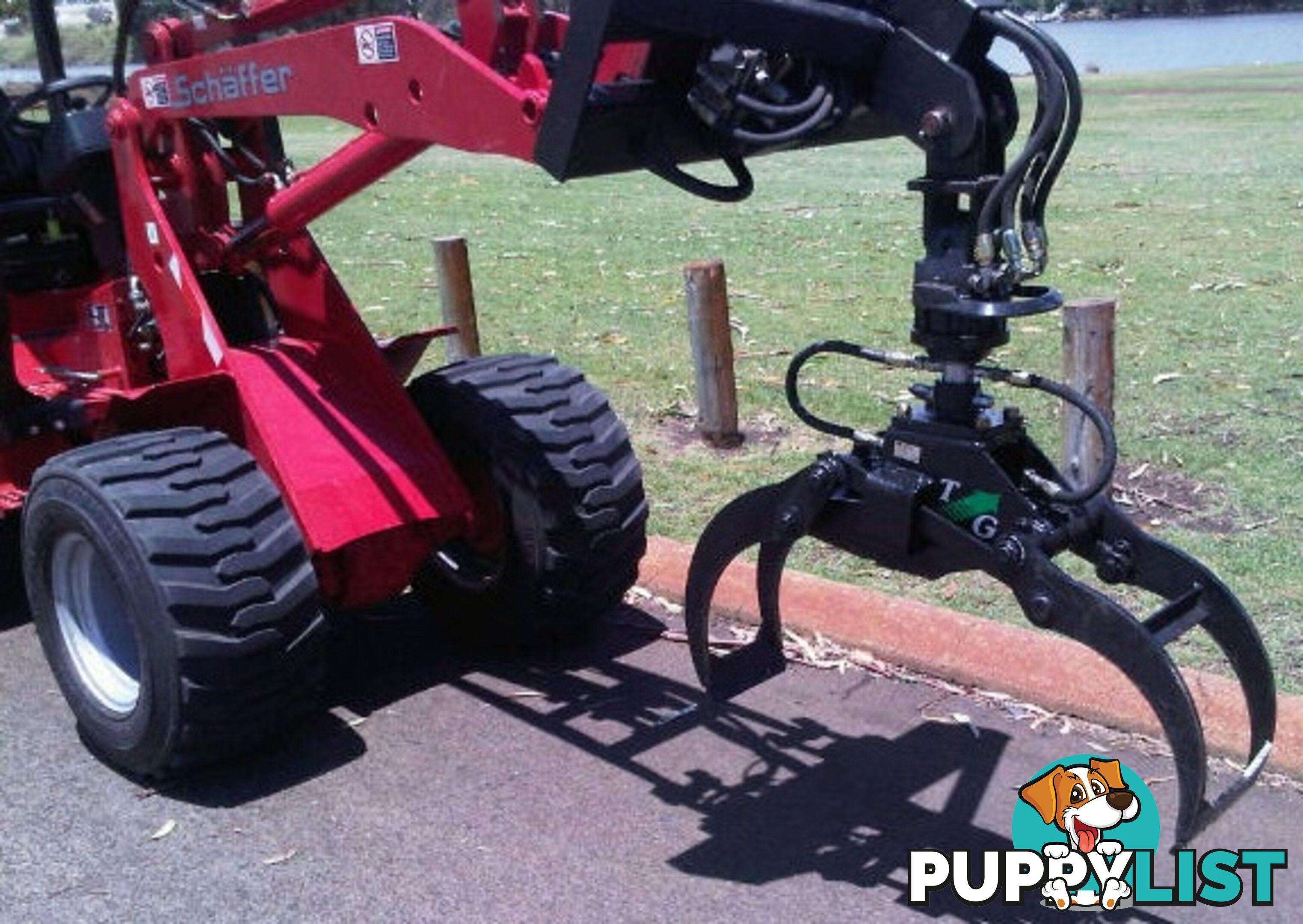

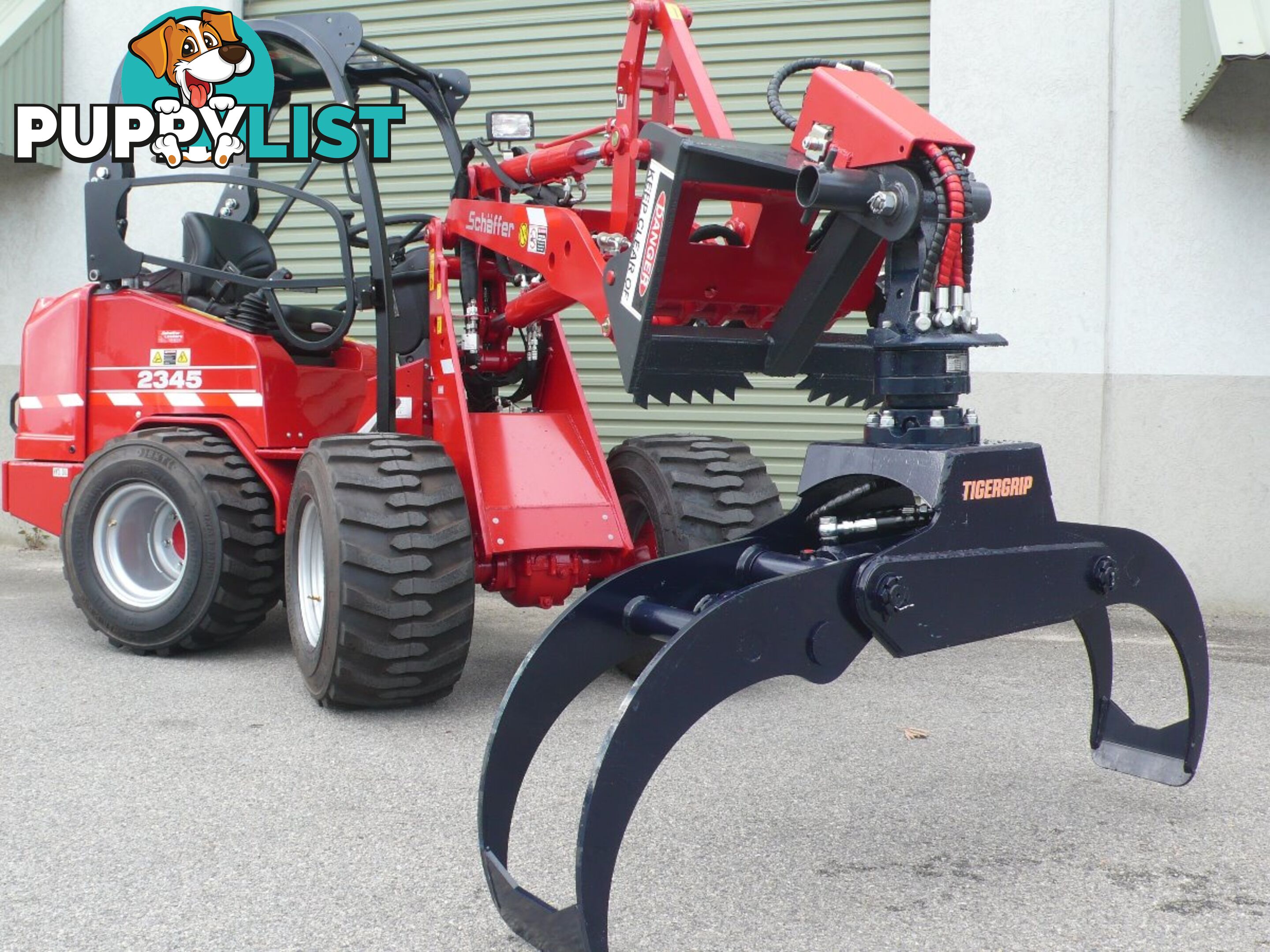

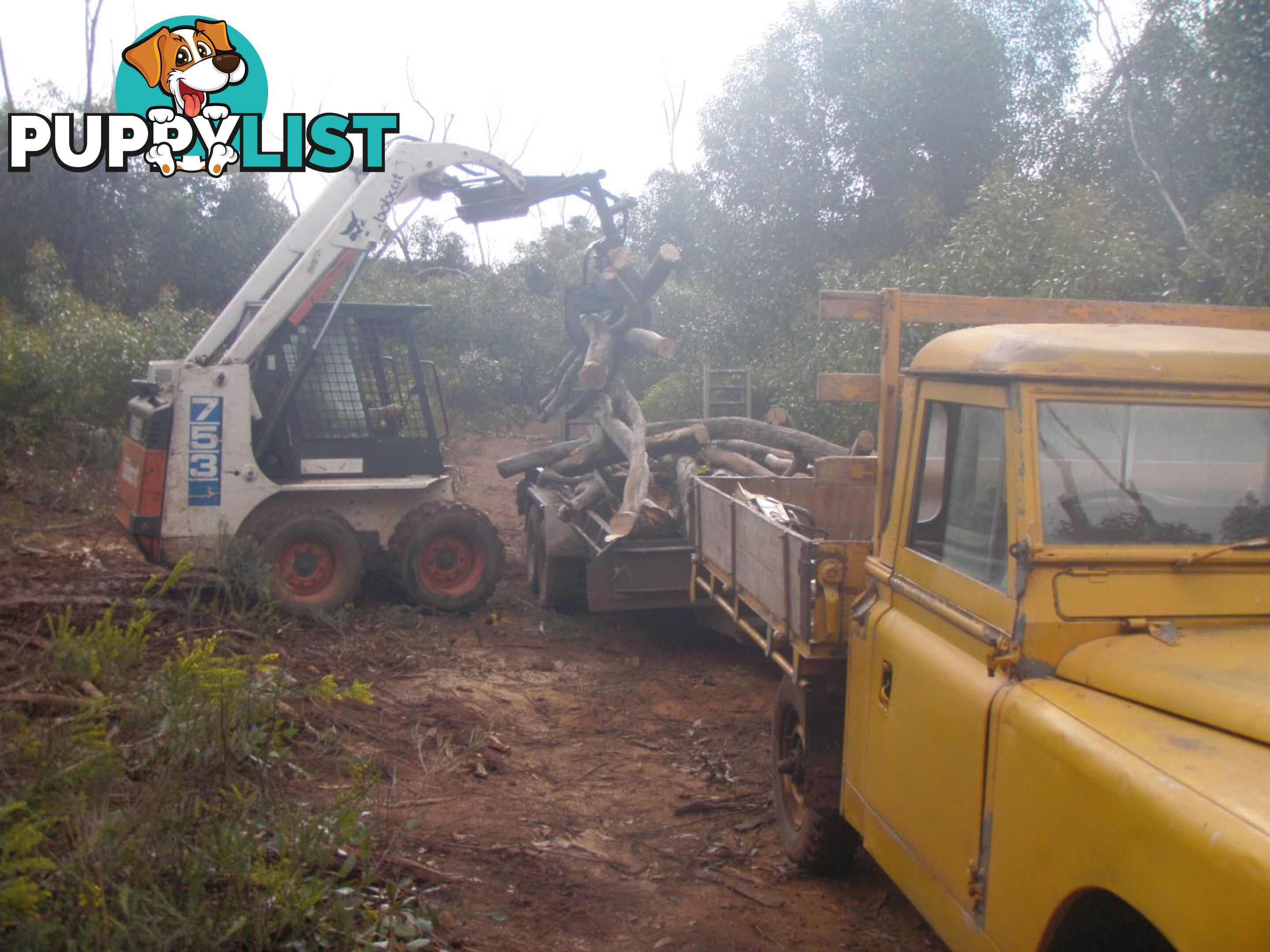

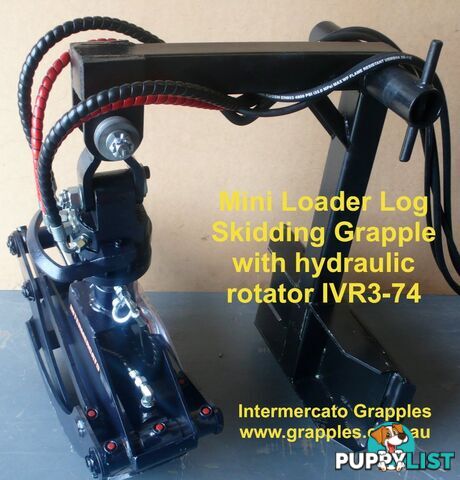

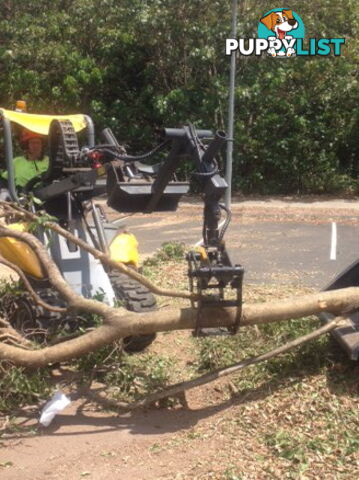

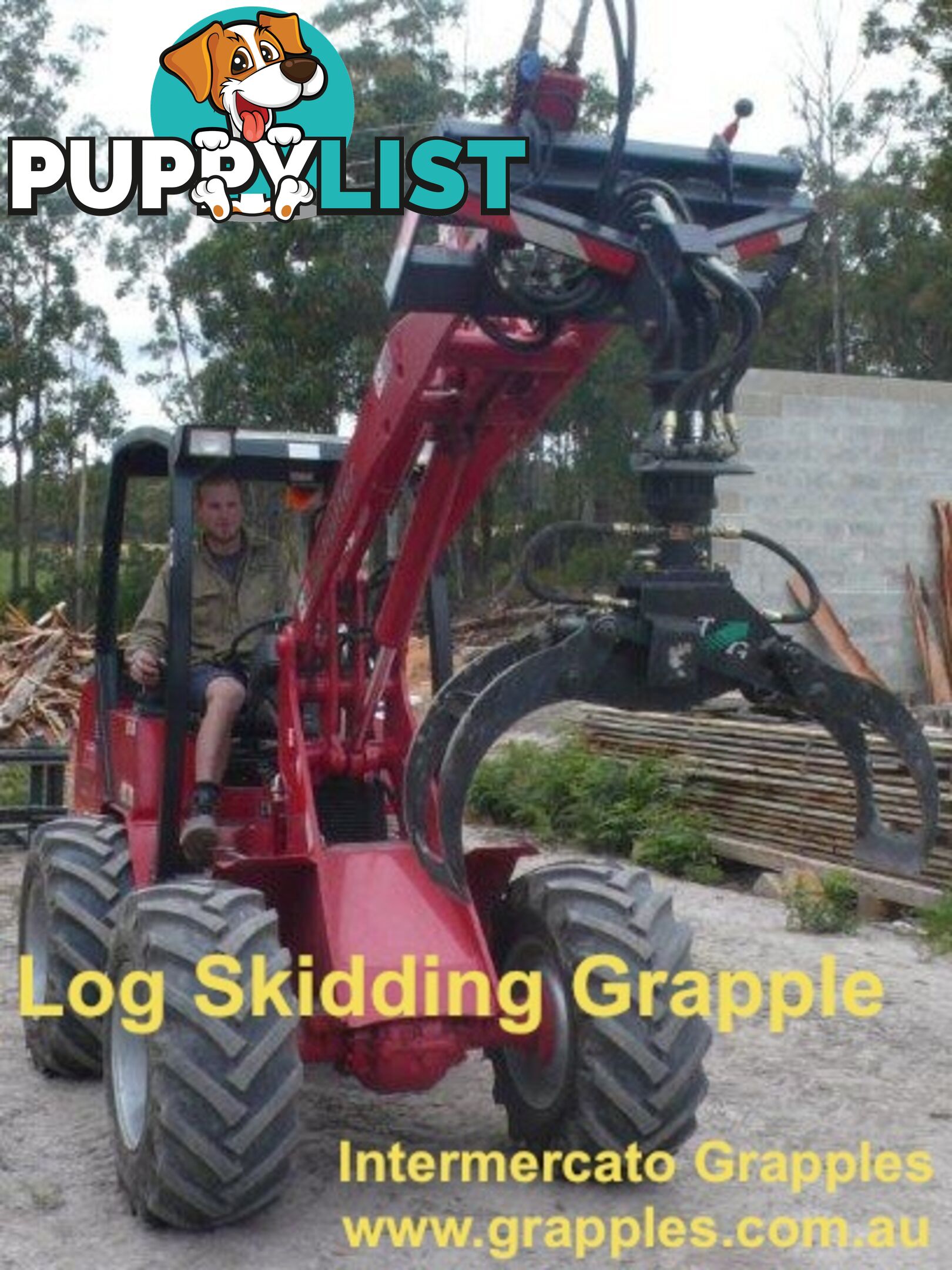

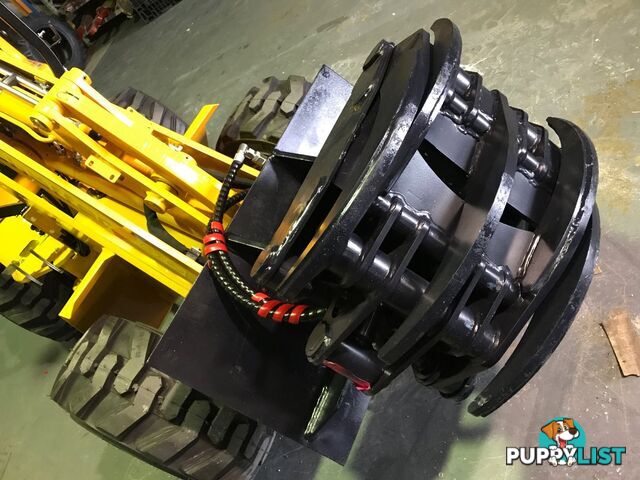

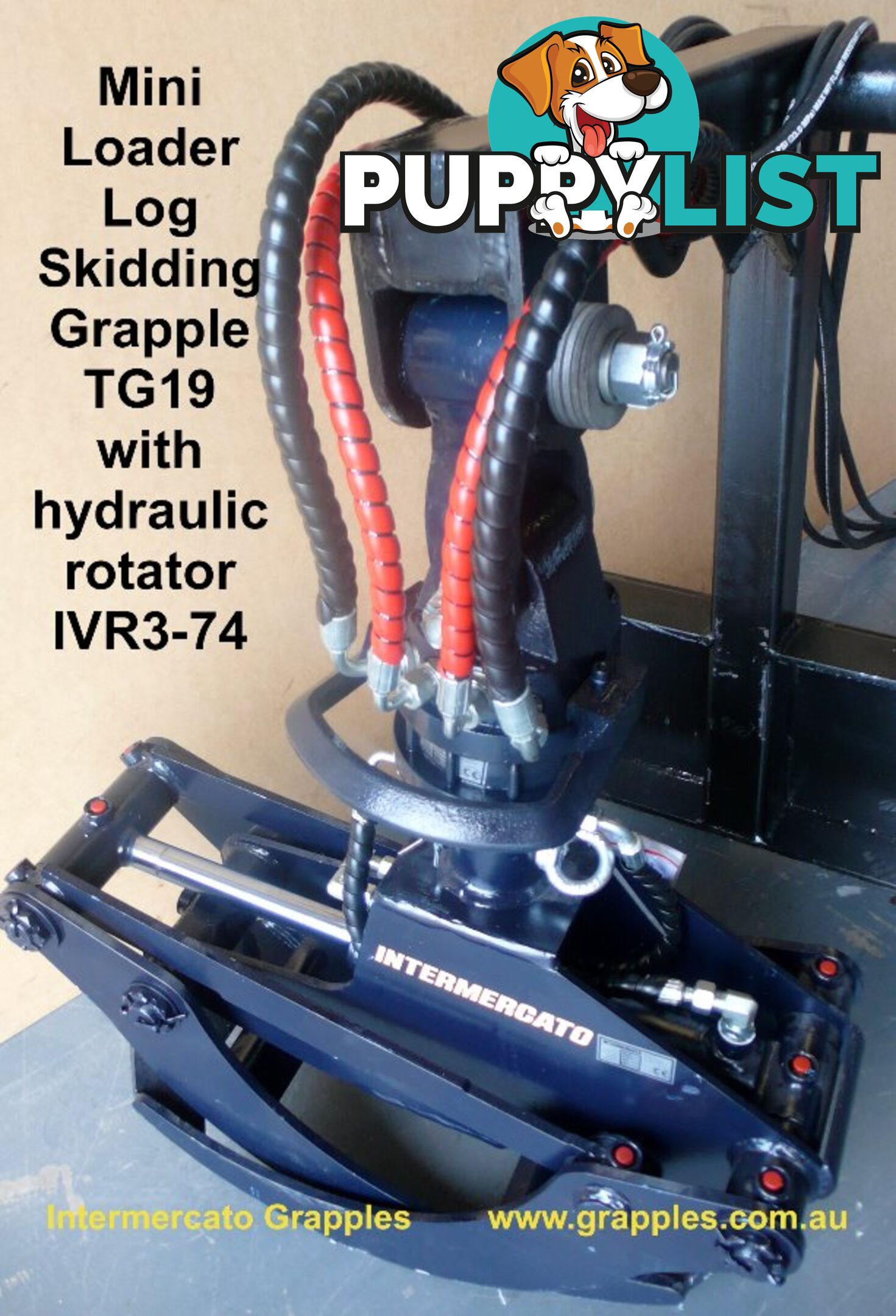

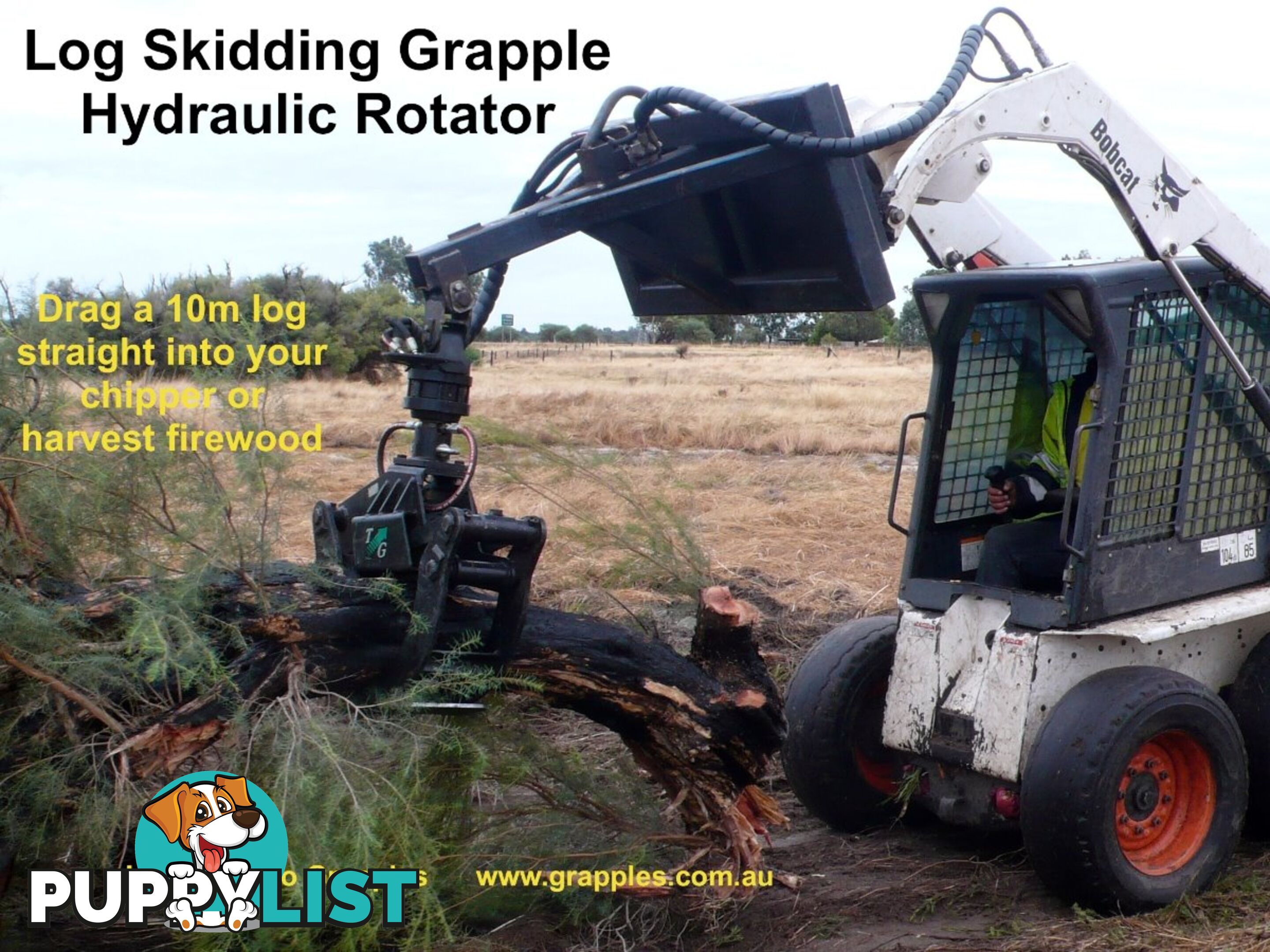

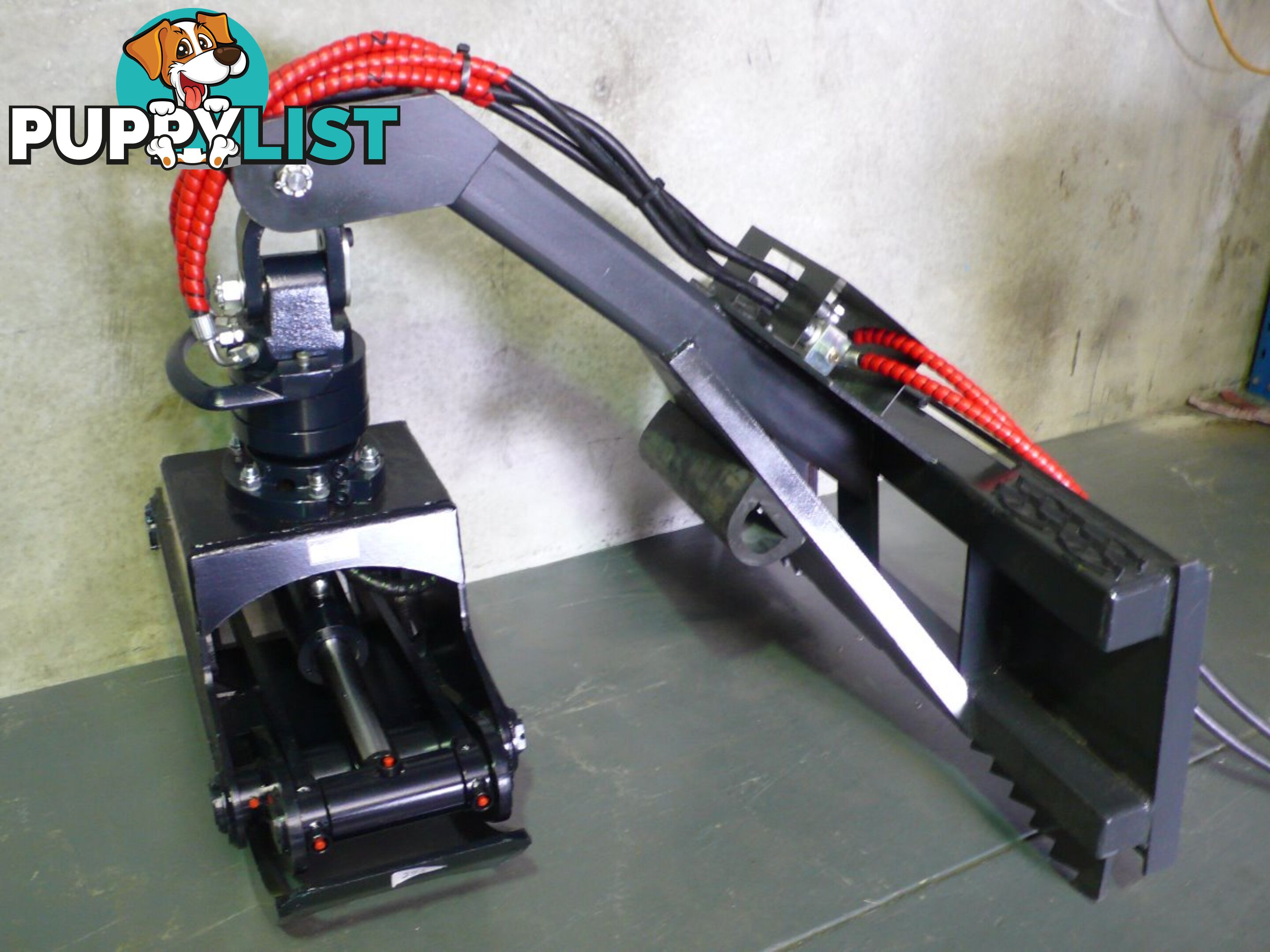

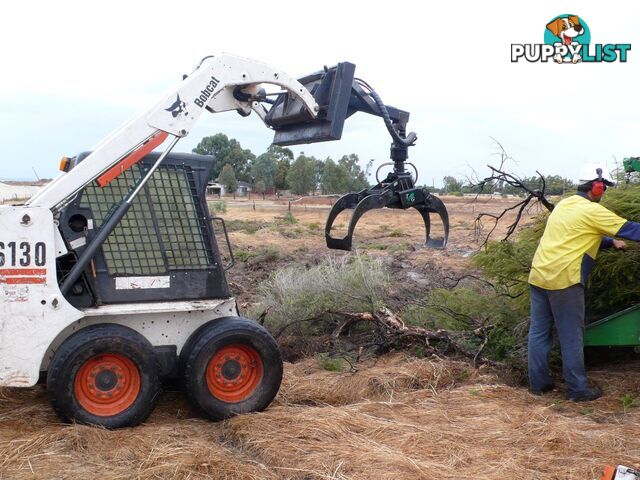

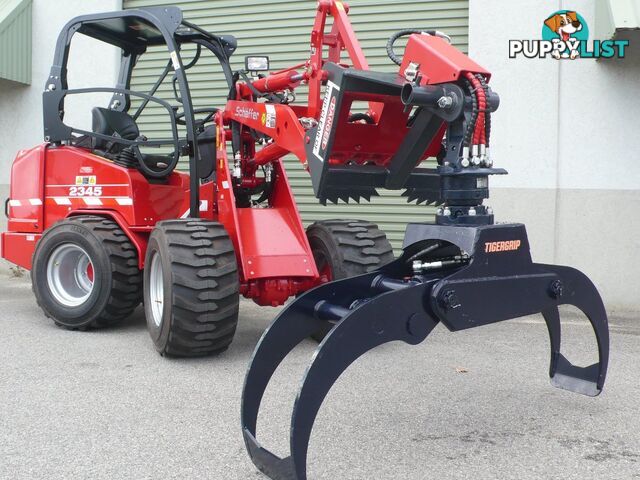

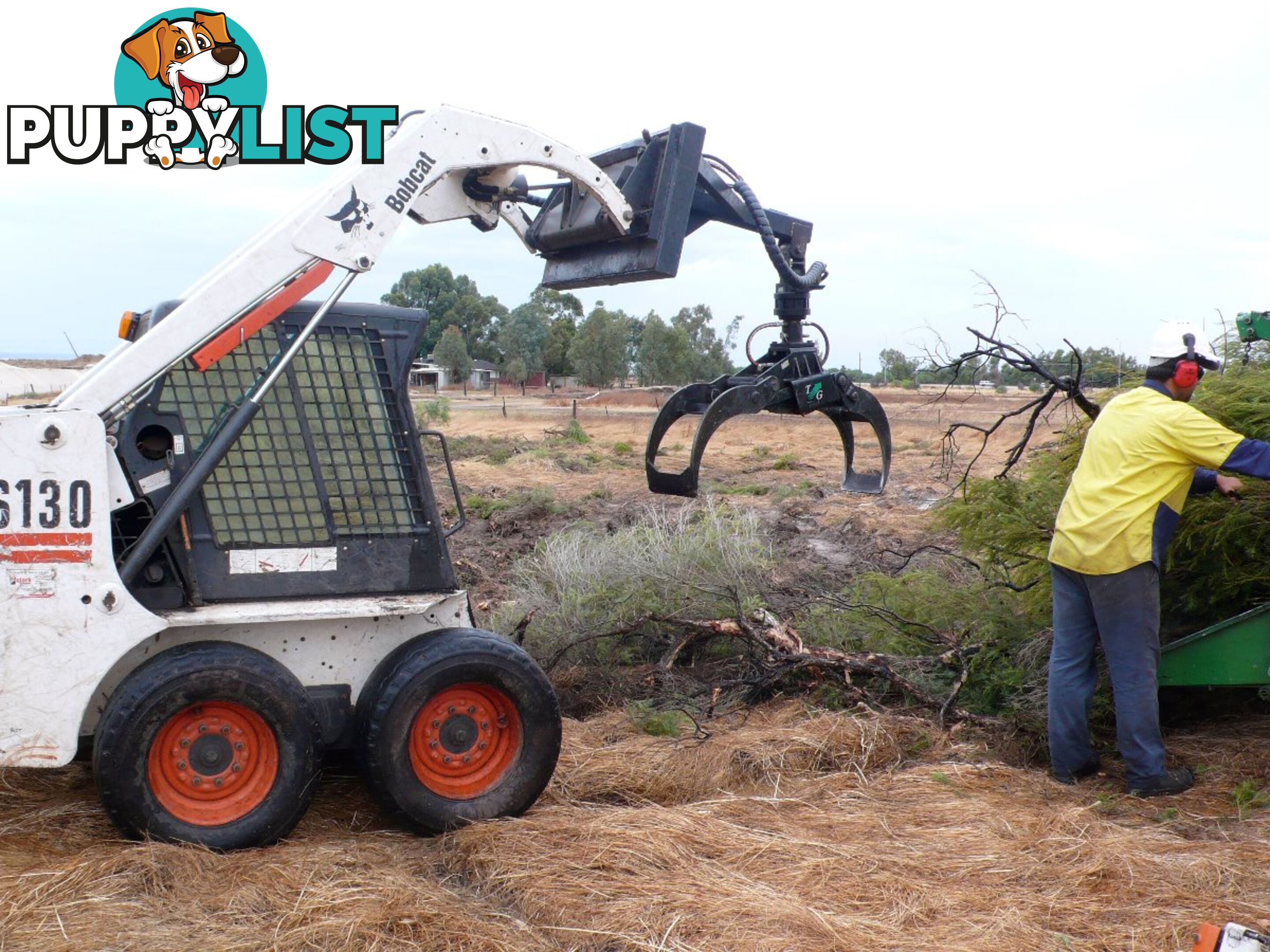

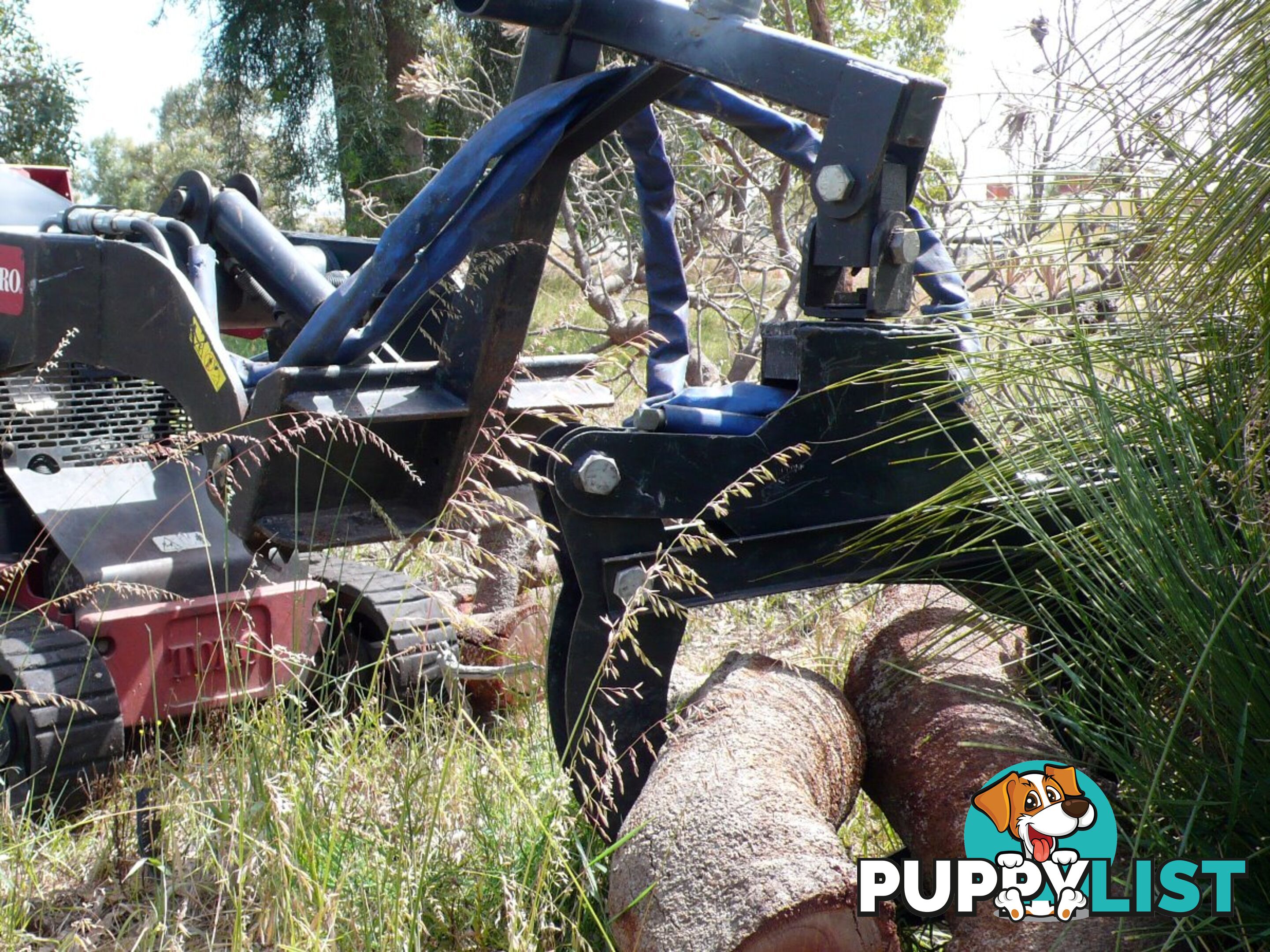

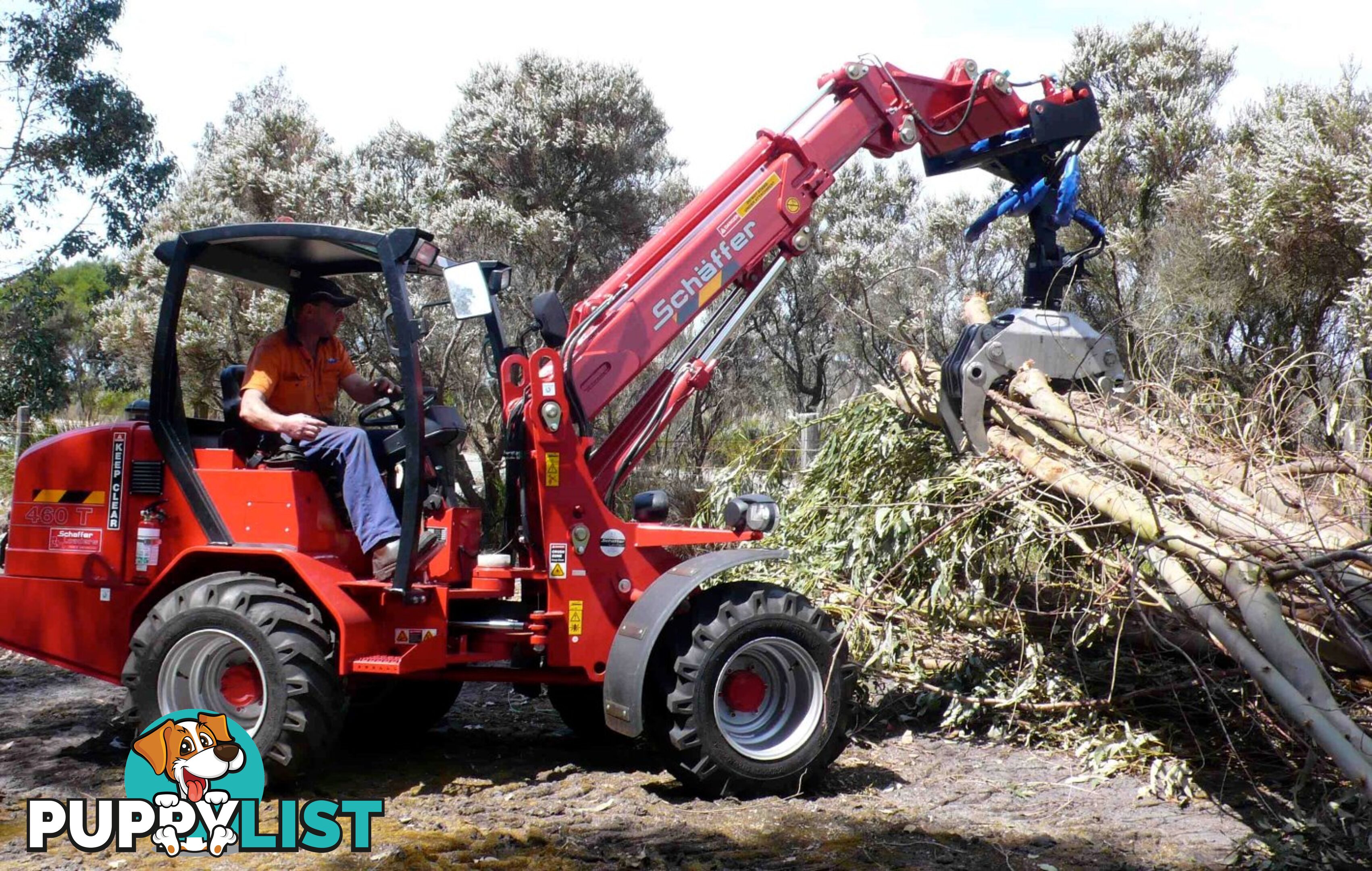

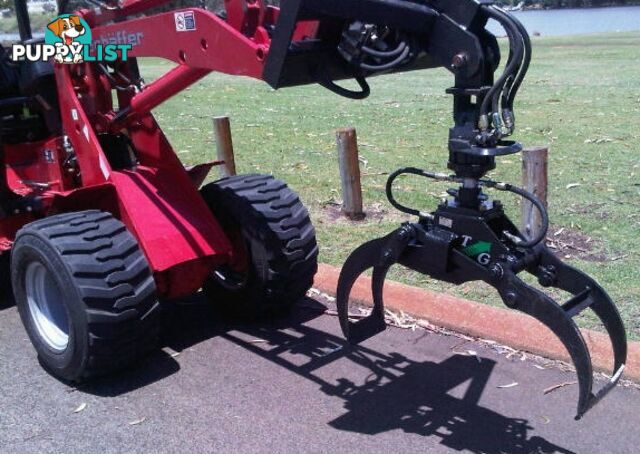

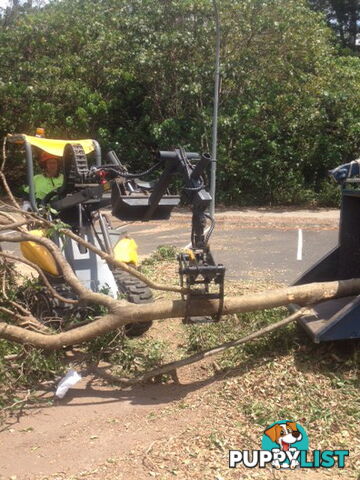

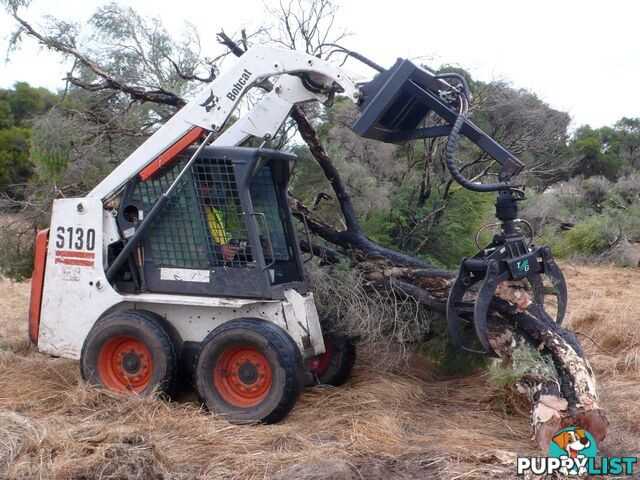

Log skidding grapples are designed for skid steers and loaders from 30hp to 110hp. Option of full hydraulic rotation or manual rotate.
We are able to customise to your requirements with a range of over 100 grabs and rotators. Contact us with your machines details.

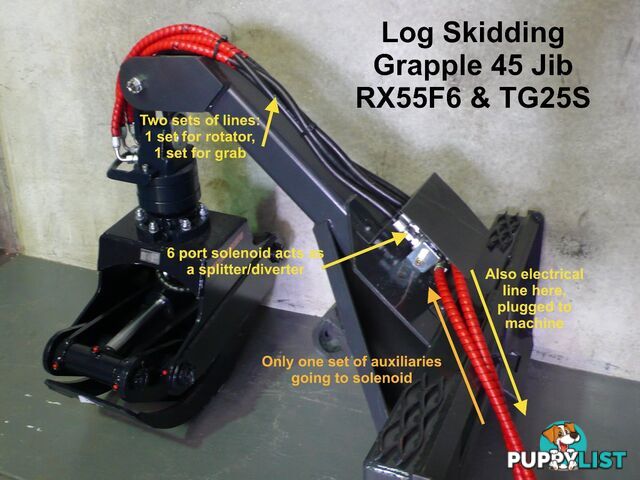

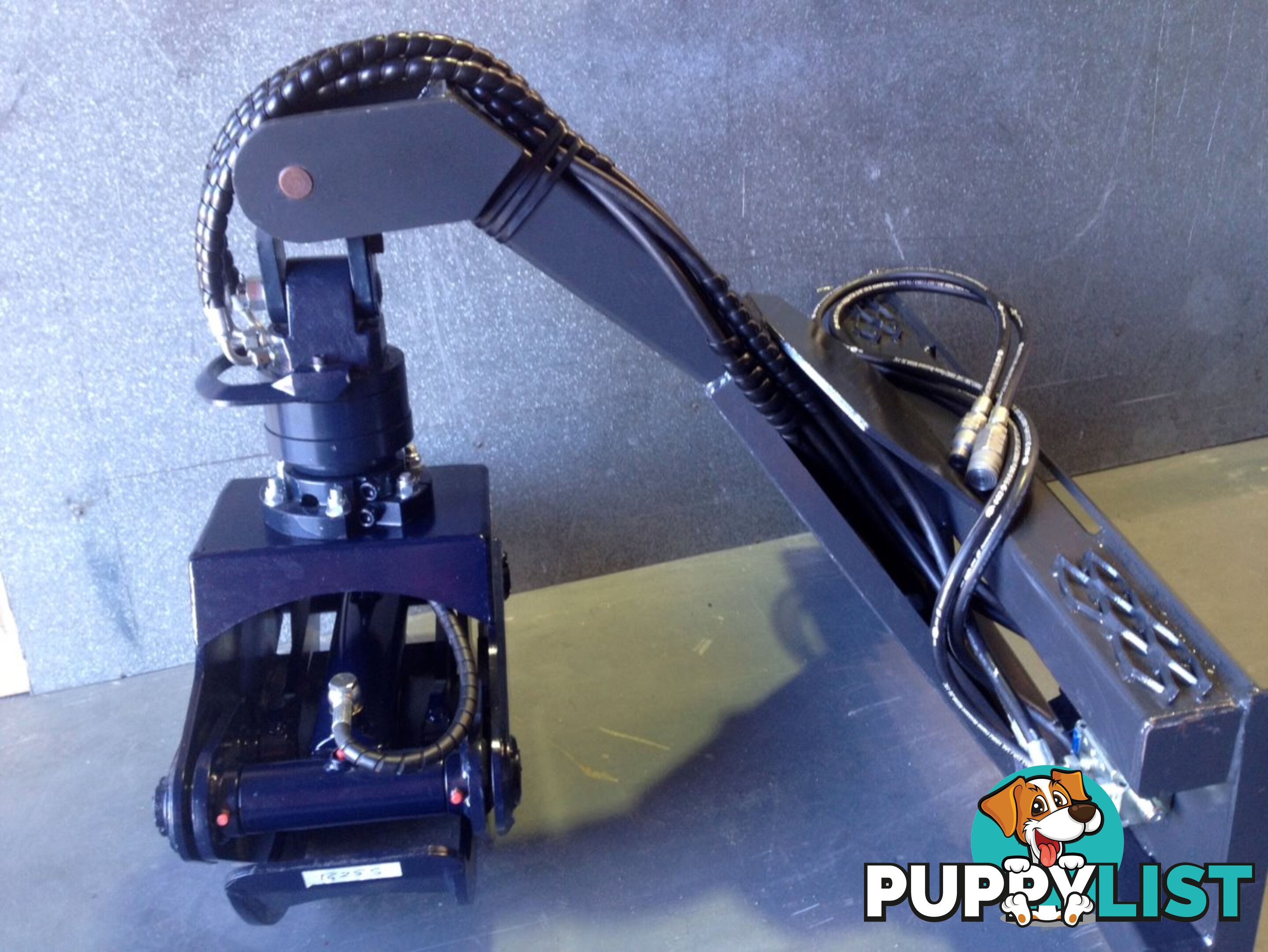

Only got one auxiliary outlet? No problem! A six port solenoid hydraulic-electric solenoid is mounted on the jib to allow changing between grab and rotate.

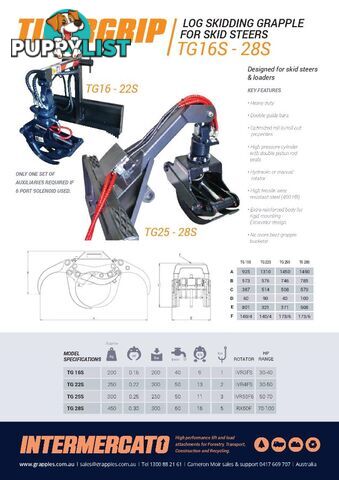

TG16S Weight:200kg Opening width:925mm Closing width:60mm HP:30-40
TG22S Weight:250kg Opening width:1310mm Closing width 90mm HP:30-50
TG25S Weight:300kg Opening width:1450mm Closing width 40mm HP:50-70
TG28S Weight:450kg Opening width:1490mm Closing width:100mm HP70-10
All log skidding grapples have the following features:

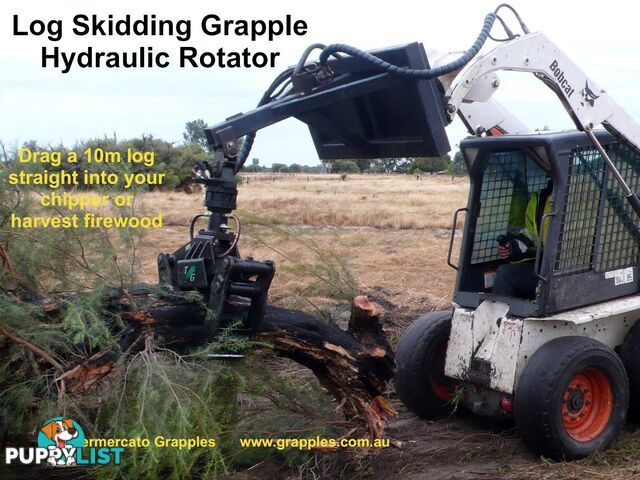

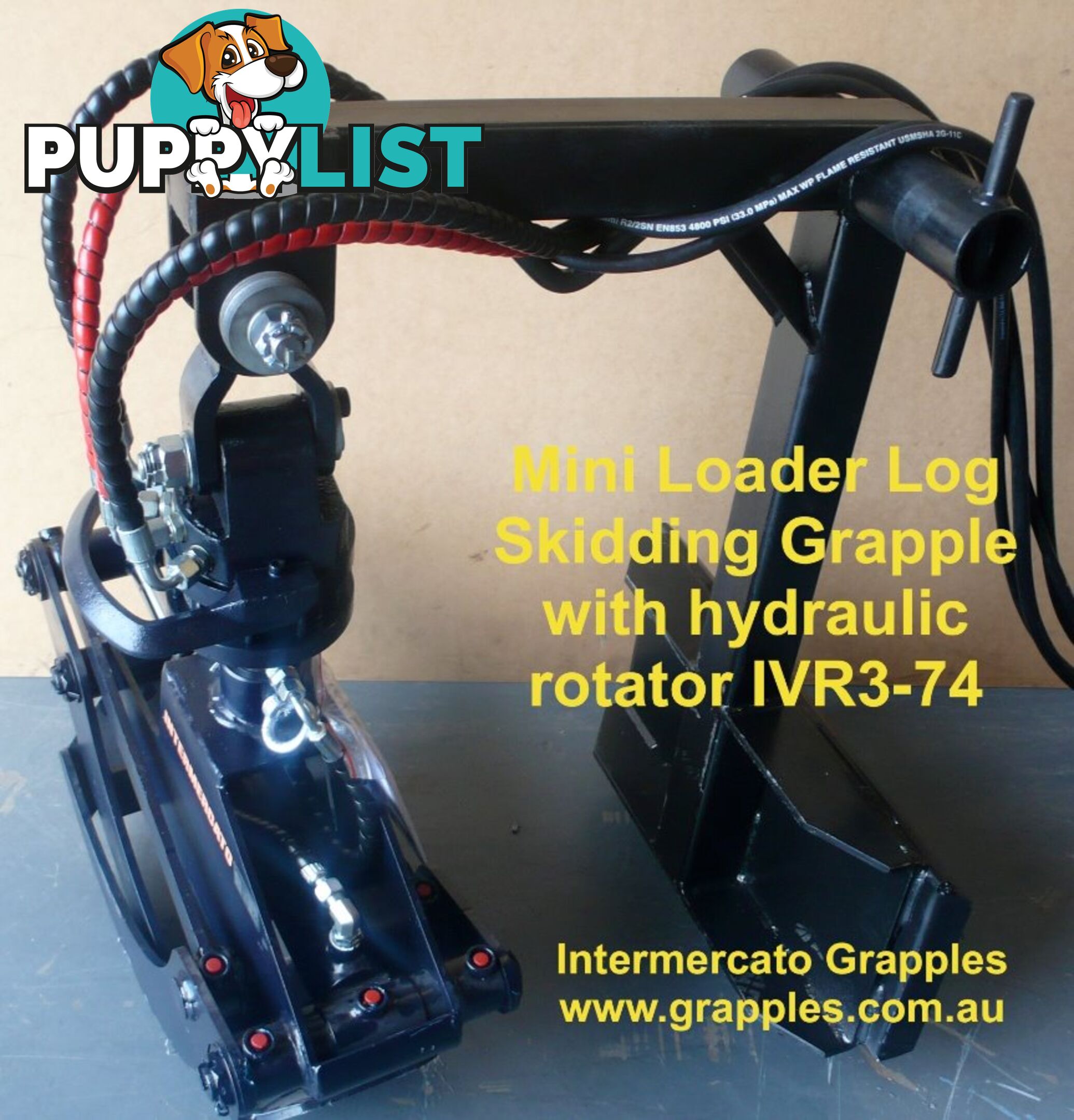

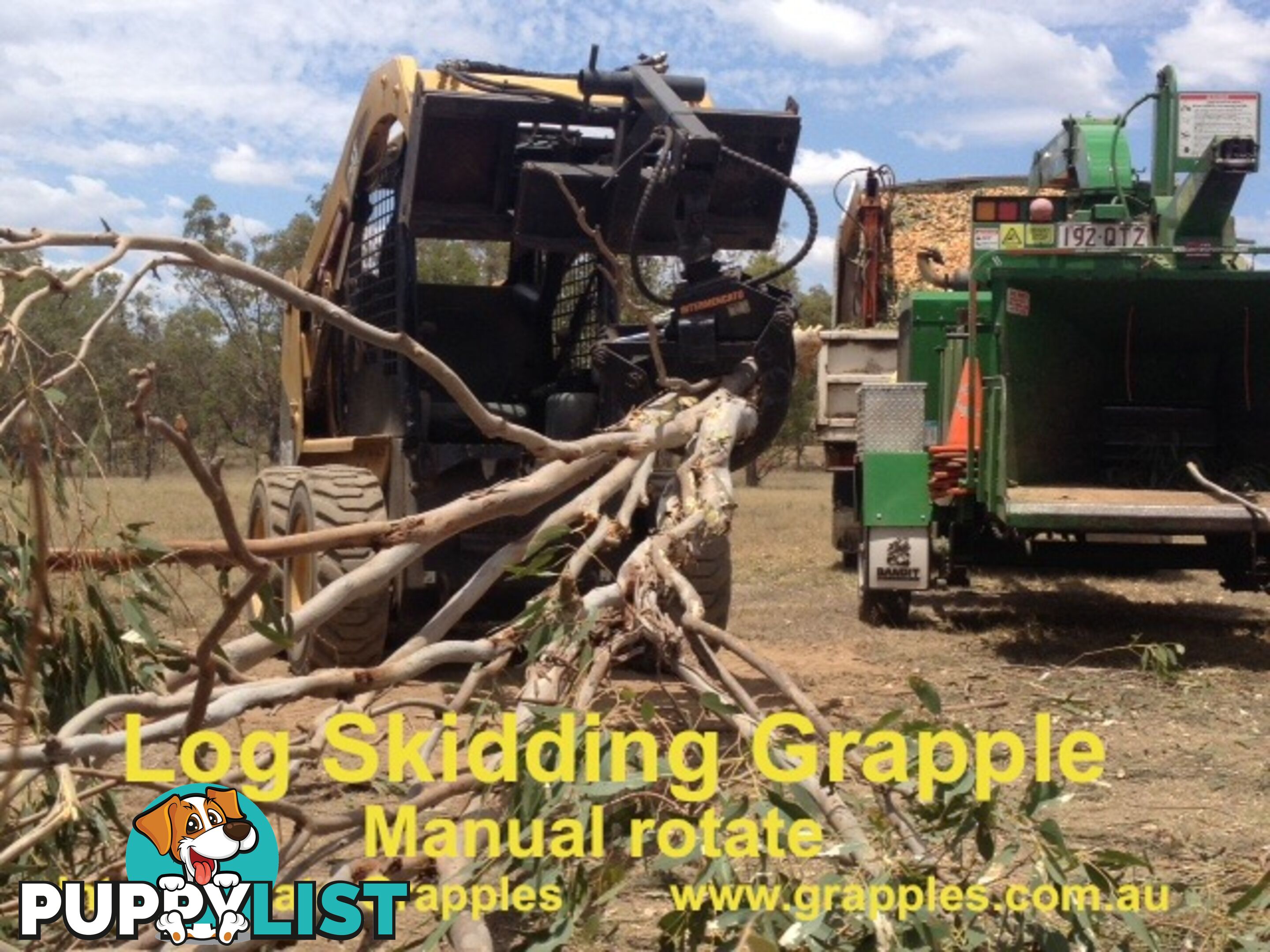

Continuous 360 degree hydraulic rotation or manual rotator.
Grapple designed & built by industry specialist with over 20 years experience.
All grease nipples fully protected.

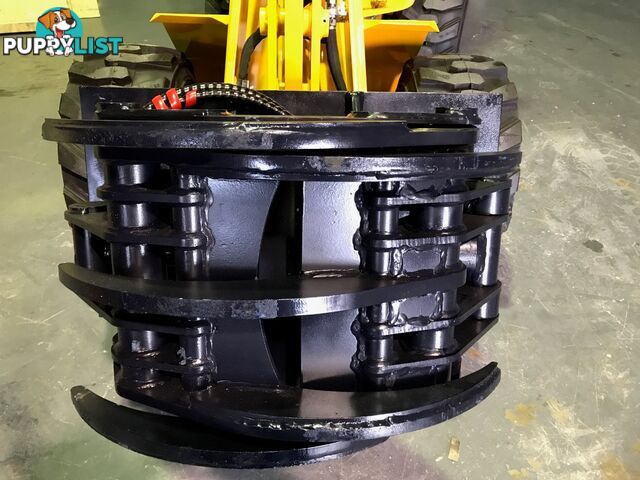

Self centring jaws give a perfect grip on every load.
Hanger design allows loaders mast to stay low for stability & capacity.
All working pins heavy duty, minimum 25mm, 4140 chromed hardened steel.
Low weight to maximise loader capacity
For more details see - http://www.grapples.com.au/loader-and-skid-steer-log-skidding-grapples
