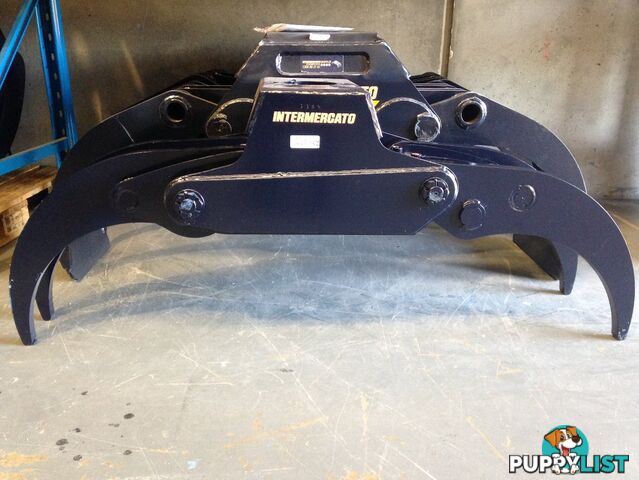

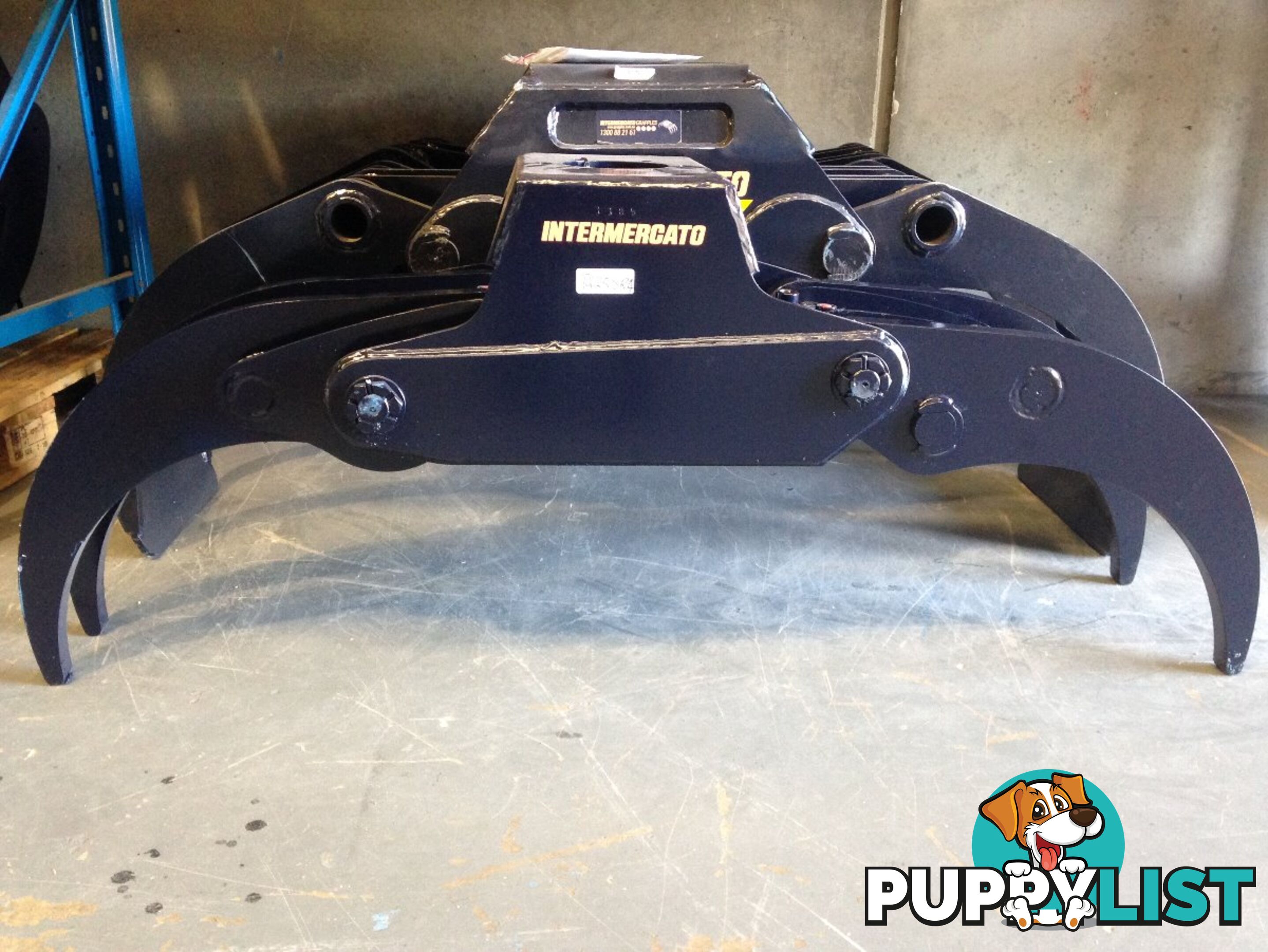

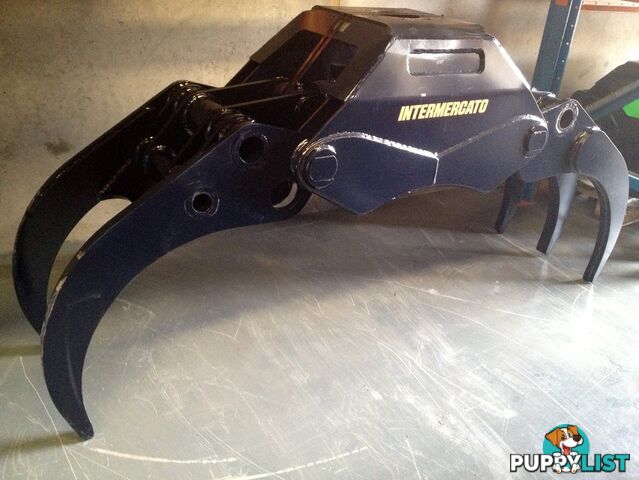

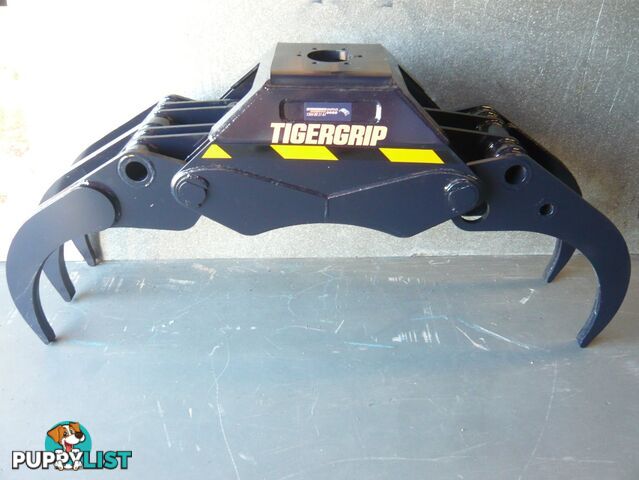

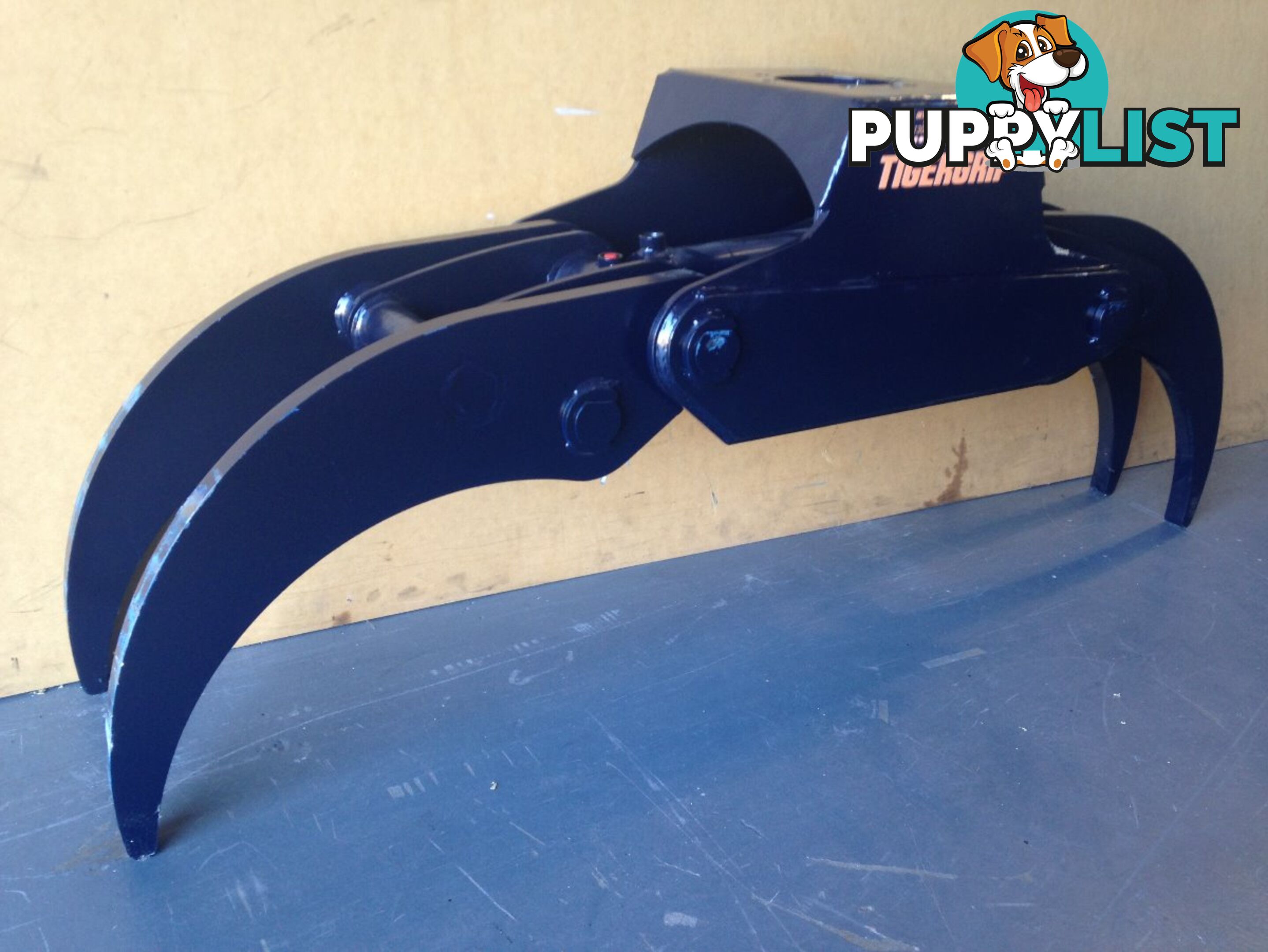

Five Finger Grab

DESCRIPTION

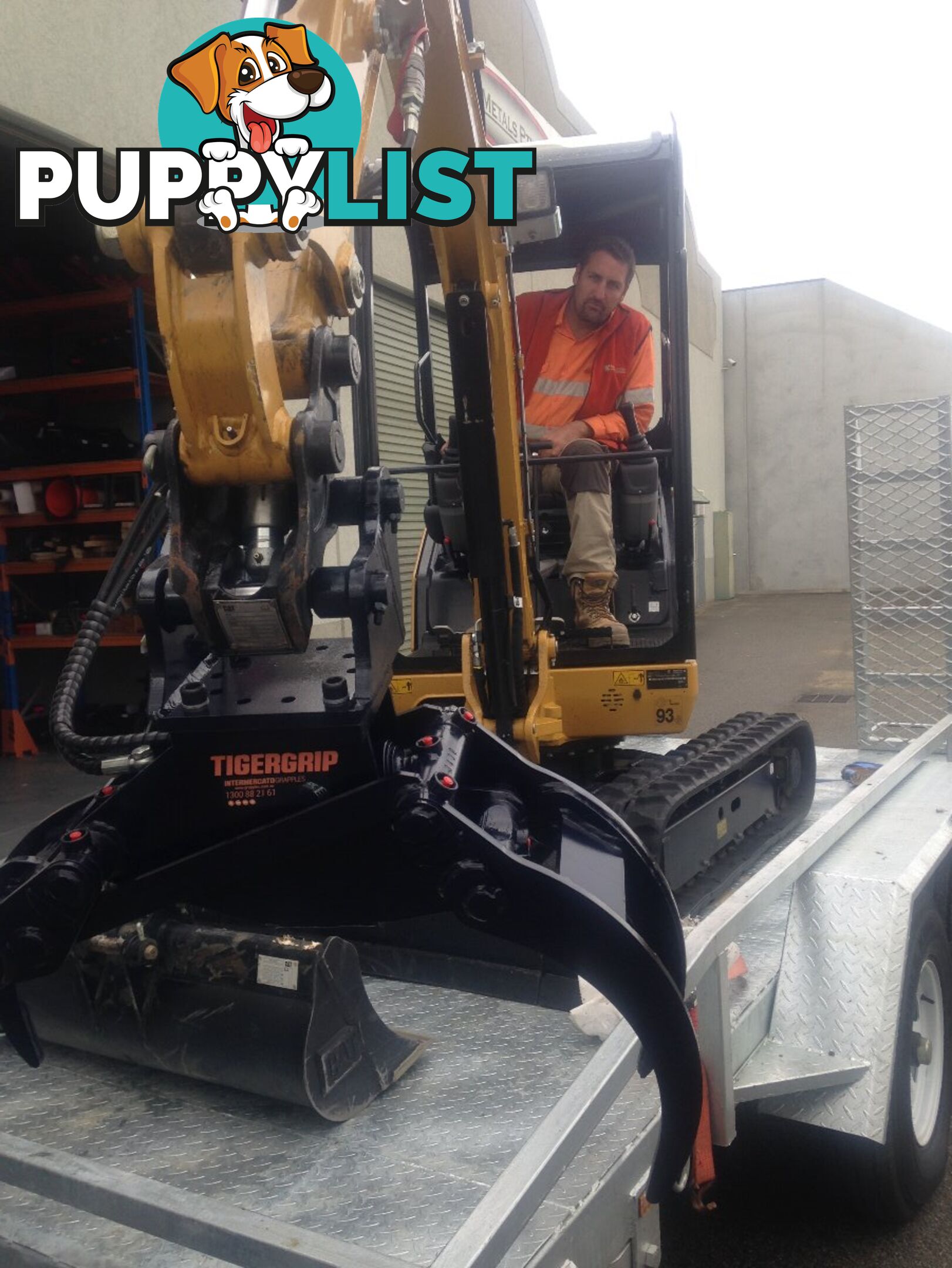

Intermercato five finger grapples are suited to excavators and cranes from 2 tonne to over 30 tonne capacity.
If you work in an ever changing variety of materials, then the five finger grapple series may be the best choice for you.

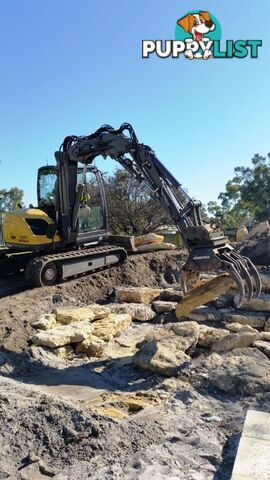

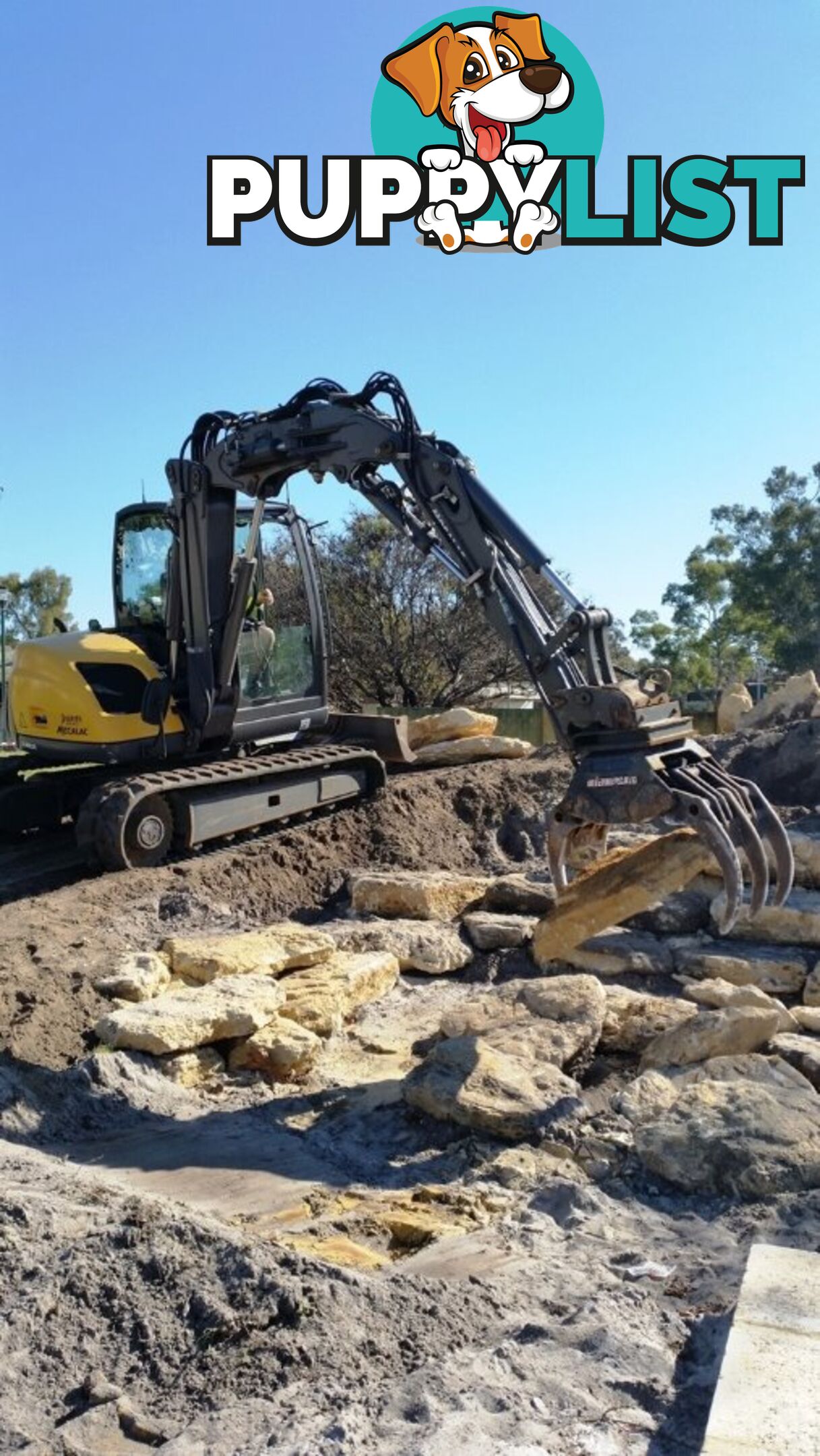

Many of these grapples combine the best features of other specialist grapples, allowing you to efficiently work day in, day out. Customers use these grapples for all sorts of work including recycling, stone, demolition, logs, forest residue, sorting and bulk material transfer.

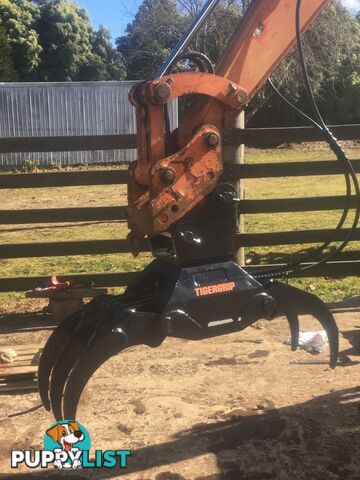

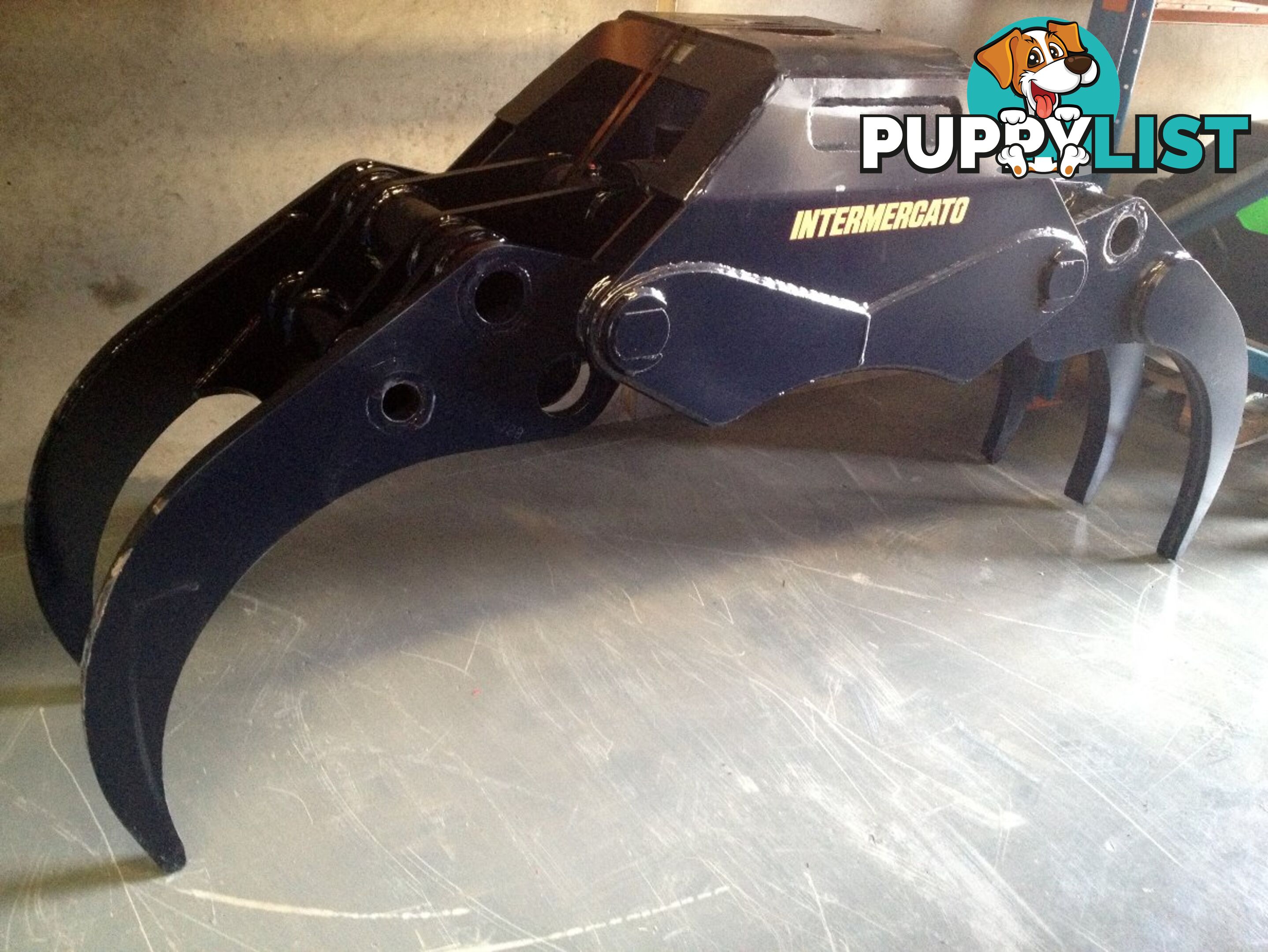

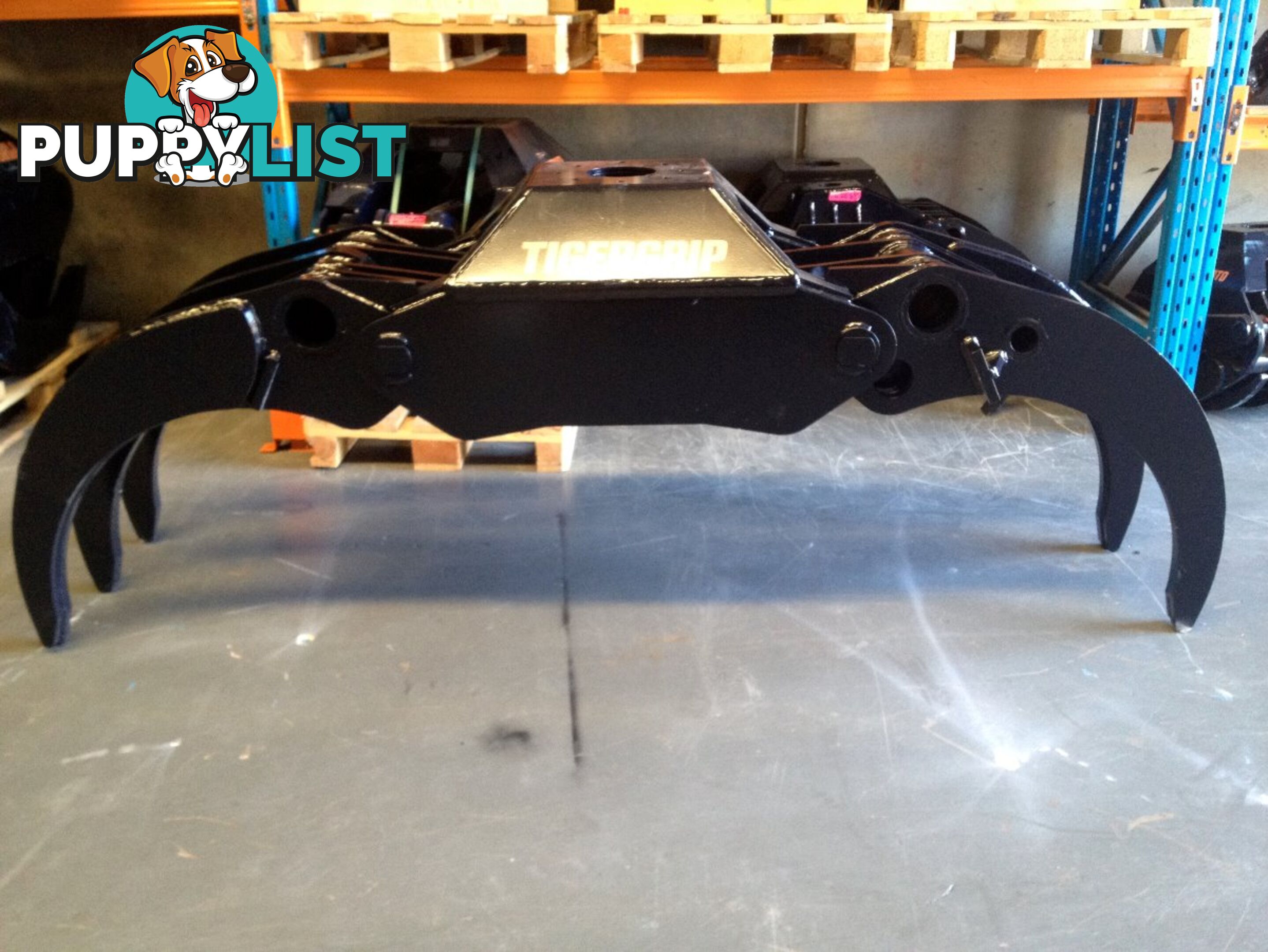

All five finger grapples are of the modern bypass design, allowing wide opening widths to pick up large amounts of material and give great capacity but still allowing very tight closing to handle a variety of sizes. Intermercato five finger grapples are designed to give high gripping forces and superior bunching on all materials.

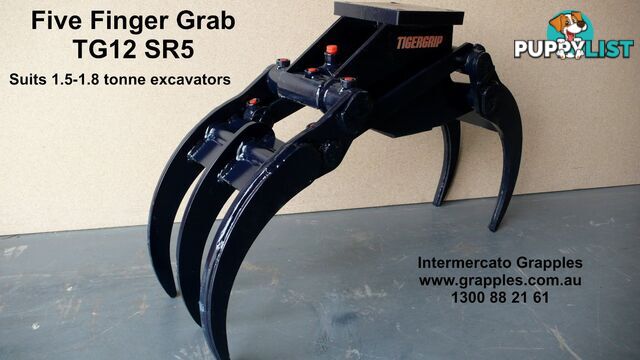

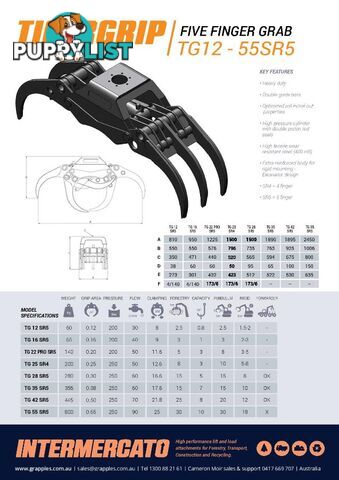

TG12SR5 Weight:60kg Excavator weight:1.5-2tonne Opening width:810mm Closing width:38mm

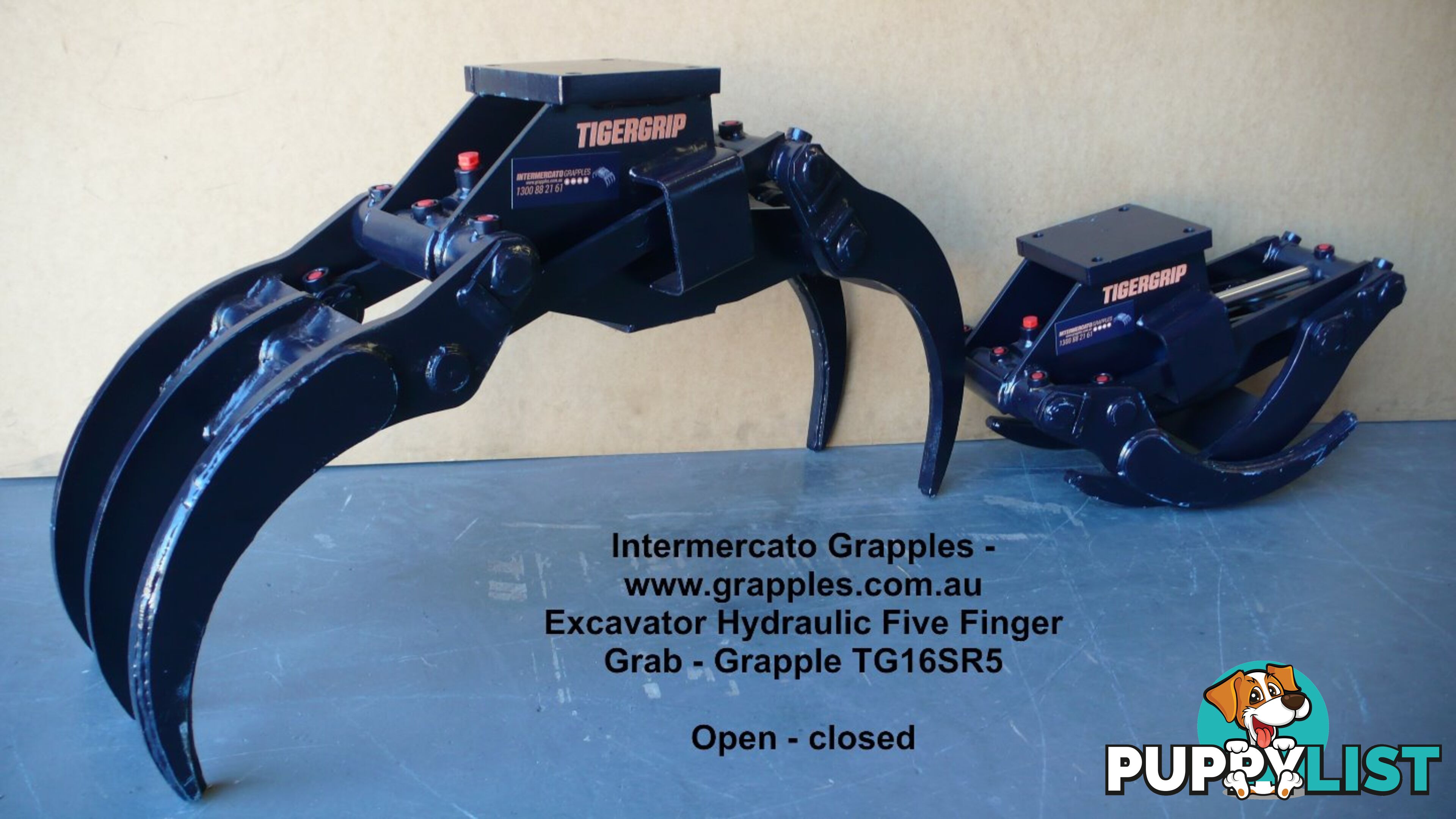

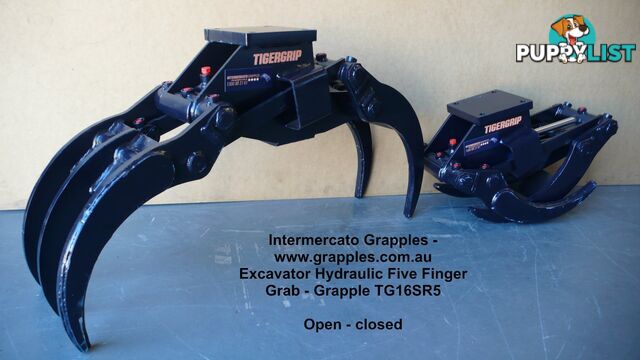

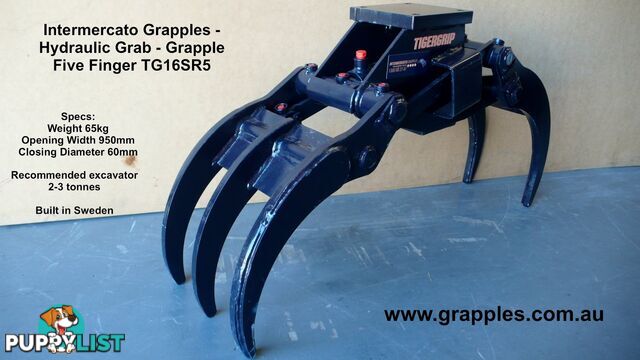

TG16SR5 Weight:65kg Excavator weight:2-3tonne Opening width:950mm Closing width:60mm

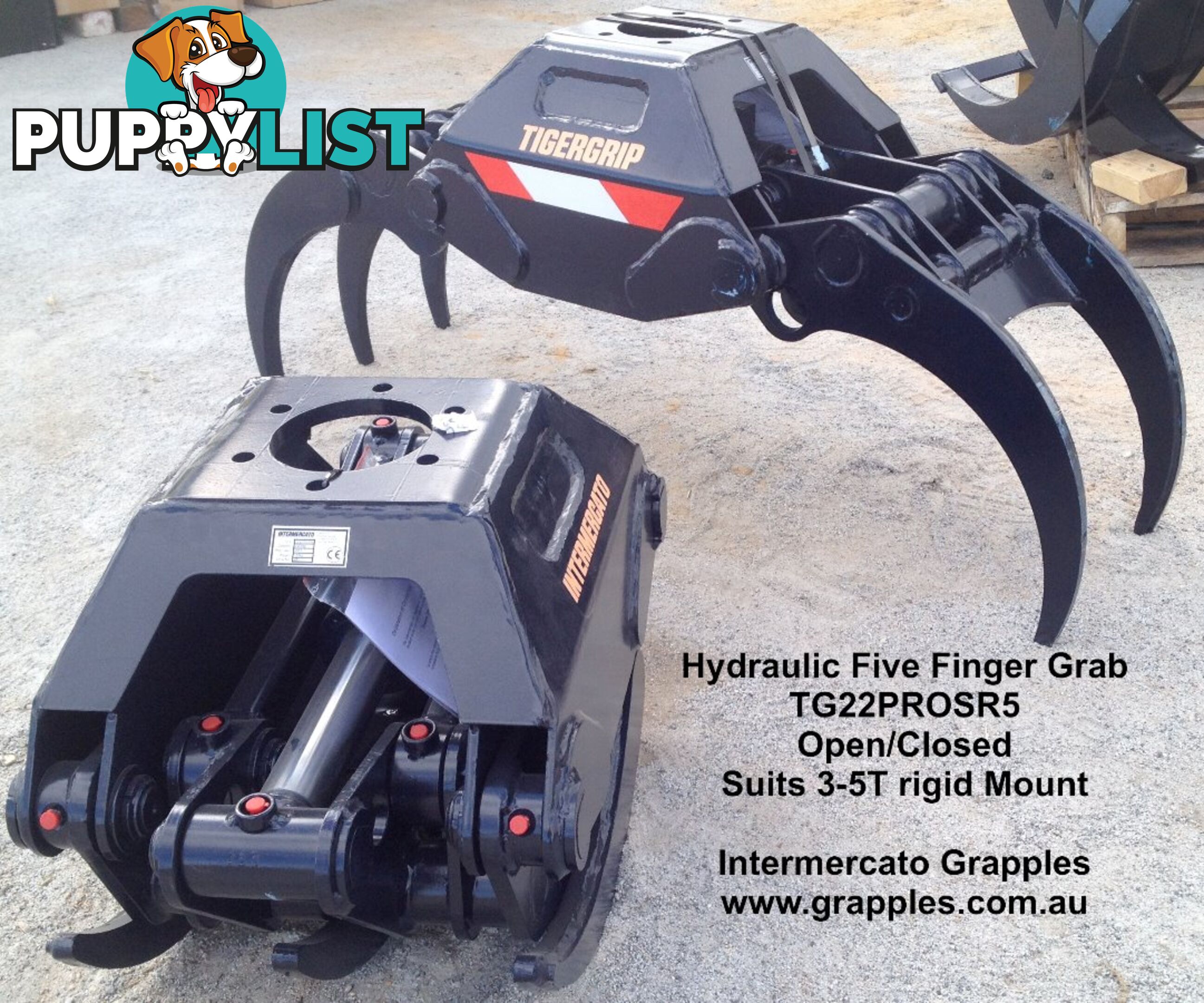

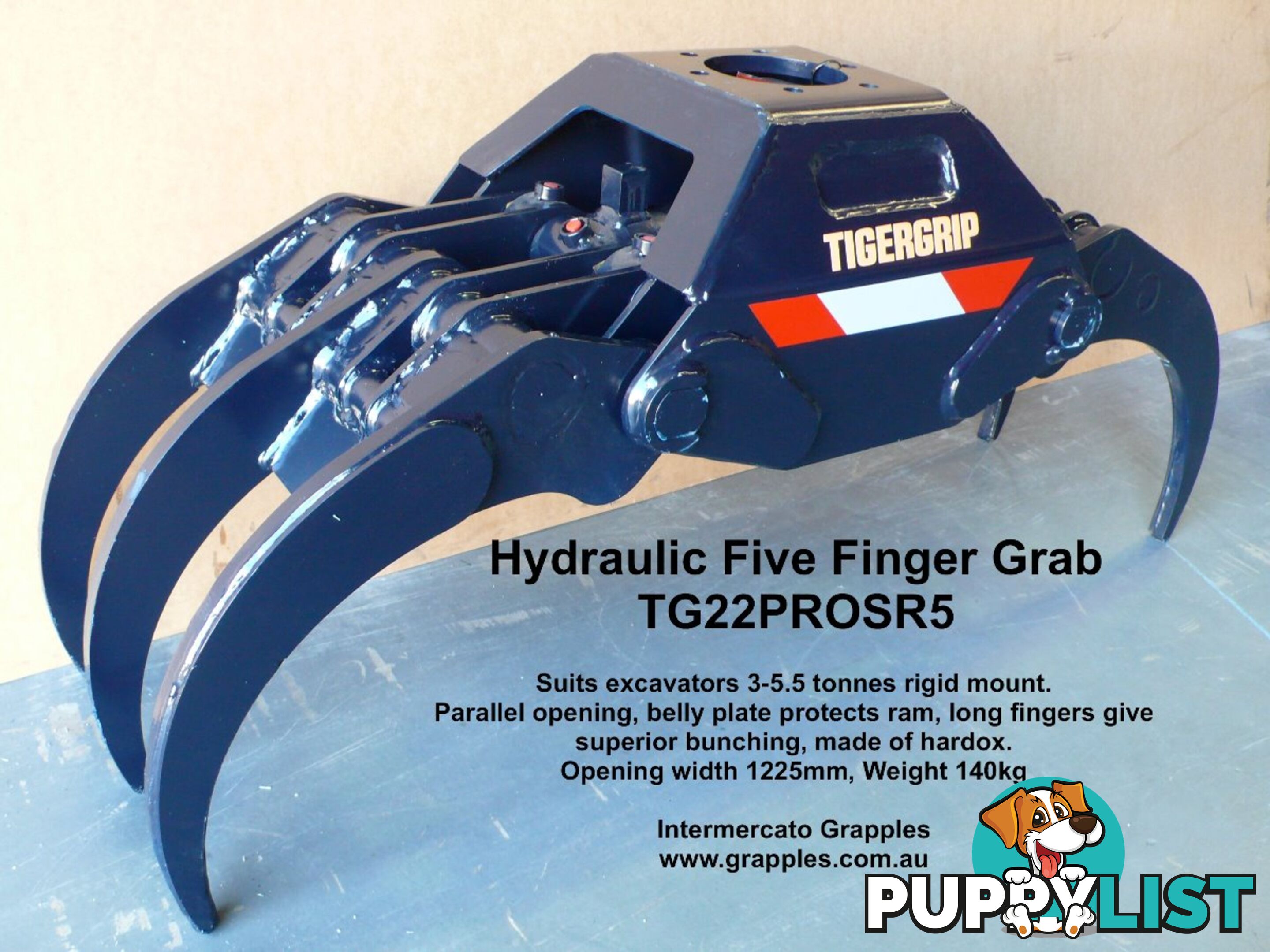

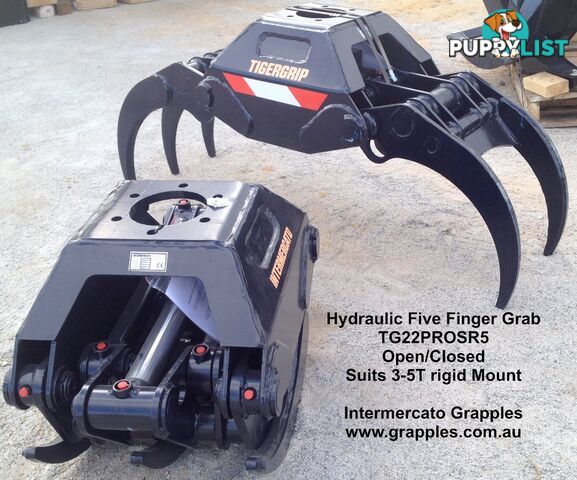

TG22PROSR5 Weight:140kg Excavator weight:3-5tonne Operating width:1225mm Closing width:60mm

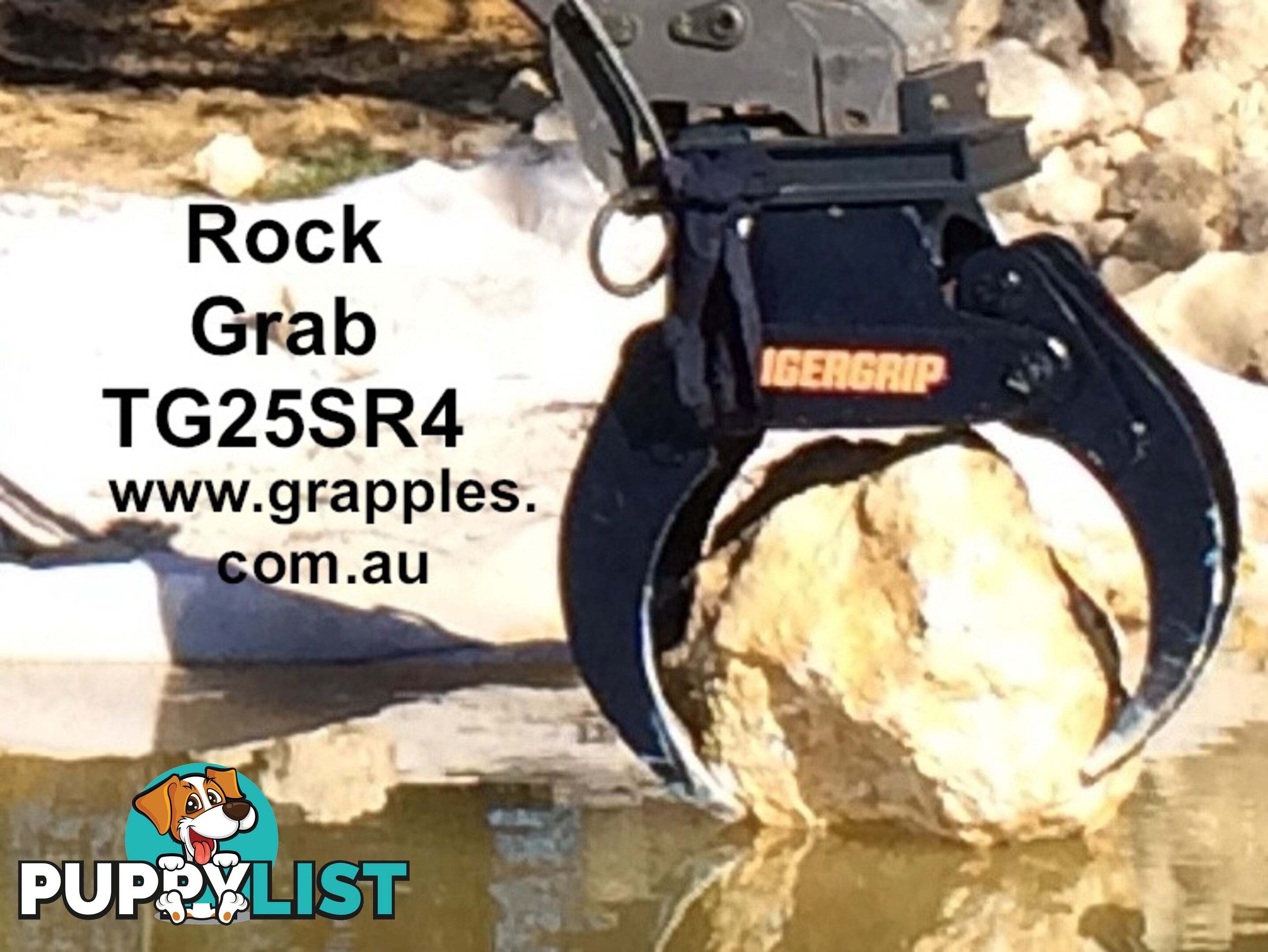

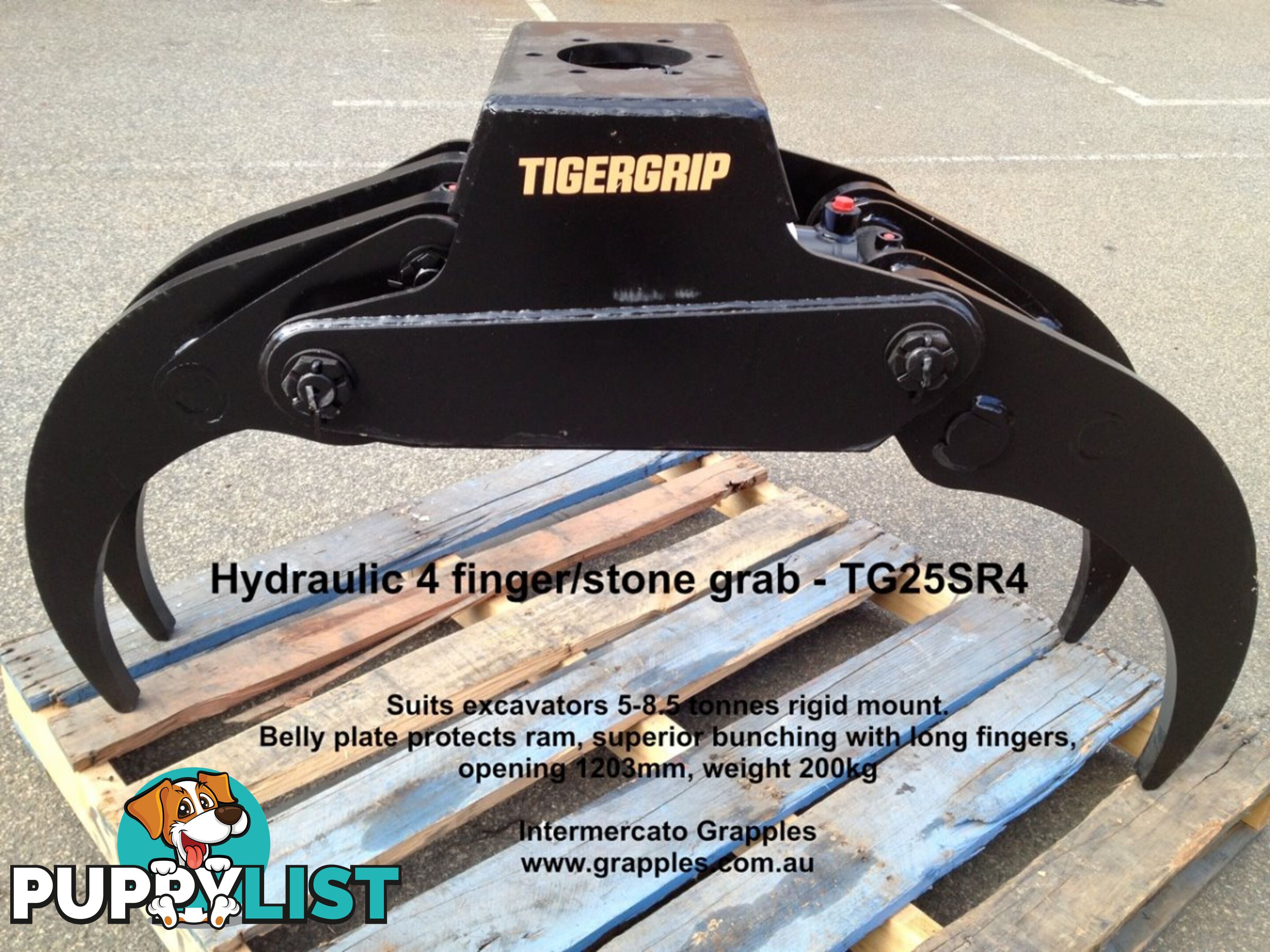

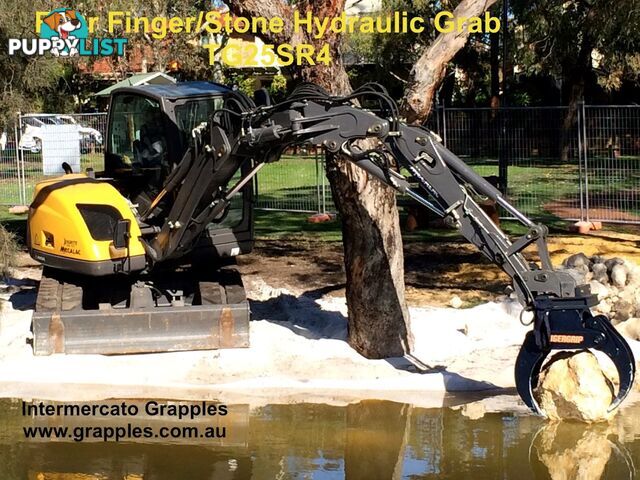

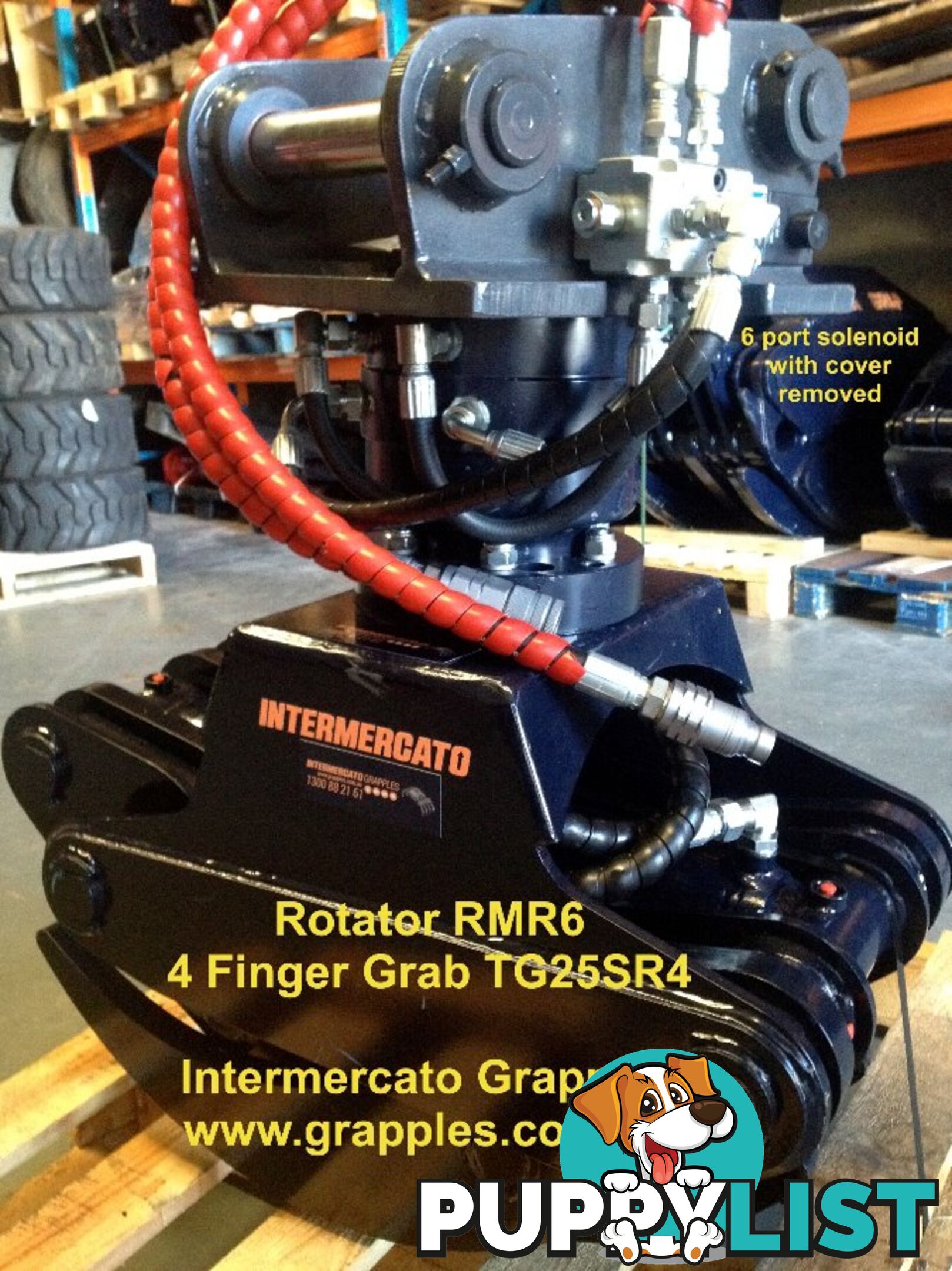

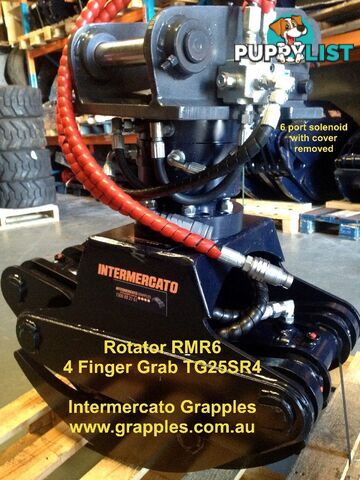

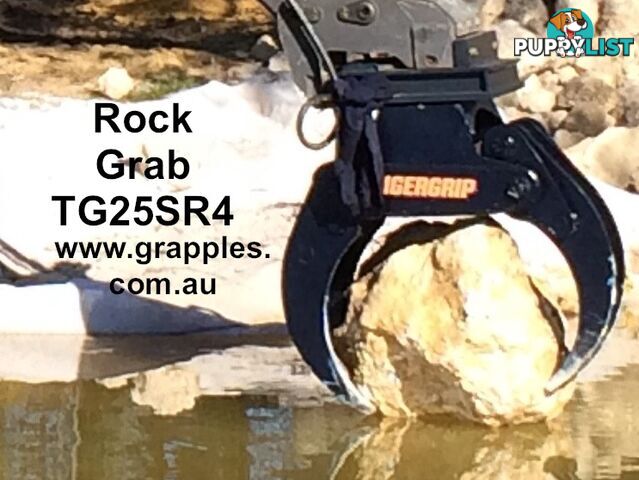

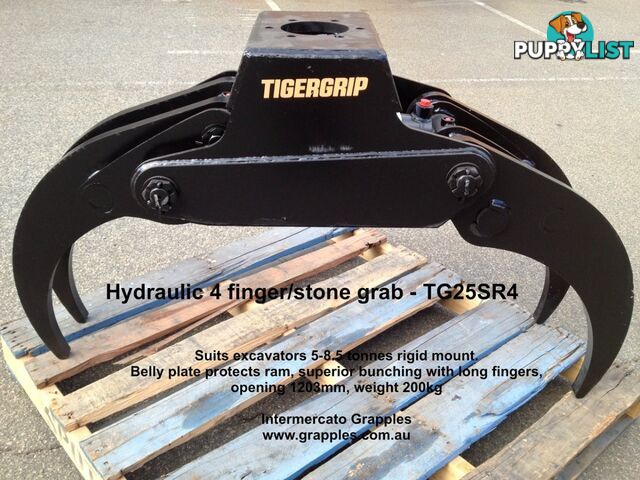

TG25SR4 Weight:200kg Excavator weight:5-8tonne Opening width:1500mm Closing width:50mm

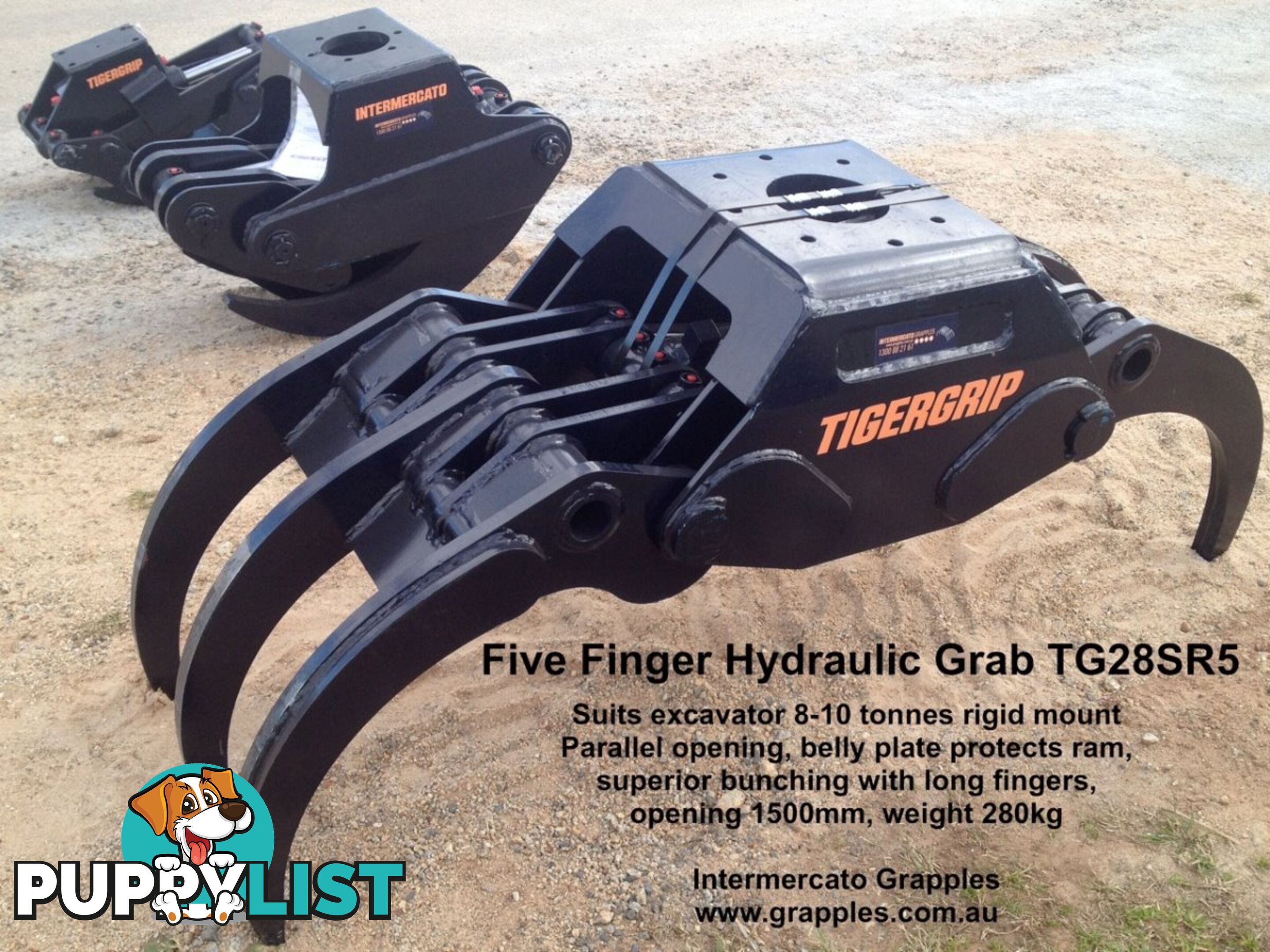

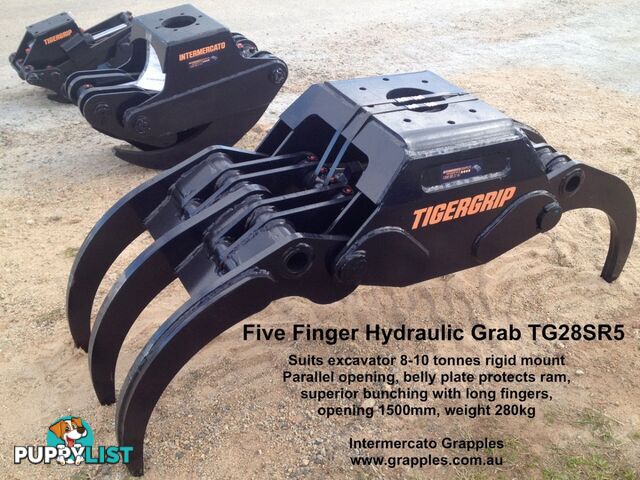

TG28SR5 Weight:280kg Excavator weight:8tonne Opening width:1500mm Closing width:95mm
TG35SR5 Weight:355kg Excavator weight:10tonne Opening width:1890mm Closing width:65mm

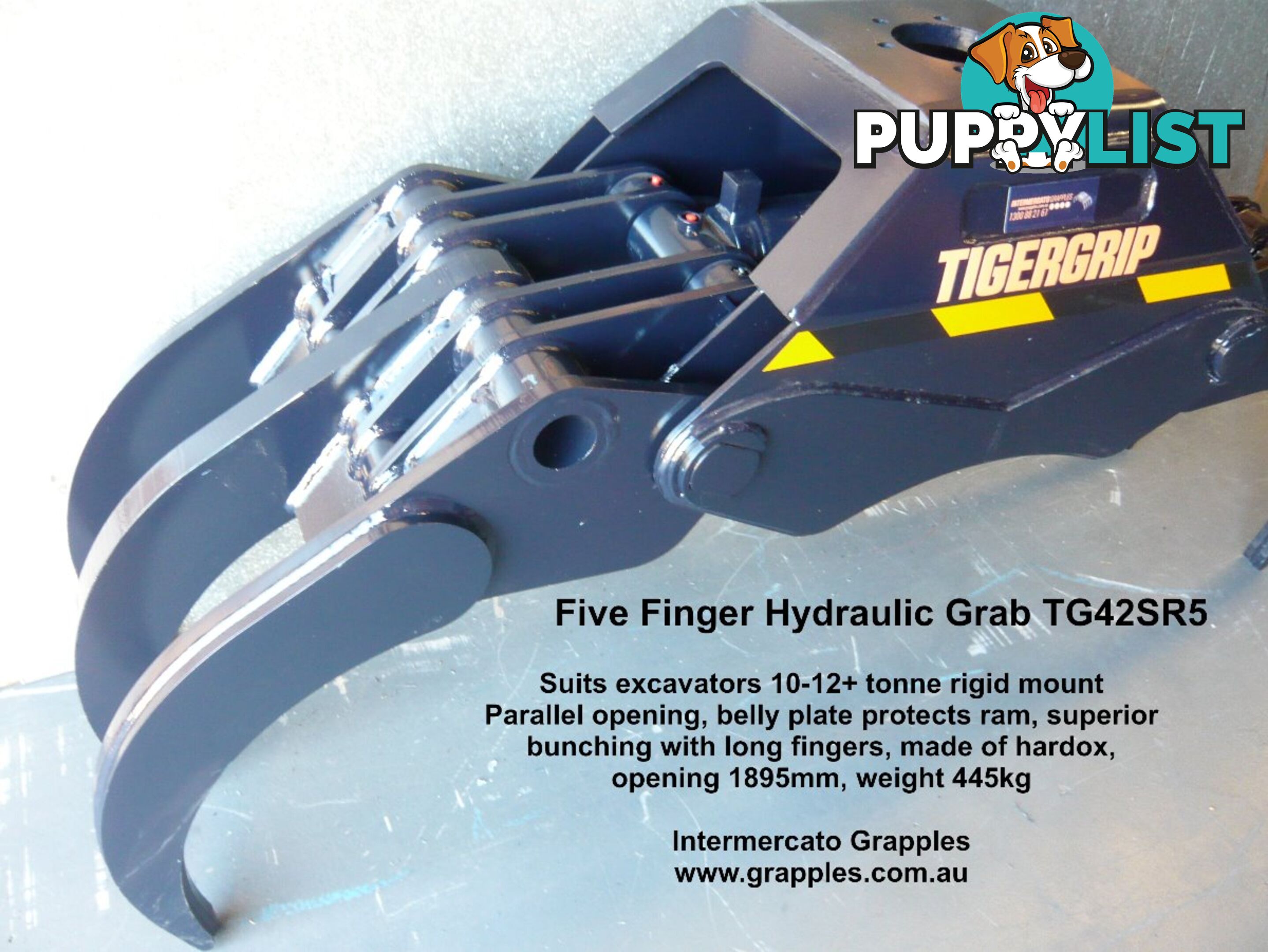

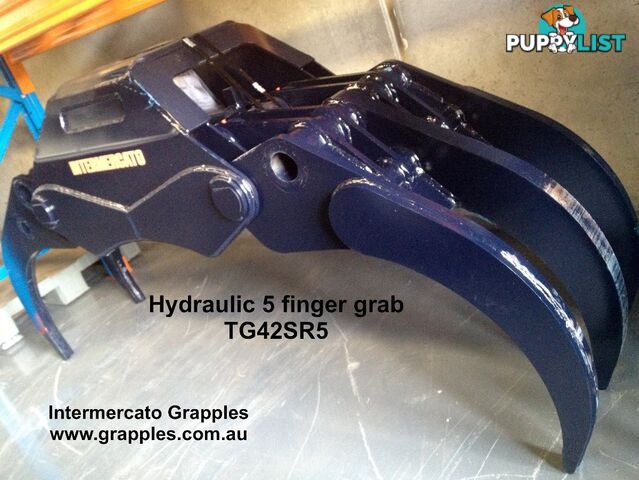

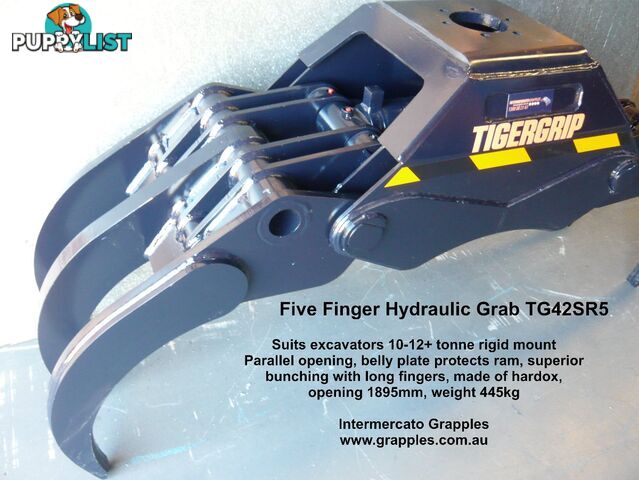

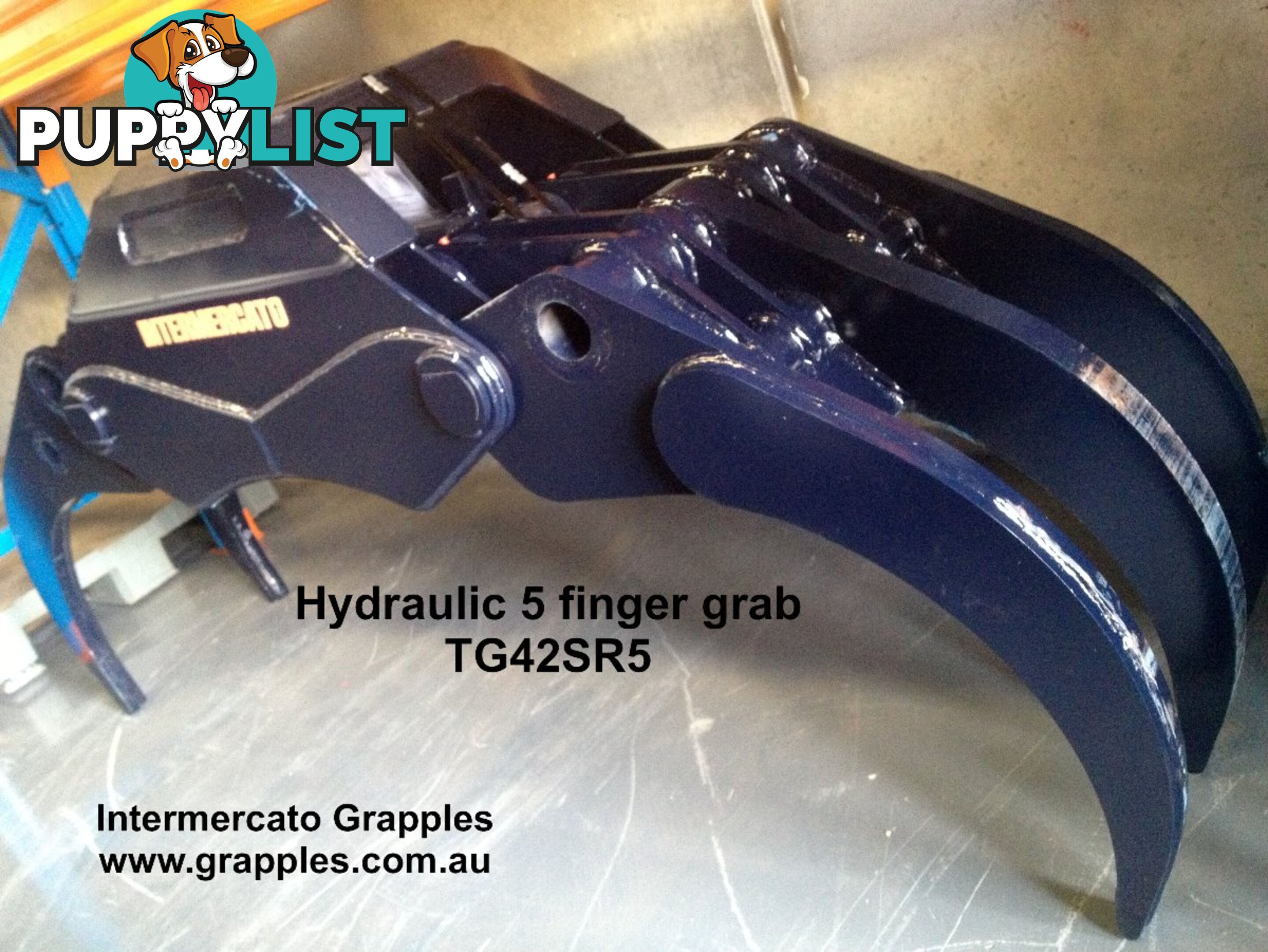

TG42SR5 Weight:445kg Excavator weight:12tonne Opening width:1895mm Closing width:100mm

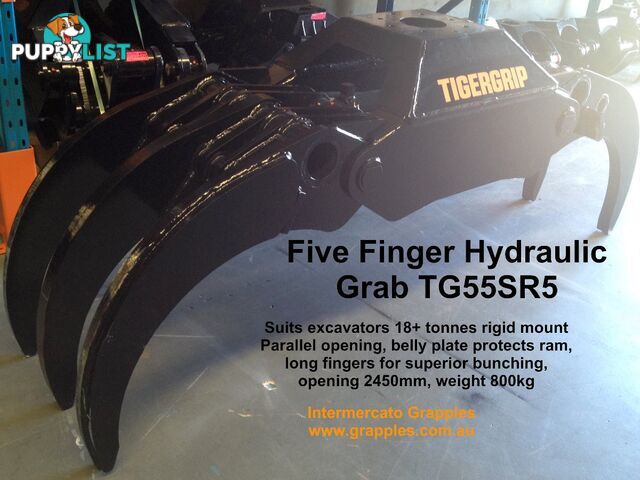

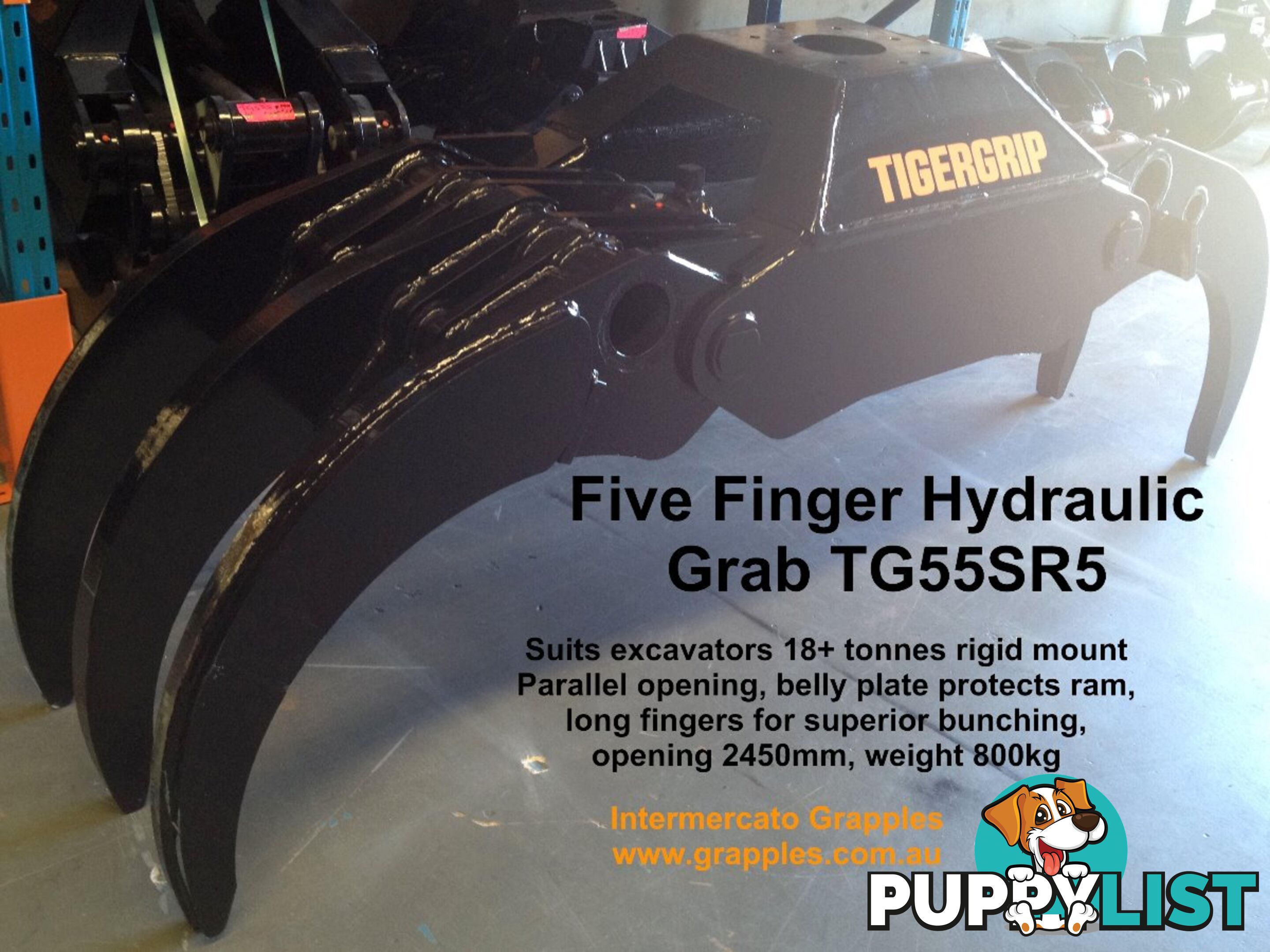

TG55SR5 Weight:800kg Excavator weight:18tonne Opening width:2450mm Closing width:150mm
All five finger grapples have the following features:

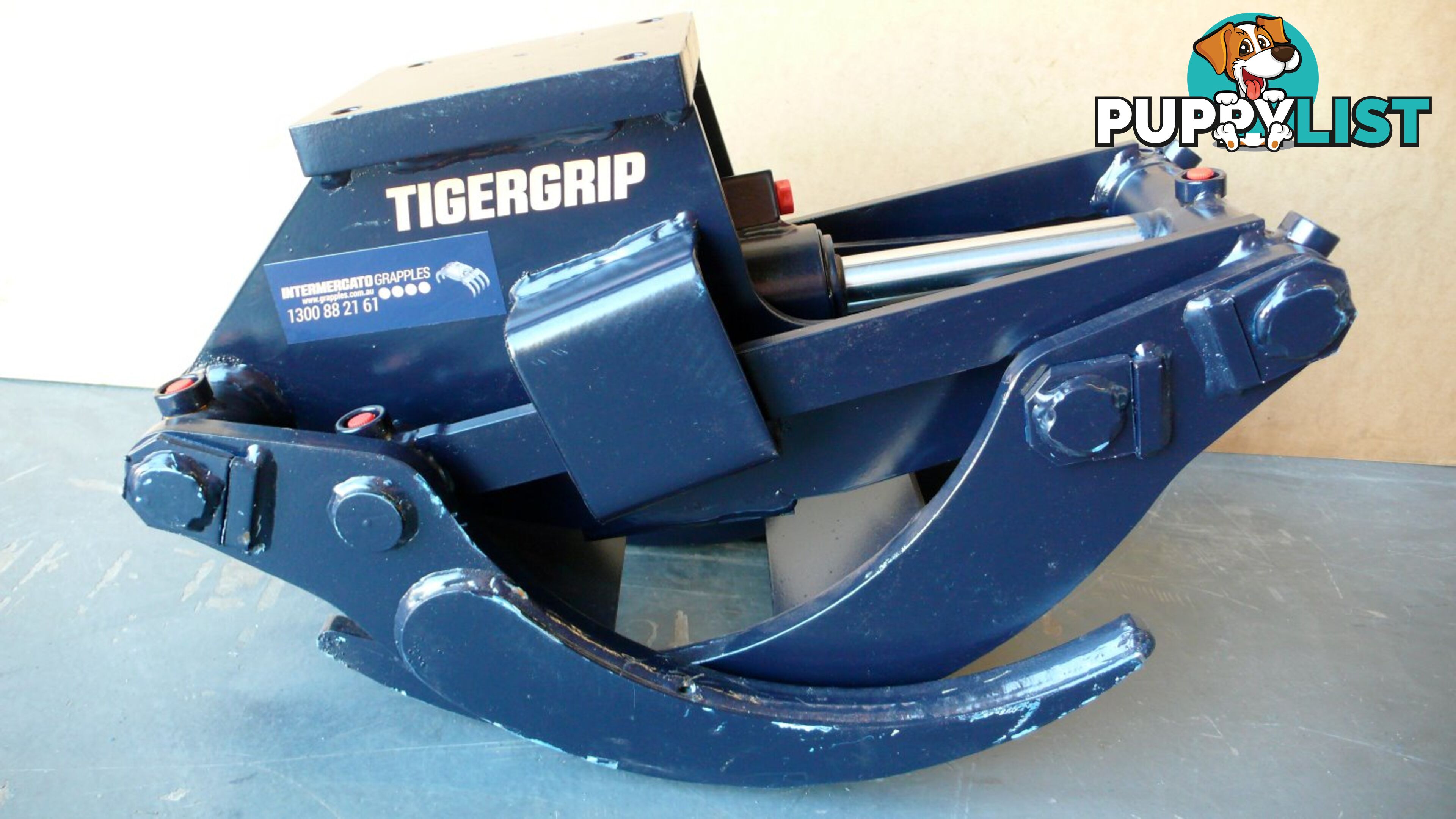

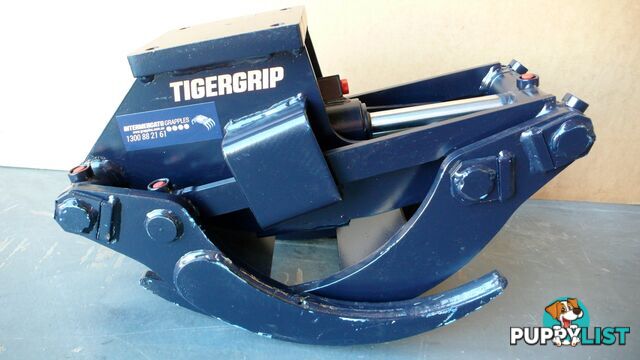

Excellent CLAMPING FORCE using over sized pistons to securely grip any load.

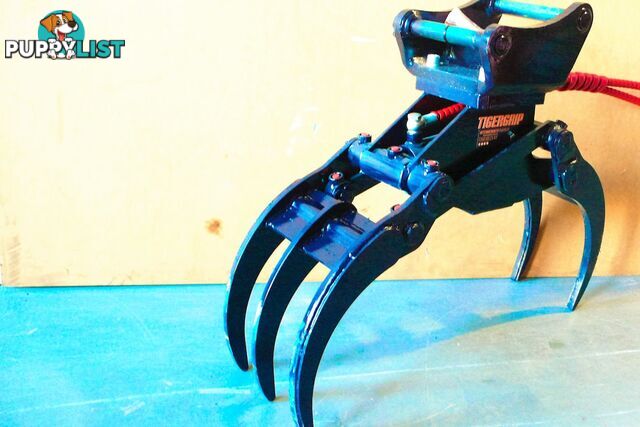

EXCLUSIVE LONG FINGER design - 5 heavy duty tines give easier penetration & greater bunching in every load.

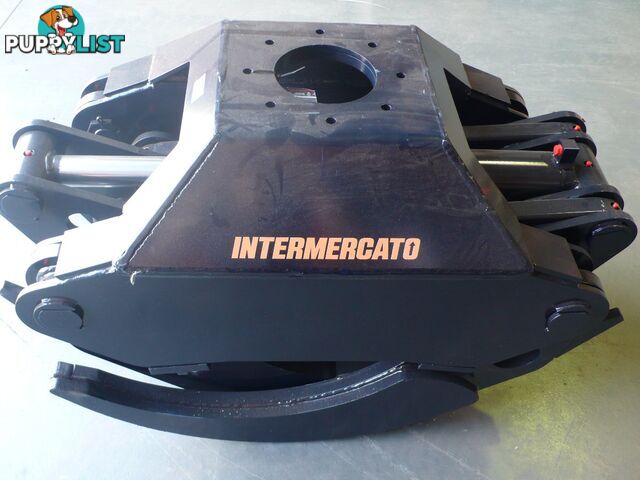

Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.
All excavator series made from the highest quality steel available - HARDOX.
Built by a company specialising in grapples for over 20 years.
Optional overcentre valves.

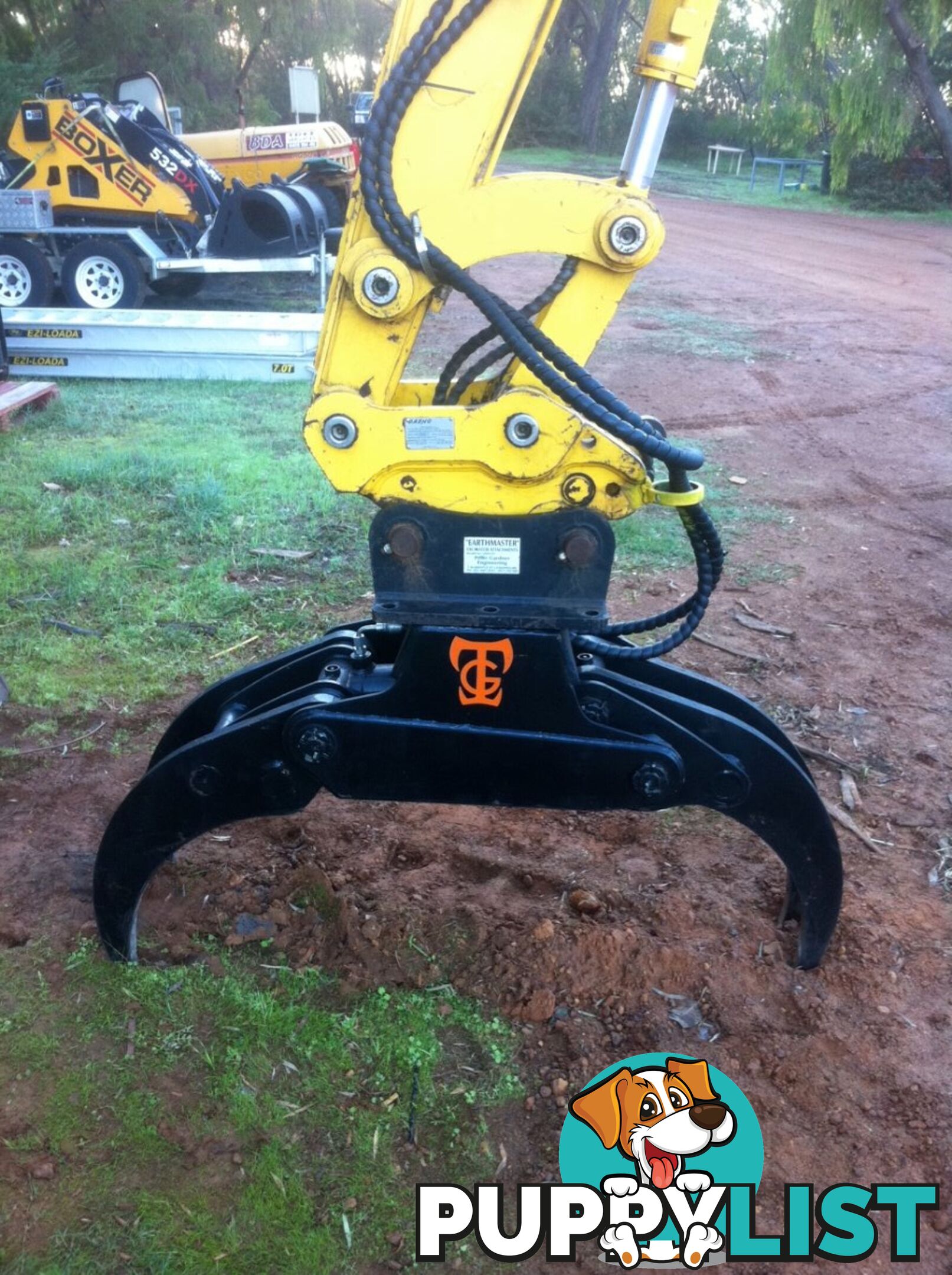

Intermercato's fully hydraulic five finger grapples allow the operator to still have full control of the tilt cylinder so objects can be picked up and placed precisely with more ease. The tilt cylinder can also be used for efficient raking if desired.

For more details see -http://www.grapples.com.au/five-finger-grabs
