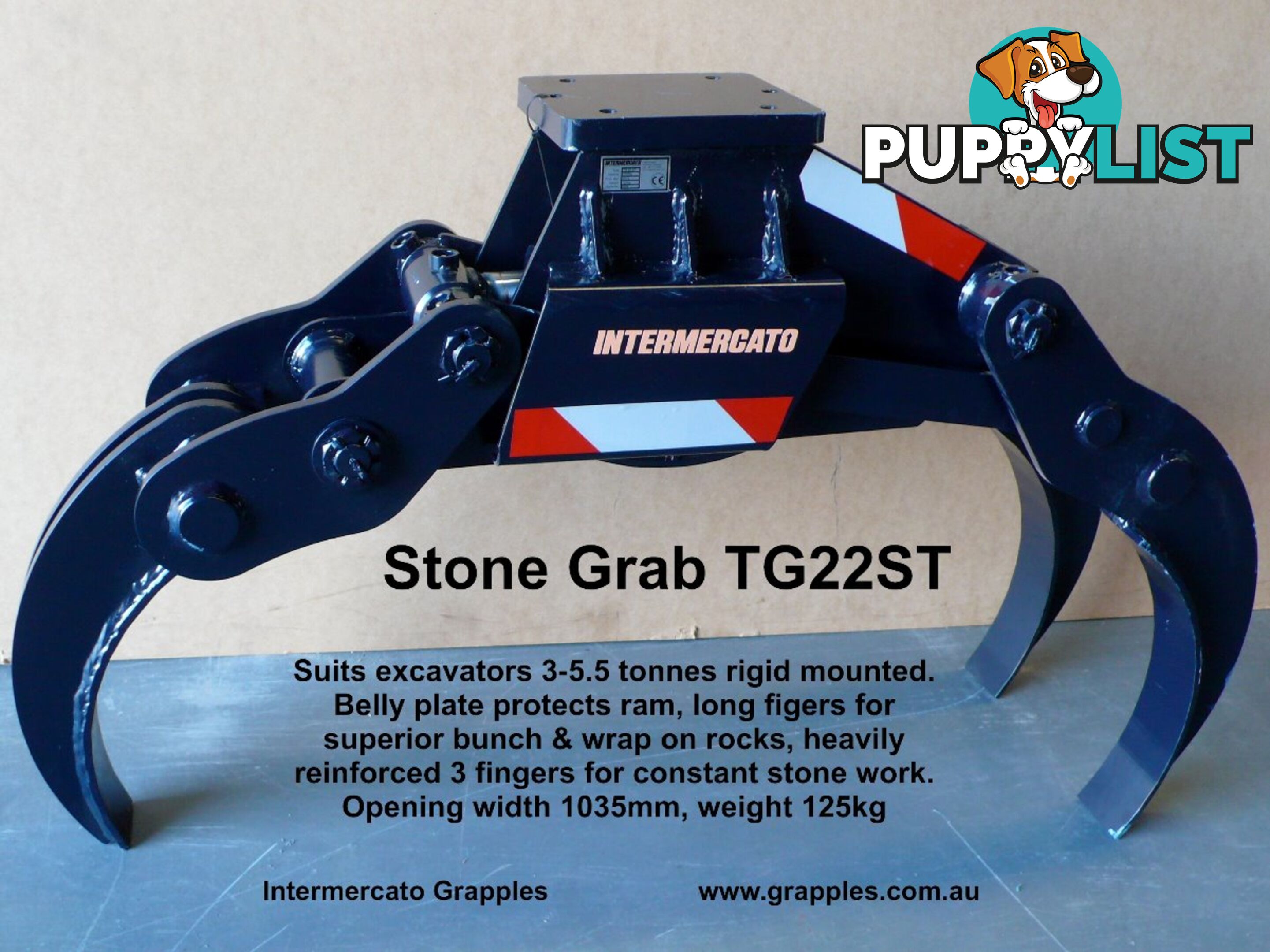

Excavator Stone Rock Grab - TG22ST

DESCRIPTION

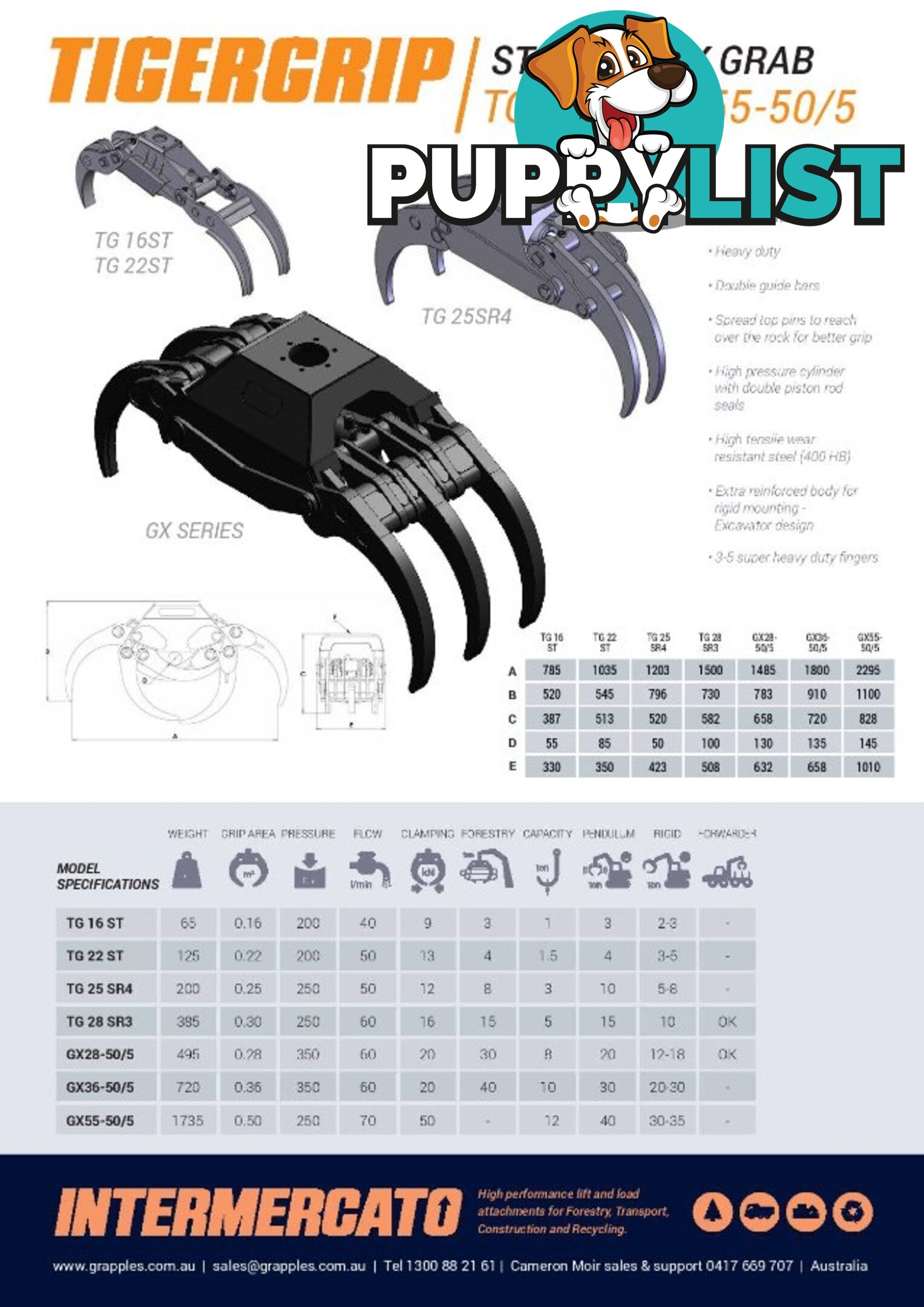

Opening width: 1035mm
Closing width: 85mm
Weight: 125kg + headbracket
Excavator size: 3-5tonne
Intermercato stone rock grabs are suited to excavators and cranes from 2 tonne to over 30 tonne capacity.
If you work in stone, then a specialist stone rock grab or universal five finger grab is the best choice for you.
Specialist stone rock grabs have hard wearing faceplates for long term production work in harsh conditions. Customers use these grapples for hard wearing products including stone, mining, demolition, concrete sorting and bulk material transfer.
Stone rock grabs are of the modern bypass design, allowing wide opening widths to pick up large stone and give great capacity but still allowing very tight closing to handle a variety of sizes. Larger designs also use cutting edges for superior block handling. Intermercato stone rock grabs are designed to give high gripping forces on hard rock.
All stone rock grabs have the following features:
Excellent
GRIPPING FORCE
for hard rock with 3 - 5 heavy duty fingers.
Extra reinforcing over the tines for maximum life in constant production work.
Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.
High clamping forces with oversized pistons - allows secure gripping of any load.
All excavator series made from the highest quality steel available -
HARDOX.

Built by a company specialising in grabs and grapples for over 20 years.
Optional overcentre valves.

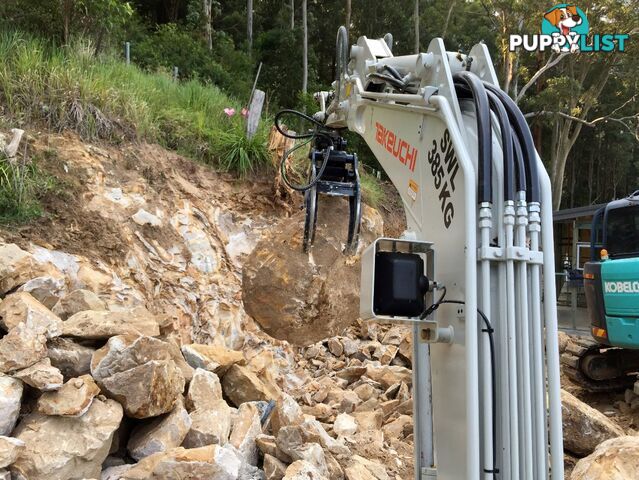

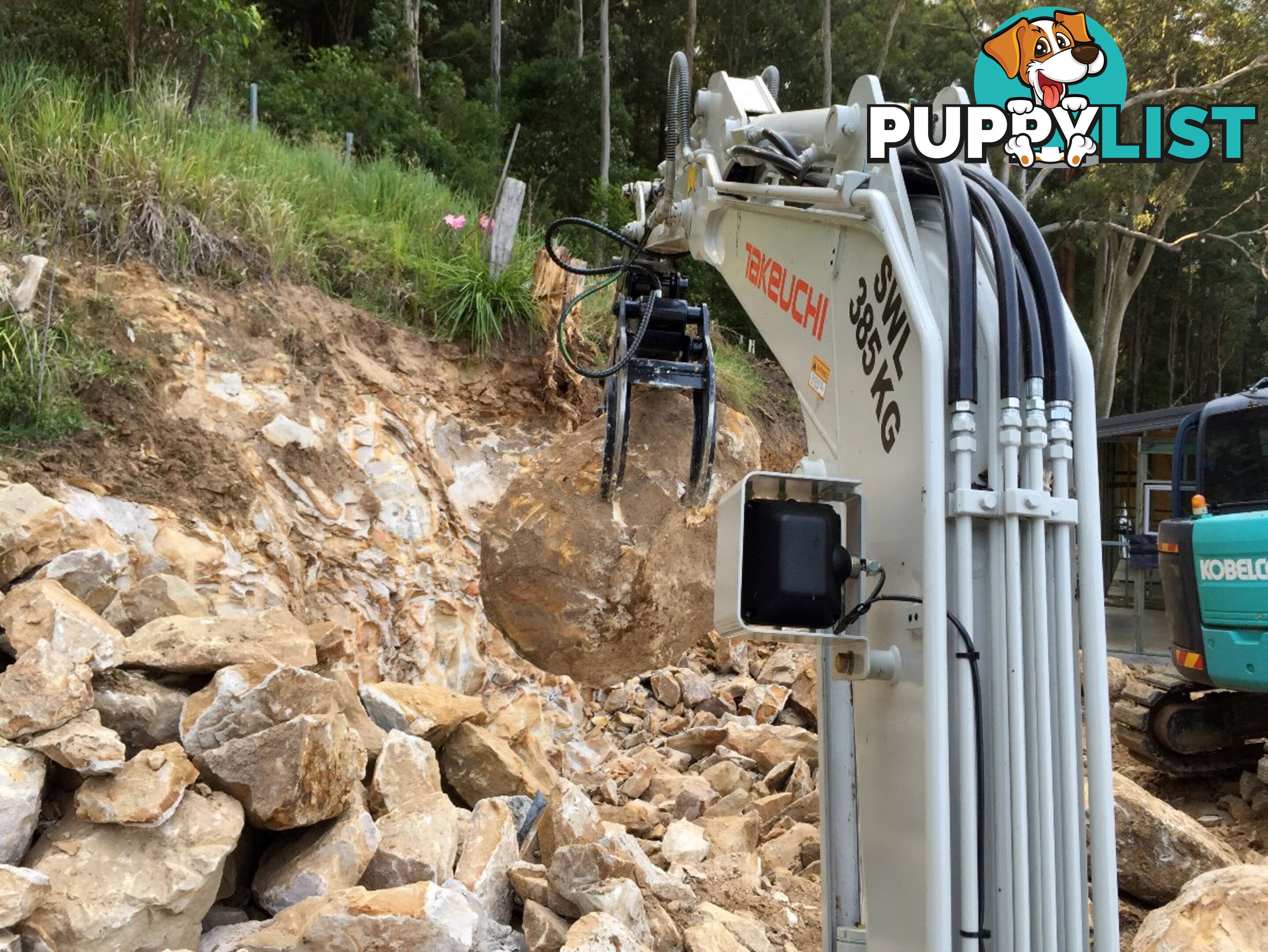

Intermercato's fully hydraulic stone rock grabs allow the operator to still have full control of the tilt cylinder so objects can be picked up and placed precisely with more ease.
Tilt cylinder can be used for raking.
Reach OVER the rock as the top pin are spread apart, allowing you a more secure grip on your load

Why consider a fully HYDRAULIC stone grab?
Grabbing action is always the same as it's independent to your tilt ram.
Full range of motion, same as operating a bucket.
Couples and uncouples as easily as your bucket - no strut or cylinder plate on your boom.
No need to modify or weld onto the excavator, weakening it.
Grapple jaws close evenly to pick up objects easily (not cheap one-arm static design!)
Rotator (rigid mount or pendulum) can be added later if required for 360 degree rotation of the grapple.
Able to be shared between machines with same size coupler.
Please call Cameron on 0417669 707 or visit our website http://www.grapples.com.au/stone-rock-grabs
