4-9 ton (45mm pin) 380mm Jaws Excavator GP Digging & Trenching Bucket

DESCRIPTION

Used 380mm Jaws Excavator GP Digging & Trenching Bucket suit 4-9 Ton machines.

This is a well engineered, quality built bucket made in Australia by Jaws Attachments:

Condition is used but it is a sturdy bucket with lots of extra reinforcing added and has plenty of life left.

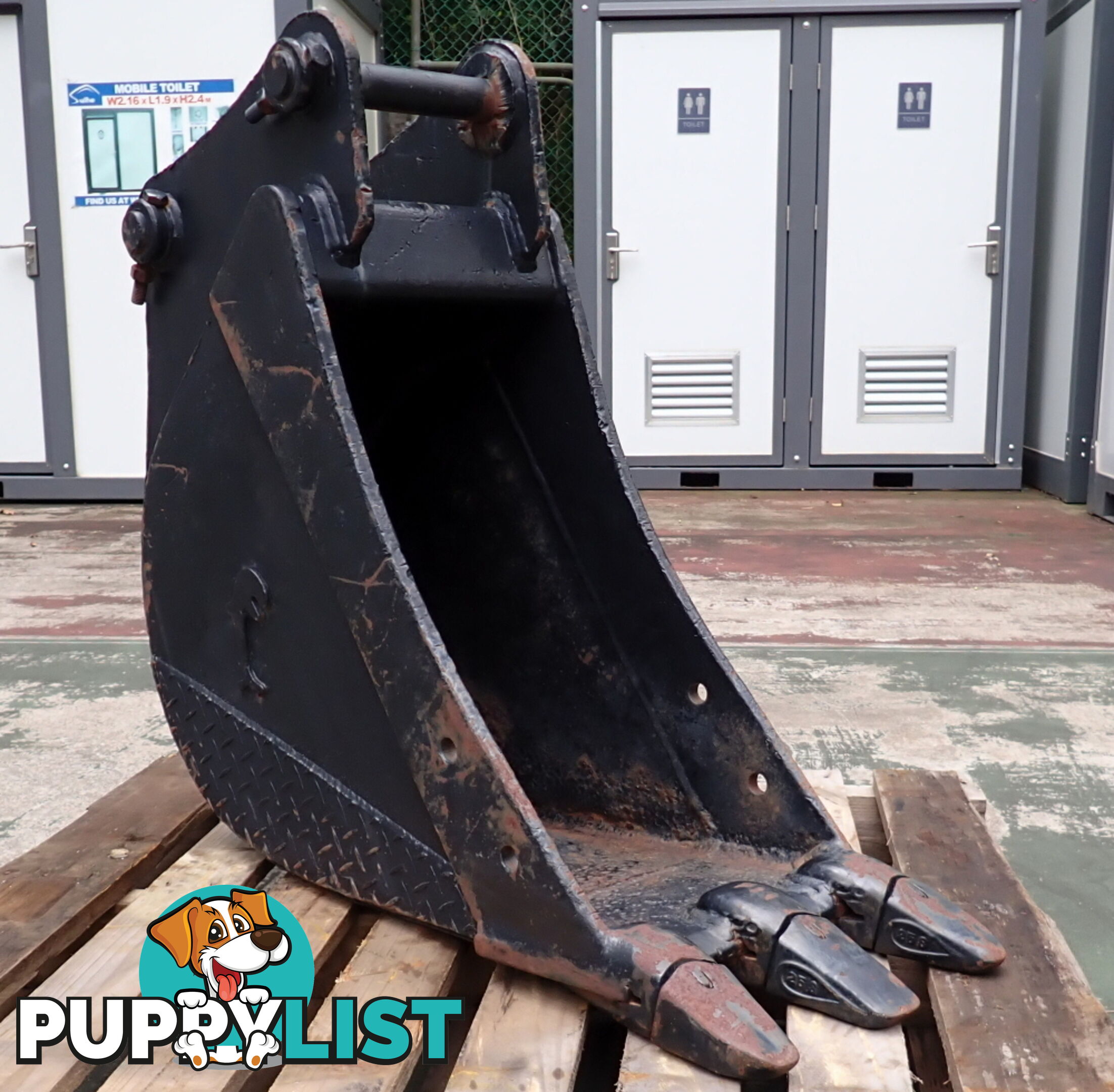

It has bolt holes on the sides ready for side cutters, and the width is tapered so mud slides out easily.

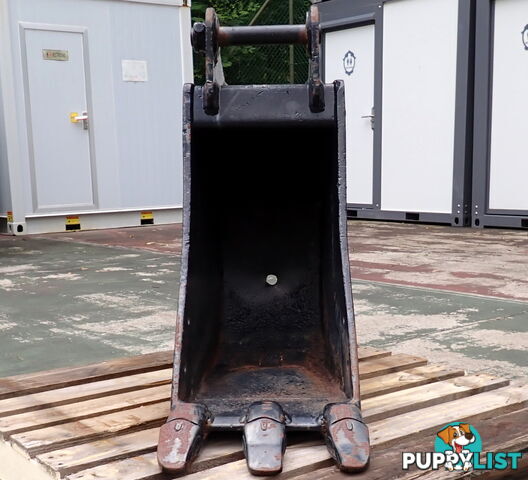

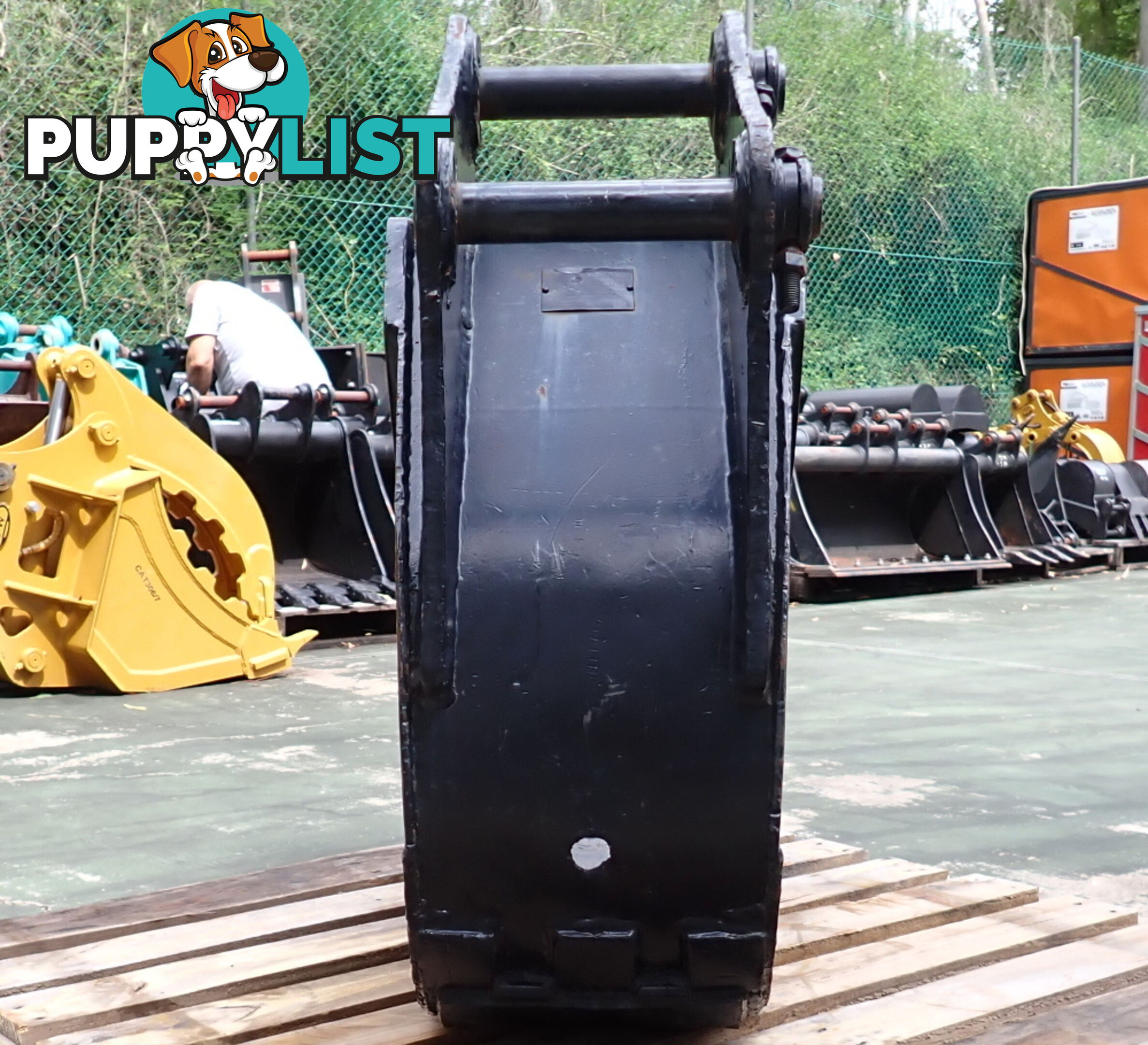

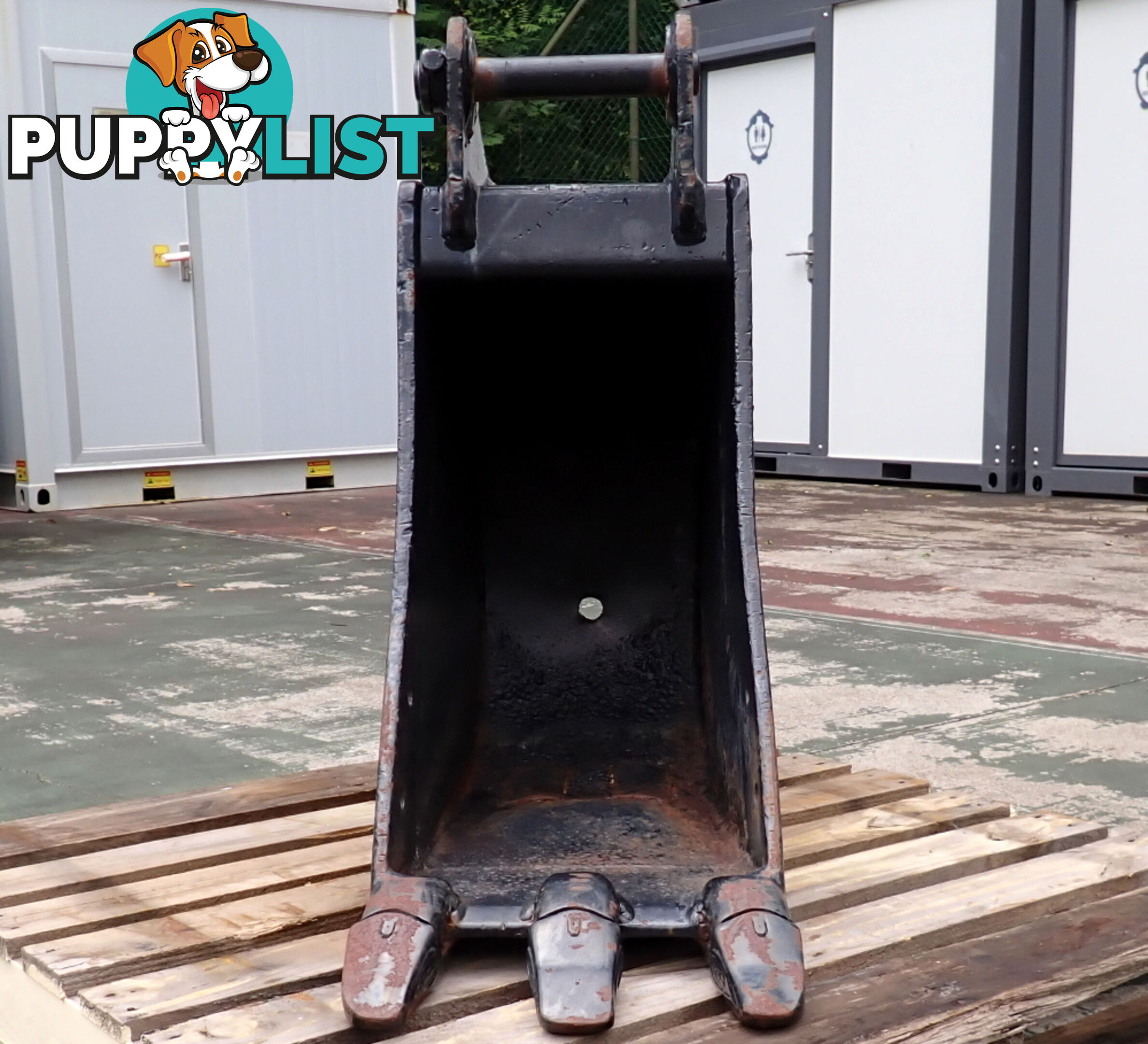

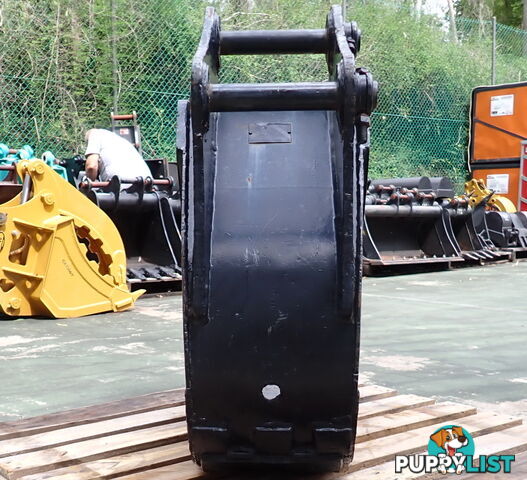

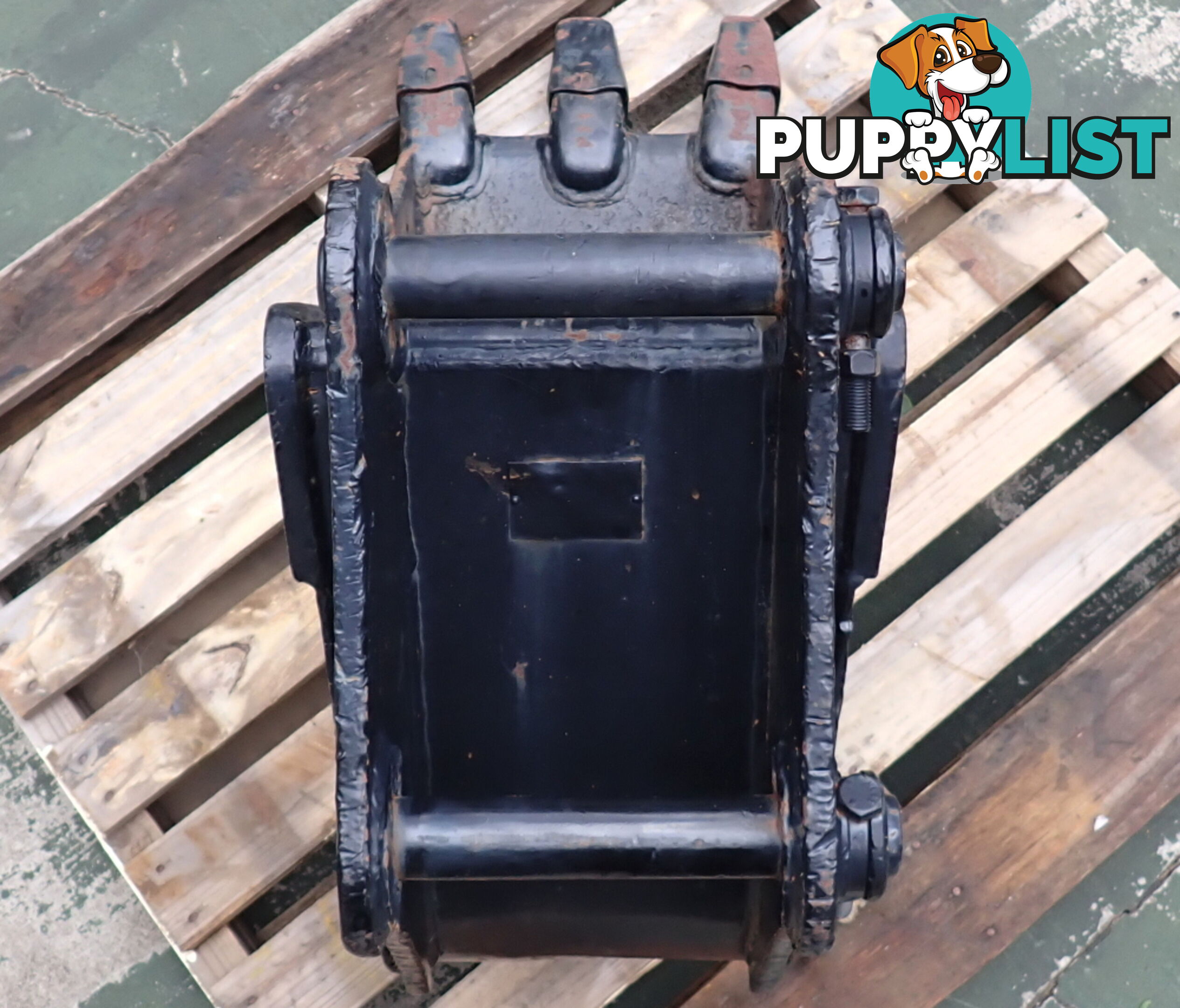

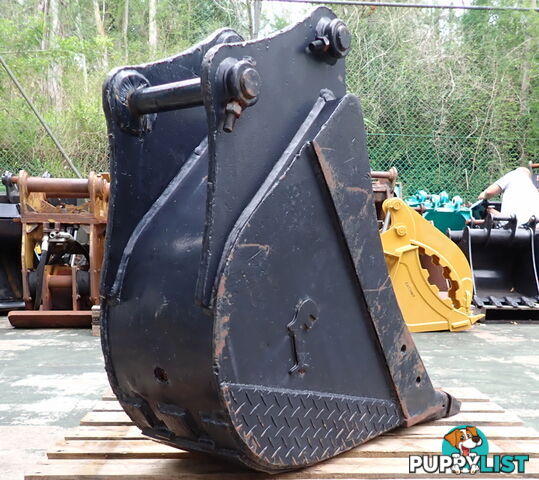

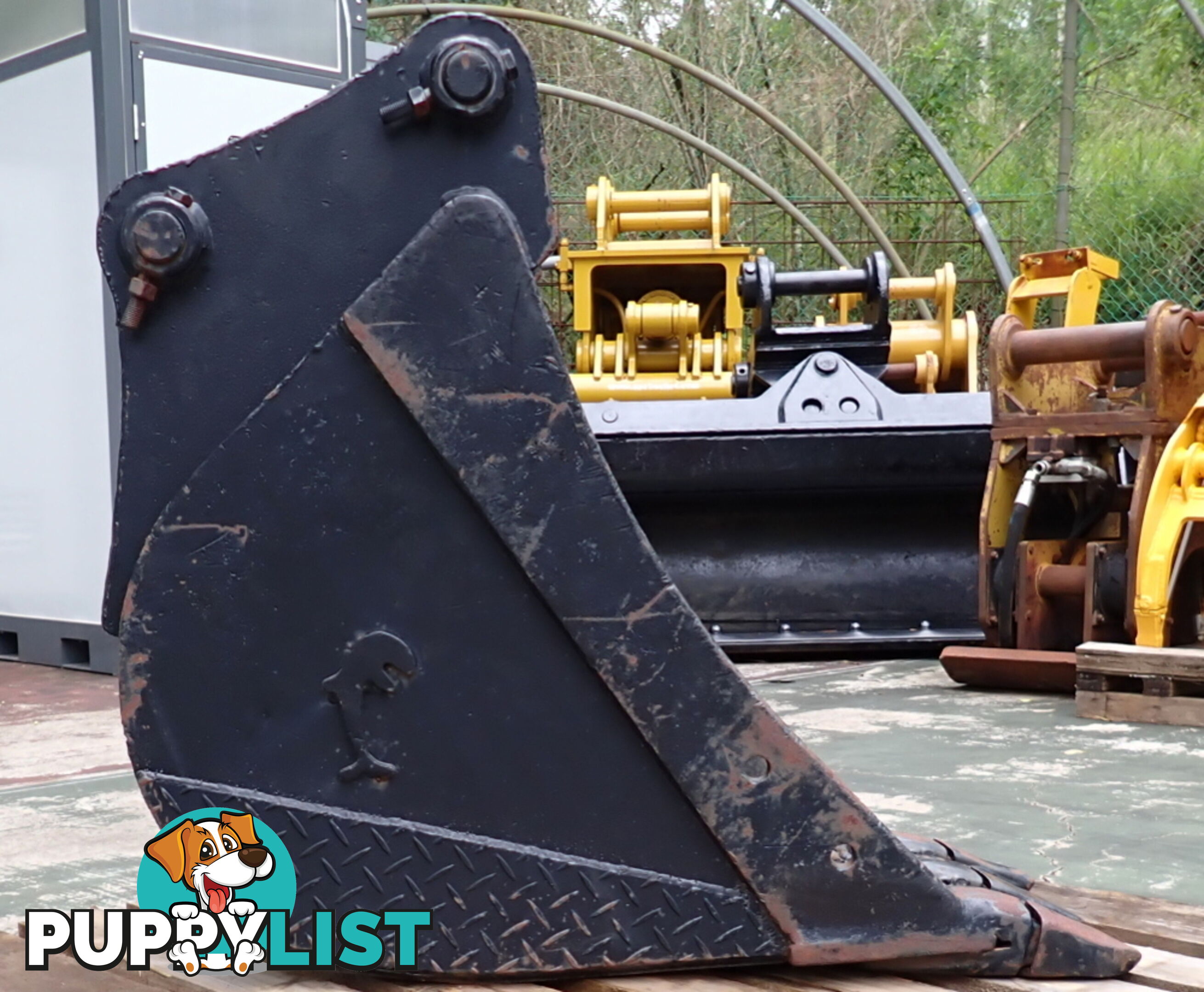

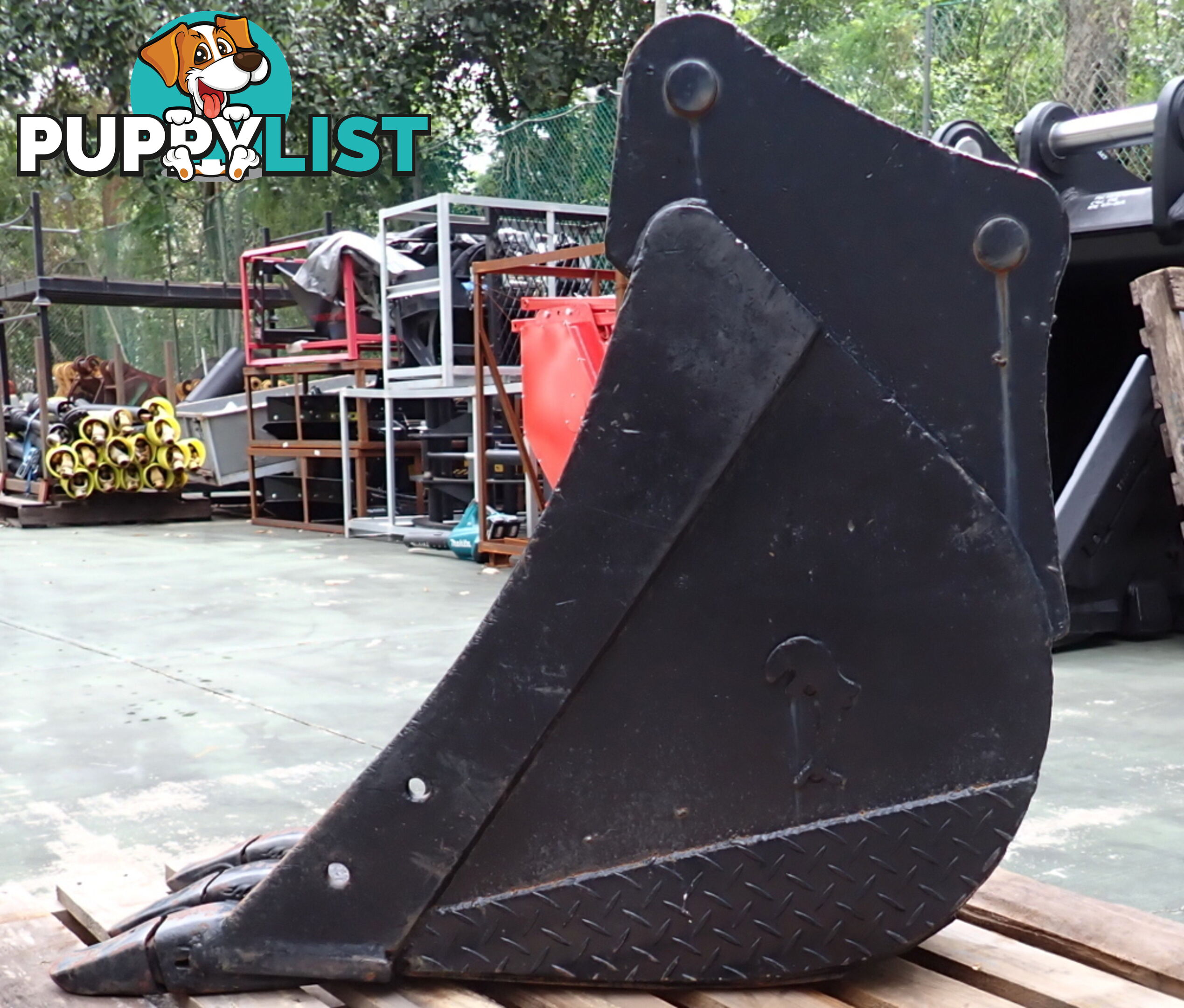

There is a hole cut out in the back of the bucket, useful for letting out water if you are dredging out a wet dam etc. (see pics# 2 & 6).

There is some pitting on the inside bottom surface from it sitting with water in it and it has a couple of patches added in there.

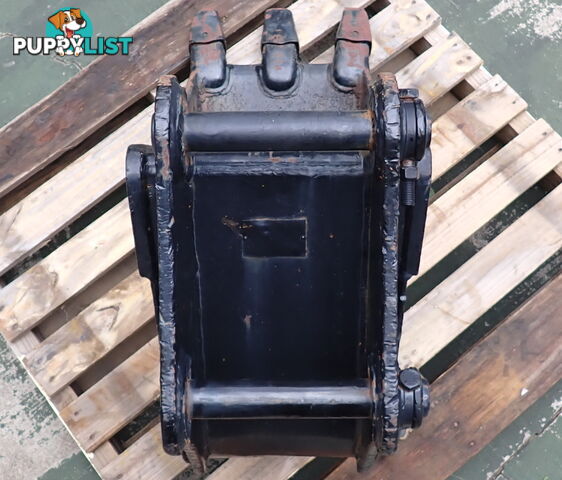

However, Jaws originally welded extra wear strips underneath for durability, and it has recently had a thick extra bottom layer added as well (see pic# 10).

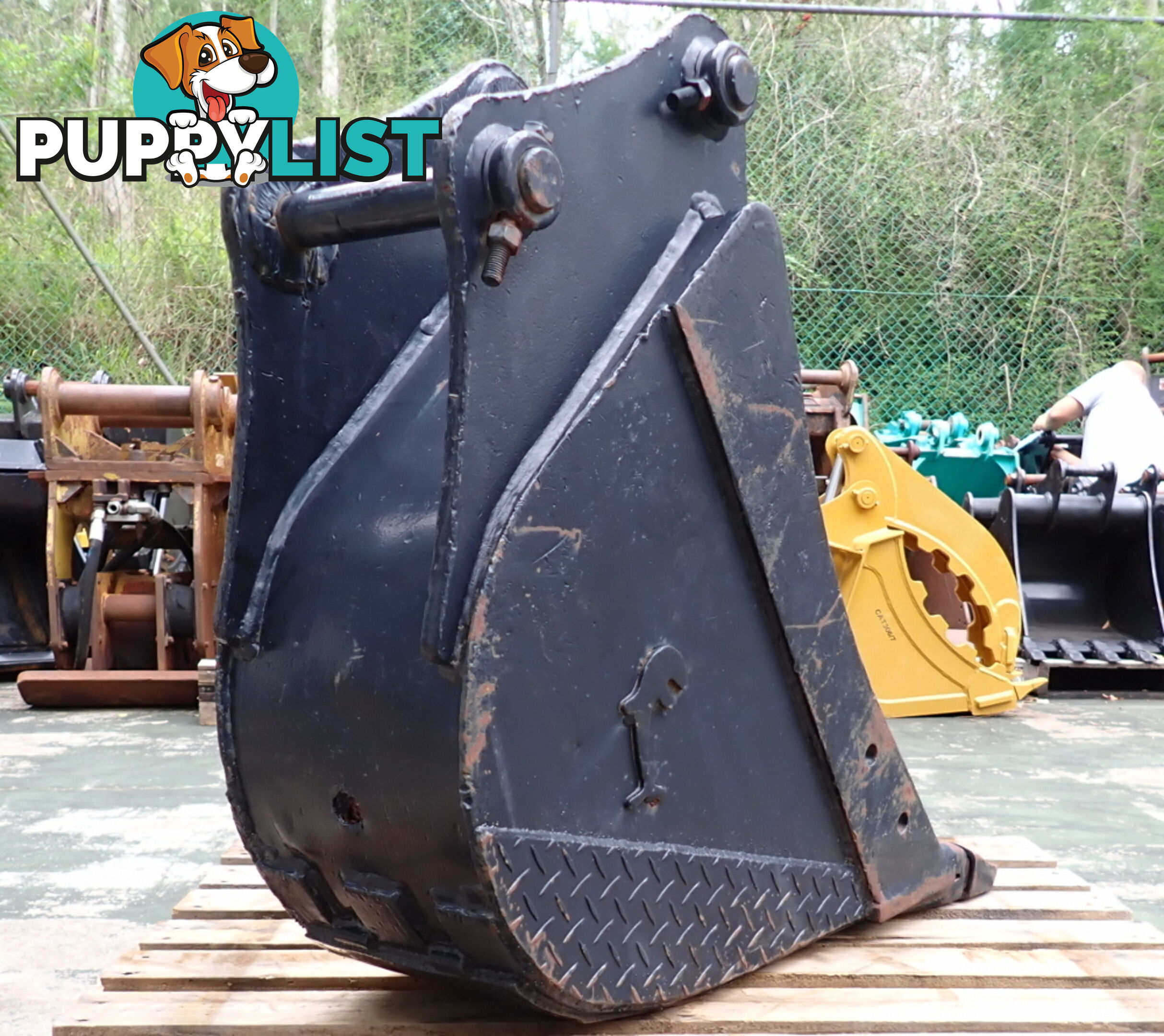

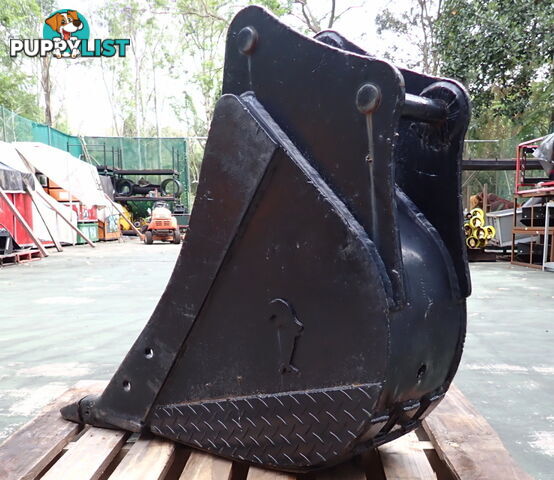

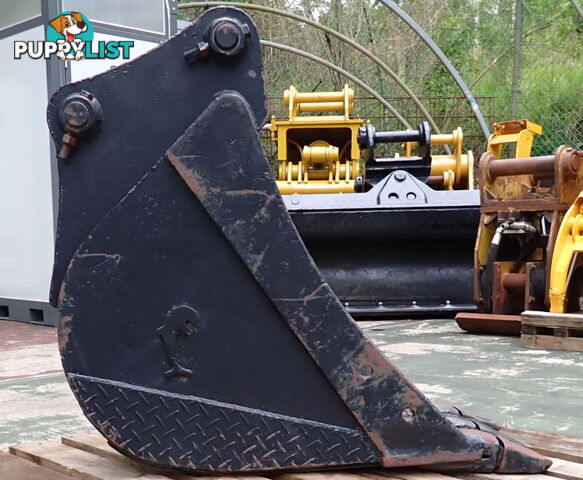

Also, extra wear protection has been added to the bottom of the sides (see chequered plate welded on in pics# 4 & 9).

*** Current Headstock configuration:
45mm Pin Diameter, 310mm Pin Center to Pin Center (CtoC), 209mm Between the inside Ear Bosses (which can be shaved back up to 224mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Caterpillar 307 / 307C / 308 / E 70B, Daewoo Solar 070-3 / 080-3 / 080W-3, Hitachi EX60 / EX60-3 / EX60-5 UK Version, John Deere 310G Std or Ext Stick, Volvo BL70 / BL71 / BL71B.

Maybe fit: Daewoo Solar 070 / 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hyundai R 55-7, Komatsu WB 93-2, Samsung SE 50-3, Volvo EC50/W / EC55 / EC55B / ECR58 / MX 55/W / SE 50-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Dimensions: 399mm Wide, 990mm Deep, 907mm High. Weight: 164kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
