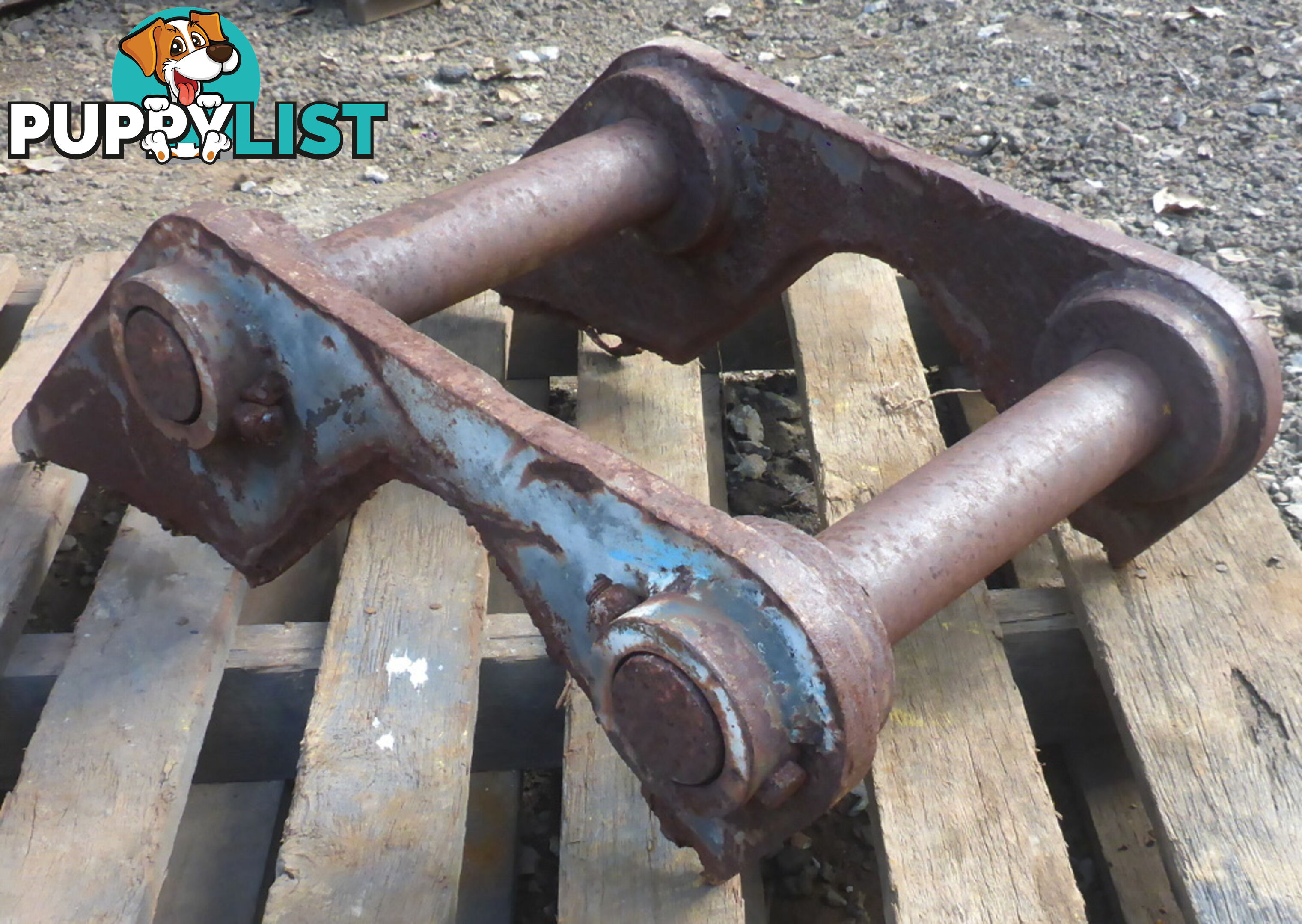

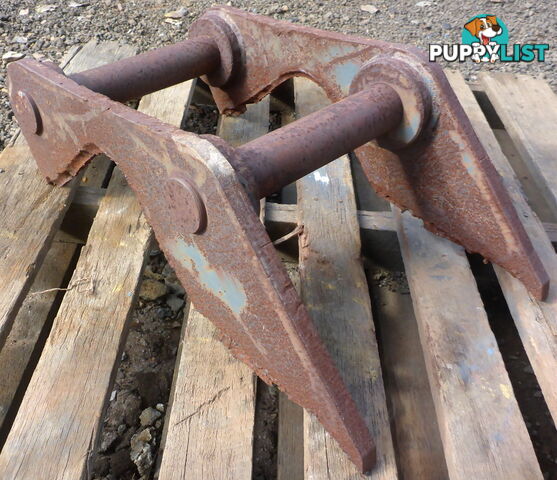

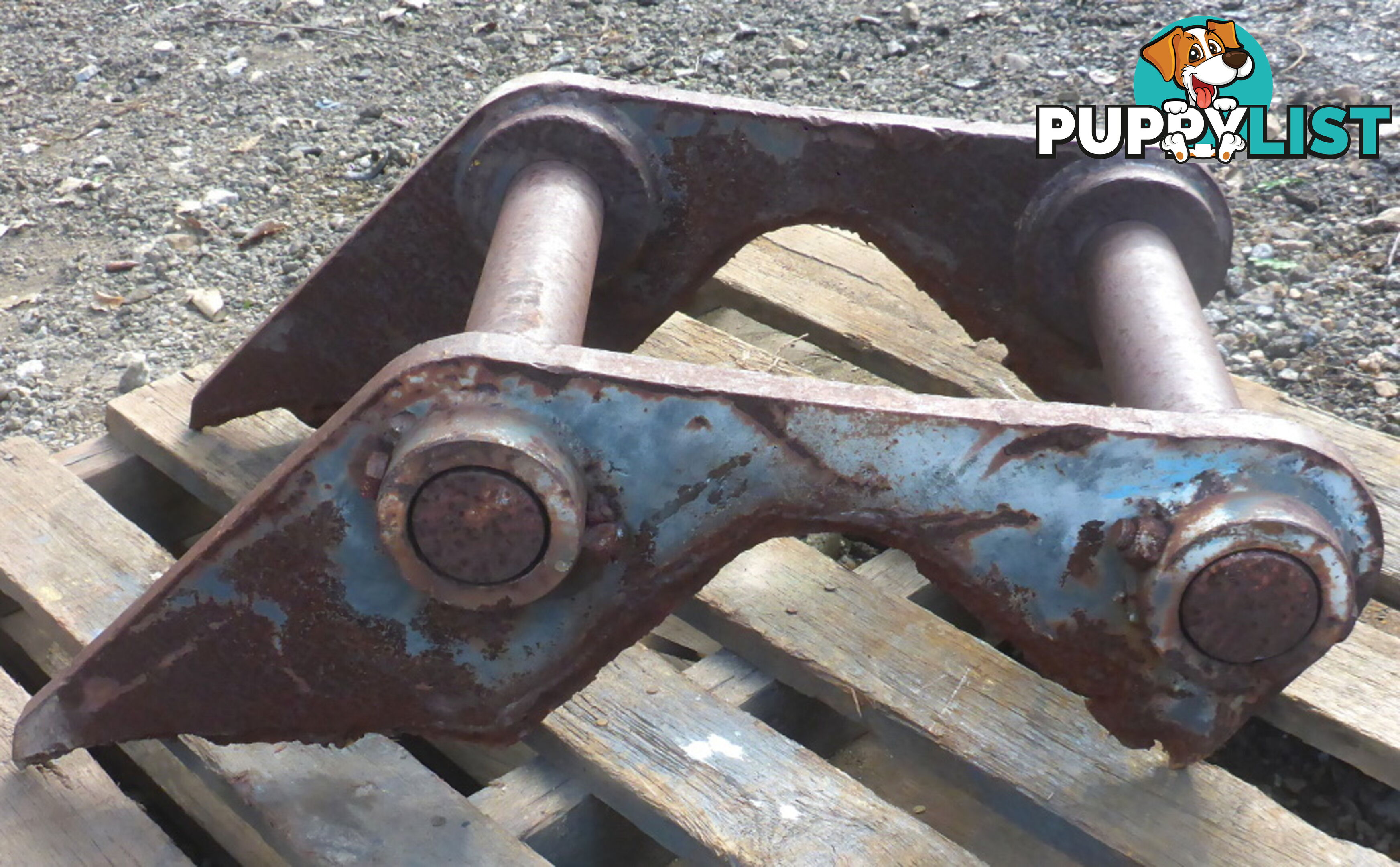

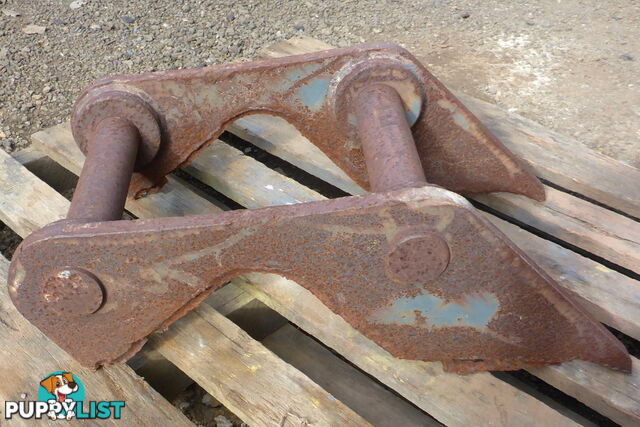

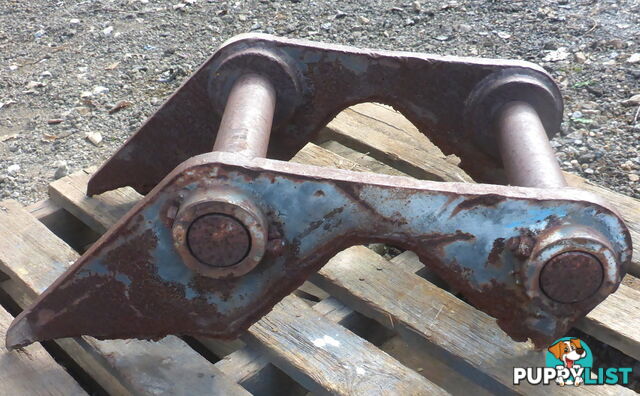

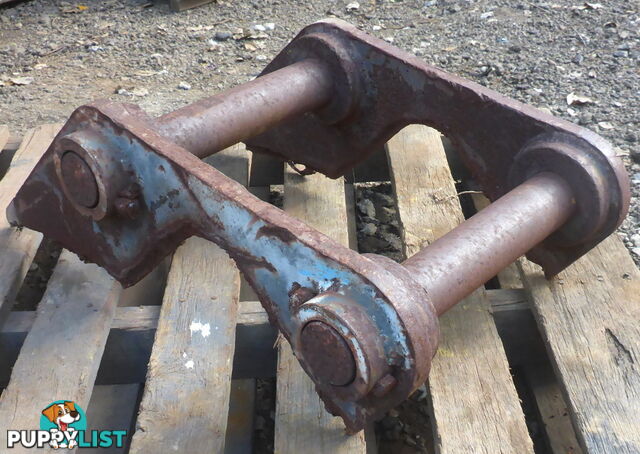

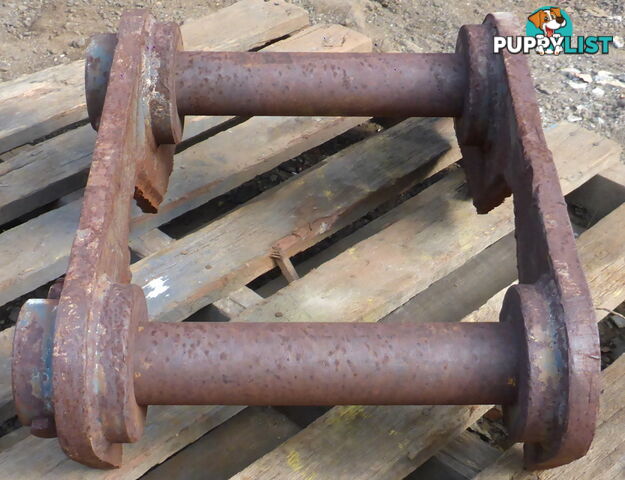

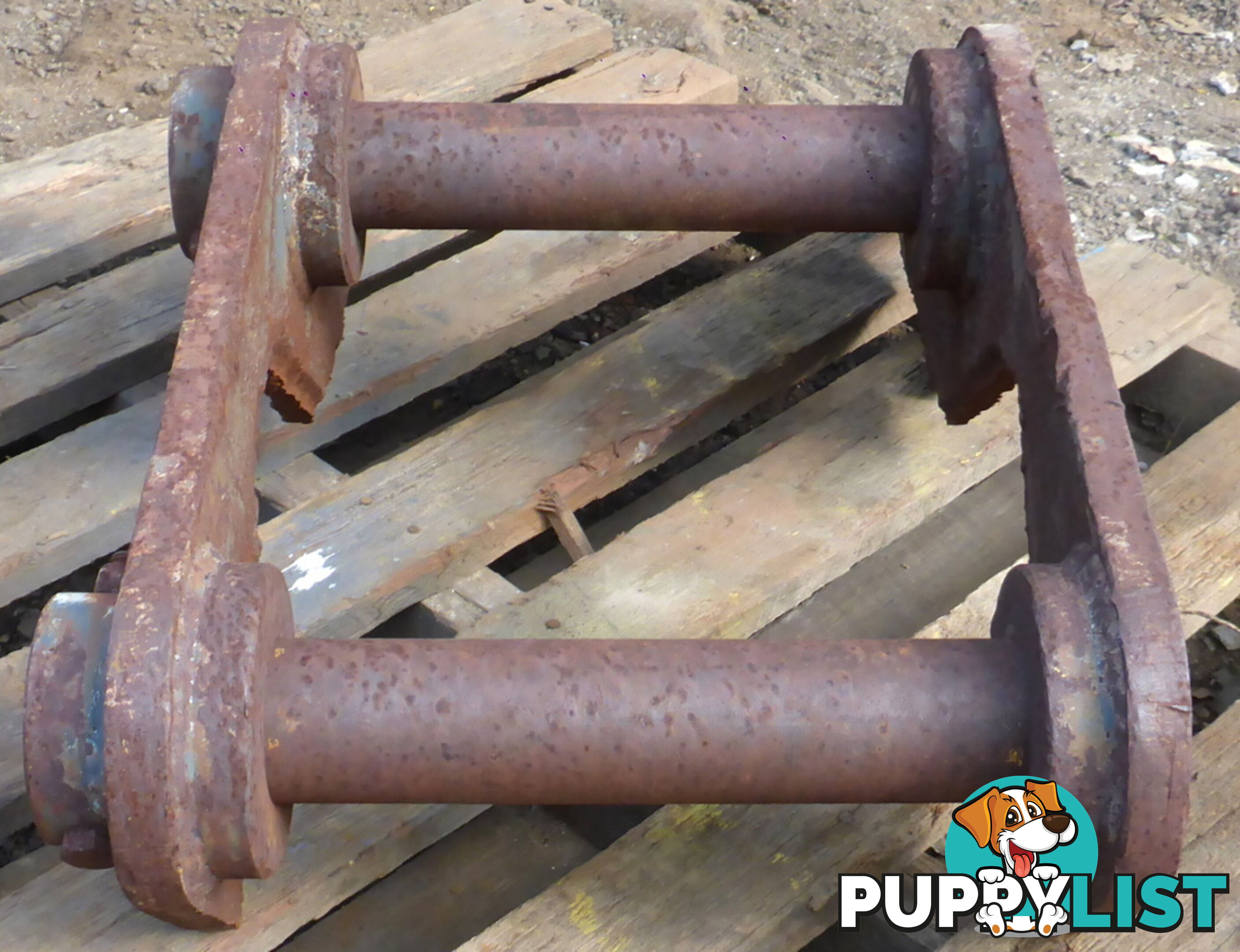

12-21 ton (70mm pin) Excavator Headstock Hitch Mounting Plate

DESCRIPTION

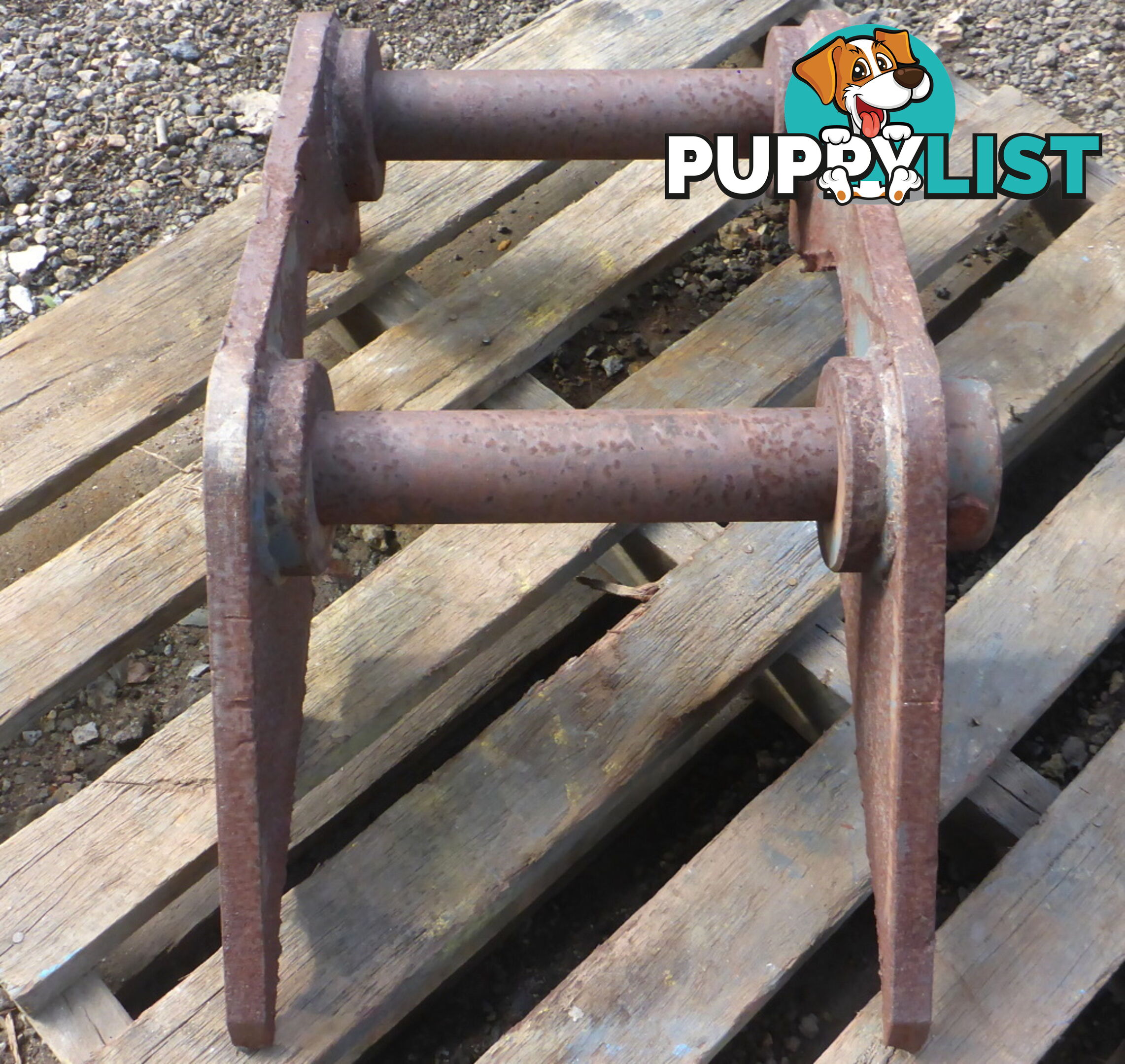

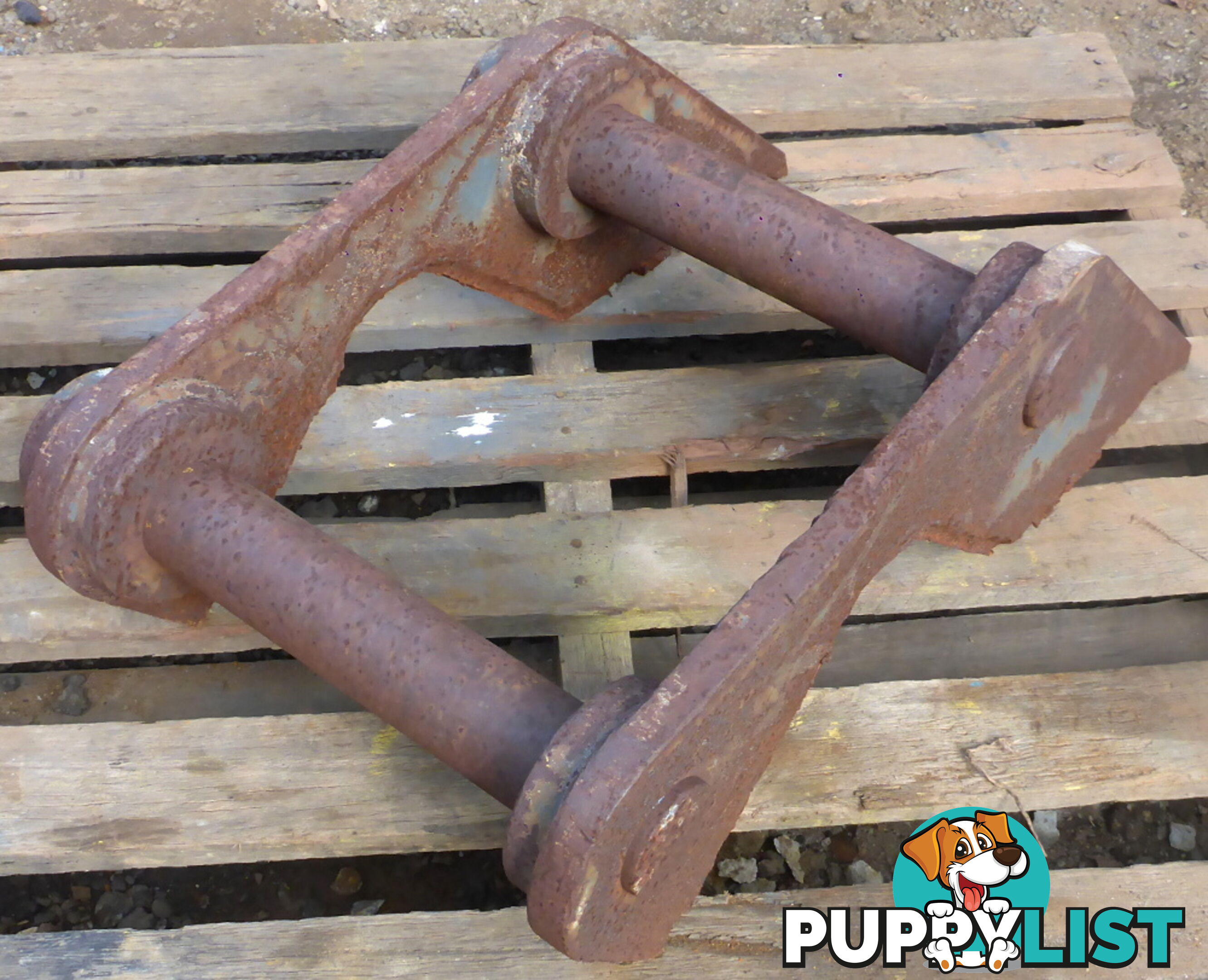

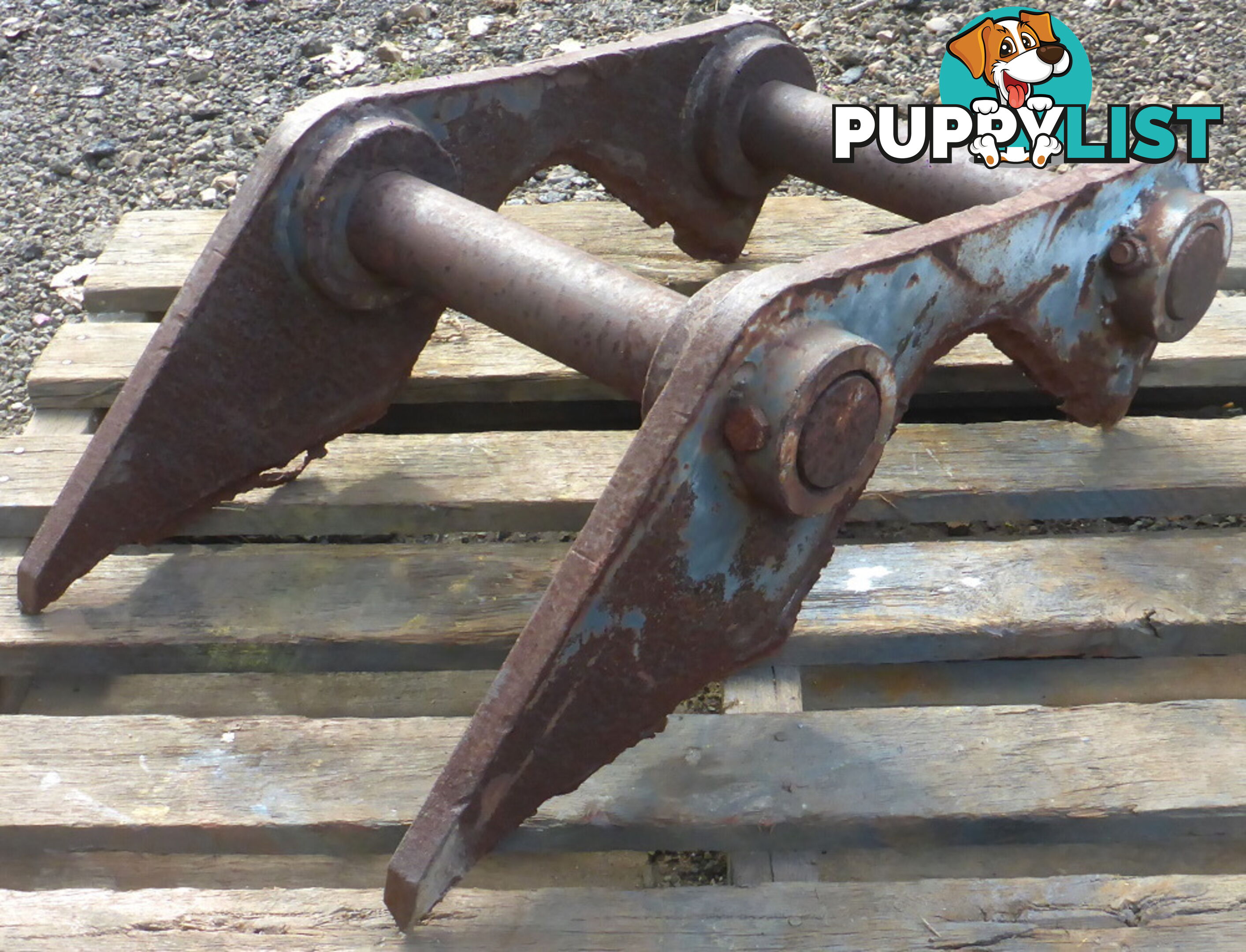

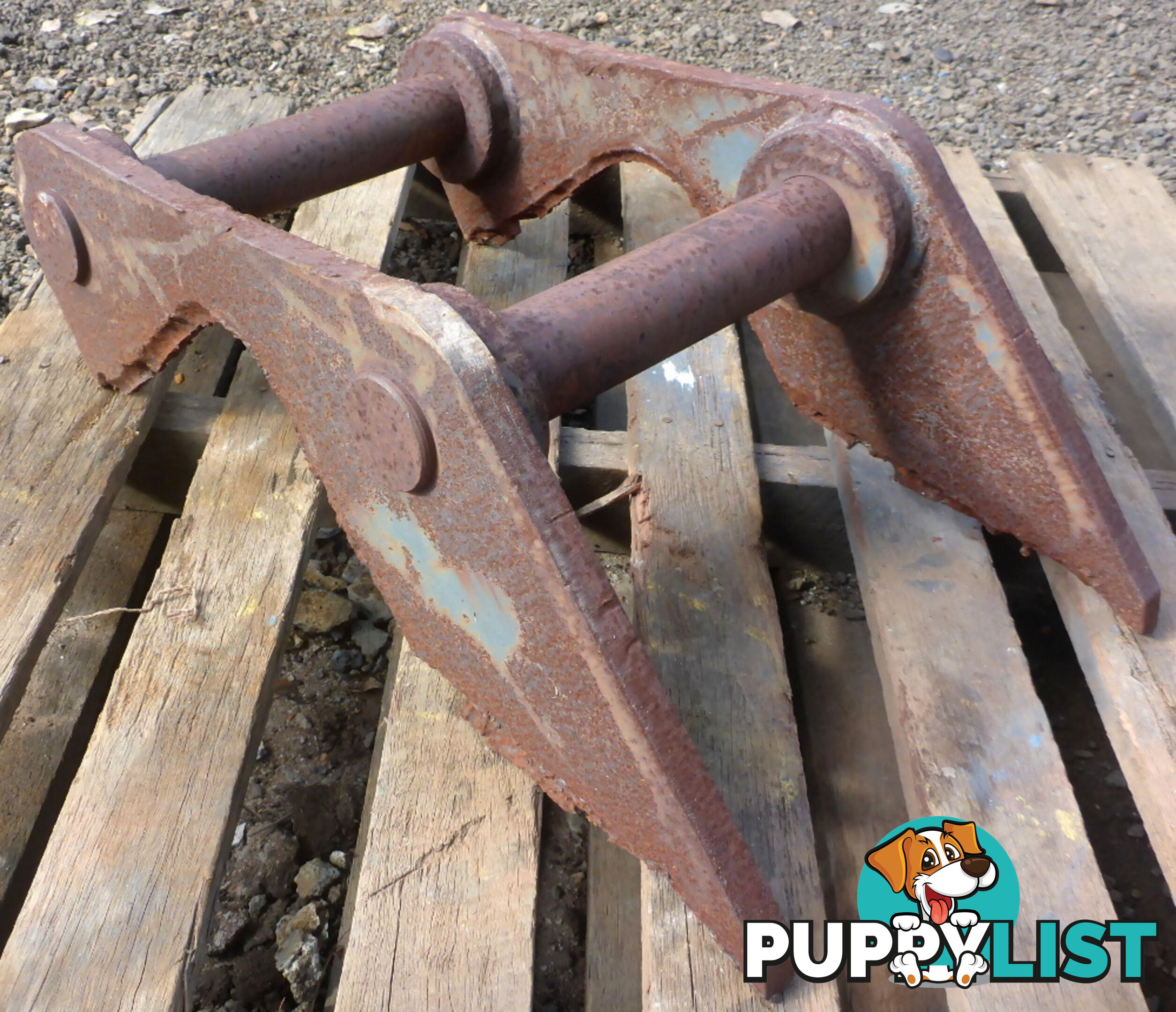

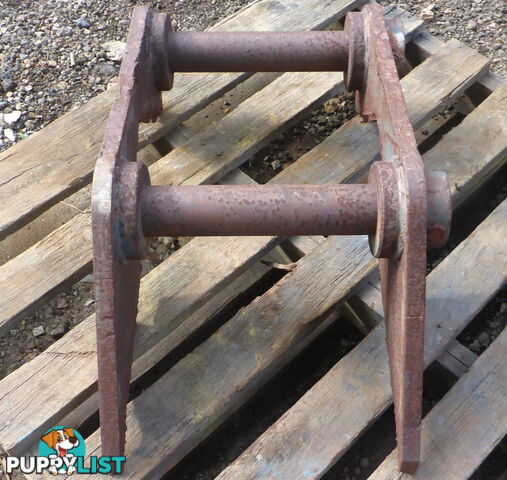

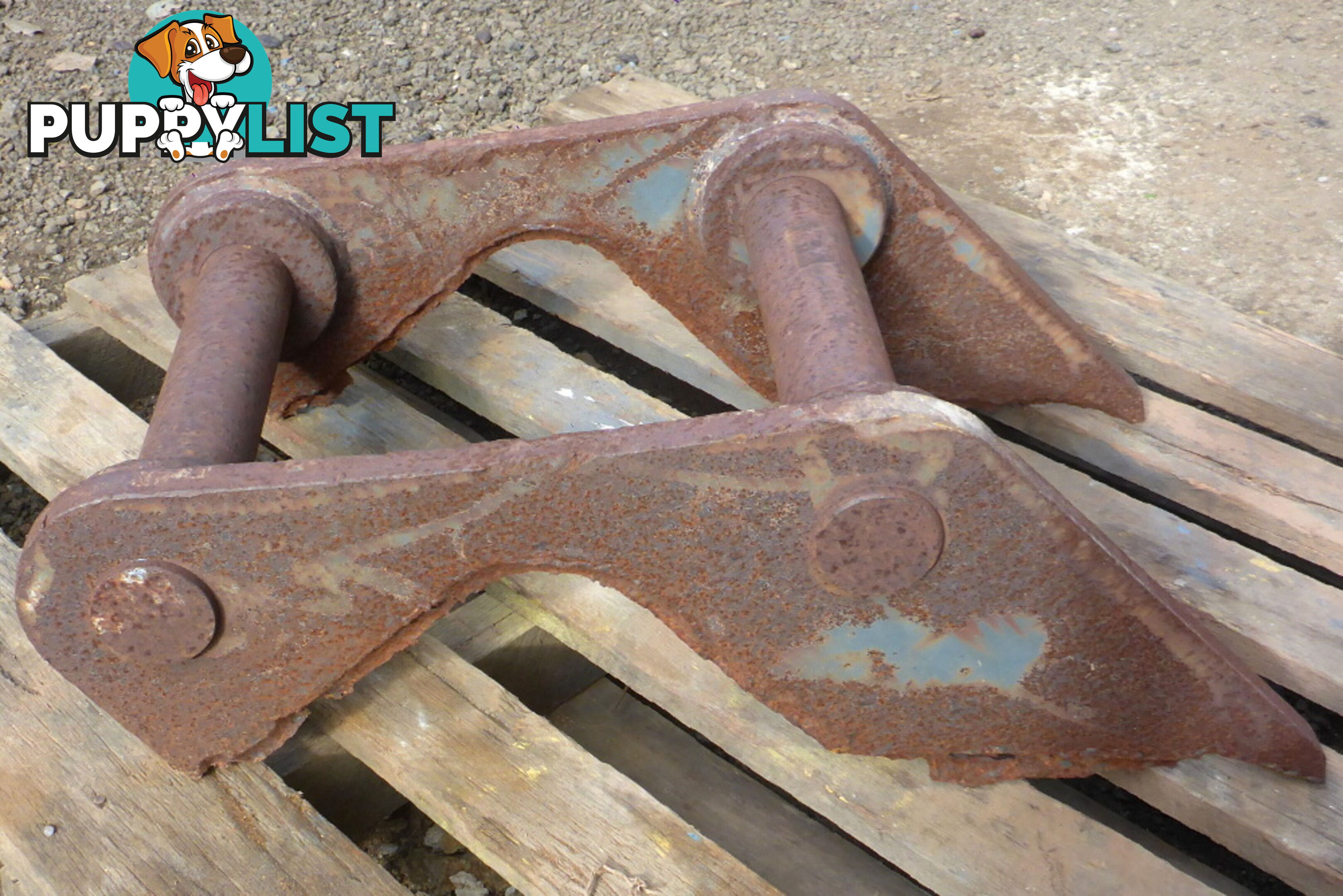

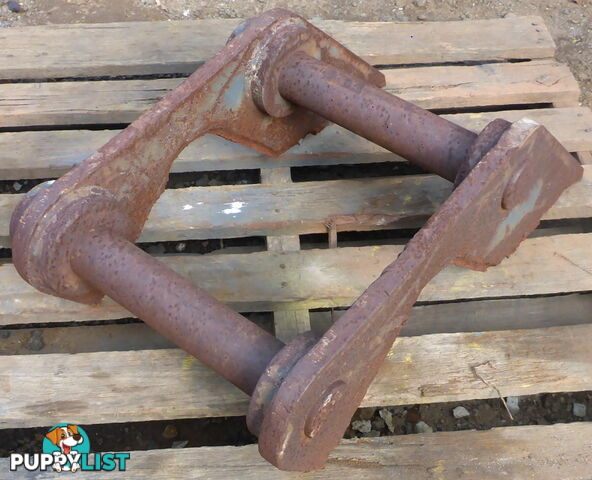

70mm pin Excavator / Backhoe Headstock to suit 12-21 ton machines. There is some light surface rust and a few small dings but is otherwise in good condition, was cut off a bucket to fit a different sized headstock.

Designed for Hyundai R160LC-3/R170W/R180LC-3, Kobelco ED180/SK160LC/SK170-6E, Komatsu PC150/PC150-5/PC150-6/PC160/PC160-6/PC160LC-7/PC180, New Holland EH160LC etc. but will fit other machines (see below list of machines we have found so far).

Can be used for a mounting headstock for a Rock Breaker Hammer or Auger, or mount as a regular headstock for buckets and other attachments etc.

Headstock setup:
70mm Pin Diameter, 400mm Pin Center to Pin Center (CtoC), 312mm Between the inside Ear Bosses (which can be shaved back up to 372mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

The thickness of the Ear Plates is 25mm.

Shipping dimensions: 790mm Long, 475mm Wide, 278mm High. Weight: 84kg.

Should fit: Hyundai R160LC-3, Hyundai R170W, Hyundai R180LC-3, Kobelco ED180, Kobelco SK160LC, Kobelco SK170-6E, Komatsu PC150, Komatsu PC150-5, Komatsu PC150-6, Komatsu PC160, Komatsu PC160-6, Komatsu PC160LC-7, Komatsu PC180, New Holland EH160LC.

Maybe fit: Doosan DX170W-3, Fuchs 331, Kobelco ED190, Liebherr 902 LITRONIC, Liebherr R904 LITRONIC, Samsung MX175W, Samsung SE130 & 150, Samsung SE130-1, Samsung SE130-2, Samsung SE170, Samsung SE170W, Volvo EC150, Volvo EC160, Volvo EC160B, Volvo EC160C, Volvo EC180C, Volvo EW160B, Volvo EW160C, Volvo EW170, Volvo EW180, Volvo EW180B, Volvo EW180C, Volvo EW210C, Volvo MX175WS, Volvo SE170W-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.

(MIC_1248AG230629089B)
