New 3-6 ton (40mm pin) 750mm AHE Excavator GP Digging Bucket

DESCRIPTION

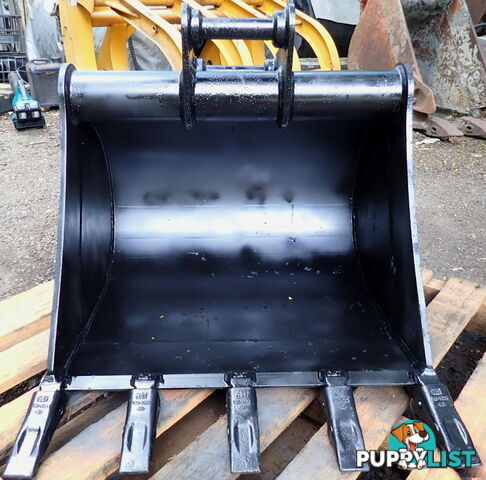

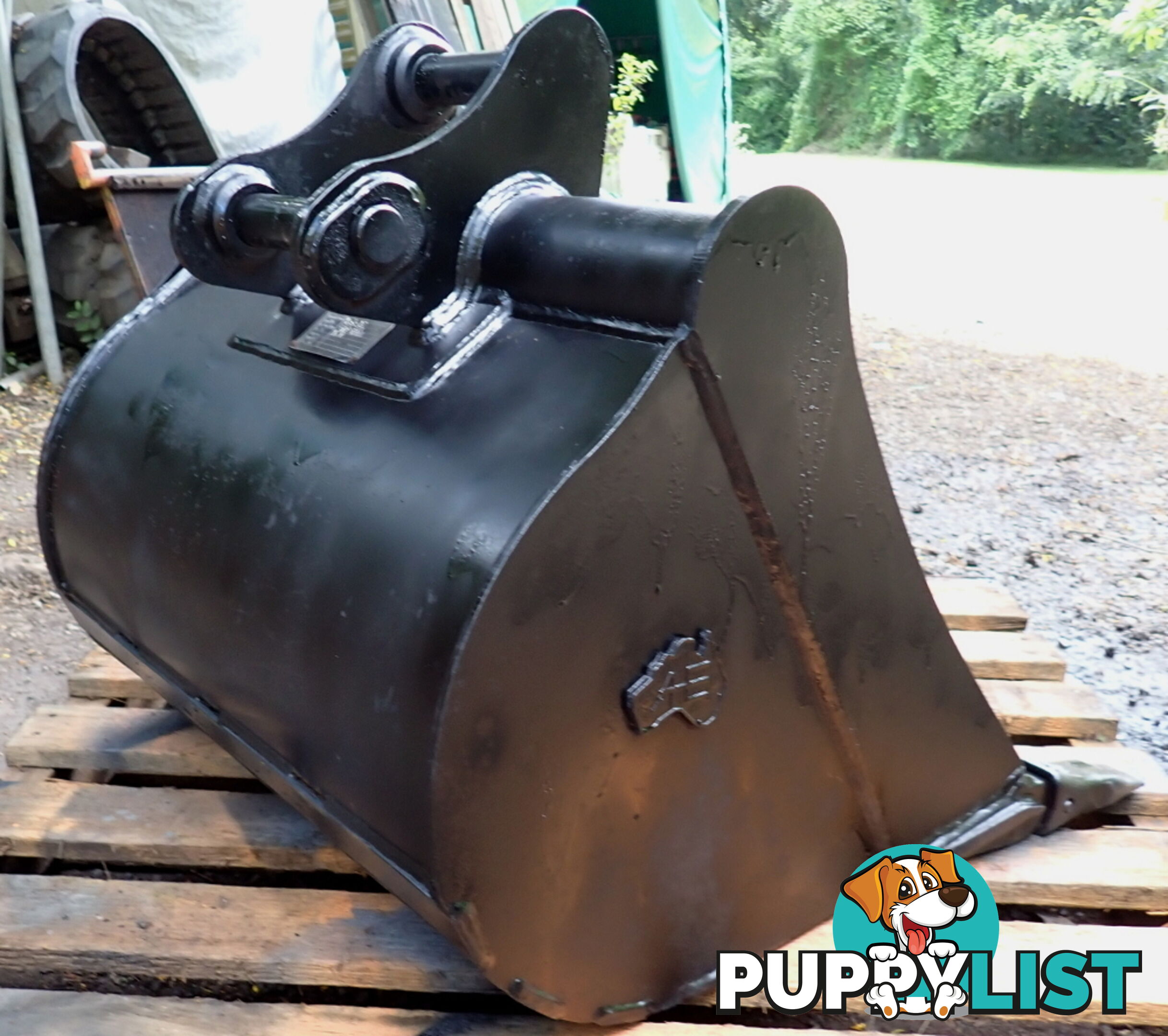

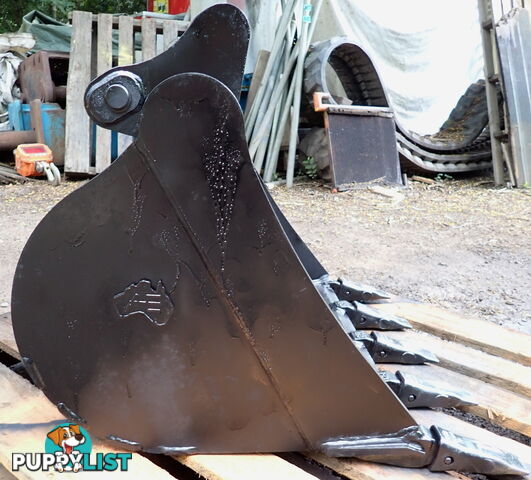

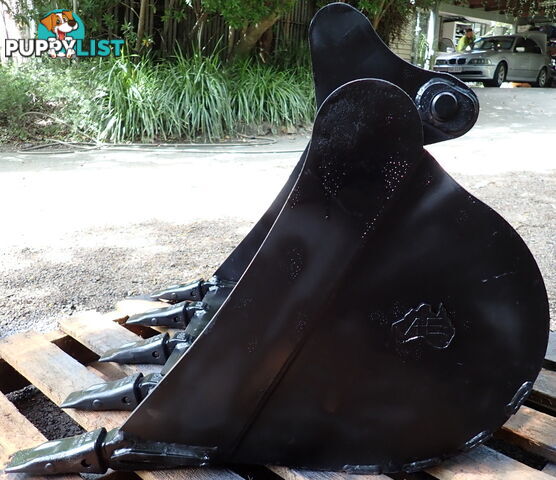

New 750mm AHE Excavator Digging & Trenching GP Bucket suit 3-6 Ton machine.

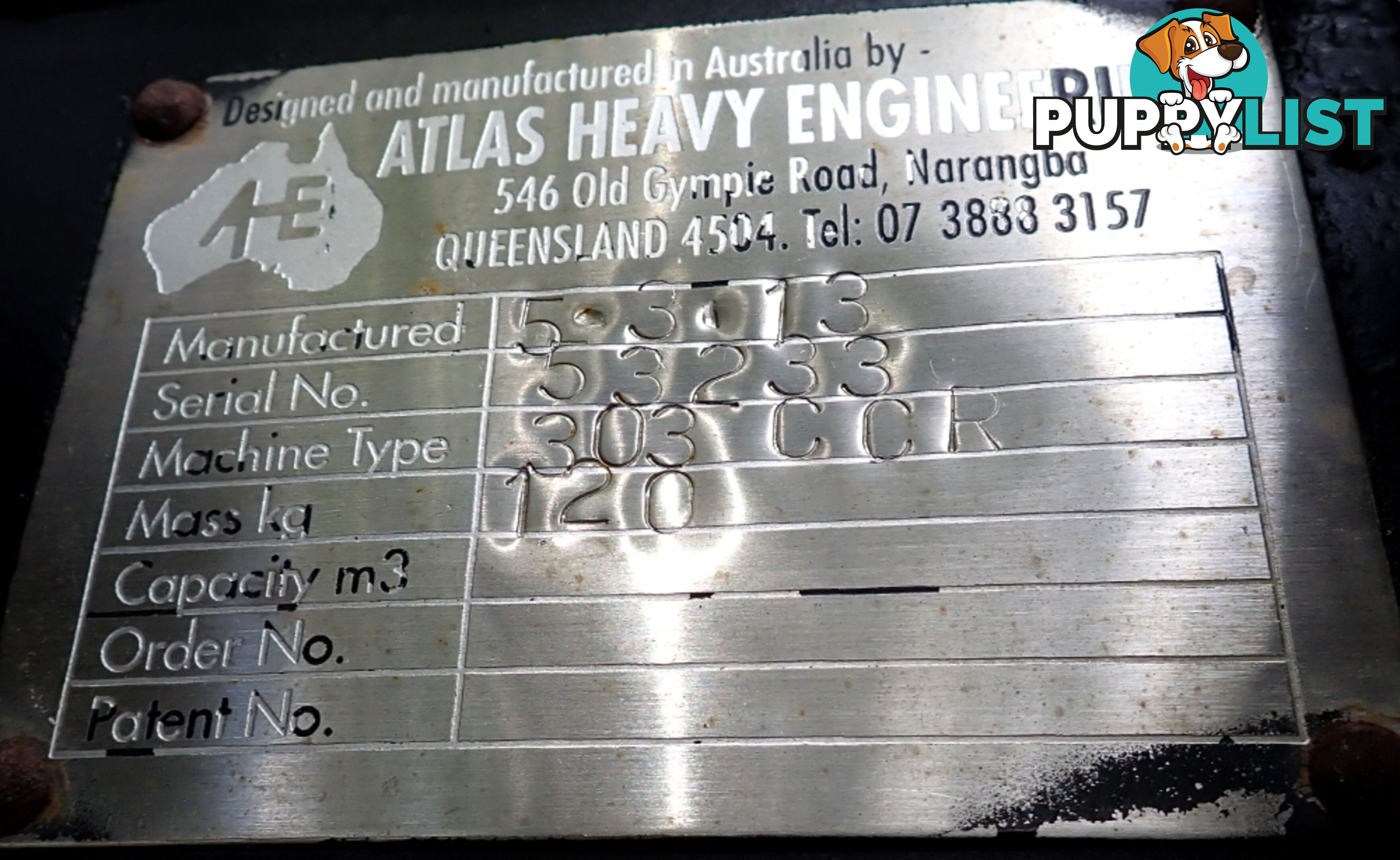

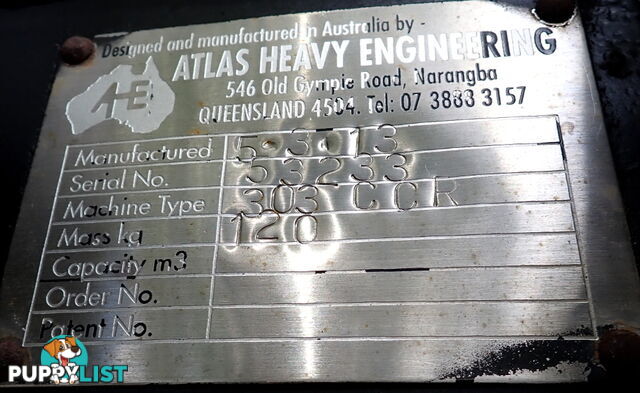

This bucket has come from surplus stock from Atlas Heavy Engineering (AHE): .
It is New & Unused but there was some paint scuffs & chips from warehouse storage & handling, we have given it a quick paint just to preserve it further.

Designed for Case CX 36B, Caterpillar 303.5/303CR-ISJ/303CR-OSJ, Daewoo Solar 035, Kobelco SK 30/SK 30SR-3/SK 35SR-3, New Holland EC 35/EH 30.B/EH 35.B, SMC MX35 etc. but will fit other machines (see below list of machines we have found so far).

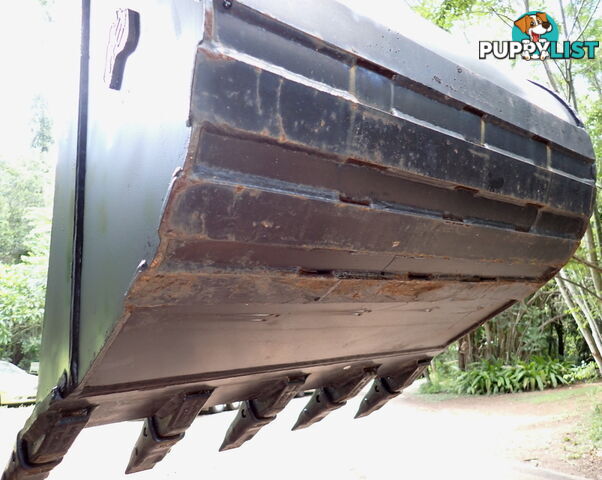

There are extra Wear Strips welded underneath for durability (see pic #10).

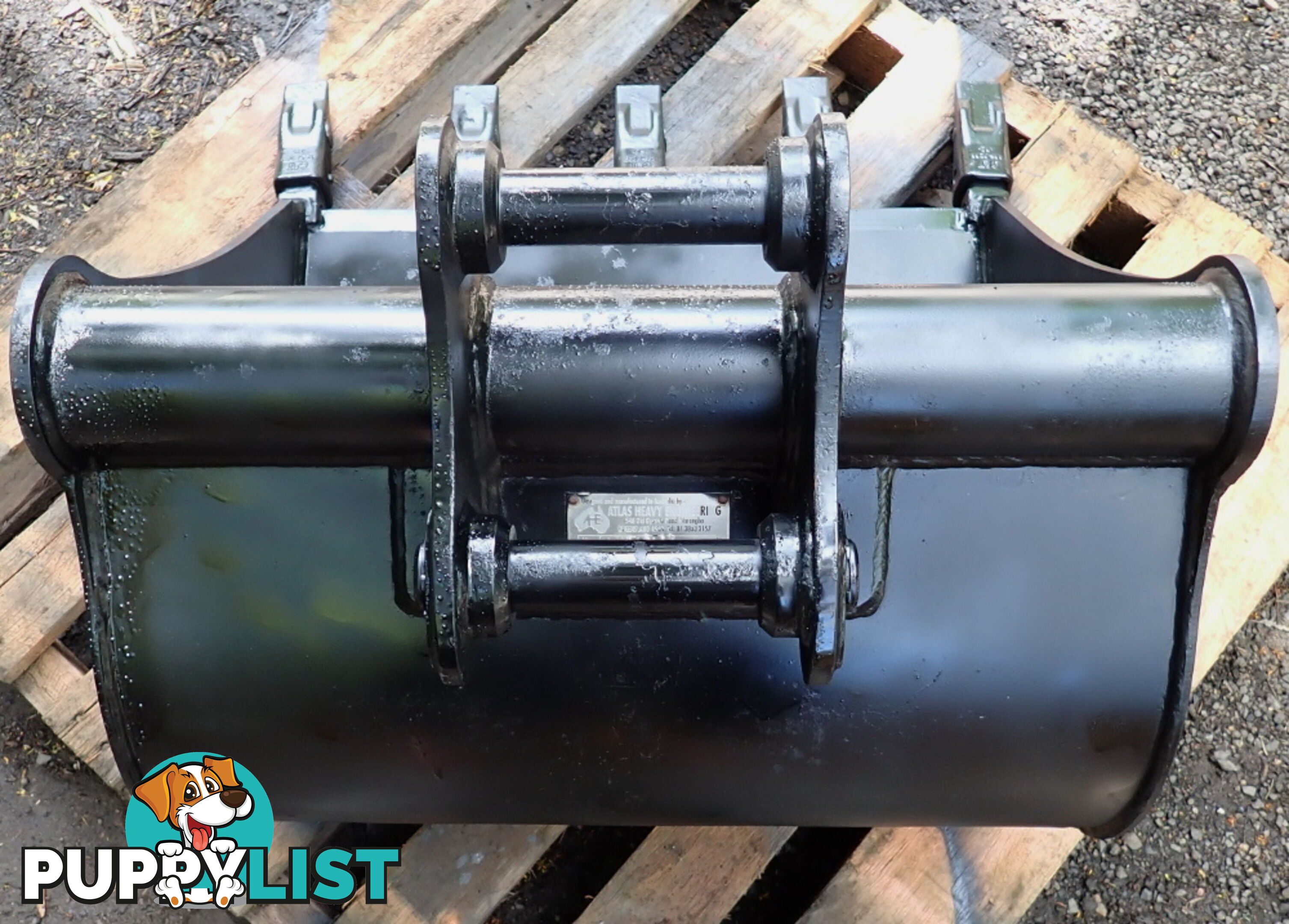

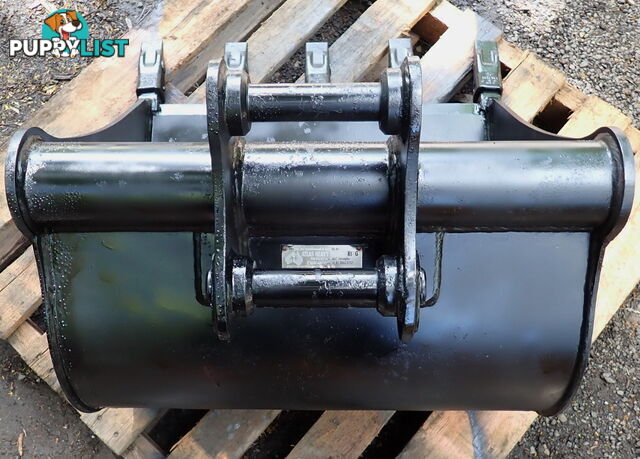

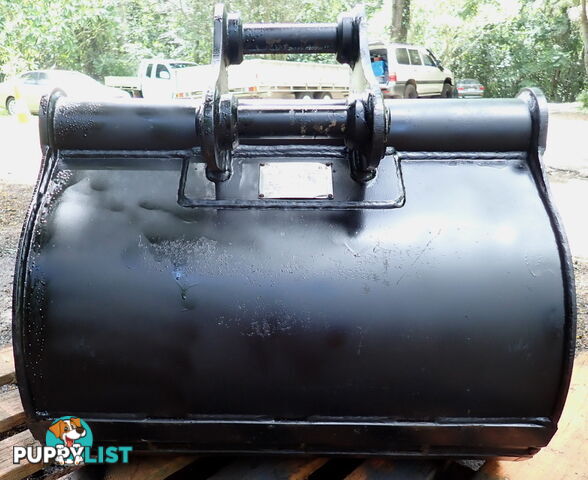

Current Headstock configuration:
40mm Pin Diameter, 200mm Pin Center to Pin Center (CtoC), 135mm Between the inside Ear Bosses (which can be shaved back up to 187mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case CX 36B, Caterpillar 303.5, Caterpillar 303CR-ISJ, Caterpillar 303CR-OSJ, Daewoo Solar 035, Kobelco SK 30SR-3, Kobelco SK 35SR-3, New Holland EC 35, New Holland EH 30.B, New Holland EH 35.B, SMC MX35.

Maybe fit: Airman AX30, Airman AX32U, Airman AX36U, Case CX 31, Case CX 35, Case CX 36, Hitachi EX 30, Hitachi EX 30U, Hitachi EX 33U, Hitachi EX 35, Hitachi EX 40UR, Hitachi Zaxis 30U, IHI 35J, IHI (Cheiftain) 35G/H/J, IHI 35NX, Kobelco SK 30SR-2, Kobelco SK 32, Kobelco SK 35, Kobelco SK 35SR, Kobelco SK 35SR-2, Kubota KX 91-3, Kubota KX101-3, Kubota KX121-3, Kubota U35, Kubota U35-3, New Holland EH 35, New Holland LE 35, Pel Job EB 36, Pel Job EB 406, Sumitomo SH 35, Takeuchi TB 35, Takeuchi TB 36, Takecuhi TB 135, Wacker Neuson 3003, Wacker Neuson 3503, Wacker Neuson 3703, Wacker Neuson 28Z3, Wacker Neuson 38z3, Yanmar B 25, Yanmar B 27, Yanmar B 30V, Yanmar B 37, Yanmar VIO27-2, Yanmar VIO30, Yanmar VIO30-1, Yanmar VIO35-2, Yanmar VIO40 Import to UK, Yanmar YB301, Yanmar YB351, Yuchai YC 35SR and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Shipping Dimensions: 763mm Wide (at the Teeth), 780mm Deep, 680mm High. Weight: 116kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.

(MIC#_1475AL24012374)
