New 1.5-4 ton (35mm or 38mm pin) OZ 350mm Excavator GP Trenching Bucket

DESCRIPTION

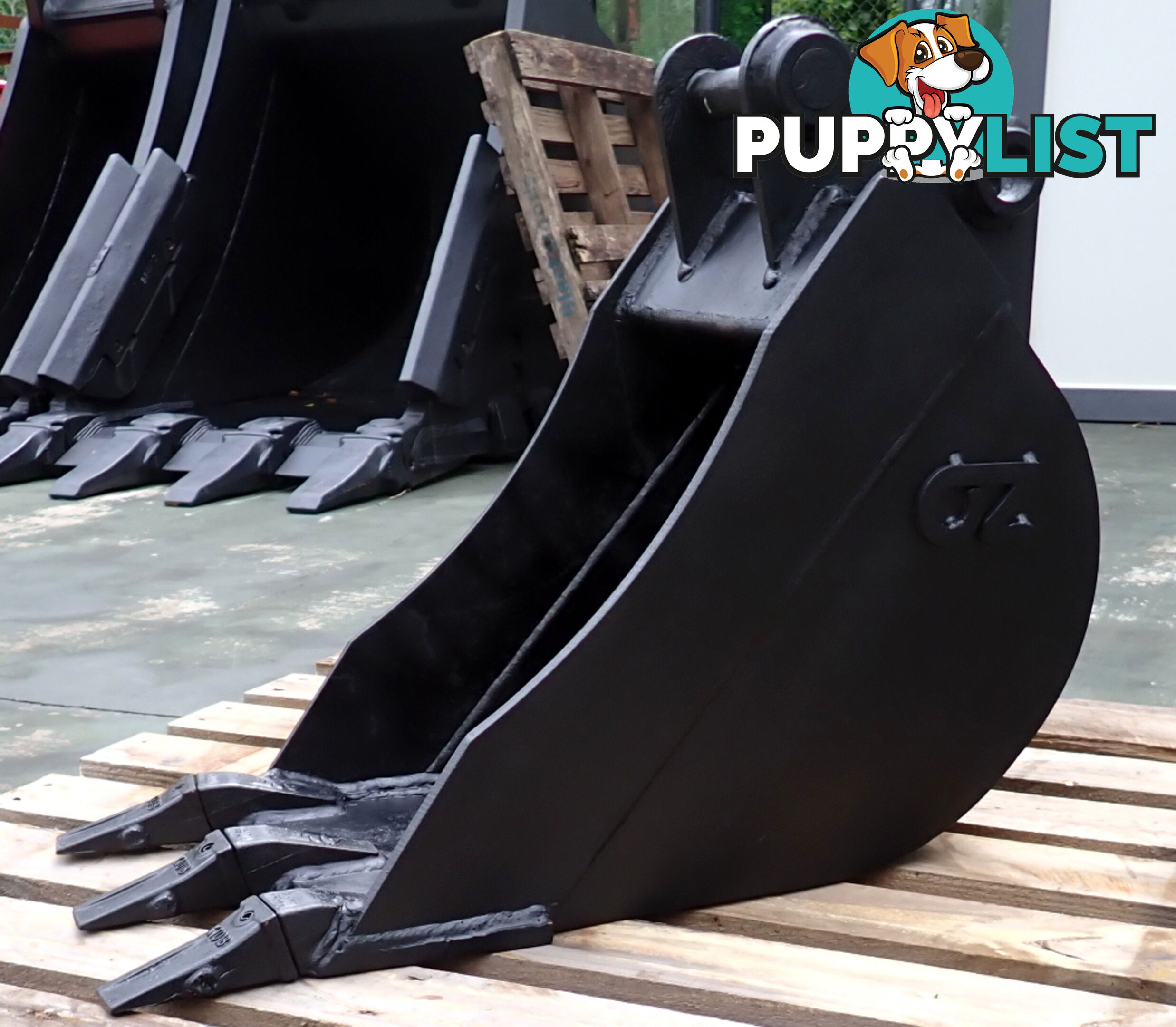

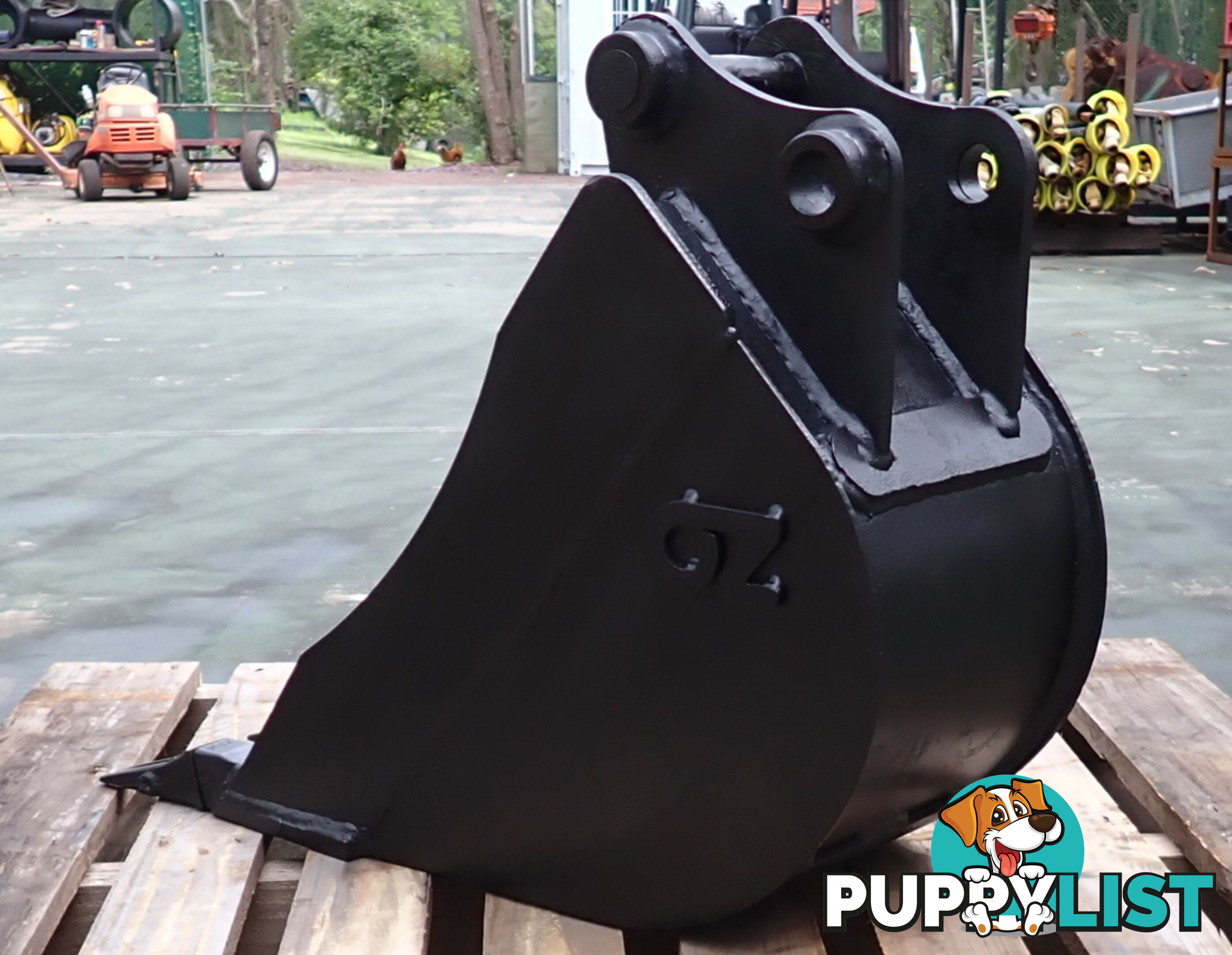

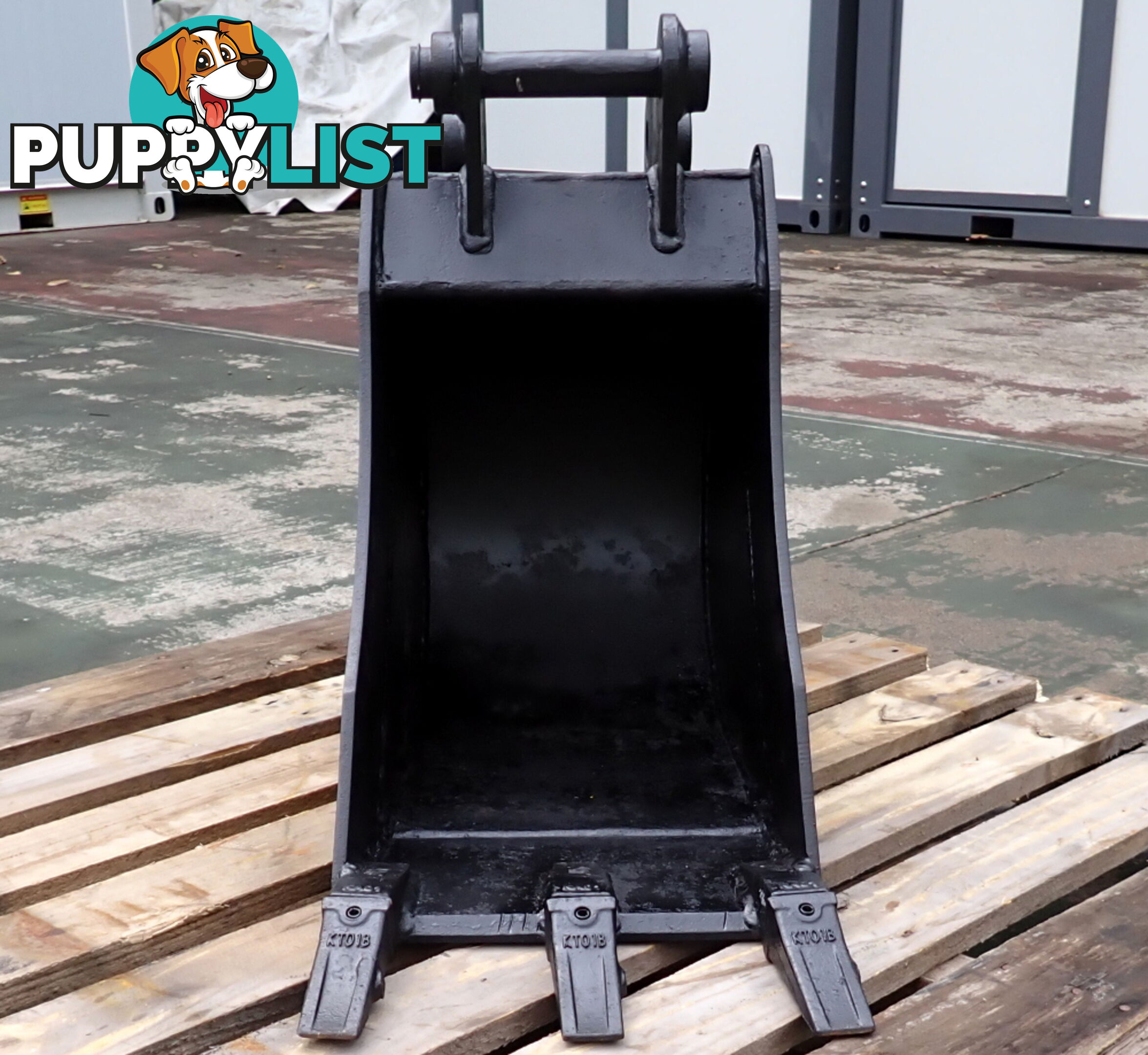

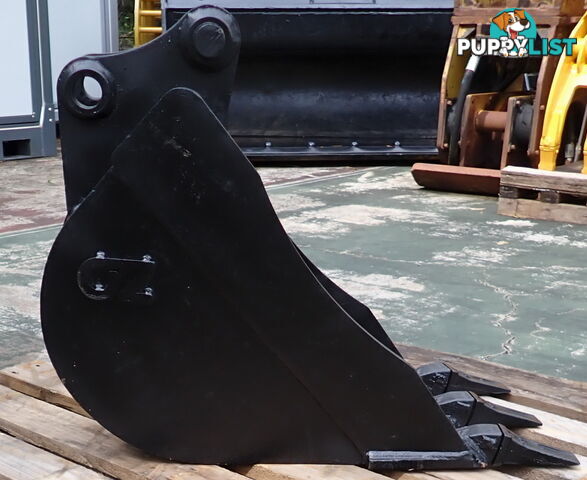

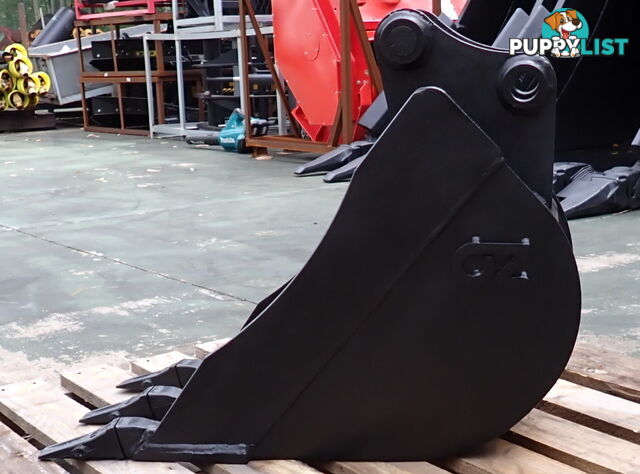

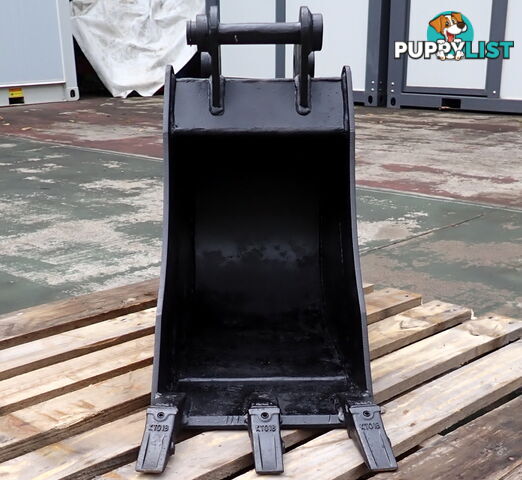

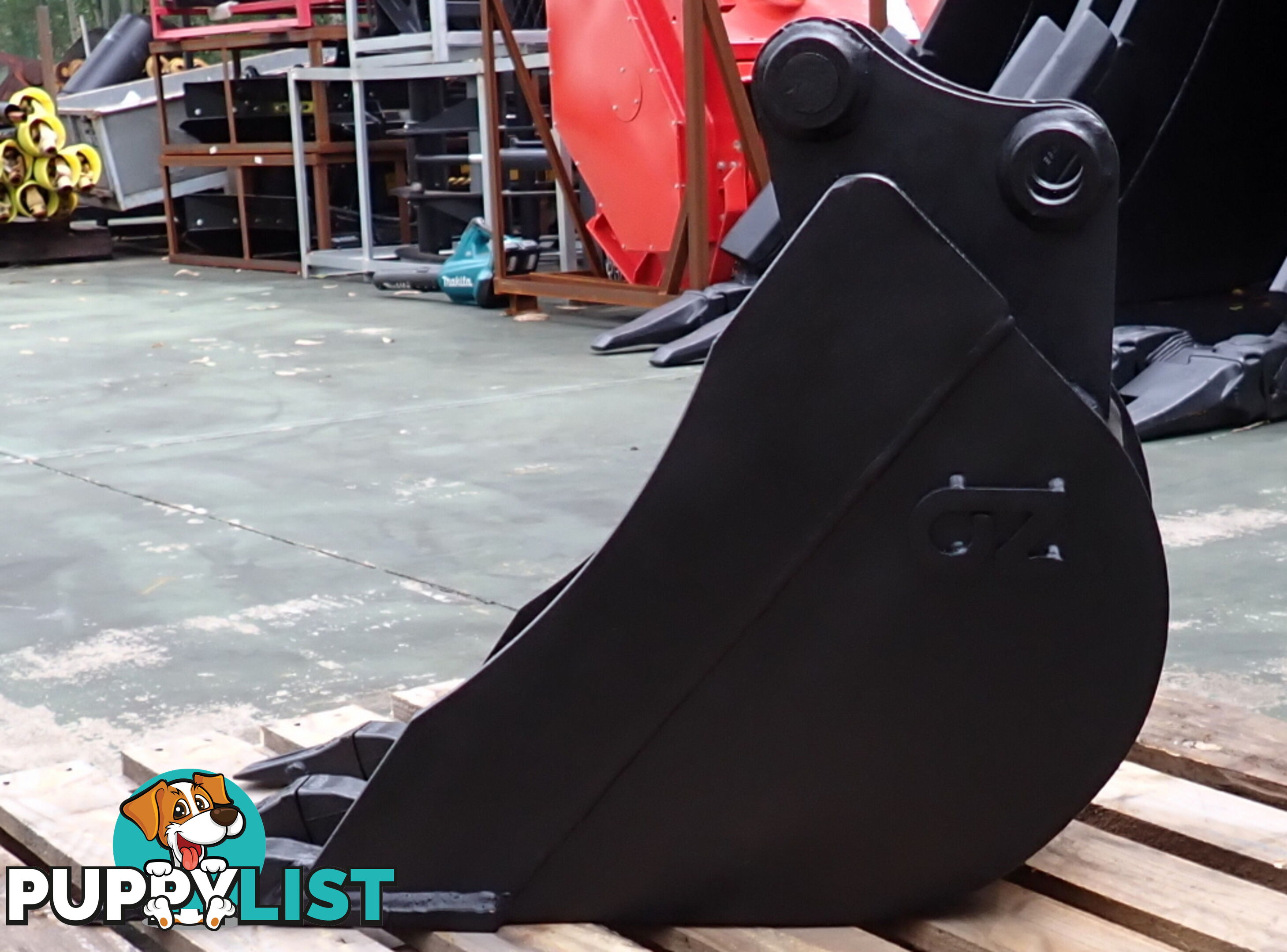

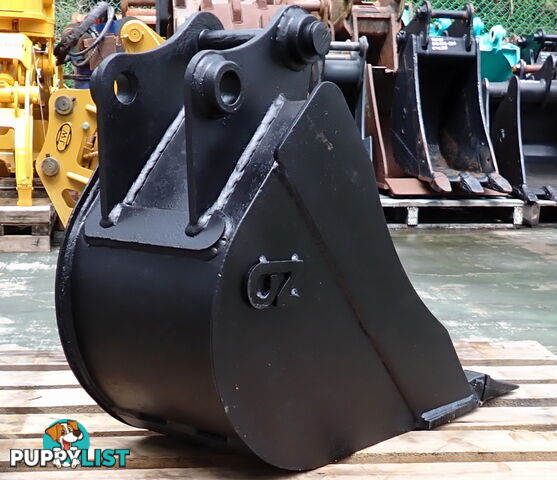

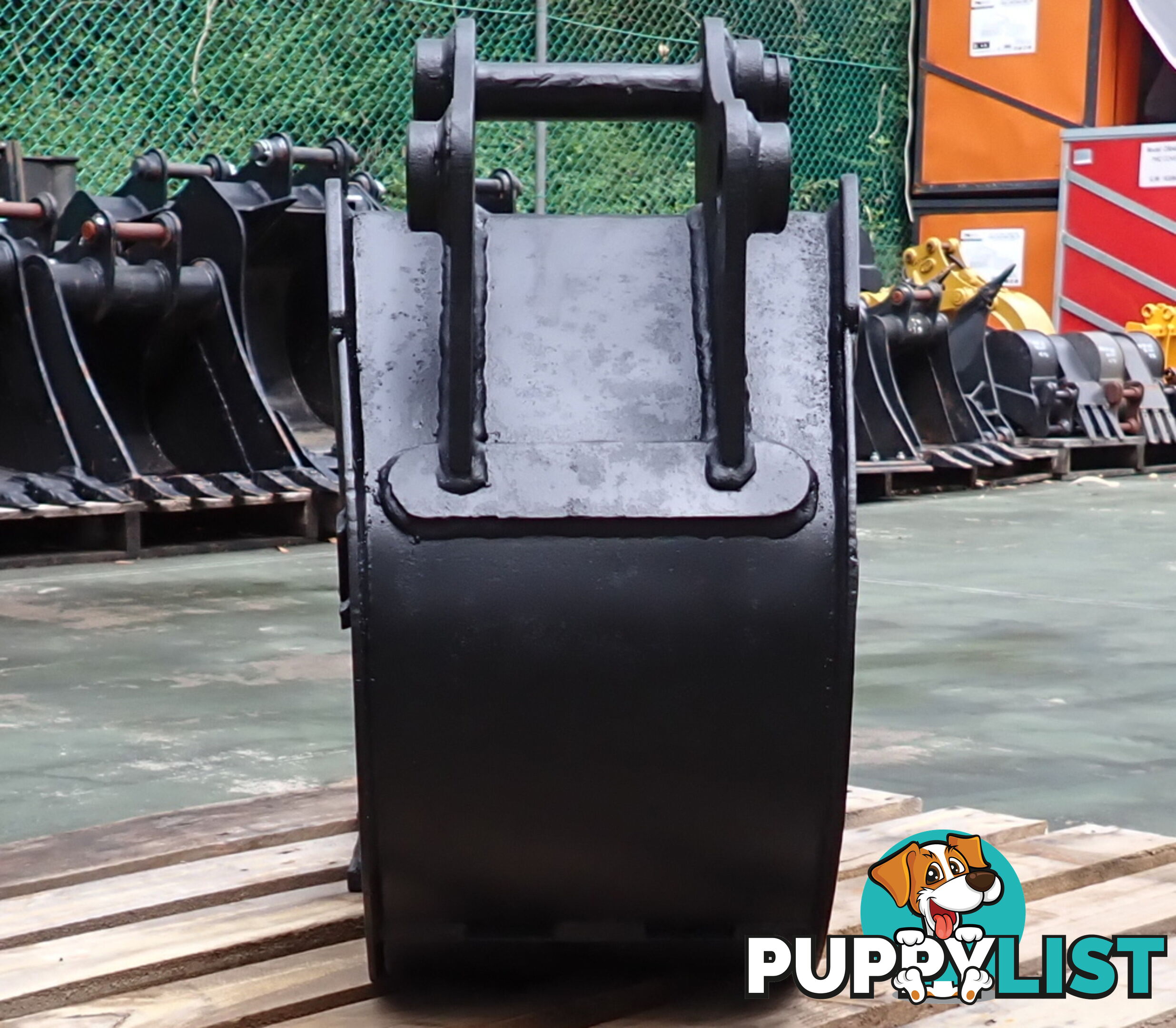

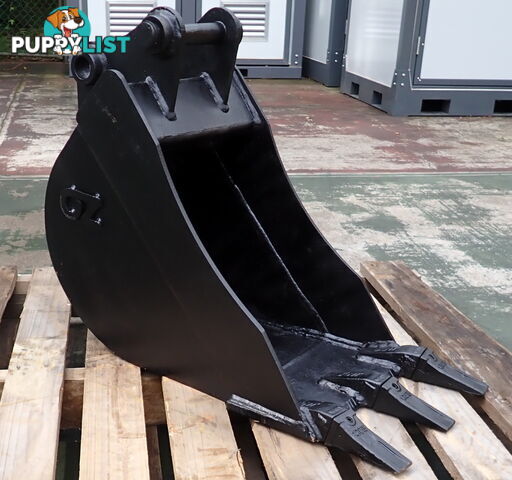

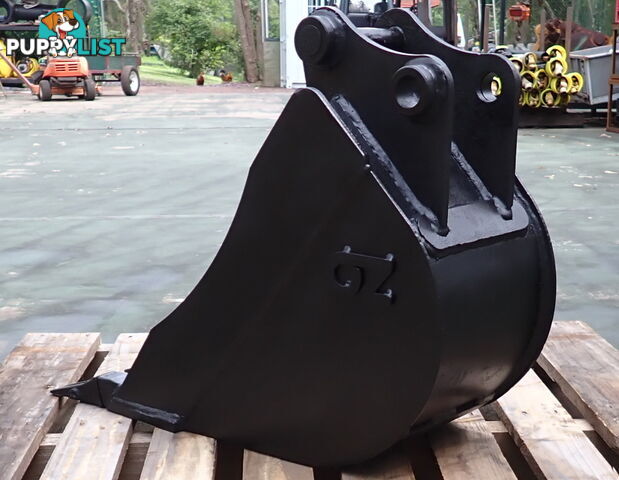

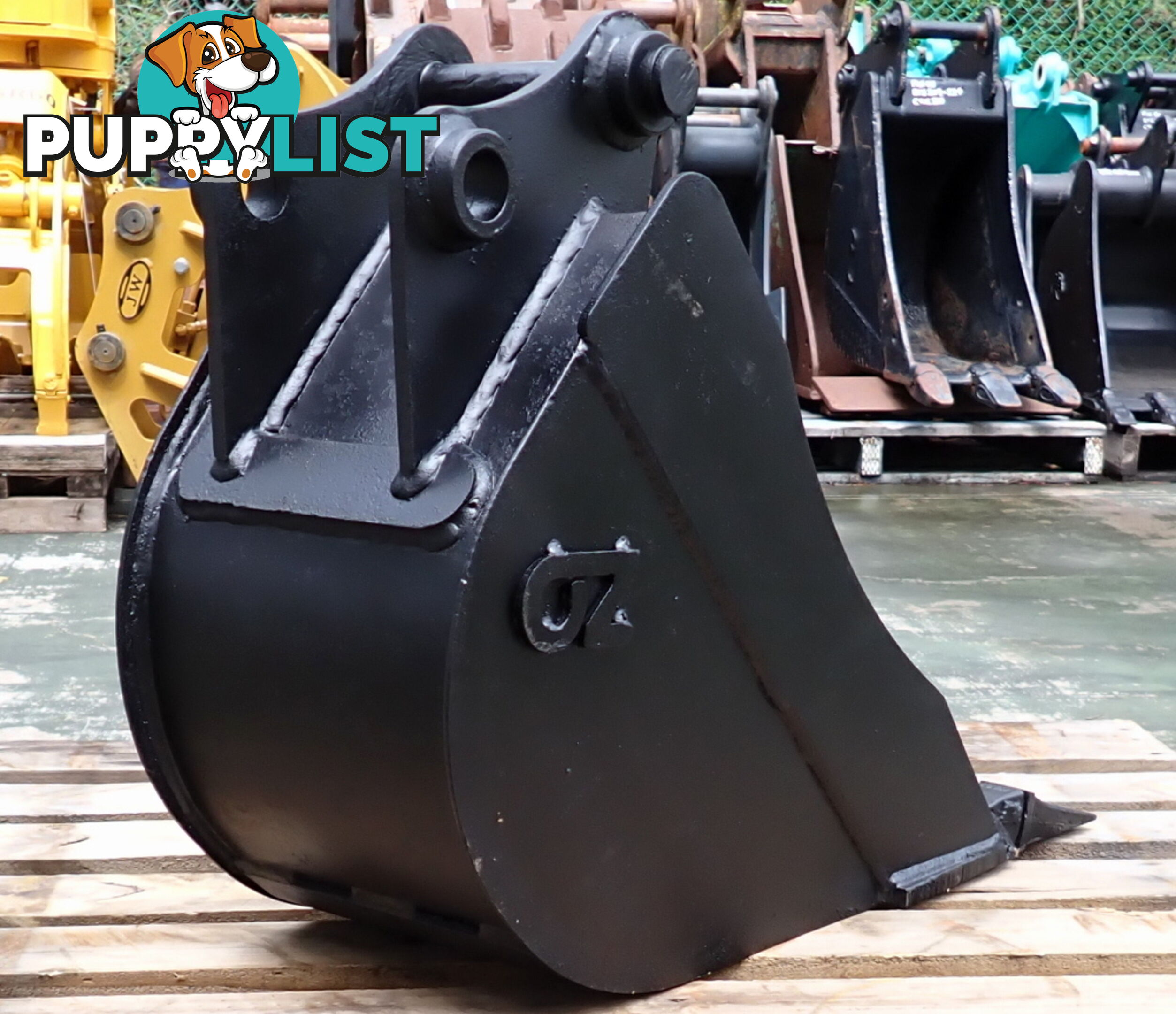

New 350mm OZ Buckets Excavator Digging & Trenching GP Bucket suit 1.5-4 Ton machine.

This is an unused, well engineered, quality bucket Made in Australia by OZ Buckets:

This original purchaser of this bucket ground down the middle of the 38mm front pin down to 35mm (probably with a grinder, rough but effective), but his Pin Centers were also not suitable and later bought a 35mm pin bucket with the correct pin centers. You can do the same for the missing back pin (have a 38mm pin lathed down to 35mm in the middle), or just add two 38mm pins if your machine uses those.

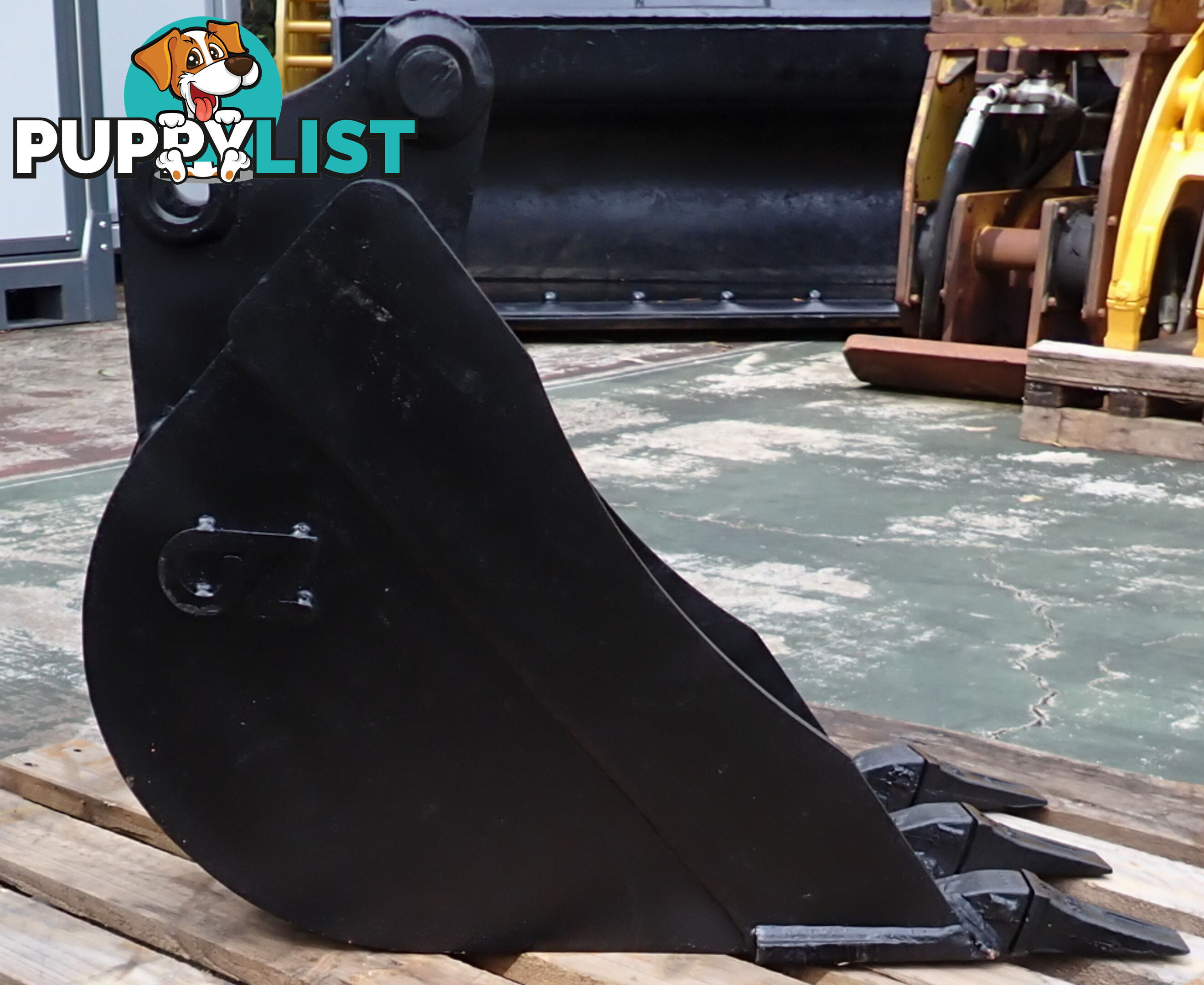

It has Tapered sides so mud slides out easily.

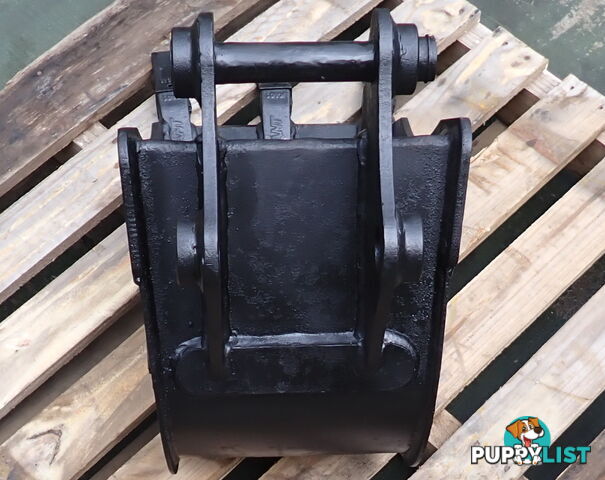

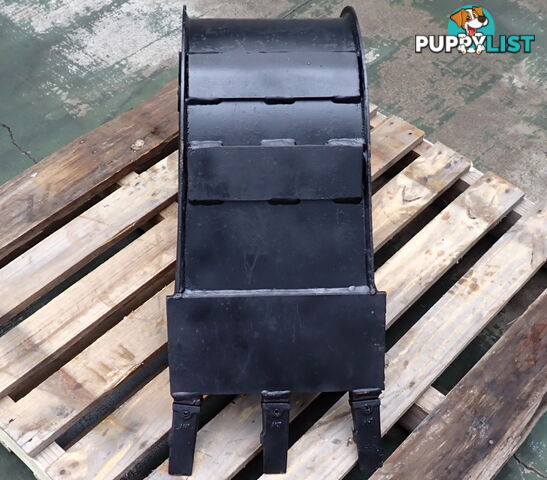

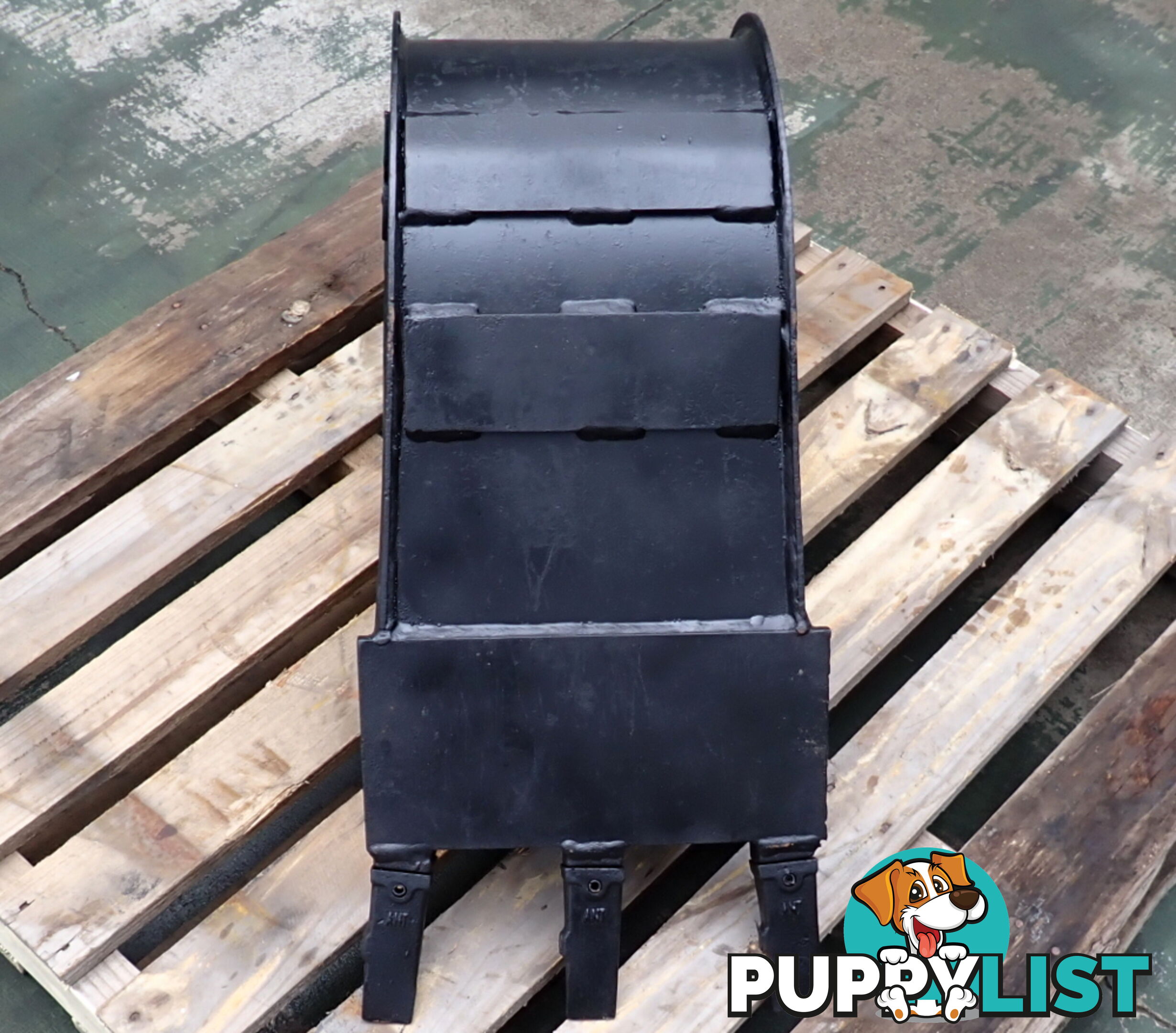

There are also extra Wear Strips welded underneath for durability (see pic #10).

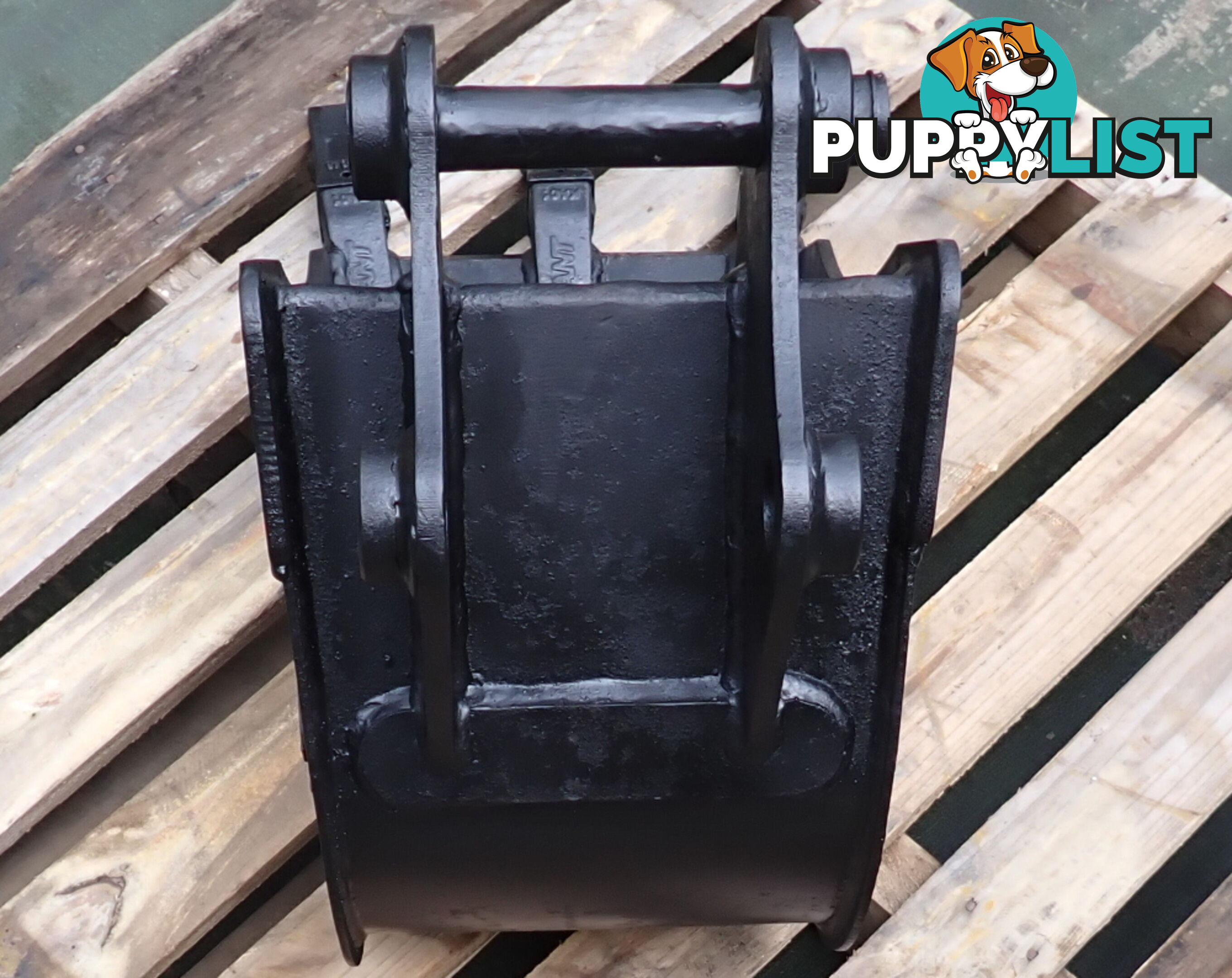

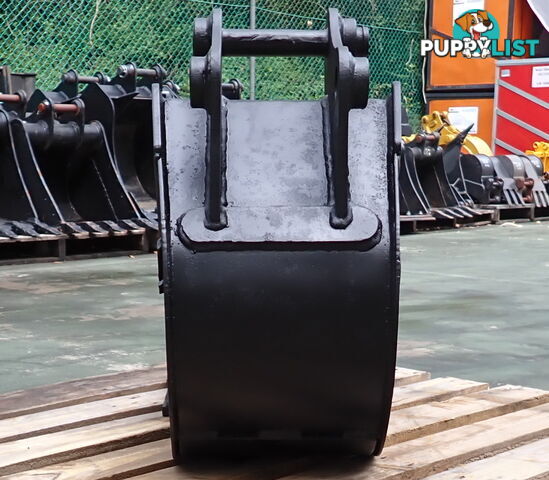

***** Current Headstock configuration:
38mm Pin Diameter (Holes) with Front Pin ground down to 35mm.
170mm Pin Center to Pin Center (CtoC).
140mm Between the Ear Plates.

*** As a 35mm Pin Configuration (lathe middle of another 38mm pin down to 35mm)
Should fit: Bobcat X325 / X328 / X331, Caterpillar 302.5, Libra 229S / 2345, New Holland EC 25, Pel Job EB 28-4 / EB306, Scat Trak 535, Volvo EC20, Yanmar B 19 / B 22 / B 201.
Maybe fit: Airman AX22 / AX29U, Case CX 23 / CX 25 / CX 28 / CX 30 / CX 31, Daewoo Solar 027 / 030, Hanix H26B-2 / H30B-2, Hitachi EX22 / EX25, IHI (Cheiftain) 25G/H/J / 28G/H/J / 30G/H/J, IHI 30NX, Kobelco SK 20 / SK 20SR-3 / SK 24 / SK 25 / SK 25SR / SK 25SR-2 / SK 27 / SK 27SR-2 / SK 27SR-3 / SK 30, Libra 225S, Nagano NS 25-3, New Holland EH 27.B, SMC MX30, Takeuchi TB 25 / TB 26 / TB 28FR / TB 125, Yanmar VIO20 / VIO20-1 / VIO20-2 / VIO20-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

*** As a 38mm Pin Configuration (fit 2x 38mm pins)
Should fit: JCB 802 1986 Model and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Shipping Dimensions: 370mm Wide, 766mm Deep, 615mm High. Weight: 64kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
