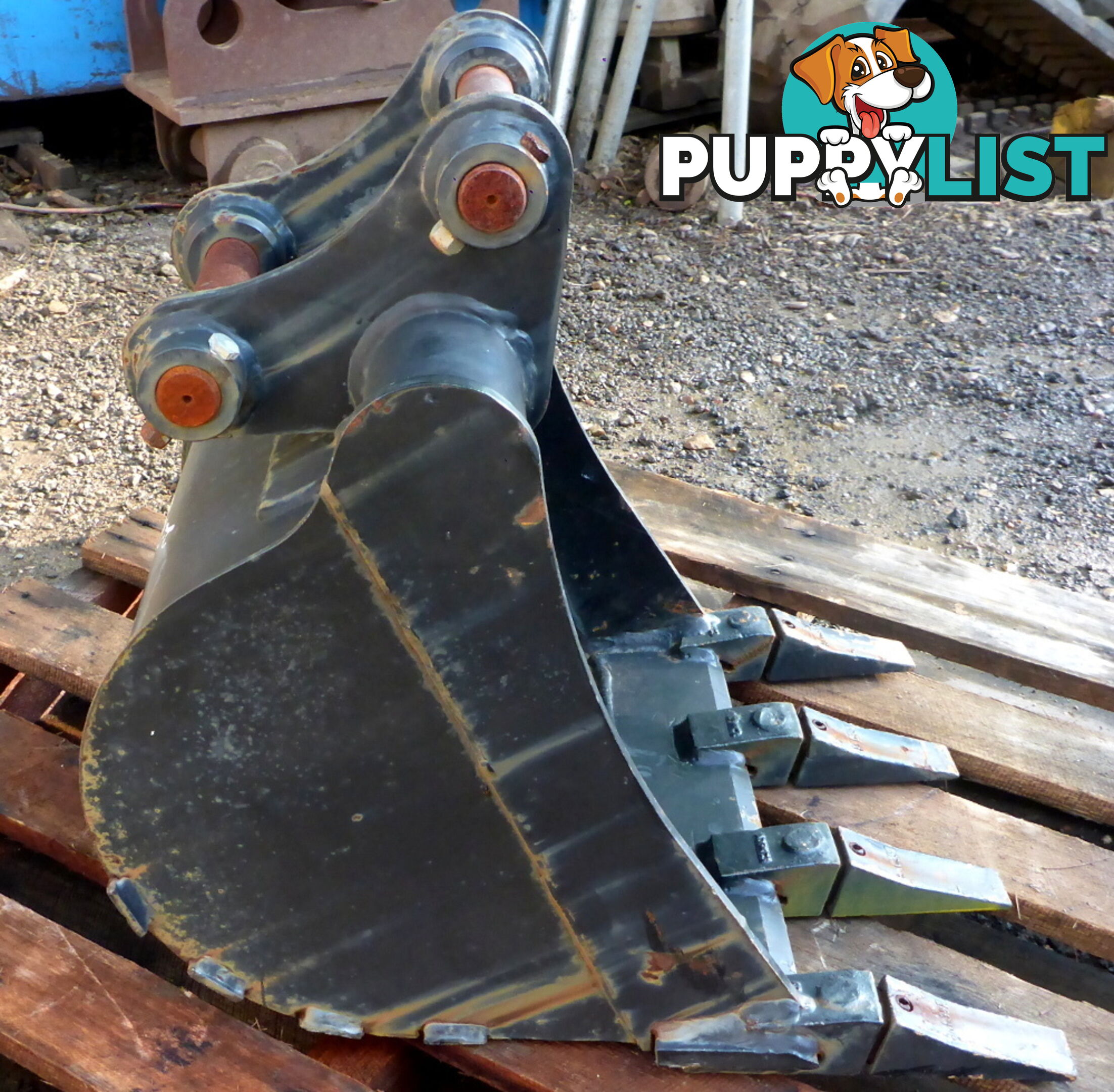

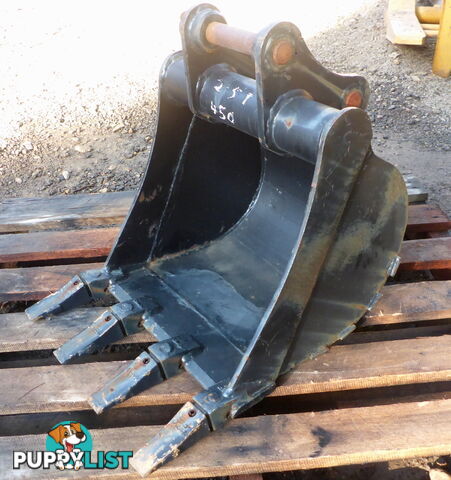

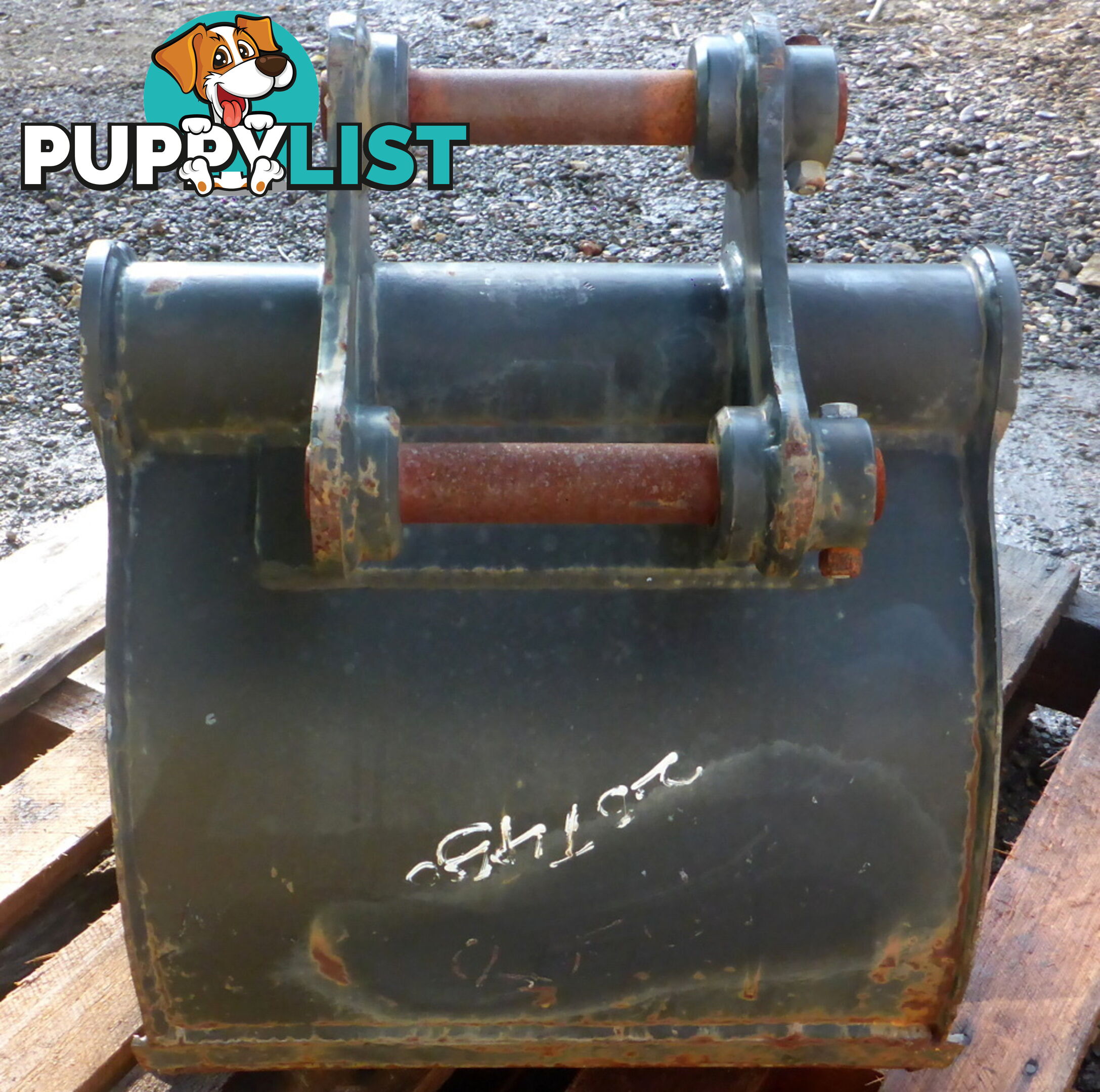

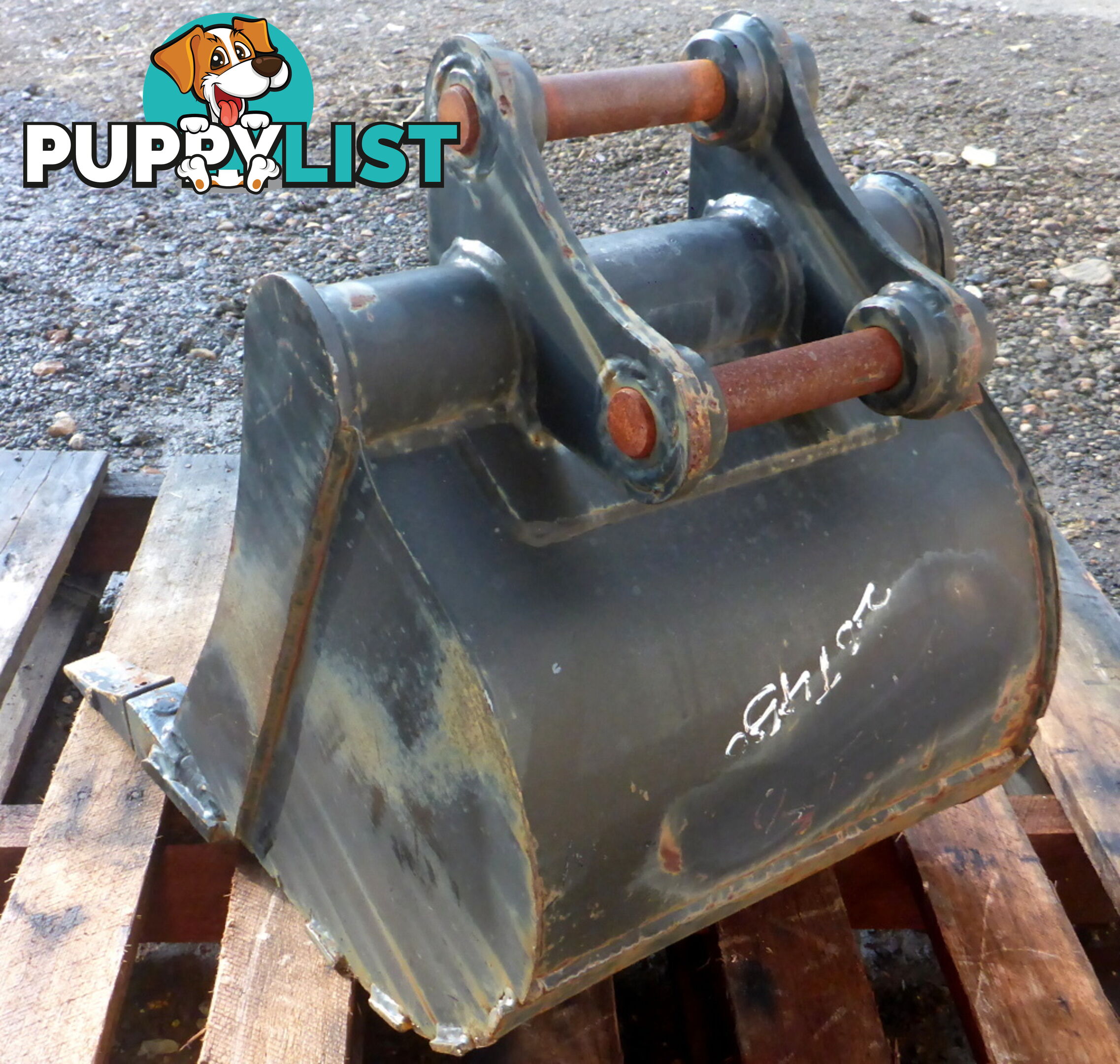

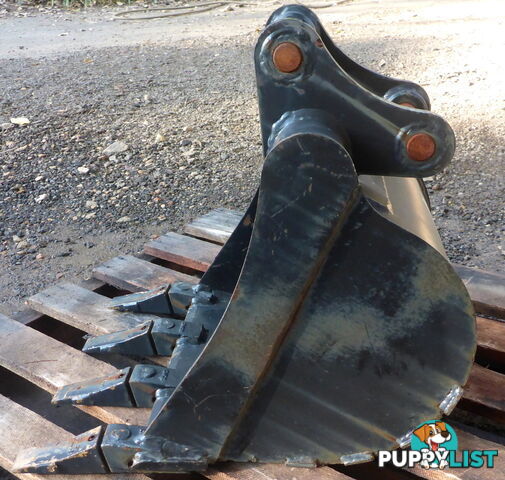

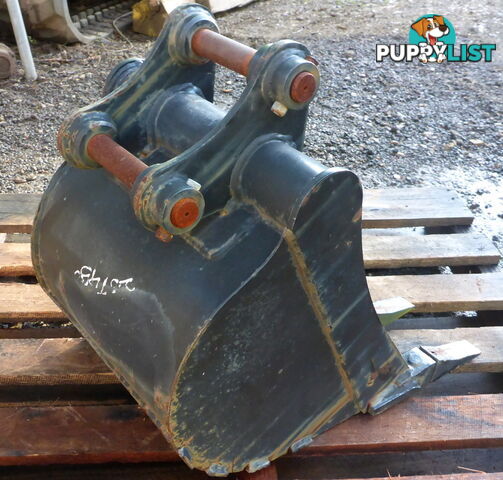

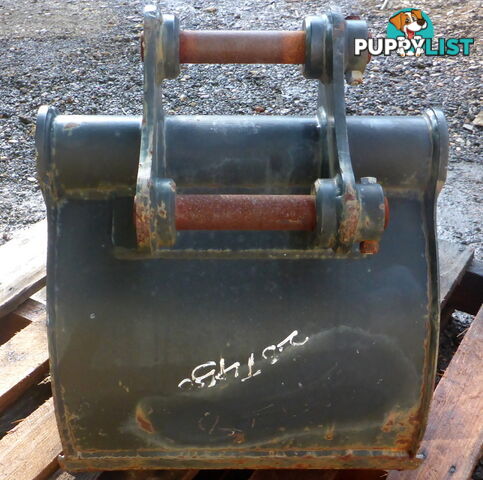

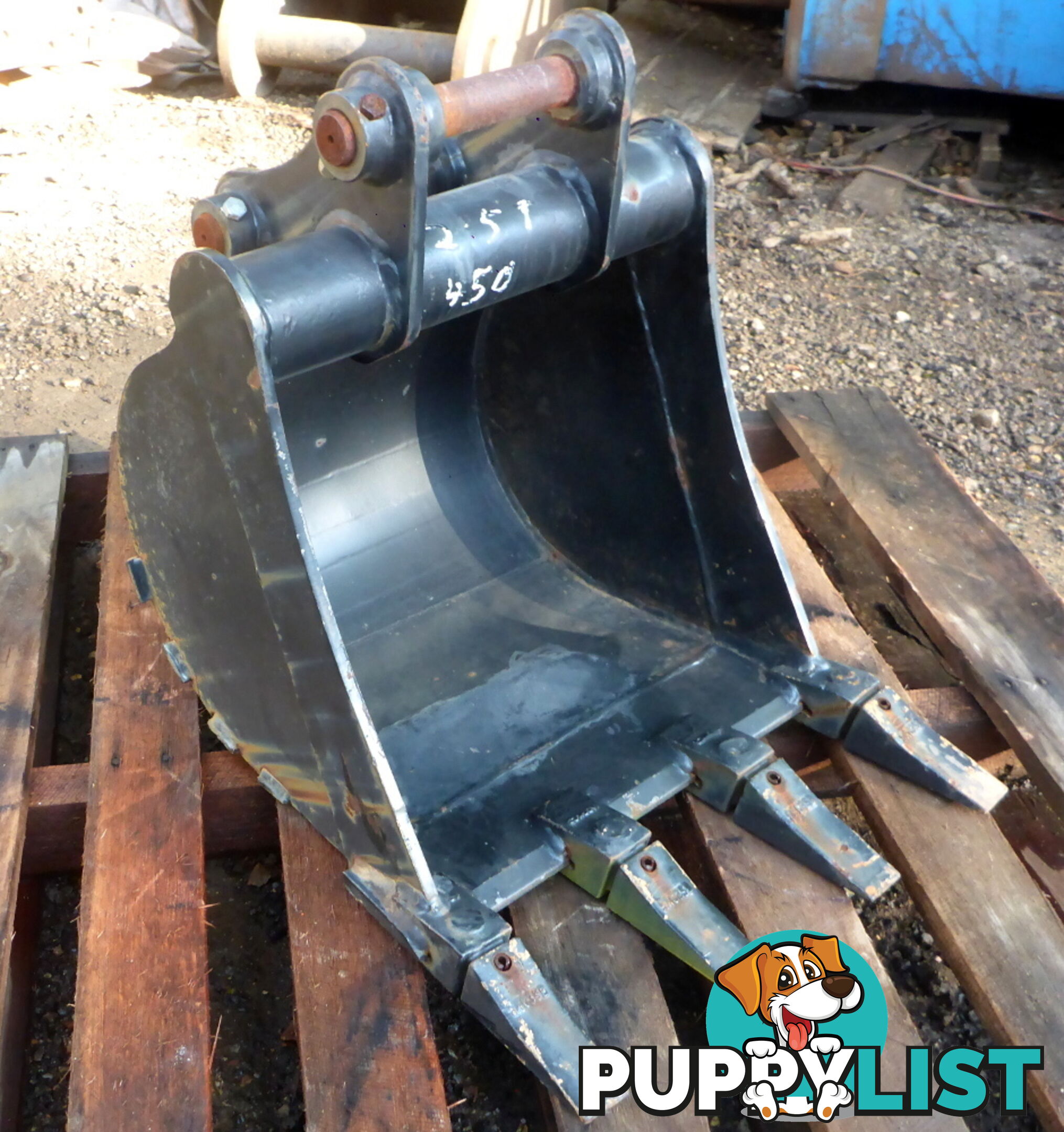

New 1.5-4 ton (35mm pin) 450mm AHE Excavator Digging GP Bucket

DESCRIPTION

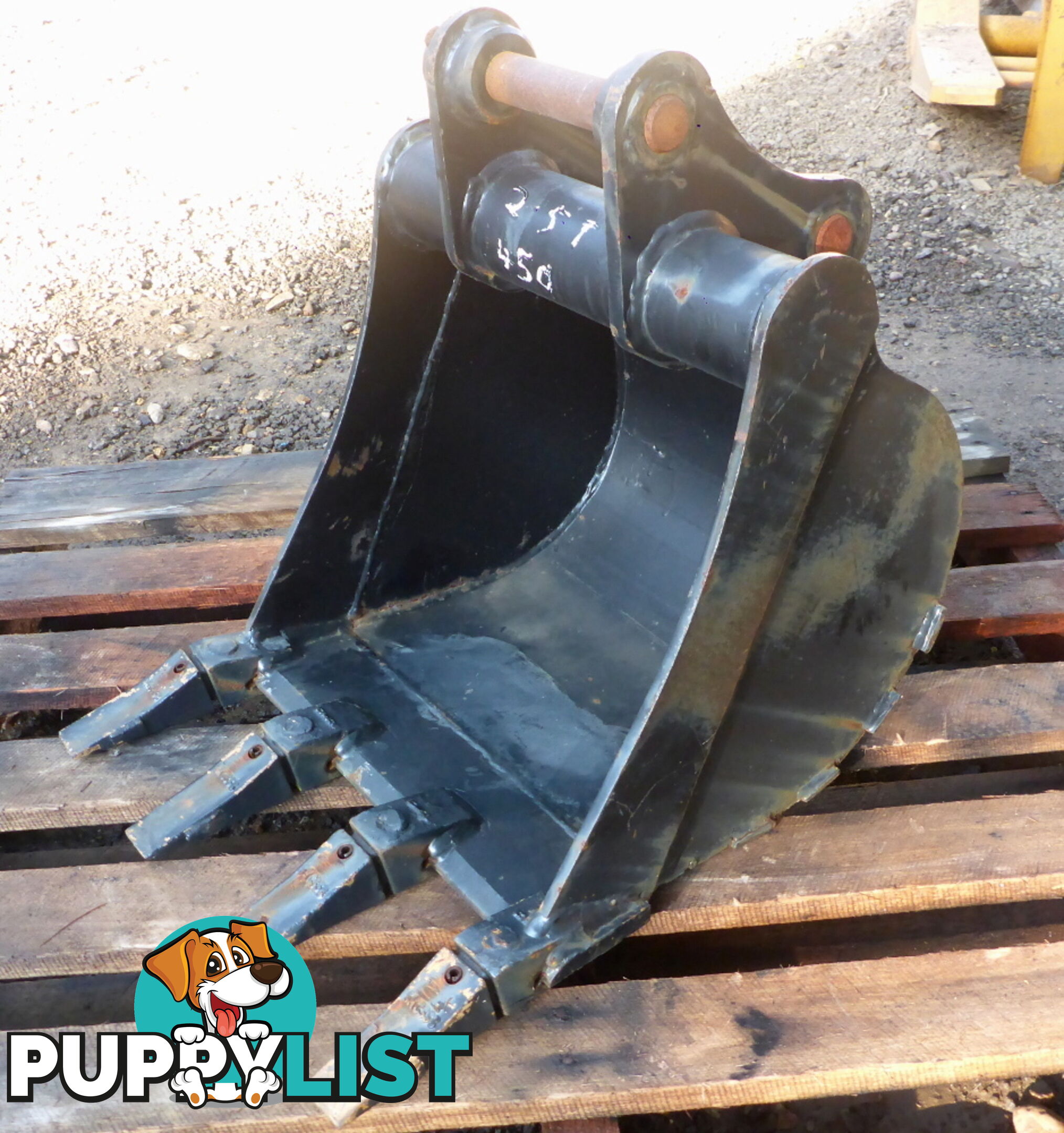

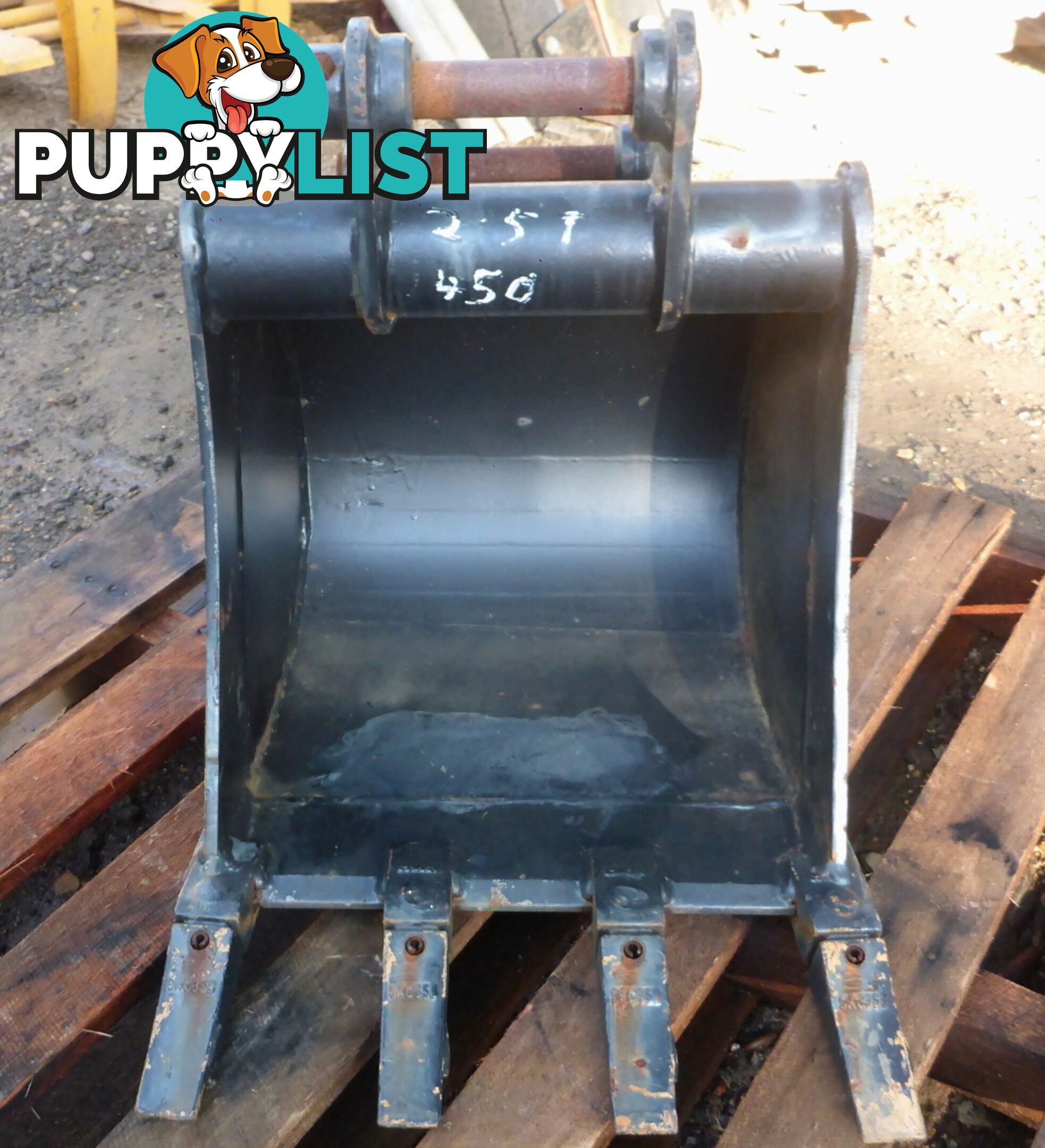

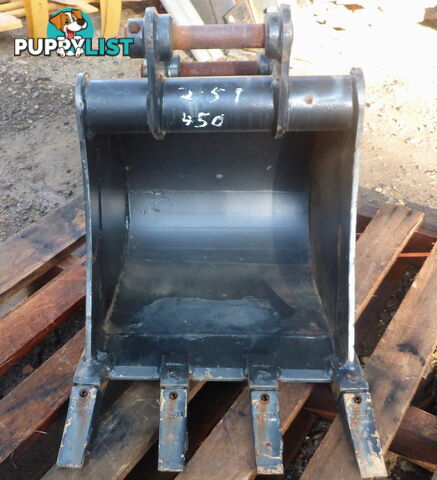

New 450mm AHE Excavator Digging & Trenching GP Bucket suit 1.5-4 Ton machine.

This bucket has come from surplus stock from Atlas Heavy Engineering (AHE): .
It is New & Unused but has some paint scuffs & chips from warehouse storage & handling.

Designed for Bobcat 331/430/E26, Komatsu PC 20-7/PC 25-1/PC 27R-8/PC 28UU-2/PC 30-7/PC 30R-8/PC 30MRX/PC 30MRX-1/PC 35R-8/PC 35R-8E/PC 38UU-2 etc. but will fit other machines (see below list of machines we have found so far).

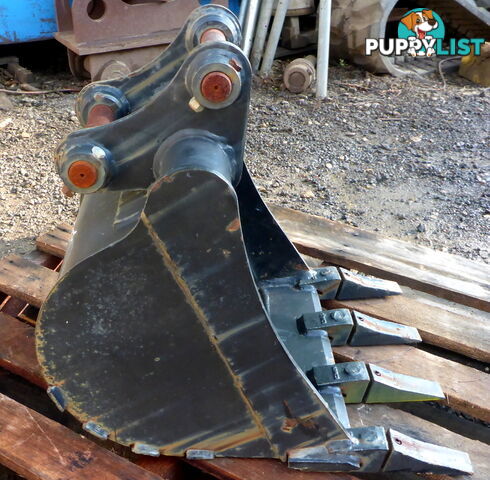

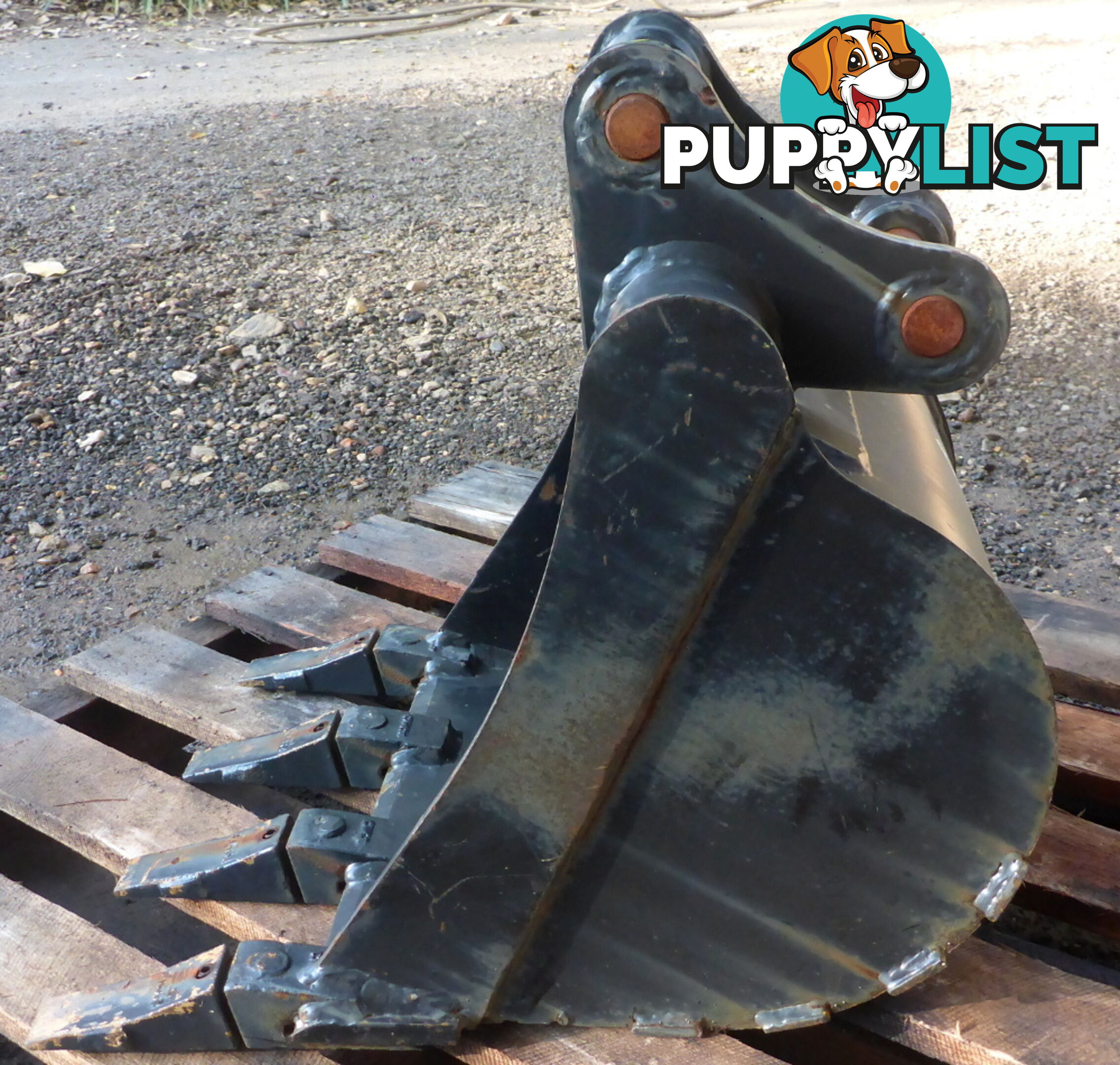

Has tapered sides so mud slides out easy and minimises ground resistance.

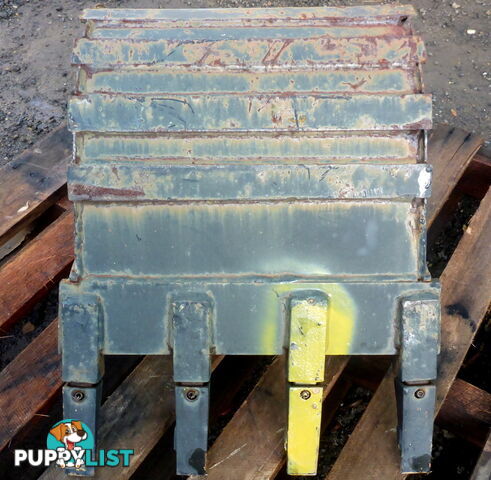

There are also extra Wear Strips welded underneath for durability (see pic #10).

Some buckets have the manufacture's nameplate affixed, some do not, but all are the same.

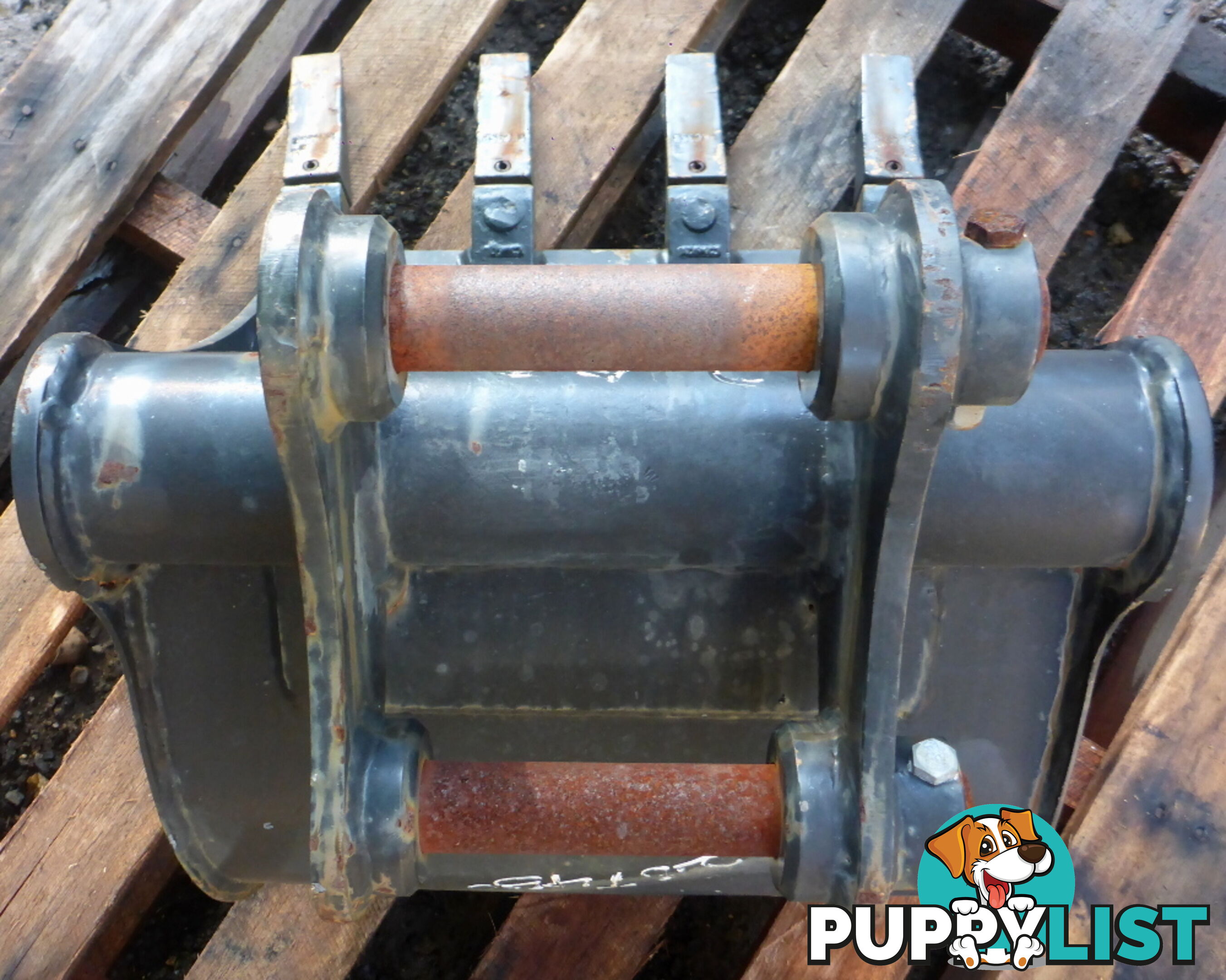

Current Headstock configuration:

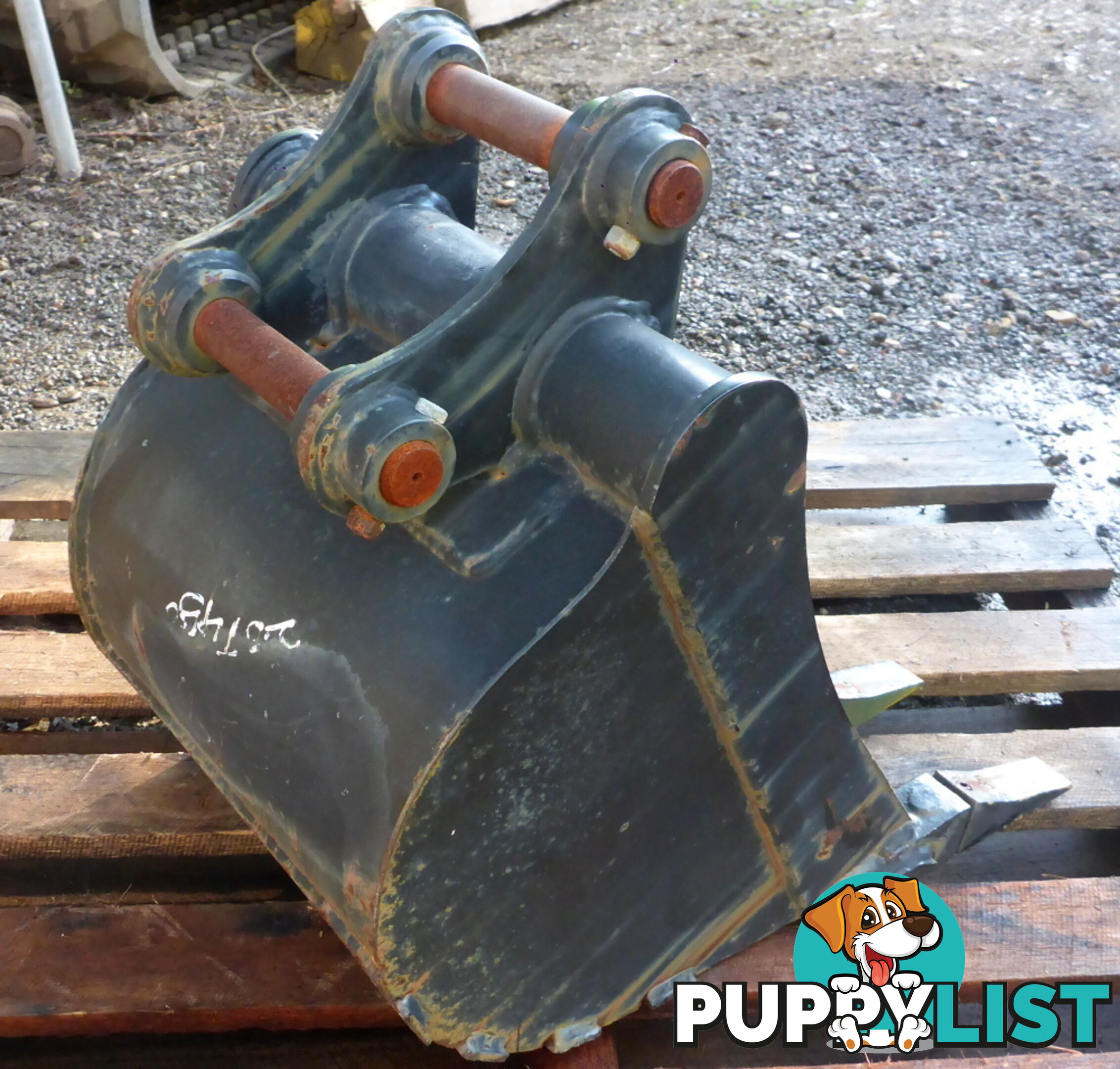

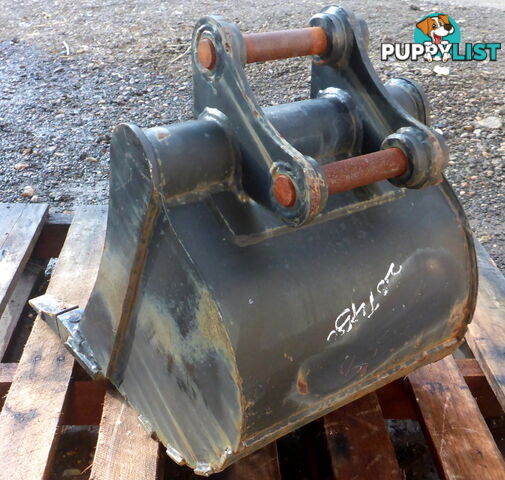

35mm Pin Diameter, 200mm Pin Center to Pin Center (CtoC), 135mm Between the inside Ear Bosses (which can be shaved back up to 184mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Shipping Dimensions: 490mm Wide (at the bottom cutting plate), 620mm Deep, 580mm High. Weight: 61kg.

Should fit: Bobcat 331, Bobcat 430, Bobcat E26, Komatsu PC 20-7, Komatsu PC 25-1, Komatsu PC 27R-8, Komatsu PC 28UU-2, Komatsu PC 30-7, Komatsu PC 30R-8, Komatsu PC 30MRX, Komatsu PC 30MRX-1, Komatsu PC 35R-8, Komatsu PC 35R-8E, Komatsu PC 38UU-2.

Maybe fit: Airman AX22, Airman AX29U, Airman AX30UR, Case CX 23, Case CX 25, Case CX 28, Case CX 30, Case CX 31, Daewoo Solar 027, Daewoo Solar 030, Hanix H26B-2, Hanix H30B-2, Hitachi EX 22, Hitachi EX 25, IHI (Cheiftain) 25G/H/J, IHI (Cheiftain) 28G/H/J, IHI (Cheiftain) 30G/H/J, IHI 30NX, Kobelco SK 20, Kobelco SK 20SR-3, Kobelco SK 24, Kobelco SK 25, Kobelco SK 25SR, Kobelco SK 25SR-2, Kobelco SK 27, Kobelco SK 27SR-2, Kobelco SK 27SR-3, Kobelco SK 30, Kobelco SK 30SR Pre 2001, Kobelco SK 30SR, Kobelco SK 30UR, Komatsu PC 20, Komatsu PC 20-6, Komatsu PC 30-6, Libra 225S, Nagano NS 25-3, New Holland EH 27.B, SMC MX30, Takeuchi TB 25, Takeuchi TB 26, Takeuchi TB 28FR, Takecuhi TB 125, Yanmar B 22, Yanmar VIO20, Yanmar VIO20-1, Yanmar VIO20-2, Yanmar VIO20-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
