New 20-39 ton (90mm pin) 900mm AHE Excavator GP Digging Bucket

DESCRIPTION

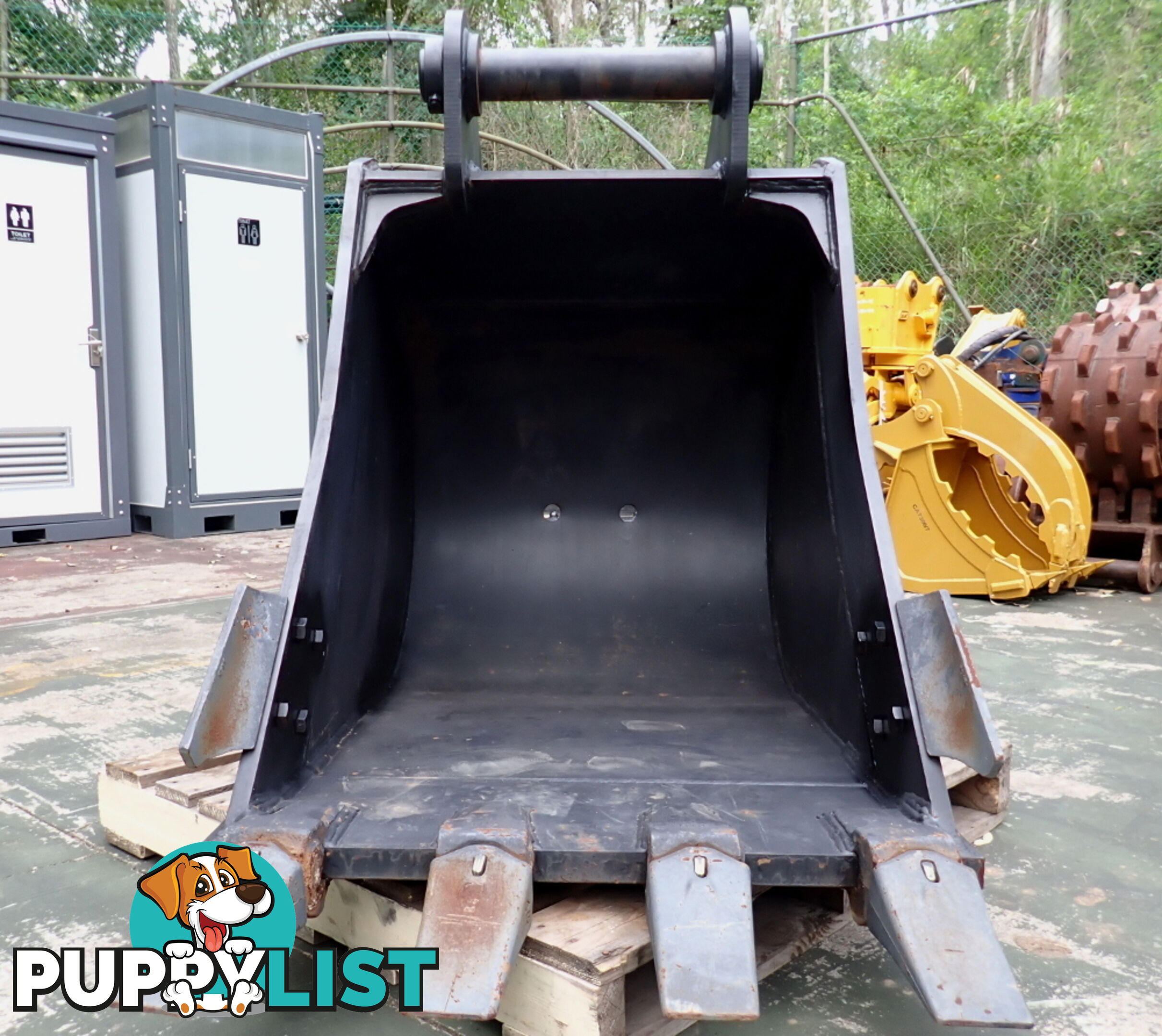

New 900mm Atlas Heavy Engineering (AHE) Excavator Digging & Trenching GP Bucket suit 20-39 Ton machine.

This bucket has come from surplus stock from Atlas Heavy Engineering (AHE): .
It is New & Unused but there are some paint scuffs & chips from warehouse storage & handling.

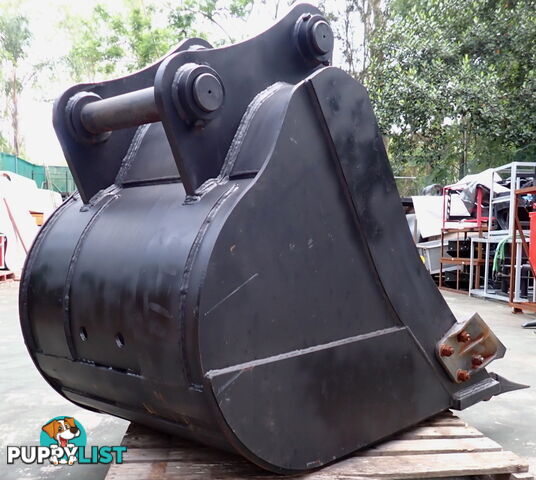

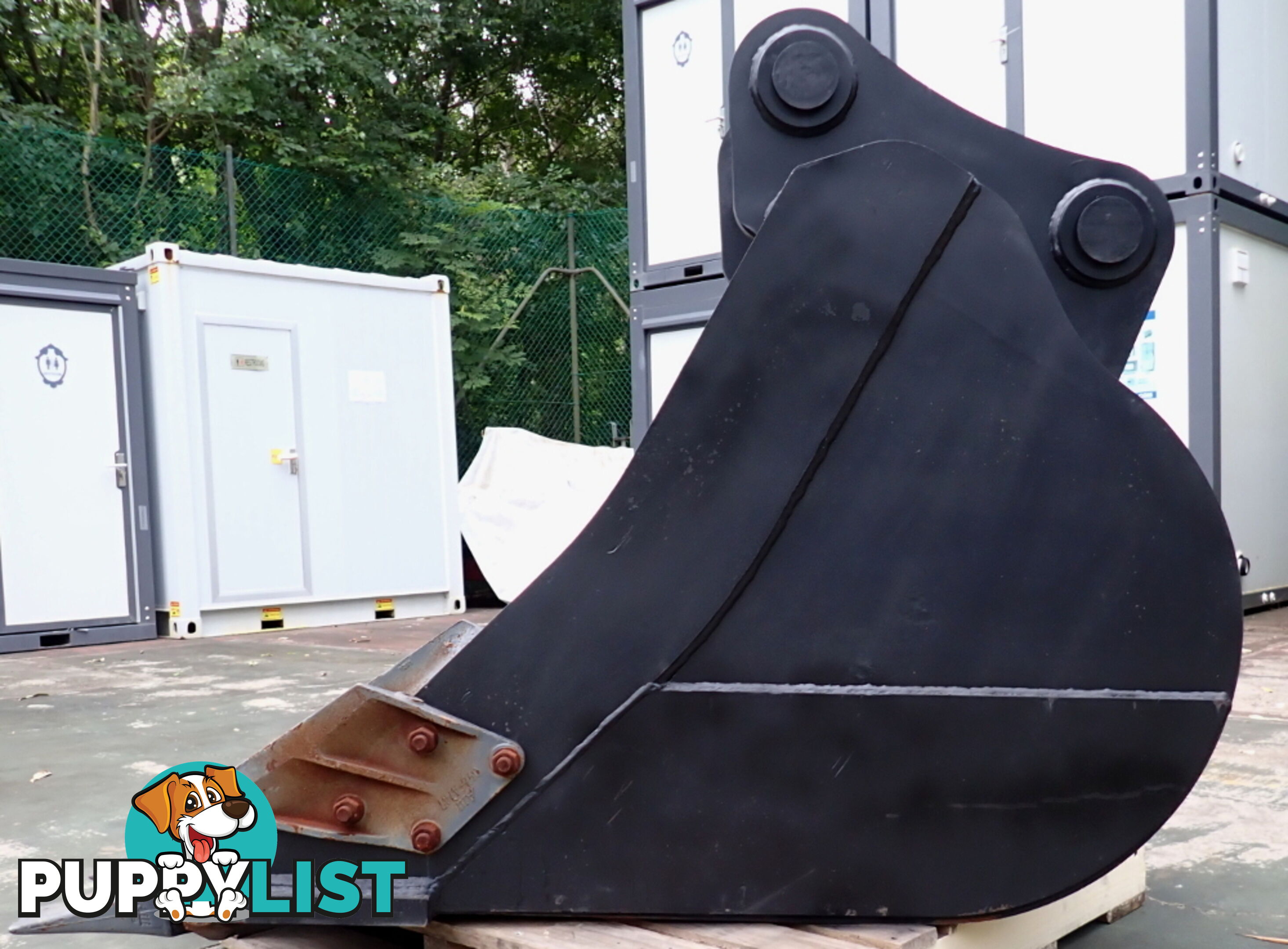

It has a deep profile for a high capacity (see pic# 4).

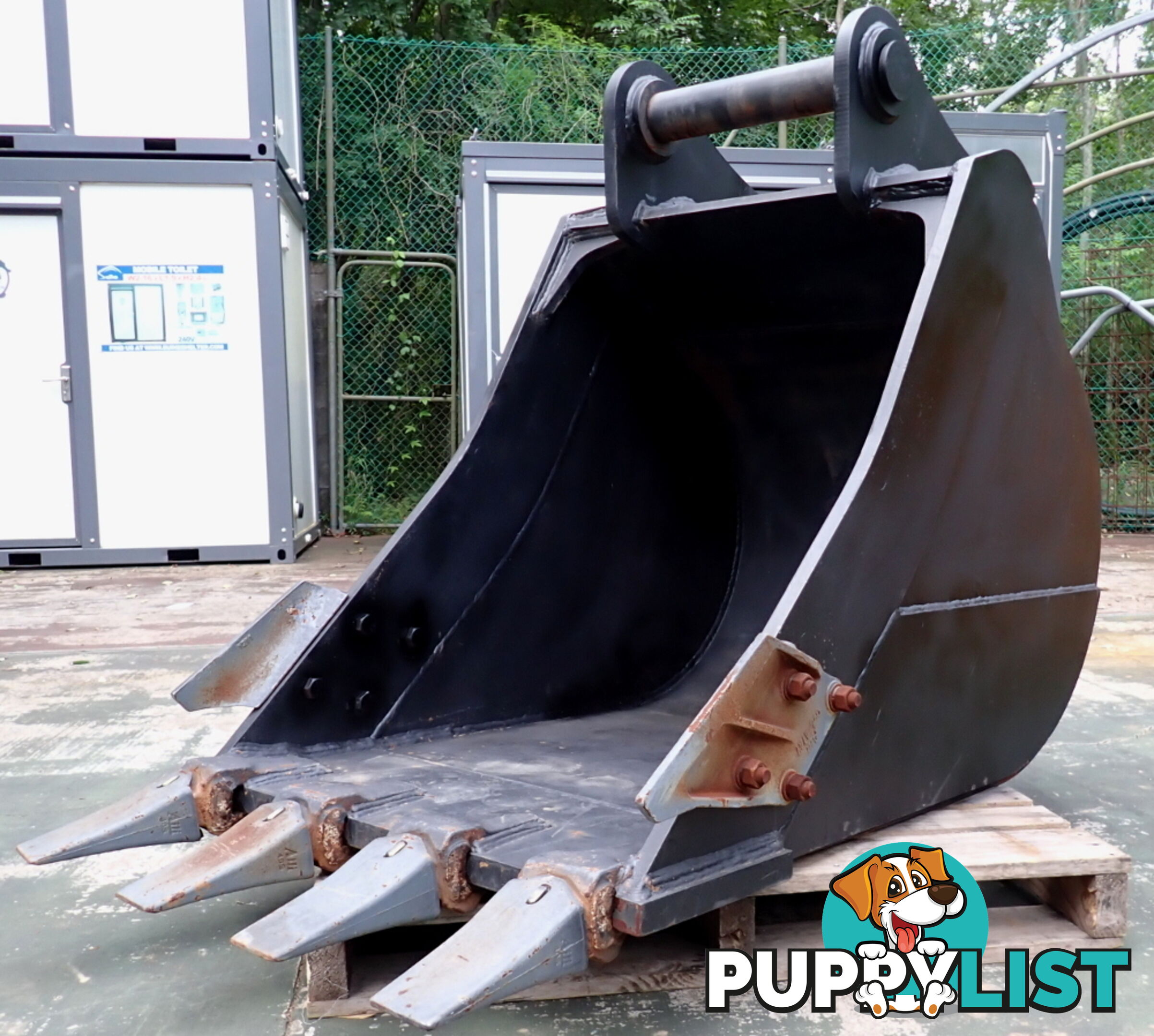

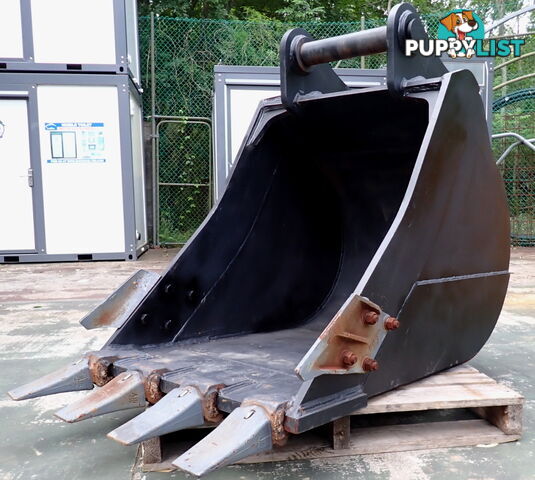

It has removable bolt-on Side Cutters.

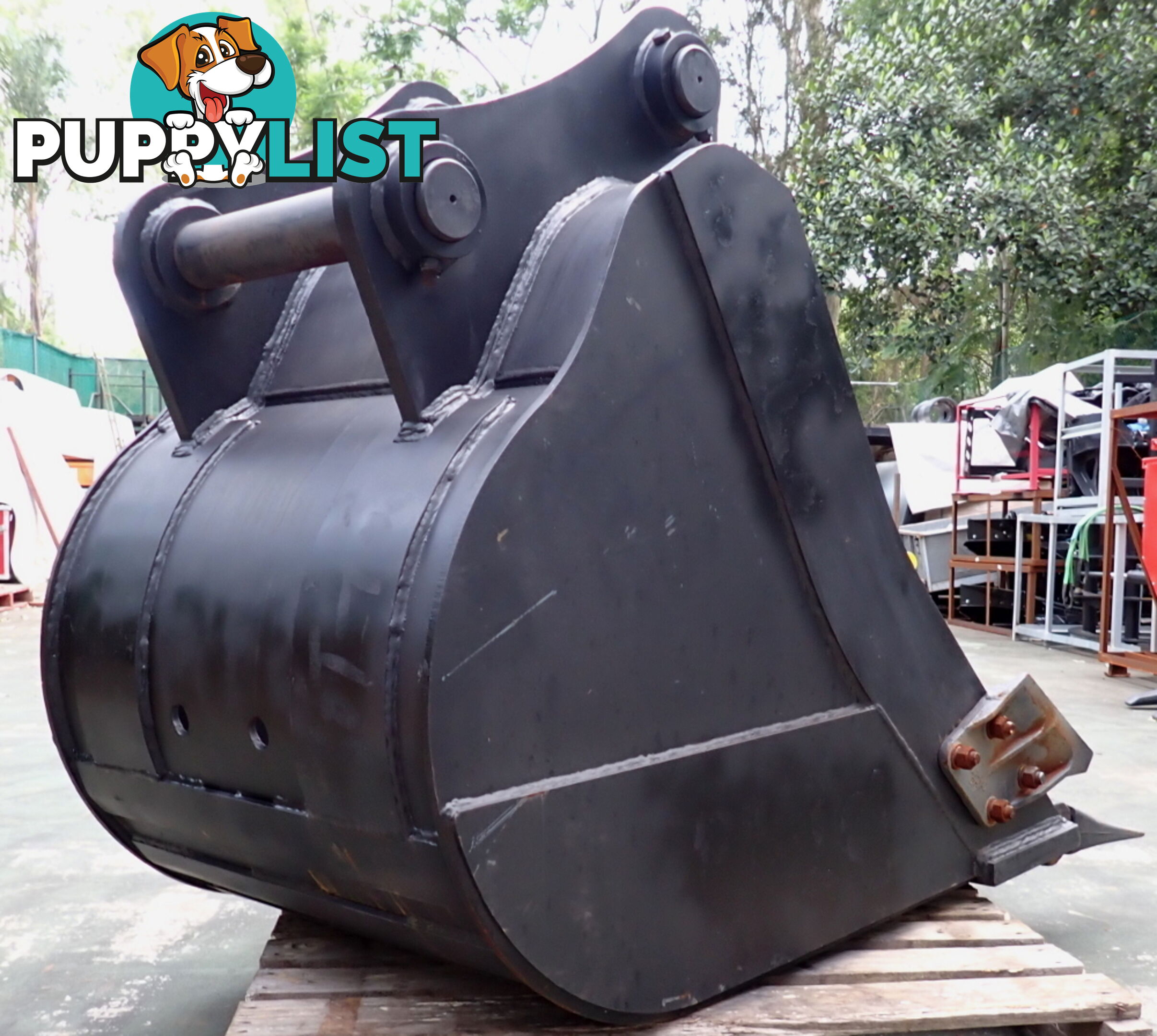

The front cutting edge that the gums are welded onto is 40mm thick! (see pic# 2).

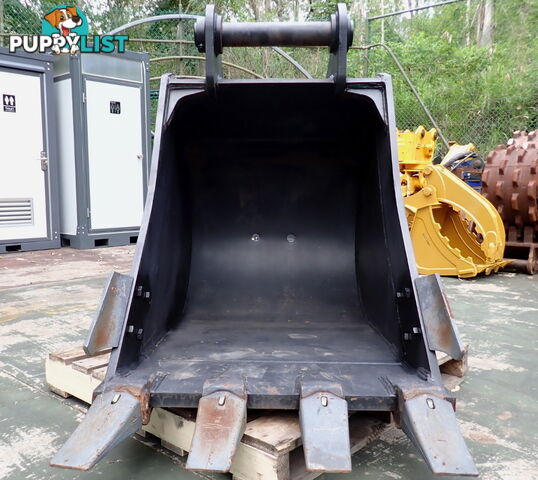

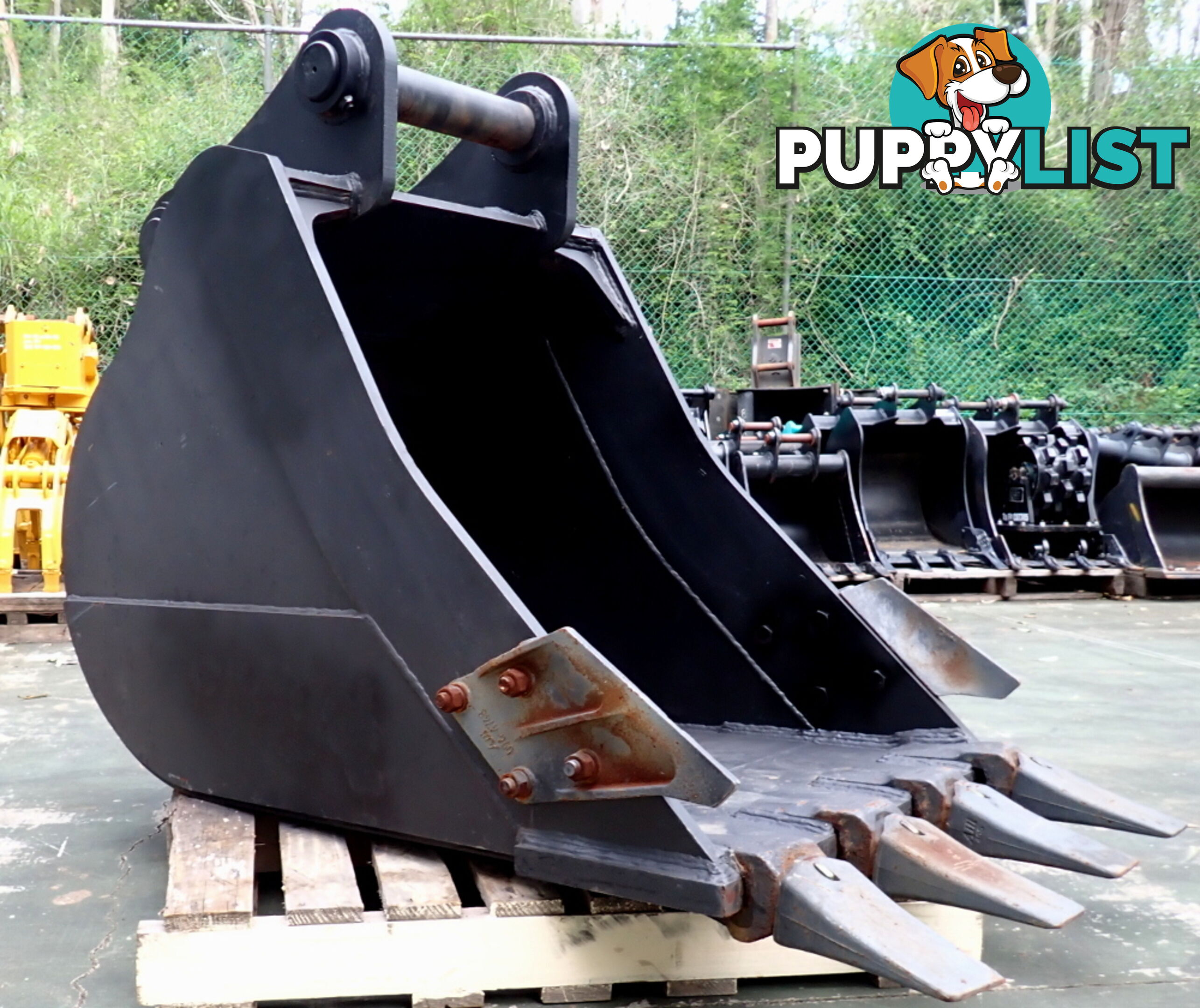

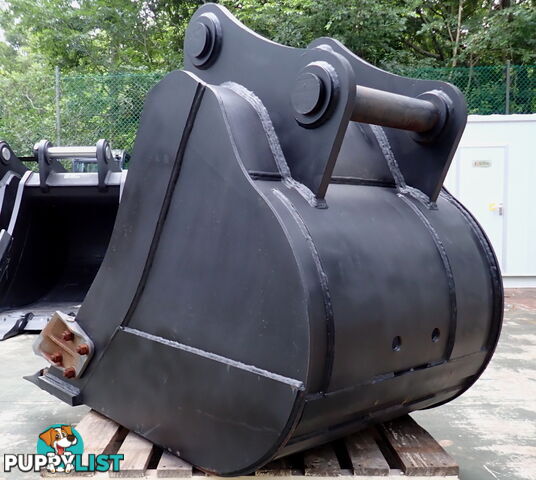

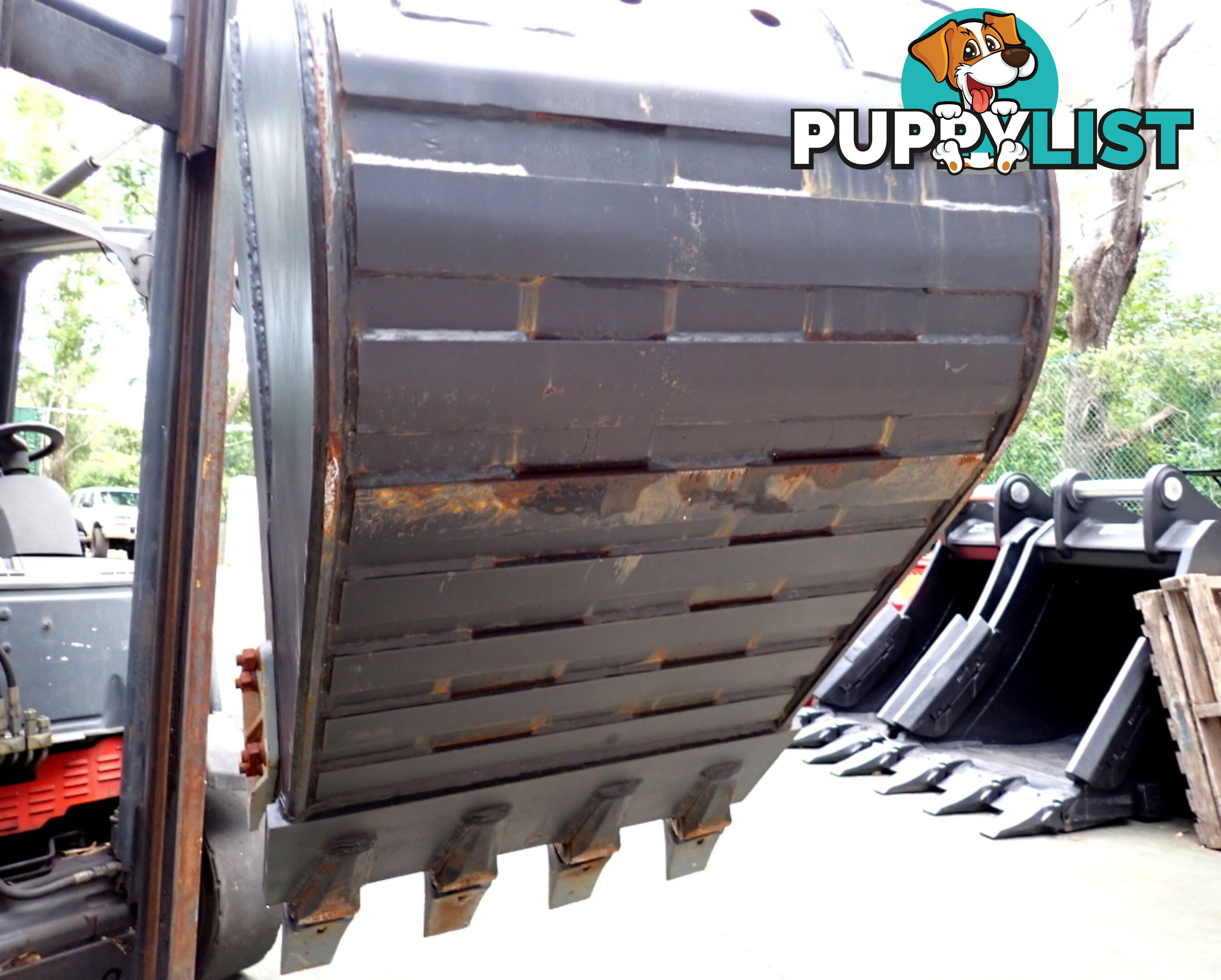

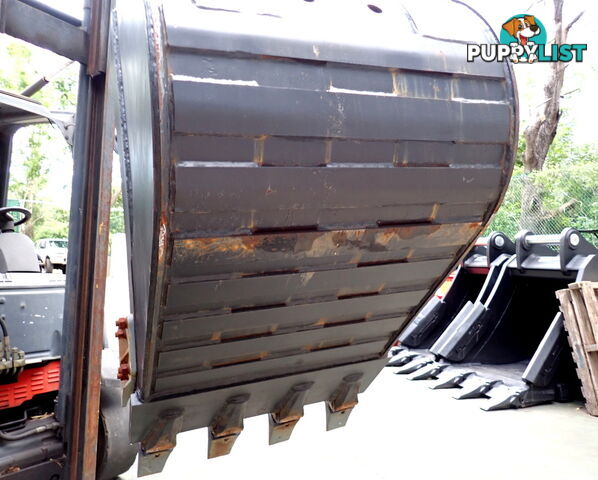

There are extra wear plates welded on the lower sides (see pics# 1, 3, 4, 5, 9), and also plenty of wear strips welded underneath for durability (see pic# 10).

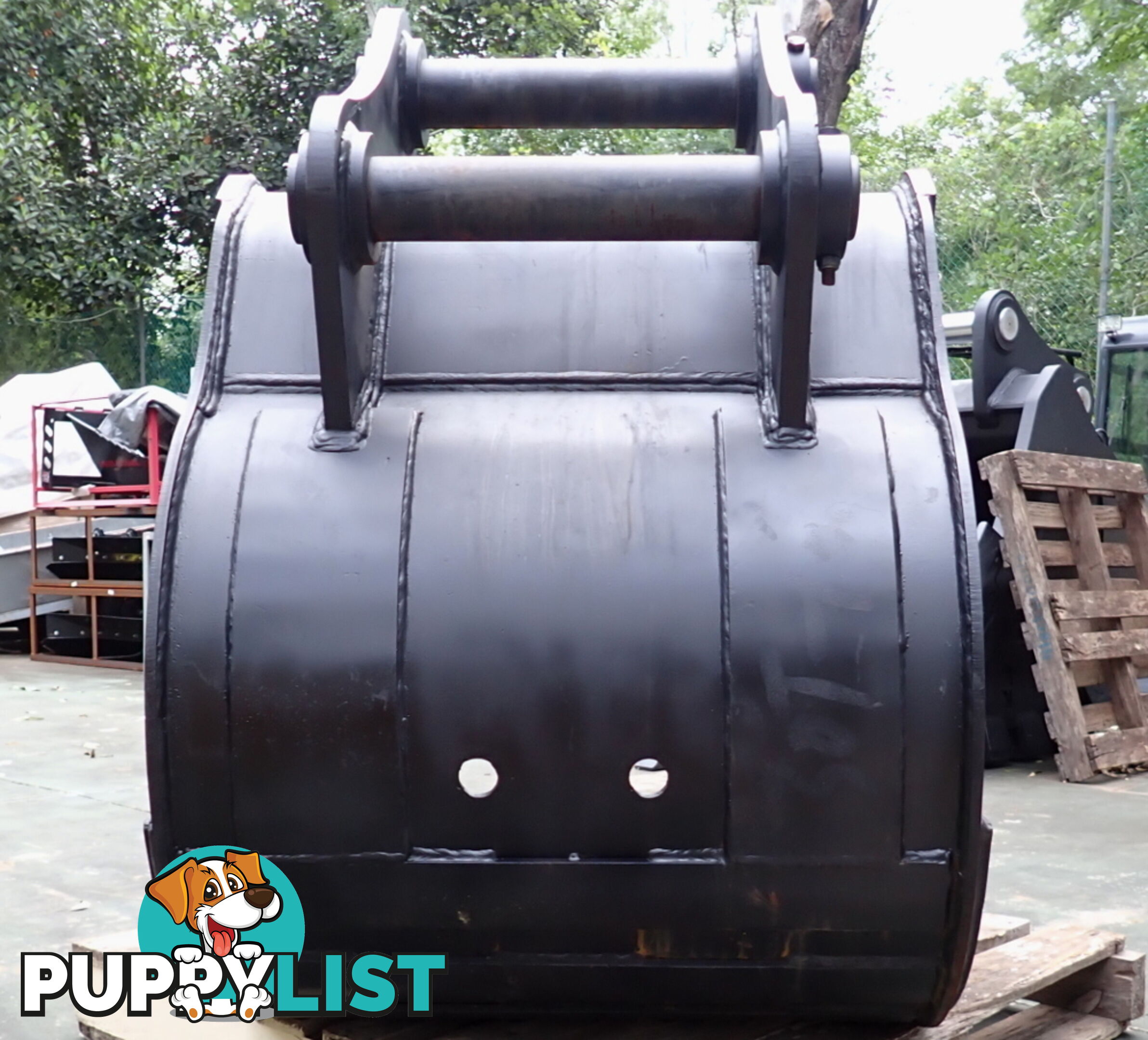

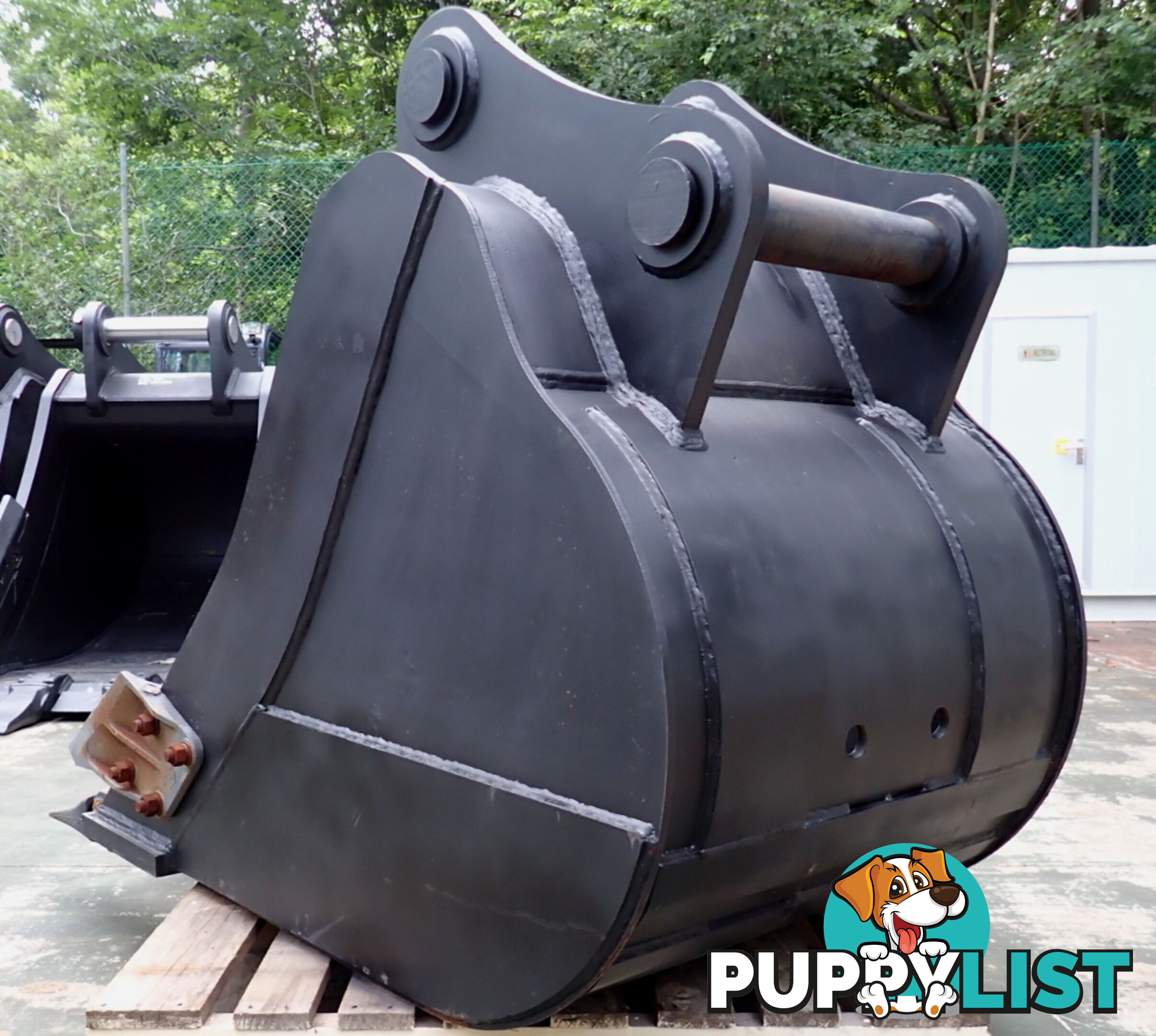

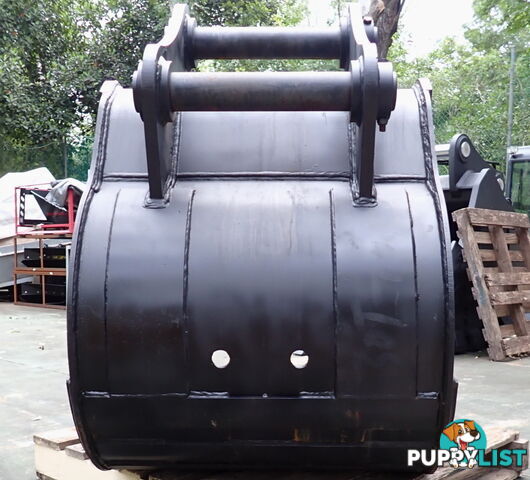

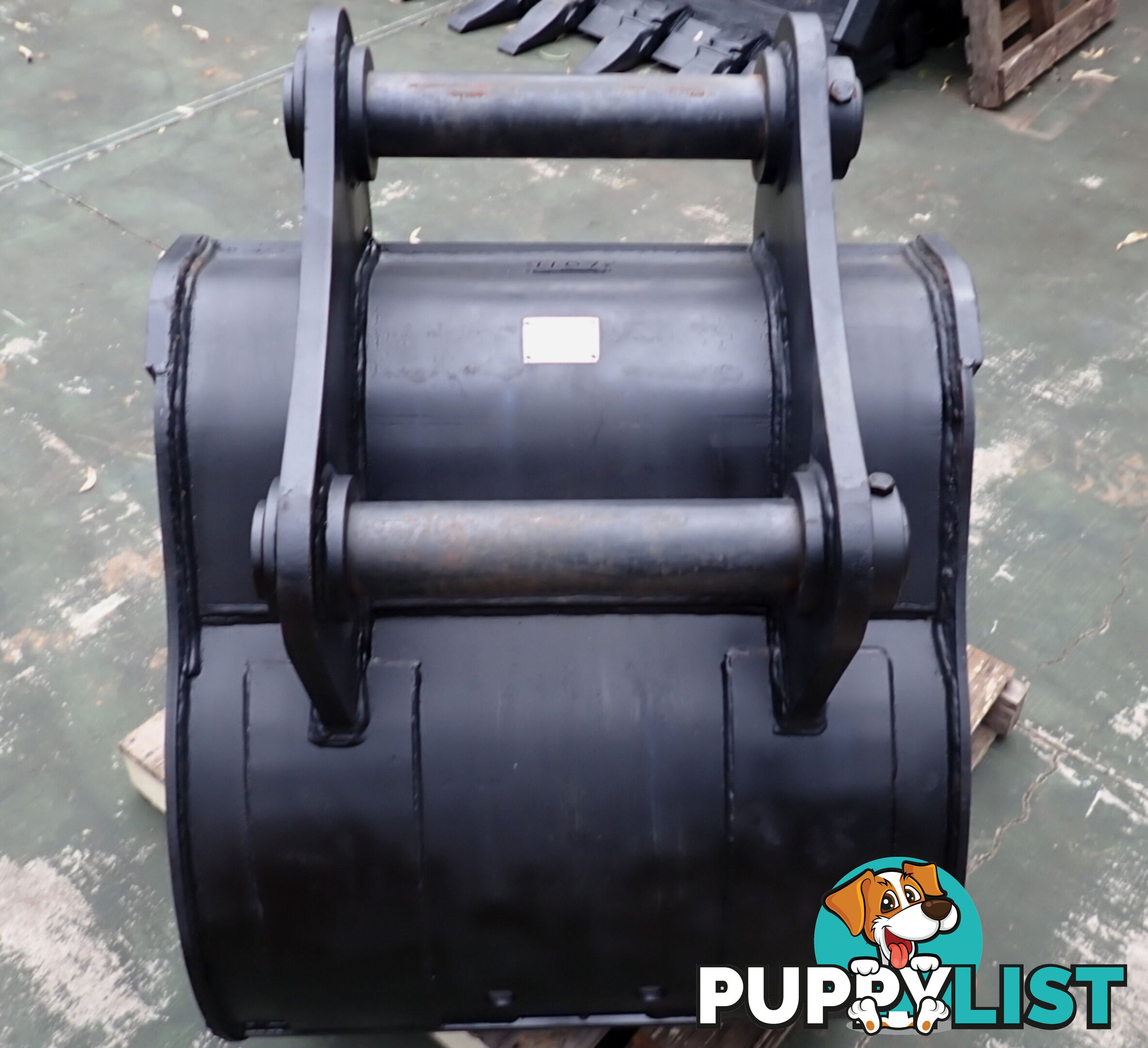

There is 2 holes cut out in the back of the bucket, useful for letting out water if you are dredging out a wet dam etc. (see pics# 2, 5, 6, 9).

*** Current Headstock configuration:

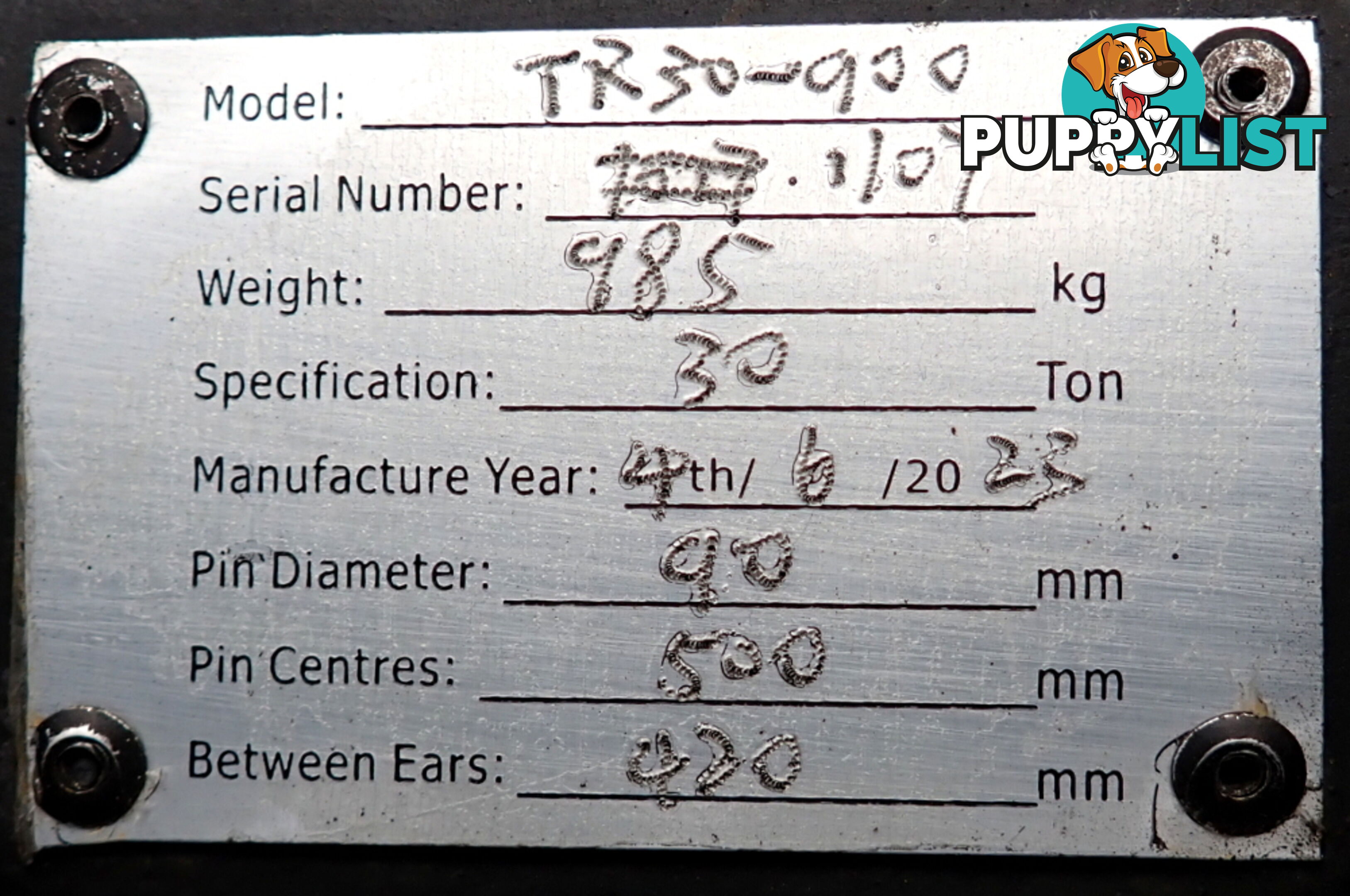

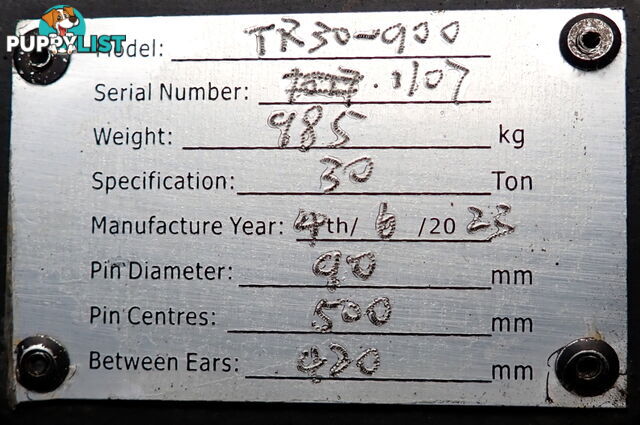

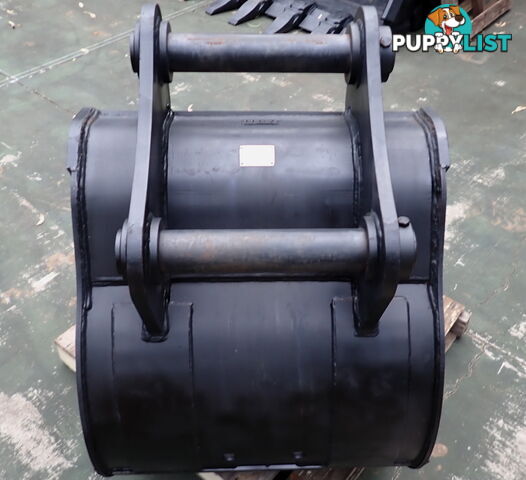

90mm Pin Diameter, 497mm Pin Center to Pin Center (CtoC), 422mm Between the inside Ear Bosses (which can be shaved back up to 469mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

* Should fit: Case CX240 / CX290, Caterpillar 322 / 325B w/D Link / 325C w/D Link / 325C w/Mass Linkage / 330B w/D Link / 330C w/D Link / 330C w/Reach Linkage / 330D w/D Link / 330D w/DB Link / D Family Linkage, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, New Holland FX350, O & K RH 9PMS, Samsung SE240LC / SE240-3 / SE280-3, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3.

* Maybe fit: Case CX330, Caterpillar 235, Daewoo Solar 280LC-2 / 280LC-3 / 320 / 330-3, Halla HE280, Hitachi EX220 / EX255 / EX270 / FH220 / FH285 / Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), John Deere 240D LC / 270D LC, Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK290LC / SK300 / SK310 / SK330LC / SK350LC, Link-Belt 240LX / 290LX / 330LX / 3400 QUANTUM / 3900 QUANTUM, New Holland EC240LC / EC270LC, Samsung SE280LC, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-3 / SH300-5 / SH300LC-3 / SH330-5 / SH350HD-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Overall Dimensions: 1015mm Wide (at the side cutter bolts), 1750mm Deep, 1325mm High. Weight: 968kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
