5-10 ton (50mm pin) Norm 450mm Excavator GP Digging & Trenching Bucket

$960.00

DESCRIPTION

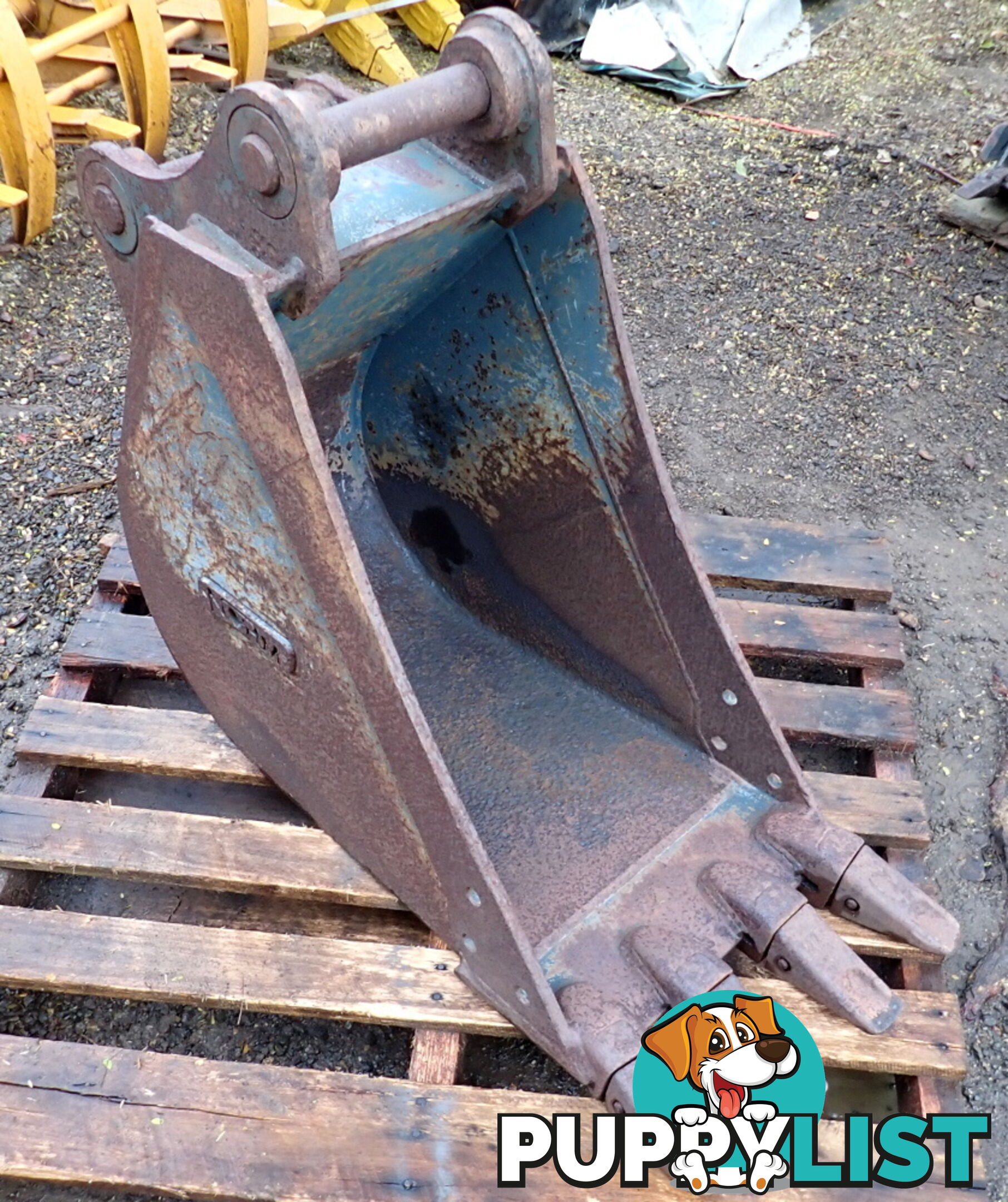

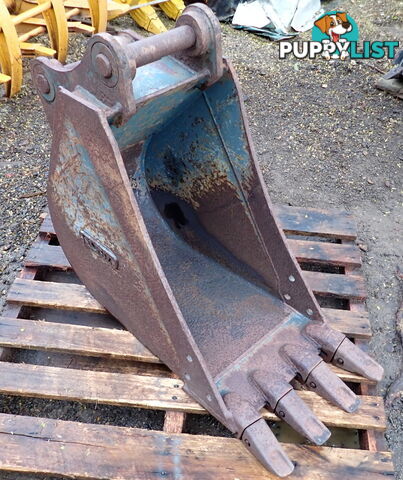

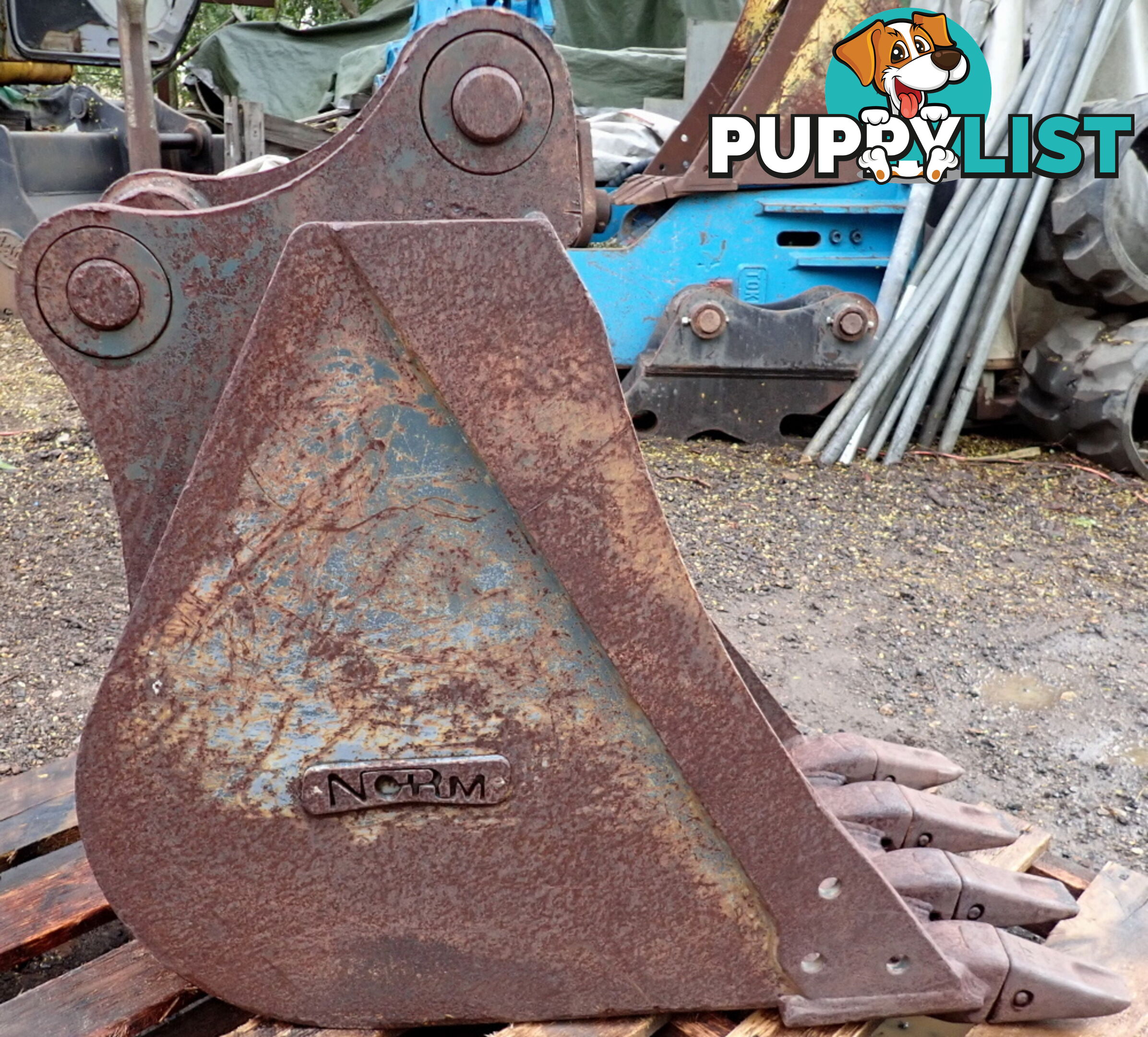

Used 450mm Norm Engineering Excavator GP Digging & Trenching Bucket suit 5-10 Ton machine.

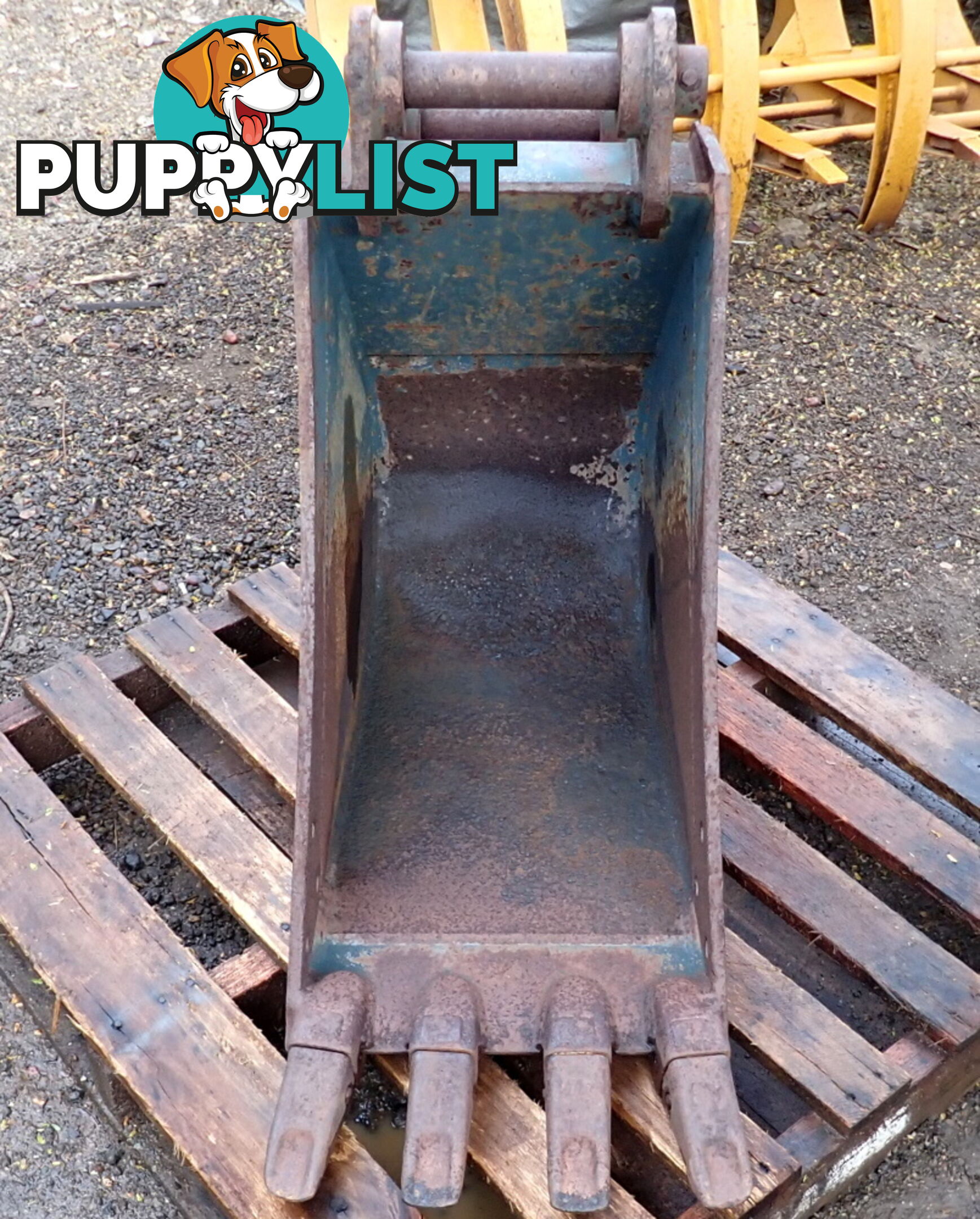

Condition is used but there is still plenty of life left. This is a good solid bucket with 4 good Teeth fitted.

Has holes ready for bolt-on side cutters.

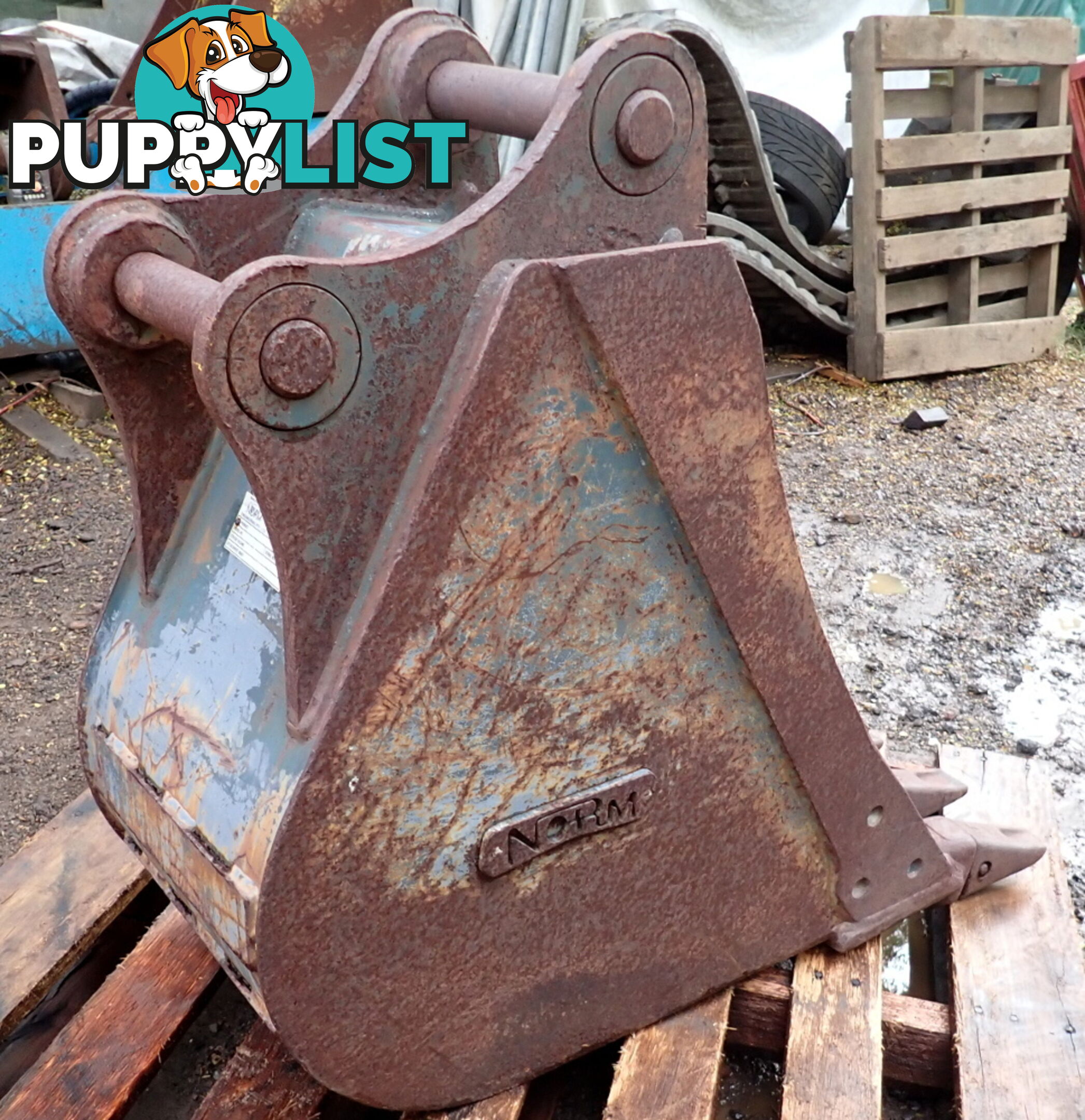

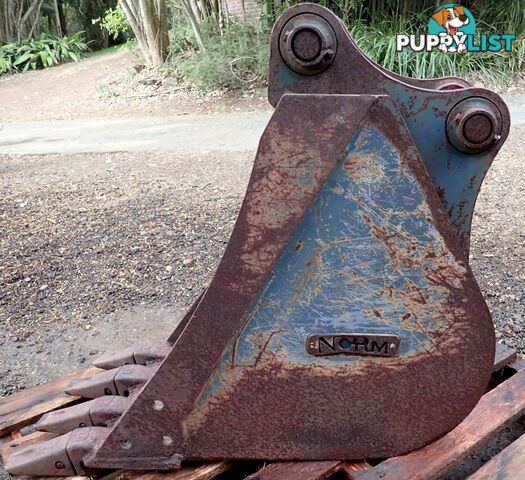

Has tapered sides so mud slides out easy and minimises ground resistance.

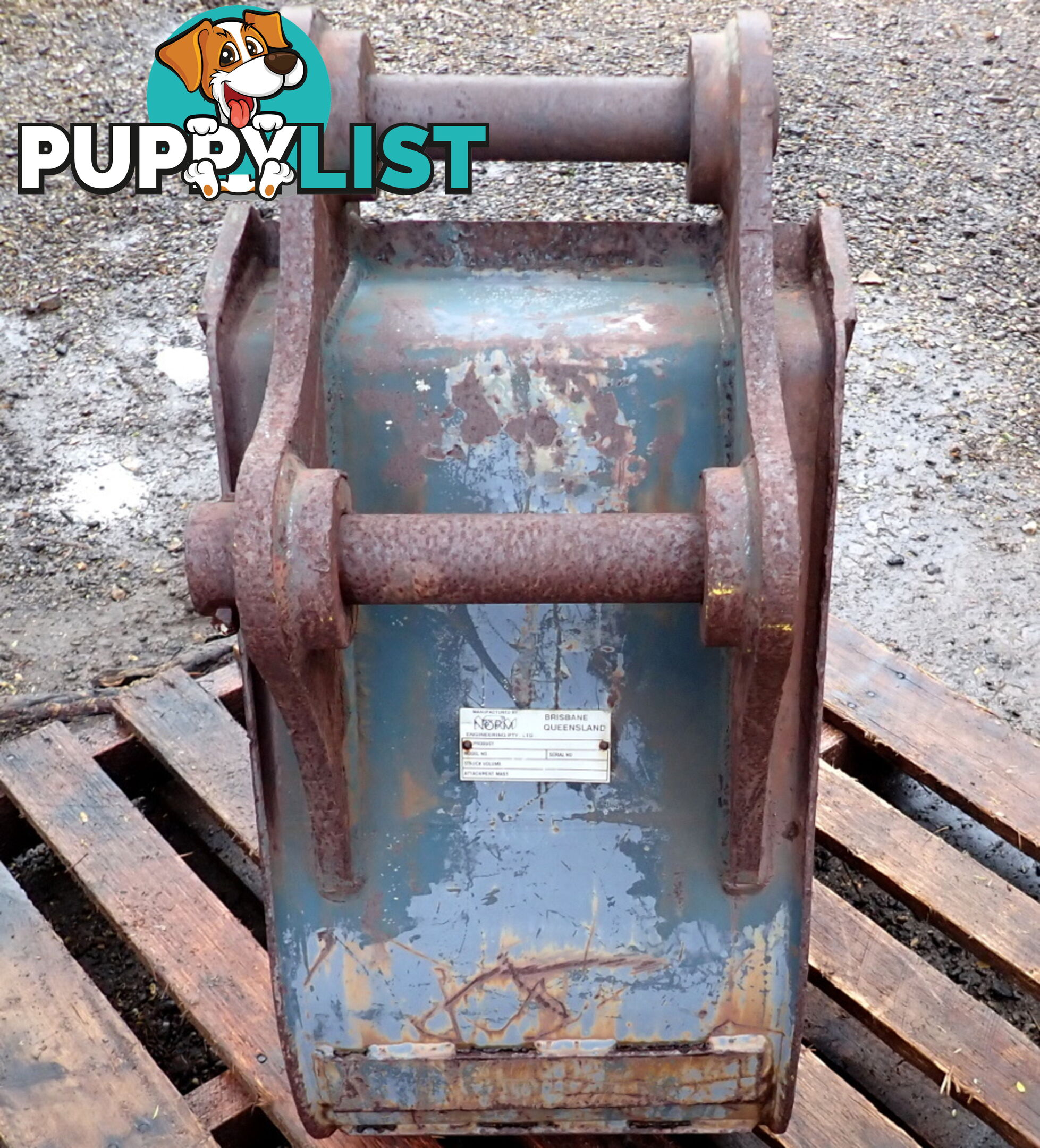

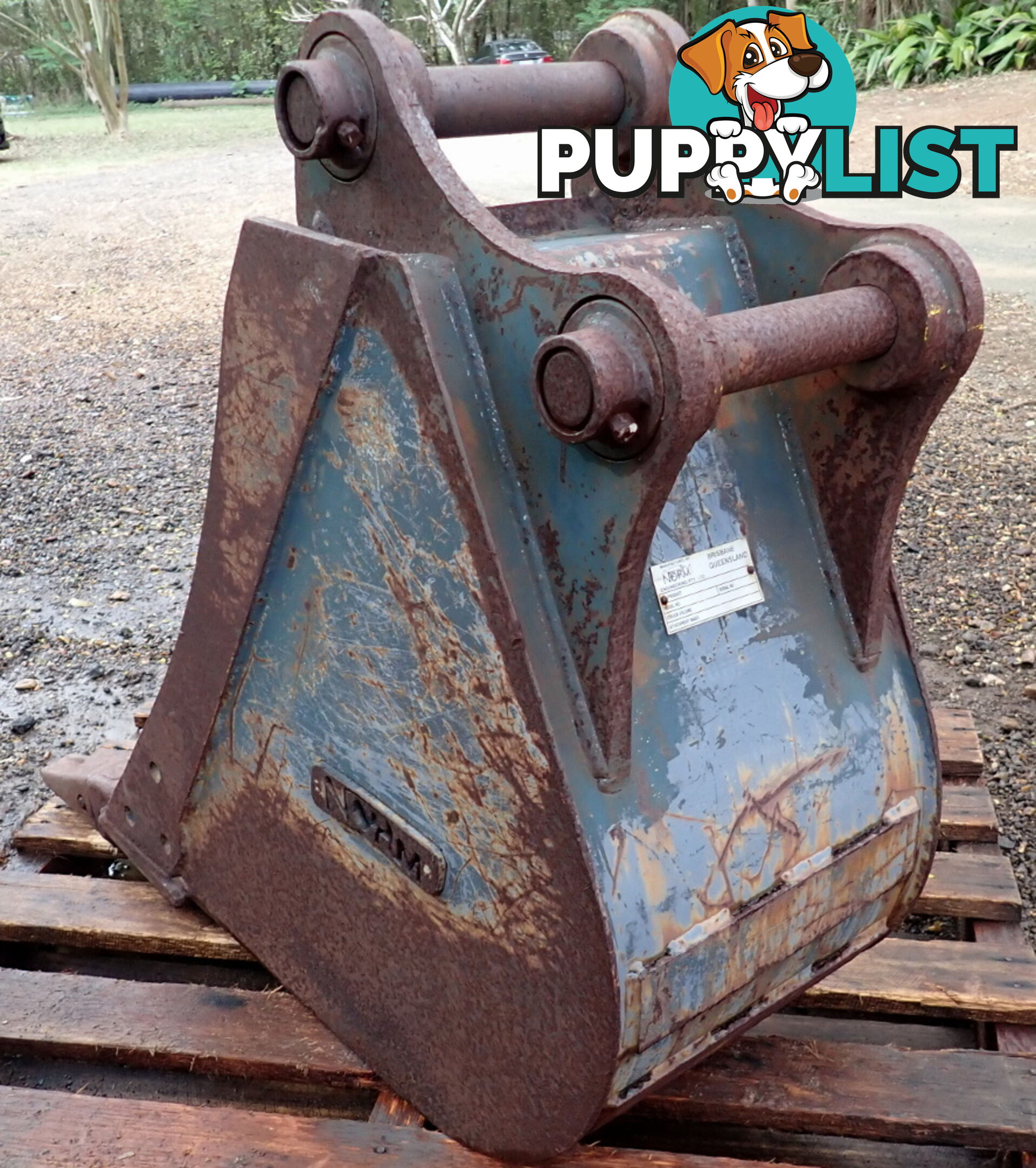

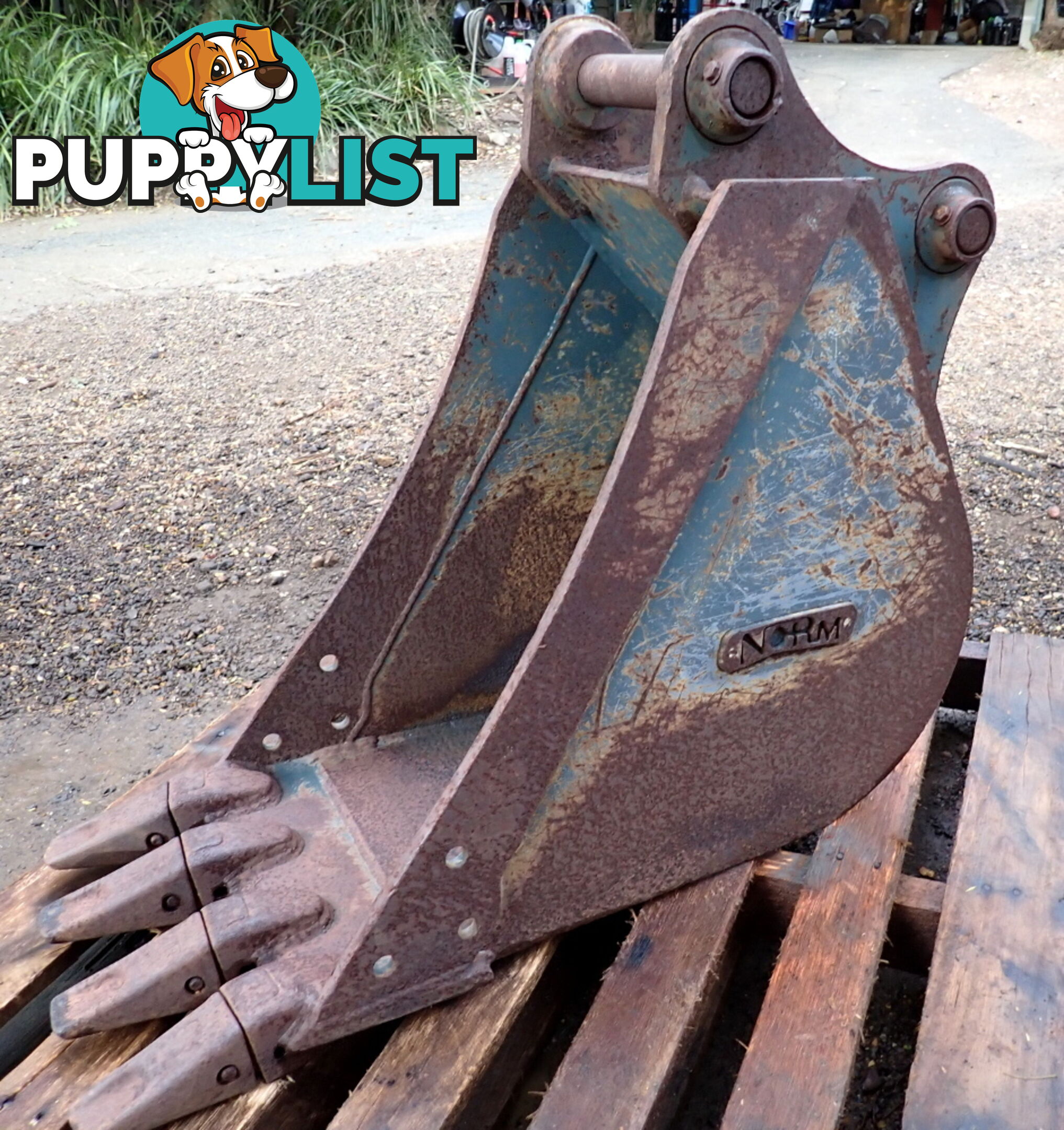

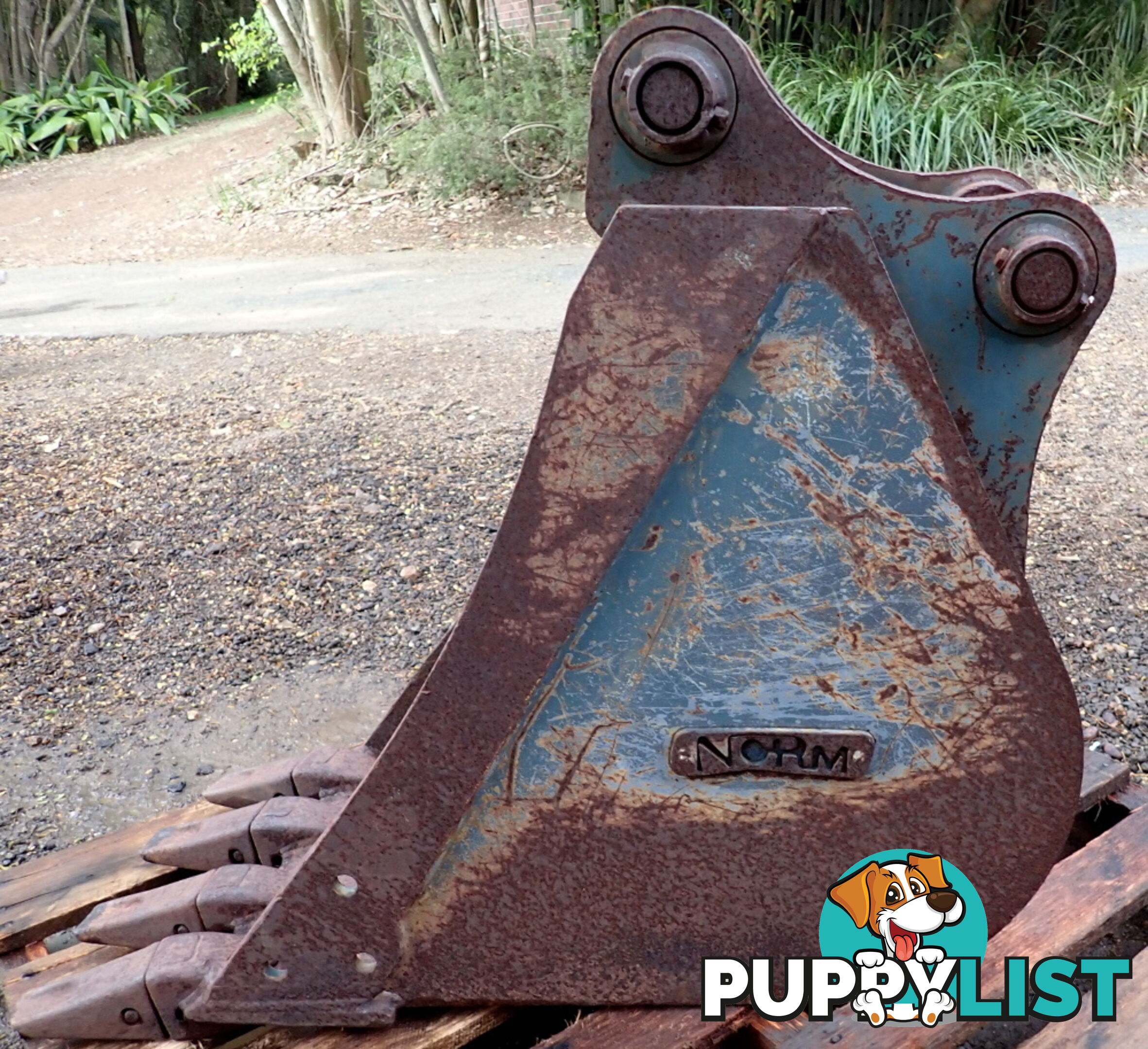

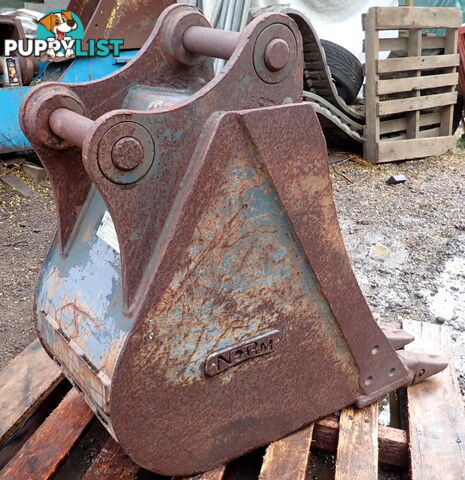

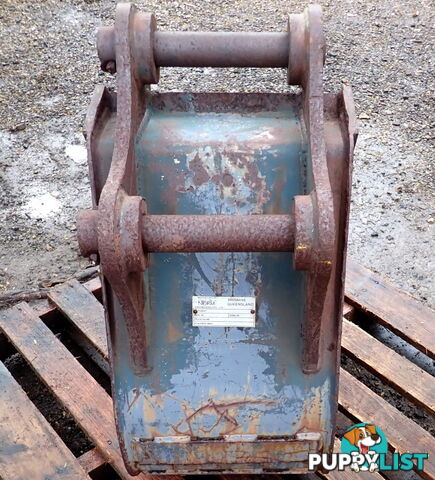

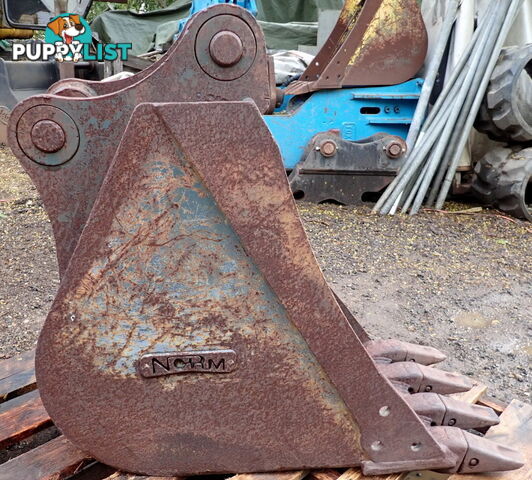

There is also extra wear strips welded underneath for durability (see back of bucket in pics# 5-7).

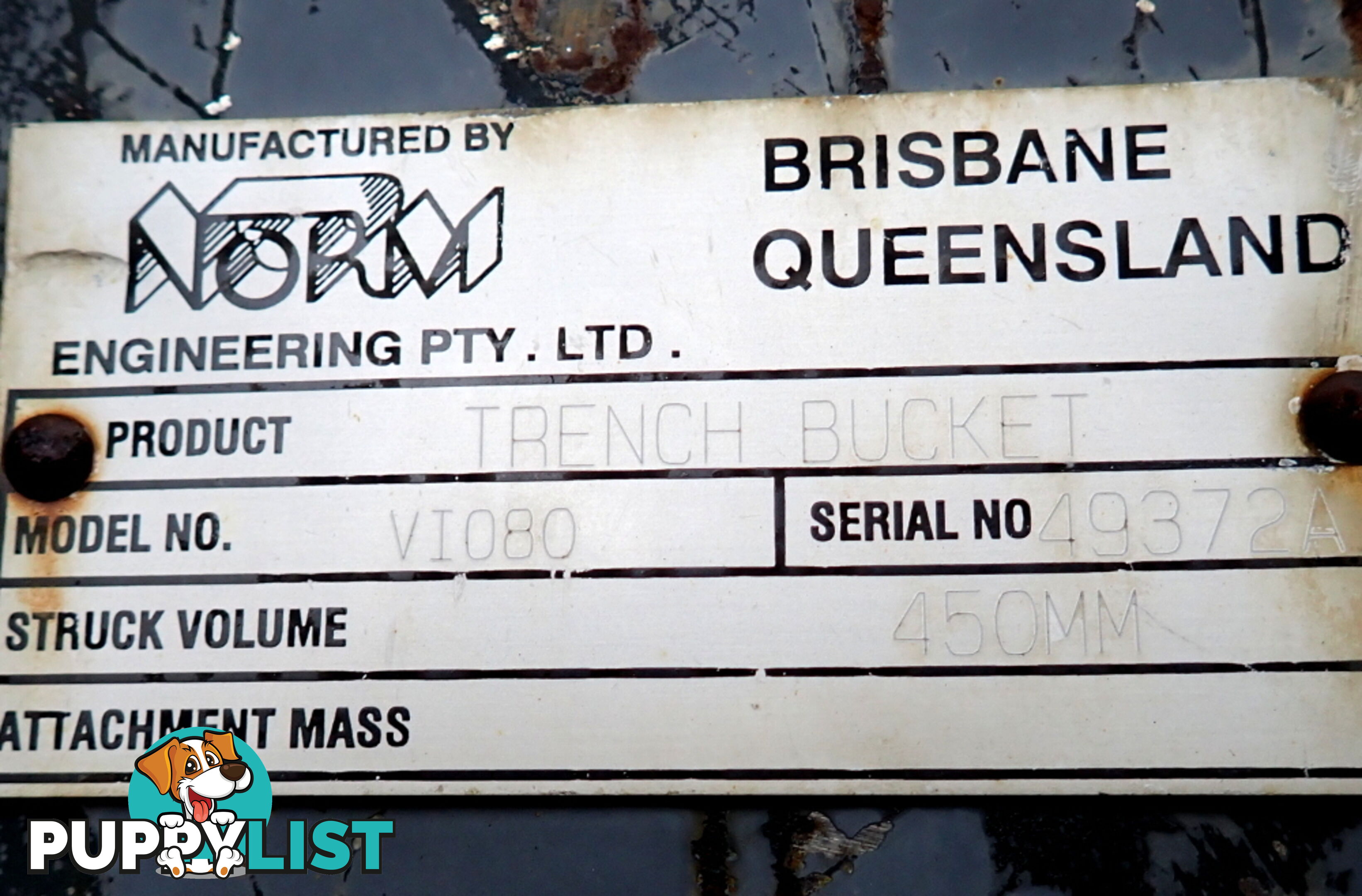

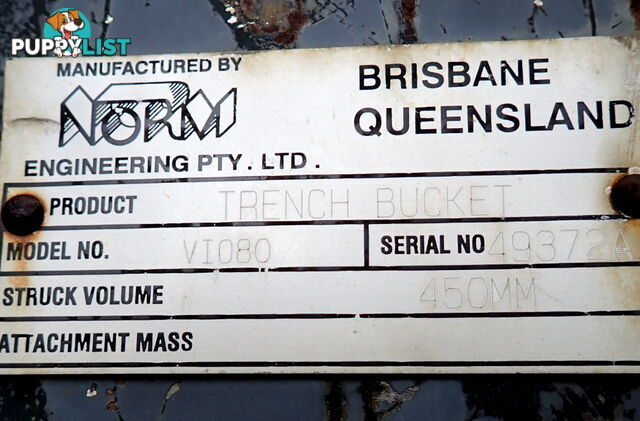

This is a solid, quality bucket made in Australia by Norm Engineering:
Current Headstock configuration:
50mm Pin Diameter, 310mm Center to Center, 200mm Between the inside Ear Bosses (which can be shaved back up to 254mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Caterpillar 308D / 308e2cr, Hitachi EX 60-5 / EX 60-5 Import / EX 75-5 / EX 80 Import, Hitachi Zaxis 75US / 80, John Deere 75C / 80C, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Sany SY 75C, Yanmar B 7 SIGMA / VIO70 / VIO75.

Maybe fit: Bobcat zx125, Case 9007 / 9007B / CX 75SR / CX 80SR, Ingersoll-Rand ZX125, JCB JS 70 / JZ 70, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Shipping dimensions: 466mm Wide, 1020mm Deep, 880mm High.
Weight: 172kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.

(MIC#_1388AL23101037)
