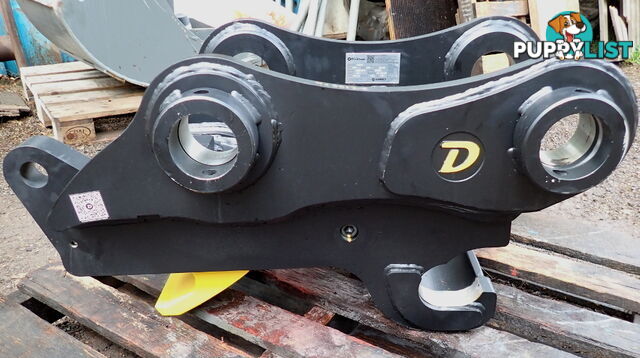

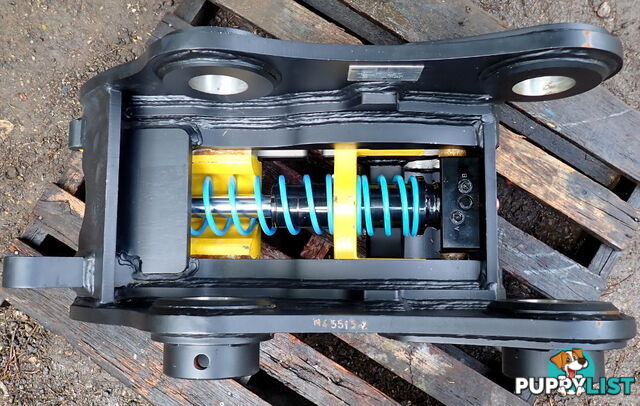

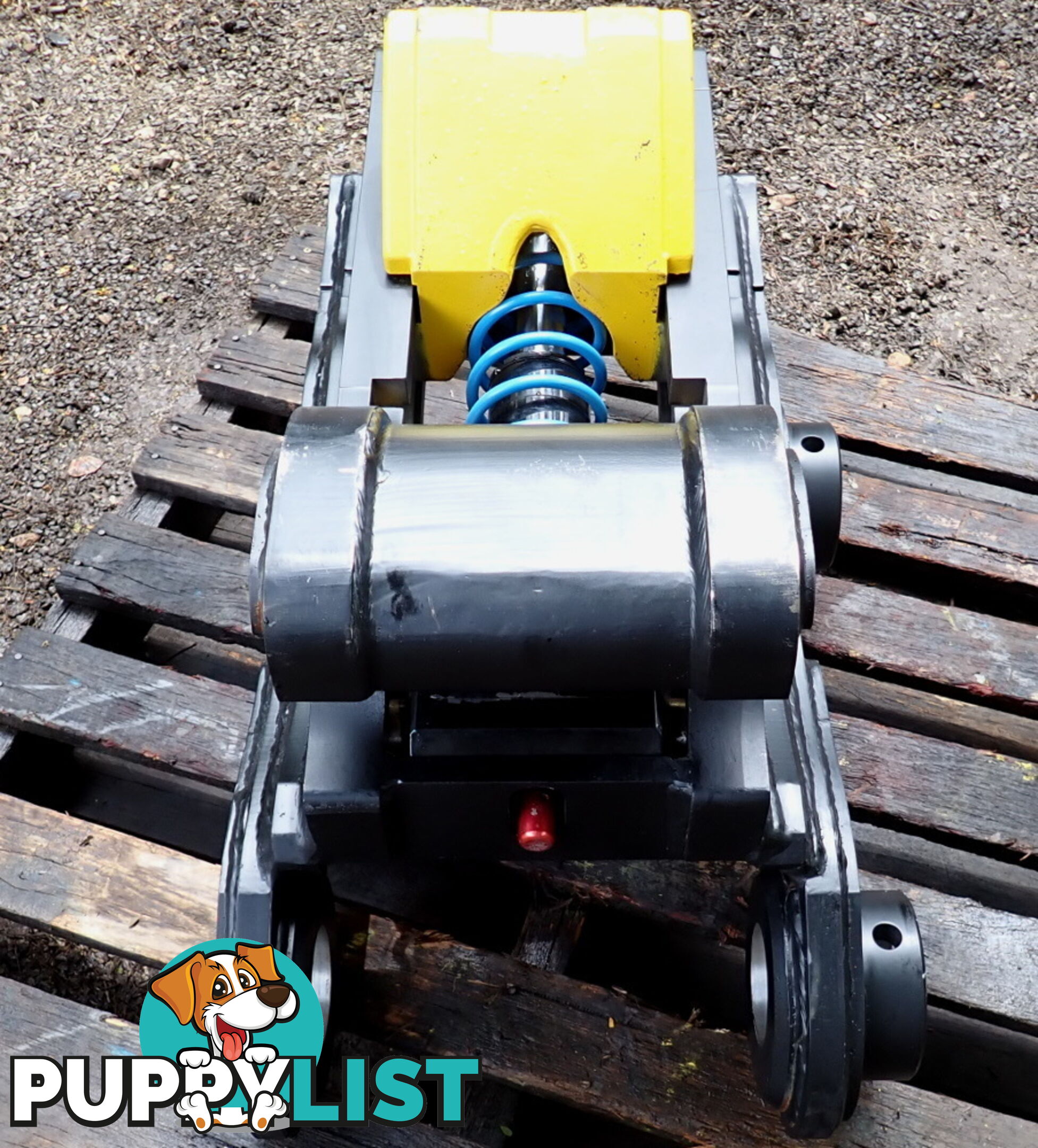

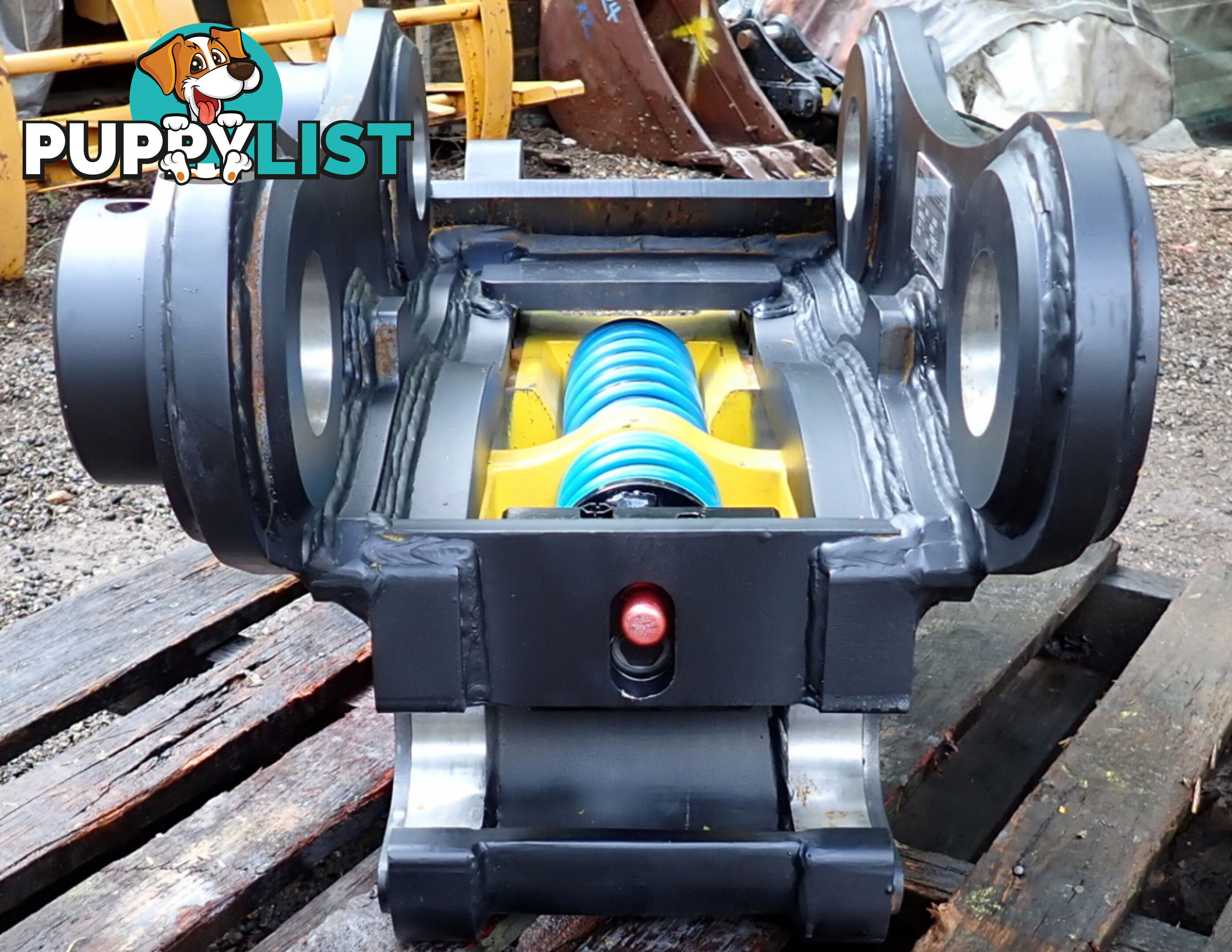

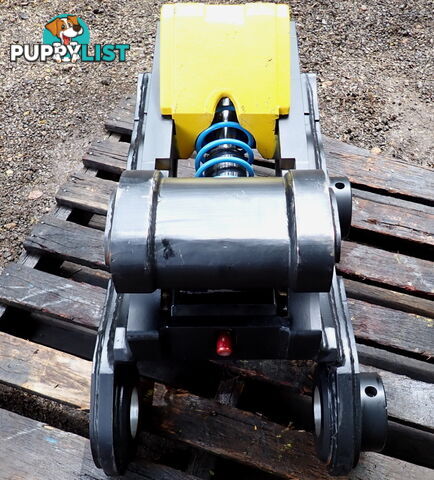

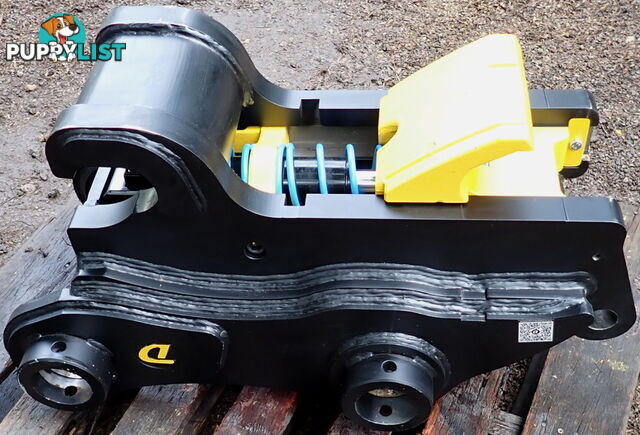

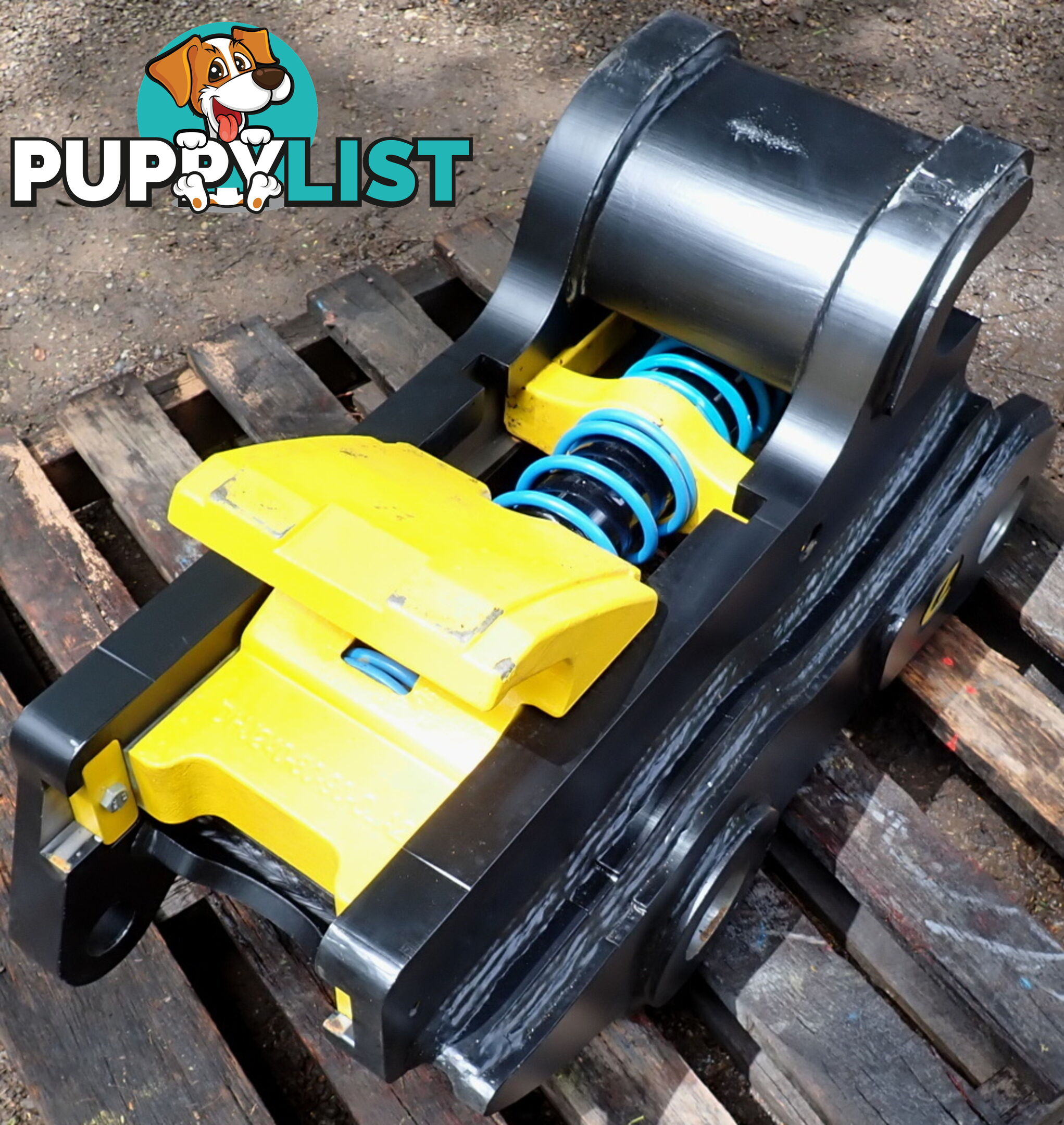

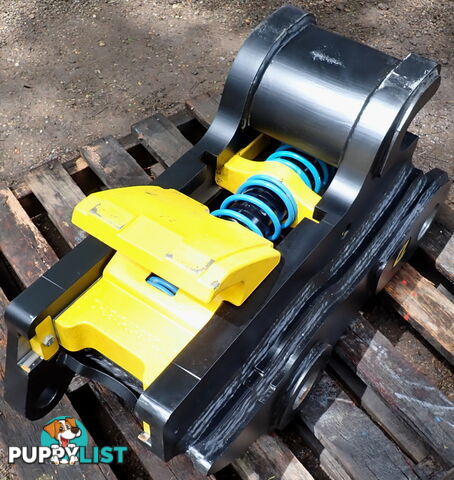

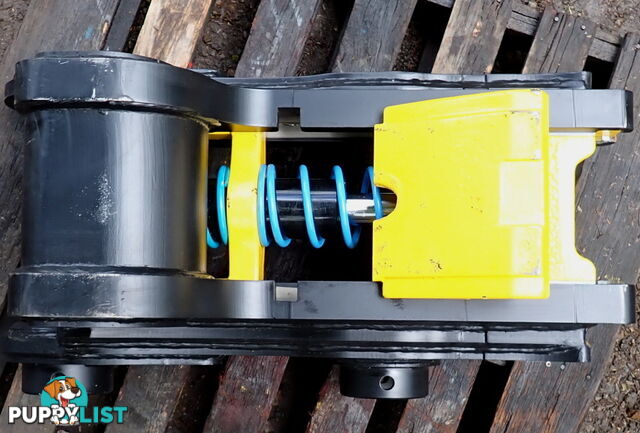

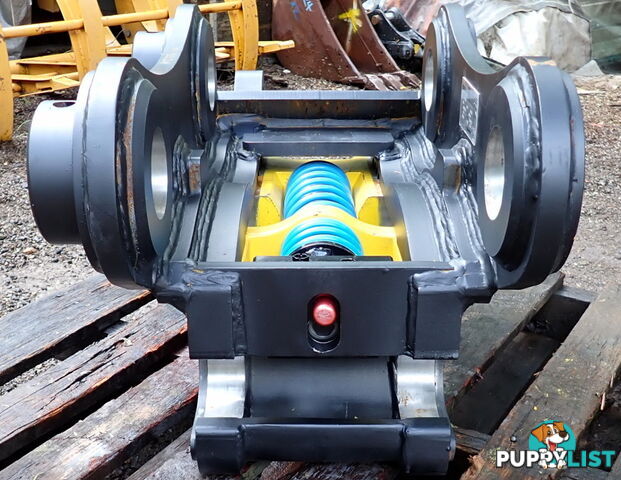

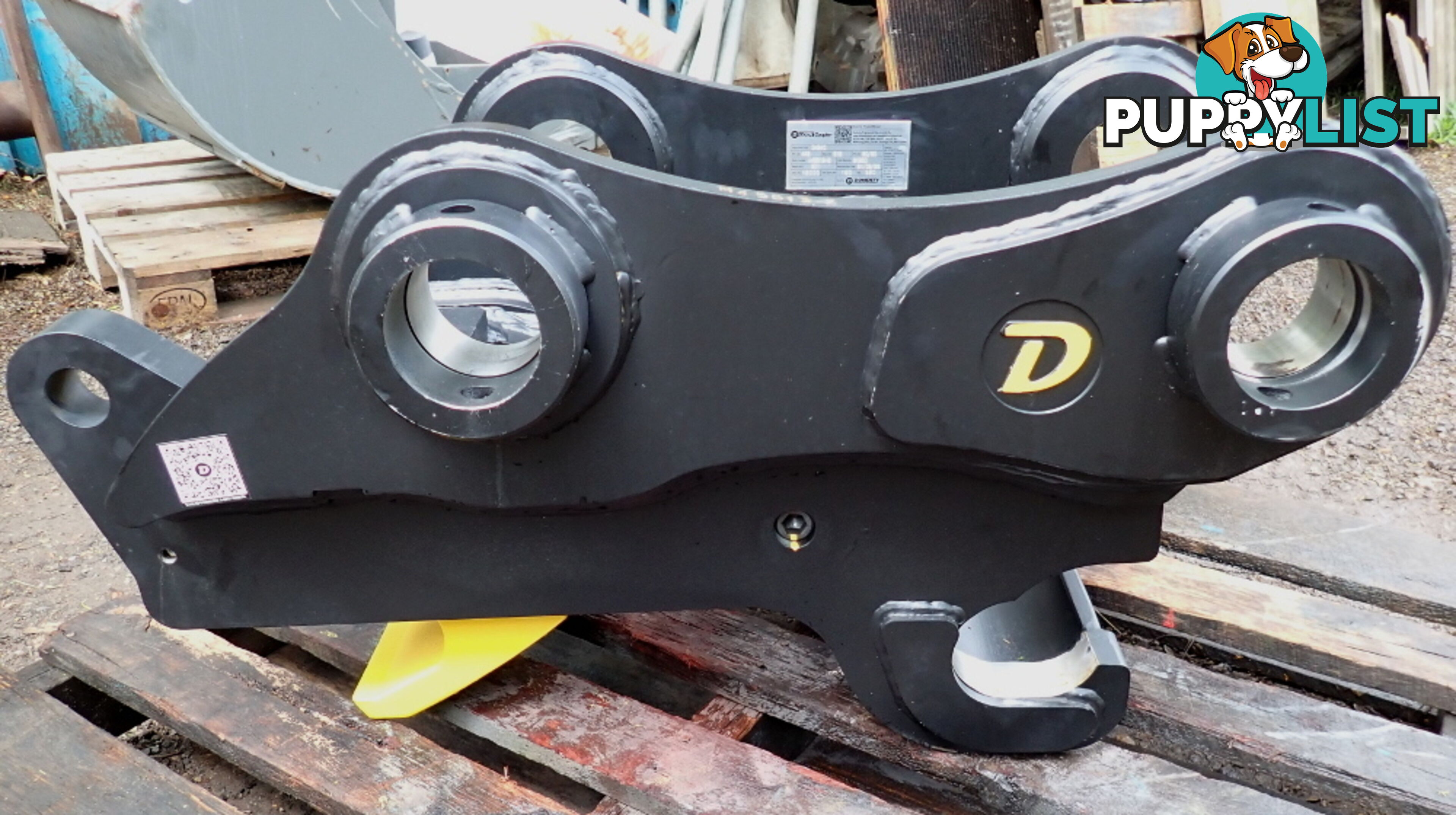

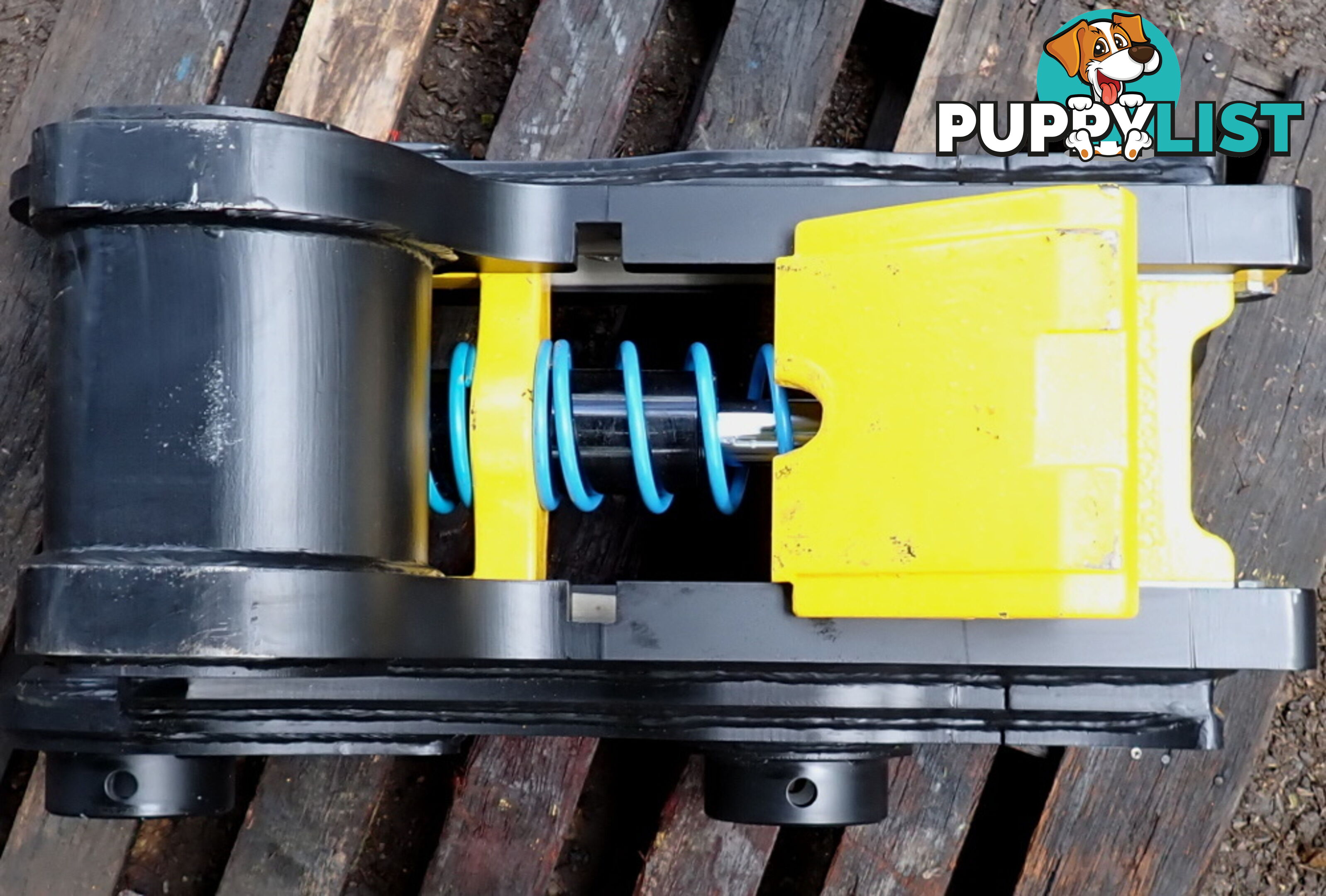

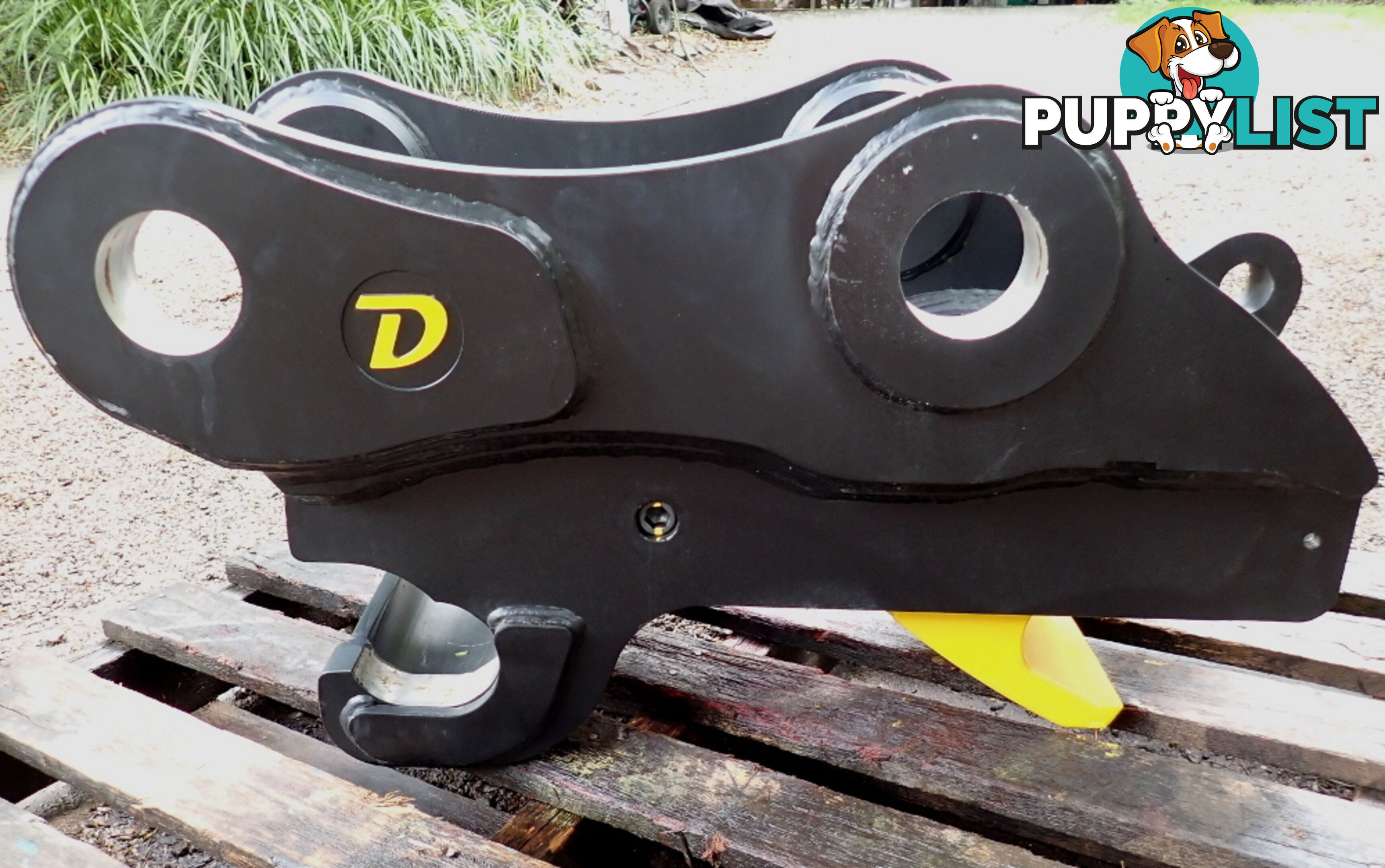

90mm pin Hitch grabs 80 & 90mm buckets, New Doherty D-Lock Quick Hitch

DESCRIPTION

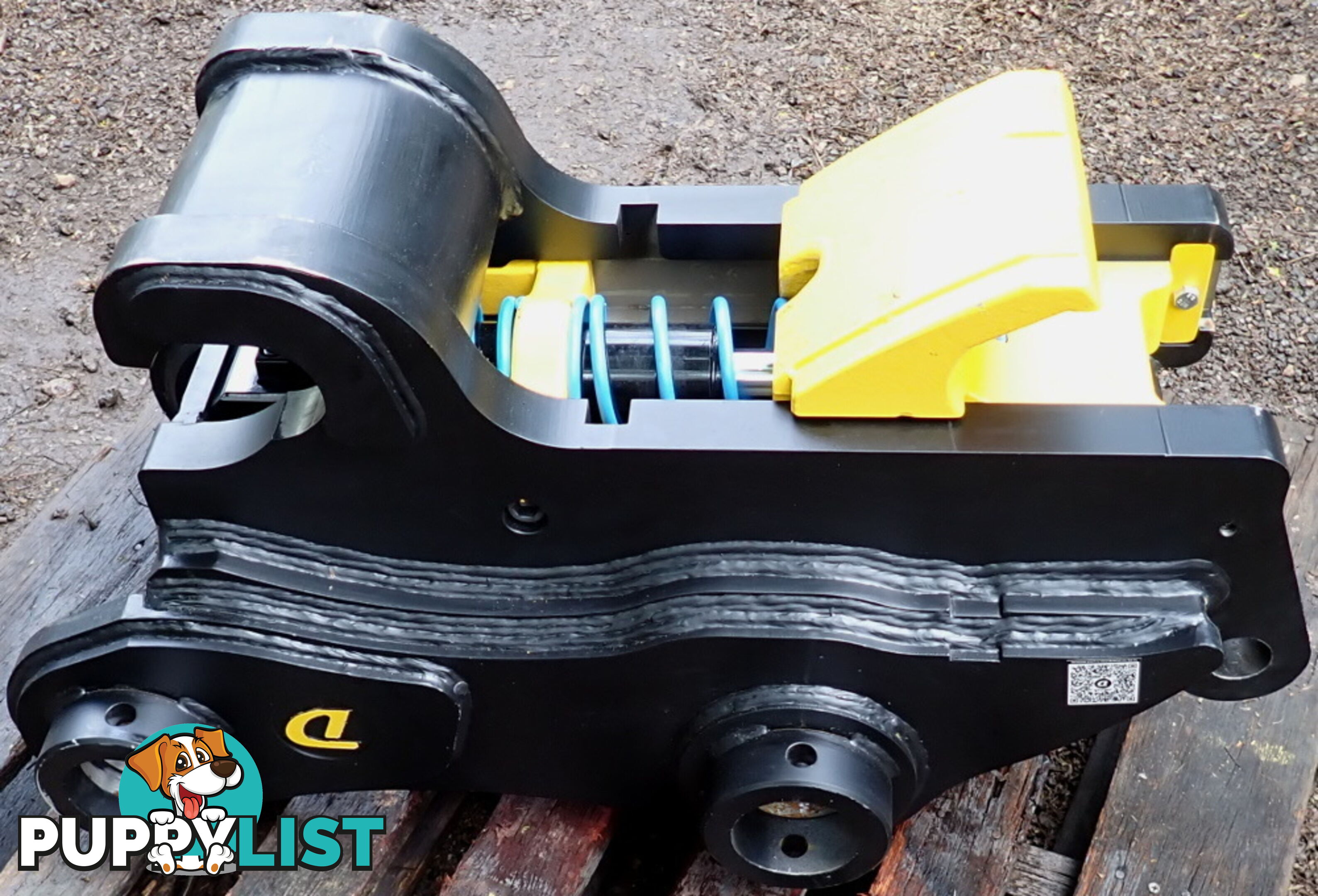

New Doherty D-Lock Excavator Hydraulic Quick Hitch Coupling to suit 20-36 Ton machines. 90mm pin machine can pickup both 80mm & 90mm pin attachments!

D-Lock Quick Coupler, Fully Automatic with Dual Pin Locking (no need to leave the cab to remove / re-insert the safety pin).
This is a Multi Pin Center pickup hitch so it can grab buckets used on other machines with a 438mm-521mm Pin Center to Pin Center range.

Very low profile & light weight.

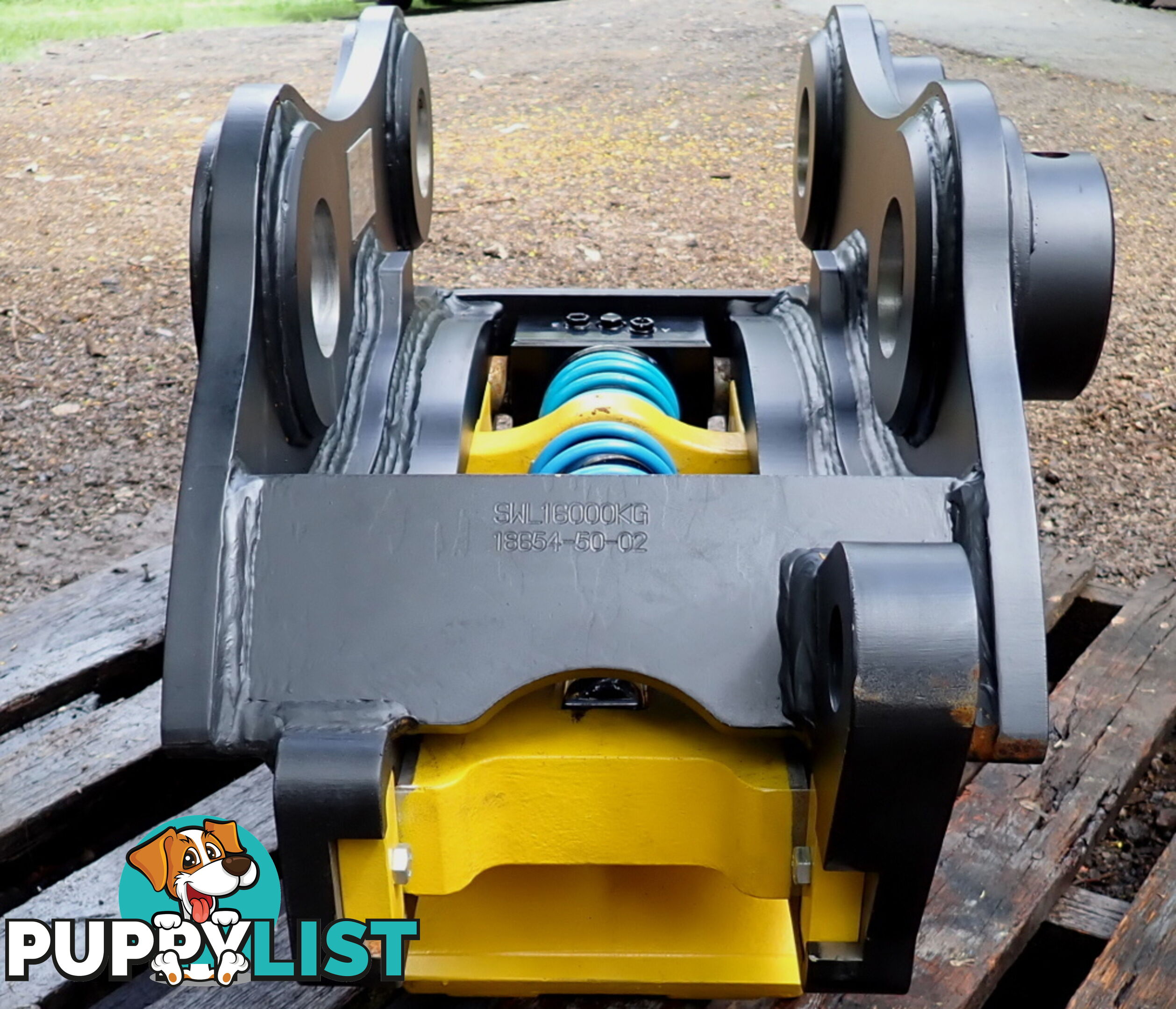

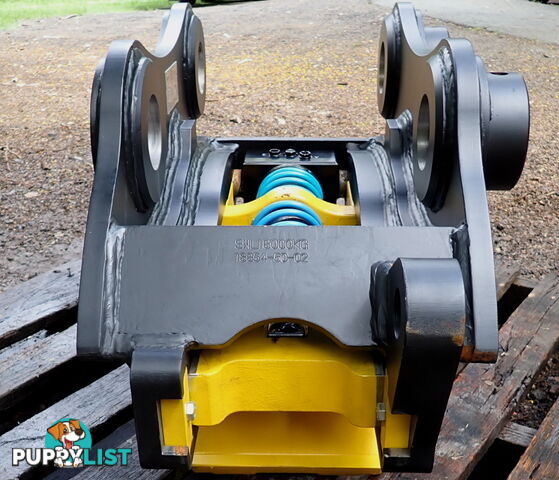

Lifting Eye rated: SWL 16,000kg.

Well Engineered & Made in New Zealand by Doherty Couplers and Attachments: https://www.dohertydirect.net

*** Pin Setup (where your Dipper Arm goes in):
* Pin Diameter: 90mm.
* Pin Center to Pin Center (CtoC): 500mm.
* Between The Ears (BTE): 327mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 360mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
* Hitch will fit onto these machines:
*
* Should fit: Case CX240 / CX290, Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8.
* Maybe fit: JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300HD-6 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5 and possibly other machines with similar pin spacings.

*** Pin Setup (where the Hitch goes in your bucket):
* Pin Diameter: will pickup either 80mm or 90mm pin attachments.
* Pin Center to Pin Center (CtoC): Variable Distance Pickup: 80mm pin = 438mm-521mm, 90mm pin = 443mm-516mm.
* Between The Ears (BTE): 322mm (your buckets need at least this much width between the ears).
*
* Pickup 80mm pin buckets from these machines:
*
* Case 9021 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320 w/B Link / 320B w/B Link / 320B w/C Link / 320C w/C Link / 320D w/B Link / 321 / 321 w/Mass Linkage / 322B w/B Link / 322C w/B Link / 322C w/Reach Linkage / 324D w/Reach Linkage / 325B w/C Link / 325C w/Reach Linkage / 325C w/C Link / 330C / 330D w/Long Linkage / E300 Series / B Family Linkage / C Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / DX255 / DX255LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 & LC / 210 / 225US LC / 225USR, Hyundai R210LC-7, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, John Deere 200C LC / 200D LC / 225C LC RTS, Kato 820, Kobelco 200SRLC / SK200 / SK210LC / SK210LC-VI, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC228USLC-1 / PC228USLC-2 / PC228USLC-3 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PC290 / PW210, Link-Belt 210LX / 225SA / 2800 QUANTUM, LiuGong 922 / 925, New Holland EH215LC, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Sumitomo SH200 / SH200-2 / SH200-3 / SH200LC / SH200LC-3 / SH210-5 / SH215U-1 / SH215X-1 / SH225X-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / ECR235C / EW230C / MX225LS / SE210LC-3.
*
* Pickup 90mm pin buckets from these machines:
*
* Case CX240 / CX290, JCB JS240 / JS240LC (XO Machines) / JS260 / JS260LC (XO Machines), Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300HD-6 / PC300LC-7 / PC308USLC-3 / PC340 / PC350 / PC360, Link-Belt 240LX / 290LX / 3400 QUANTUM / 3900 QUANTUM, Sumitomo SH220 / SH220-2 / SH220-3 / SH220LC / SH240 / SH290 / SH300-5.

Dimensions: 977mm long, 495mm wide, 520mm high. Weight: 318kg.

Call if you would like to discuss or to come
