Demolotion and Sorting Grabs

DESCRIPTION

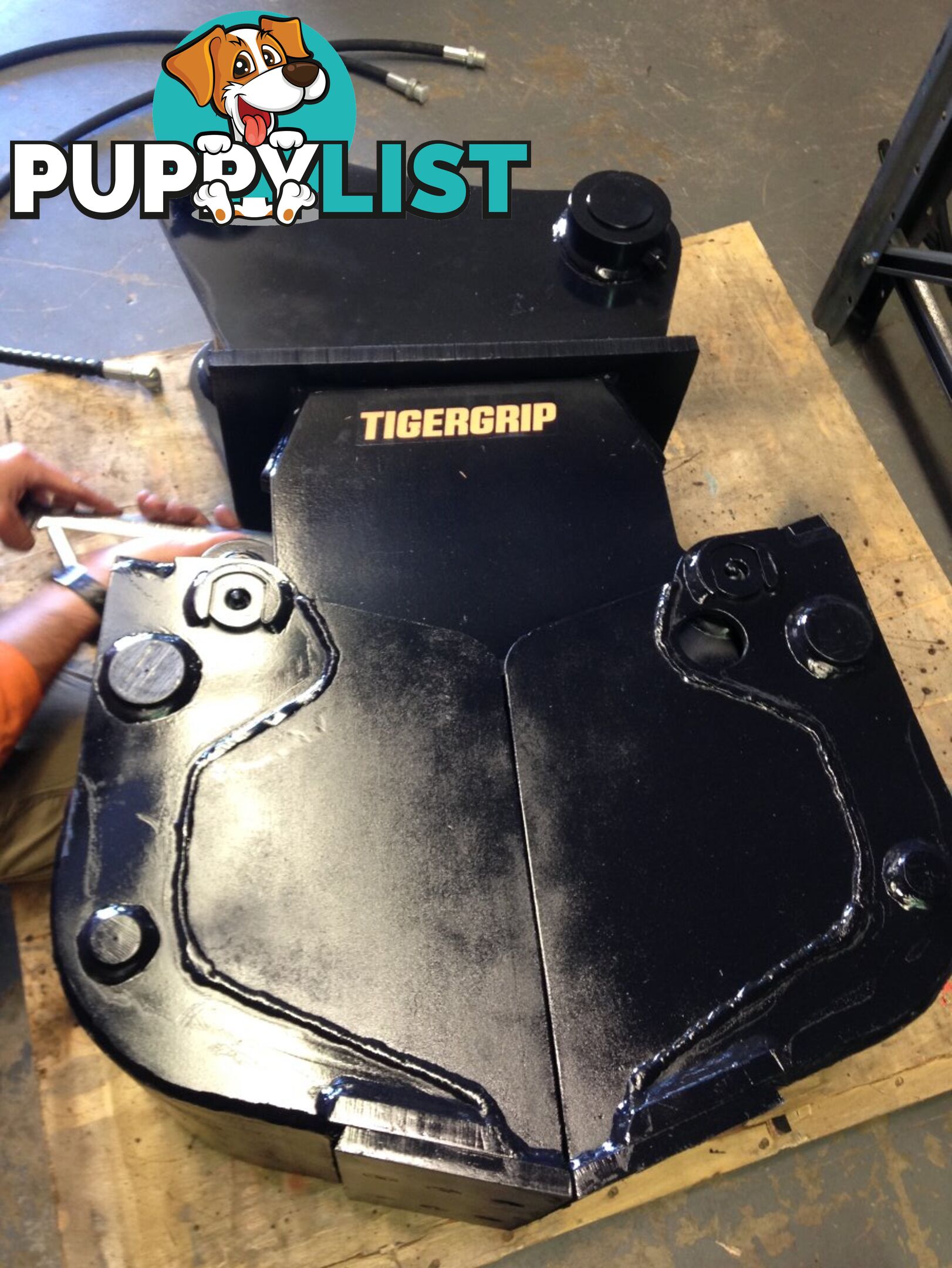

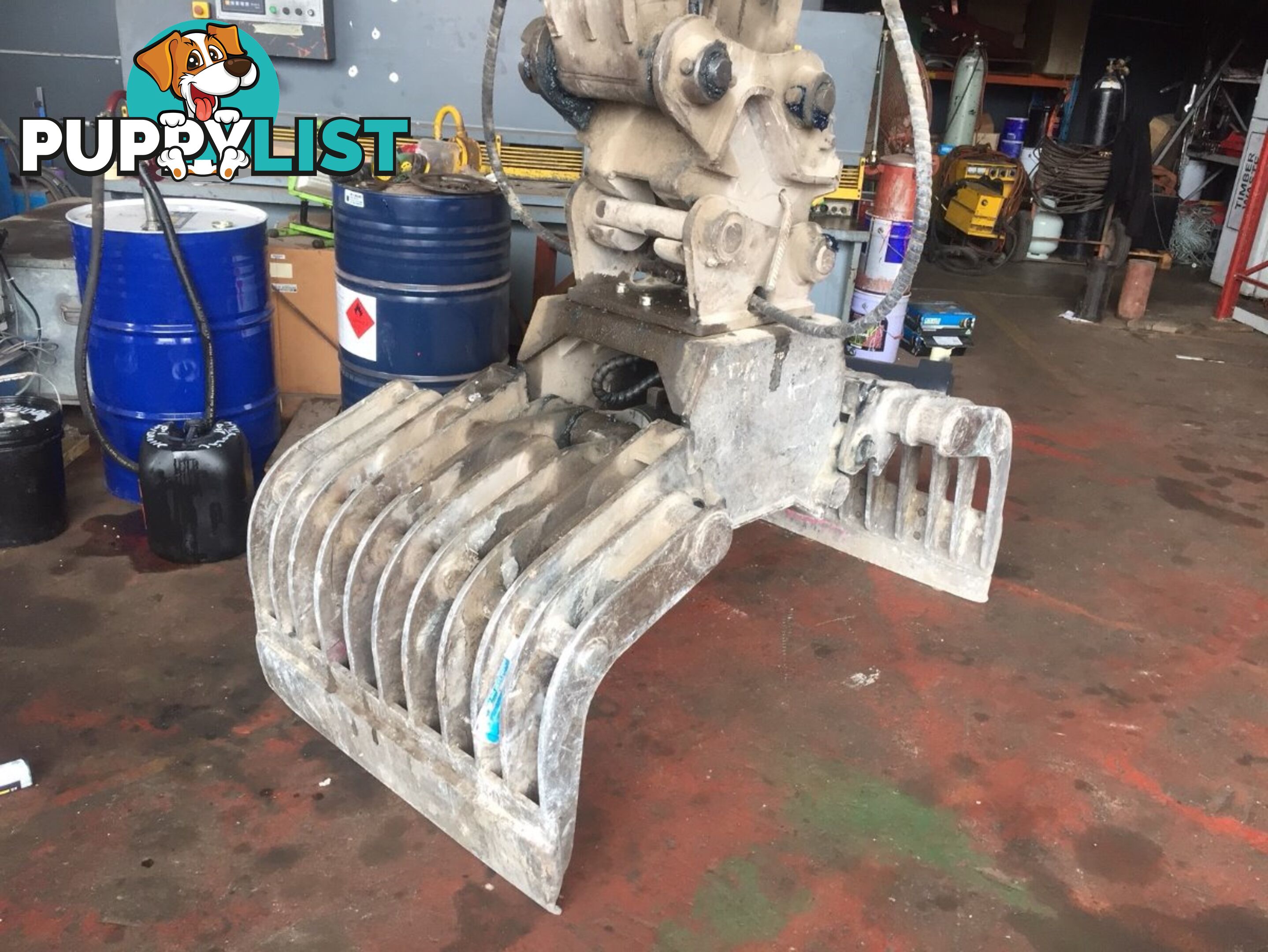

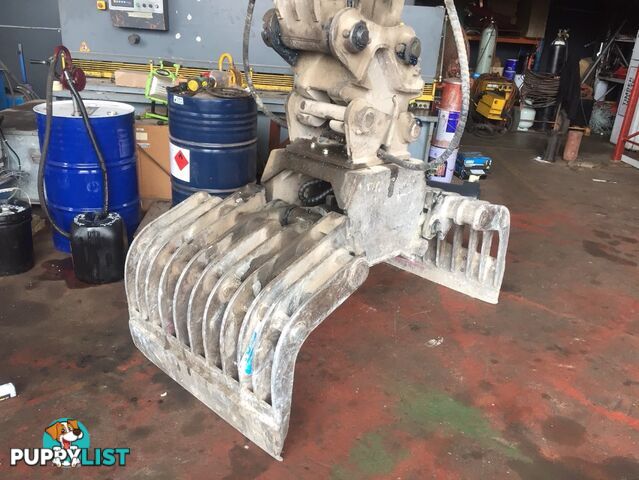

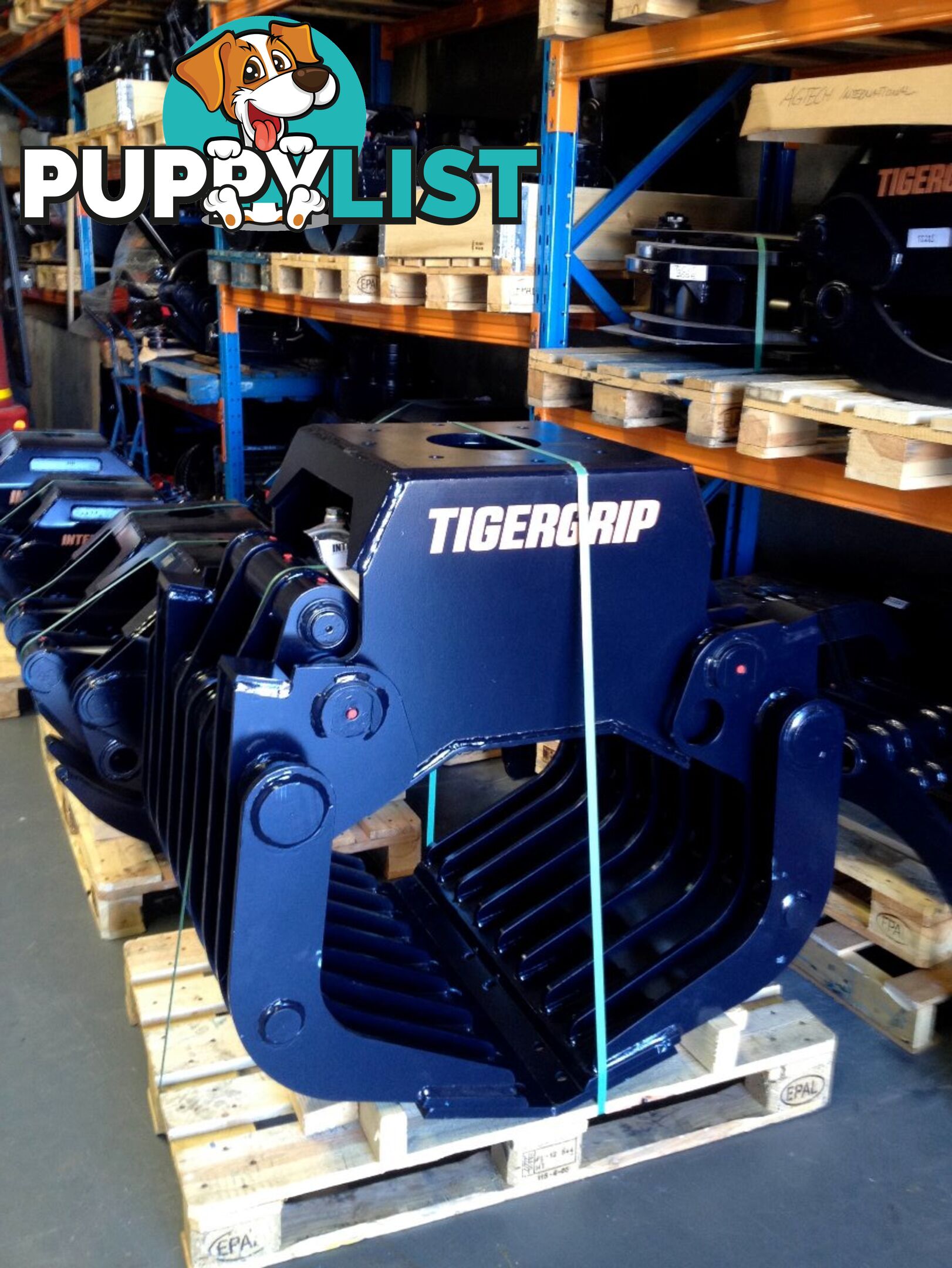

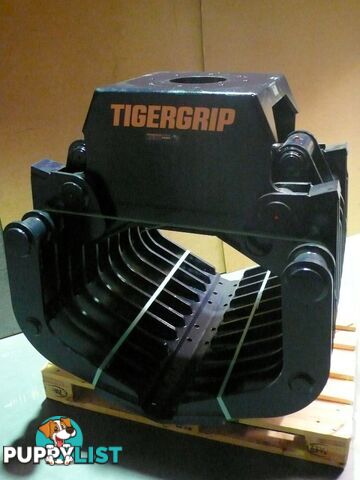

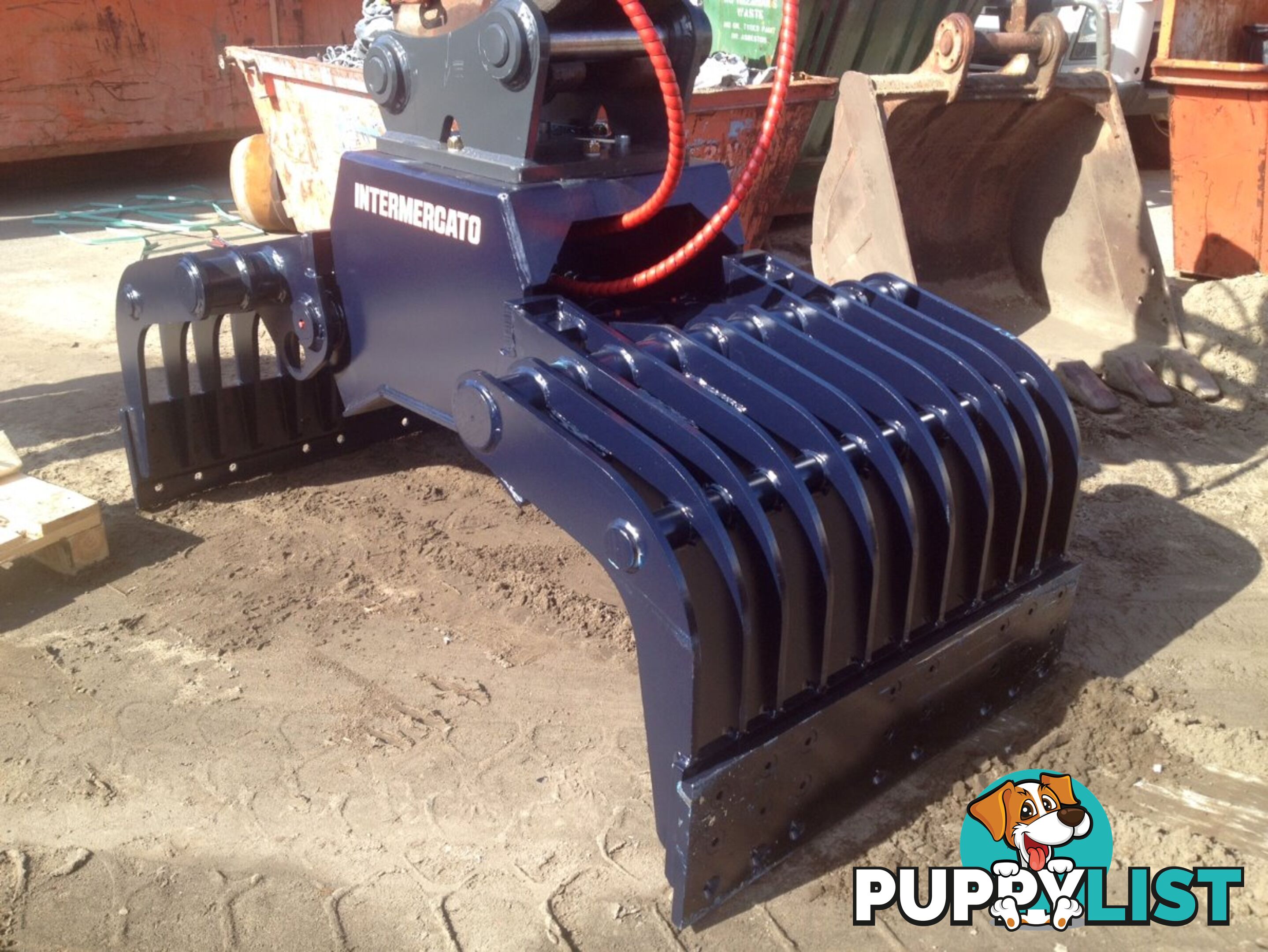

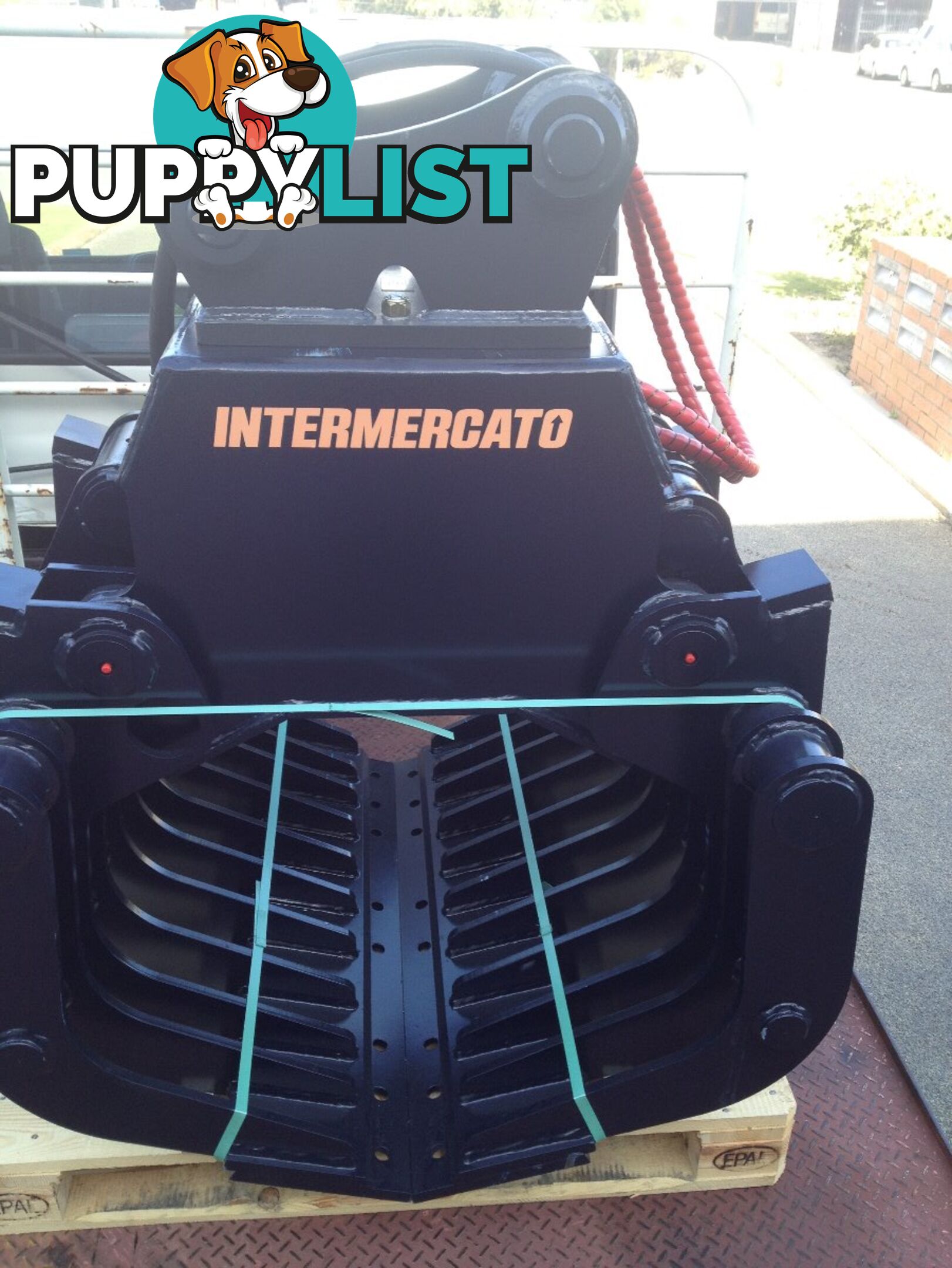

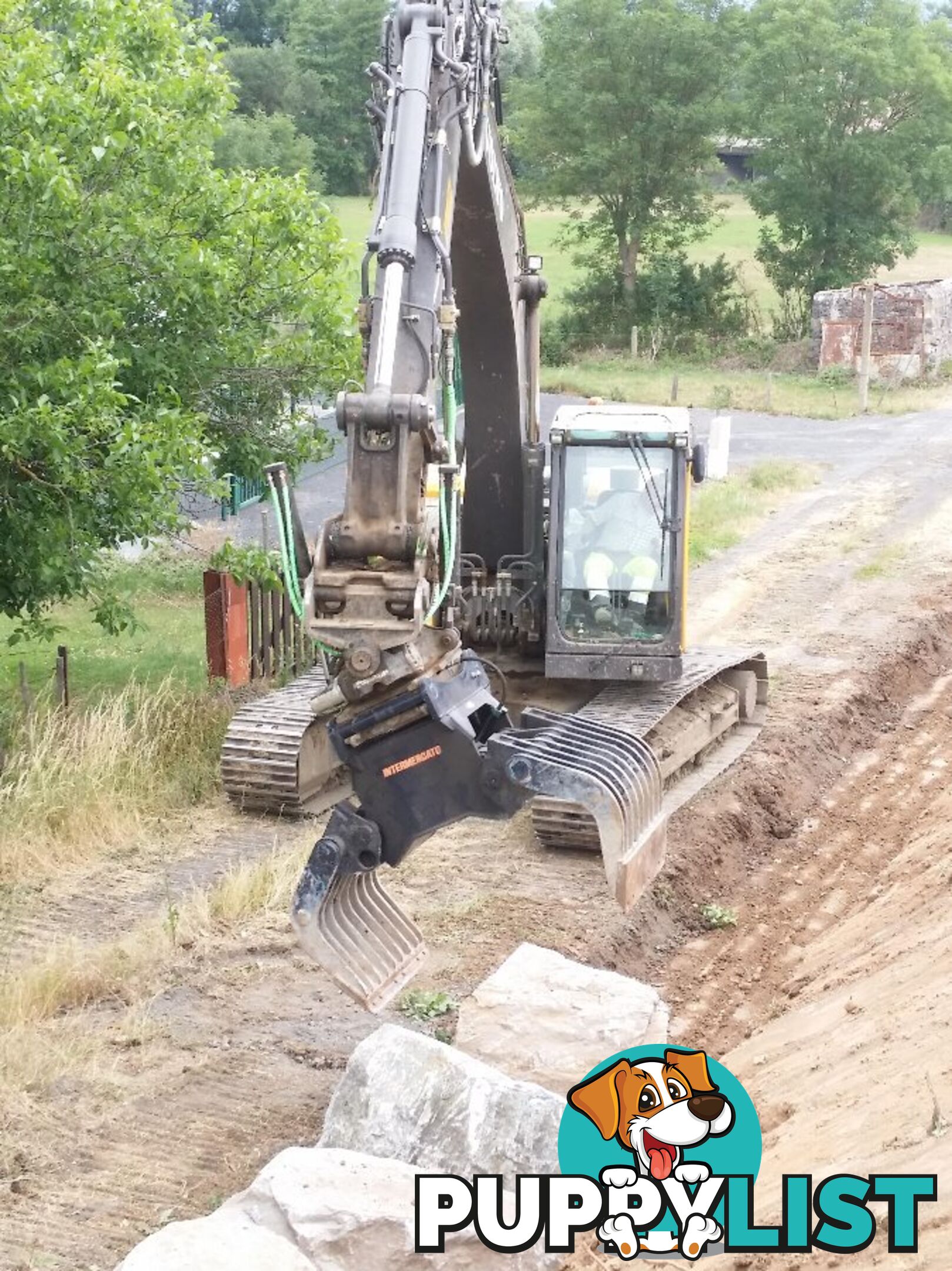

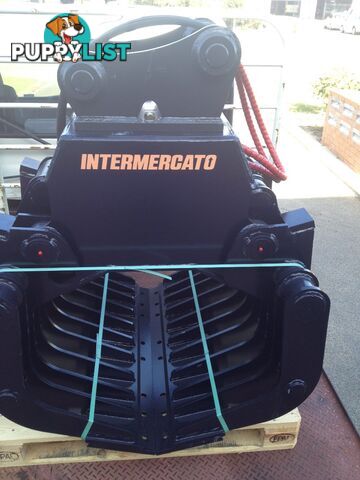

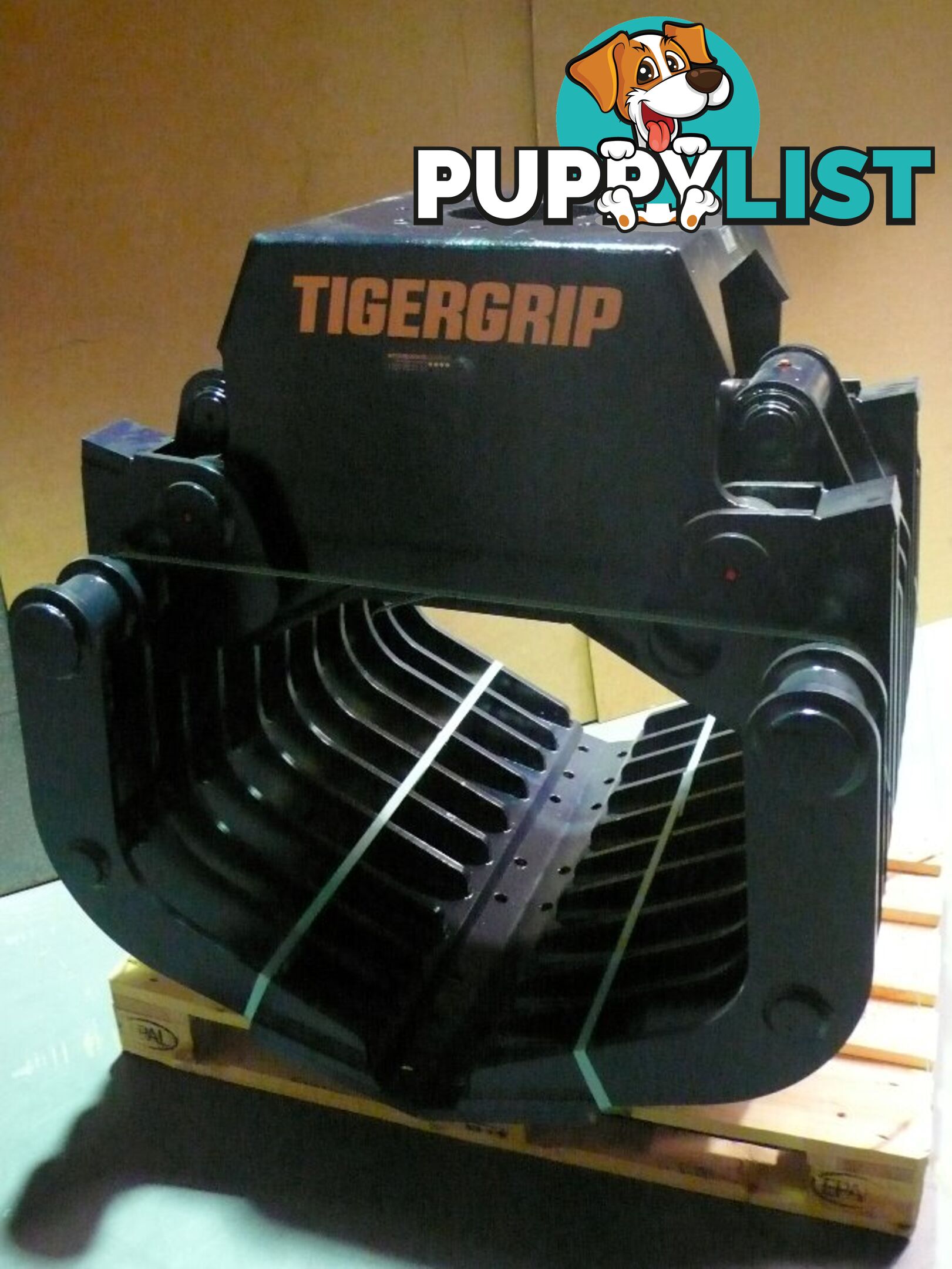

Demolition and Sorting Grabs come standard with a fixed mount and generally with an optional heavy duty rotator.

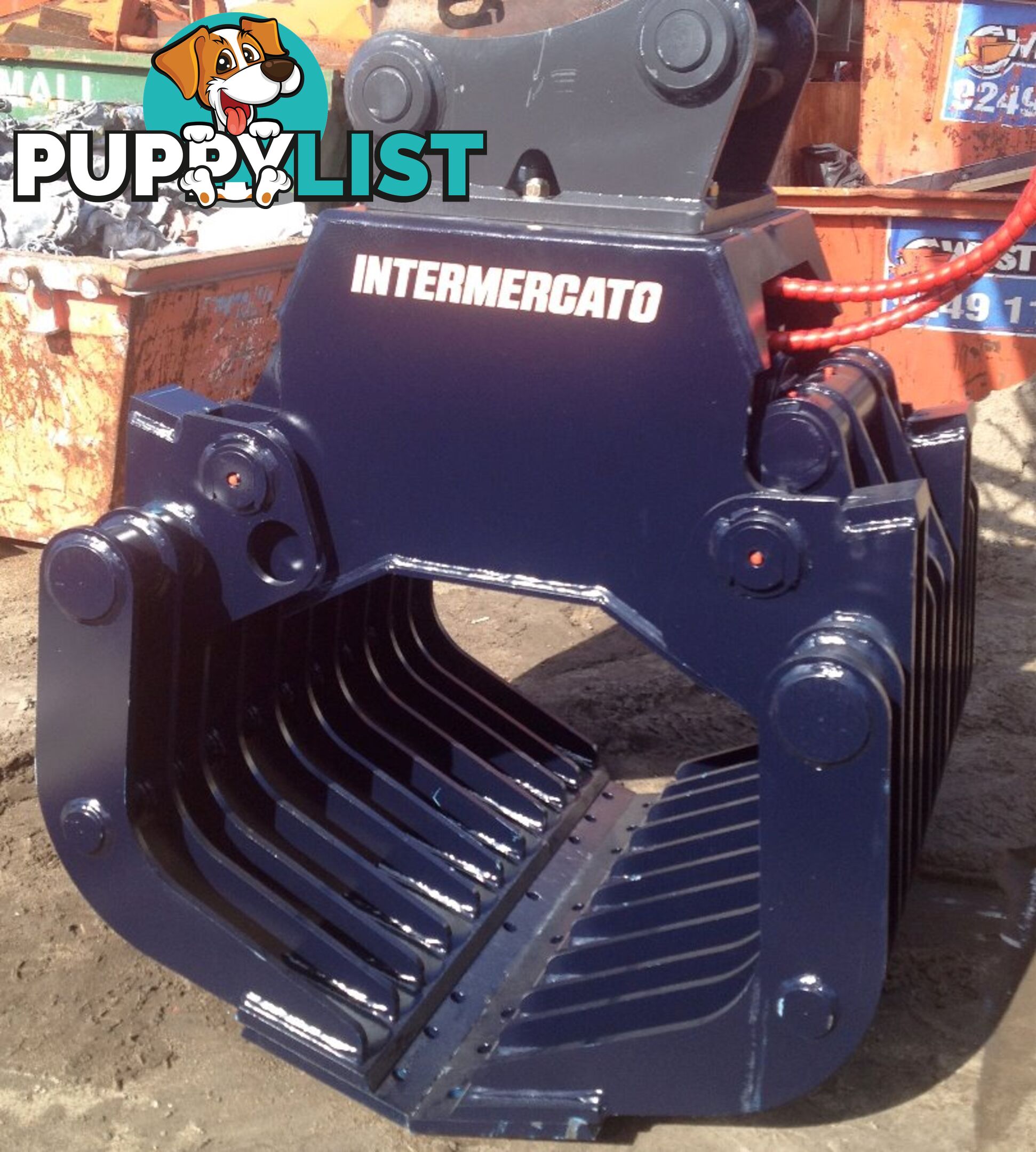

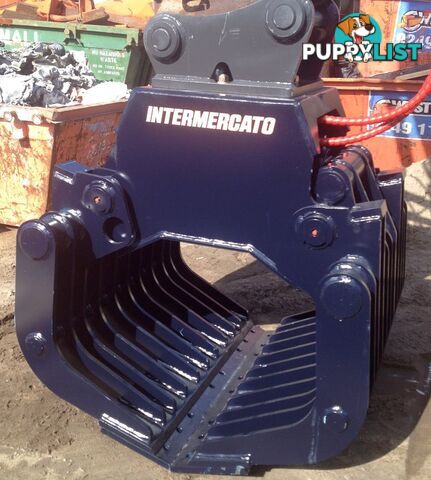

Demolition grabs are designed to hold a variety of construction materials. Intermercato Demolition Grapples are suited to heavy duty excavators from 6 tonne to over 30 tonne operating weight.

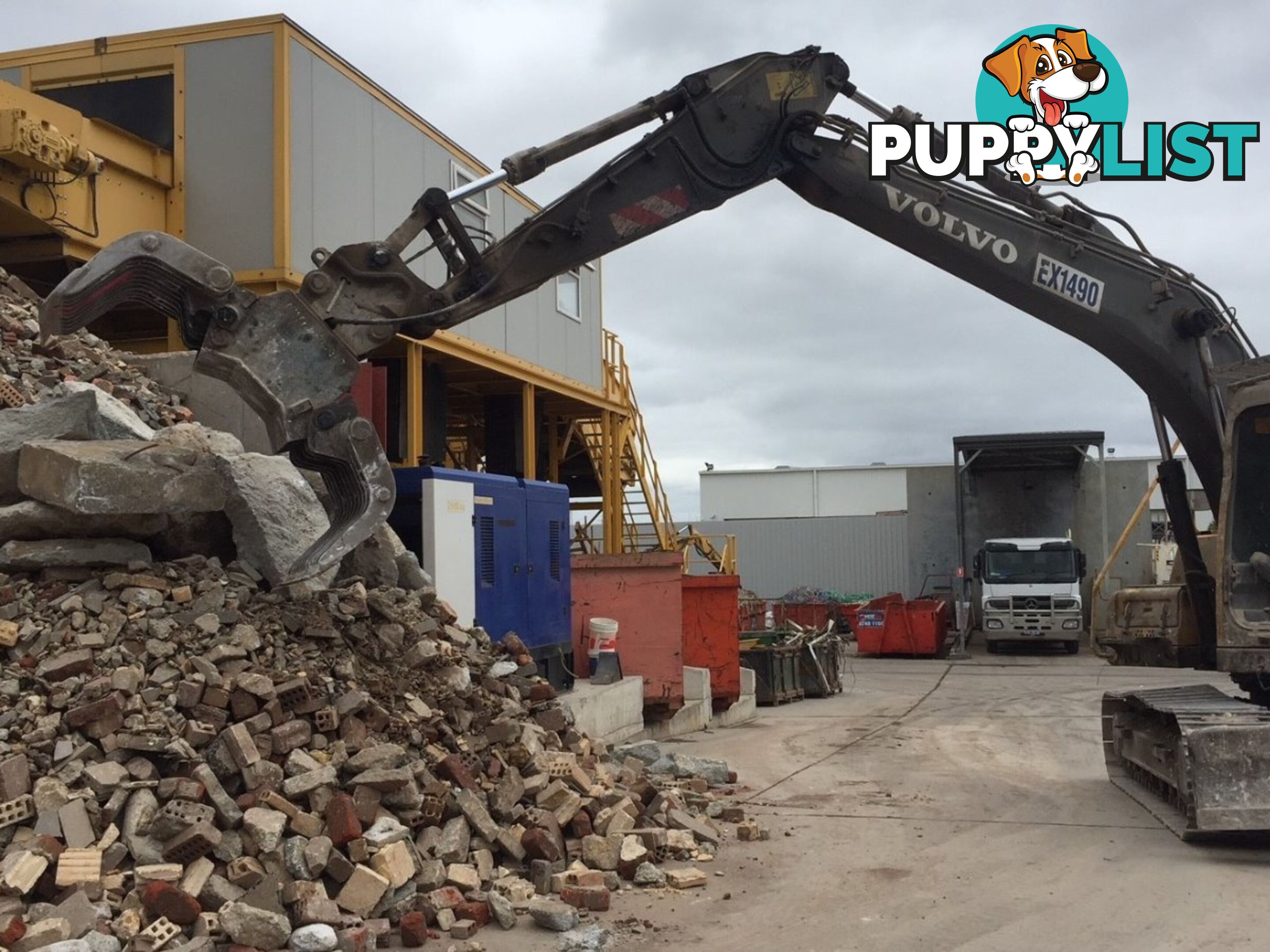

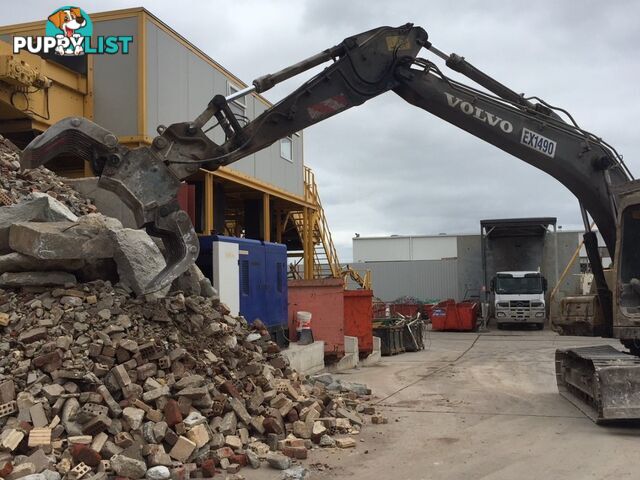

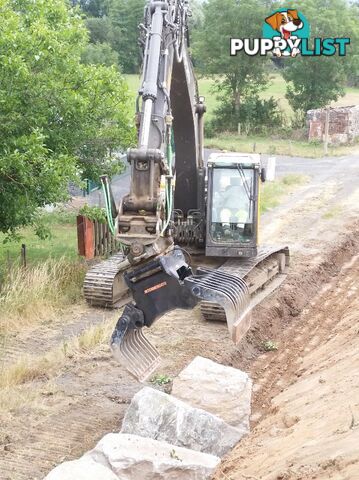

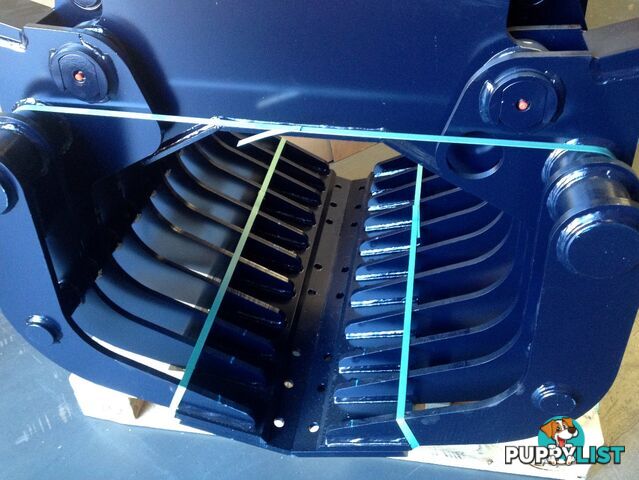

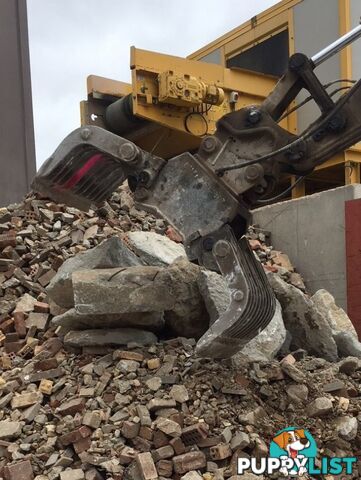

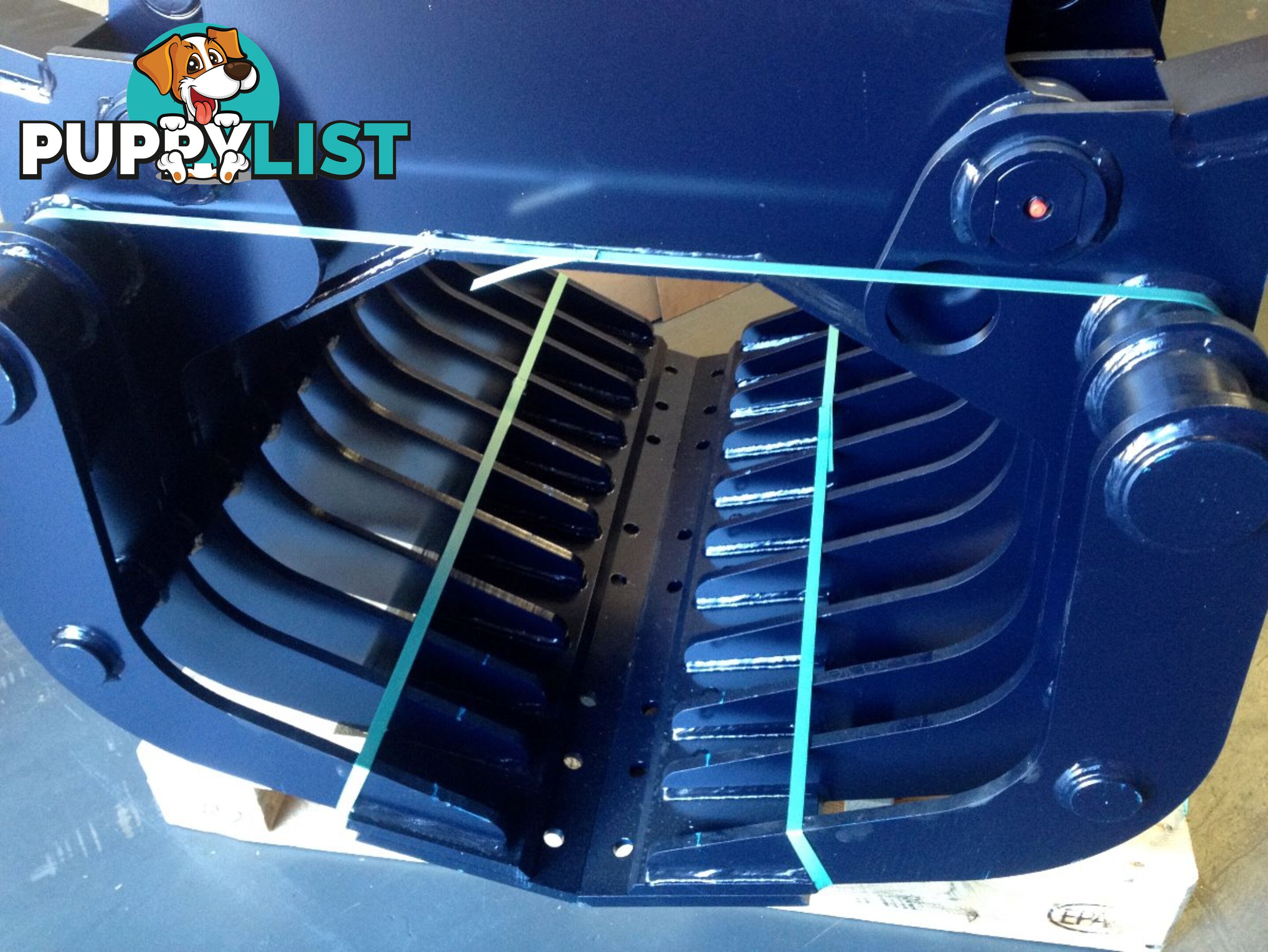

Demolition Grabs generally come standard with a fixed mount to allow the excavator to put its whole weight onto the grapple to tear buildings down fast for maximum productivity and efficiency. The wide jaws allow gripping of large surfaces and an all-hardox construction means its your grapple is going to last. Bolt on cutting edges allow minimum downtime when they need refacing.
Demolition and Sorting Grabs are the choice when only the toughest grapple will do.

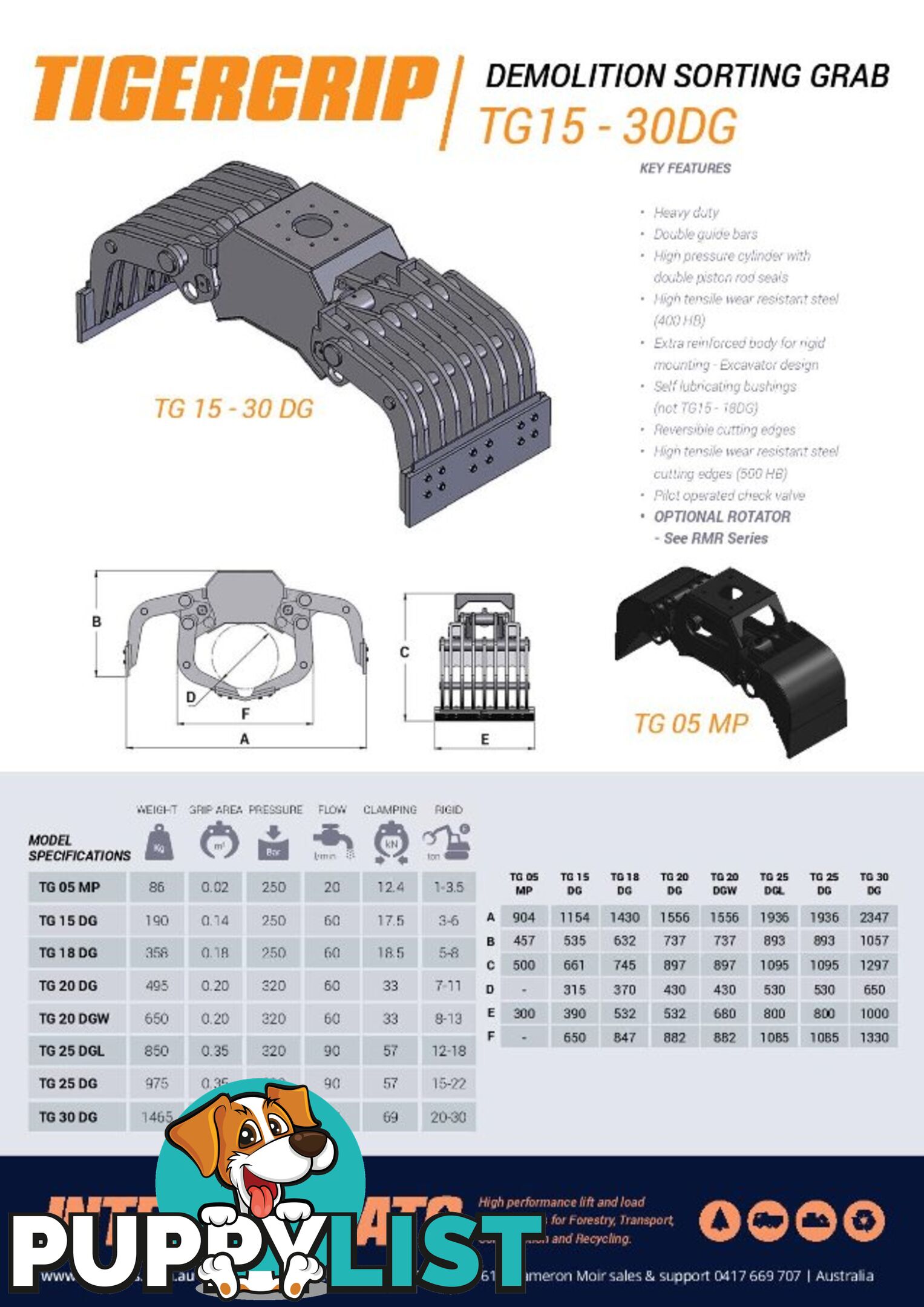

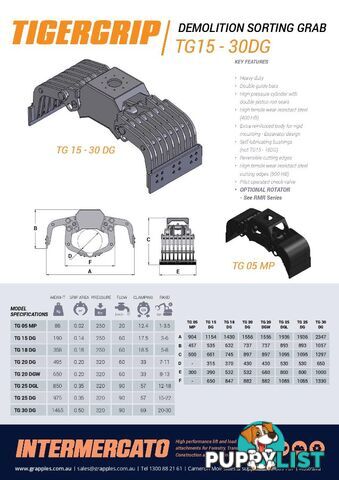

TG05MP Weight:86kg Excavator weight:1-3.5tonne Opening width:904mm
TG15DG Weight:190kg Excavator weight:3-6tonne Opening width:1154mm
TG18DG Weight:358kg Excavator weight:5-8tonne Opening width:1430mm
TG20DG Weight:495kg Excavator weight:7-11tonne Opening width:1556mm
TG20DGW Weight:650kg Excavator weight:8-13tonne Opening width:1556mm
TG25DGL Weight:850kg Excavator weight:12-18tonne Opening width:1936mm
TG25DG Weight:975kg Excavator weight:15-22tonne Opening width:1936mm
TG30DG Weight:1465kg Excavator weight:20-30tonne Opening width 2347mm
All Demolition and Sorting Grabs have the following features:

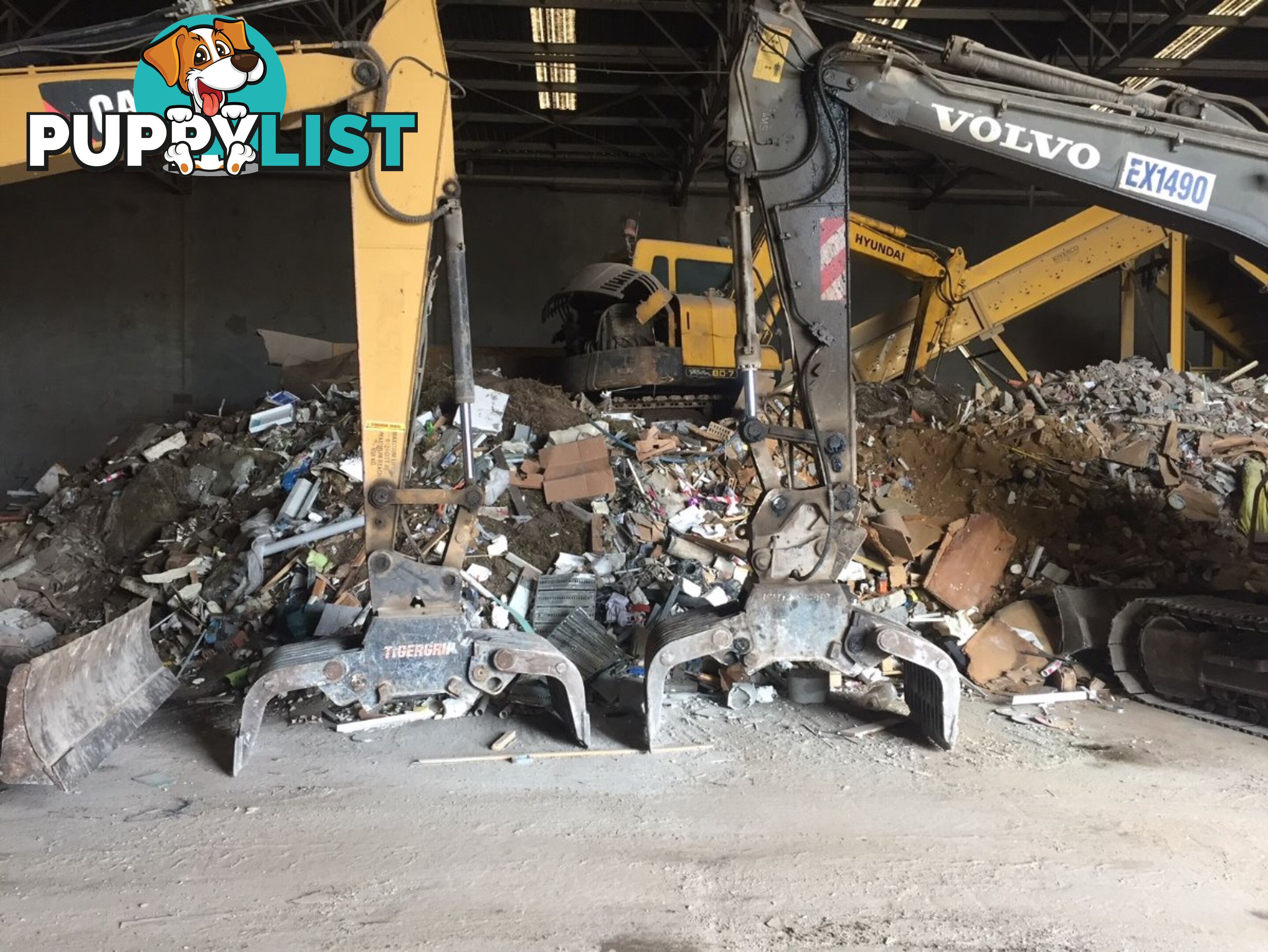

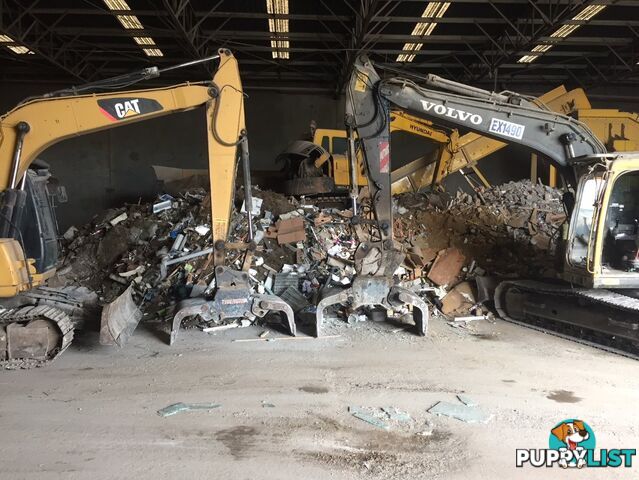

Fast sorting as material is picked up on the cutting edges - no need to fully close each time.

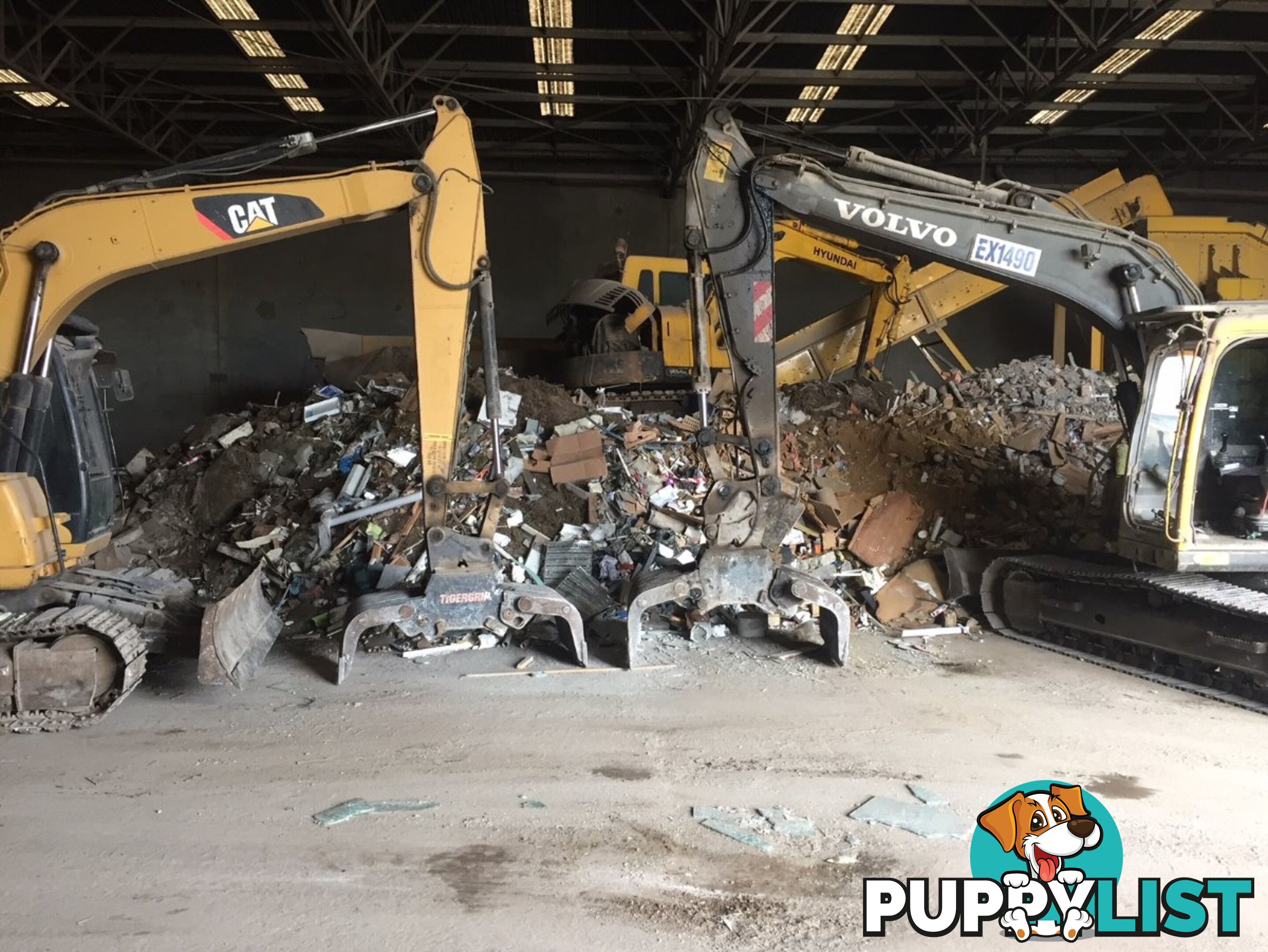

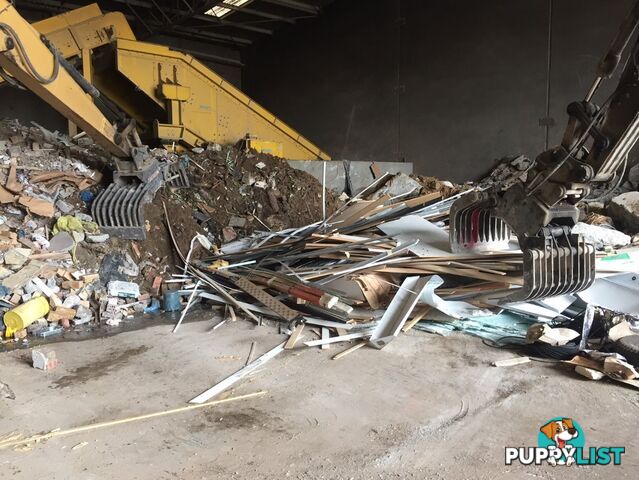

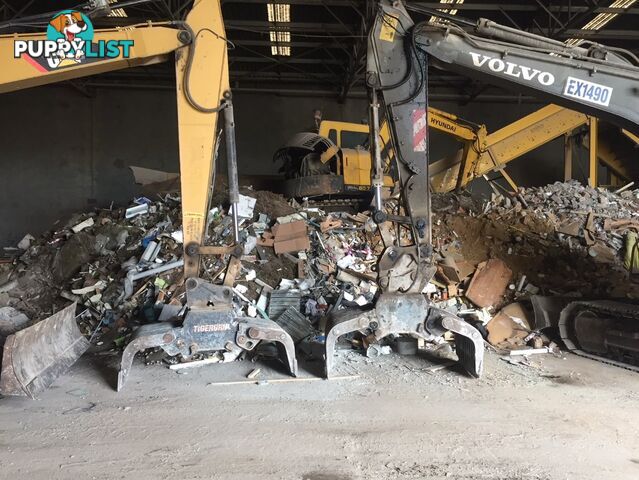

Perfect for sorting out mixed materials, concrete blocks and even small pieces of metal.
Belly plate to protect cylinder underneath - designed for minimum downtime.
Every pin greaseable with protected grease nipples - designed for a long life.
High clamping forces with oversized pistons - allows secure gripping of any load.
Excellent wide opening geometry allowing rapid productivity.
All excavator series made from the highest quality steel available - HARDOX.
Built by a company specializing in excavator grabs and grapples for over 20 years.
Safest loading on the market with overcentre valves as standard.
