New 15-32 ton (80mm pin) Excavator Ripper suit Daewoo, Doosan, Komatsu, Samsung, Terex, Volvo etc.

DESCRIPTION

New SDCH Excavator Ripper, suit 15-32 Ton machines.

Great for ripping up tree roots, breaking up rock and loosening rocky ground, tarmac, paved areas etc.

This is a strong, well engineered & reinforced Ripper with a solid 80mm thick shank and an extra Wear Shield (in black) welded around the shank making that section 117mm thick.

There is a 2nd Tooth Retainer Pin hole if you prefer to fit a larger and longer tooth.

There is also a front lifting hook.

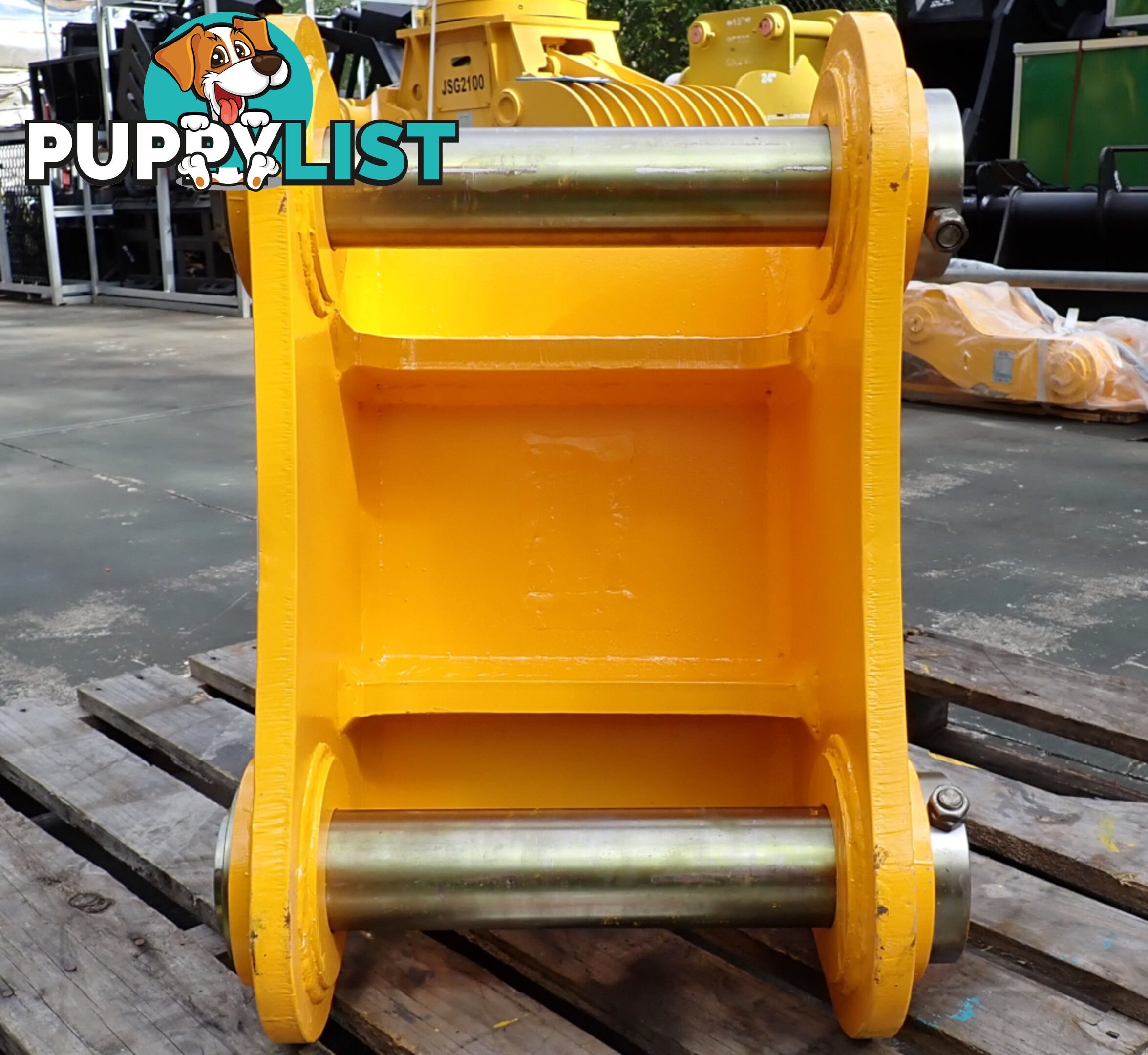

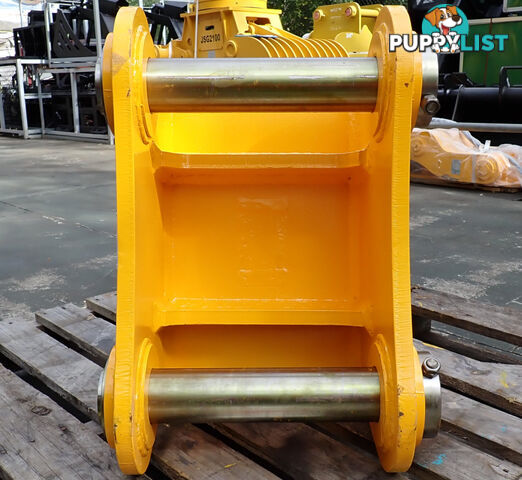

*** Current Headstock Configuration:
* 80mm Pin Diameter
* 460mm Pin Center to Pin Center (CtoC)
* 330mm Between the inside Ear Bosses (which can be shaved back up to 350mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case 9021 / CX210 / CX210B / CX225SR, Caterpillar 318B L / 320 / 320B w/B Link / 320D w/B Link / 321 / 322B w/B Link / 322C w/B Link / 324D w/Reach Linkage / 330C / 330D w/Long Linkage / B Family Linkage, Daewoo Solar 170LC-V / 170W-3 / 175LC-V / 200W-3 / 200W-V / 220LC-V / 225LC-V / 225NLC-V / 225SLR / 250LC-V / 255LC-V, Doosan DX180LC / DX180LC-3 / DX180W-3 / DX190W / DX210W / DX225 / DX225LC-3 / S175LC-V / S180W-V / S210W-V / S225LC-V / S255LC-V / S470LC-V, Halla HE280, Hitachi EX200 / EX215 / FH200 / FH215, Hitachi Zaxis 200 / 200 LC / 210 / 225US LC / 225USR, Hyundai R210LC-7, JCB JS200 / JS200LC / JS210 / JS220 / JS220LC / JS235, John Deere 200C LC / 200D LC / 225C LC RTS, Komatsu PC200 / PC200 Mighty / PC200-3 / PC200-5 / PC200-6 / PC200-7 / PC200LC-8 / PC210 / PC210-6 / PC220-3 / PC220-5 / PC220LC-6 / PC220LC-7 / PC220LC-8 / PC240 / PC250-6 / PC270 / PC270LC-6 / PC270LC-7 / PC280 / PW210, Link-Belt 210LX / 225SA, LiuGong 922 / 925, Samsung SE210 Early Series / SE210-3 / SE210LC-2 / SE210LC-3, Sumitomo SH200-3 / SH200LC-3 / SH210-5 / SH225X-3, Terex TXC 175LC / TXC 180LC / TXC 225LC / TXC 255LC, Volvo EC210 / EC210B / EC210C / EC220D / ECR235C / ECR235D / EW230C / MX225LS / SE210LC-3.

Maybe fit: Case CX160, Caterpillar 322C w/Reach Linkage / E300 Series, Doosan DX255 / DX255LC-3, JCB JS150LC / JS160 / JS160LC / JS180, Kobelco 200SRLC / SK200 / SK210 / SK210LC / SK210LC-VI / SK235SR, Liebherr 912 / 912 LITRONIC / 922 LITRONIC, Link-Belt 160LX / 160X2 / 2700 QUANTUM / 2800 QUANTUM, New Holland EH215LC, Sumitomo SH150 / SH160 / SH200 / SH200-2 / SH200LC / SH215U-1 / SH215X-1 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

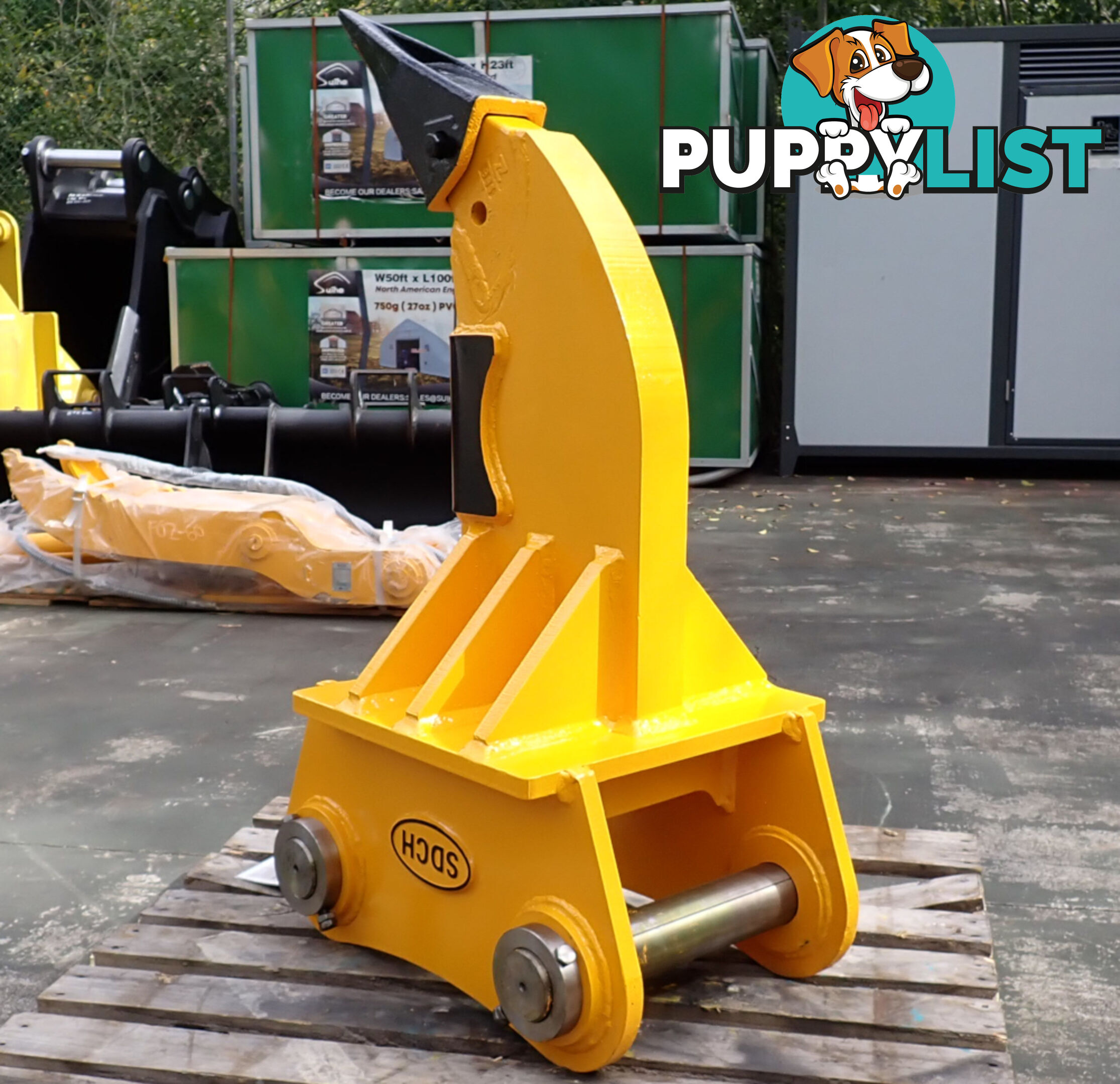

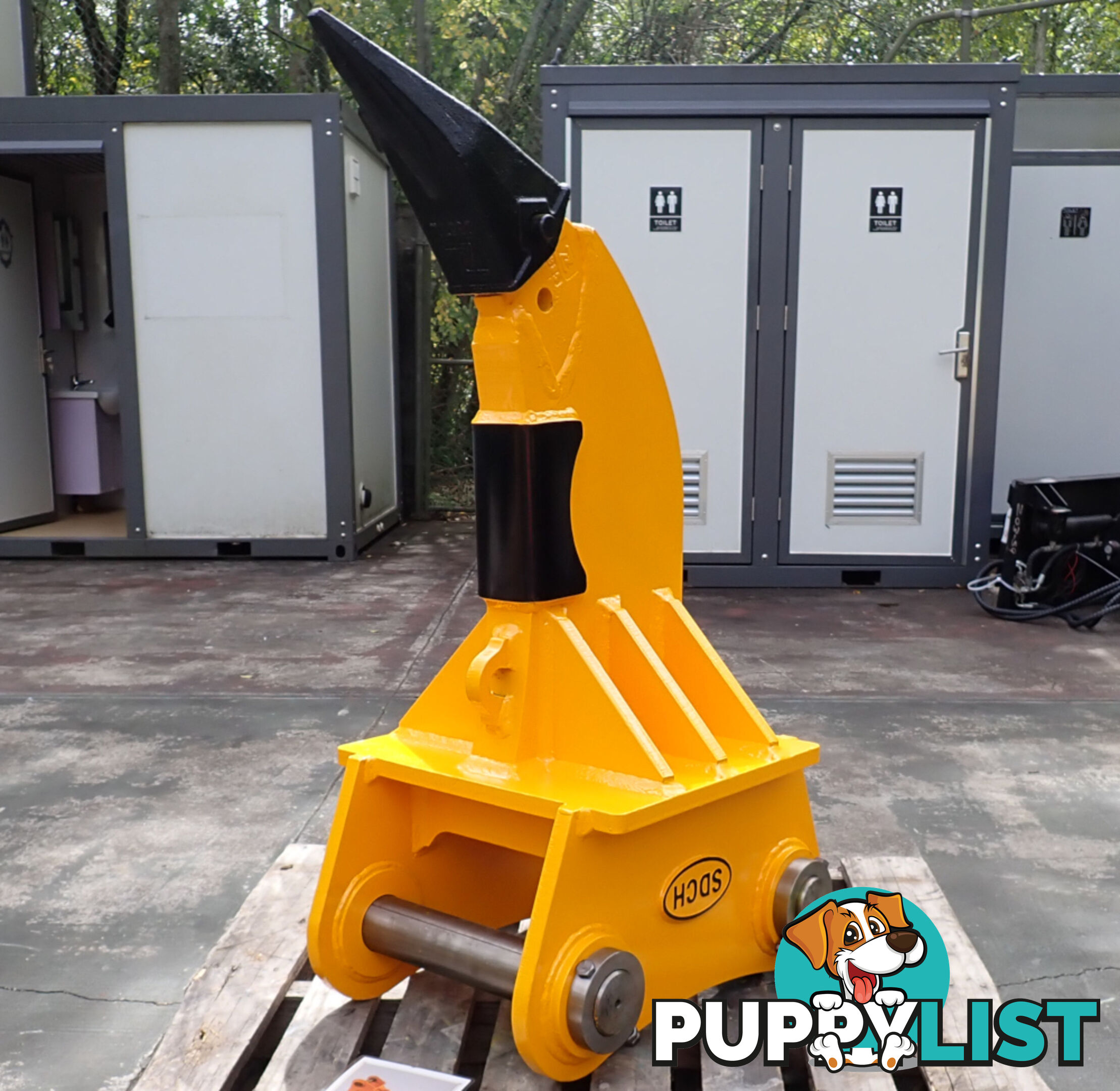

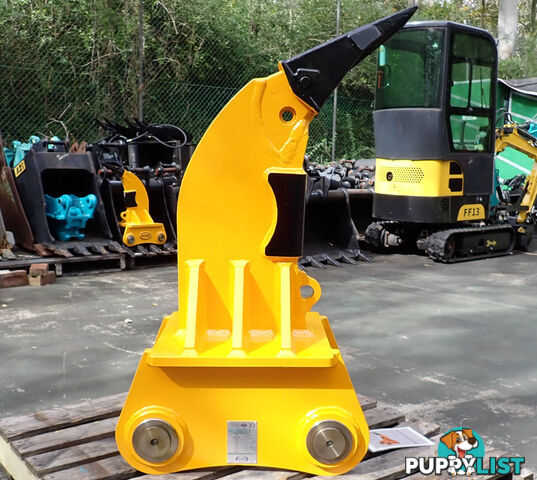

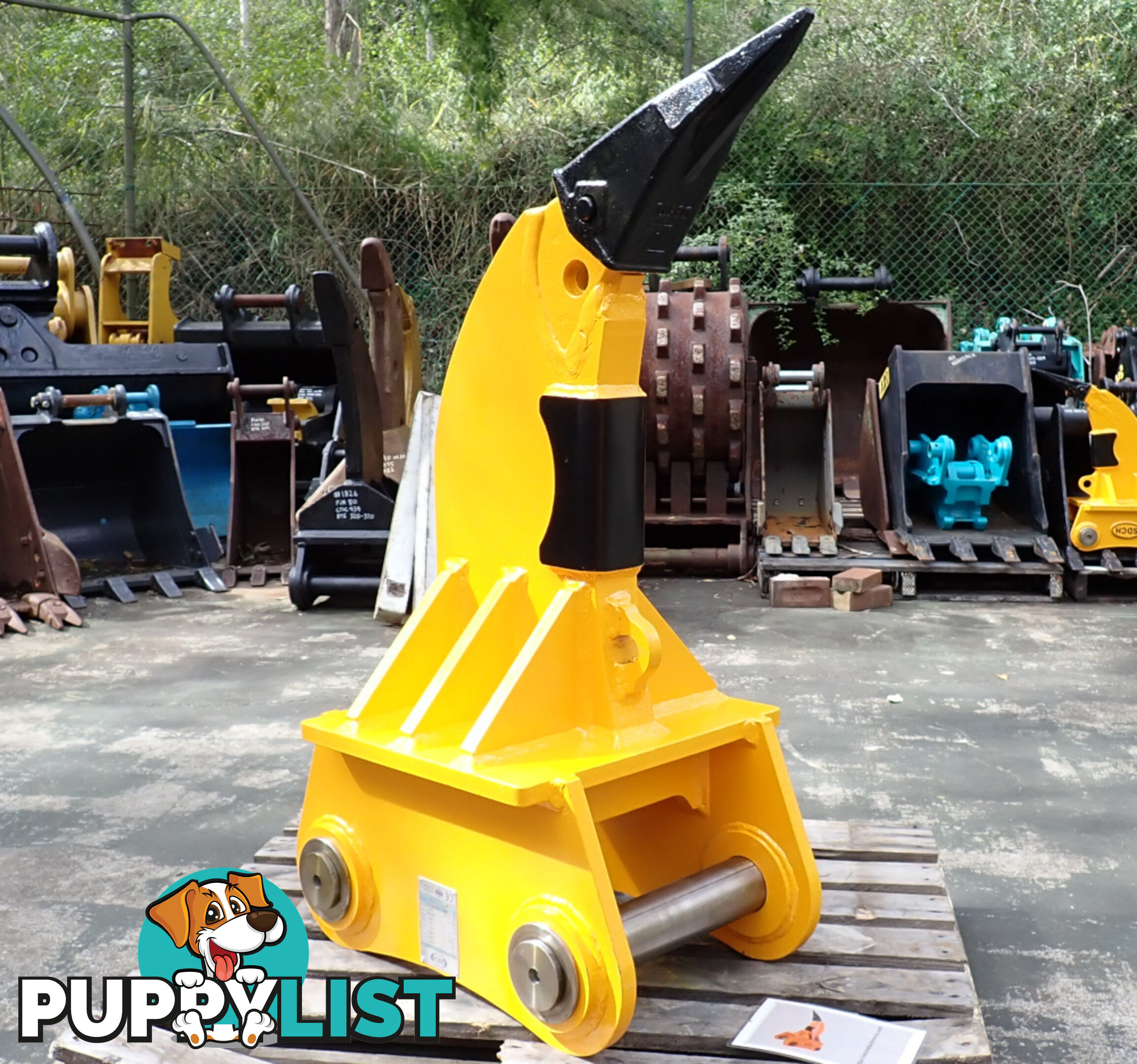

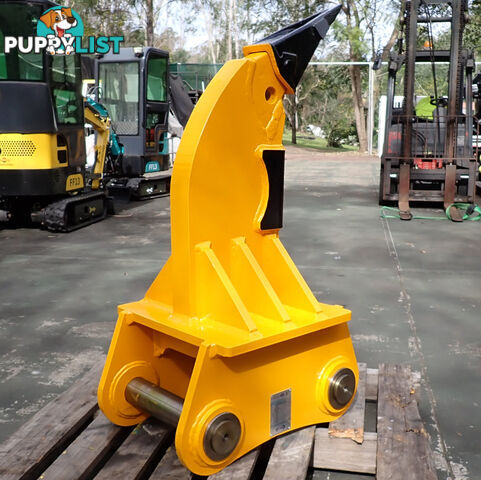

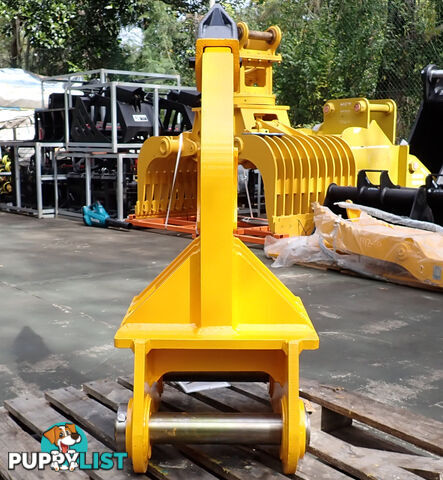

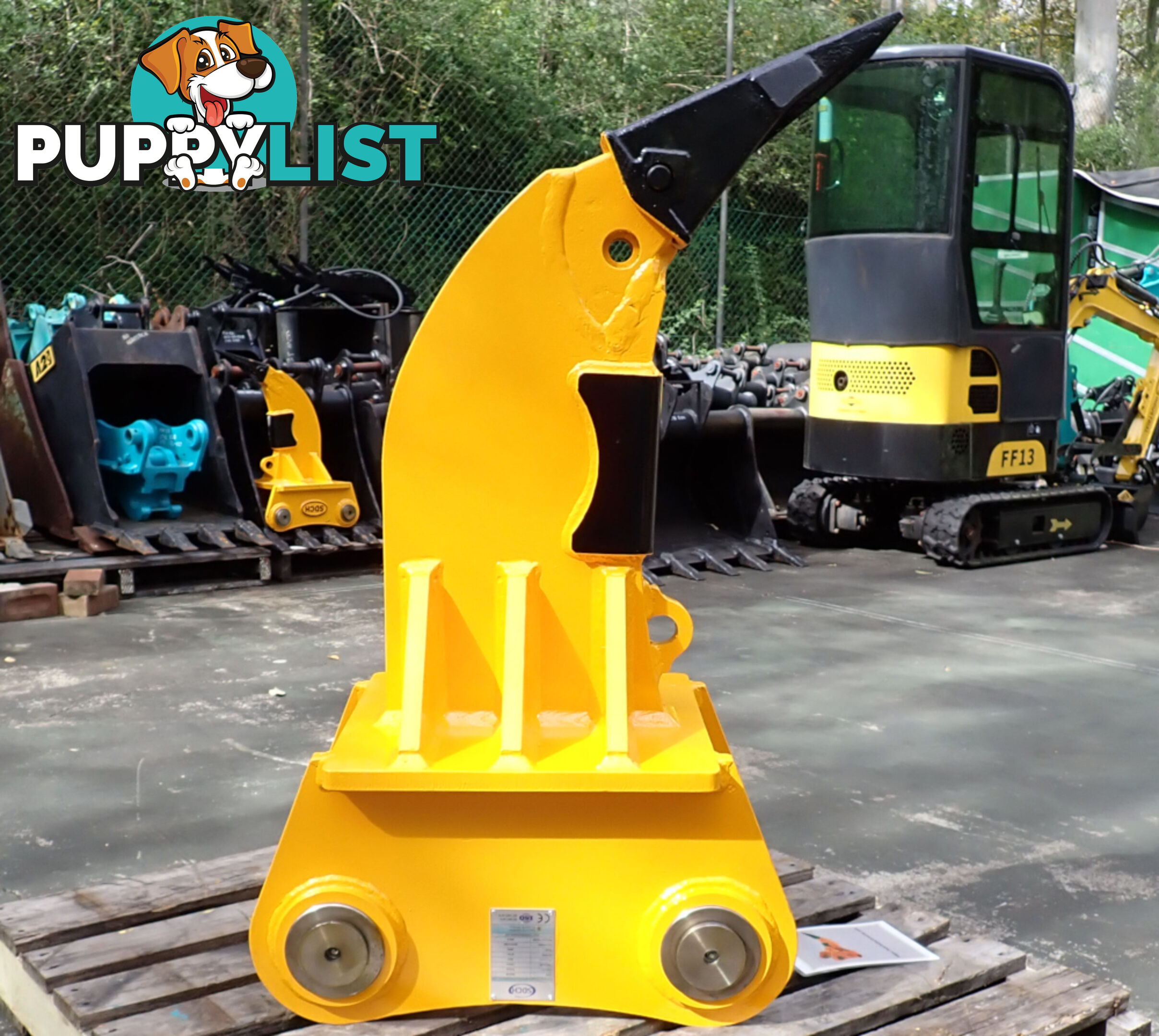

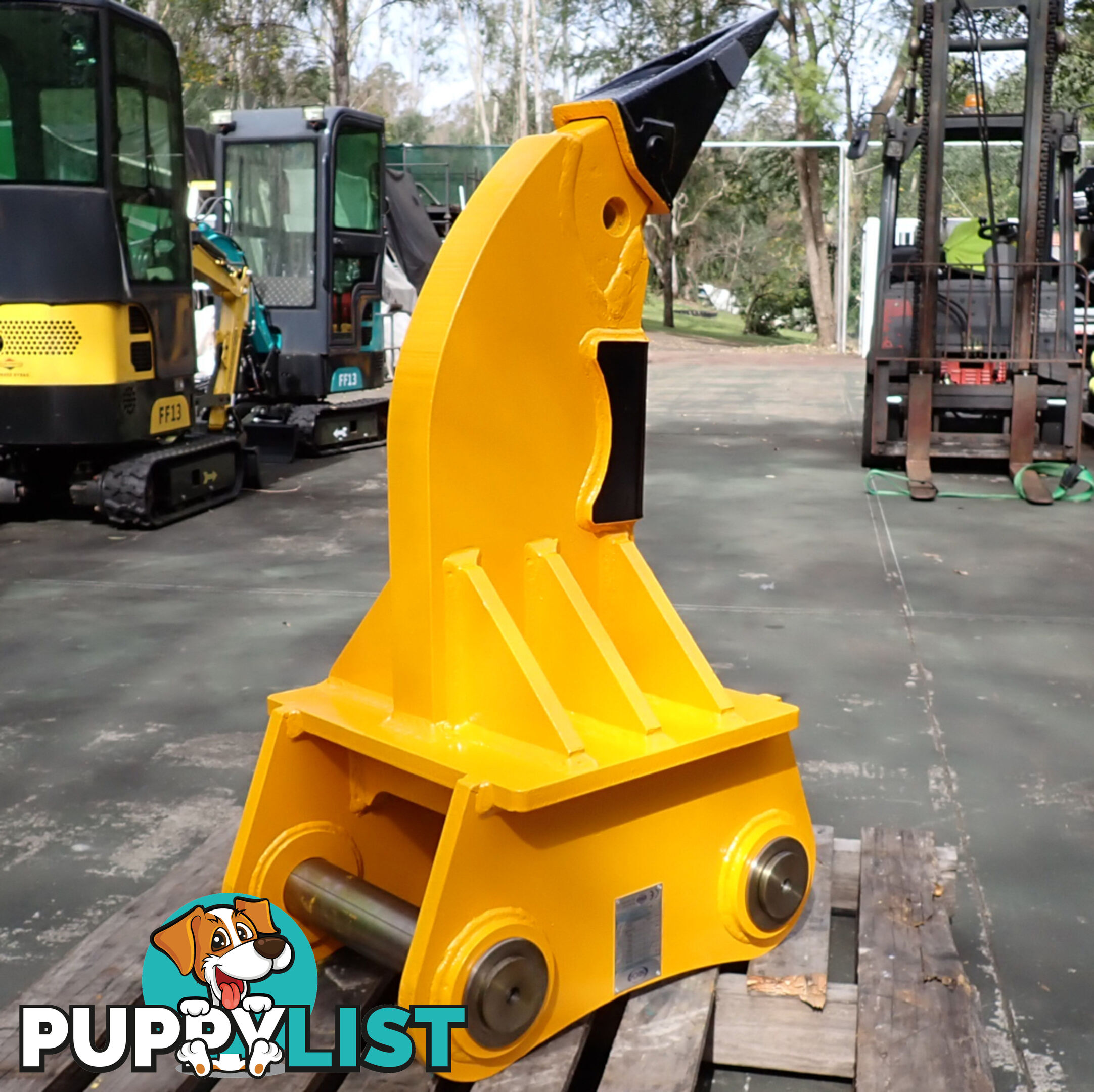

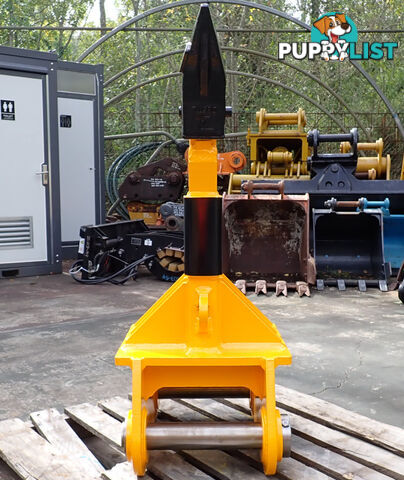

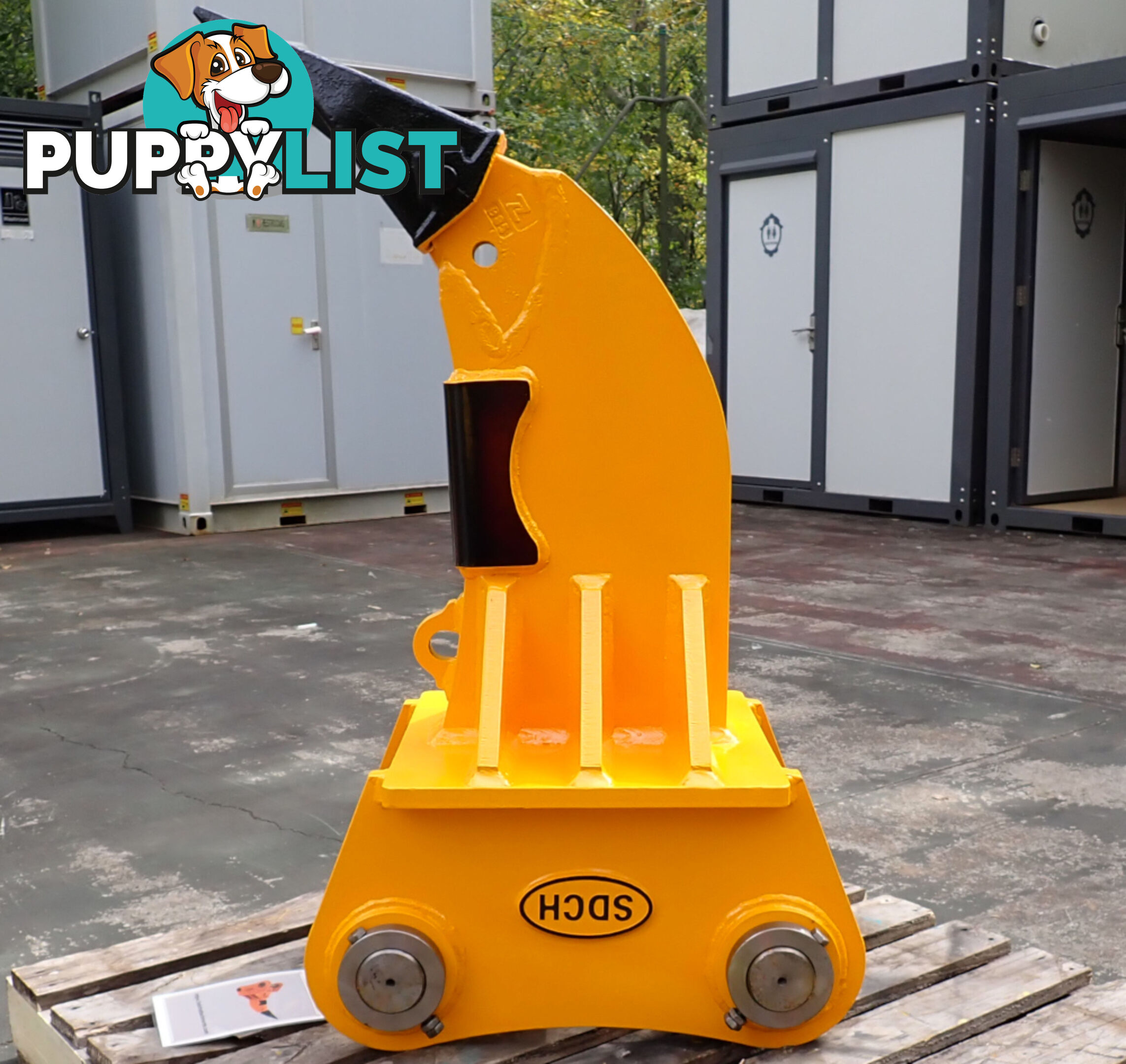

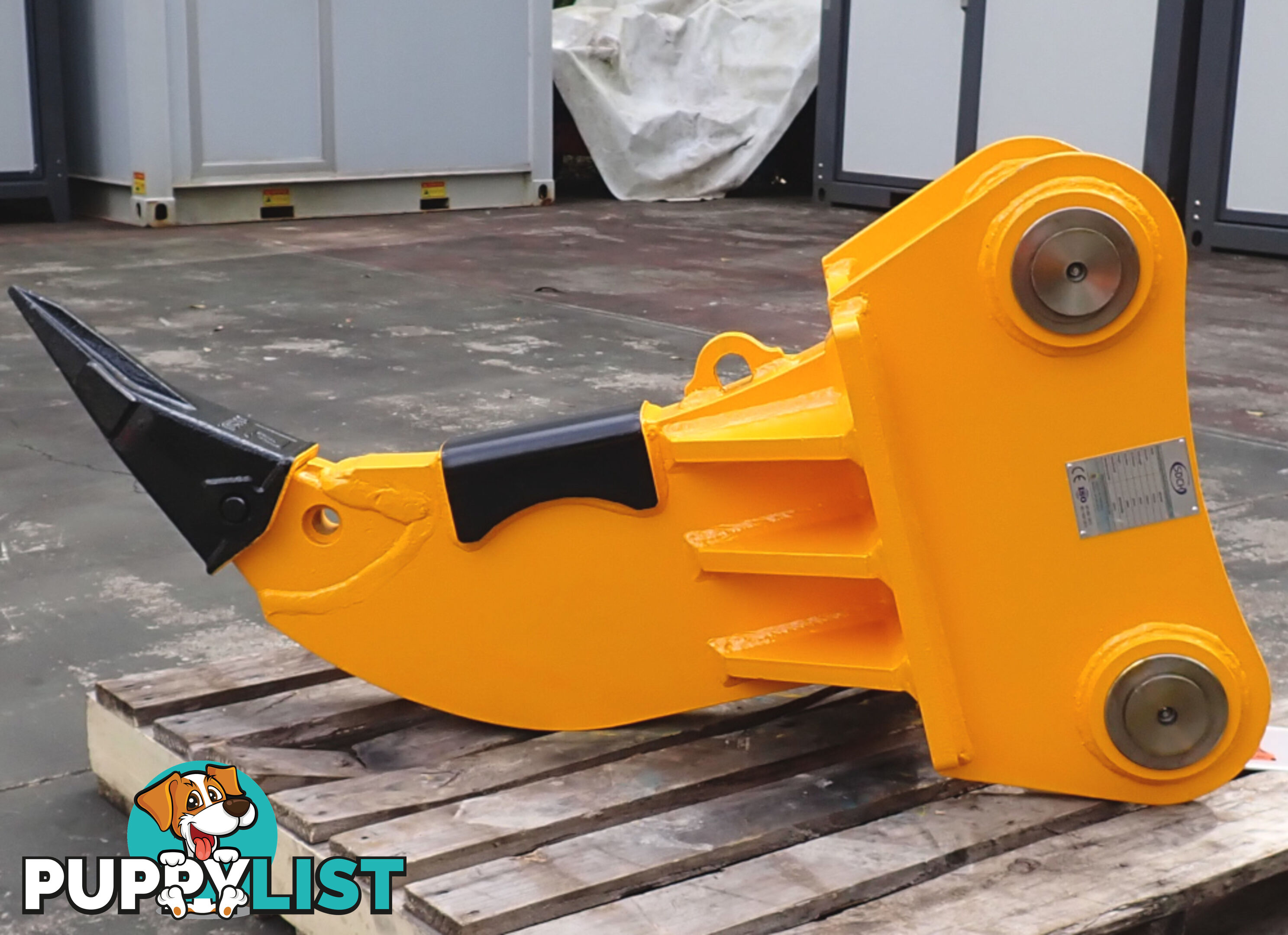

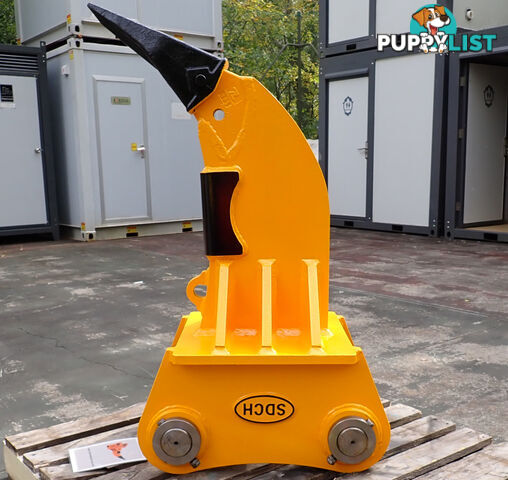

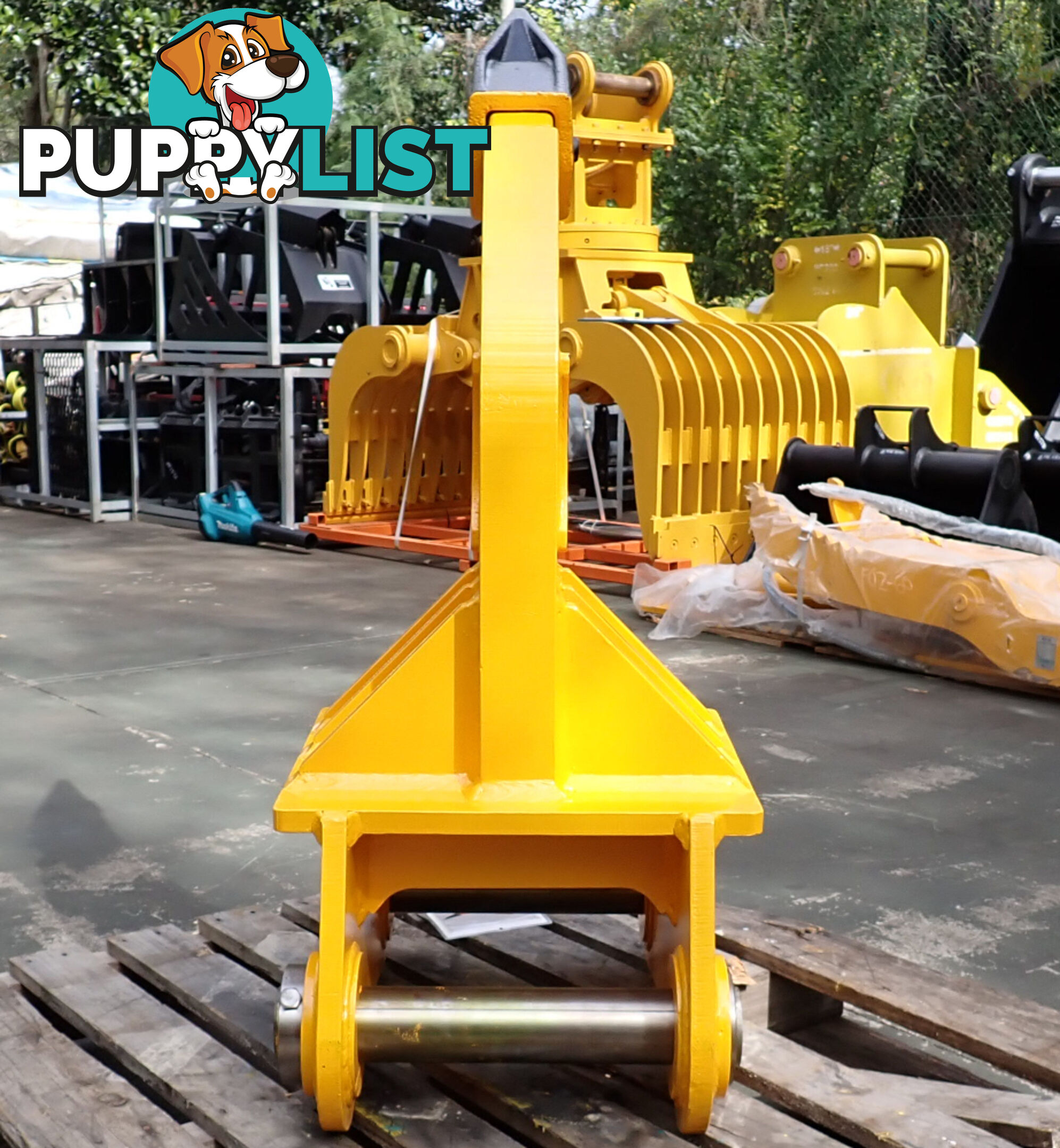

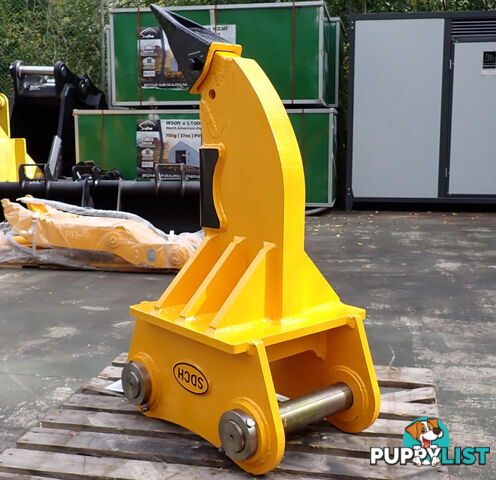

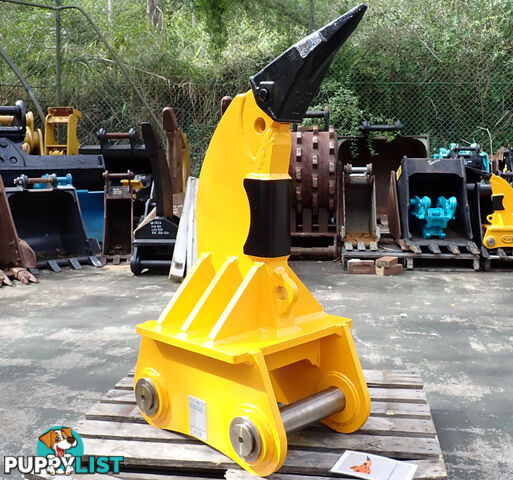

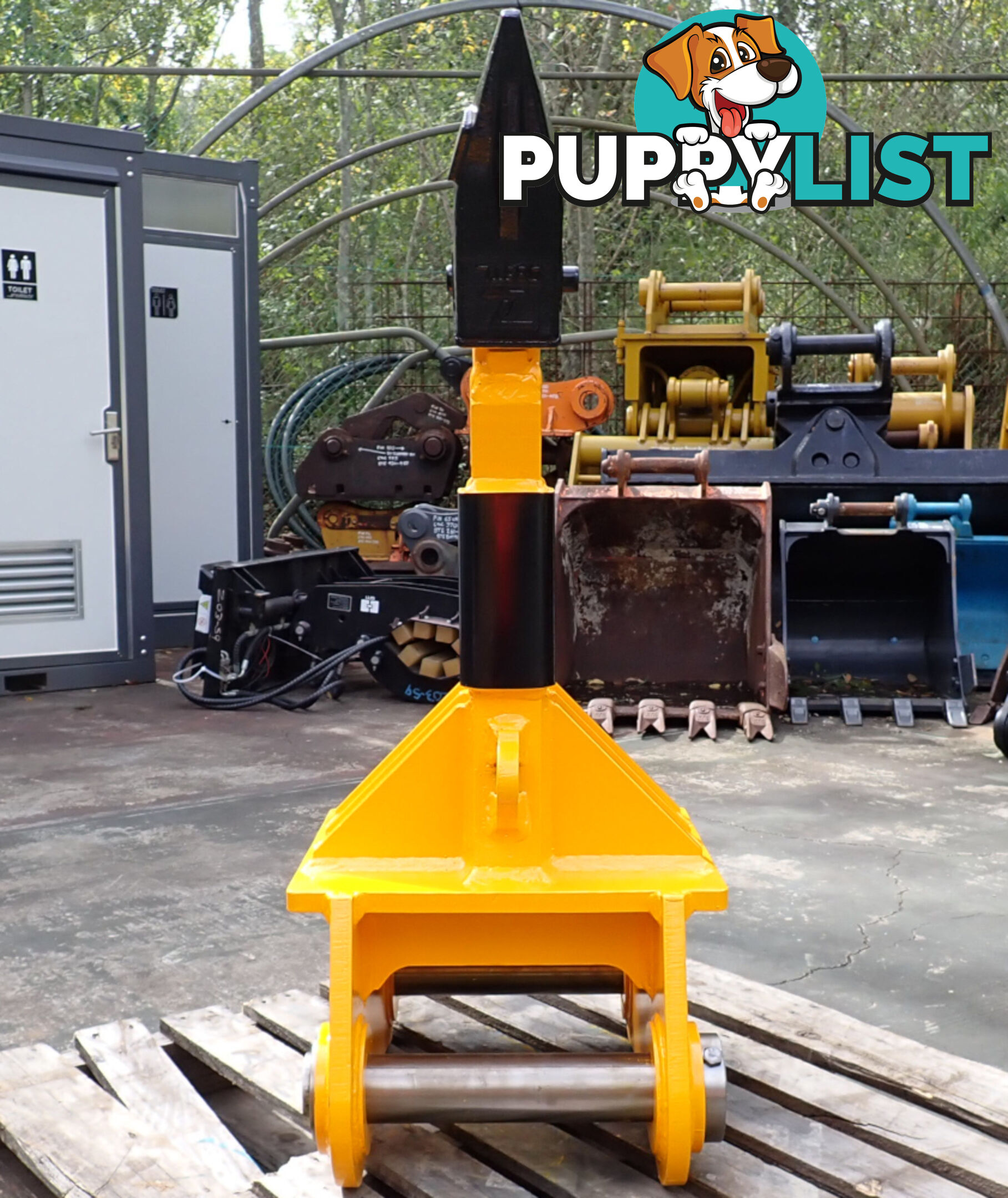

Dimensions (standing up as in pics# 1-8): 515mm wide, 795mm deep, 1245mm high. Weight: 388kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
