New 5-10 ton (50mm pin) Excavator Ripper suit Case, Cat, Hitachi, Komatsu, Sumitomo etc.

DESCRIPTION

New SDCH Excavator Ripper, suit 5-10 Ton machines.

Great for ripping up tree roots, breaking up rock and loosening rocky ground, tarmac, paved areas etc.

This is a strong, well engineered & reinforced Ripper with a solid 50mm thick shank and an extra Wear Shield (in black) welded around the shank making that section 75mm thick.

There is also a front lifting hook.

***** Headstock Dimensions:

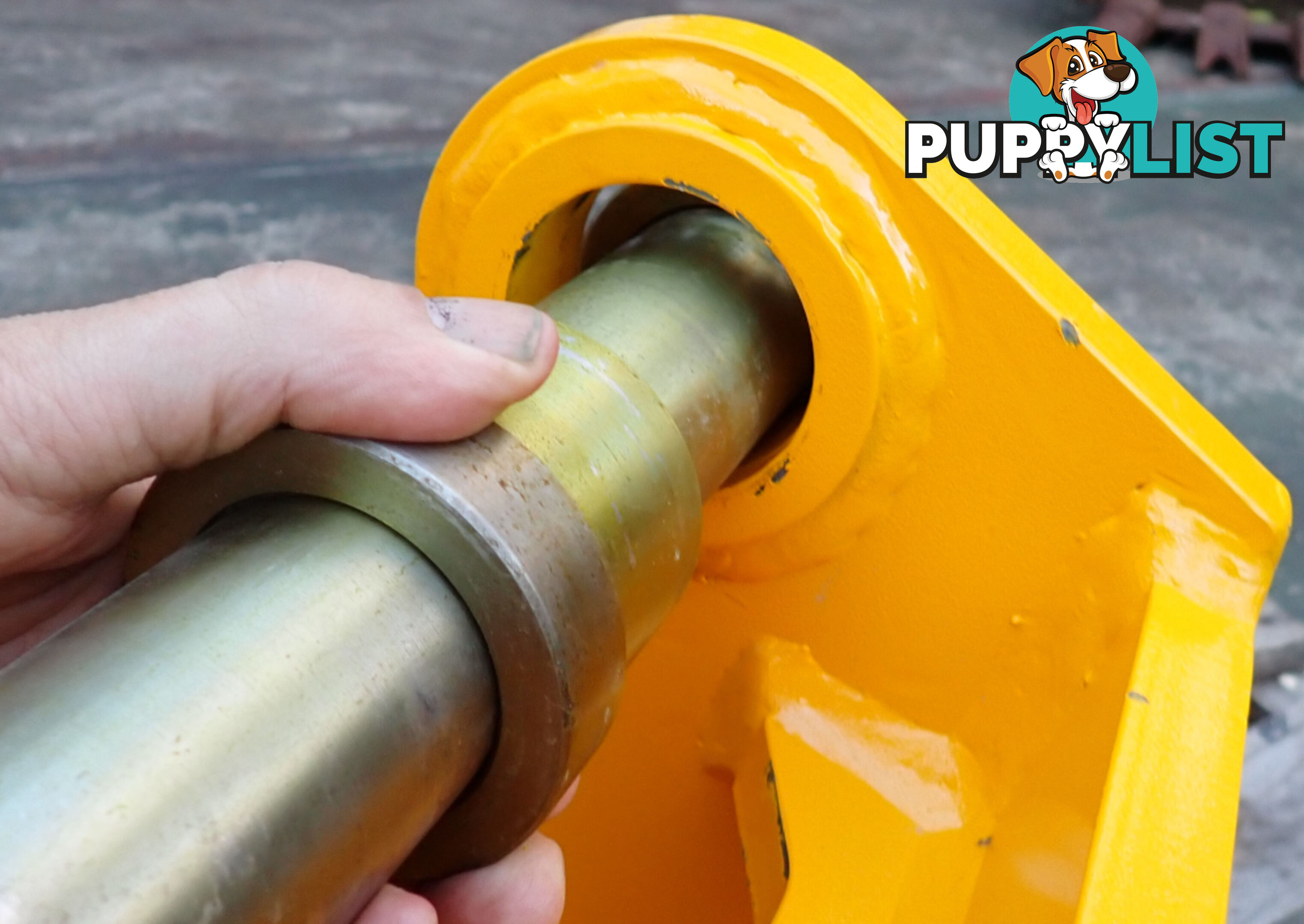

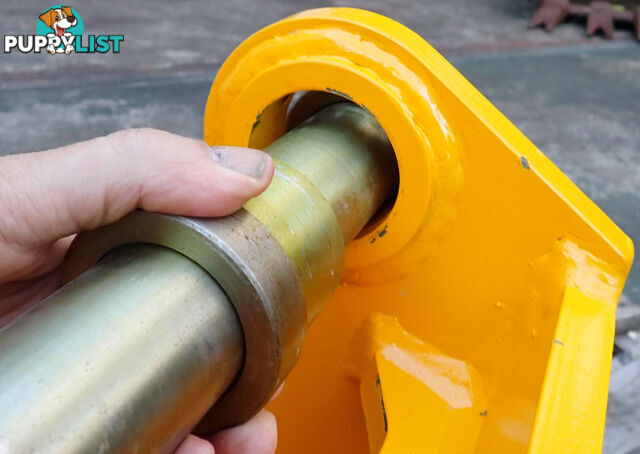

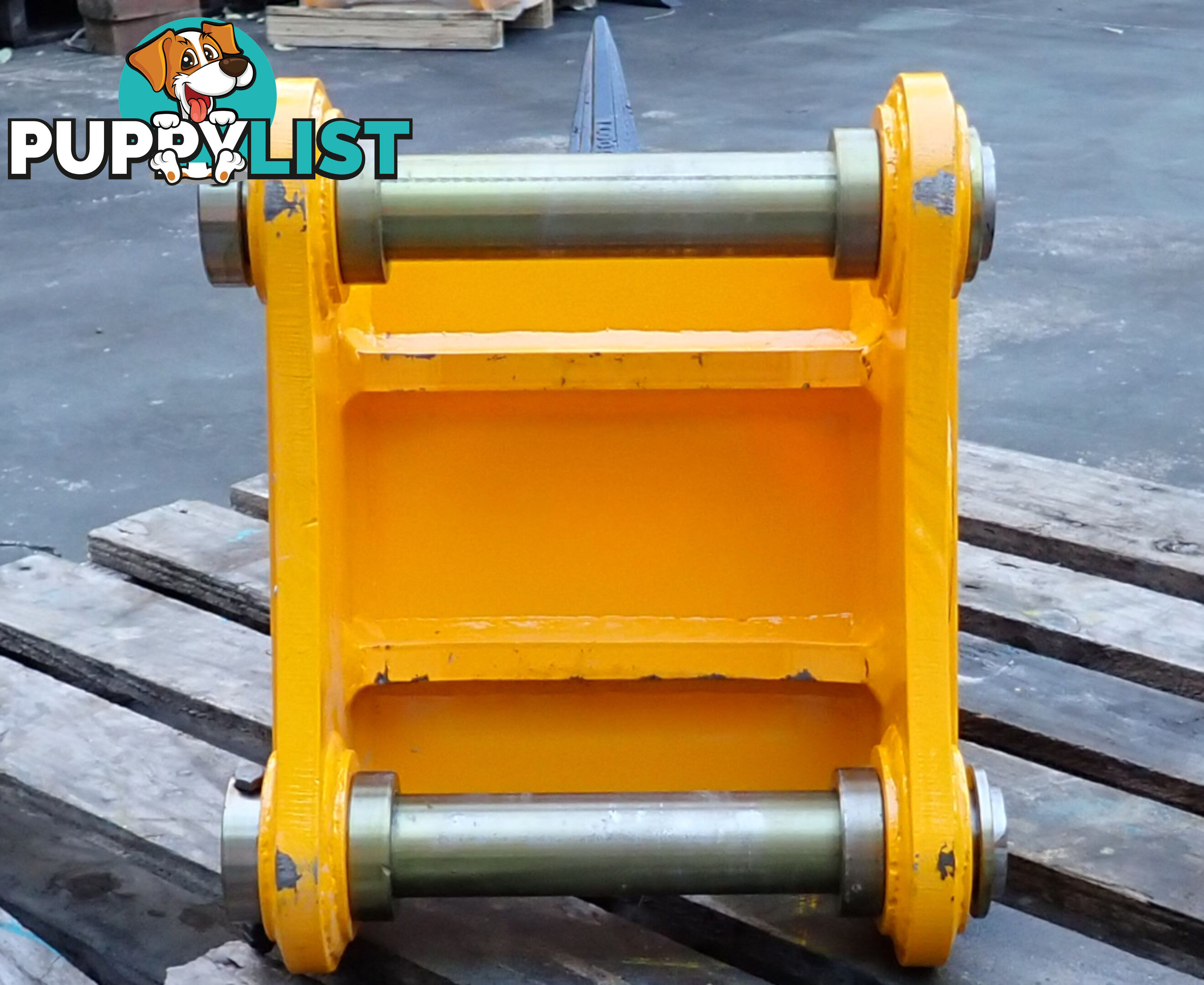

* The Pin Diameter is 50mm but they are fitted into collar bosses that fit into 65mm diameter Pin holes (see pic# 9), so pins up to 65mm diameter can be fitted without needing to bore out the holes in the bucket's headstock.
* The Pin Center to Pin Center (CtoC) is 305mm.
* The distance between the collar bosses is 210mm. Removing the collar bosses, the distance between the headstock bosses is 250mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 270mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, JCB JS 70 / JZ 70, John Deere 75C / 80C, Kato 180G, Kobelco 80CS, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sany SY 75C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Yanmar B 7 SIGMA / VIO70 / VIO75.

Maybe fit: Bobcat 442 / X442 / zx125, Ingersoll-Rand ZX125, Kobelco 70SR / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Schaeff HR32, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175, Terex HR32, Yanmar B 7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

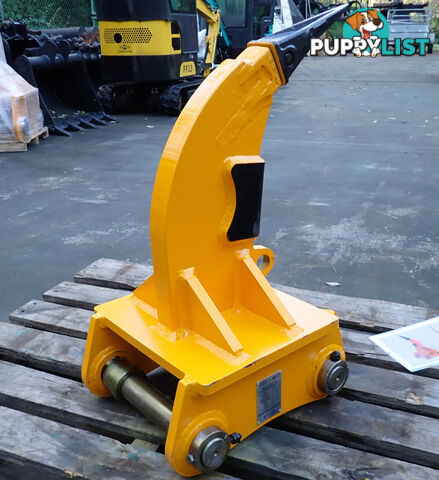

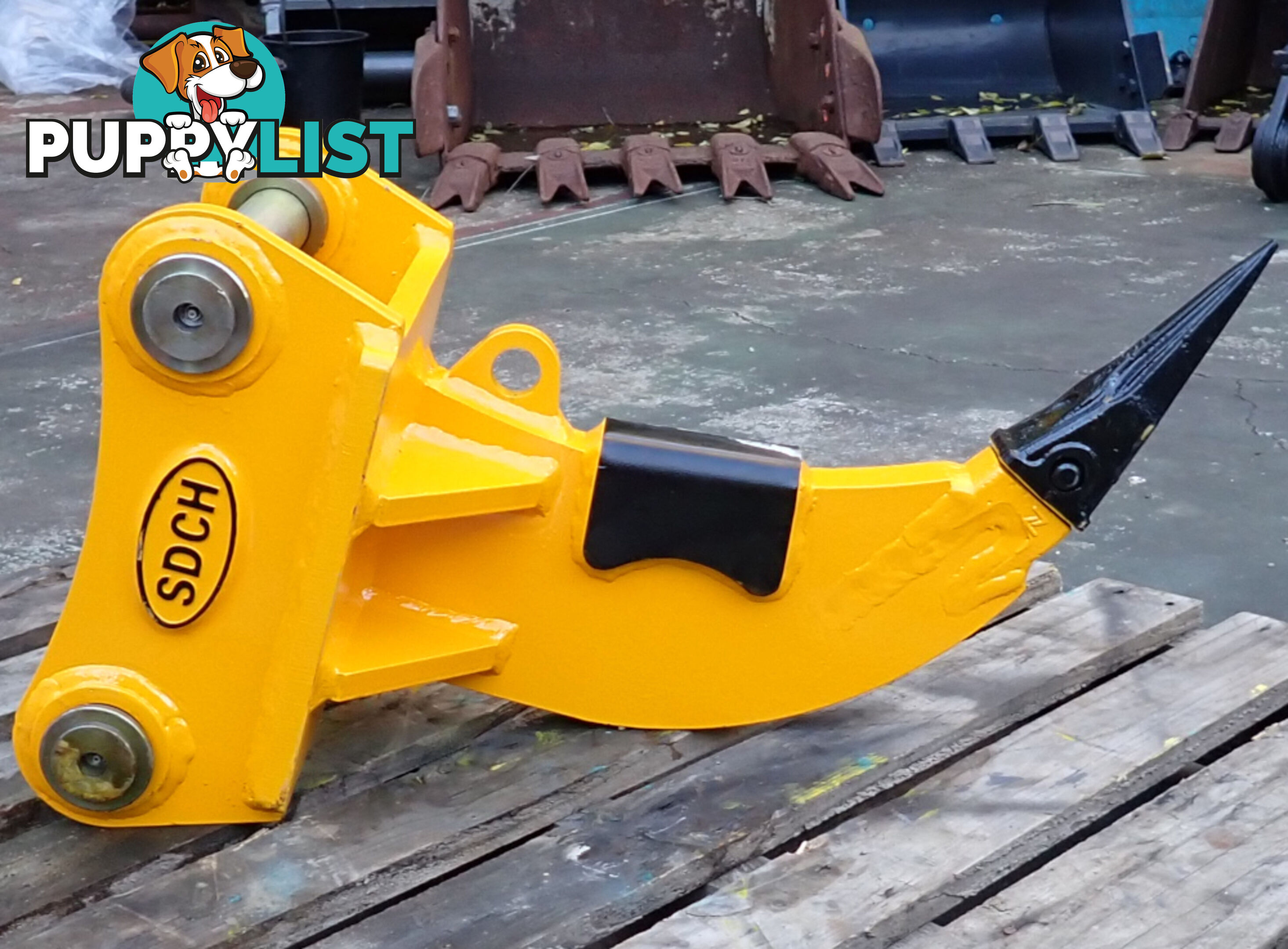

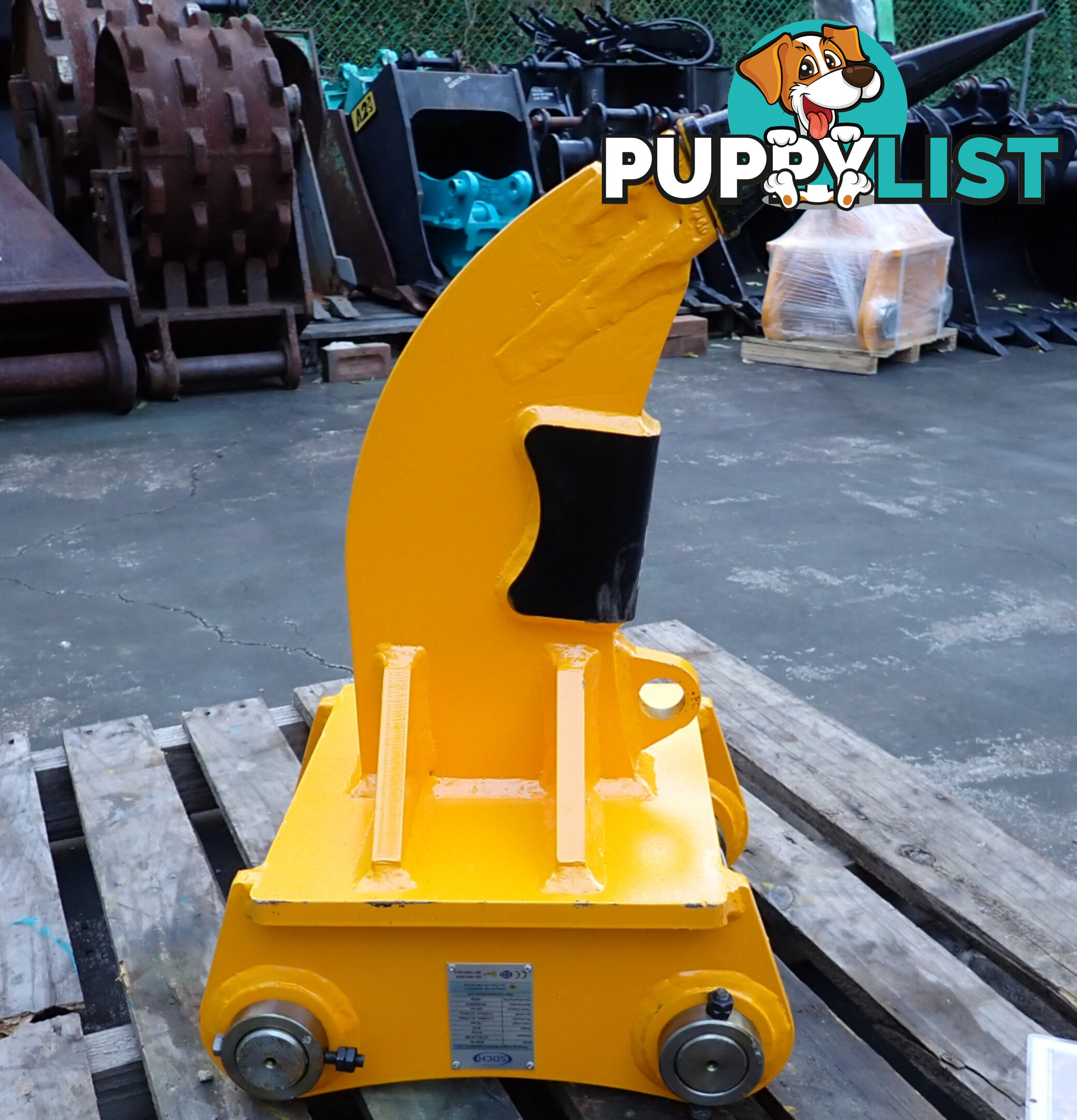

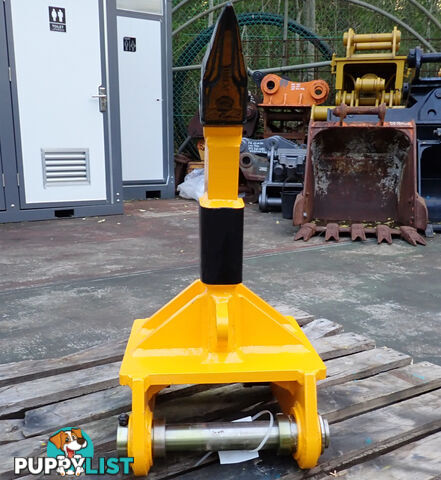

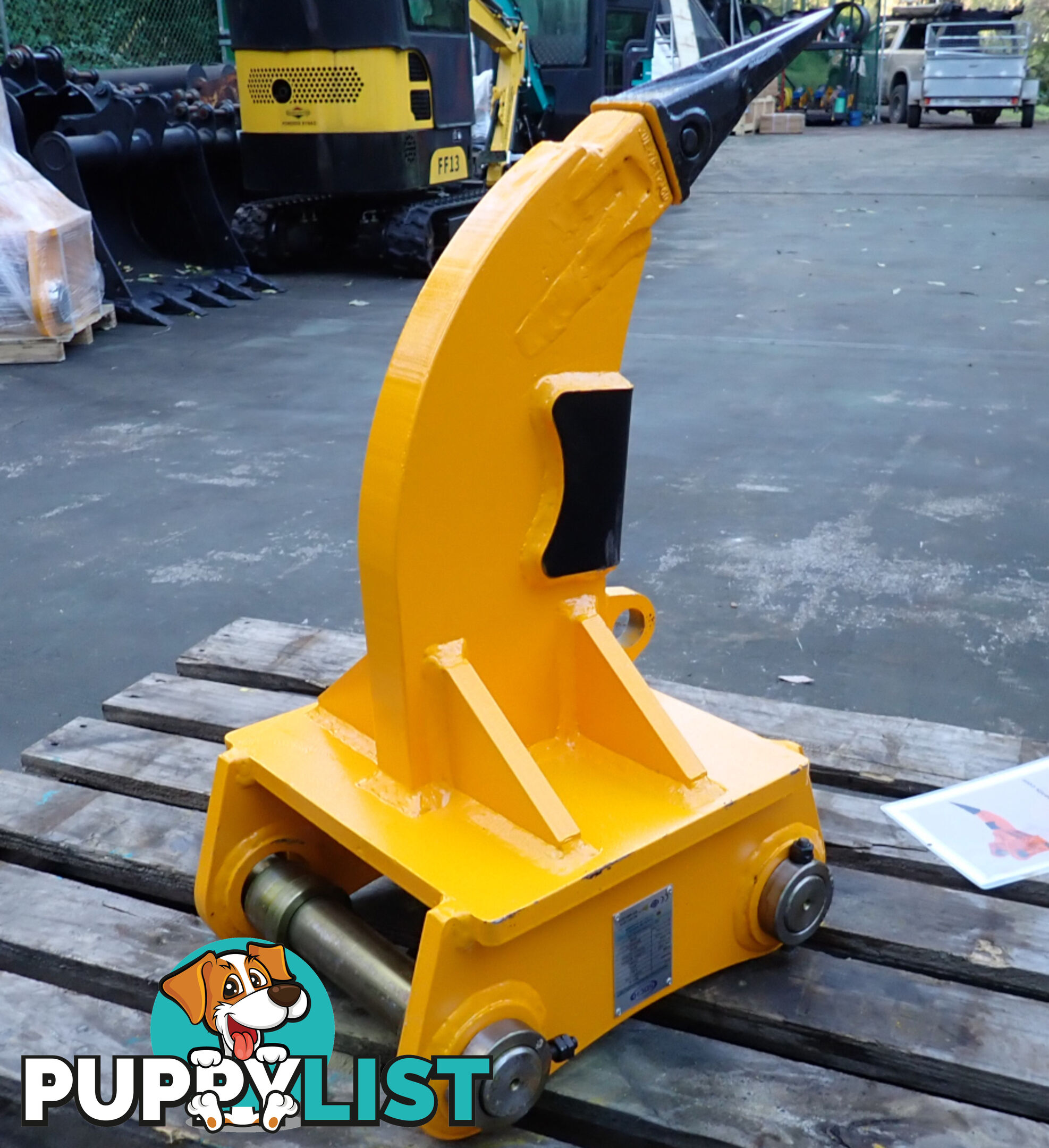

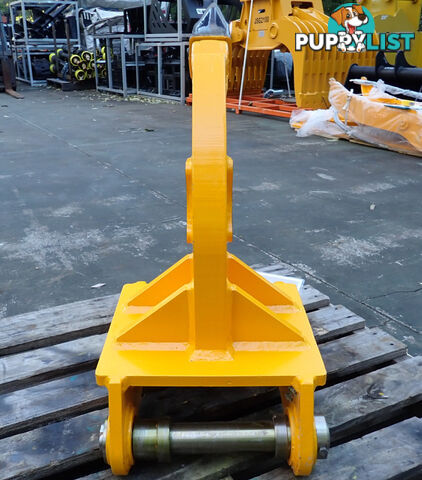

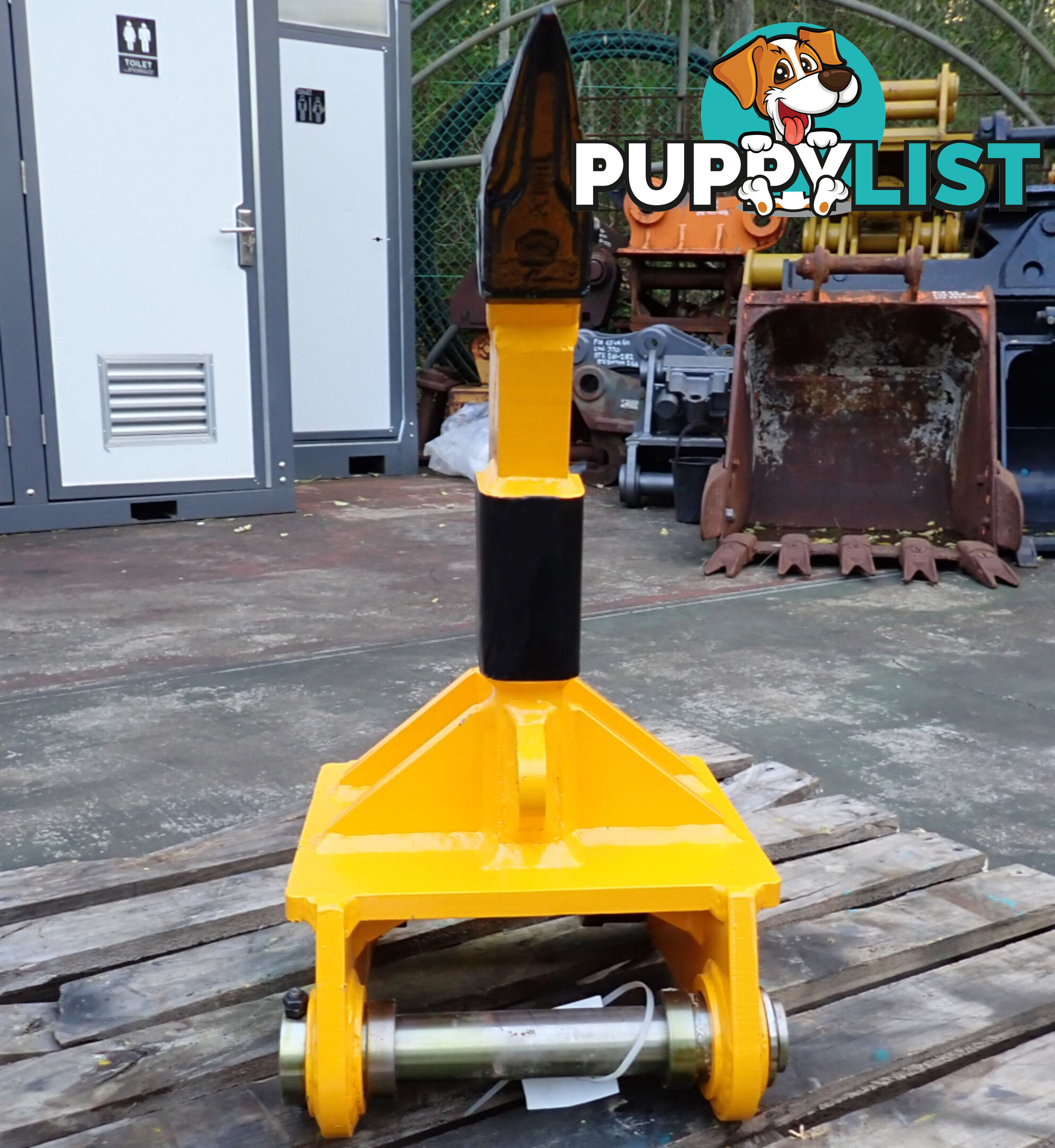

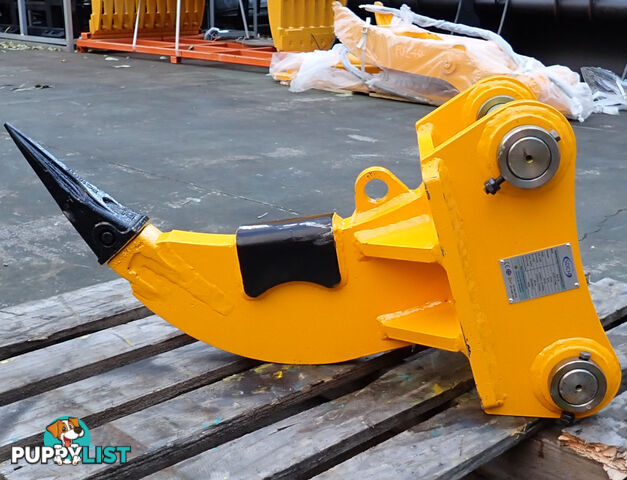

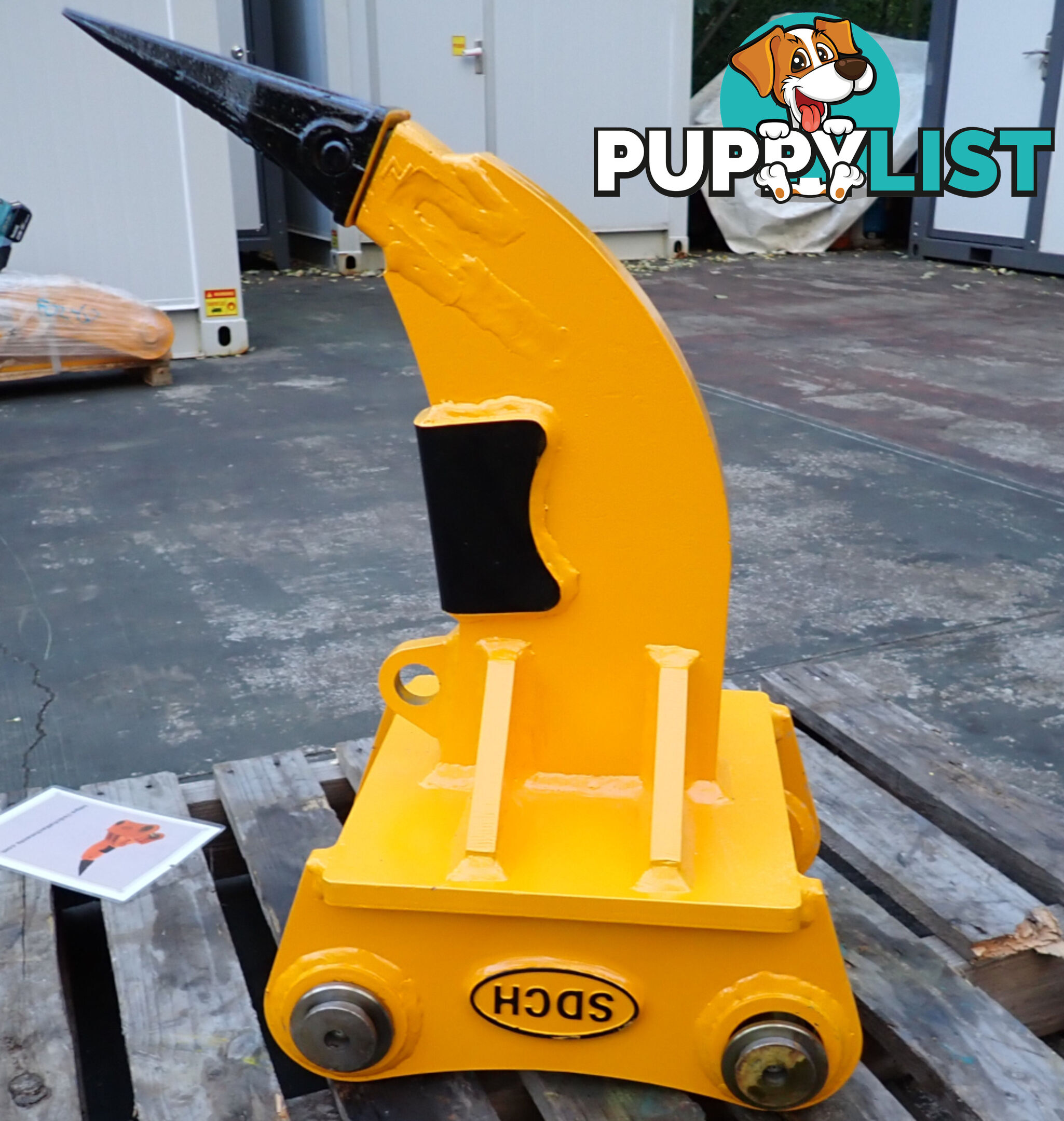

Dimensions (standing up as in pics# 1-5): 425mm wide, 475mm deep, 729mm high. Weight: 104kg.

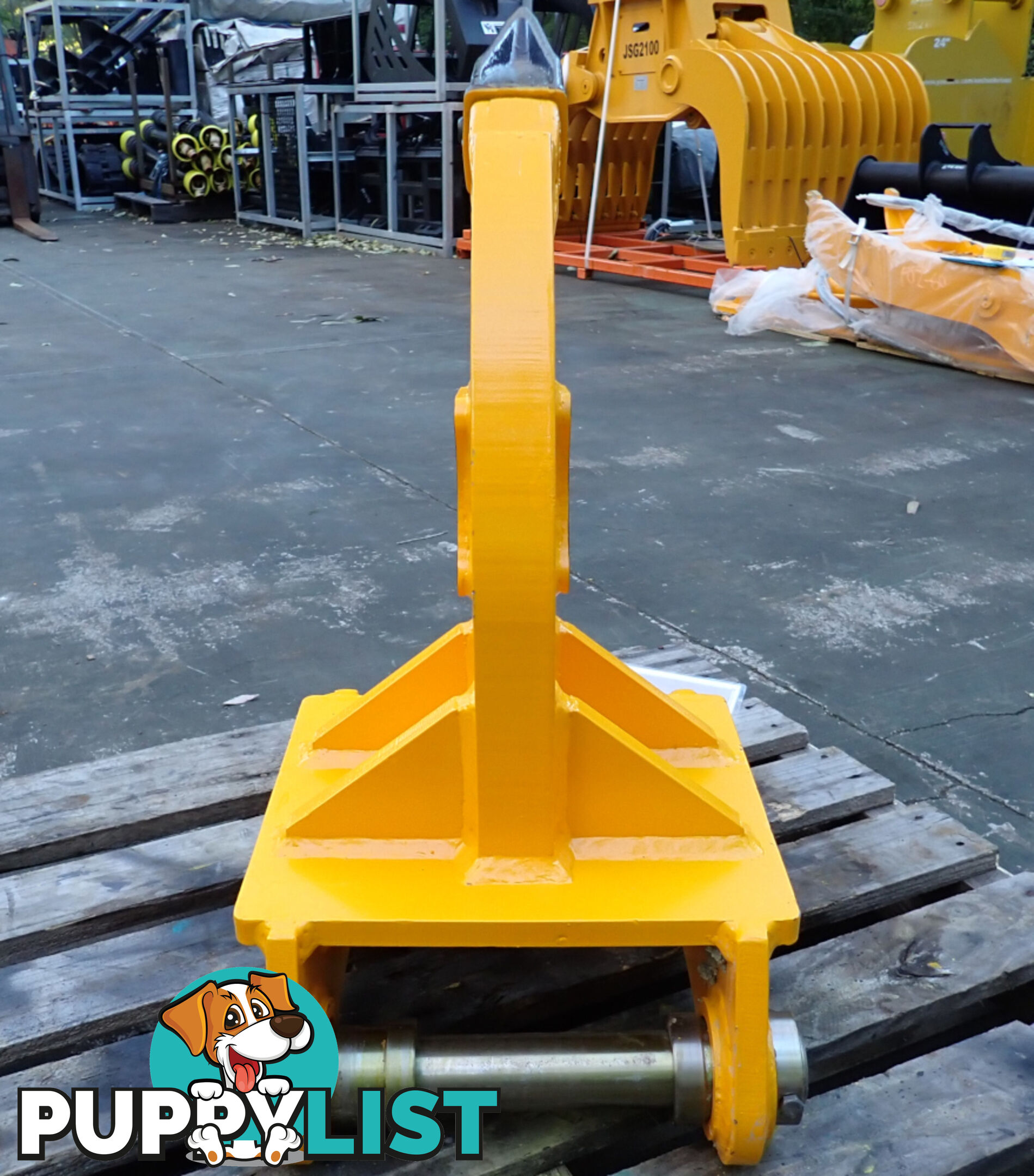

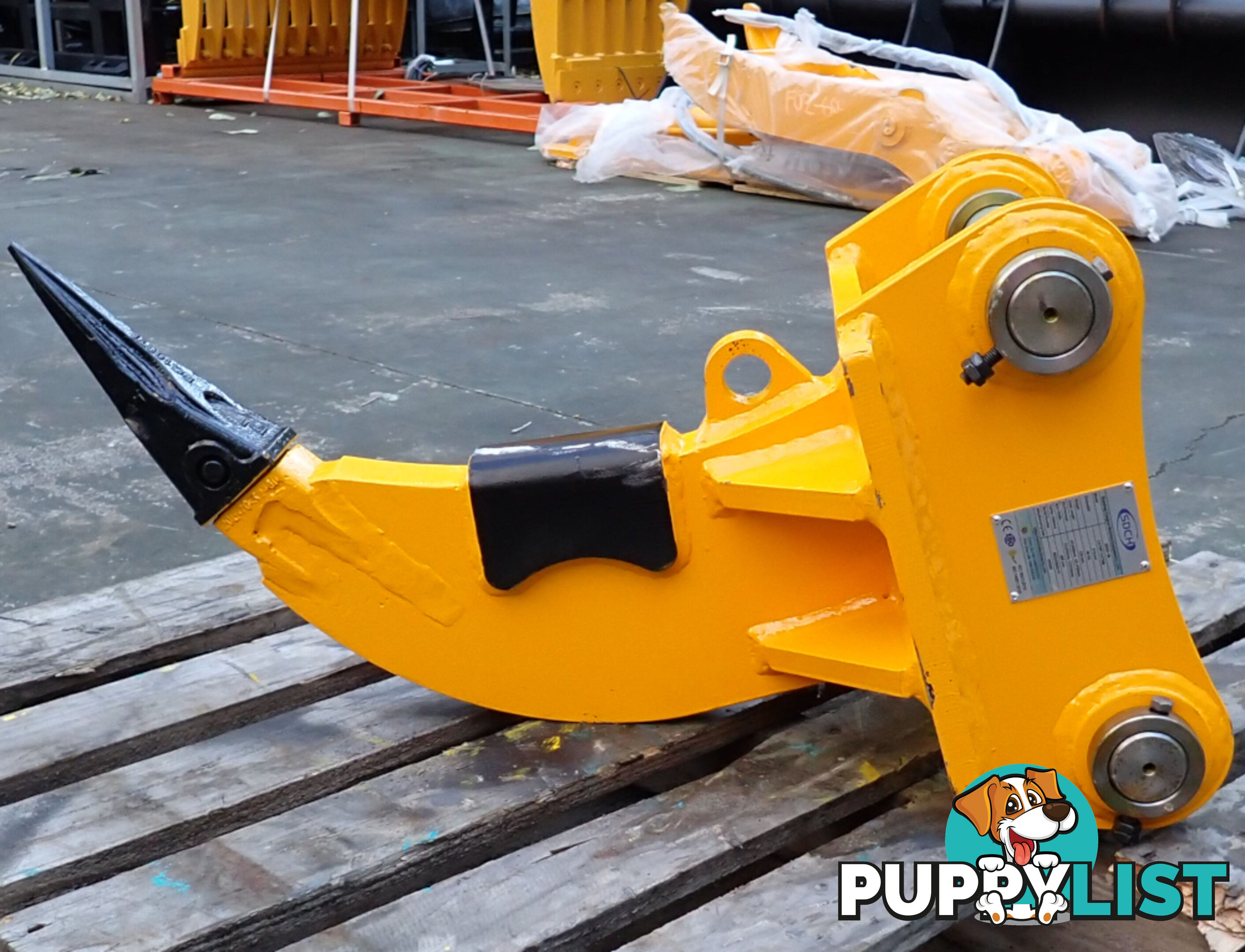

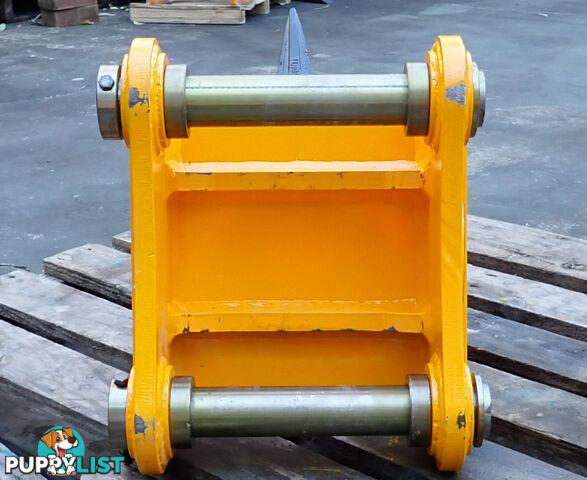

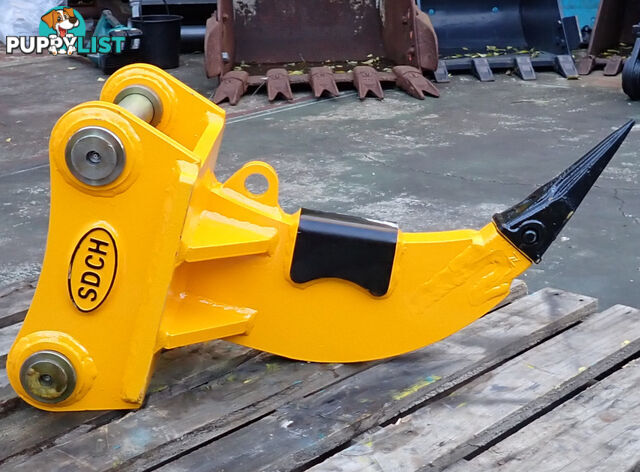

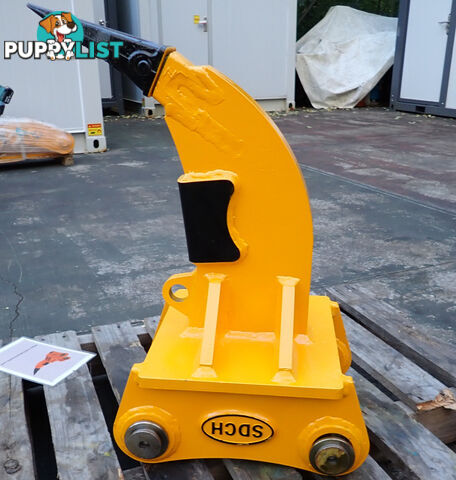

Shipping (laying down as in pics# 6-8): 729mm long, 425mm wide, 475mm high. Weight: 104kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
