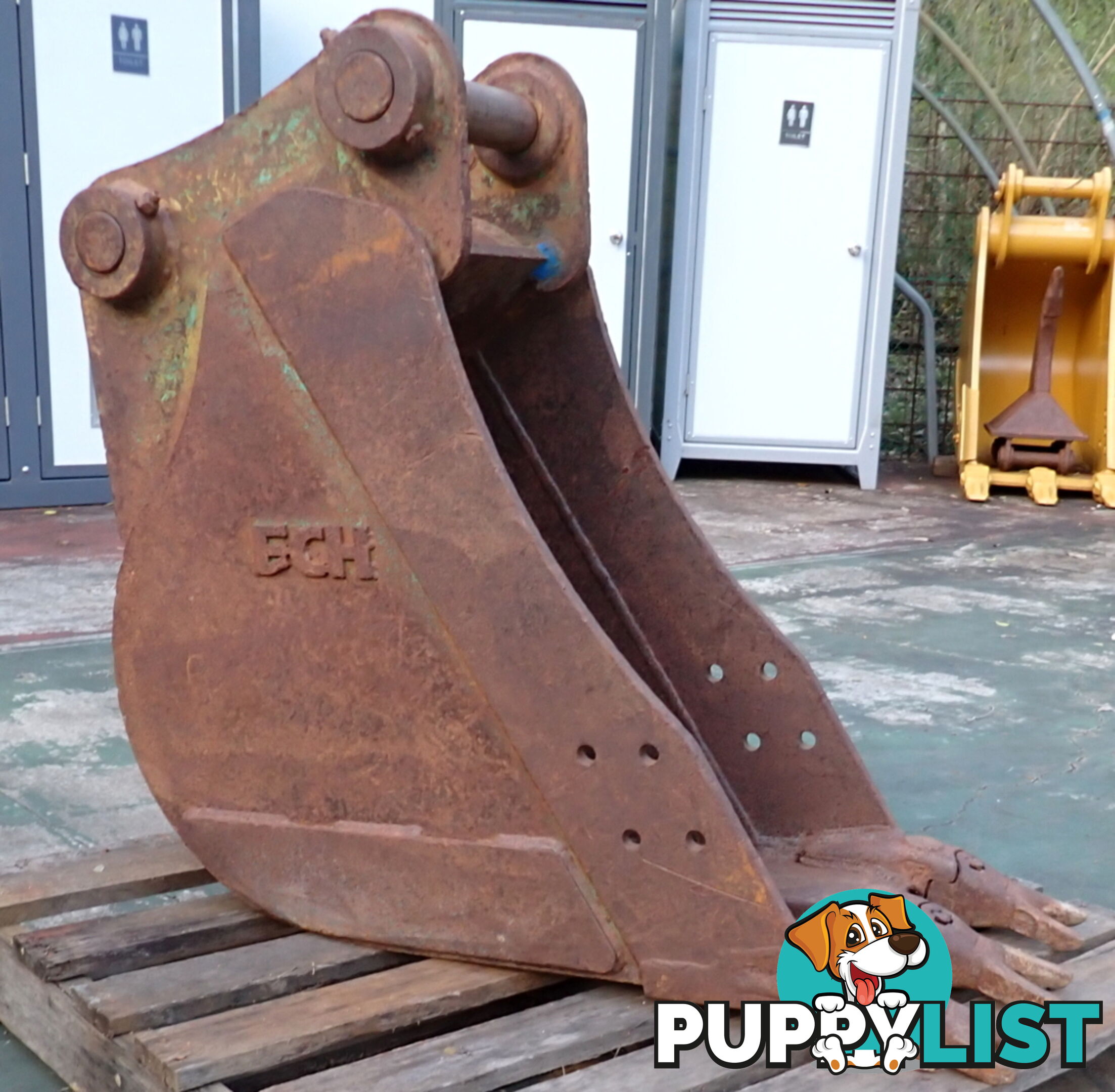

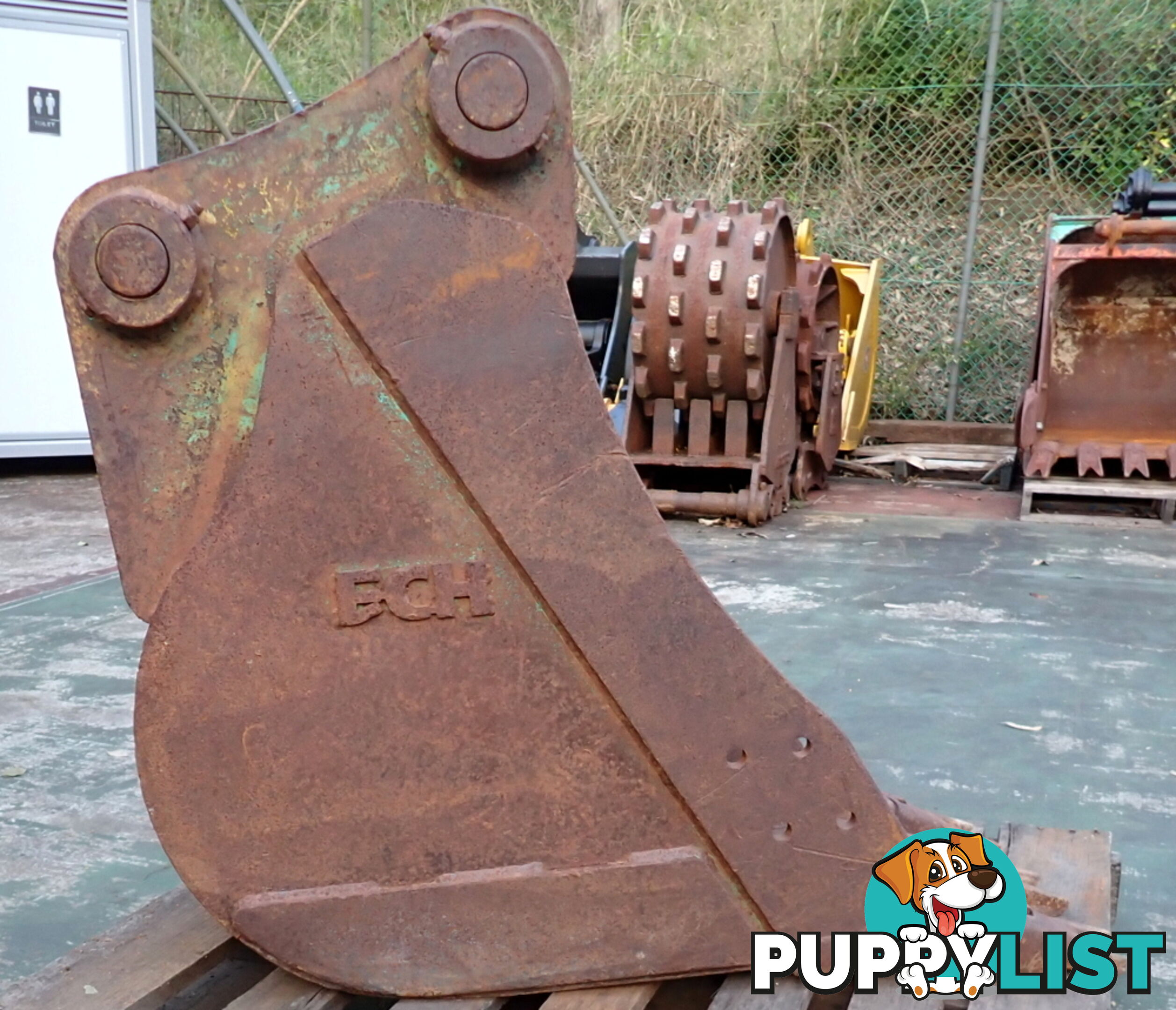

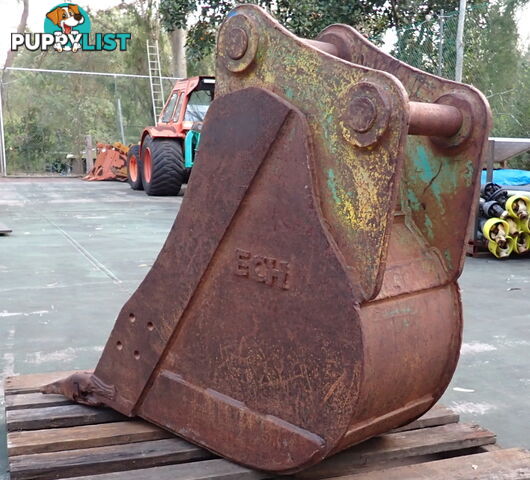

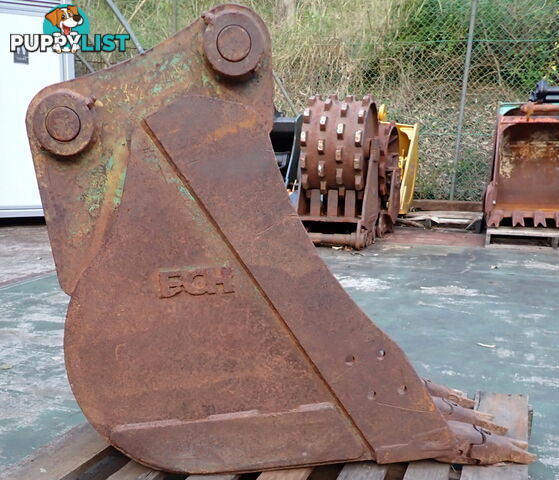

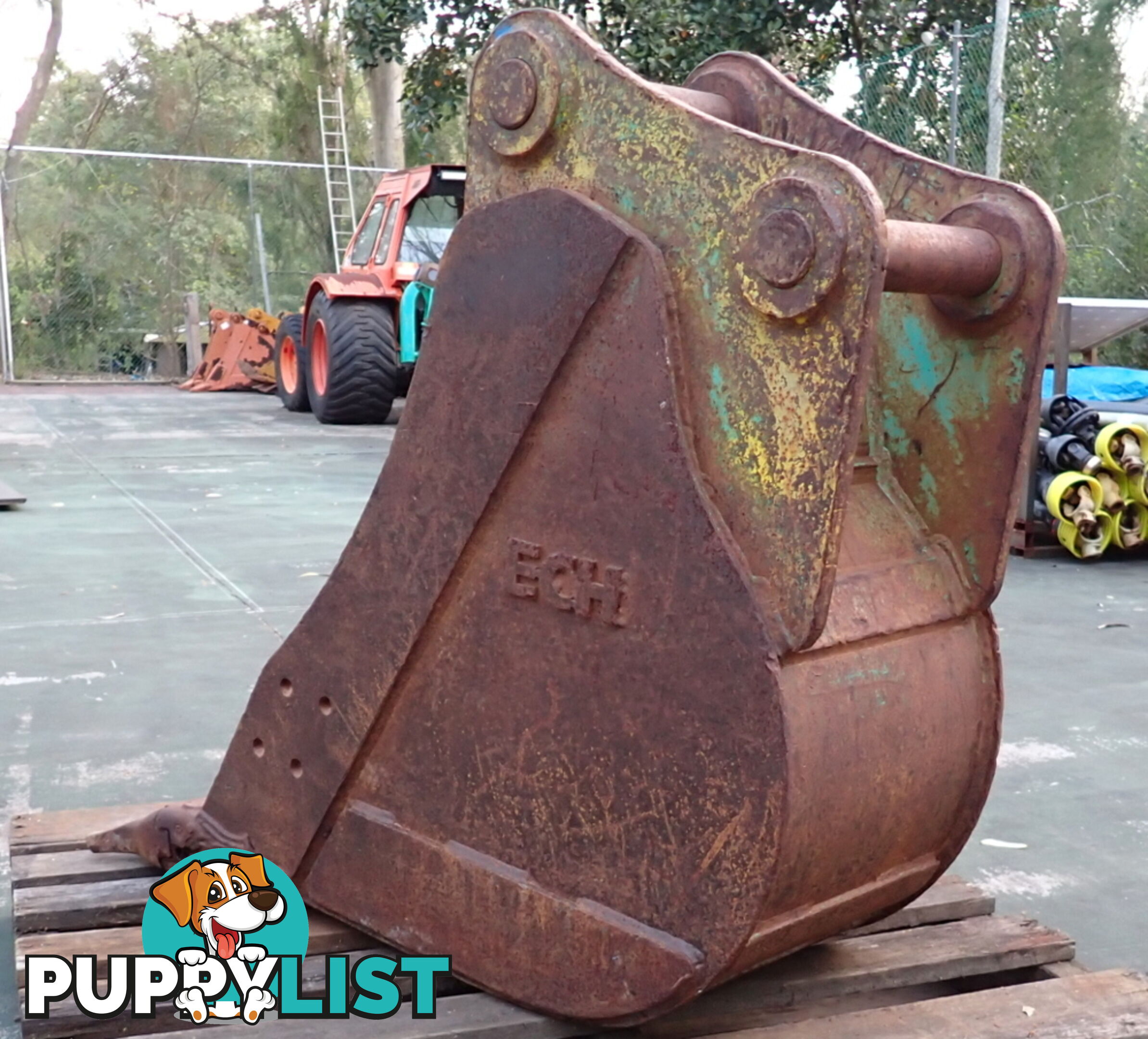

9-20 ton (65mm pin) ECH 450mm Heavy Duty Excavator Trenching Bucket

DESCRIPTION

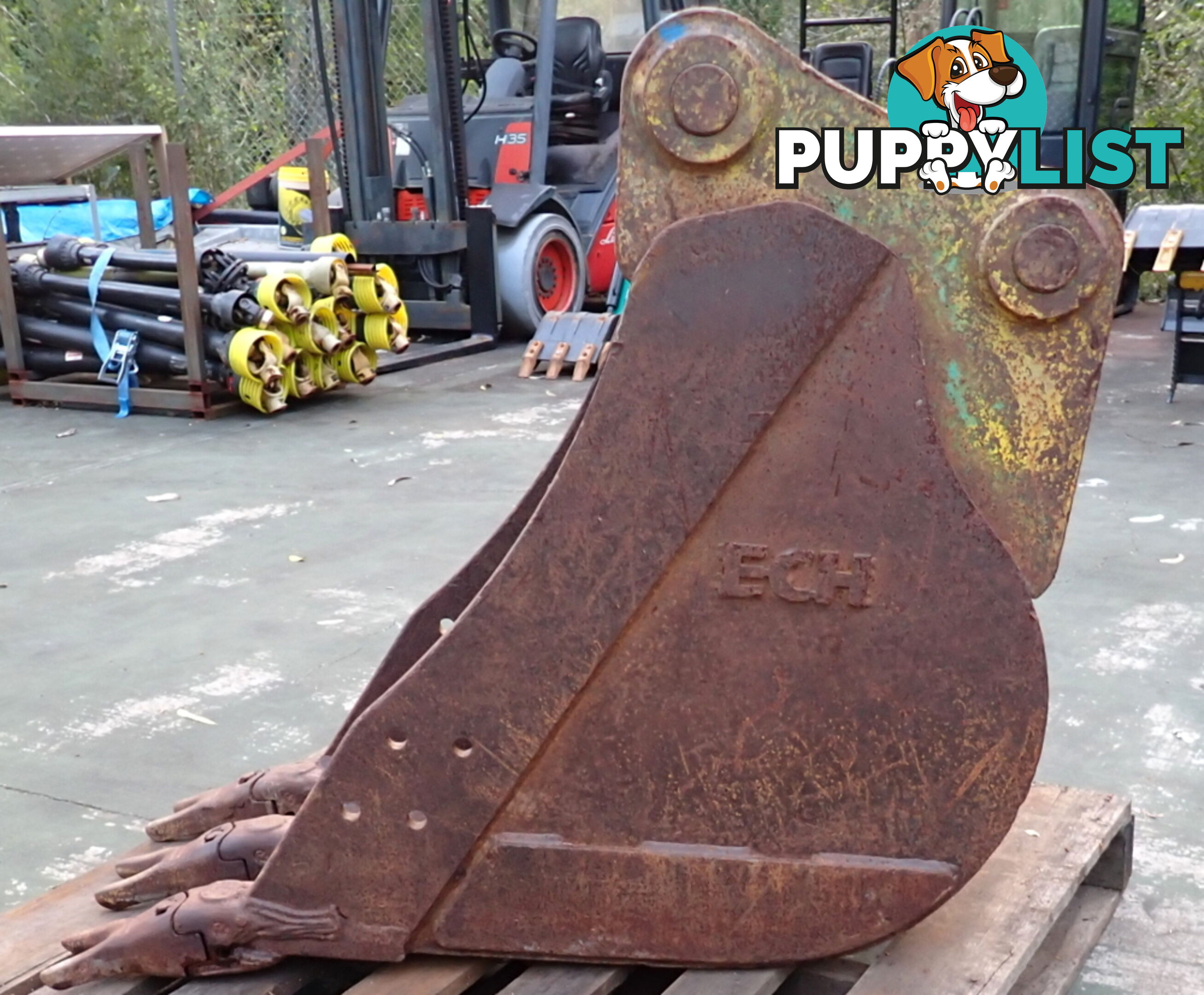

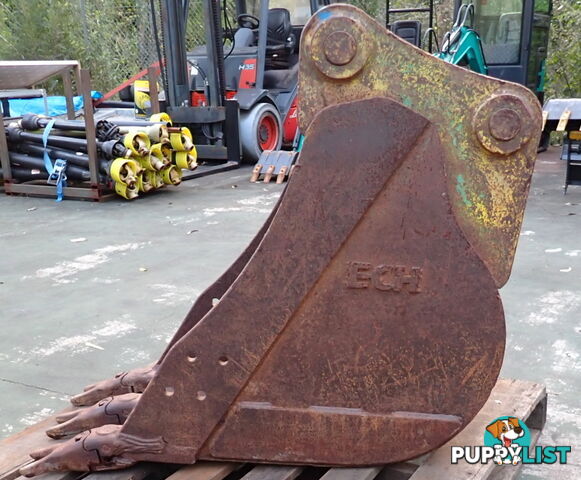

450mm ECH Excavator Trenching Bucket suit 9-20 Ton machine.

Condition is used but it is a sturdy, quality bucket made in Australia by ECH (Equipment Component Holdings Pty Ltd) and has plenty of life left.

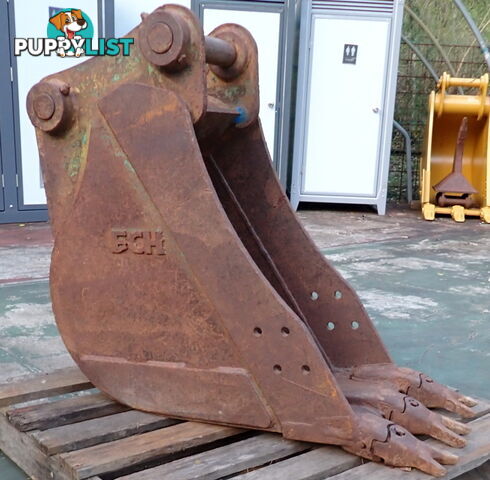

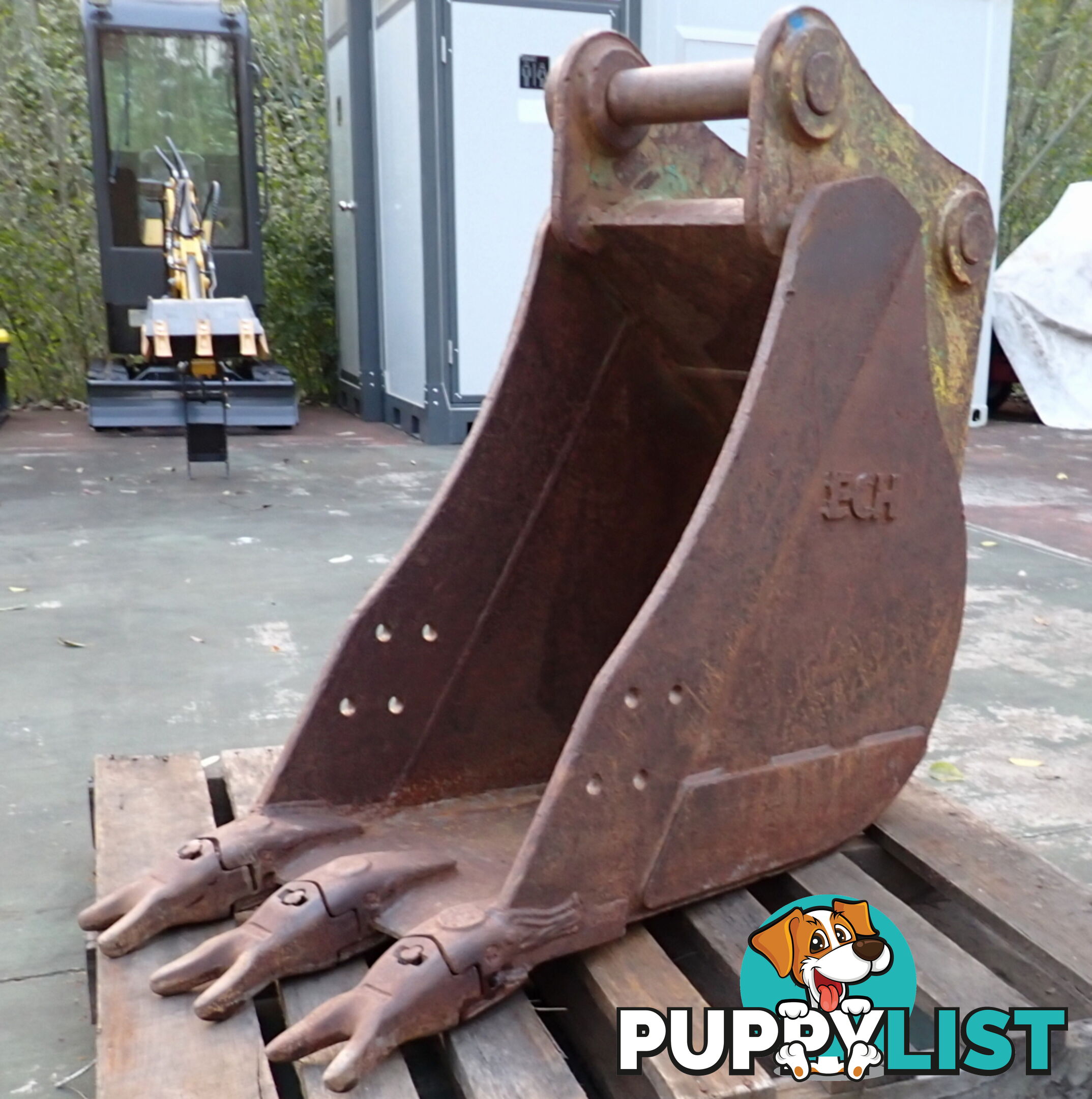

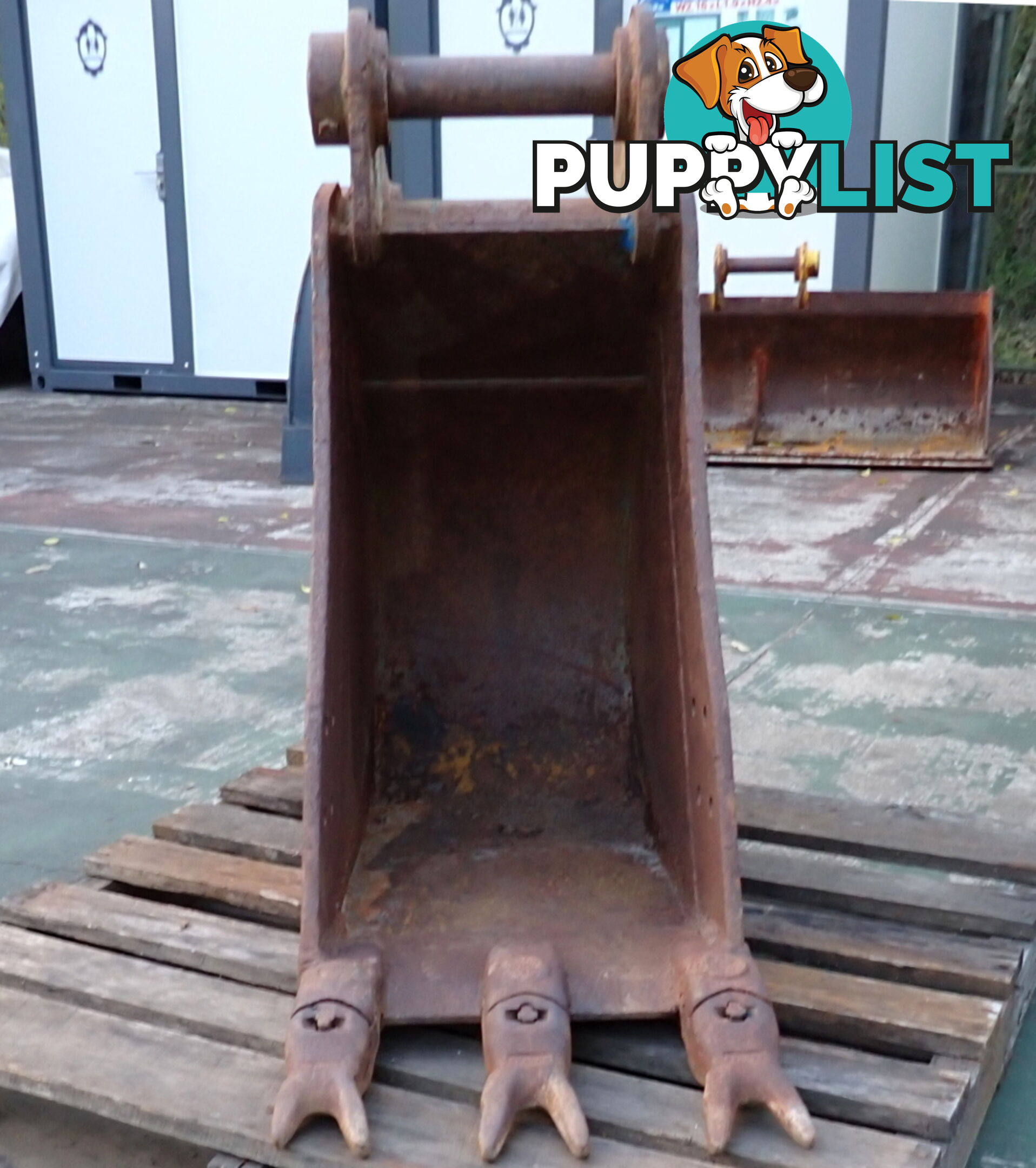

It has a deep profile and is fitted with 3 good Tiger Teeth.

It has holes ready for removable bolt-on Side Cutters and has tapered sides so mud slides out easy and minimises ground resistance.

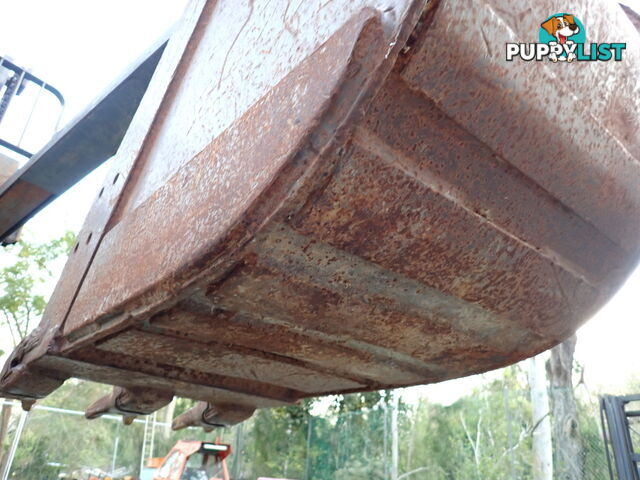

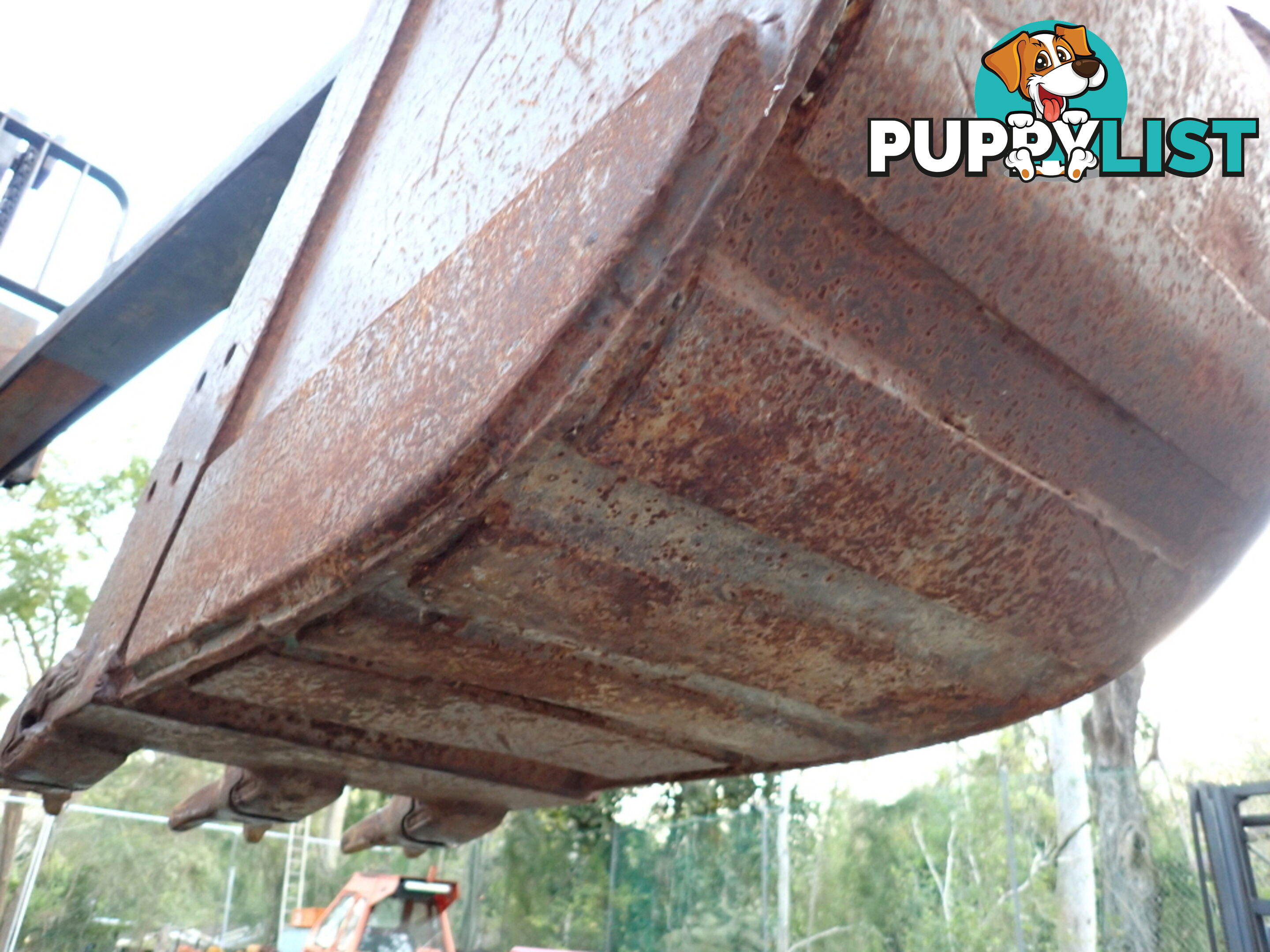

There is extra wear plating on the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

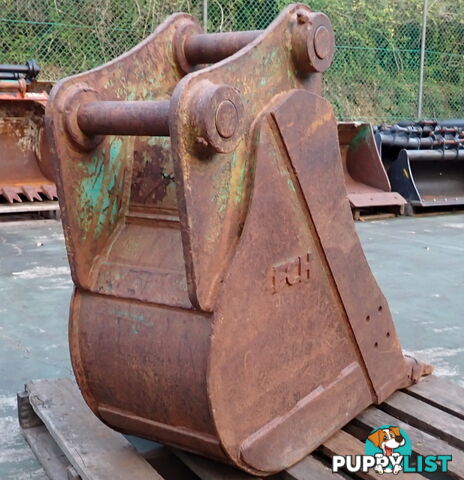

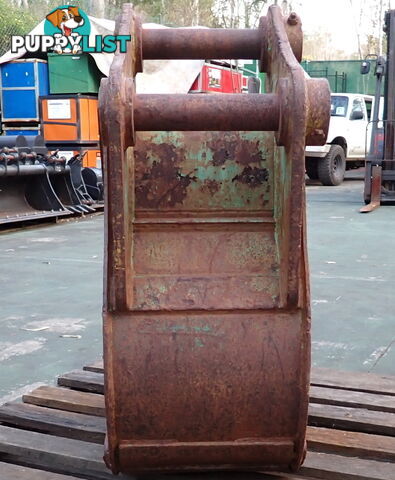

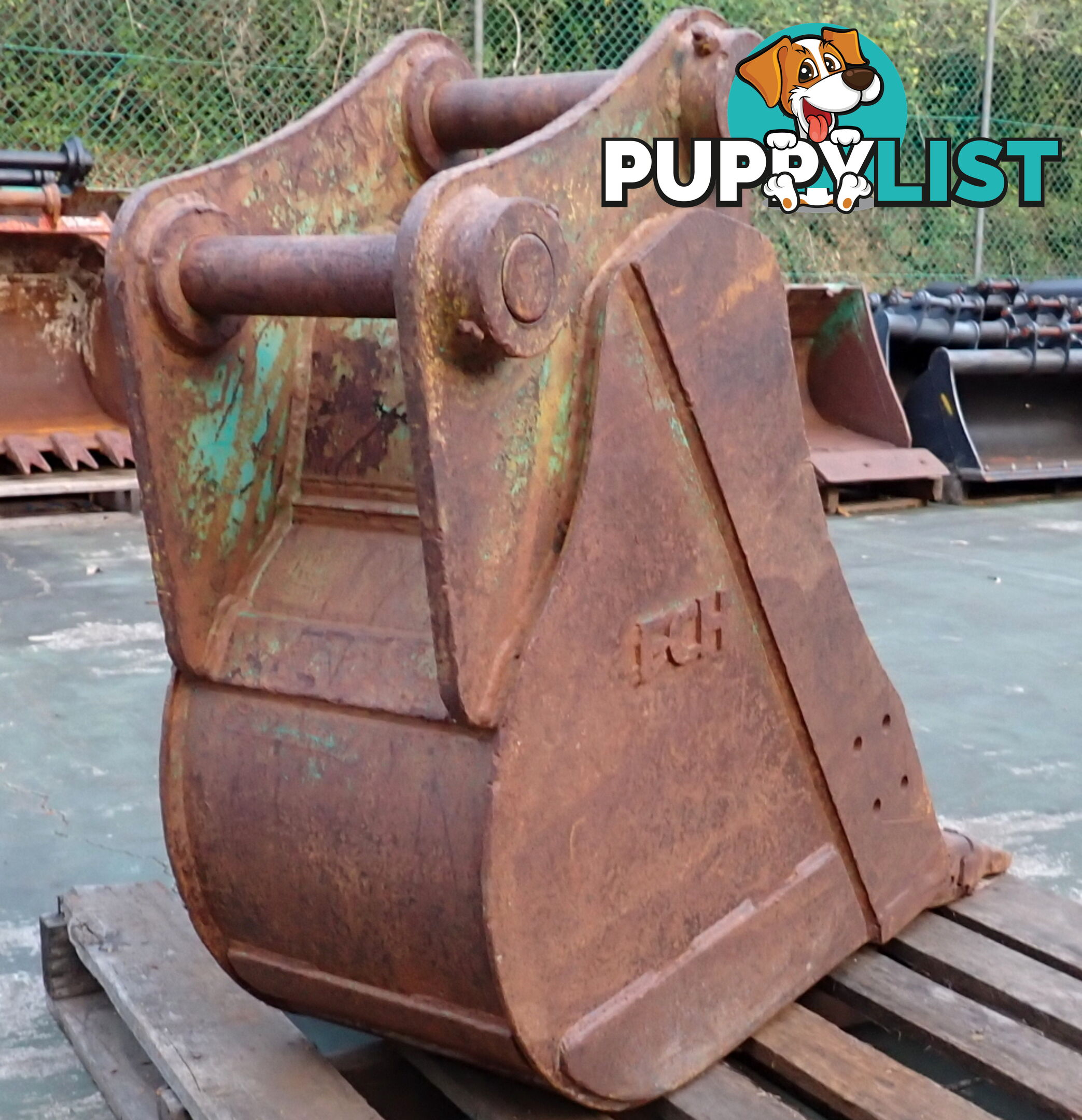

Current Headstock configuration:

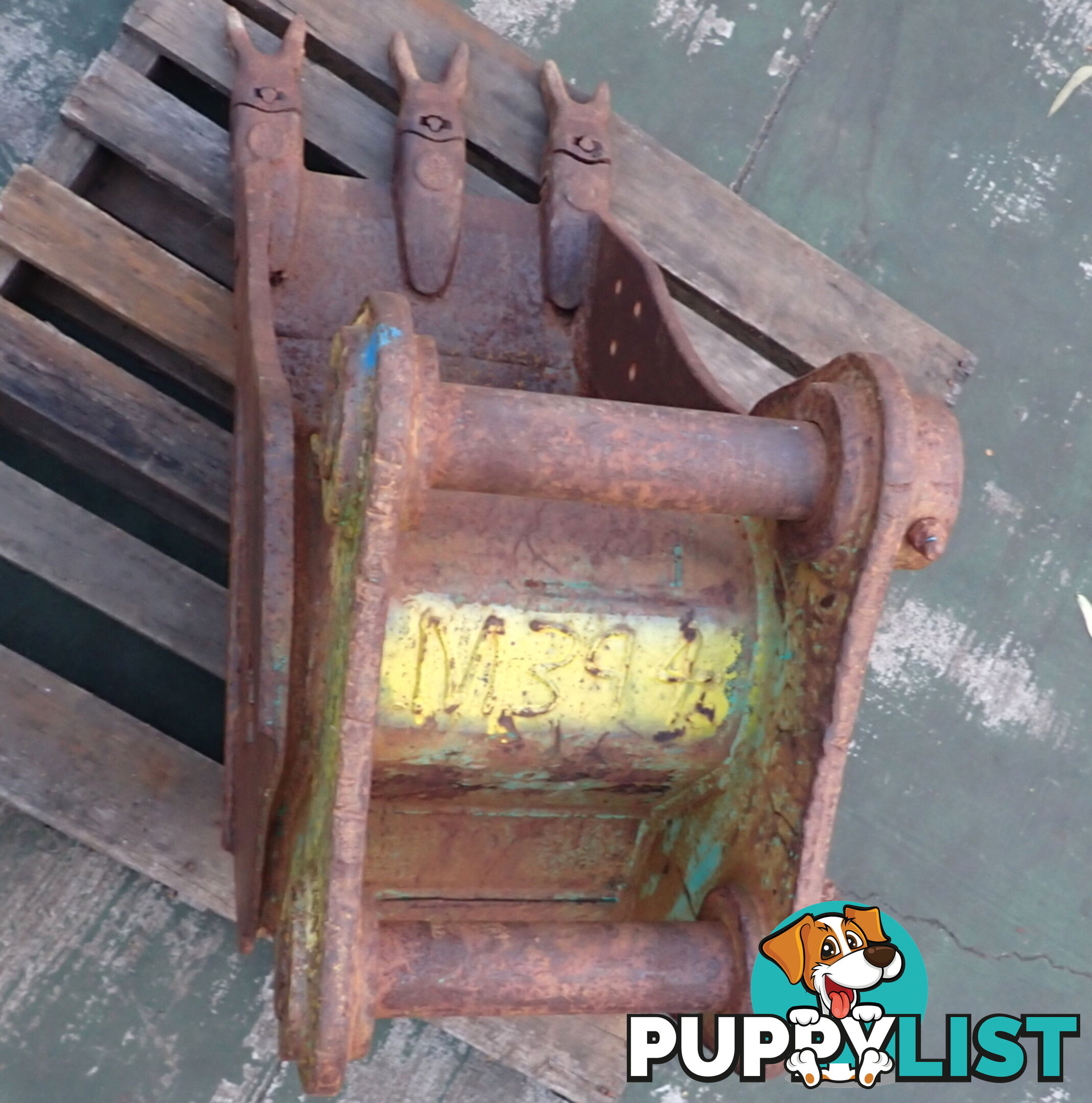

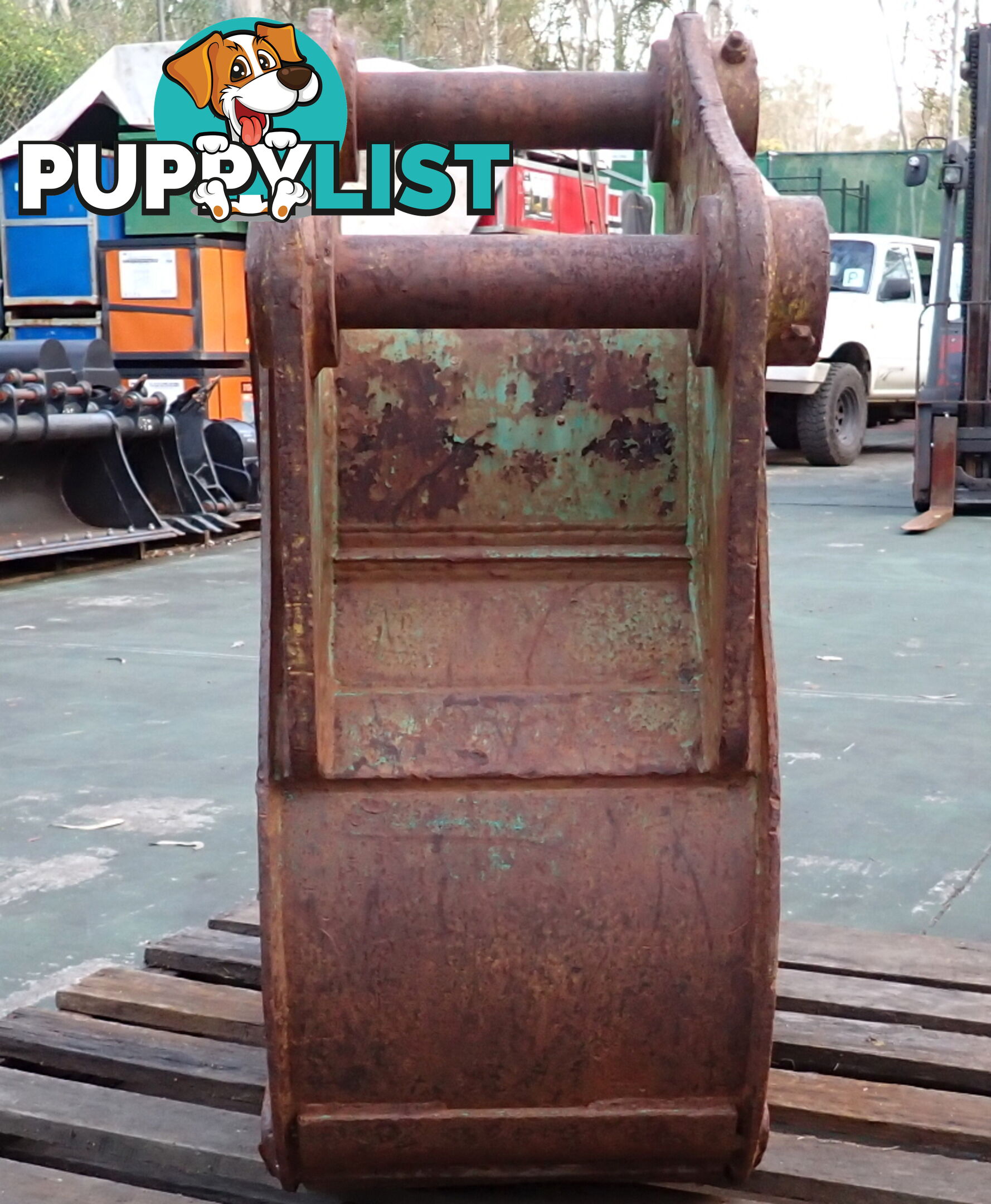

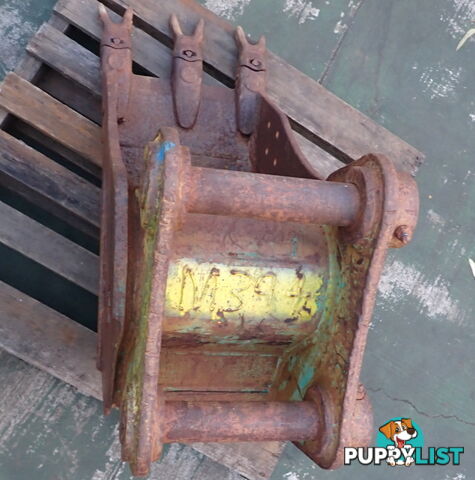

65mm Pin Diameter, 367mm Pin Center to Pin Center (CtoC), 253mm Between the inside Ear Bosses (which can be shaved back up to 290mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX135UR / Zaxis 135US, John Deere 135C RTS, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Takeuchi TB 1140.

Maybe fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hitachi EX135, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB JS110 / JS130 / JZ140, John Deere 710G Std or Ext Stick / 710J Std or Ext Stick, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120-3 / SH120CT-2 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135U-2 / SH135X-2 / SH135X-3 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC240C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Dimensions: 490mm Wide (at the teeth), 1130mm Deep, 1010mm High.
Weight: 288kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
