9-20 ton (60mm pin) Excavator Fixed/Pivoting Headstock Hitch Mounting Plate

DESCRIPTION

60mm pin Excavator / Backhoe Headstock to suit 9-20 ton machines. There is some light surface rust and a few small dings but is otherwise in great condition.

Designed for Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128UU-2 / PC150HD / PW100-1 / PW100-3, New Holland EC160LC / EW160 / EW200 / FX140 / FX200 etc. but will fit other machines (see below list of machines we have found so far).

Can be used for a mounting headstock for a Rock Breaker Hammer or Auger, or mount as a regular headstock for buckets and other attachments etc.

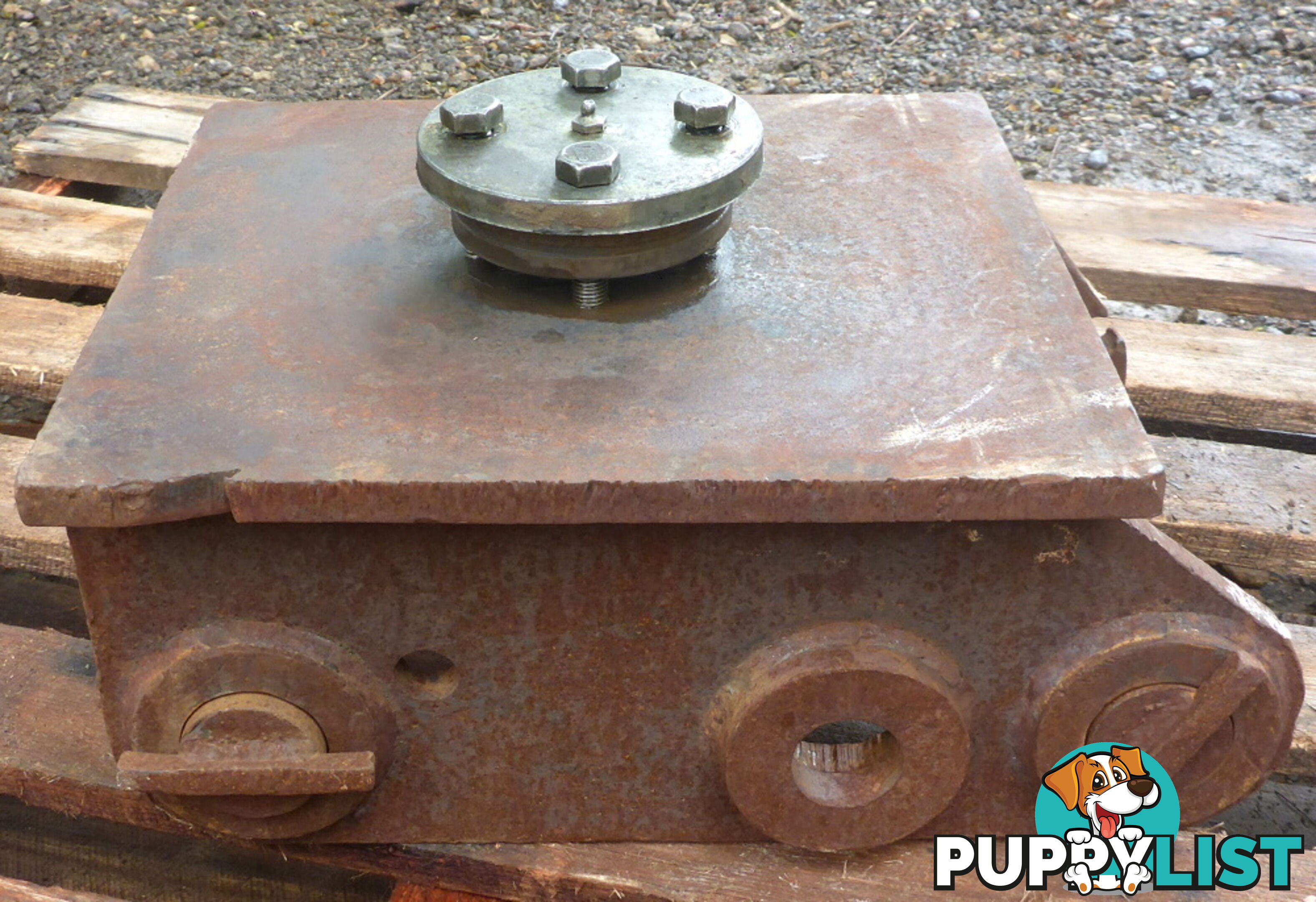

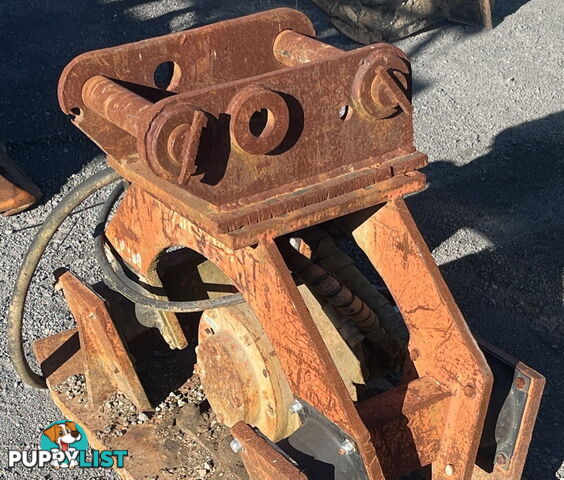

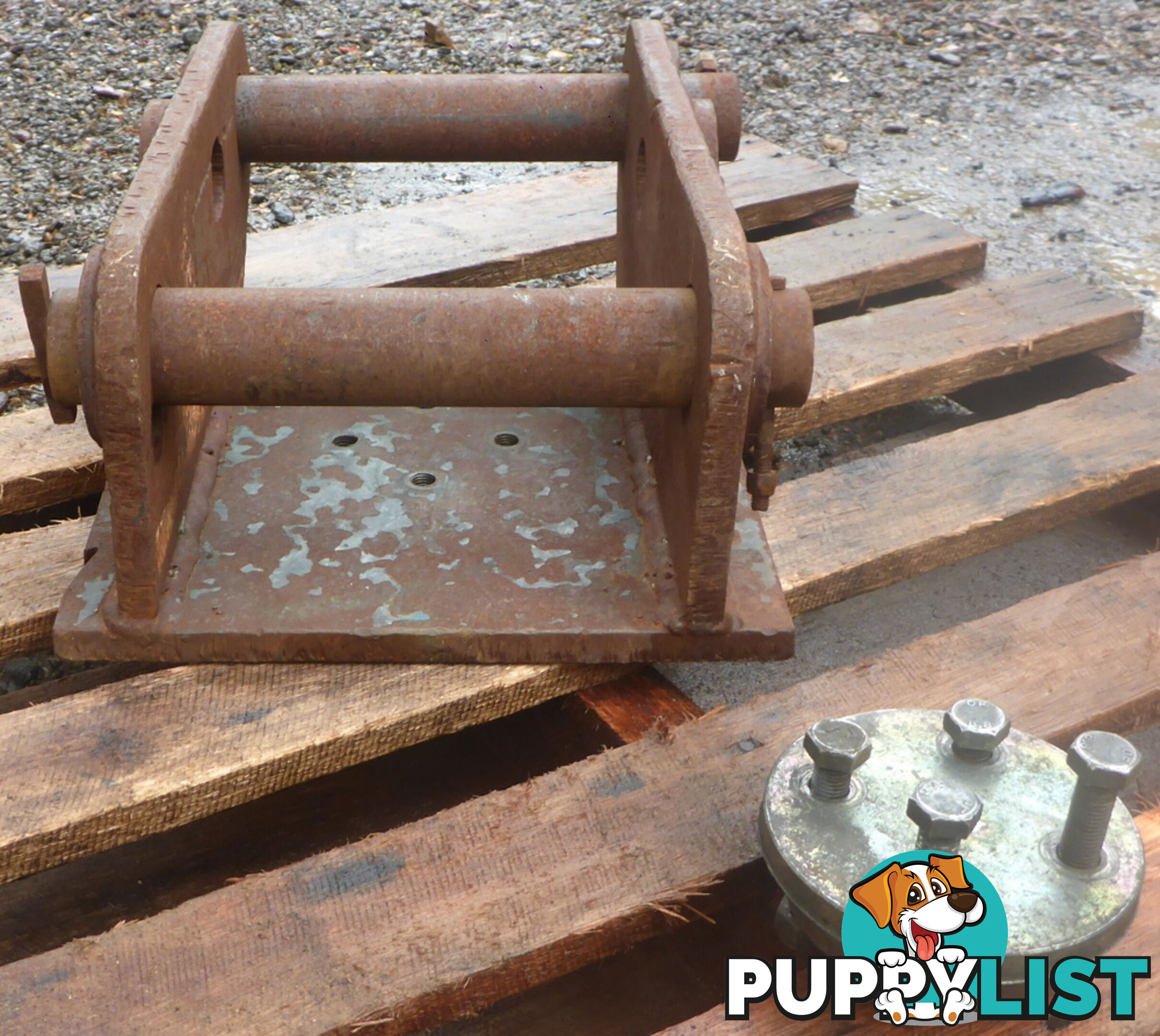

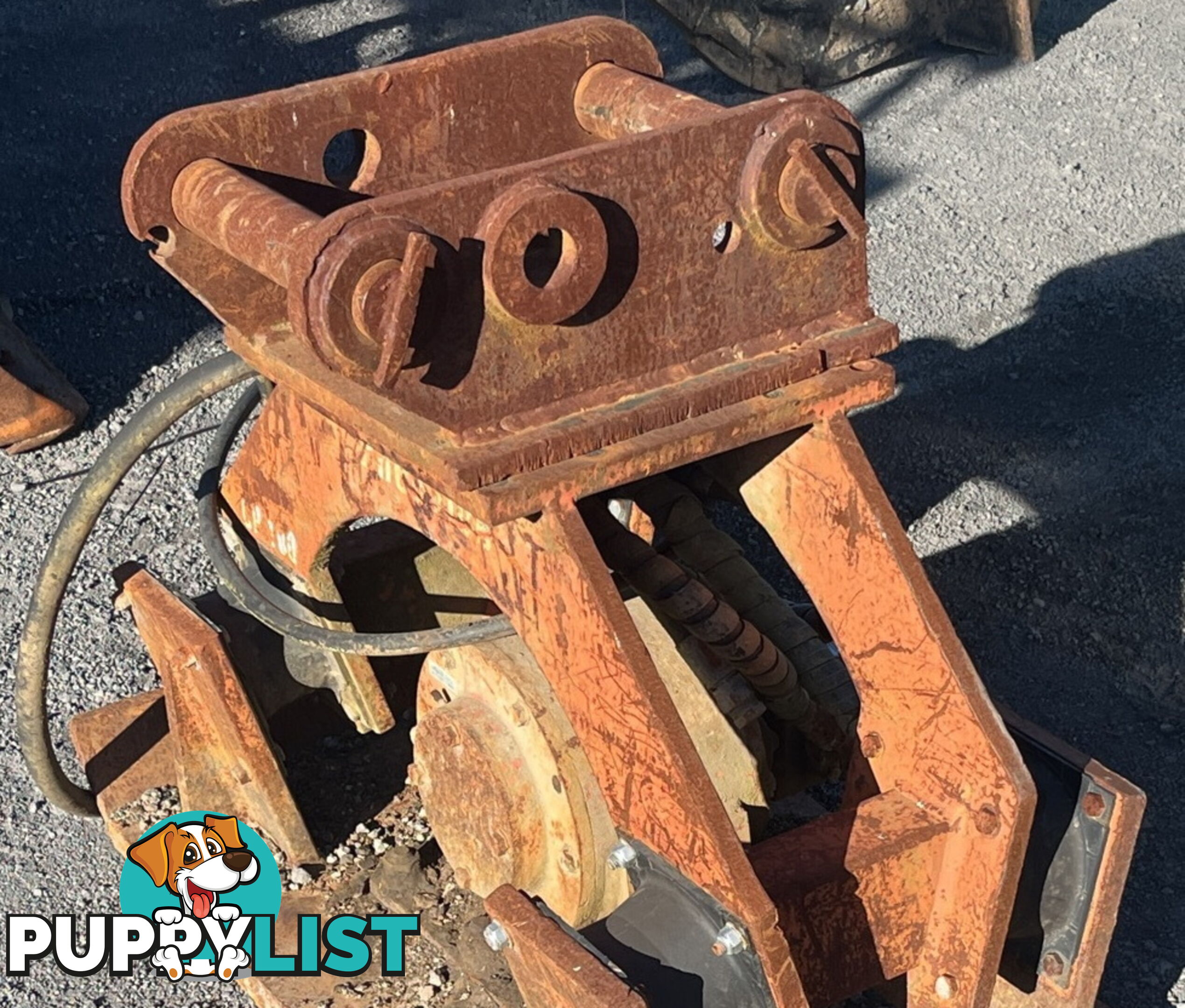

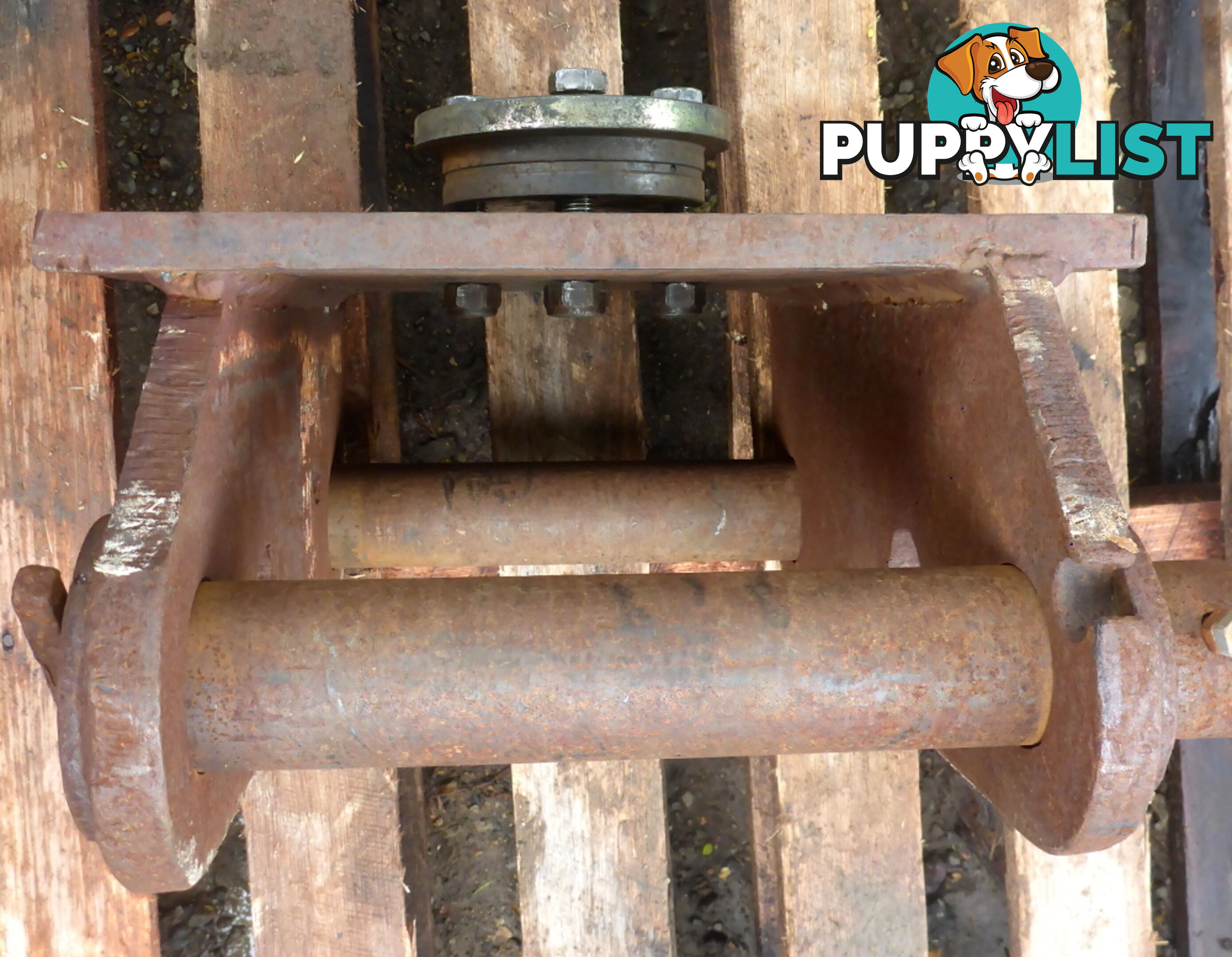

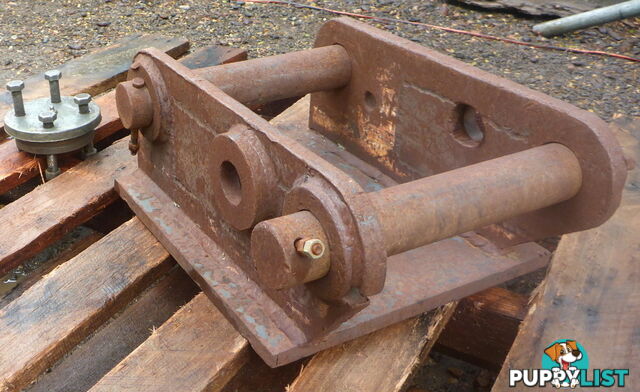

This Headstock came off a Vibrating Plate Compactor (see pic# 4). The extra round bracket in the middle with the 4 bolts allowed the headstock to rotate around the compactor. This could be useful if you have an attachment you would like to pivot / rotate. Otherwise you can unbolt the extra round bracket and just use the headstock as a standard fixed headstock.

Headstock setup:
60mm Pin Diameter, 375mm Pin Center to Pin Center (CtoC), 266mm Between the Ear Plates.

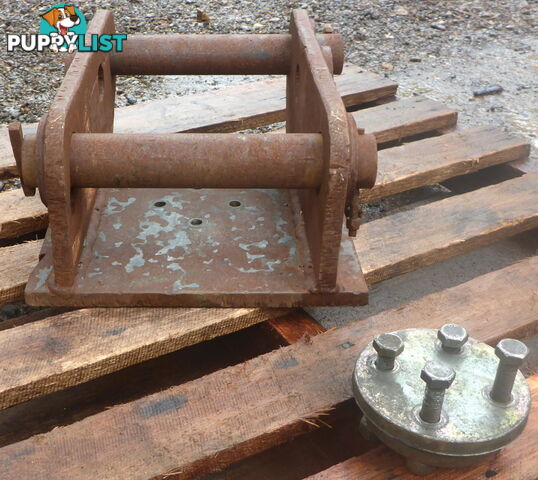

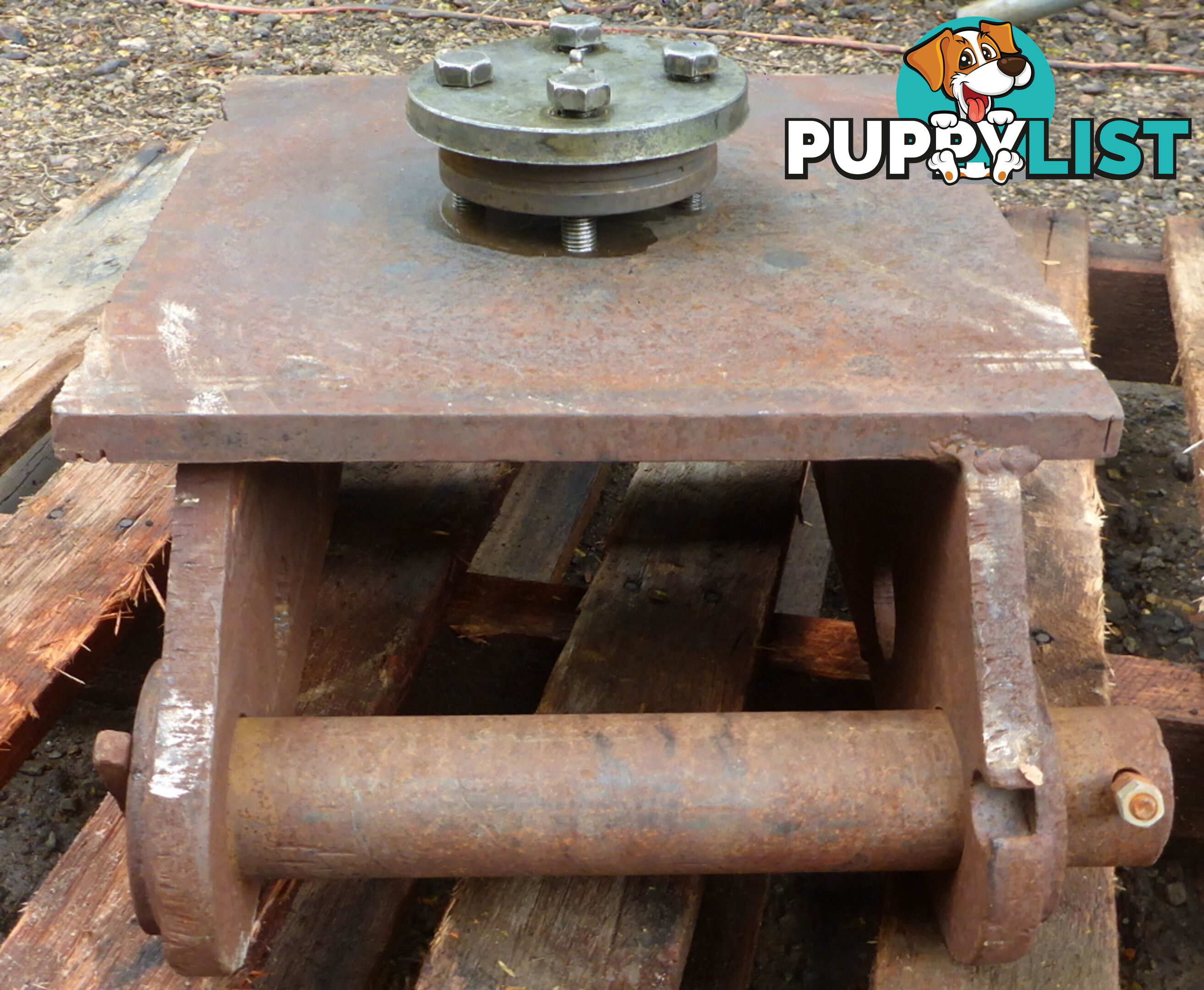

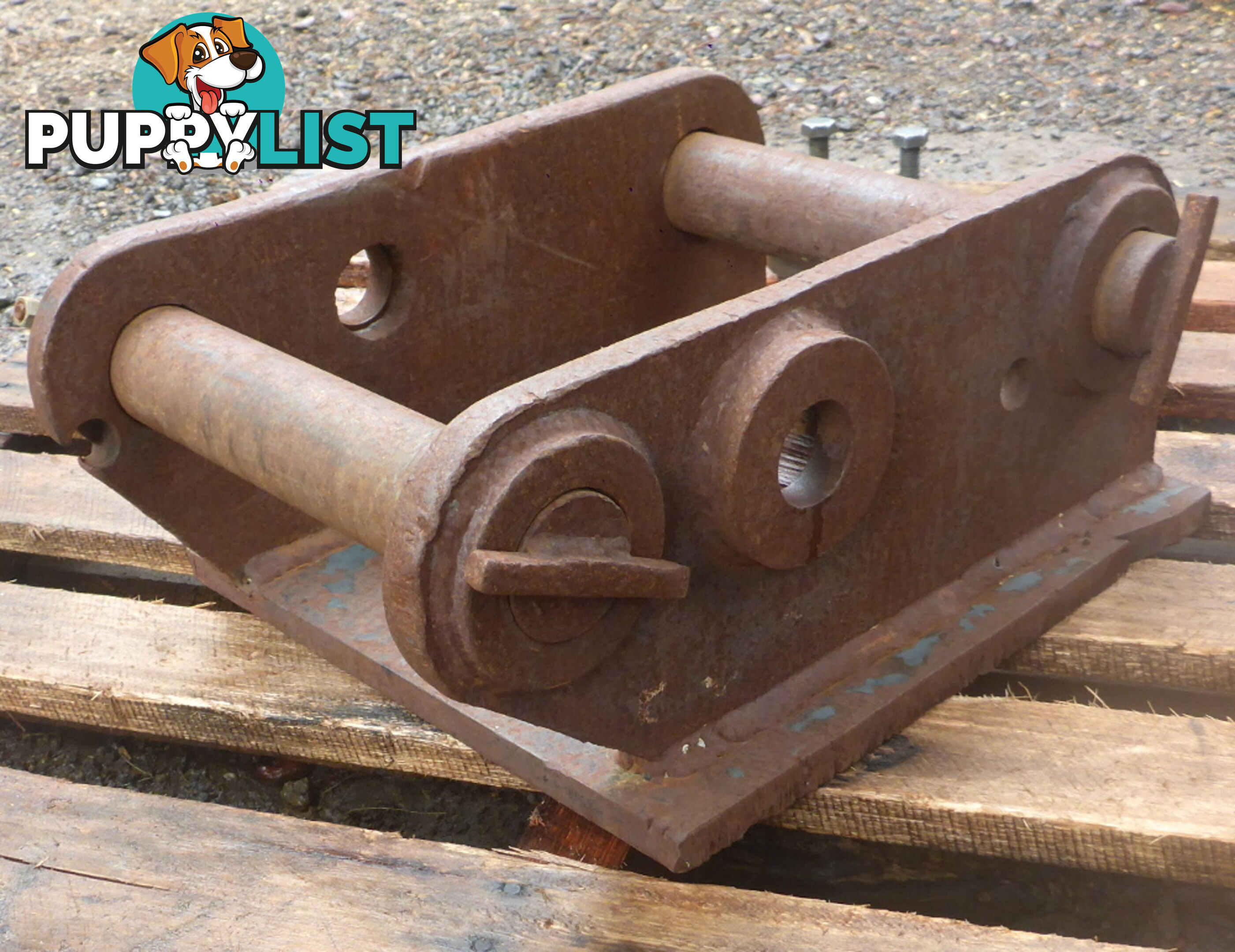

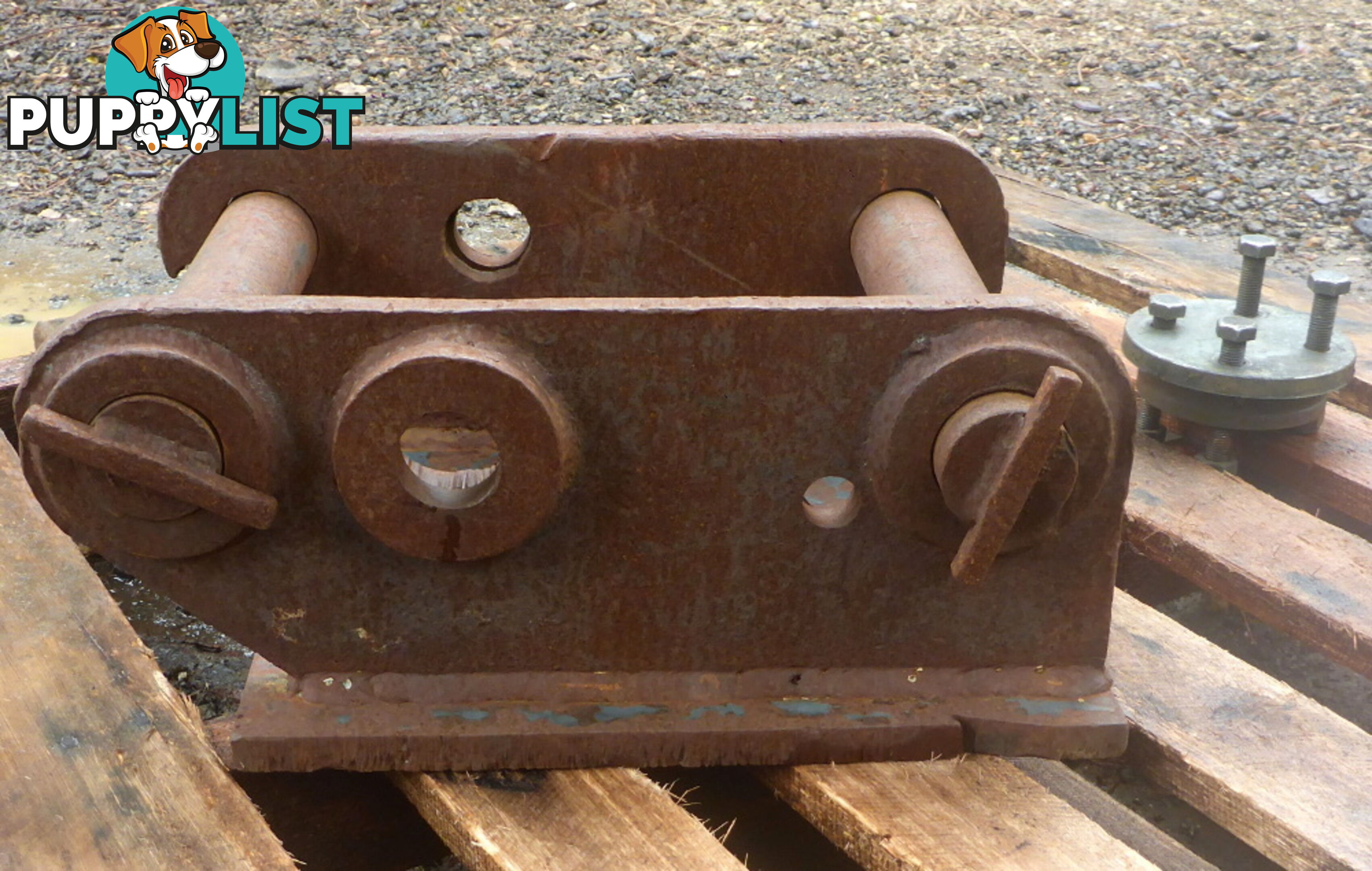

The hole diameter of the additional Pin hole on the sides is 45mm (see pic# 2 & 6).

Square Mounting Plate Dimensions: 420mm Long, 380mm Wide, 20mm Thick.

Overall Dimensions: 510mm Long, 390mm Wide, 215mm High. Weight: 76kg (including extra Pivoting Bracket).

Should fit: Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128UU-2 / PC150HD / PW100-1 / PW100-3, New Holland EC160LC / EW160 / EW200 / FX140 / FX200.

Maybe fit: New Holland EC130LC, O & K MH & RH 4CS / MH 2-12, Wacker Neuson 12002 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
