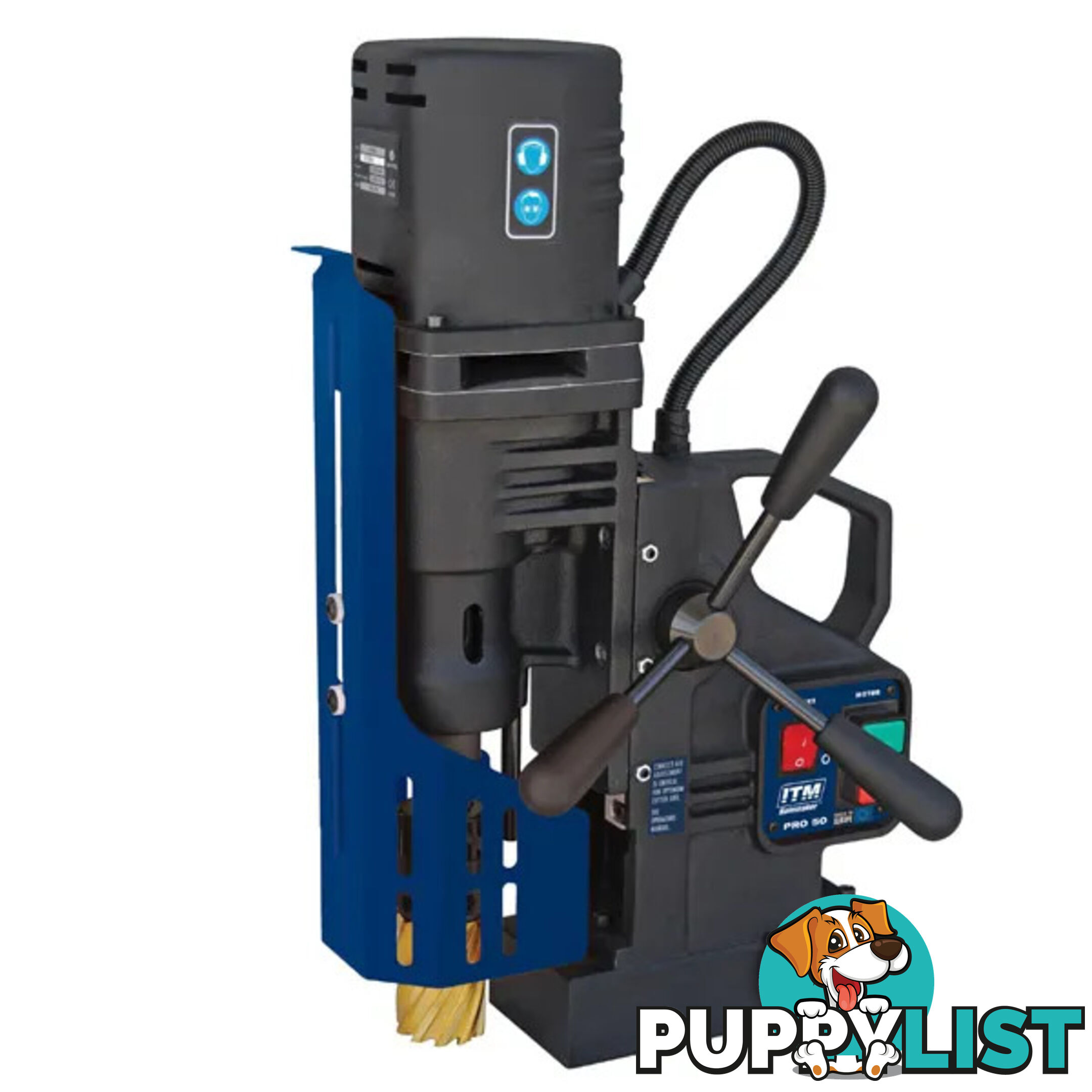

Magnetic Base Drill 240V 2 Metres Holemaker HMPRO50D

DESCRIPTION

Magnetic Base Drill PRO50 240V 2MT Holemaker HMPRO50D

The ability to use Holemaker cutters, No. 2 Morse Taper shank drills & reamers, as well as a drill chuck makes this a very multi-purpose machine.
Supplied complete with arbor for use with Holemaker cutters up to 52mm diameter & 75mm depth of cut when using Holemaker cutters, and 23mm diameter using taper shank drills or reamers. An industrial 2 speed gearbox and 1260w motor provide a strong hardworking machine.
Other standard features include cast iron construction, gravity feed coolant system & left or right hand feed handle operation.
The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge orexperience.

Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy duty versatile machine is highly beneficial.

SPECIFICATIONS

  CAPACITY (Diameter)     52mm
  CAPACITY (Depth)     75mm
  CAPACITY (Twist Drill)     2 Morse Taper 23mm
  MOTOR POWER   1260 Watt
  INPUT POWER   1340 Watt Single Phase 240V
  SPEED    2 Speed ( 200/ 400rpm)
  WEIGHT    16.5 Kg
  MAGNETIC DEAD LIFT    12000Nm on 25mm Steel Plate
  STROKE    153mm
  HEIGHT     426mm min / 579mm max


Part Number/SKU: HMPRO50D

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
