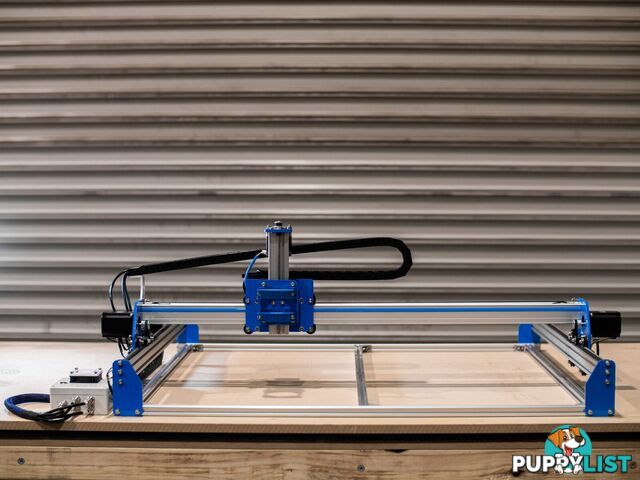

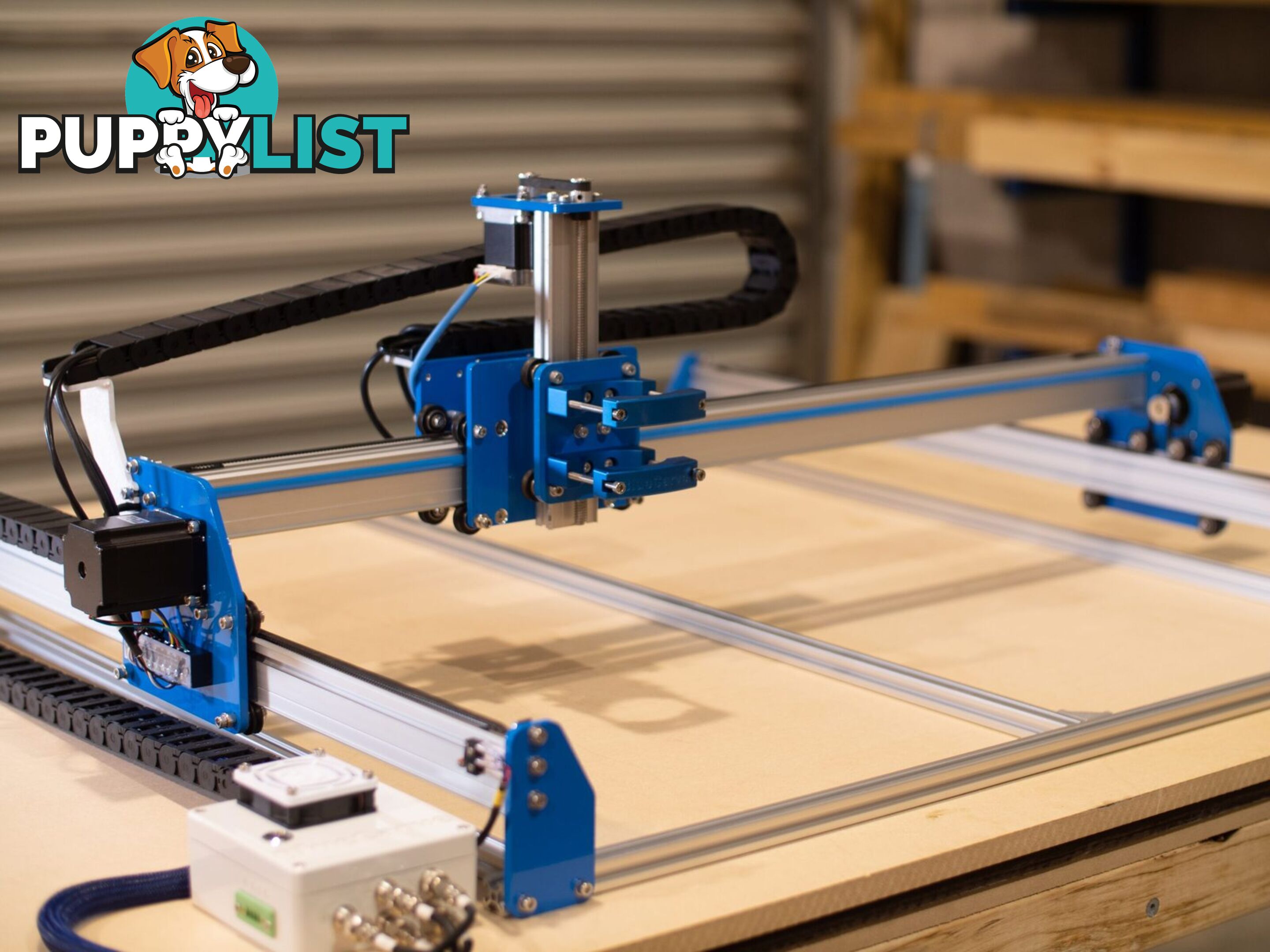

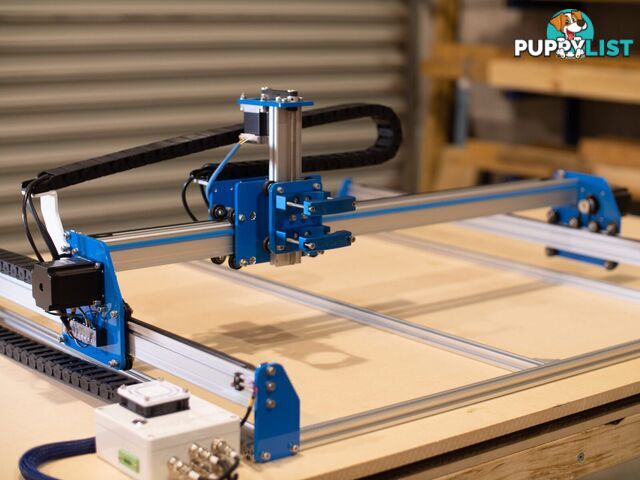

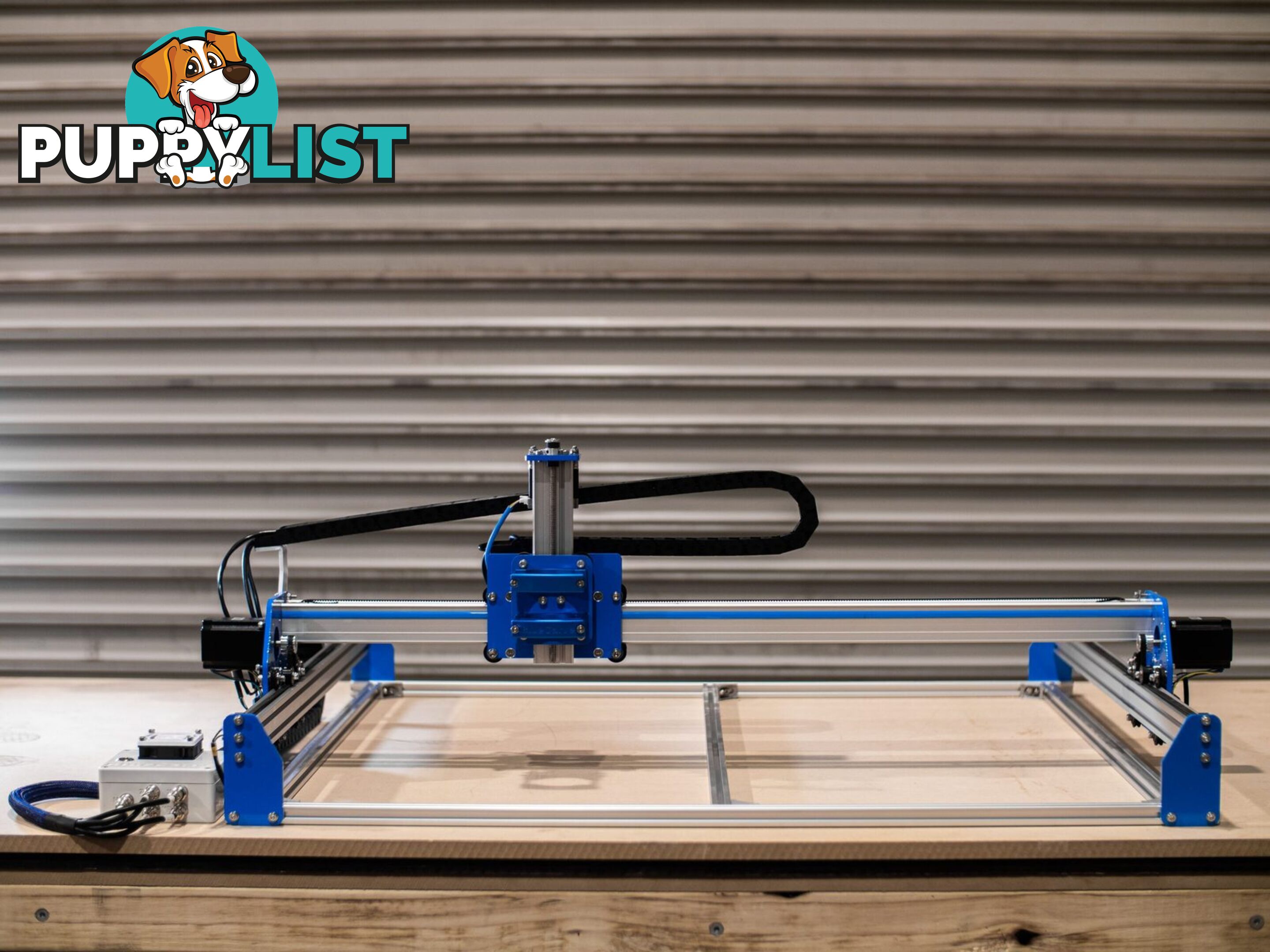

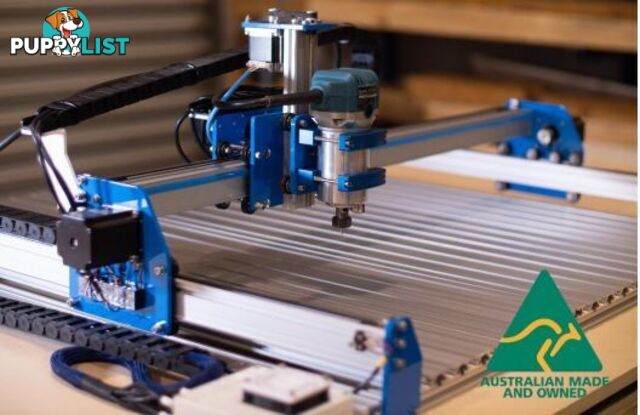

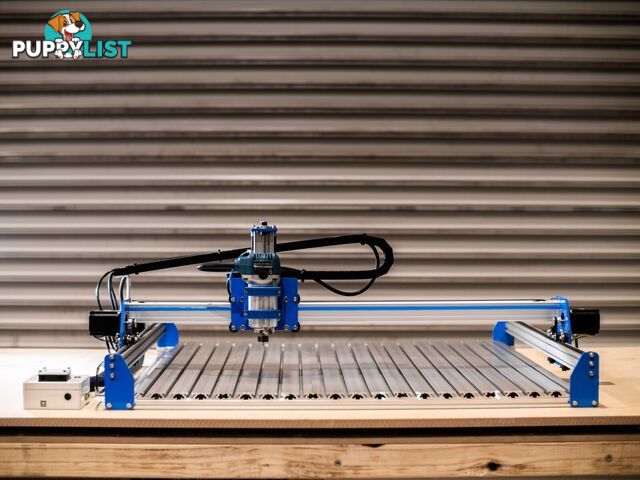

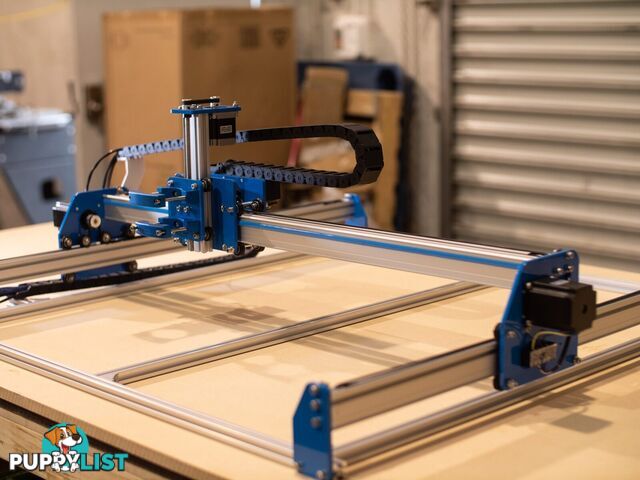

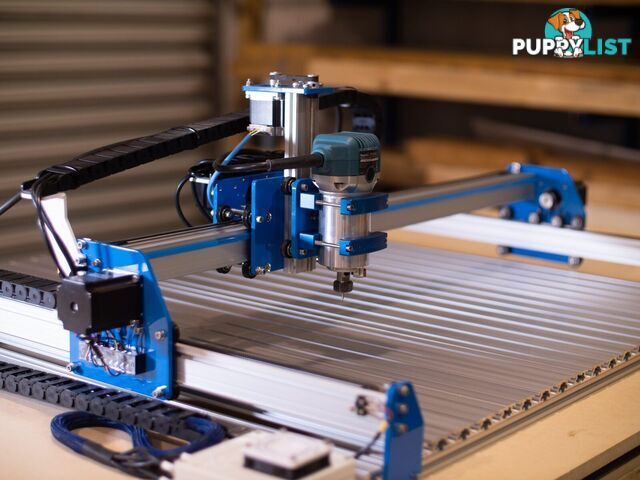

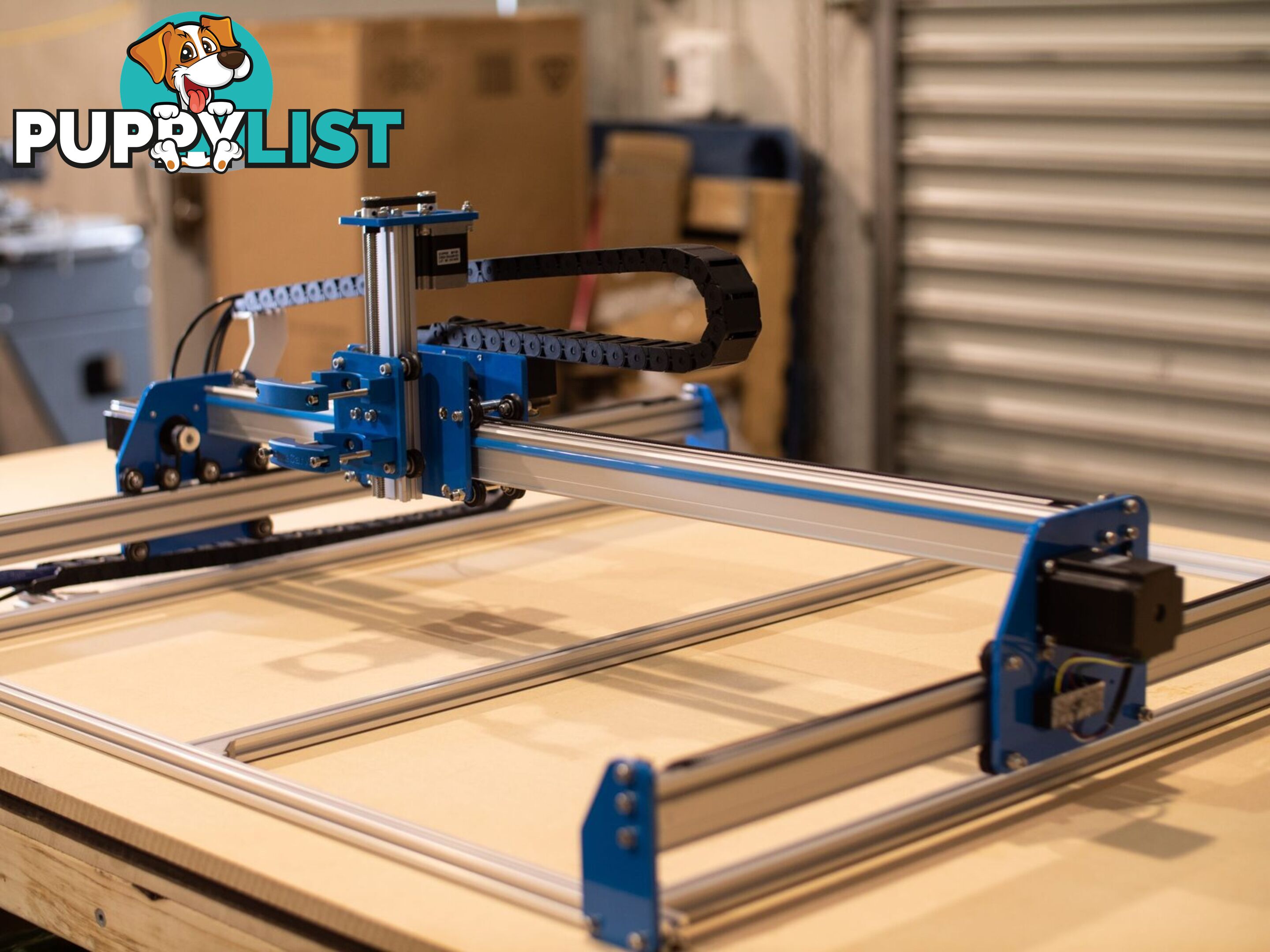

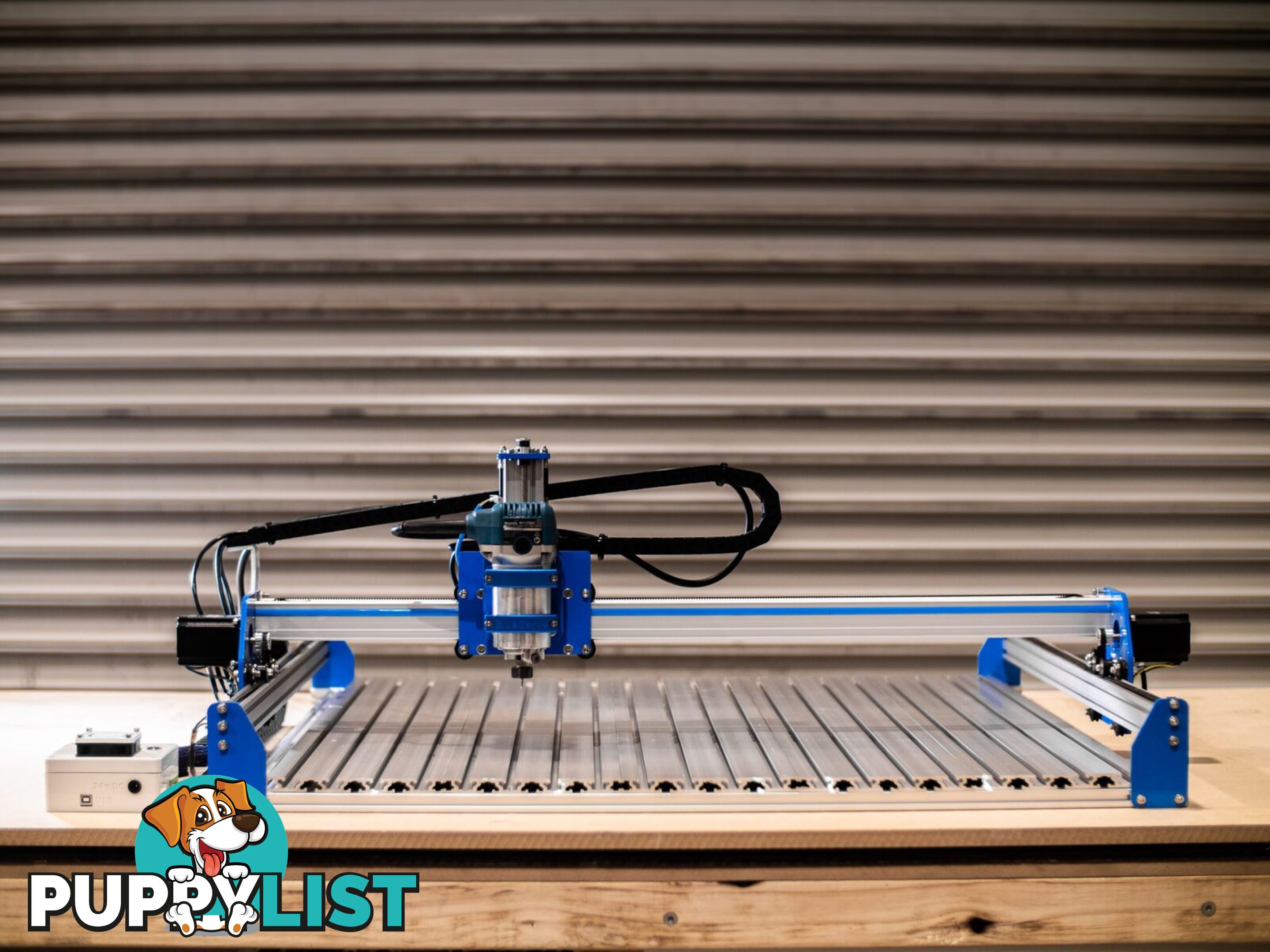

BlueCarve Bluey 1 x 1 Metre CNC Router

DESCRIPTION

BLUECARVE BLUEY 1 X 1 METRE CNC 1000X1000MM RAIL SIZE, 750 X 750MM CUTTING AREA

1×1 meter CNC, the Bluey is suited to beginners or someone dipping their toes into the world of CNC. There are 3 sizes to choose from and well as upgrades to suit your needs. The Bluey is capable of cutting soft and hardwood timbers, plastics and light work on soft metals like aluminium.

Cutting area - 1000x1000mm rail size, 750 x 750mm cutting area, 65-85mm height clearance
Motion controller - Arduino Uno CNC Controller, Grbl 1.1 with optimal settings loaded
Stepper motors  - 340ozin Nema23 8mm shaft (X & Y axis) & 167ozin Nema23 for (Z axis)
Wiring & structure - 4 core shielded cables throughout
6mm aluminium structural 5083 plates -  powder coated in BlueCarve blue

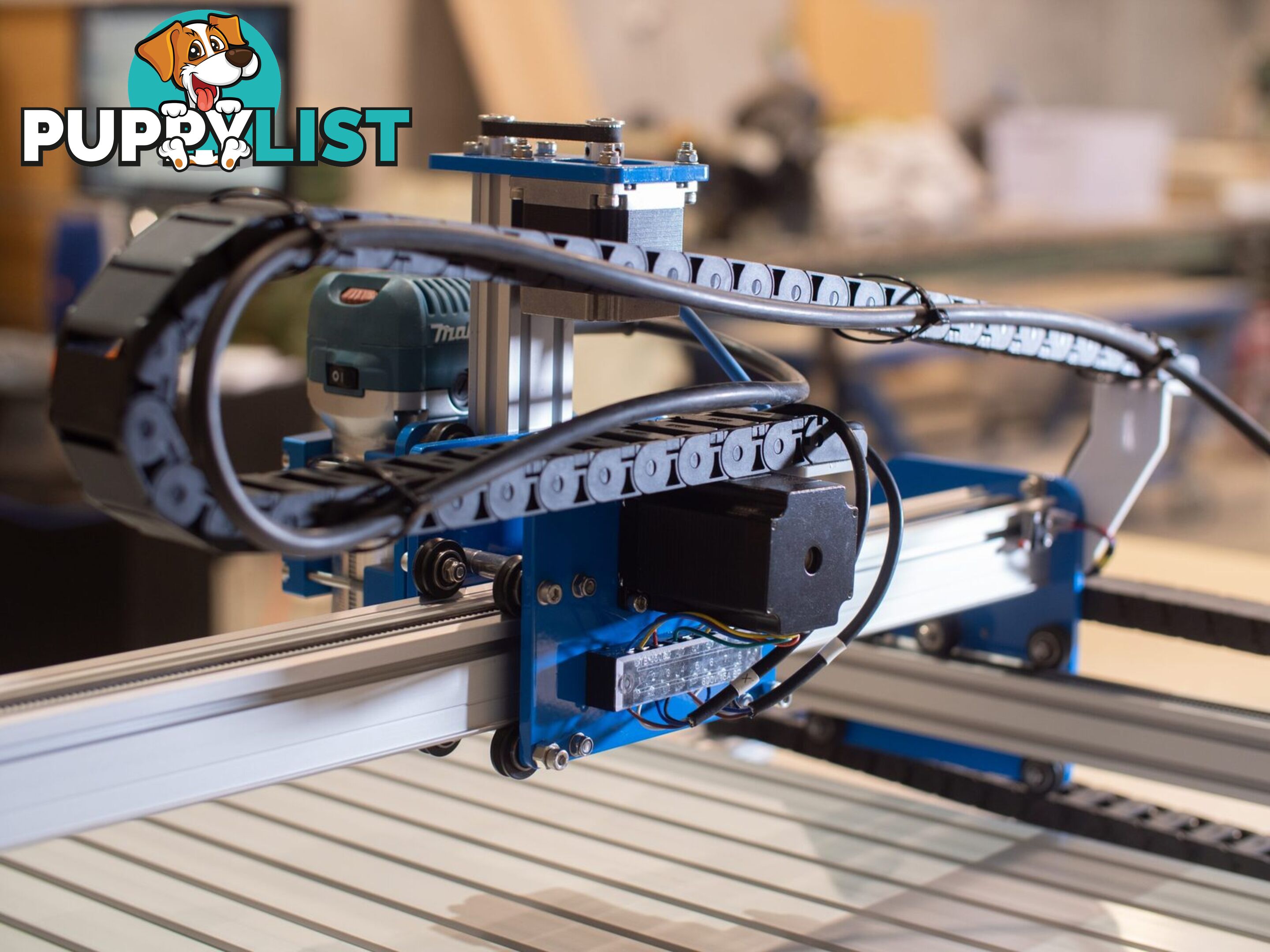

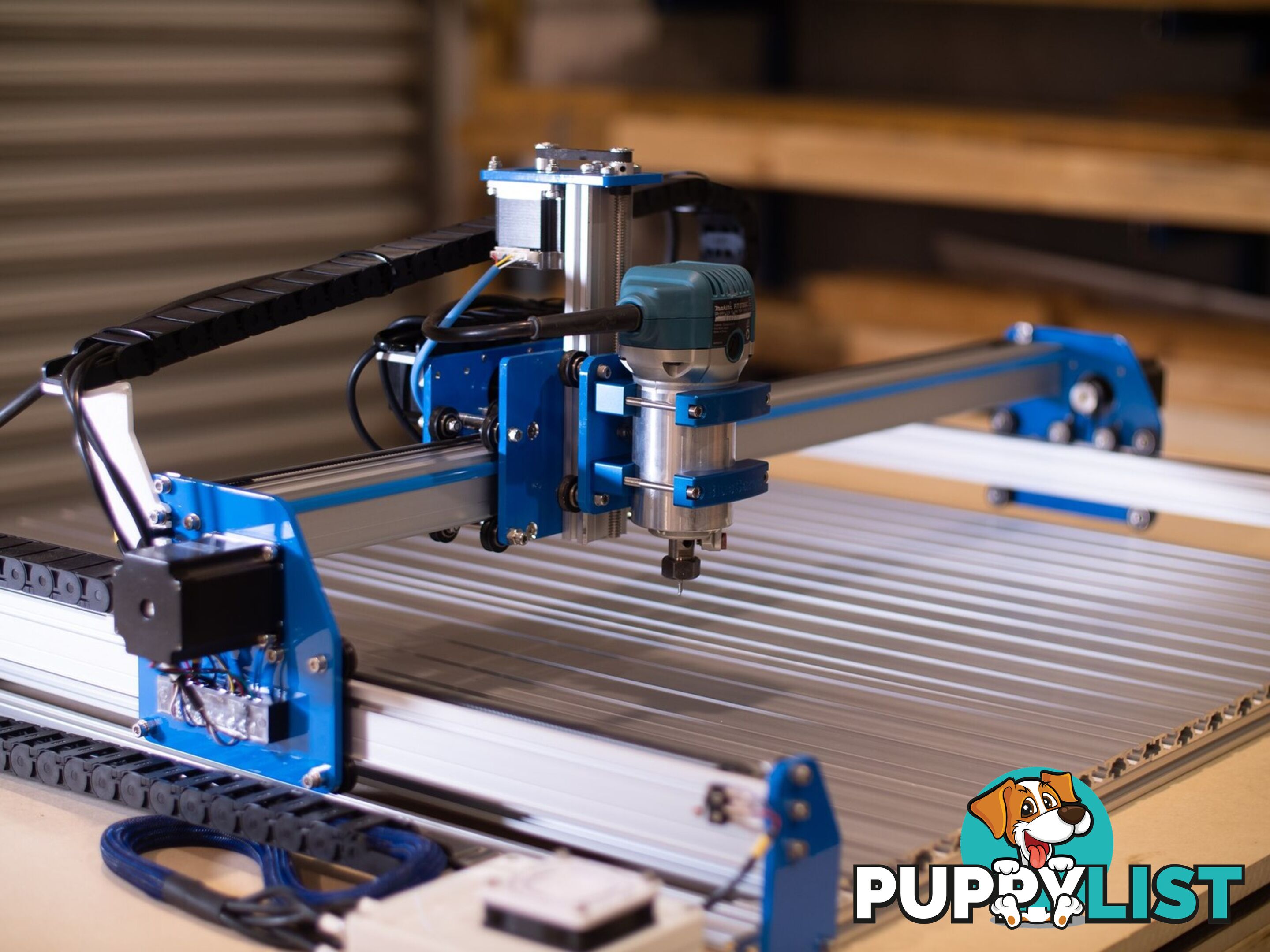

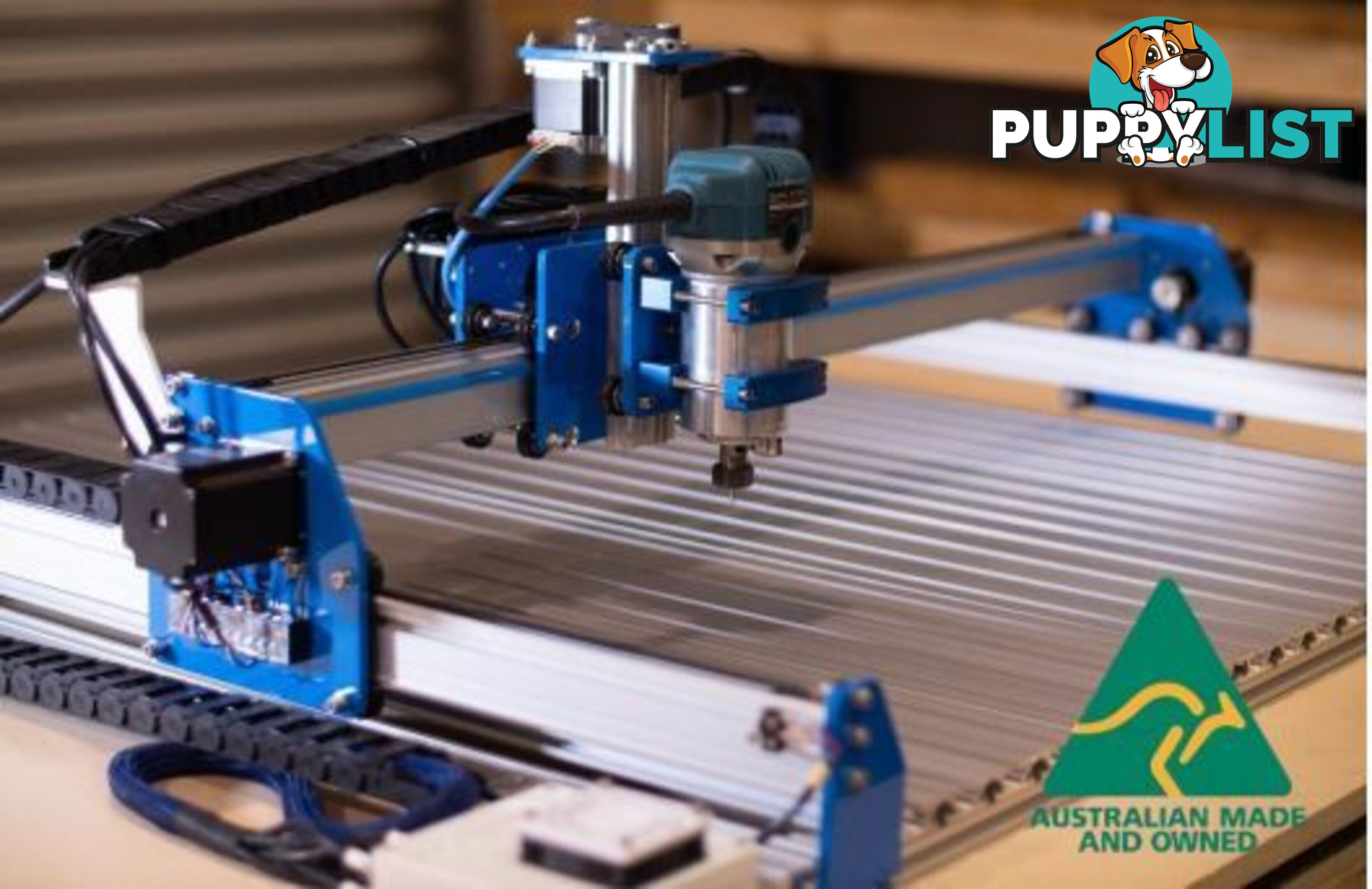

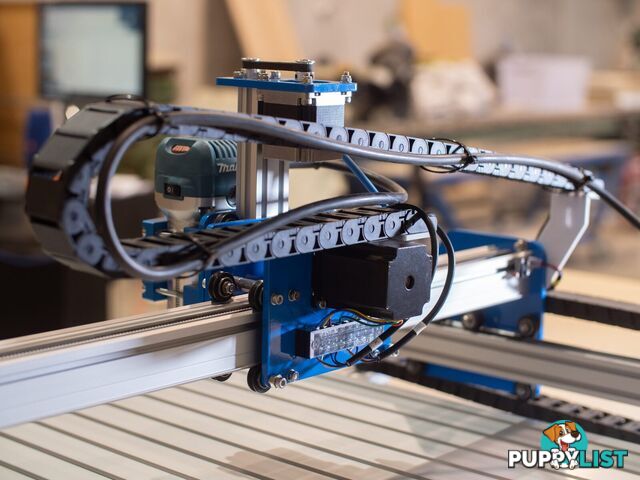

65mm mount -  to add your Makita trimmer or a spindle
Australian approved 24v power supply
Homing Micro switches - for X, Y & Z back to 0, 0, 0.
Motion - Gt3 reinforced belts & 20 tooth pulleys



Part Number/SKU: Bluey

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
