New 5-10 ton (50mm pin) LG 700mm Excavator GP Digging Bucket suit Hitachi, Komatsu

DESCRIPTION

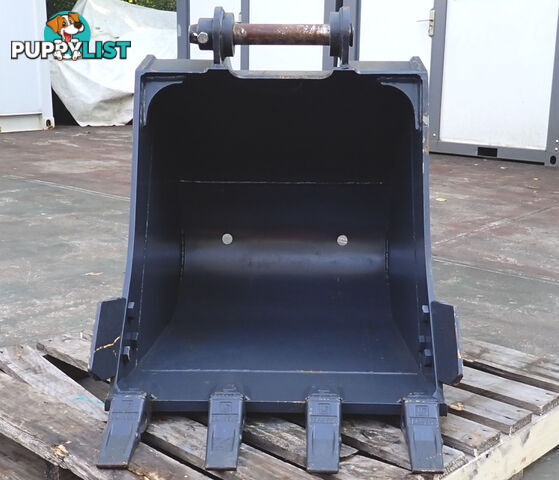

New 700mm Genuine LiuGong Excavator GP Digging Bucket suit 5-10 Ton machine.

This is a solid, sturdy, well engineered bucket made by the world renowned LiuGong who have been making industrial machinery since 1958:
https://www.liugong.com/en
https://liugongaustralia.com.au

Condition is New and is in perfect condition except for a few scratches and chipped paint.

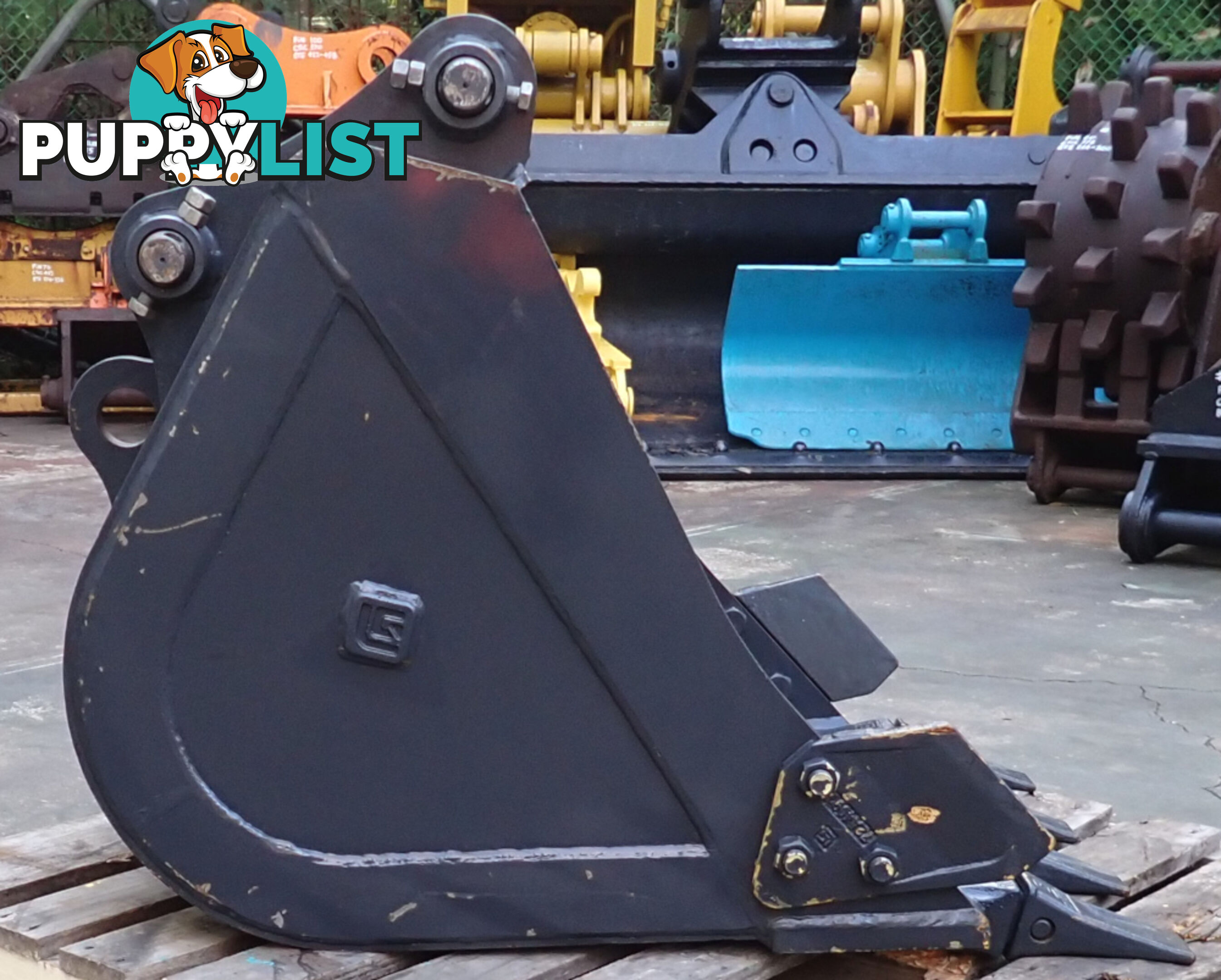

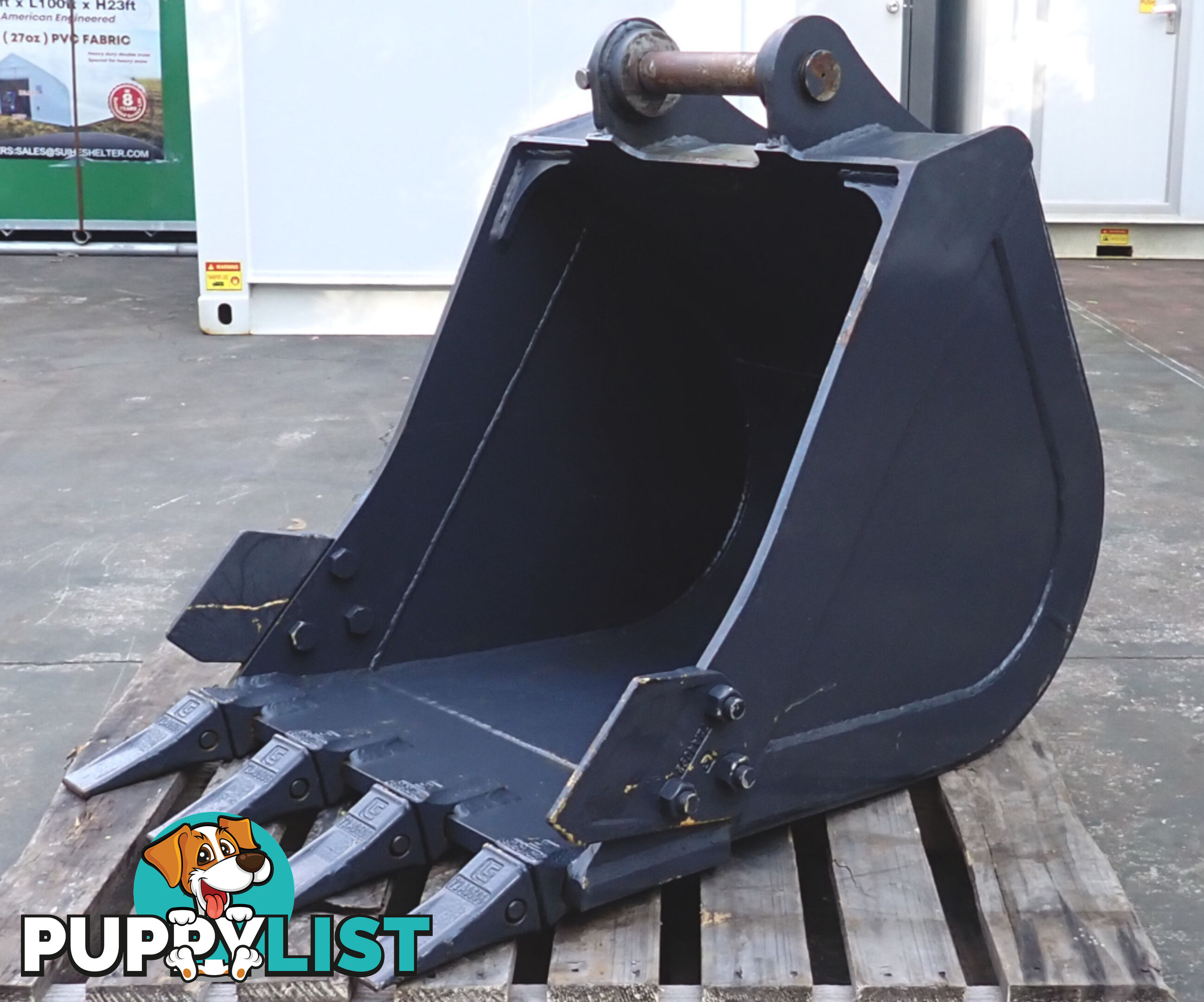

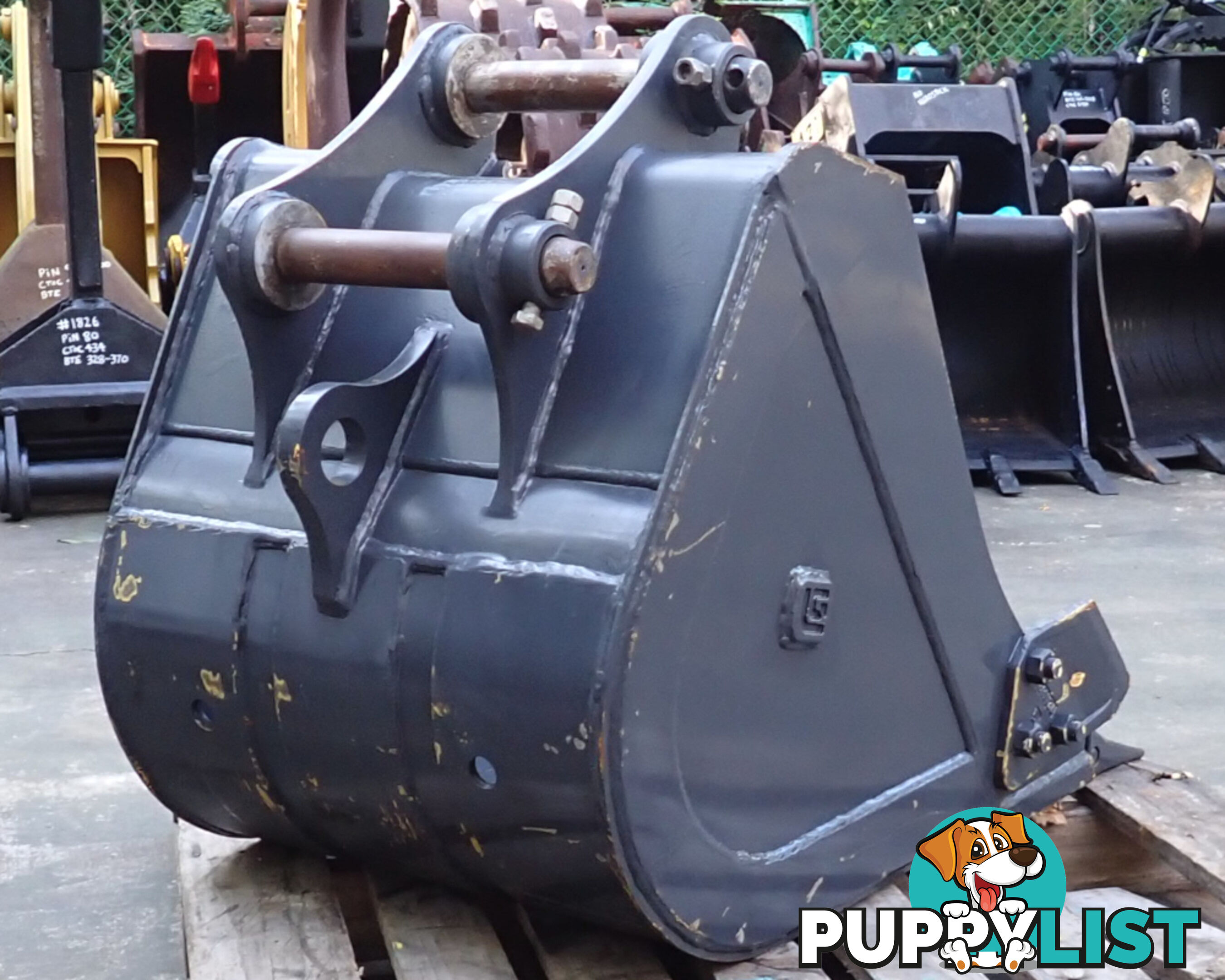

It has removable Bolt-On Side Cutters.

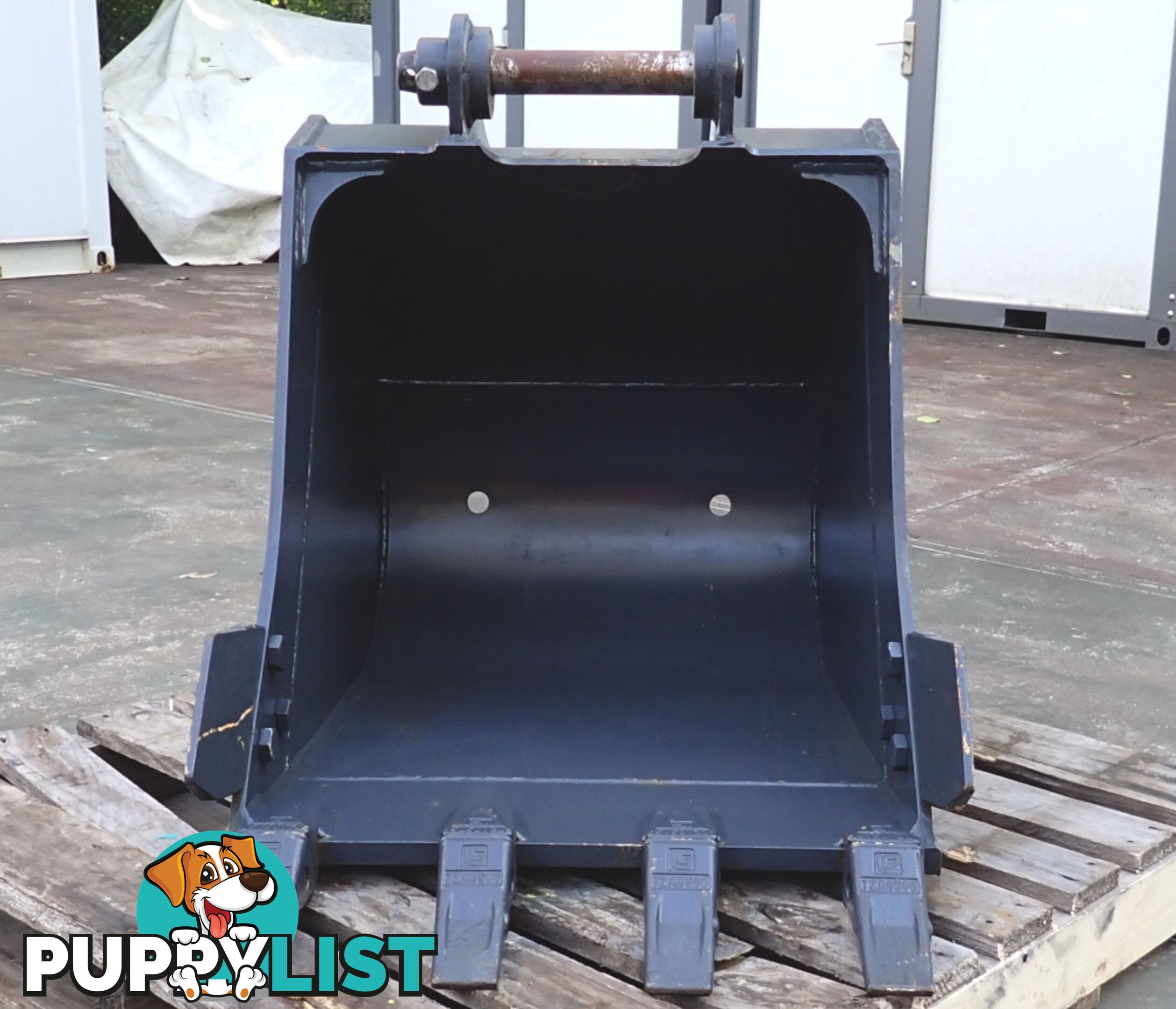

It has Tapered sides so mud slides out easily, and there are 2 drainage holes at the rear to let water out if you are dredging a dam etc.

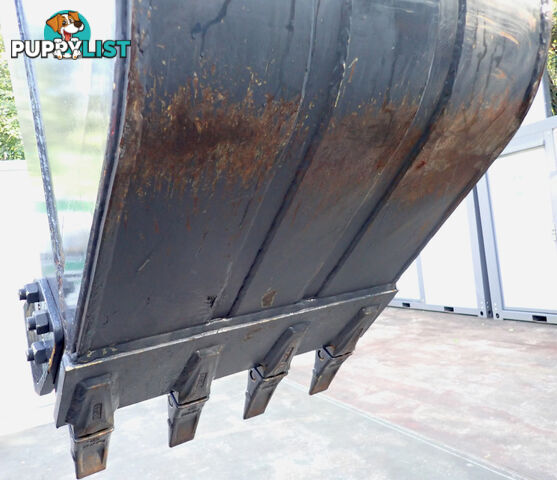

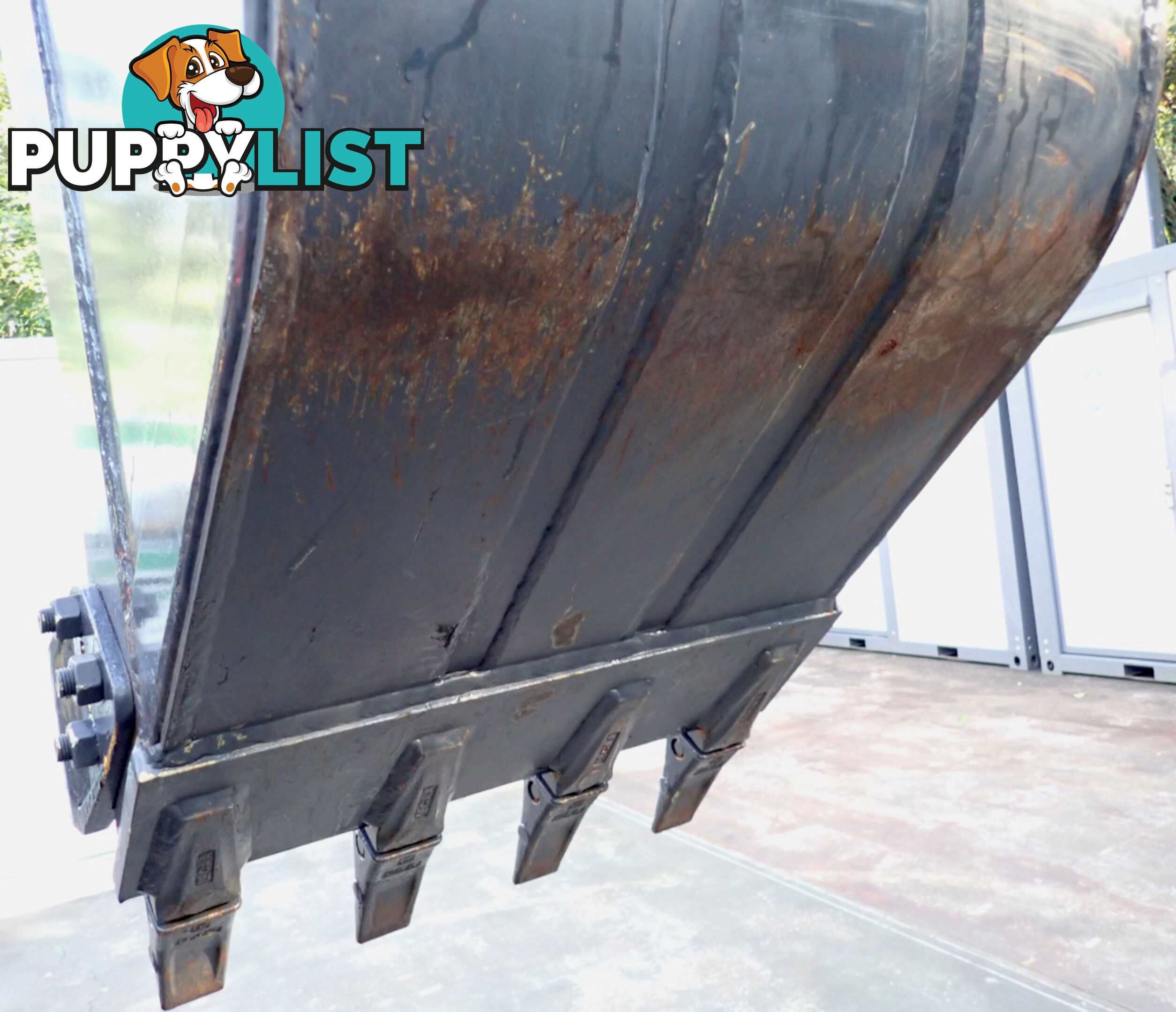

There is extra wear plating on the bottom of the sides and there are extra wear strips welded underneath for durability (see pic# 10).

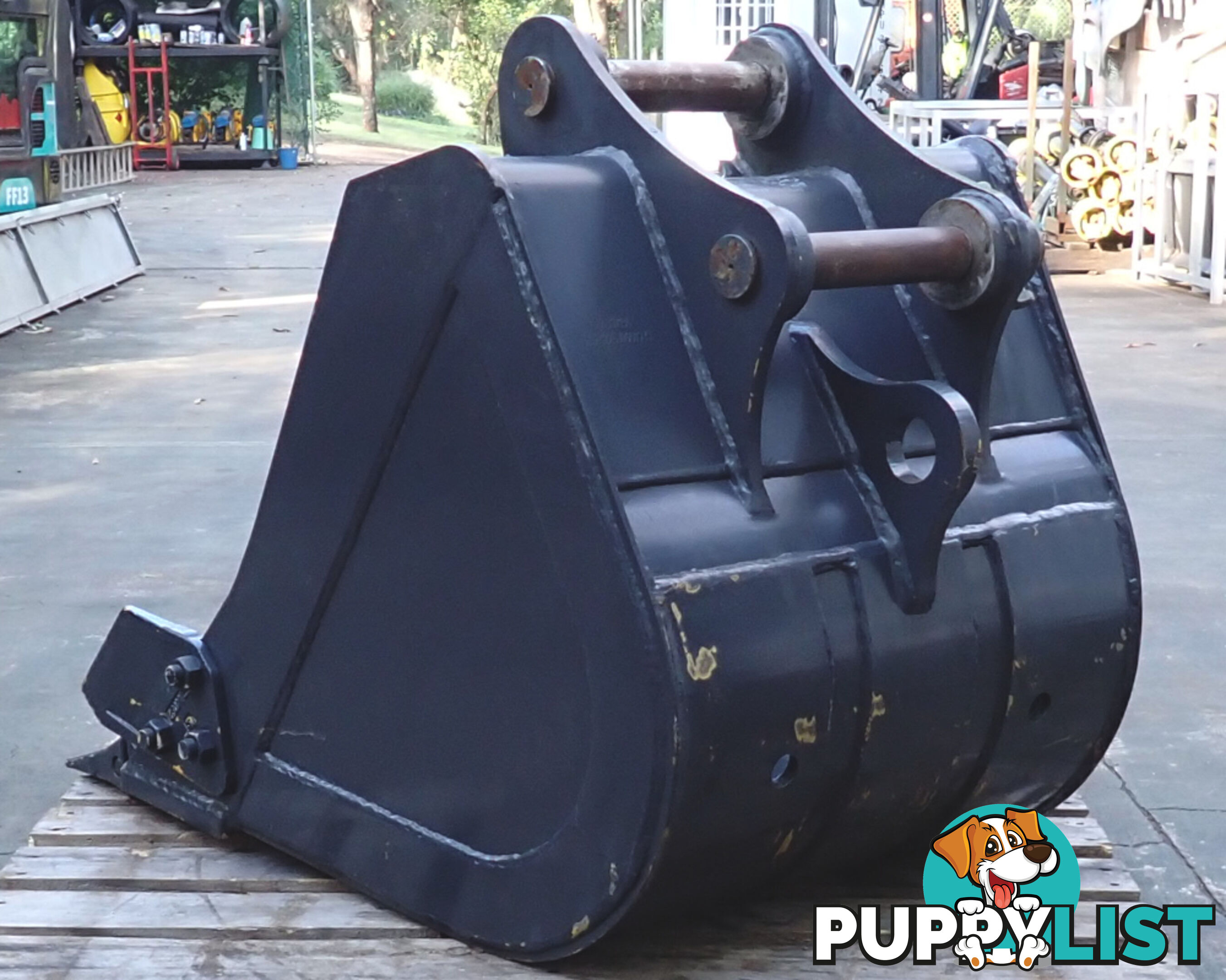

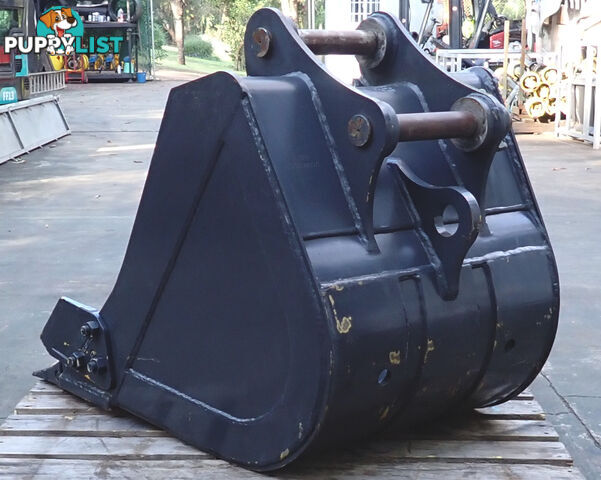

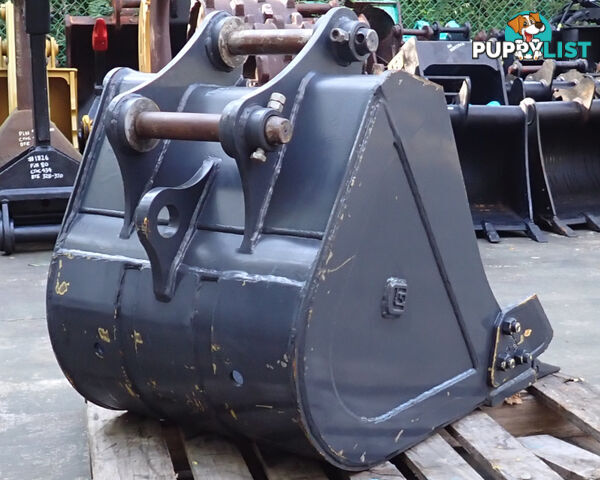

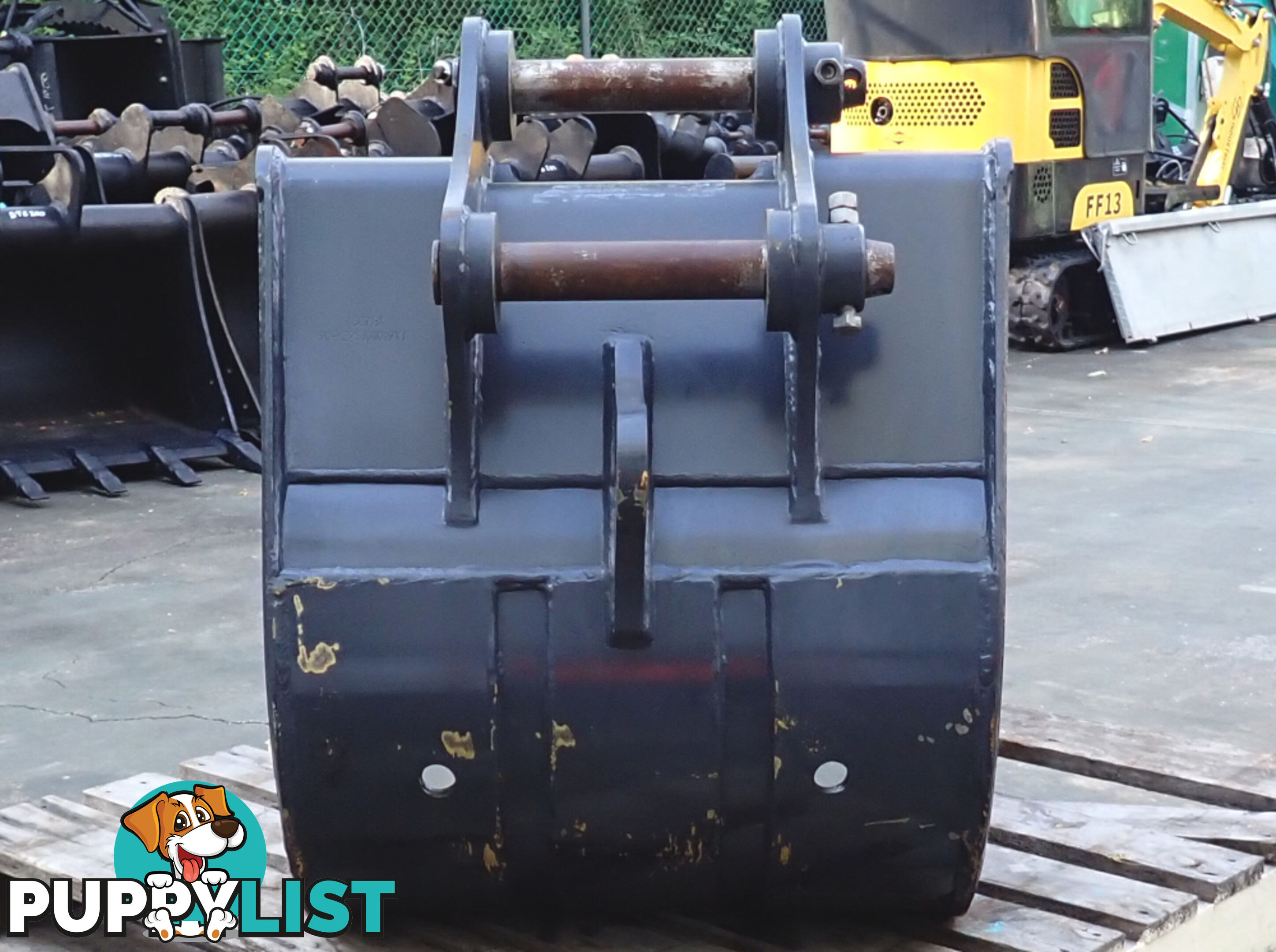

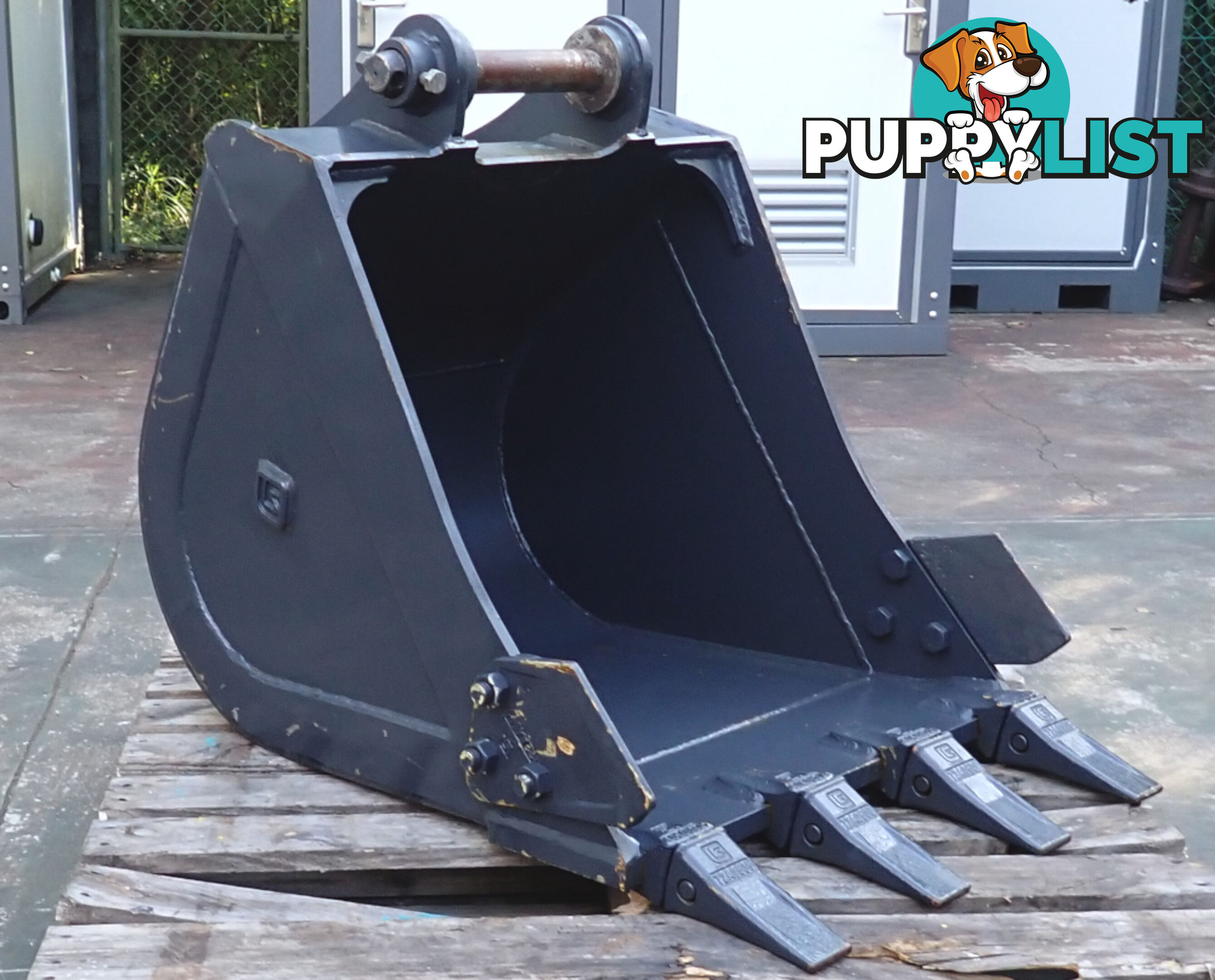

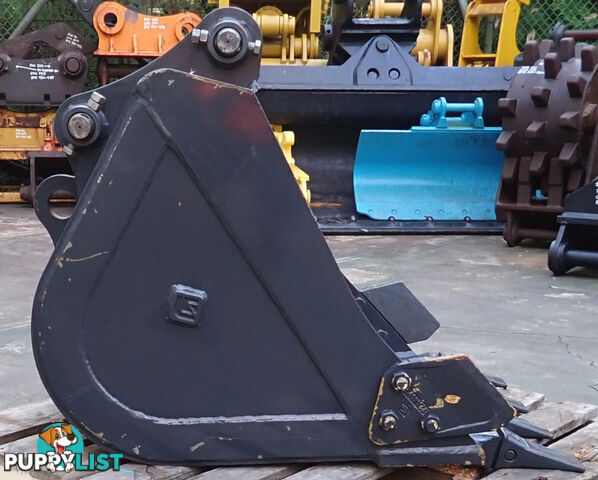

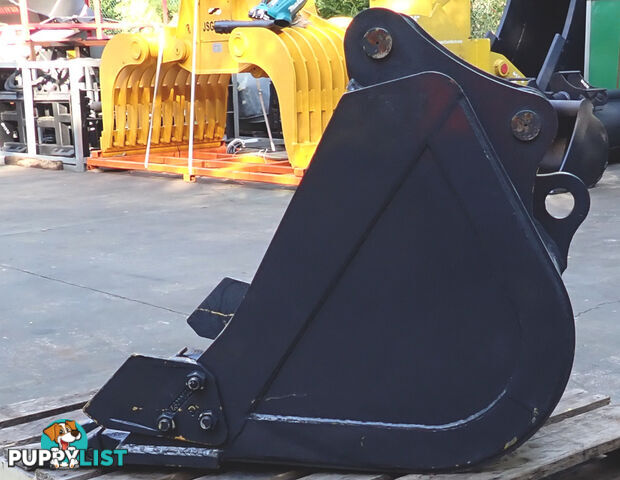

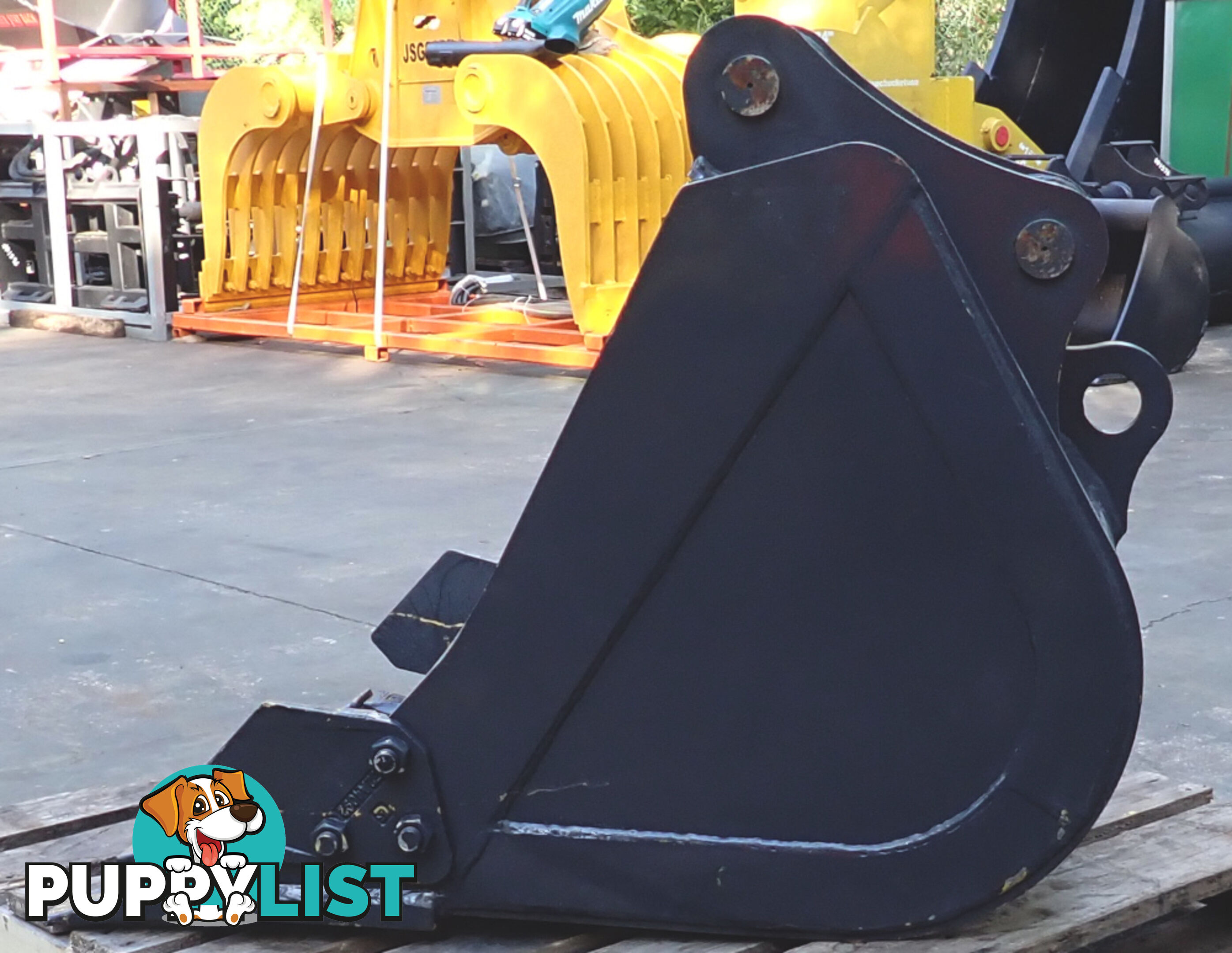

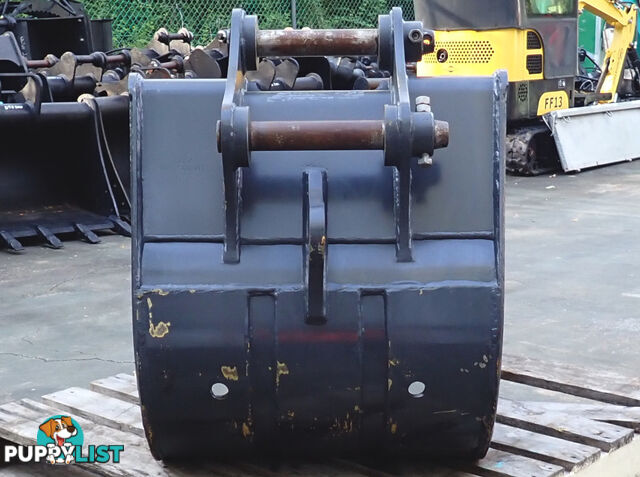

It also has a rear Lifting Hook Eye at the back (see pics# 4-9).

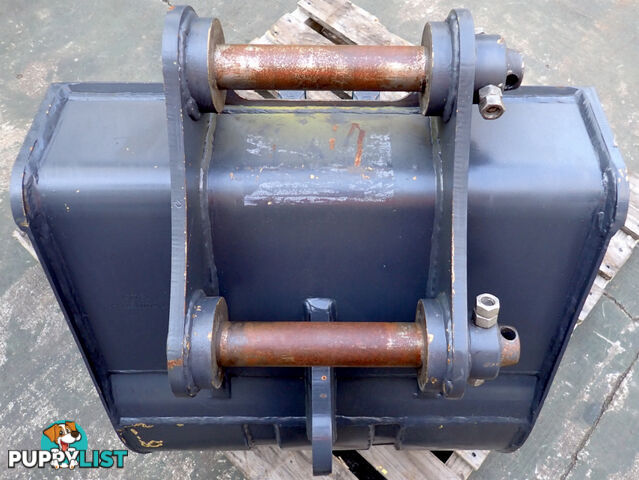

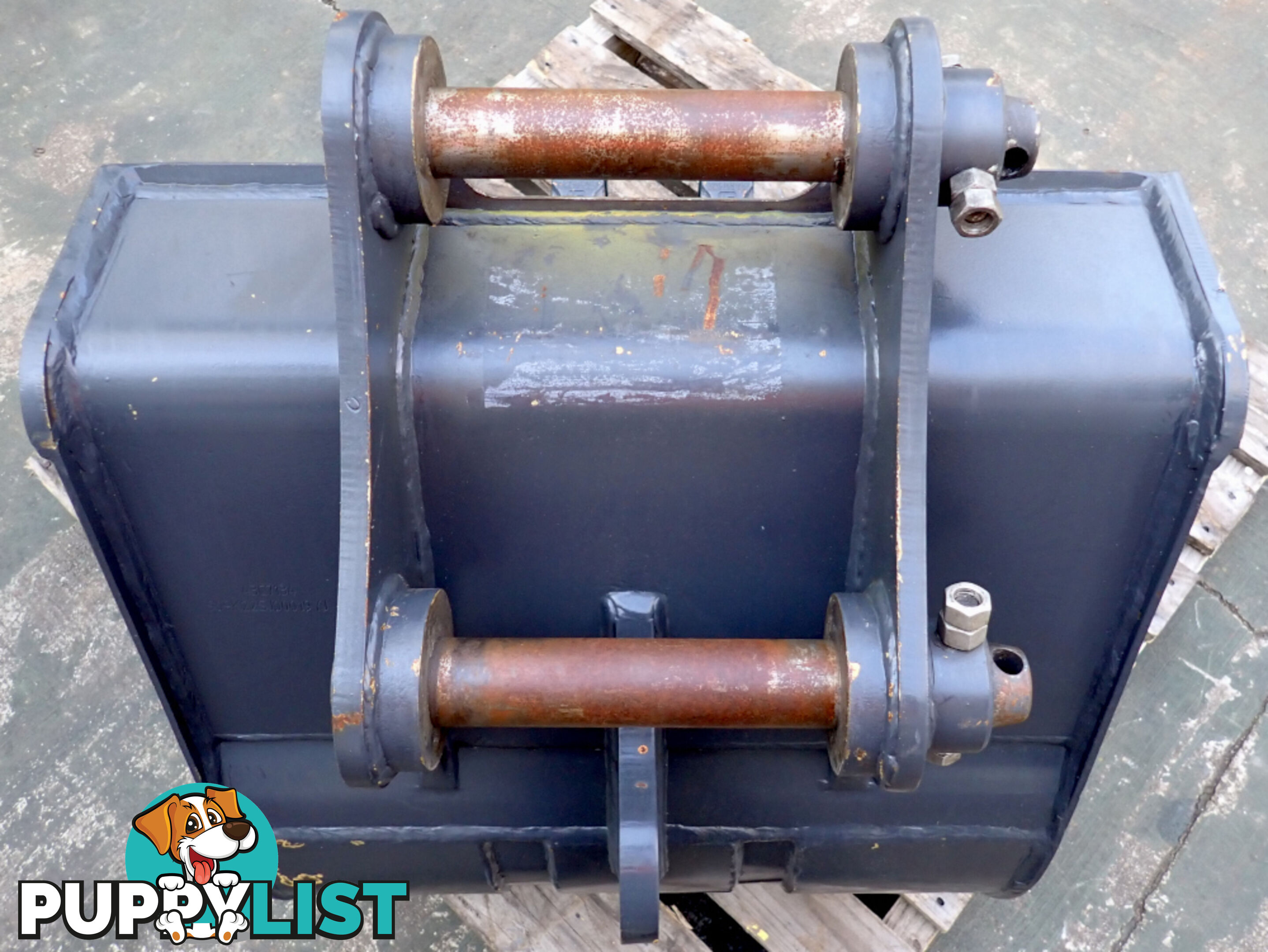

*** Current Headstock configuration:
50mm Pin Diameter
310mm Pin Center to Pin Center (CtoC)
229mm Between the inside Ear Bosses (which can be shaved back up to 282mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 308D / 308e2cr, Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import, Hitachi Zaxis 75US / 80, JCB JS 70 / JZ 70, John Deere 75C / 80C, Kato 180G, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, Sany SY 75C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Yanmar B 7 SIGMA / VIO70 / VIO75.

Maybe fit: Bobcat zx125, Ingersoll-Rand ZX125, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, New Holland EH 70 / EH 80 CS, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Dimensions: 765mm Wide (at the Side Cutters), 1120mm Deep, 850mm High.
Weight: 248kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
