9-20 ton (60mm or 65mm pin) Turners Engineering Excavator Roller Compaction Wheel

DESCRIPTION

Turners Engineering Excavator Compaction Wheel suit 9-20 Ton machines.

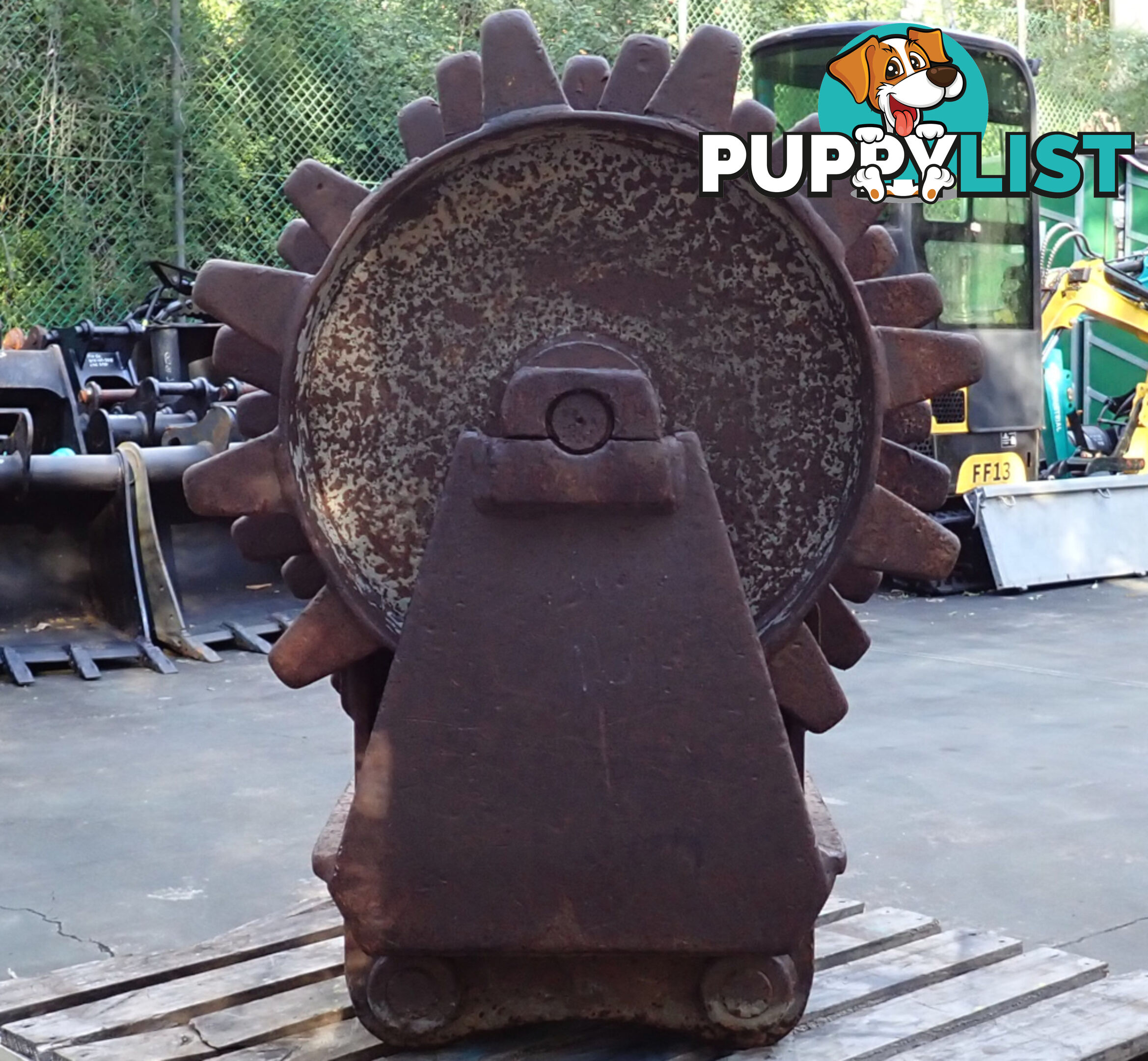

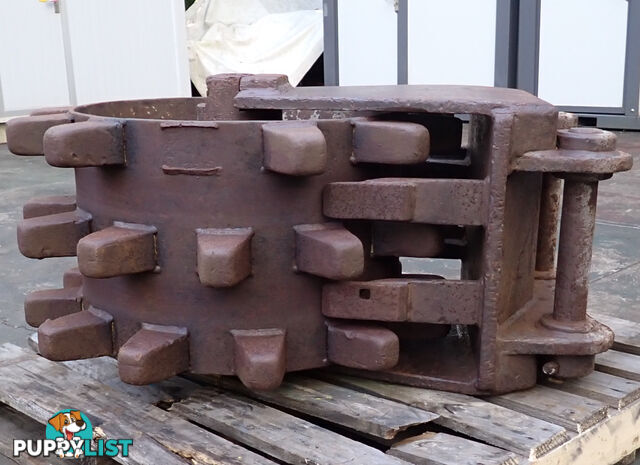

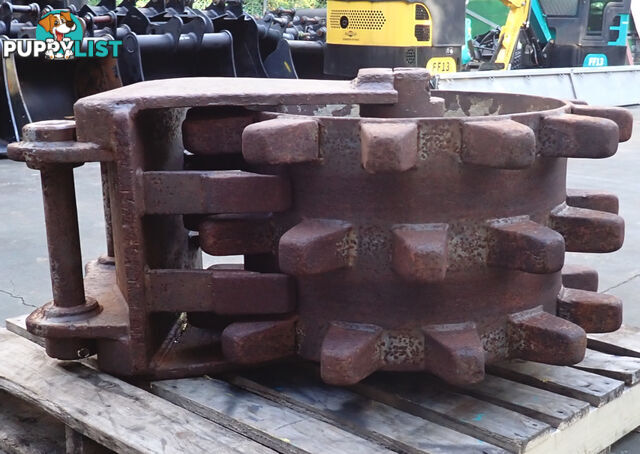

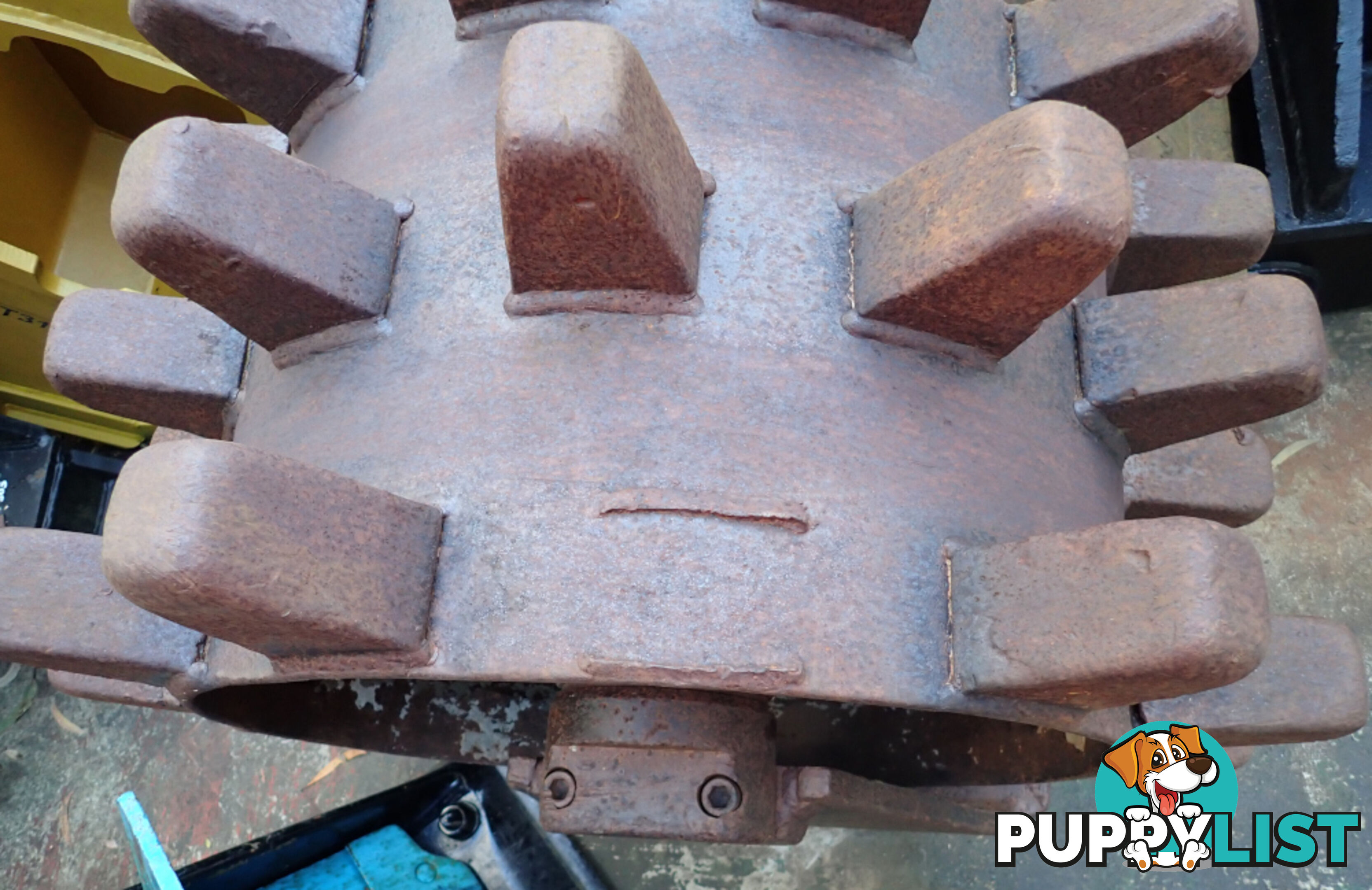

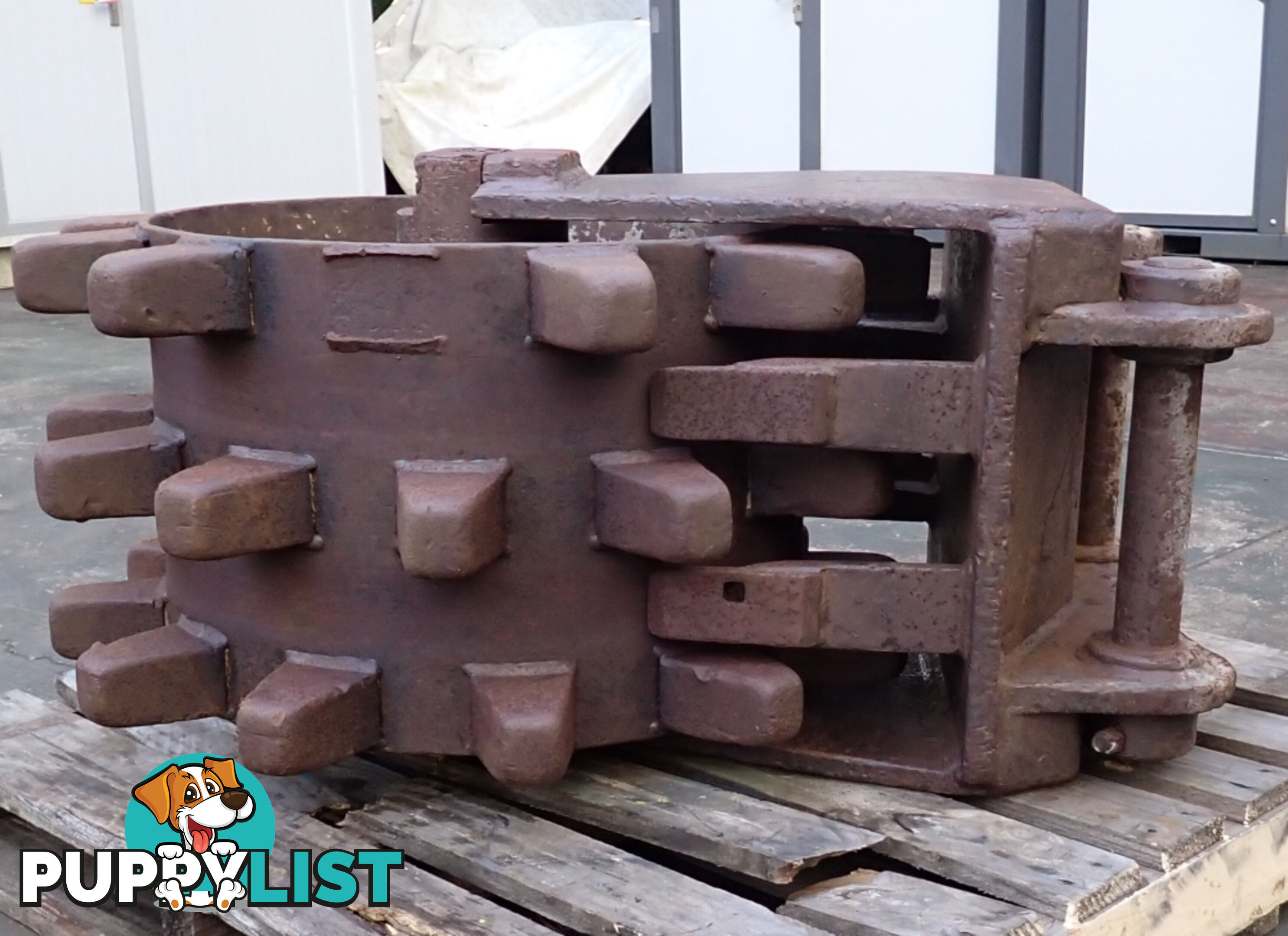

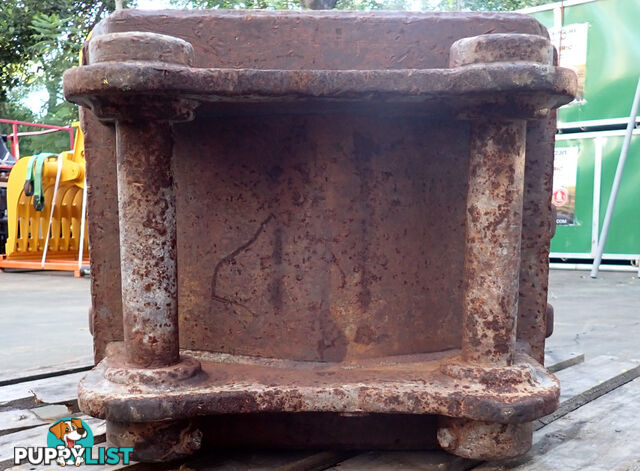

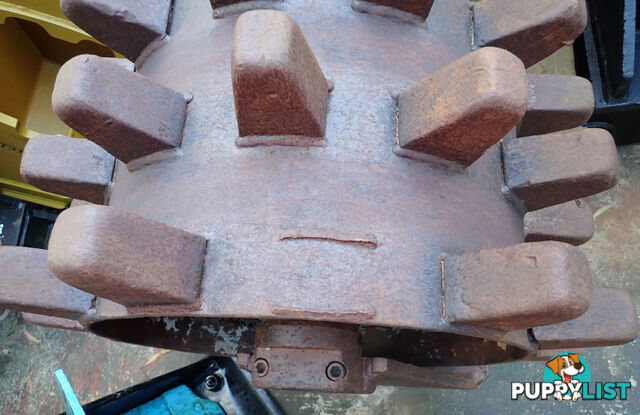

3 rows of very Deep pads and fitted with Dual Row Mud Scrapers between the pads (see pics# 1, 3, 5, 6, 8).

Currently fitted with 60mm pins but could be setup for 65mm pins (see details below).

Condition is Used, but it is very solid, heavy and well engineered, and has plenty of rolling life left.
Made in Australia by Turners Engineering.

Please Note!!!

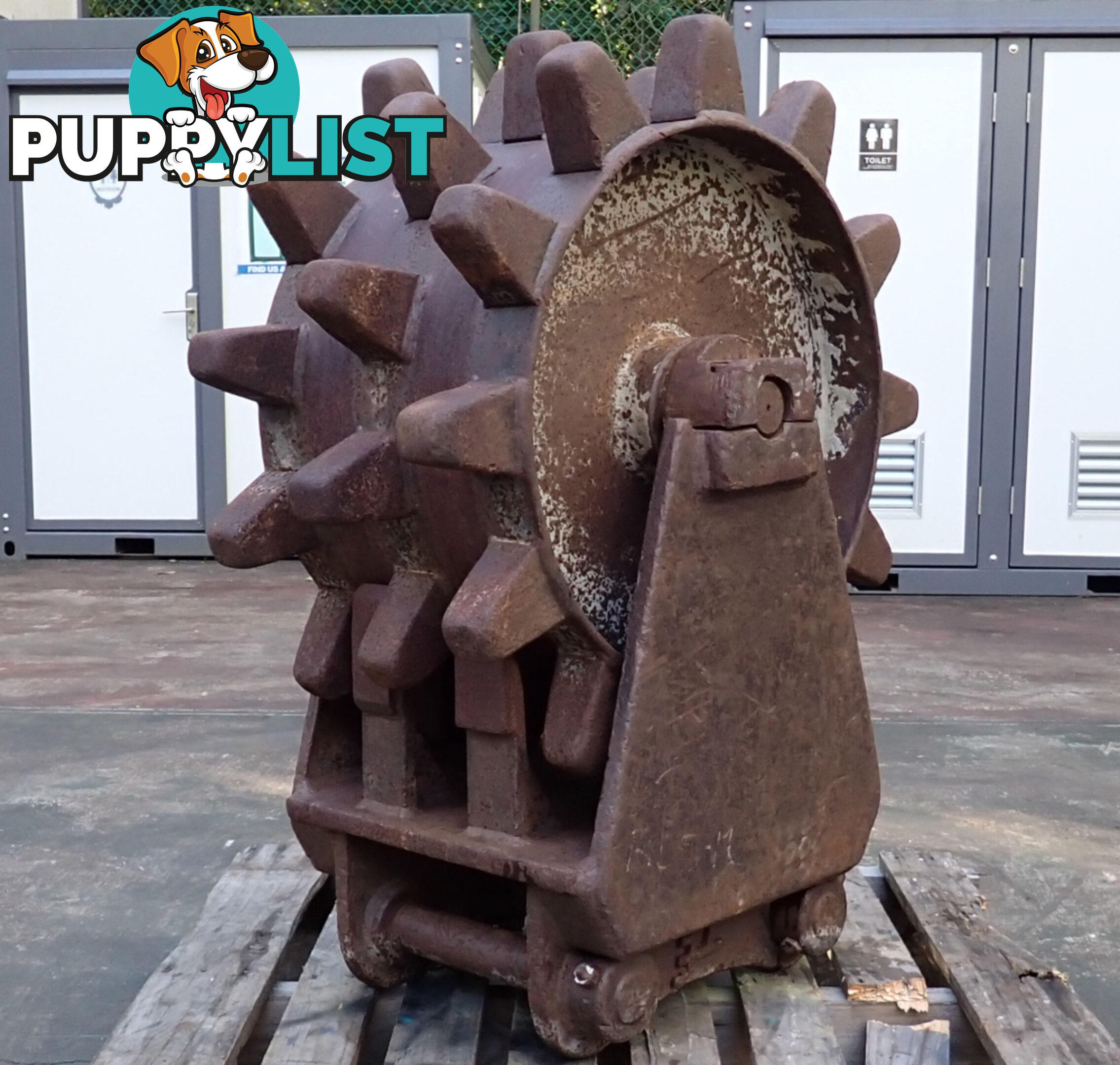

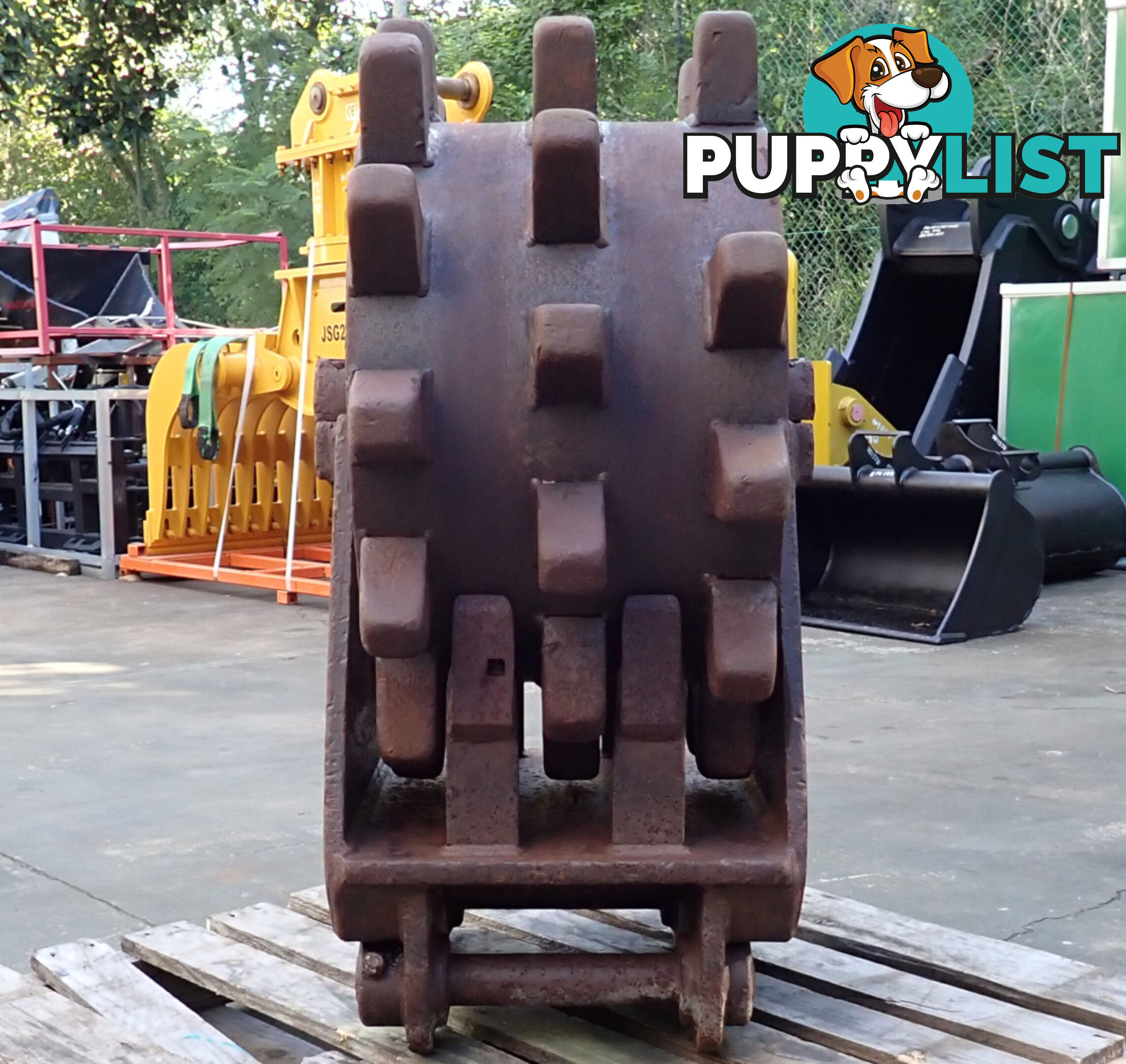

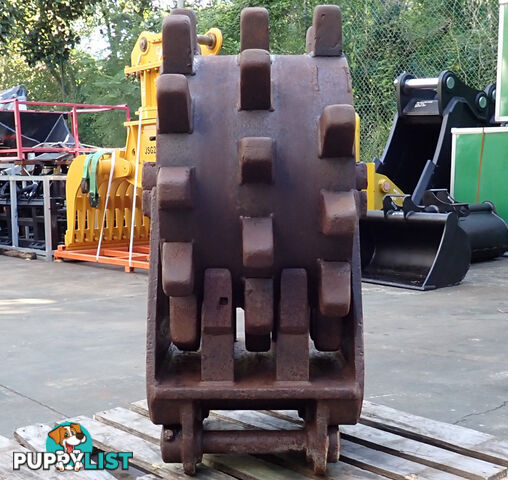

There is 1 Pad missing (see pics# 3, 6, 10), price has been reduced.

Drum:
* Width: 450mm.
* Drum Diameter: 655mm.
* Total Drum Diameter (including pads): 875mm.

Pads:
* Height: 115mm.
* Size at Top: 65mm wide x 55mm long.
* Size at Base: 70mm wide x 95mm long.

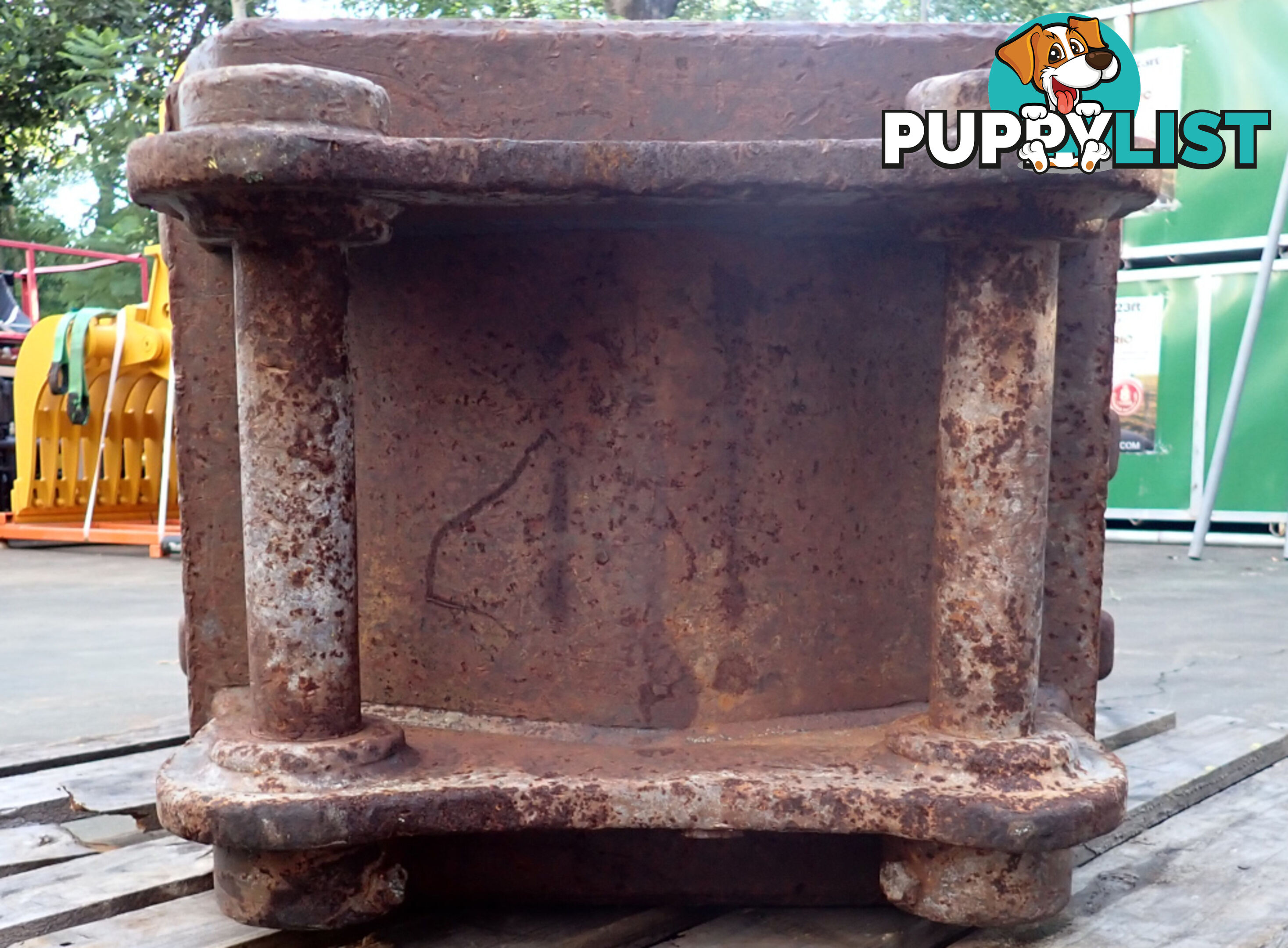

***** Current Headstock configuration:
*
* 60mm Pins.
* 375mm Pin Center to Pin Center (CtoC).
* 264mm Between the inside Ear Bosses (which can be shaved back up to 300mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Kobelco SK100 / SK100LC / SK115SR, Komatsu PC100-3 / PC100-5 / PC100-6 / PC120 / PC120 Mighty / PC120-3 / PC120-5 / PC120-6 / PC128US-2 / PC128UU-2 / PC138USLC-2 / PC150HD / PC158USLC-2 / PW100-1 / PW100-3, Liebherr 912, New Holland EC160LC / EW160 / EW200 / FX140 / FX200, Volvo EC160 / EC160 Direct Mount / EW160 / EW160 Direct Mount.
*
* Maybe fit: Caterpillar 205 / 206 / 211 / 212, Hydrema M1100, Kato 550SEV, New Holland EC130LC, O & K MH & RH 4CS / MH 2-12 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

*** As a 65mm Pin Configuration:
* (Sleeve the 60mm pins with tube of 65mm OD (Outside Diameter), or bore out the 60mm pin holes to 65mm and insert 65mm pins)
*
* Should fit: Case CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hitachi EX110-5 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX135UR, Hitachi Zaxis 135US, JCB JS110 / JS130 / JZ140, John Deere 135C RTS, Kobelco K905 / SK120 / SK130 / SK130LC / SK135 / SK135SR, Link-Belt 130LX / 135SA / 2650 QUANTUM, Samsung SE130-3 / SE130LC-3 / SE130W / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Takeuchi TB 1140, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3.
*
* Maybe fit: Case 9013, Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Doosan DX140LC-3 / DX140W-3 / DX140W / DX300LC-3 SLR, Halla HE130W, Hitachi EX135, Hyundai R120 / R130LC / R130LC-3 / R130W / R140LC-7, JCB 805B / 814S, Kato HD 512, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Yuchai YC135-7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

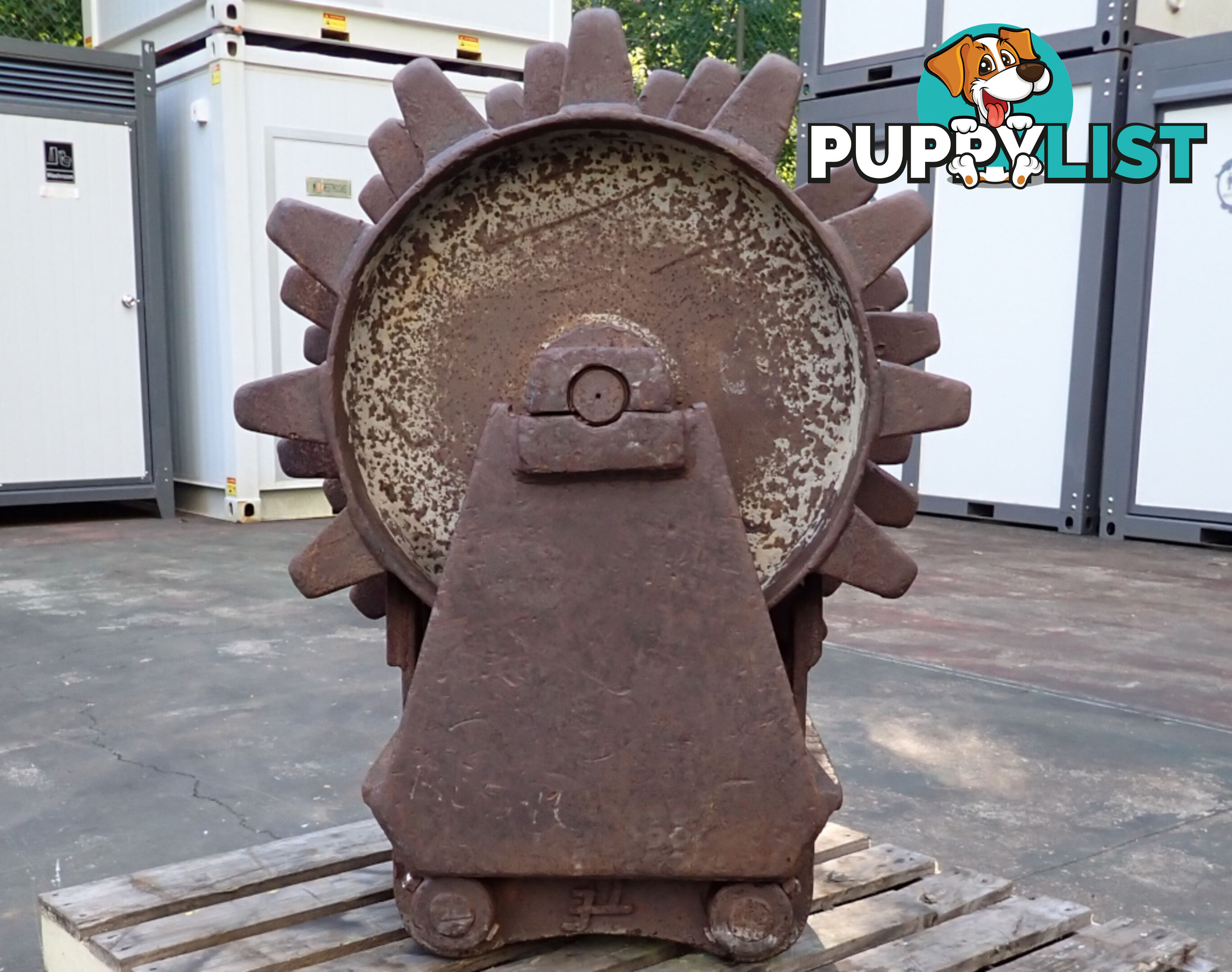

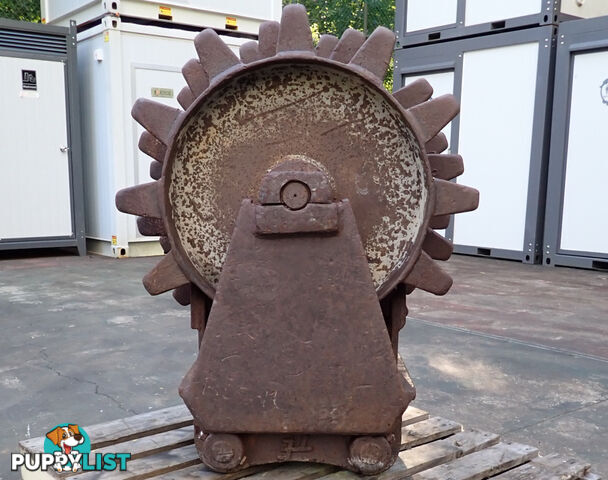

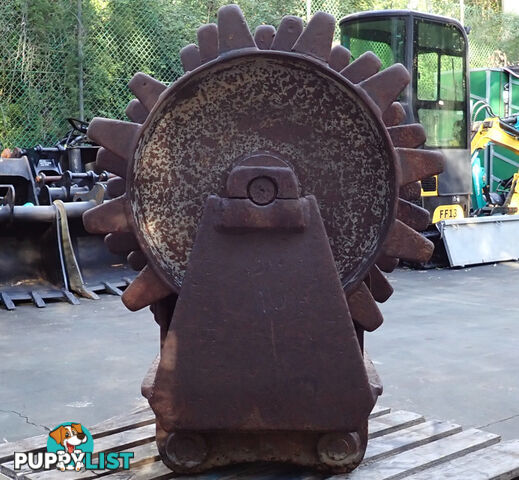

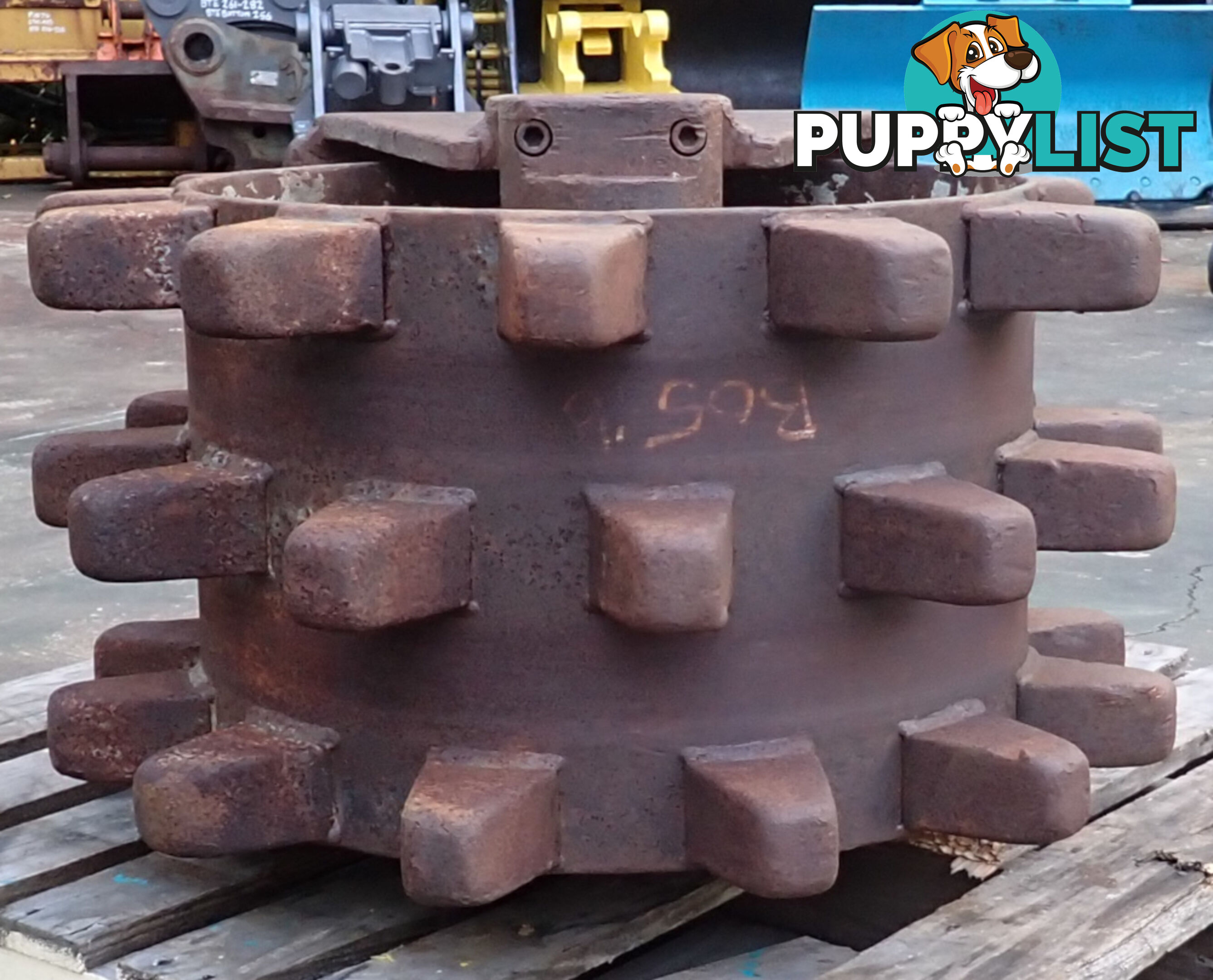

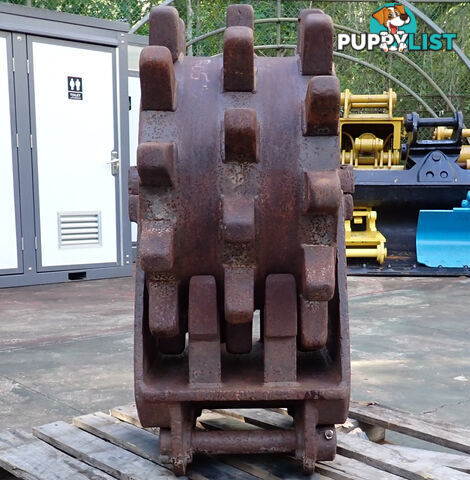

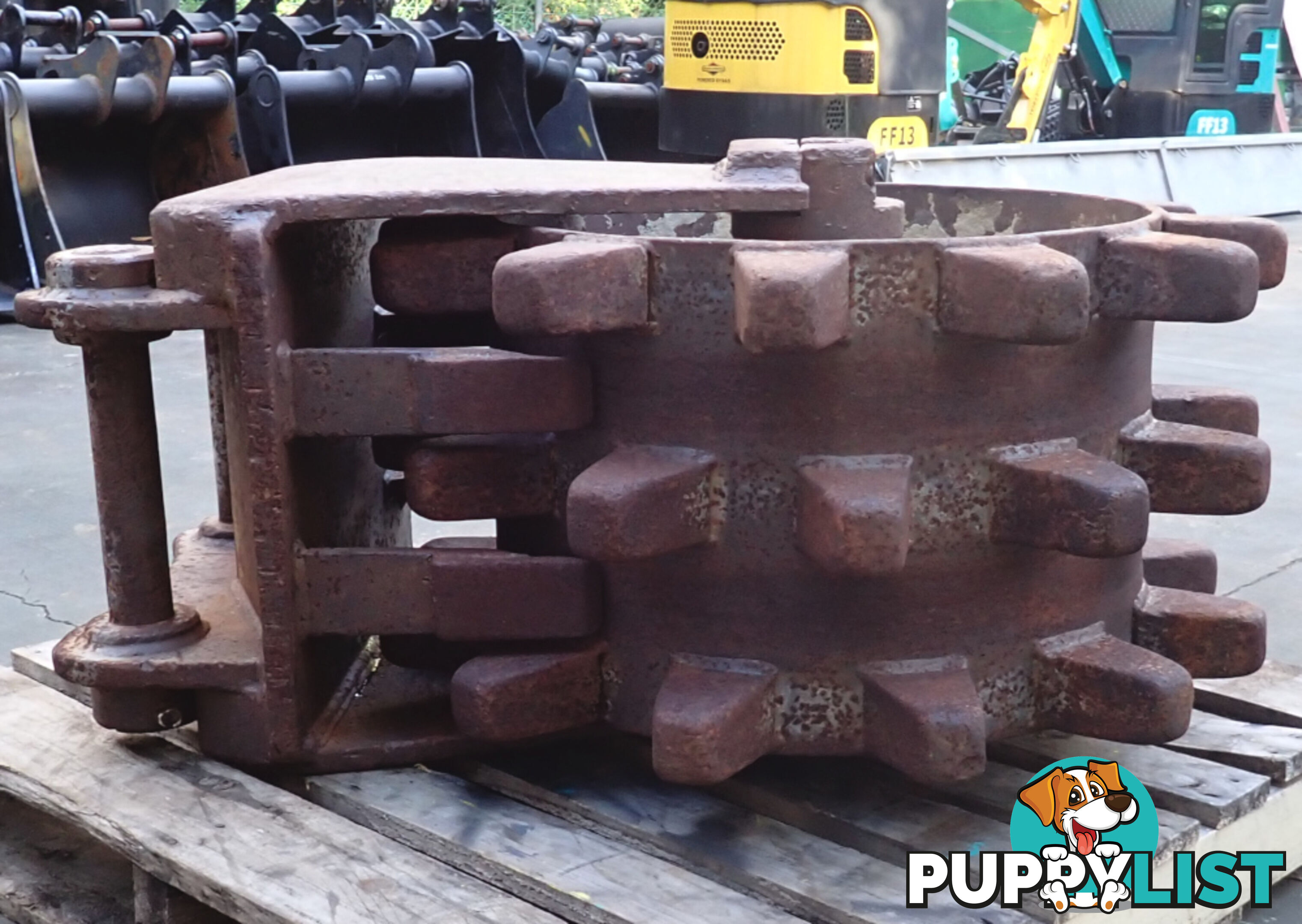

Dimensions (standing up as in pics# 1-5): 590mm Wide, 875mm Deep, 1165mm High. Weight: 656kg.

Call if you would like to discuss or to come inspect it.

We are at
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
