23-48 ton (100mm / 90mm pin) 2600mm OZ Excavator Mud Batter Bucket suit Cat 336

DESCRIPTION

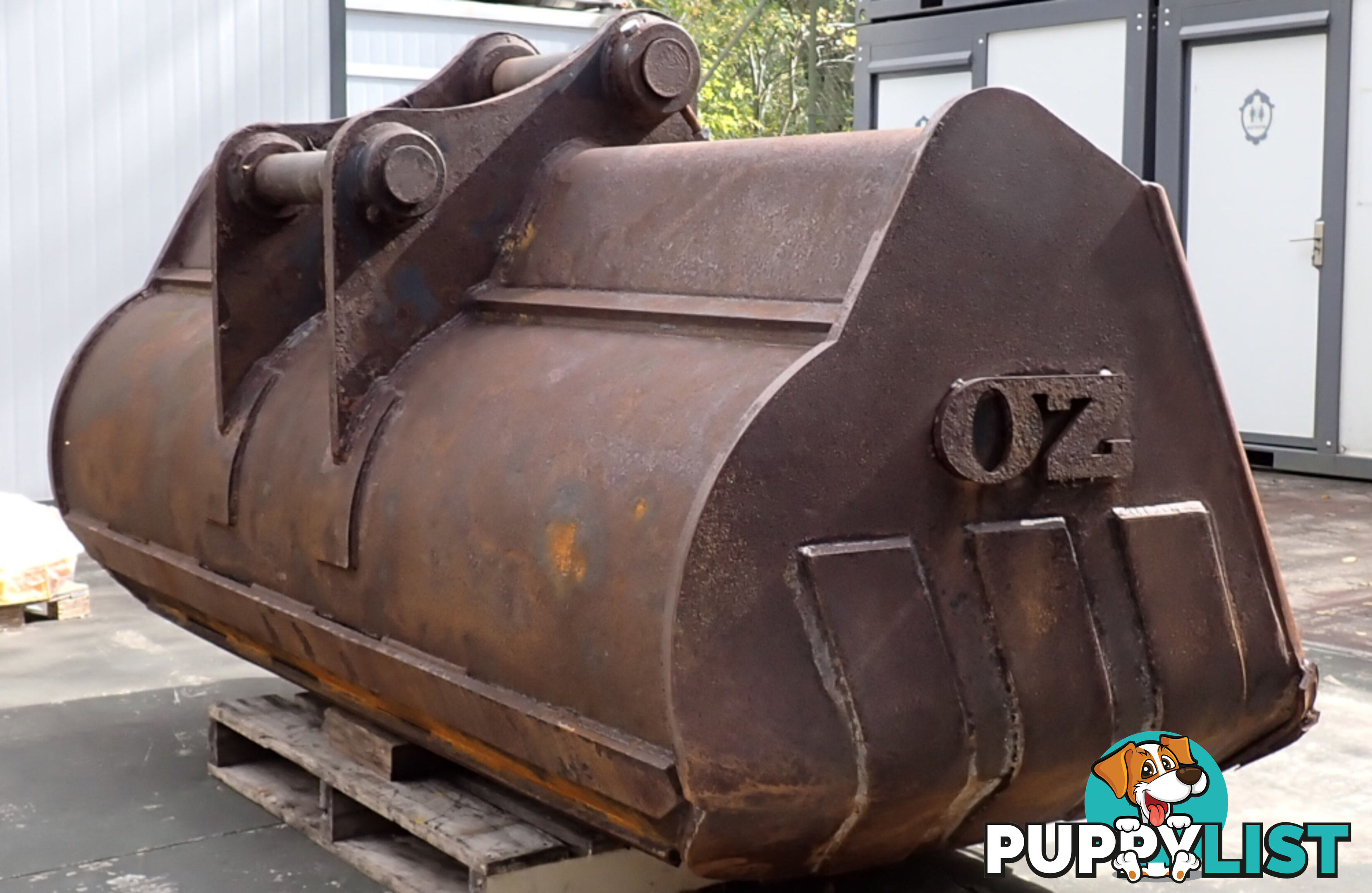

Used 2600mm OZ Buckets Excavator Mud Batter Bucket suit 23-48 Ton machines.

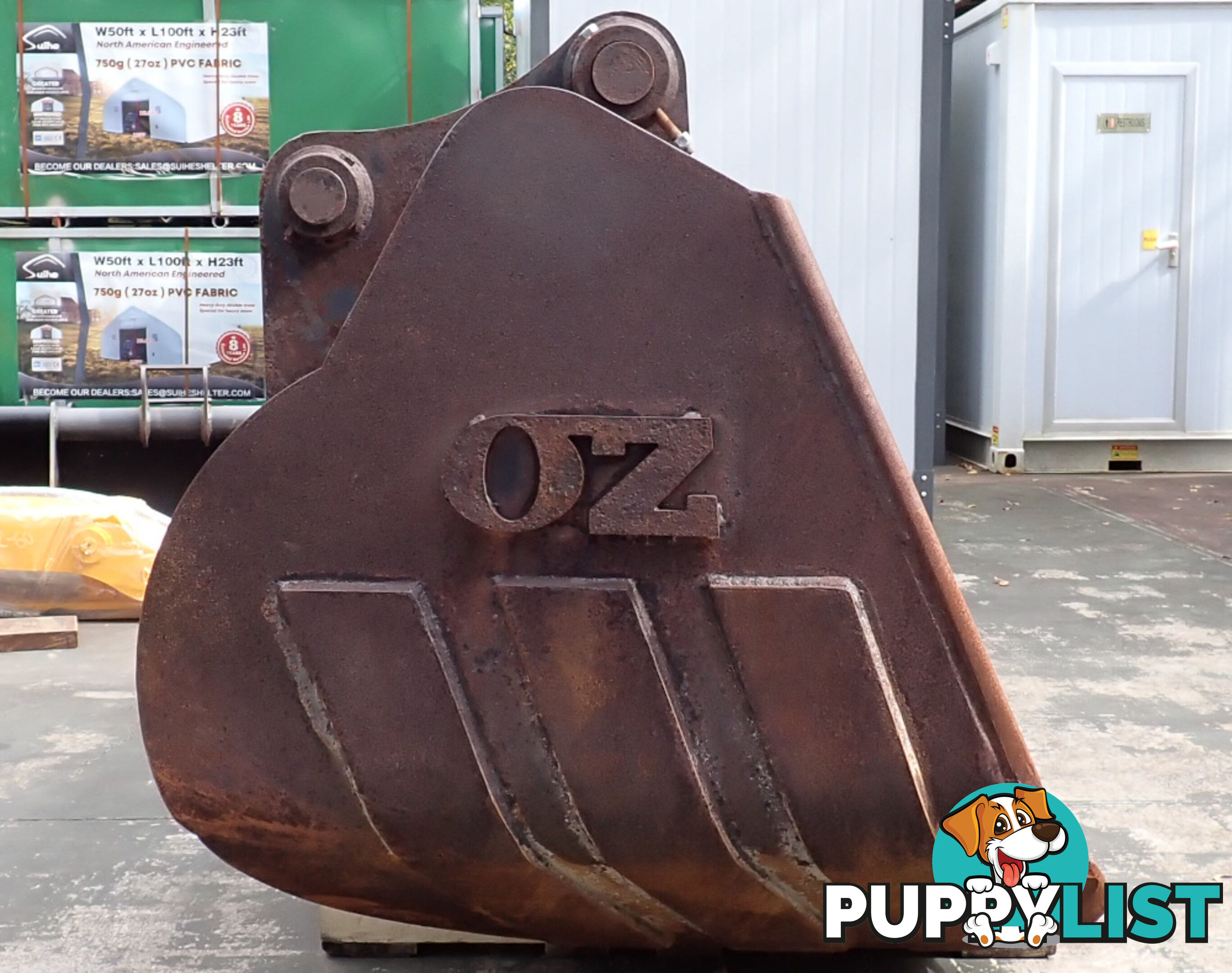

This is a heavily engineered, quality built bucket Made in Australia by OZ Buckets.

*** Features:

It has a wide & deep profile for a massive 2.42 cubic meter capacity.

It has tapered sides so mud slides out easily and minimises side resistance.

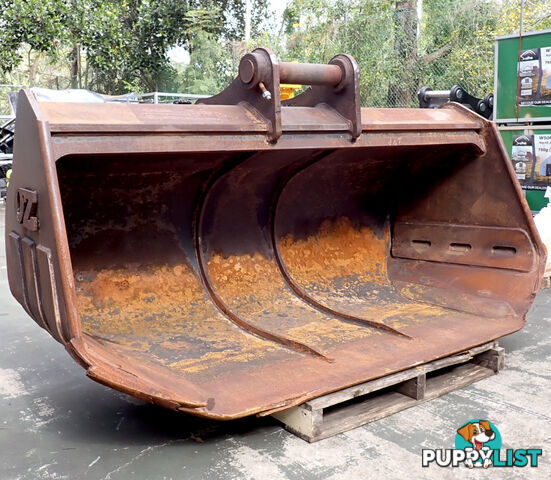

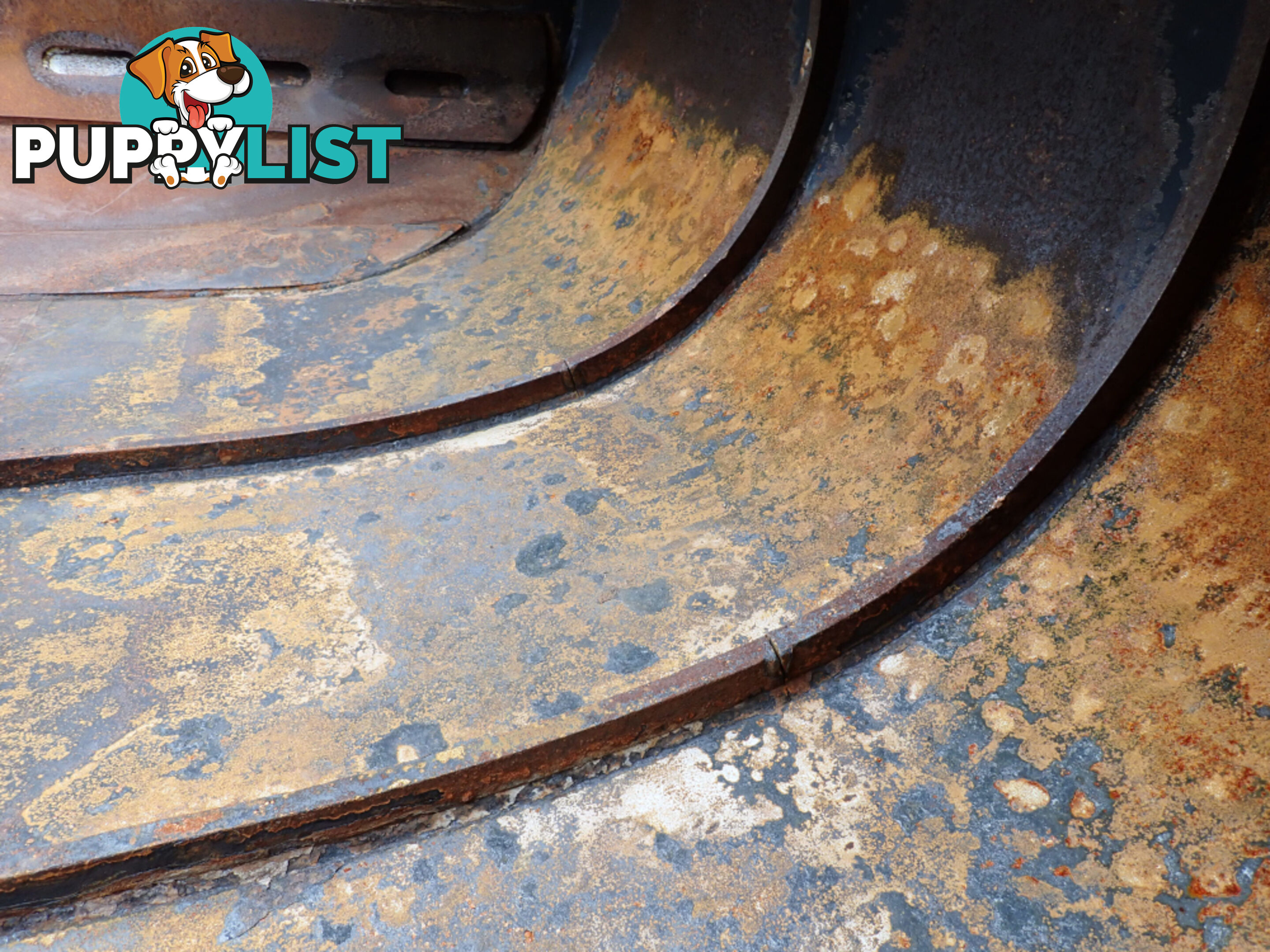

There are extra wear plates welded inside at each of the 4x 45 degree angle bends (see pics# 1, 2, 6).

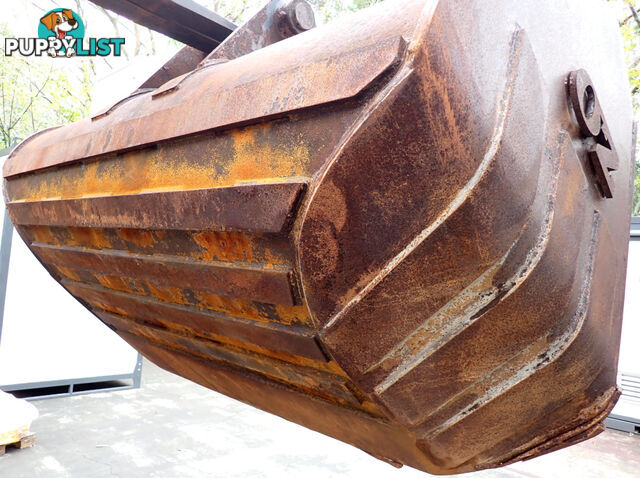

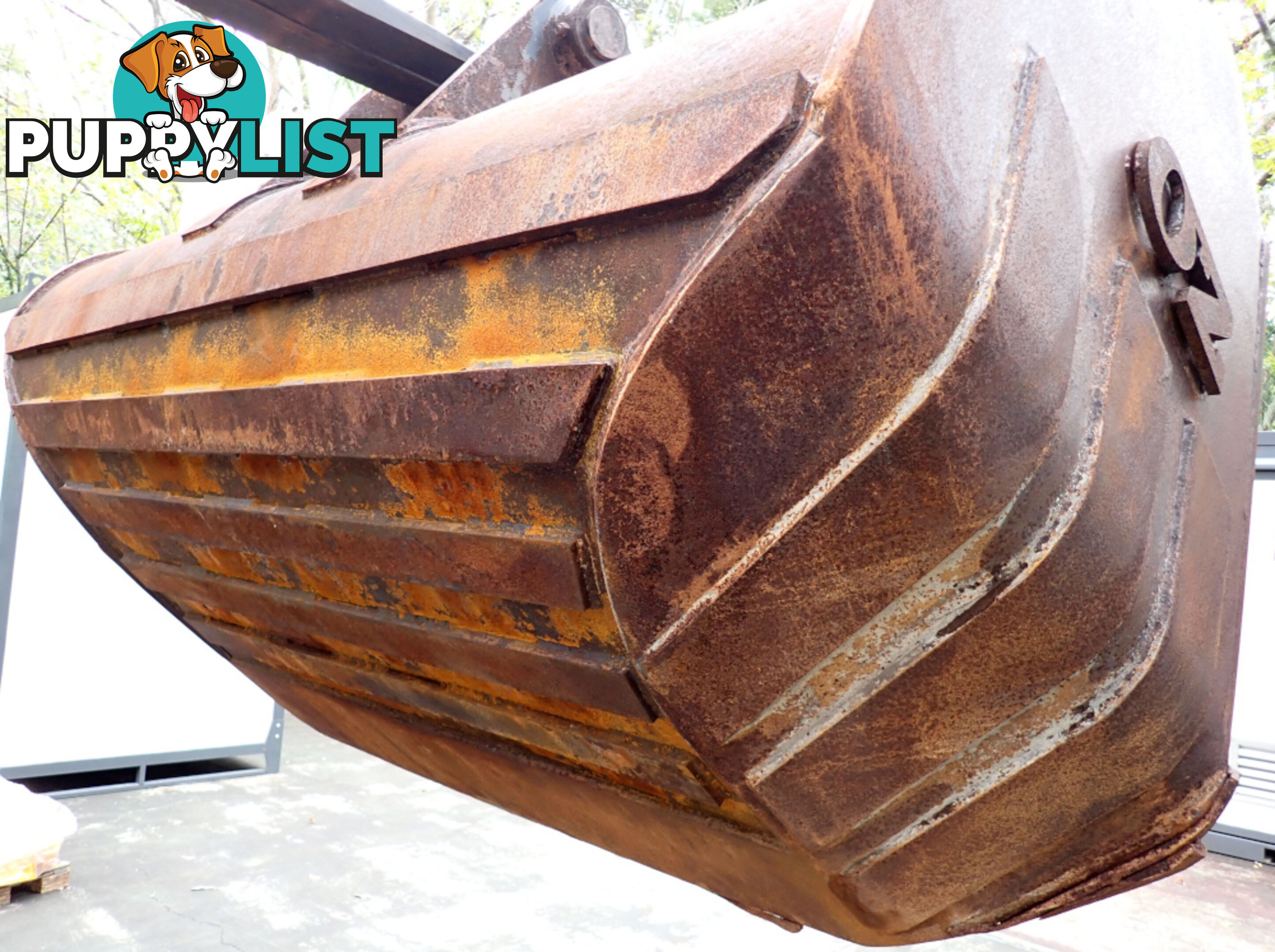

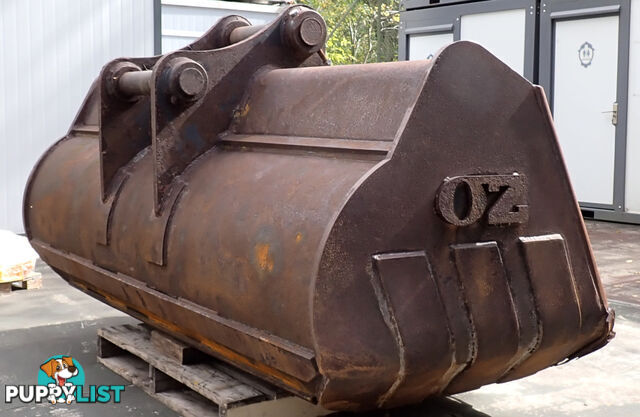

There are also thick extra wear strips welded on the sides, at the back, and all underneath for extra durability (see pic# 10).

*** Condition:

This bucket seems to have only ever been used on the front cutting edge to scrape or level hard ground. The front cutting edge has substantial wear and could use some extra reinforcing welded on.

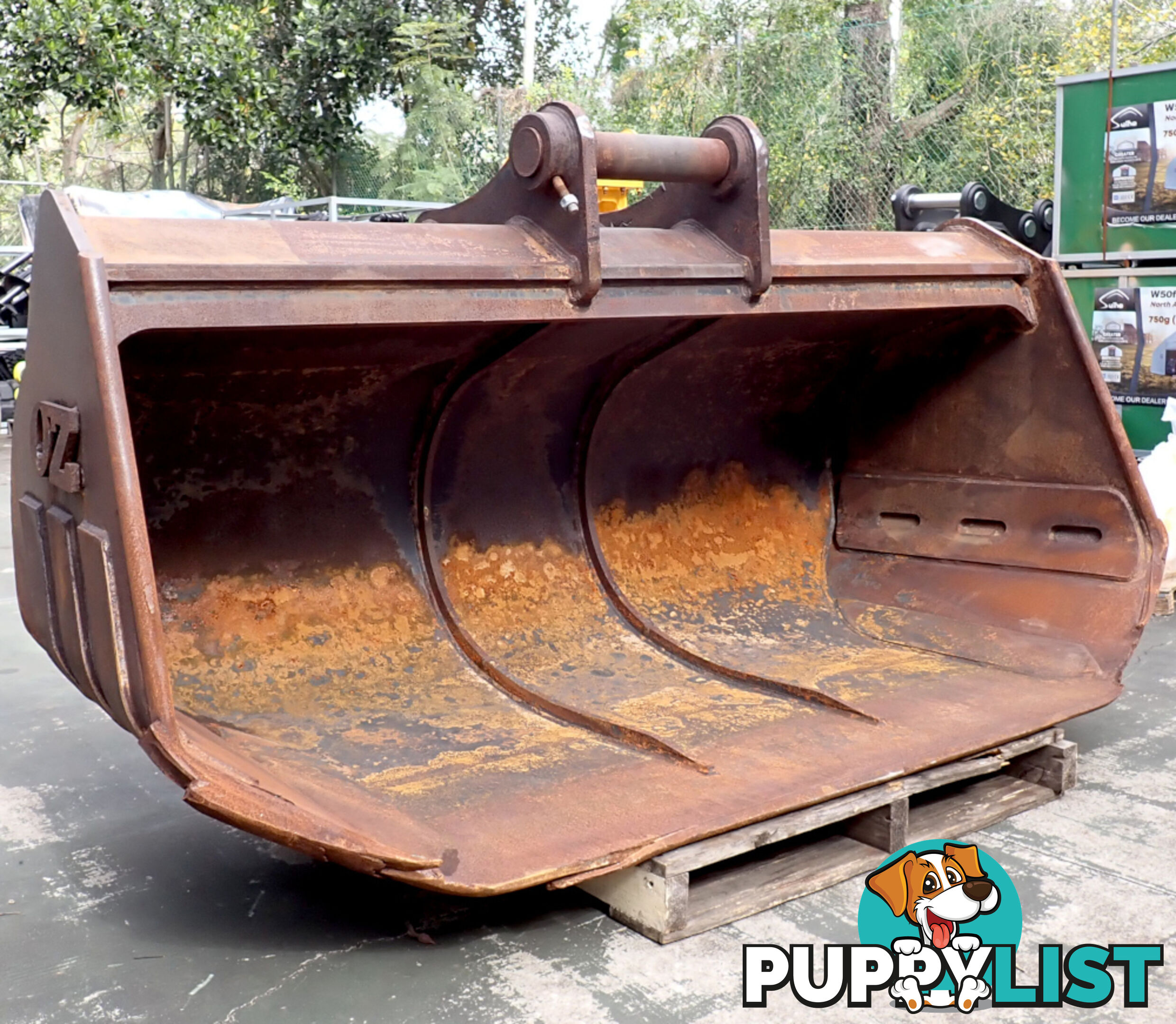

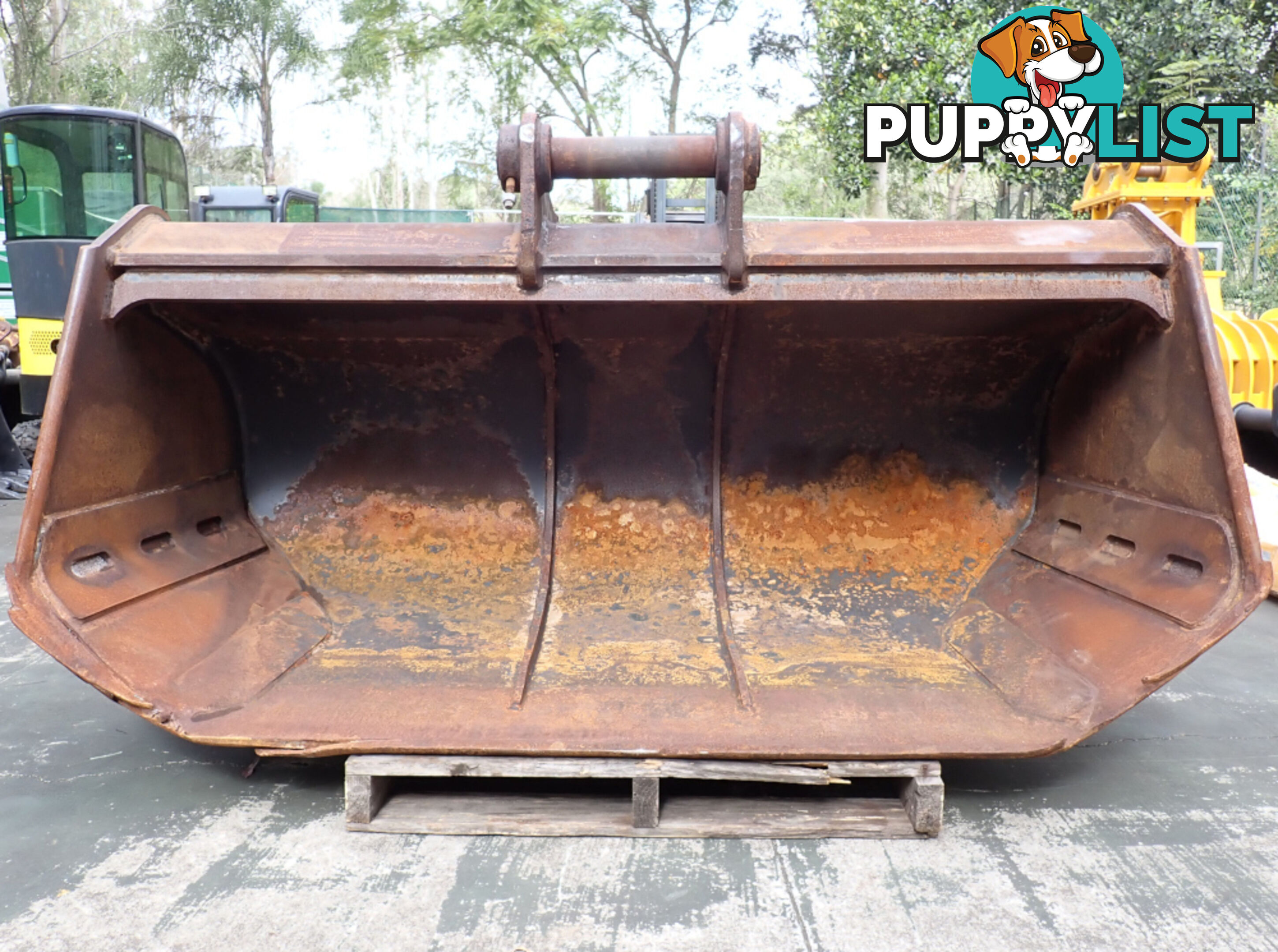

But the inside back of the bucket has places were it is perfectly smooth and still has the original black paint on it! (see pic# 1).
Also, all the wear strips on the sides, back and bottom have almost zero wear.
We suspect it has never taken a full scoop of dirt in its life.

Two other points we have noticed:

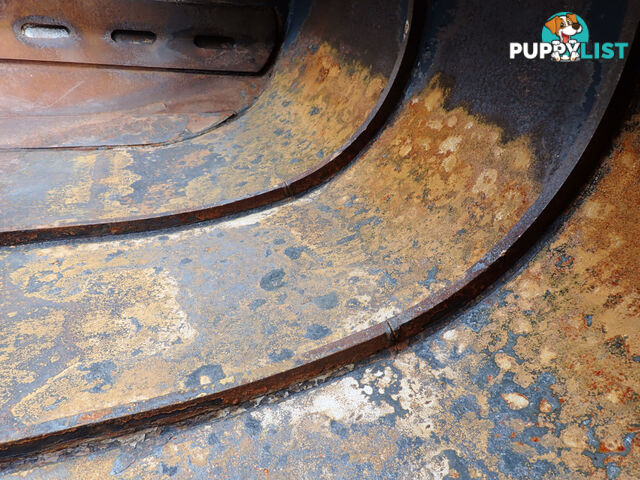

1. The internal supporting ribs each have a crack near the middle (see pic# 7), this is of minimal concern.
2. However, there are cracks around the welds of the Ear Plates at the highest point of the bucket (see pic# 8), these run about 8-10 inches long, but do not continue all the way to the front or all the way down the back to the bottom. So for light to medium duty work (scooping up uncompacted dirt, sand, mud etc.), the headstock is not likely to fall off anytime soon. But if the cracks are fully ground out with a grinder and re-welded properly (3-5 hours work?), this bucket will be good to go for demanding jobs again.

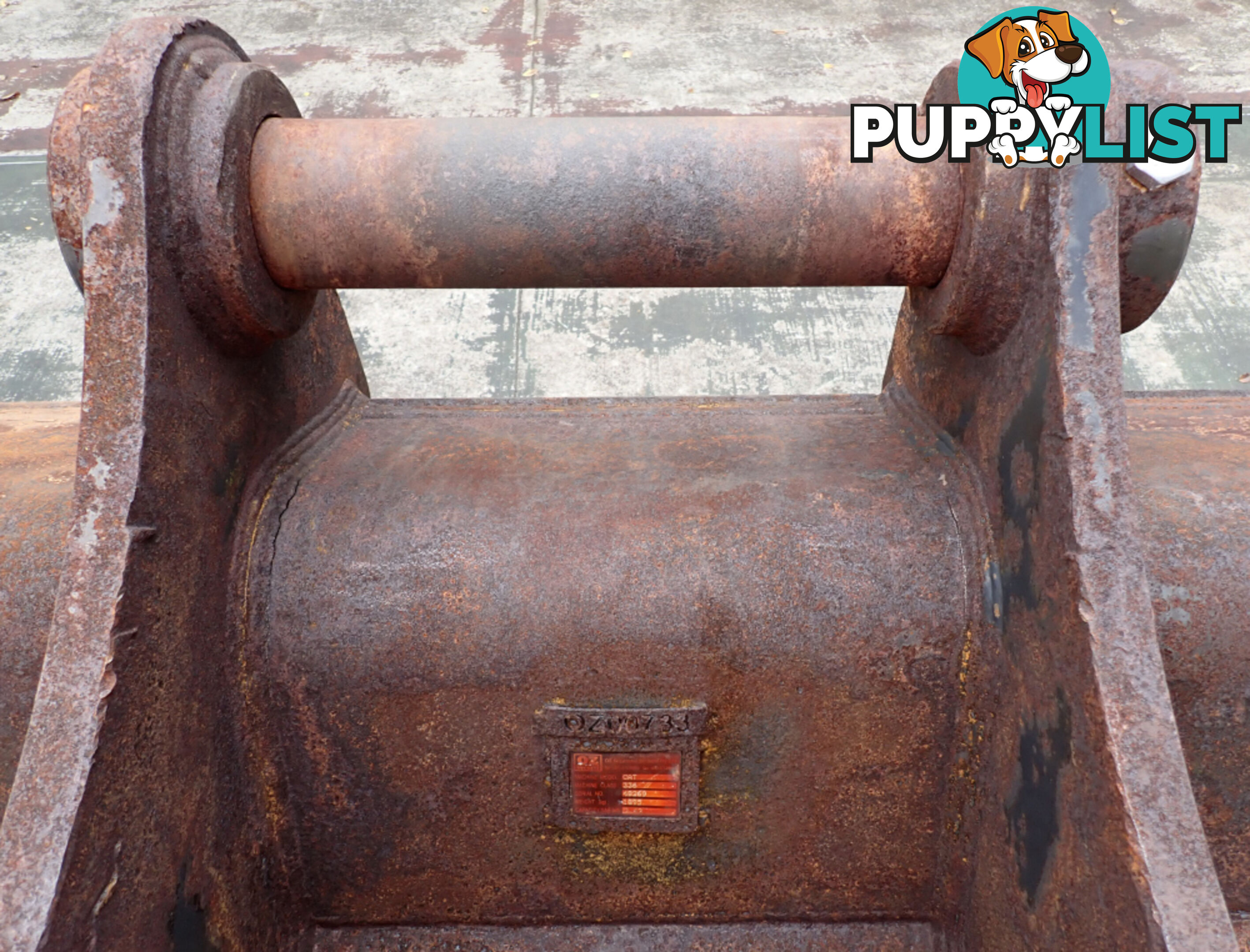

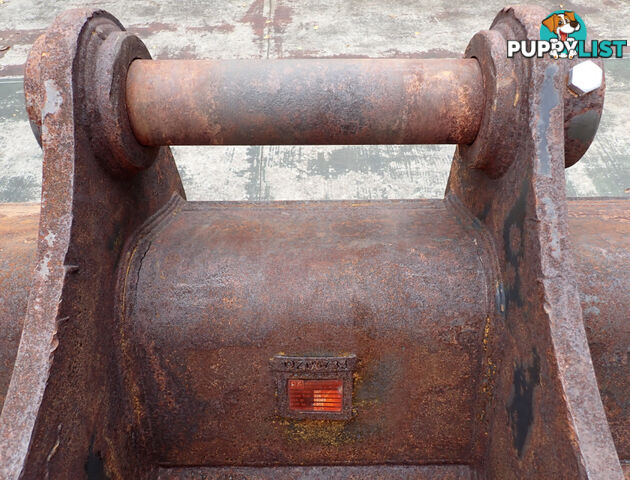

*** Current Headstock configuration:
* Front Pin: 100mm
* Rear Pin: 90mm
* Pin Center to Pin Center (CtoC): 527mm
* Between the Ears (BTE): 392mm Between the inside Ear Bosses (which can be shaved back up to 453mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
*
* Should fit: Caterpillar 324D, Caterpillar 325D w/Mass Linkage, Caterpillar 330D w/Reach Linkage, Caterpillar 336.

*** As an all 100mm Pin Configuration:
* (bore out the rear pin 90mm holes & insert 100mm pin, or sleeve the 90mm pin with a 100mm OD tube):
*
* Should fit: Daewoo DX340 LC, Hyundai R420LC / R450LC-3, Komatsu PC400 / PC400 Mighty / PC400-3 / PC400-5 / PC400-7 / PC400-8 / PC400HD-6 / PC450.
*
* Maybe fit: Caterpillar 330D L w/DB Link, Daewoo Solar 330LC-V / 340LC-V / 360LC-V, Doosan DX340 / DX350LC-3 / S340LC-V, Halla HE360, Hyundai R320L / R320LC-3 / R360LC / R360LC-3 / R450LC-7, Volvo EC360 / MX365LS / SE360LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

*** As an all 90mm Pin Configuration:
* (lathe the middle of the front 100mm pin down to 90mm):
*
* Should fit: Case CX330, Caterpillar 235, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR / 320 / 330-3, Halla HE280, Hyundai R250LC-7 / R290LC-7, Kato 1800 / 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK250LC / SK290LC / SK300 / SK310 / SK320 / SK330 / SK330LC / SK350LC, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300HD-6 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 330LX, Samsung SE280LC, Sumitomo SH300-3 / SH300LC-3 / SH330-5 / SH350HD-3.
*
* Maybe fit: Case 9033 / 9050B / CX240 / CX290, Daewoo DX300 LC, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hitachi EX220 / EX255 / EX270 / FH220 / FH285, Hitachi Zaxis 230 / 230 & LC / 240 / 250 / 270 / 270LC, JCB JS300 / JS330, John Deere 240D LC / 270D LC, Kato HD1430, Kobelco SK220 / SK230 / SK250 / SK260LC-8, Link-Belt 4300 QUANTUM, Samsung SE240LC / SE240-3 / SE280-3, Sumitomo SH300, Volvo EC240 / EC240B / EC240C / EC250D / EC290 / EC290B / EC290C / EC300D / ECR305C / MX255LS / MX295LS / SE240LC-3 / SE280LC-3.

Dimensions (as sitting in pics): 2685mm Wide, 1270mm Deep, 1350mm High. Weight: 1,908kg.

Call Reveal Phone if you w
