New 3-10 ton (45-65mm pin) Excavator Rotary Brush Cutter Slasher Mower 54" Cut

DESCRIPTION

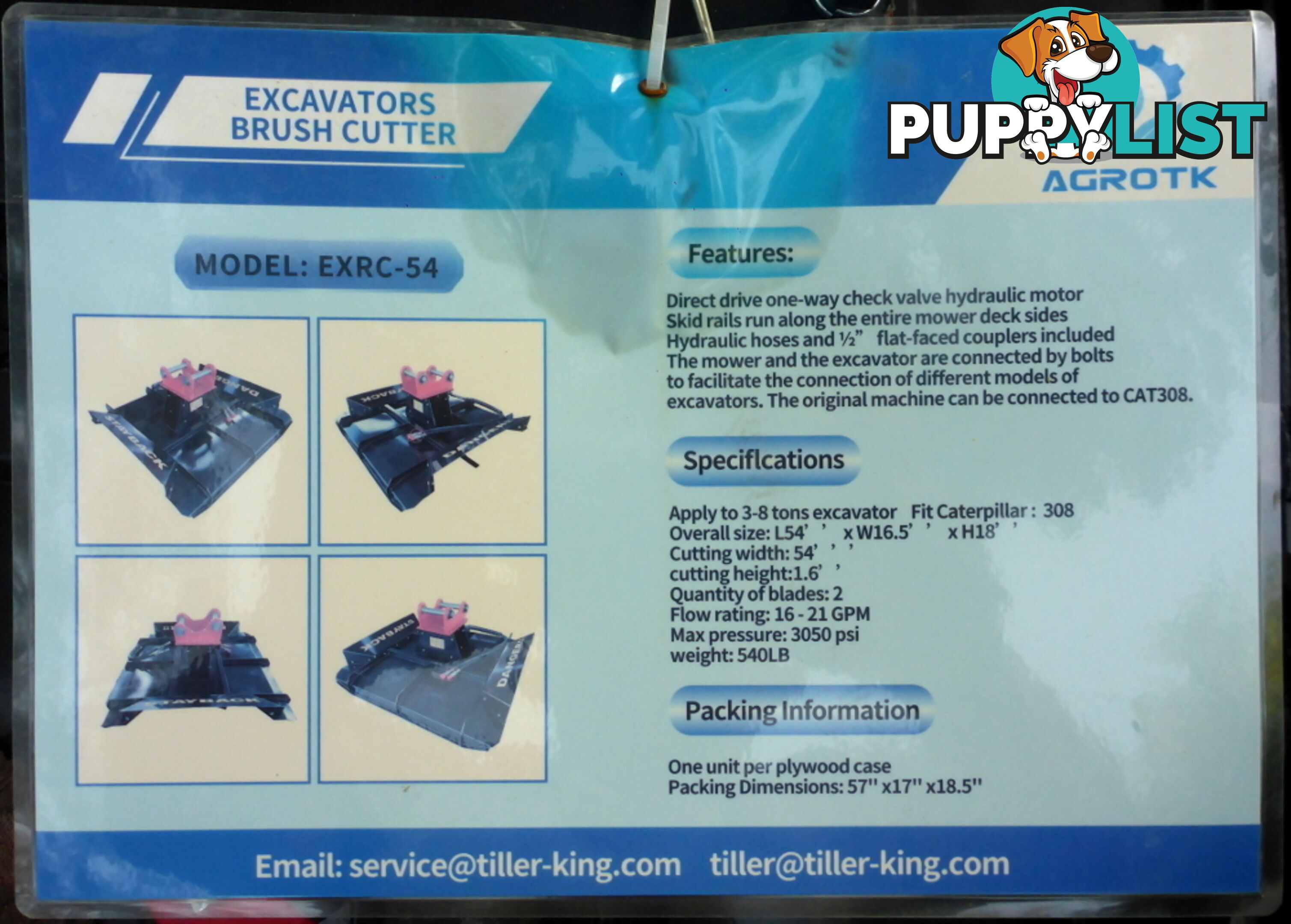

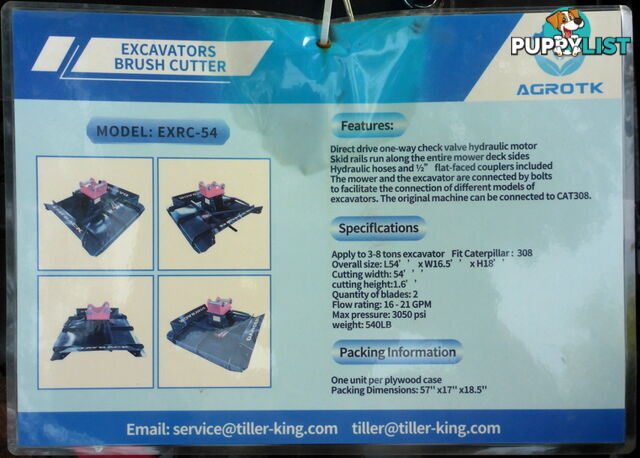

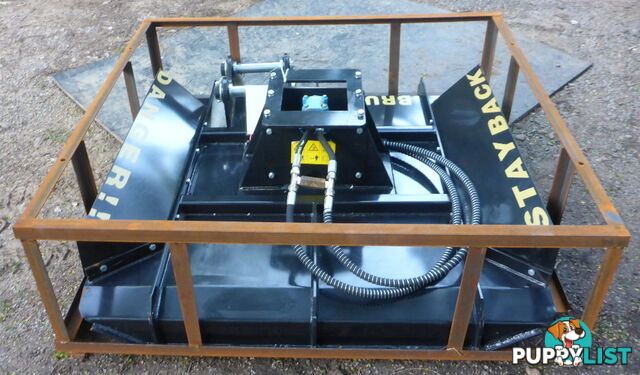

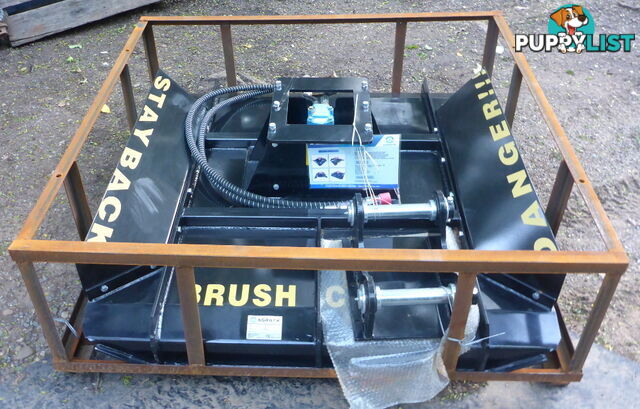

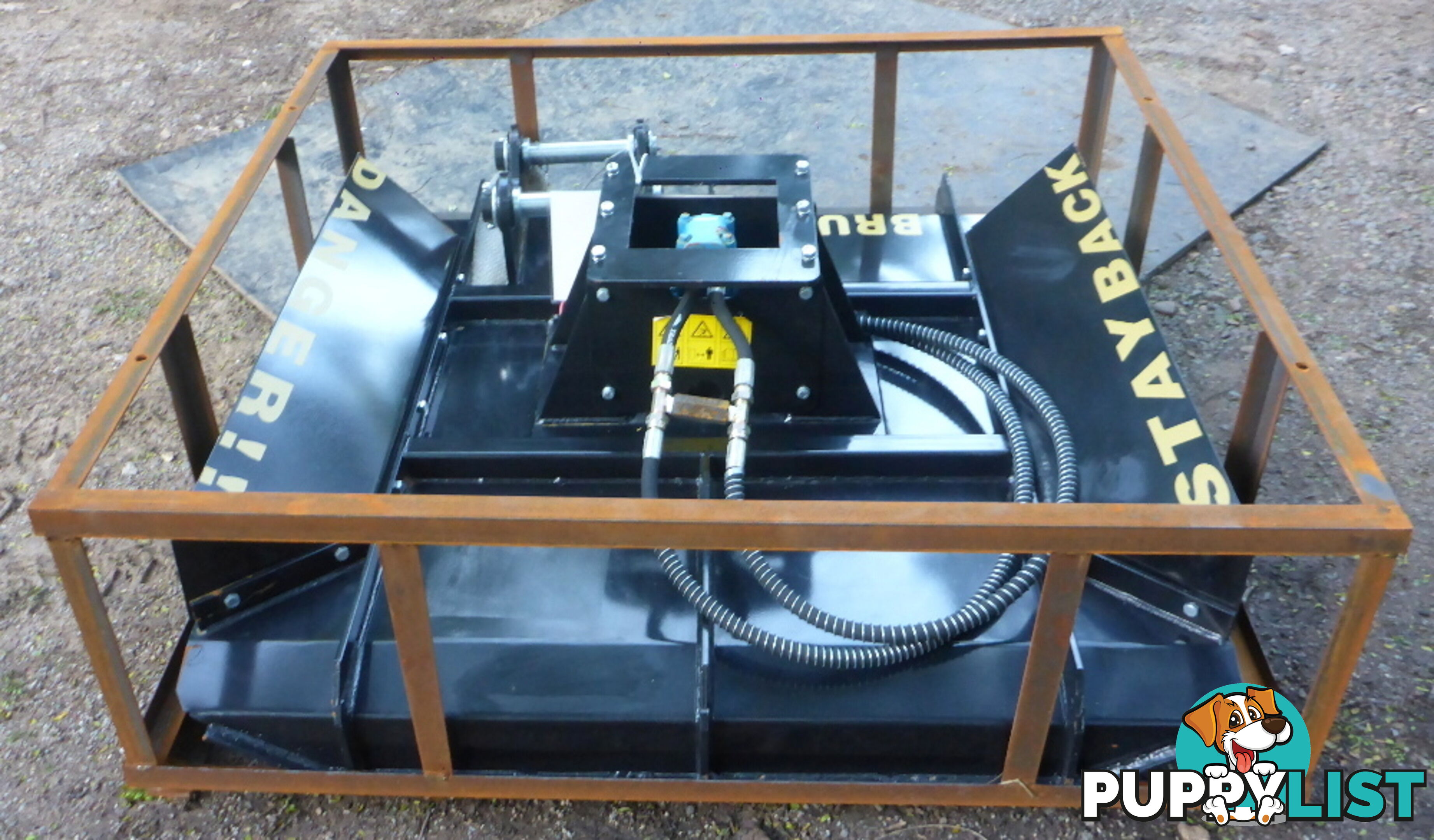

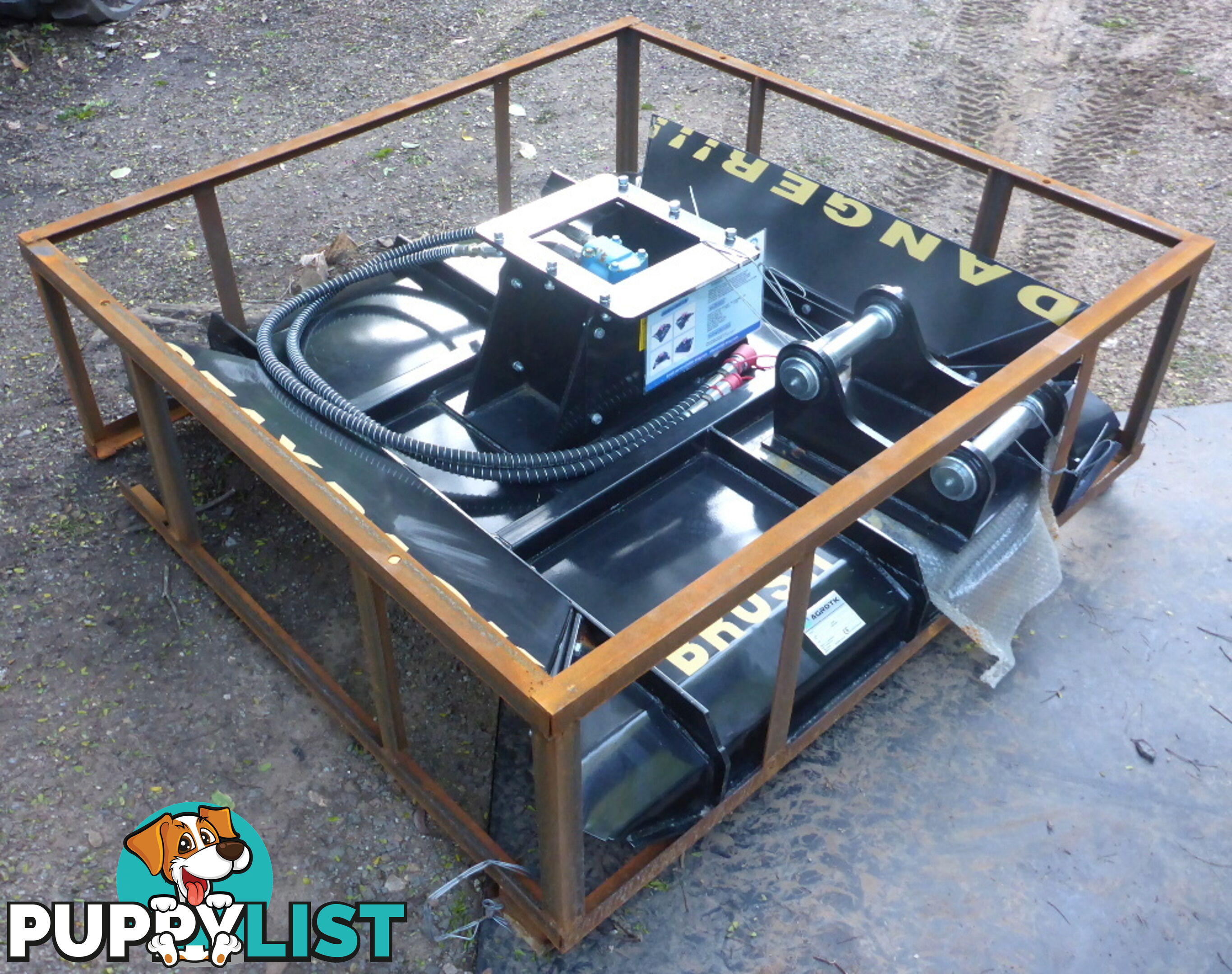

New Agrotk EXRC-54 Excavator Rotary Brush Cutter Slasher Mower suit 3-10 Ton machine.

Great for mowing steep banks, around ponds & dams, cutting back brush on roadways and trails, reaching over fences and guardrails etc.

Direct drive one-way check valve hydraulic motor.

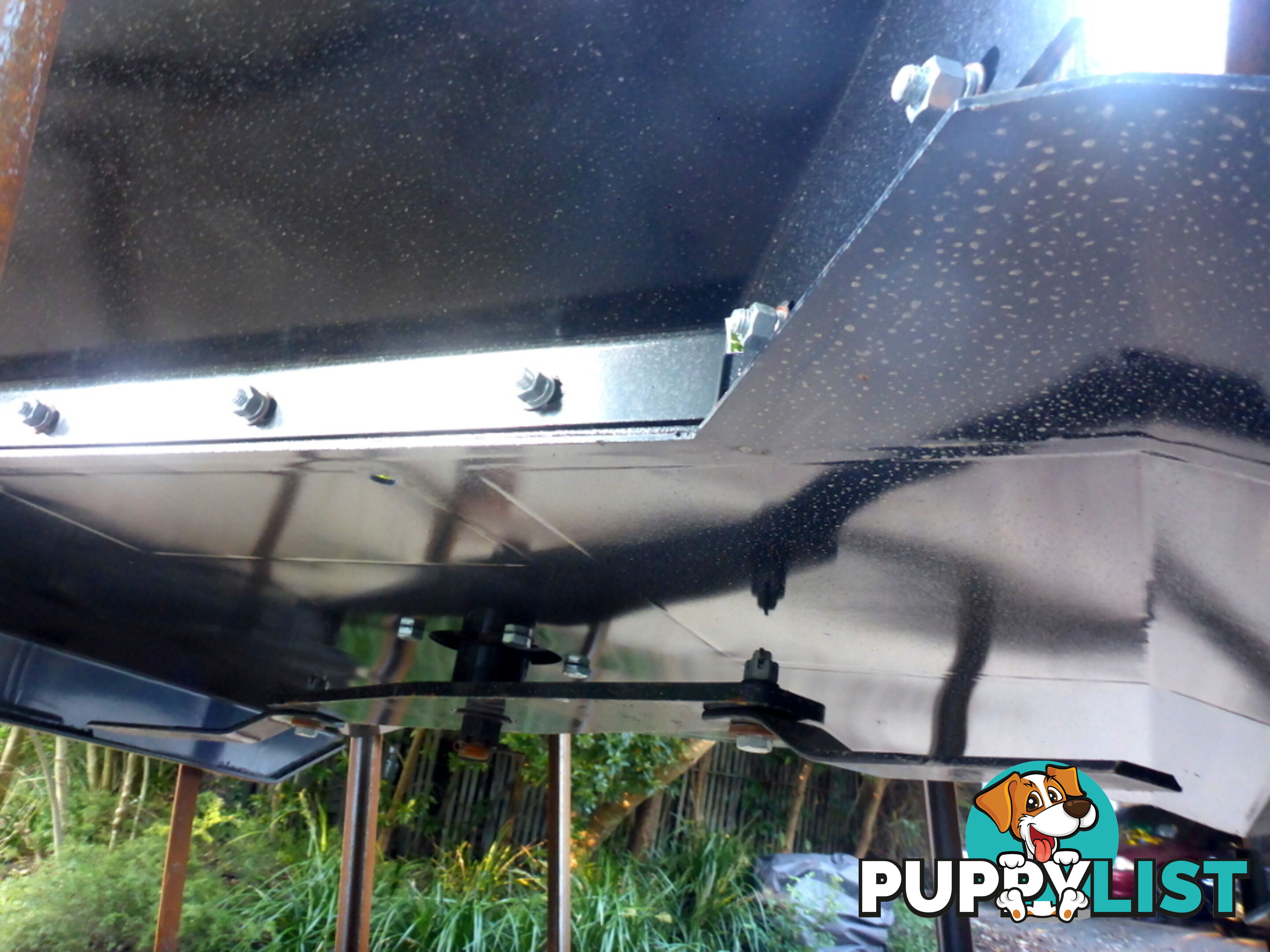

Skid rails run along the entire mower deck sides.

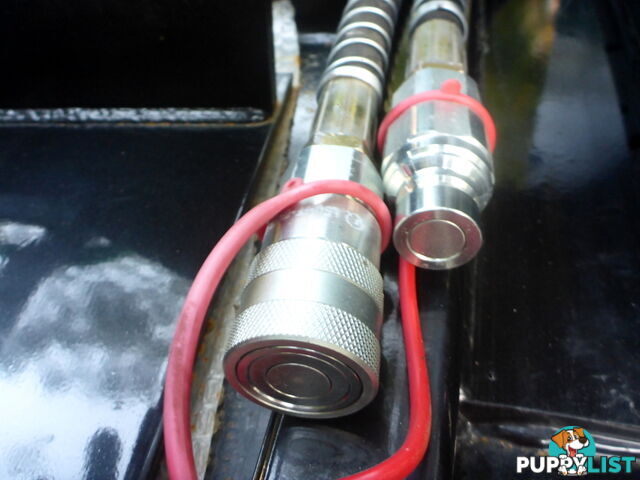

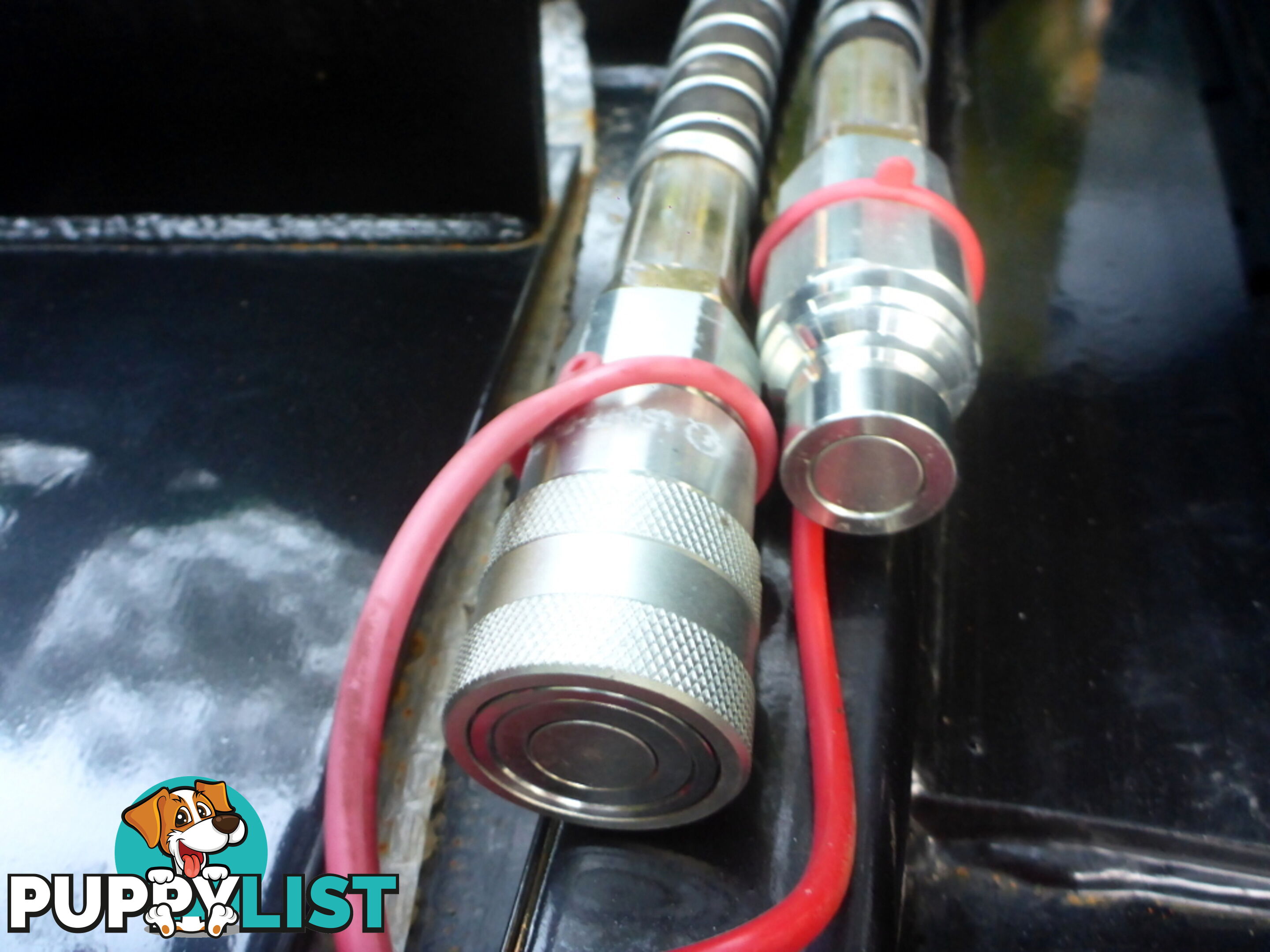

Hydraulic hoses and 1/2" flat faced Quick Connect Couplers included (see Pic #10).

Cutting Width: 54" (1372mm).
Cutting Height: 1.6" (41mm).
Blades: 2.

Flow Rating: 16-21 GPM (60-80 Litres/Min).
Max Pressure: 3050 psi.
Please ensure your machine can deliver the hydraulic oil flow and pressure within these ranges. If your machine's pressure and flow rate are higher you will need to fit a flow/pressure limiter.

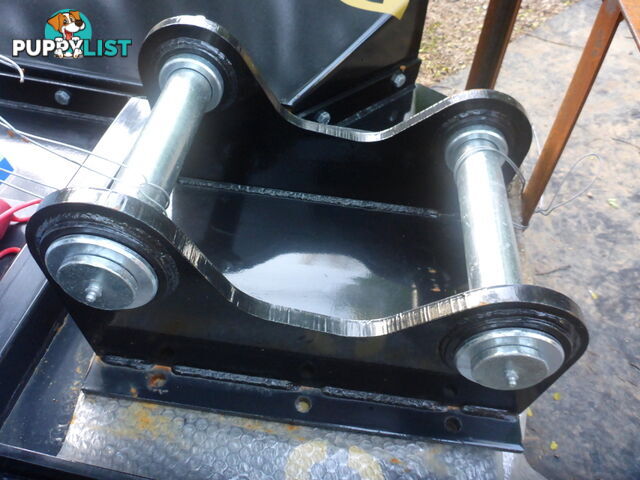

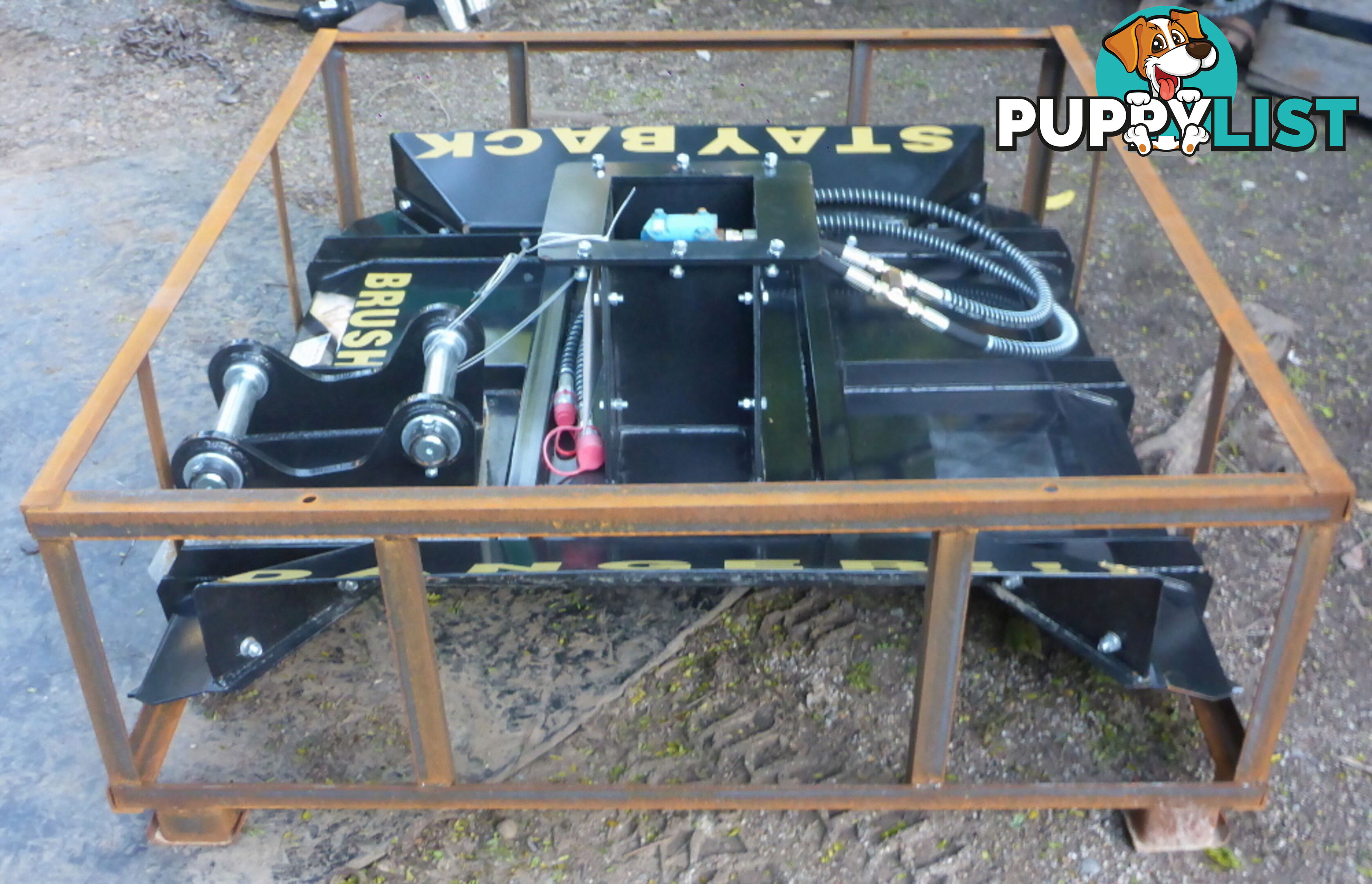

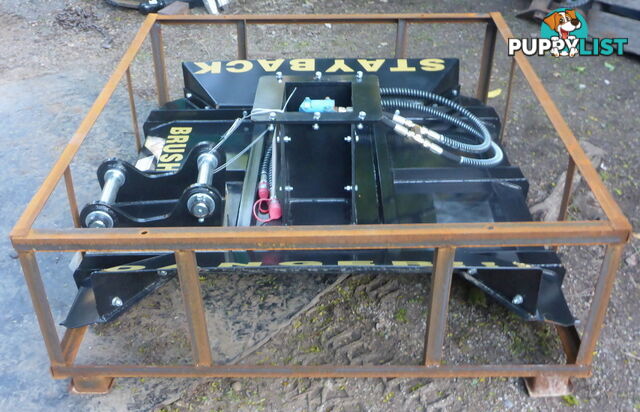

Comes with a removable headstock to facilitate the mounting to different models of excavators.

The Current Headstock is:

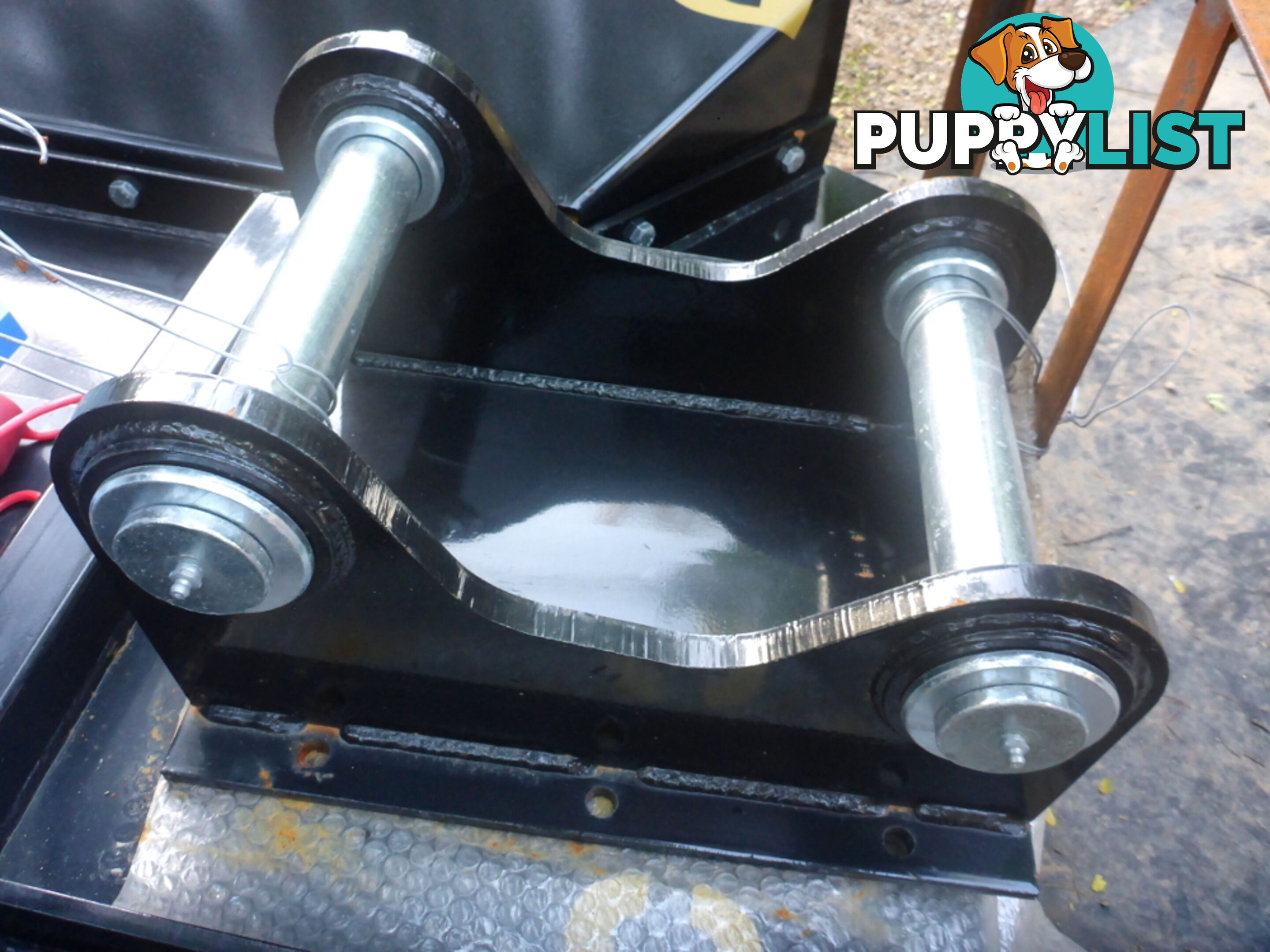

* Pin Diameter: Currently has 45mm Pins fitted into removable Collar Bosses (see Pic #7) that fit into 65mm diameter Pin holes, so pins up to 65mm diameter can be fitted without needing to bore out the holes in the headstock.
* Pin Center to Pin Center (CtoC): 305mm.
* Between The Ears: The distance between the removable collar bosses is 191mm. Removing the collar bosses, the distance between the headstock bosses is 215mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 230mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

The supplied headstock is designed to fit a Caterpillar 306, 307, 308 but should also suit the models below:

Should fit: Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 307 / 307C / 308 / 308C / 308D / 308e2cr / E 70B, Daewoo Solar 070-3 / 080-3 / 080W-3, Gehl GE 803, Hanix H50B-2, Hitachi EX 60 / EX 60-3 / EX 60-5 UK Version / EX 60-5 / EX 60-5 Import / EX 75-5 / EX 80 Import / Zaxis 75US / Zaxis 80, Hyundai R 95W-3, JCB JS 70 / JZ 70, John Deere 75C / 80C / 310SG Std or Ext Stick / 315SG / 410G Std or Ext Stick / 410J, Kato 180G, Kobelco 80CS, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2, Kubota KX 80-3, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sany SY 75C, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Volvo BL70 / BL71, Wacker Neuson 8003 / 9503 / 75z3, Yanmar B 7 SIGMA / VIO70 / VIO75.

Maybe fit: Bobcat X442 / zx125, Daewoo Solar 070 / Solar 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hanix H75B-2, Hyundai R 55-7 / R 80-7, Ingersoll-Rand ZX125, John Deere 710G Std or Ext Stick / 710J Std or Ext Stick, Kato 250 / HD 307, Kobelco 70SR / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu PC 75-1 / PC 75R-2 / PC 95 / SV100 / WB 93-2 / WB146-5 / PS-5, Kubota KX251, Liebherr R308 / R310, Samsung SE 50-3, SMC MX80, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175, Volvo EC 55 / EC50/W / ECR 58 / ECR 88 / MX 55/W / SE 50-3, Wacker Neuson 12002, Yanmar B 7 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

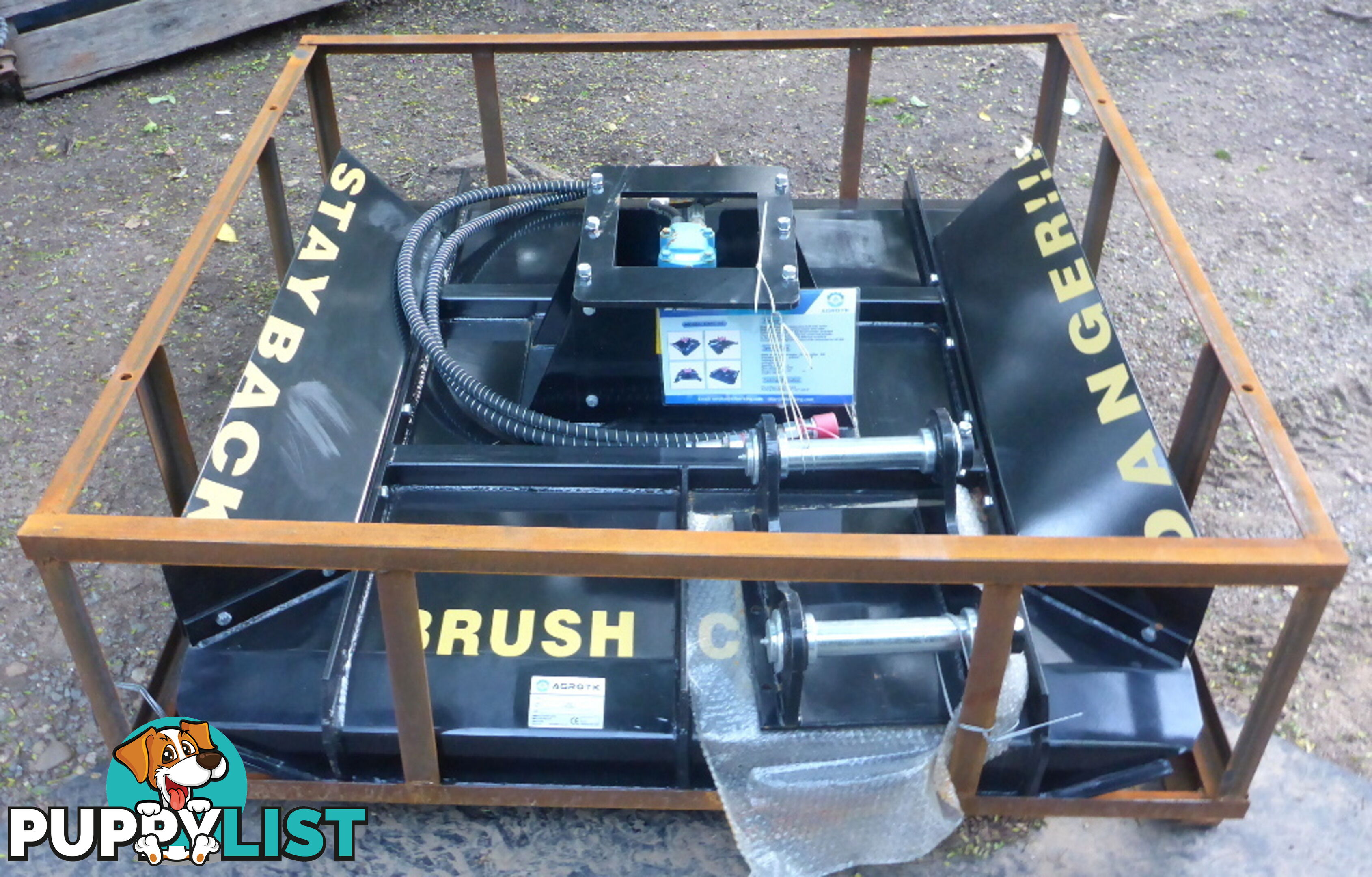

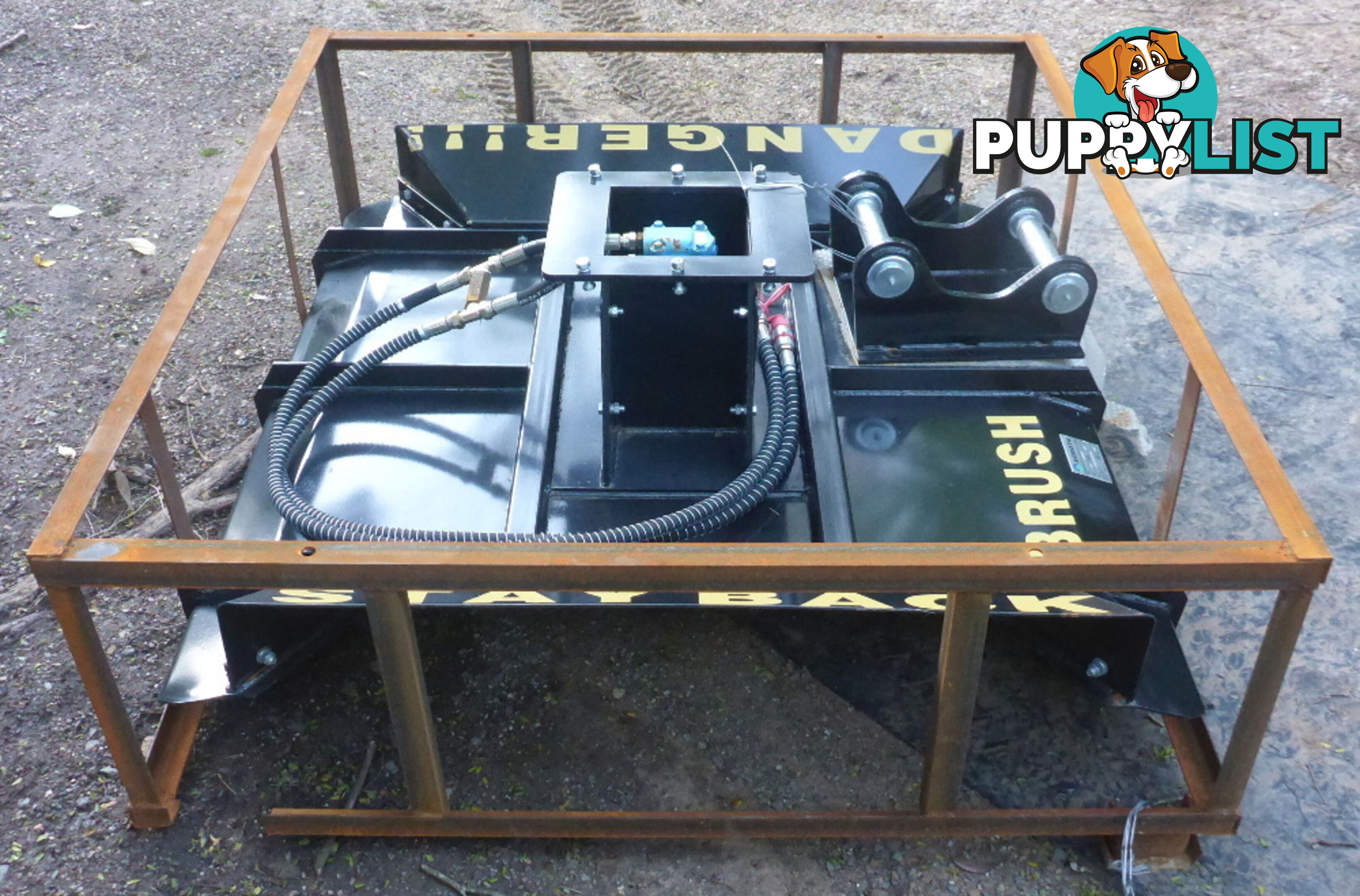

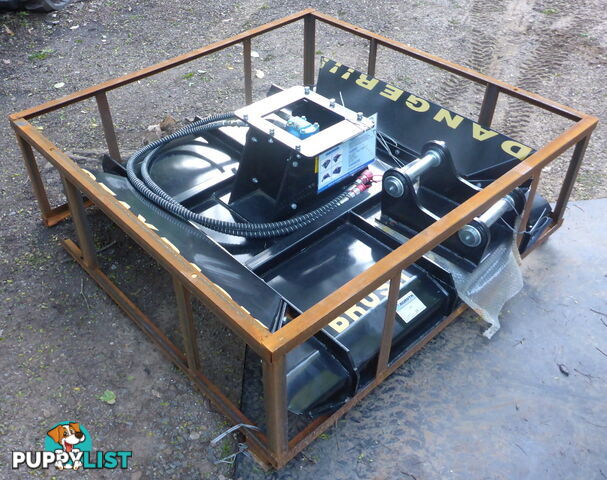

Slasher dimensions (with headstock unbolted as in pics): 1380mm Wide, 1420mm Deep, 505mm High. Weight: 275kg.

Call Reveal Phone if you would like to discuss or to come inspect it.

We are at Show Address
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
