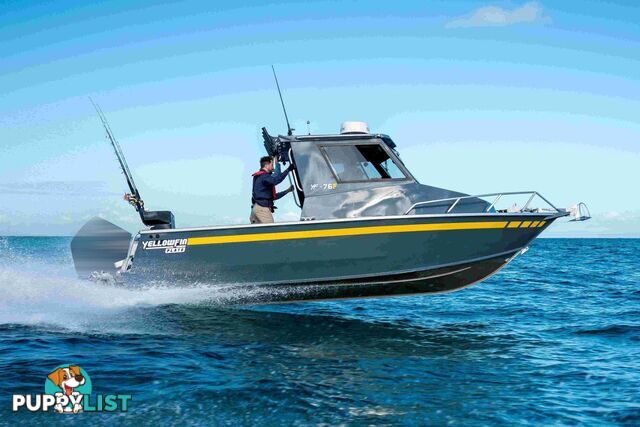

Yellowfin YF-76F Extended Cabin + Yamaha F300hp 4-Stroke - FISHING EDITION for sale online prices

DESCRIPTION

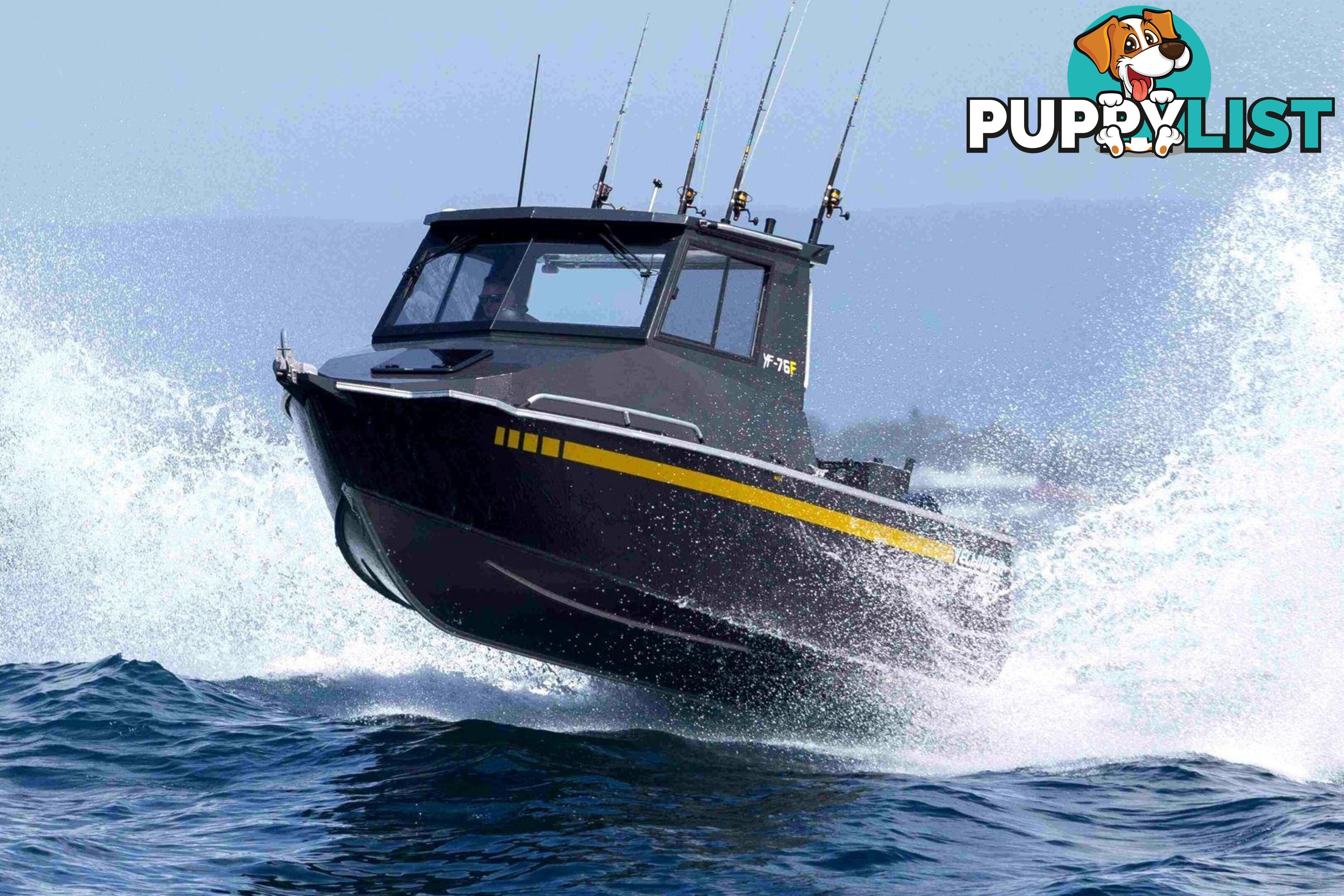

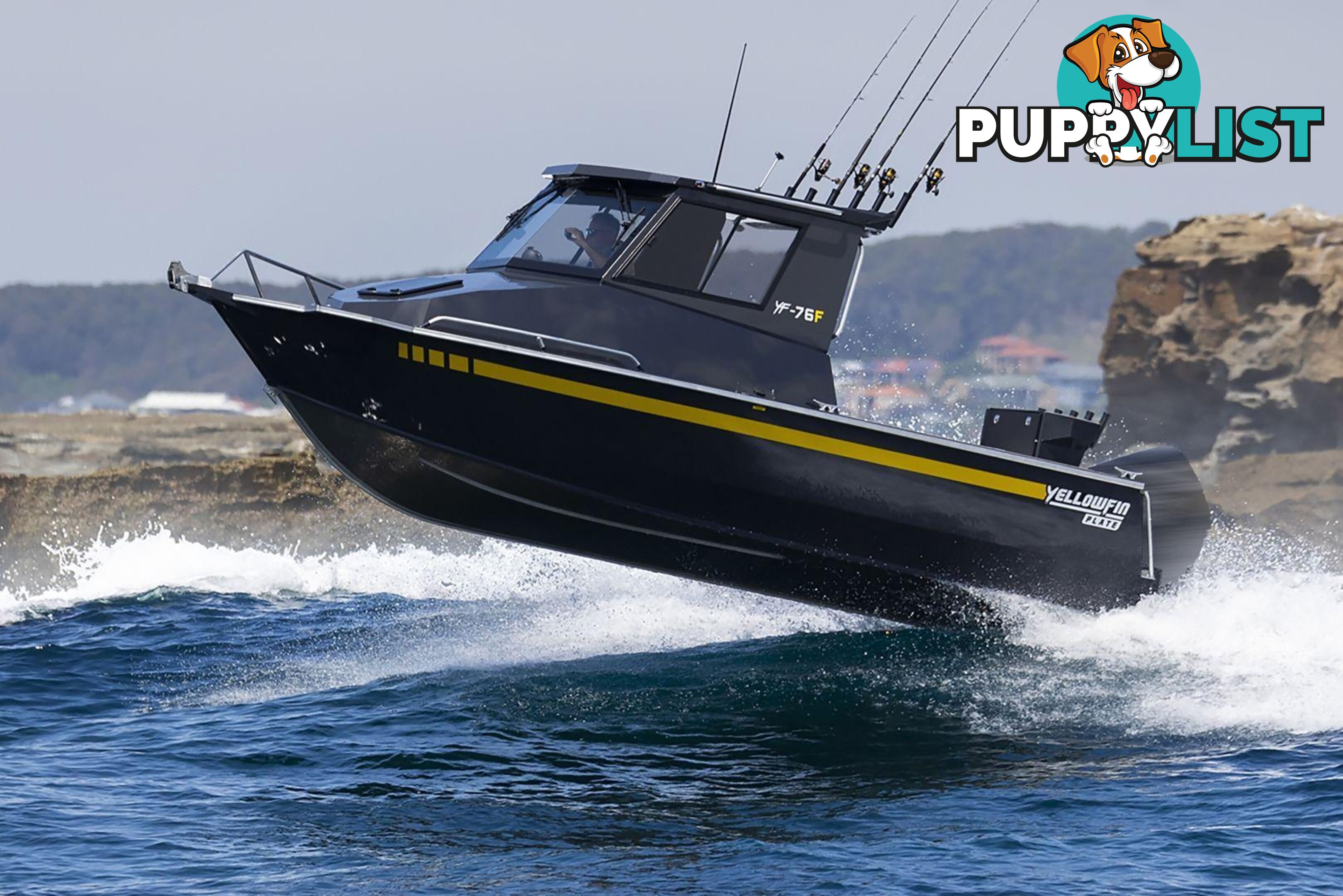

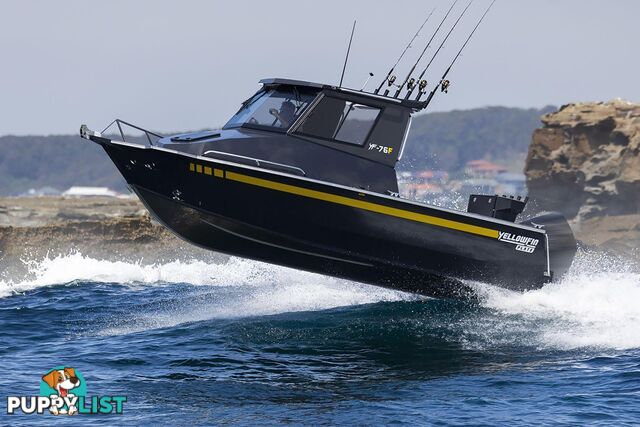

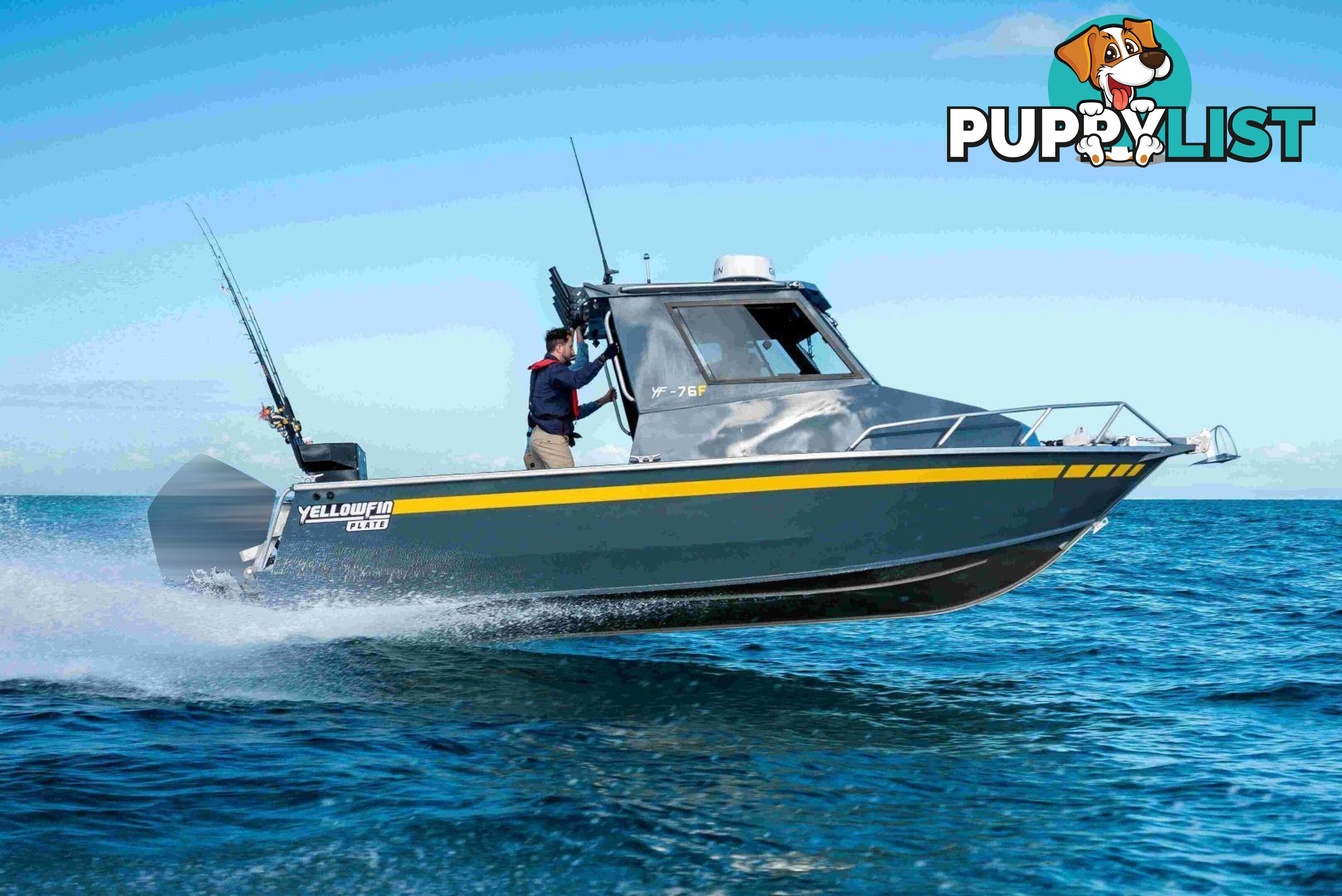

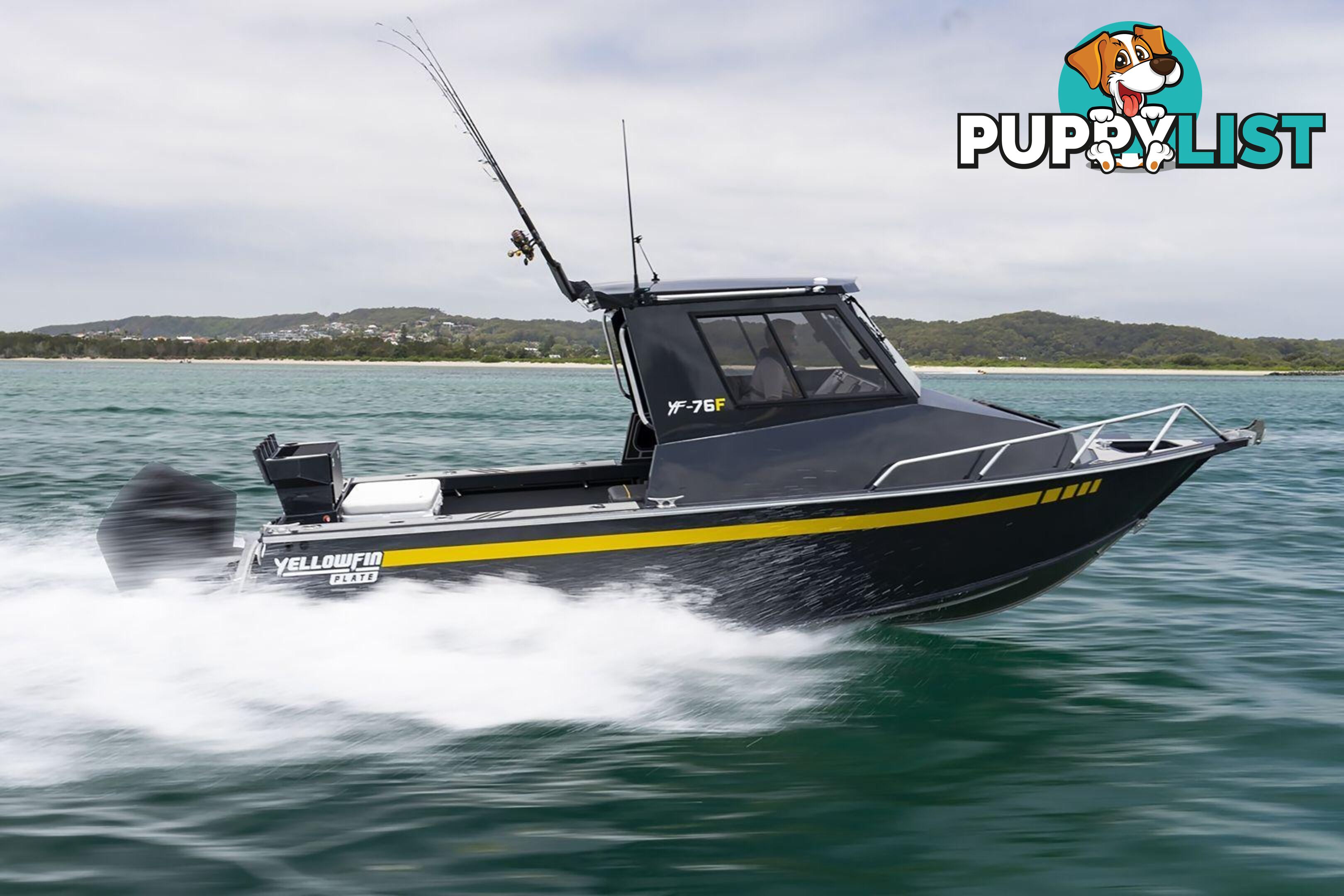

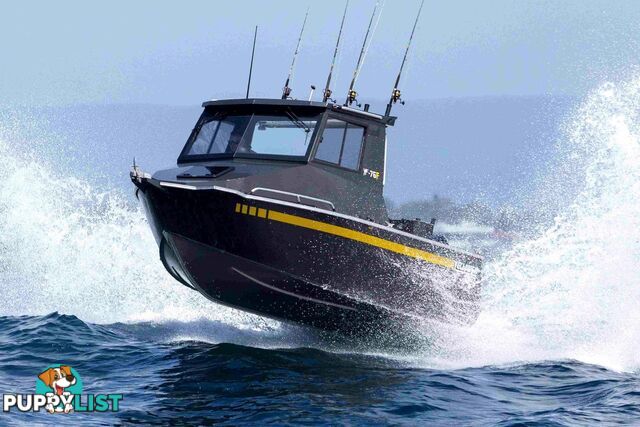

Nothing says offshore-ready like the YELLOWFIN YF-76F Extended Cabin Fishing Edition, painted in sleek two-tone and loaded to the gunnels with premium kit. This 7.47m beast is designed to handle the rough stuff with Yellowfin’s HD-R Hull, Inter-Lok Core structure, and 6mm bottoms giving you serious strength and control. Backed by the Fishing Edition package, you’ll find a sharp yellow stripe, dark floor trim, upgraded dash, and a rod rack system that’s all about function with added flair. Built for extended missions, this model brings together comfort and capability in a layout that’s spot on for serious fishos.
It’s powered by the mighty Yamaha F300HP 4-Stroke, with digital electronic control, fly-by-wire operation, and a stainless SDS prop to get you there fast and smooth. The motor’s fitted with electric start, hydraulic steering, and a tilt limiter for extra peace of mind—backed by a support block to protect the gear while trailering. Sitting on a hydraulic braked Yellowfin tandem trailer rated to 3200ATM with load-share axles, LED lights, and an I-beam rolled frame, this boat's ready to haul north or launch anywhere in the country.
When it comes to tech, it’s all here—Garmin GPSMAP 8416XSV with GT56UHD transducer, radar with factory mount, AIS radio, and Fusion sound system to keep you entertained between bites. Inside, it’s all comfort: suspension seats, fridge, electric toilet, wireless phone charger, LED lighting, and a fully carpeted cabin. Storage is sorted with trays and a 75L split-lid cooler, and the YF Super Bag’s ready for your catch. From the deluxe bait station to underwater lights and full safety gear, this rig is good to go from ramp to reef without missing a beat.
Some key advantages Yellowfin have over other manufacturers
Our single-piece external keel runs the entire length of each boat. This key feature keeps each Yellowfin straight and true underway, which is incredibly important particularly in following seas.
Handling & Performance
External Keel
Full length spray chines not only keep our boats incredibly dry, but they aid in hydrodynamic lift and grip when cornering.
Handling & Performance
Full Length Spray Chines
A 20-degree variable deadrise in combination with reverse chines and extended planning strakes give Yellowfin boats a soft ride, great stability at rest and trim-responsive handling underway.
Handling & Performance
HD-R Hull
All Yellowfin boats come with external fuel fillers as an added layer of safety as well as practicality. Service stations do not allow vehicles to be fueled from the inside due to inherent risks.
Safety & Practicality
External Fuel Filler

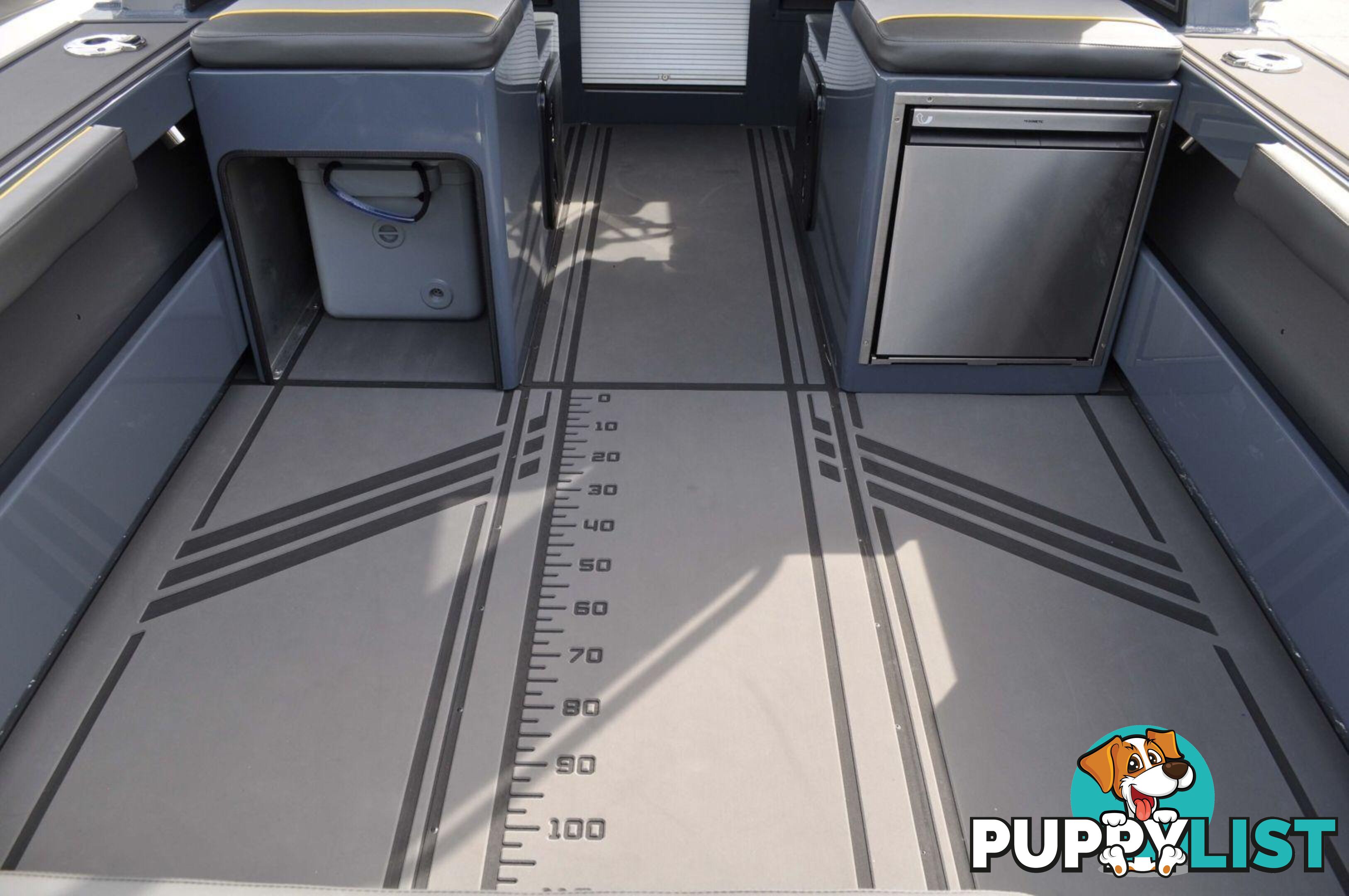

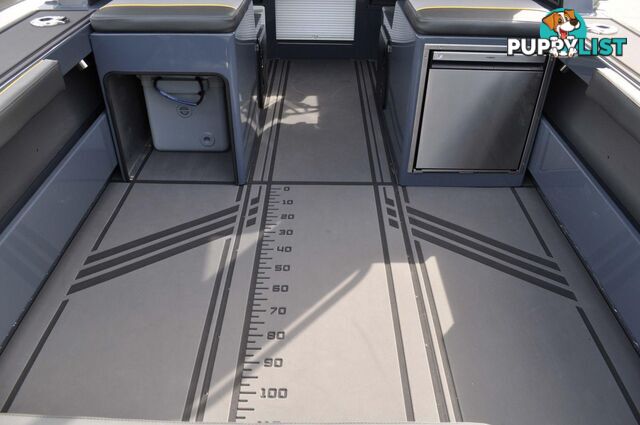

EVA foam makes for non-slip surfaces and greatly reduces hull noise.
Safety & Noise Reduction

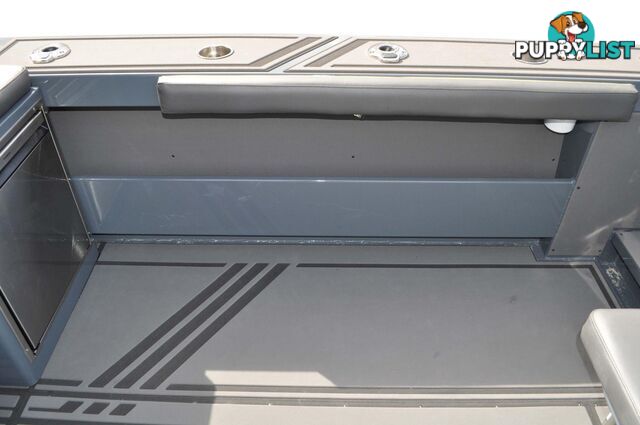

U-Dek
Our foam is commercial grade marine foam, compliant with the National Standard for Commercial Vessels, making it fuel and water resistant. Not only is it a key safety feature but it has acoustic benefits too, making each Yellowfin boat incredibly quiet.
Safety & Noise Reduction
Foam Filled
Yellowfin floors are fully welded from cabin to transom, and are built above the waterline, allowing for scupper drains to take care of any unwanted water on the deck. Bilge pumps are also included as a backup measure.
Safety
Self Draining Floor & Bilge Pumps
Both chines and the keel are welded 4 times (twice externally and twice internally), adding massive amounts of material and strength to the already rigid Inter Lok Core.
Strength
Quad Welded Chines & Keel
6mm bottom sheets not only add strength to the boat but make for a softer ride too.
Strength
6mm Bottom Sheets

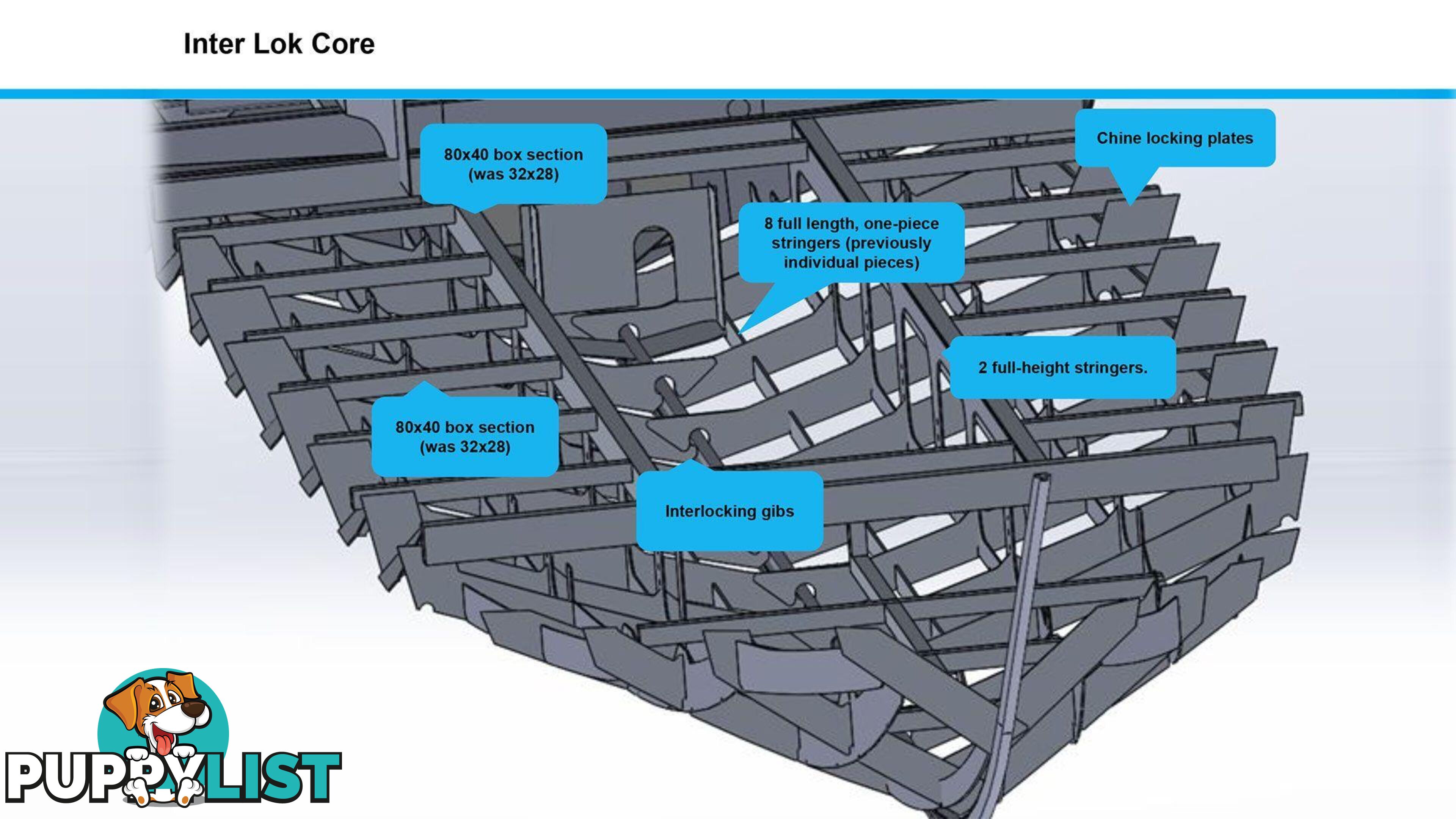

Full height stringers with inter-locking gibs make for maximum strength and durability.
Strength
Inter Lok Core
Description
Benefit
Feature
FISHING EDITION INCLUSIONS:

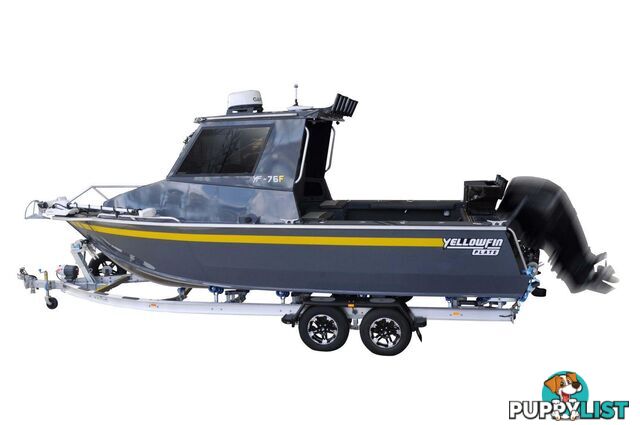

 YELLOWFIN YF-76F EXTENDED CABIN FISHING EDITION - Painted in 2-tones

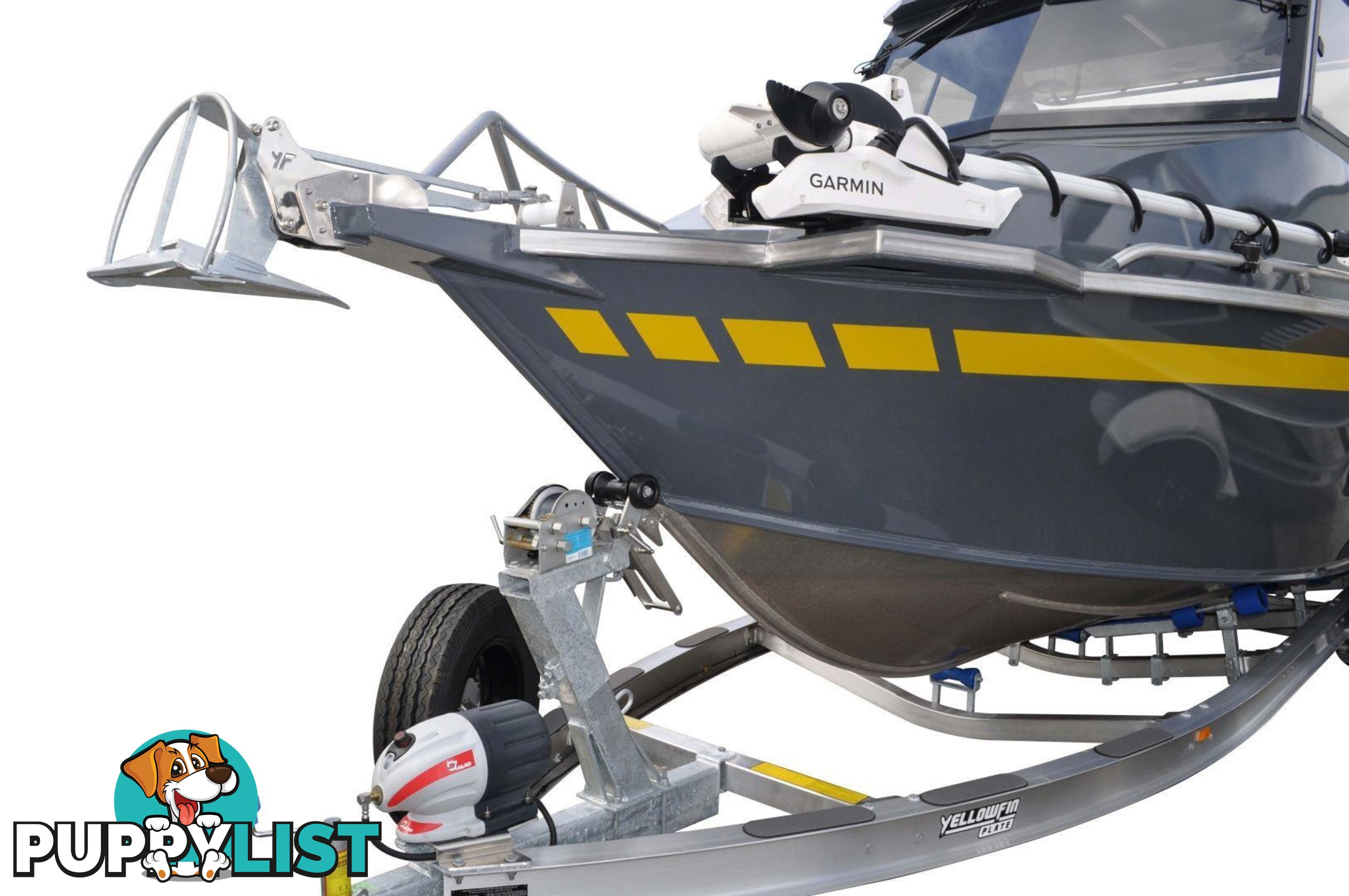

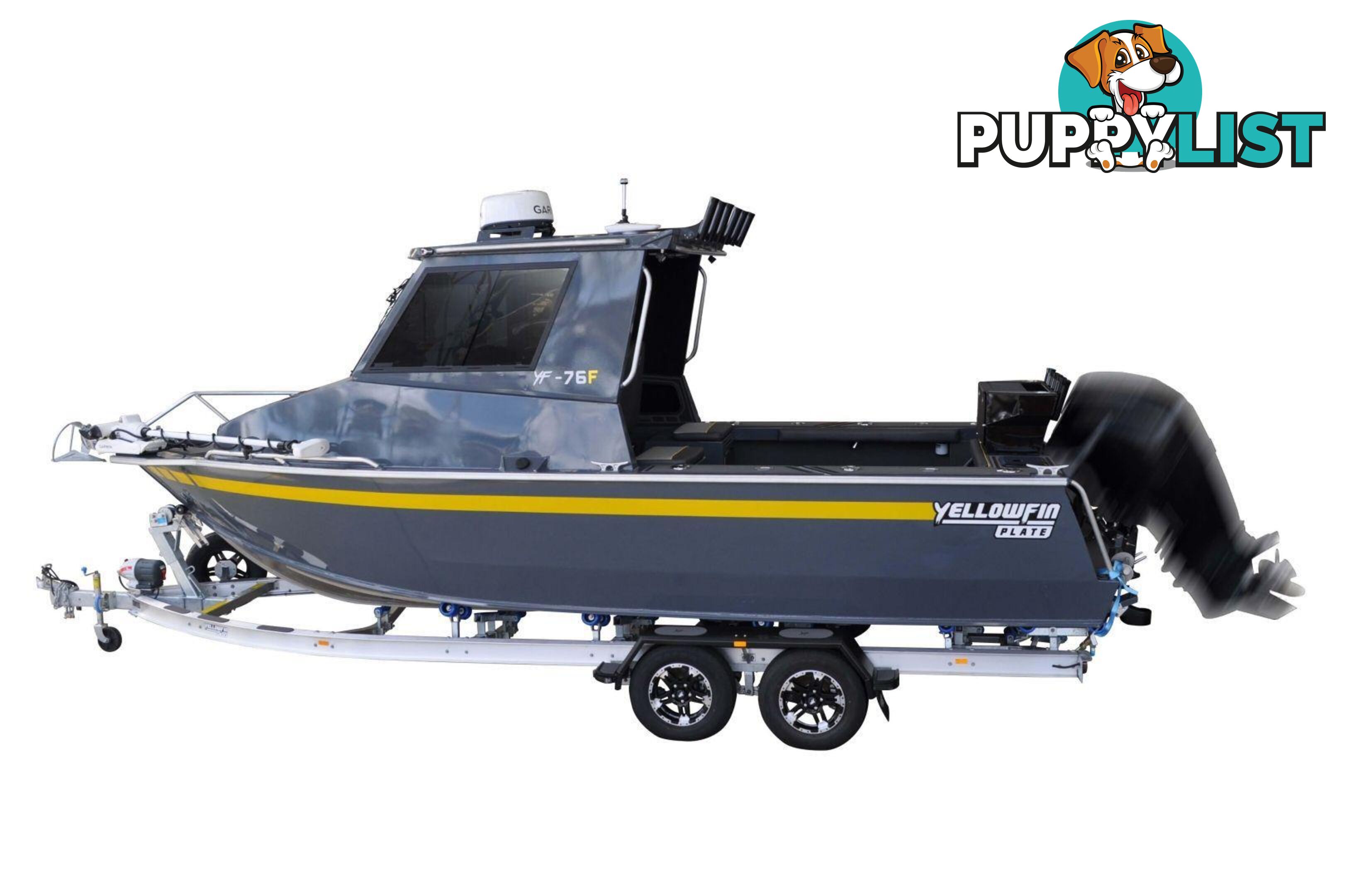

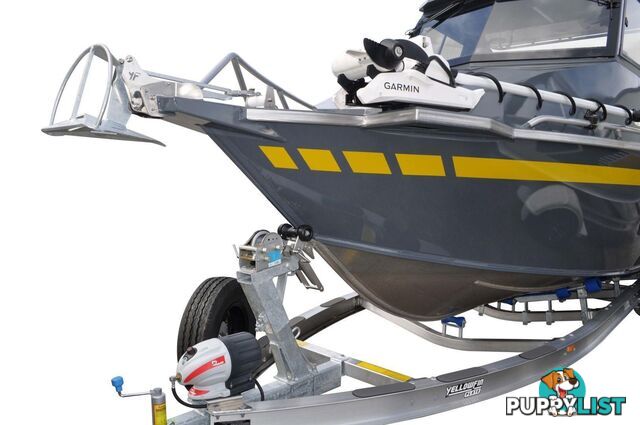

YELLOWFIN HYDRAULIC BRAKED TANDEM TRAILER 3200ATM - 6 Alloy Cross Members, 50mm Coupling Braked (3Tonne), 7 Pin Plug, Actuator, Clearance Lights, Forward Facing White Light, LED lights, Jockey Wheel Swing Up, Axle Tandem Loadshare HydBrake, Draw Bar, Loader Cradle,  Rolled Frame Alloy I-Beam, Winch 10:5:1

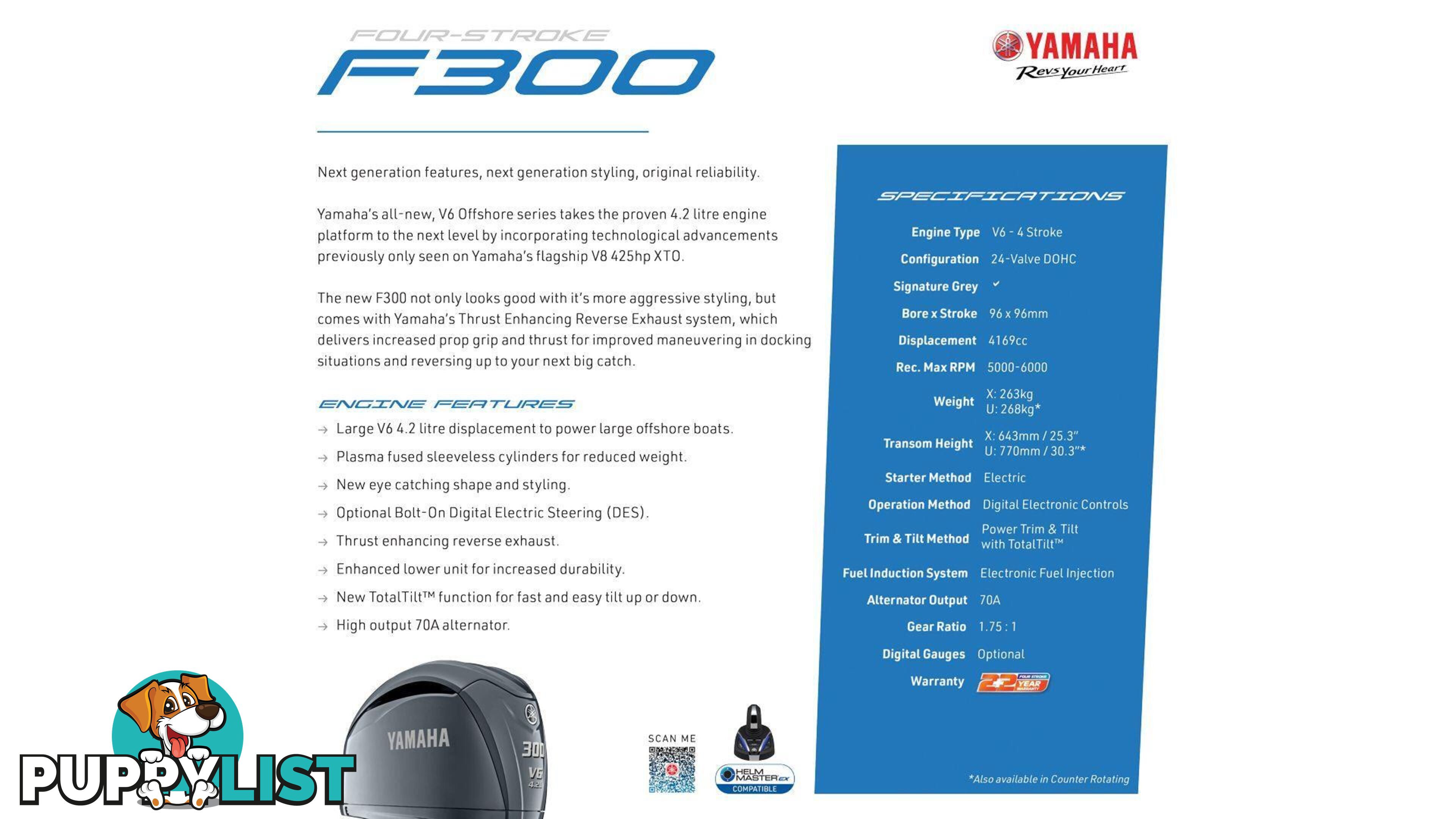

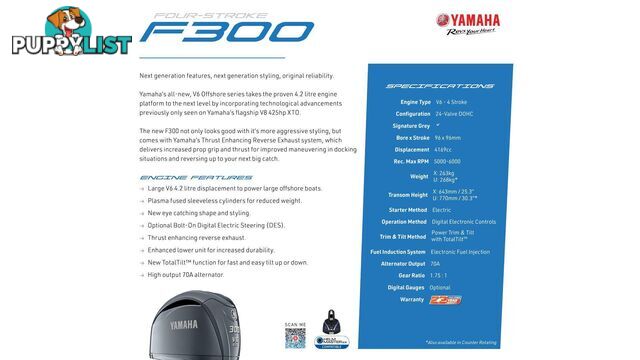

YAMAHA F300HP 4-STROKE -  Forward Control with Side Concealed Control Box, Fly-By Wire, 2x Multifunctional Digital Gauges, Digital Electronic Control (DEC), Power Trim & Tilt with integrated limiter, Electric Start, SDS S/S Prop, Fuel Filter, Workshop fitted & Tested, Bolted on with PVC backing board, Loom & Control Cables, Dealer Delivery & Training
MOTOR SUPPORT BLOCK - Prevents the motor from returning to the vertical position and helps prevents excessive loads on the tilt assembly

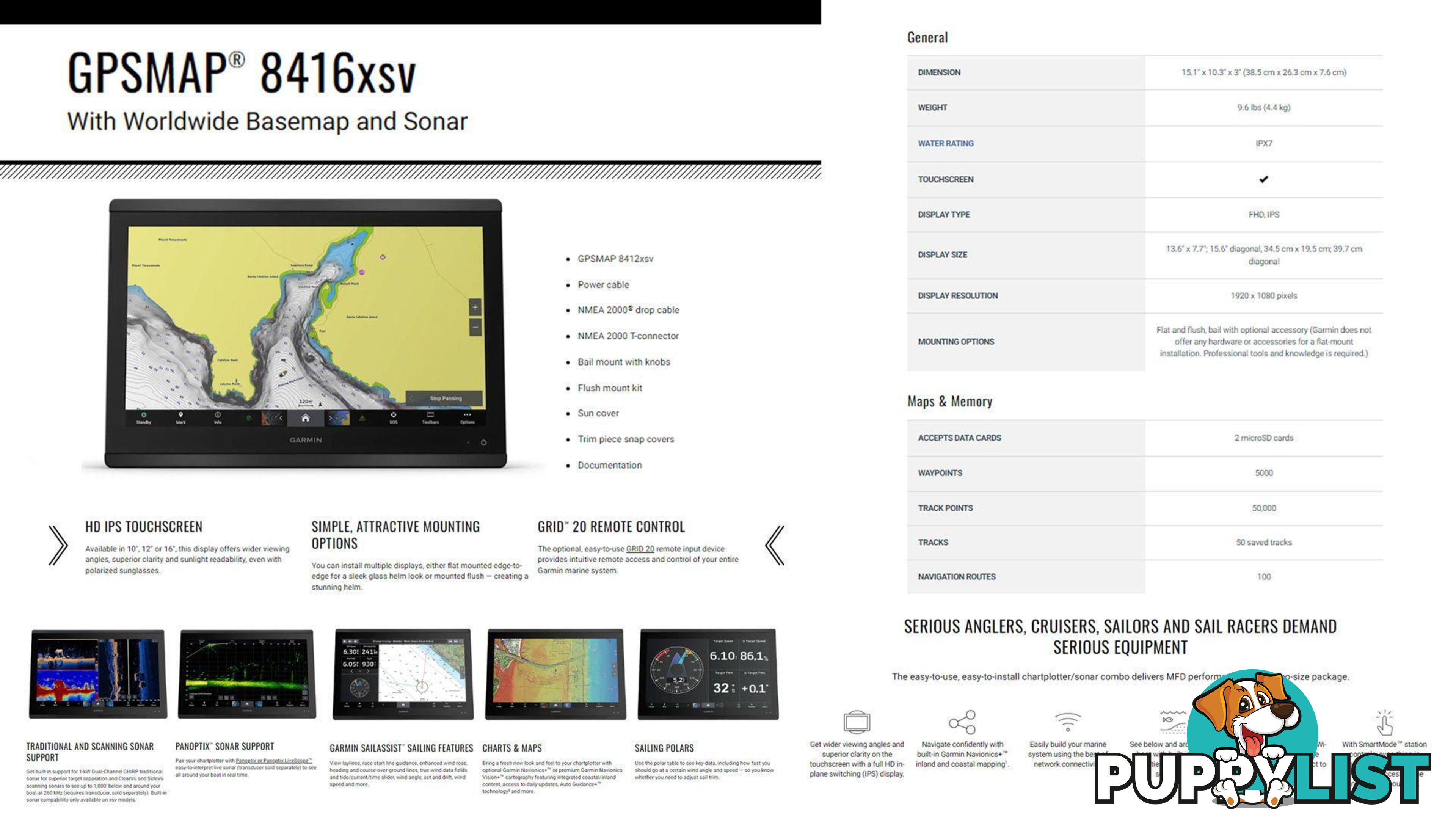

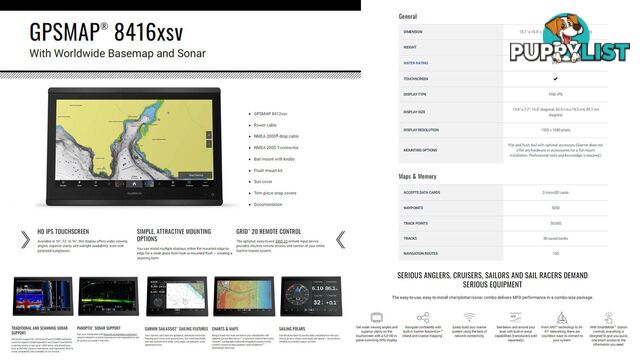

WIN GARMIN GPSMAP® 8416XSV CHARTPLOTTER/SOUNDER COMBO - Very high-end unit compatible with a vast array of technology. Garmin Navionics+ Australia & New Zealand Mapping preloaded, G3 Blue Water Map Card Fitted, Full HD in-plane switching (IPS) display, Built-in sonar compatibility, and much more
TRANSDUCER UPGRADE TO GT56UHD - Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar and more

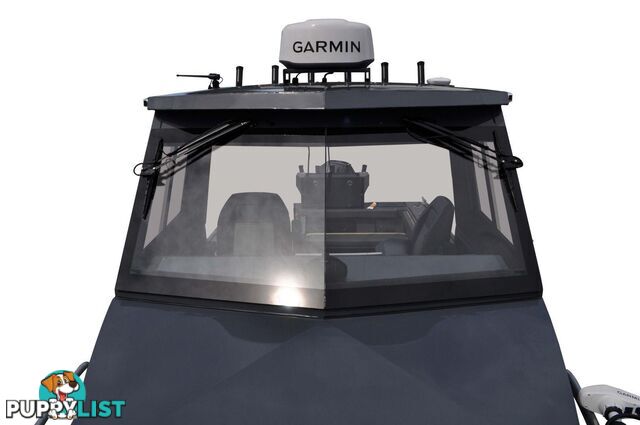

GARMIN GMR 18XHD3 RADAR - Includes factory fitted radar bracket

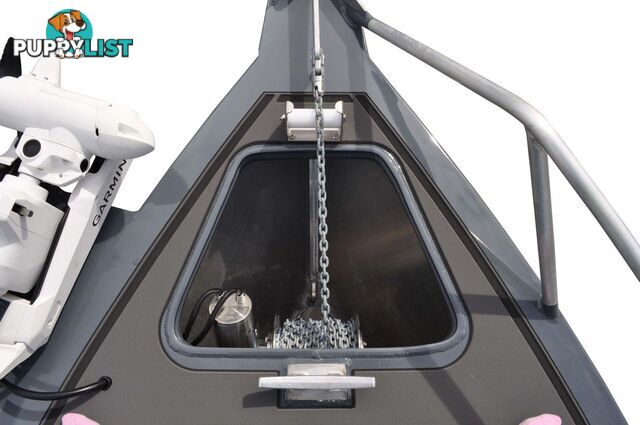

SAVWINCH 1000CS DRUM ANCHOR WINCH - 316 Stainless Steel Drum, Oversized Worm Drive Alloy Gearbox - IP68 rated, 95m of double braid rope and 7m of chain

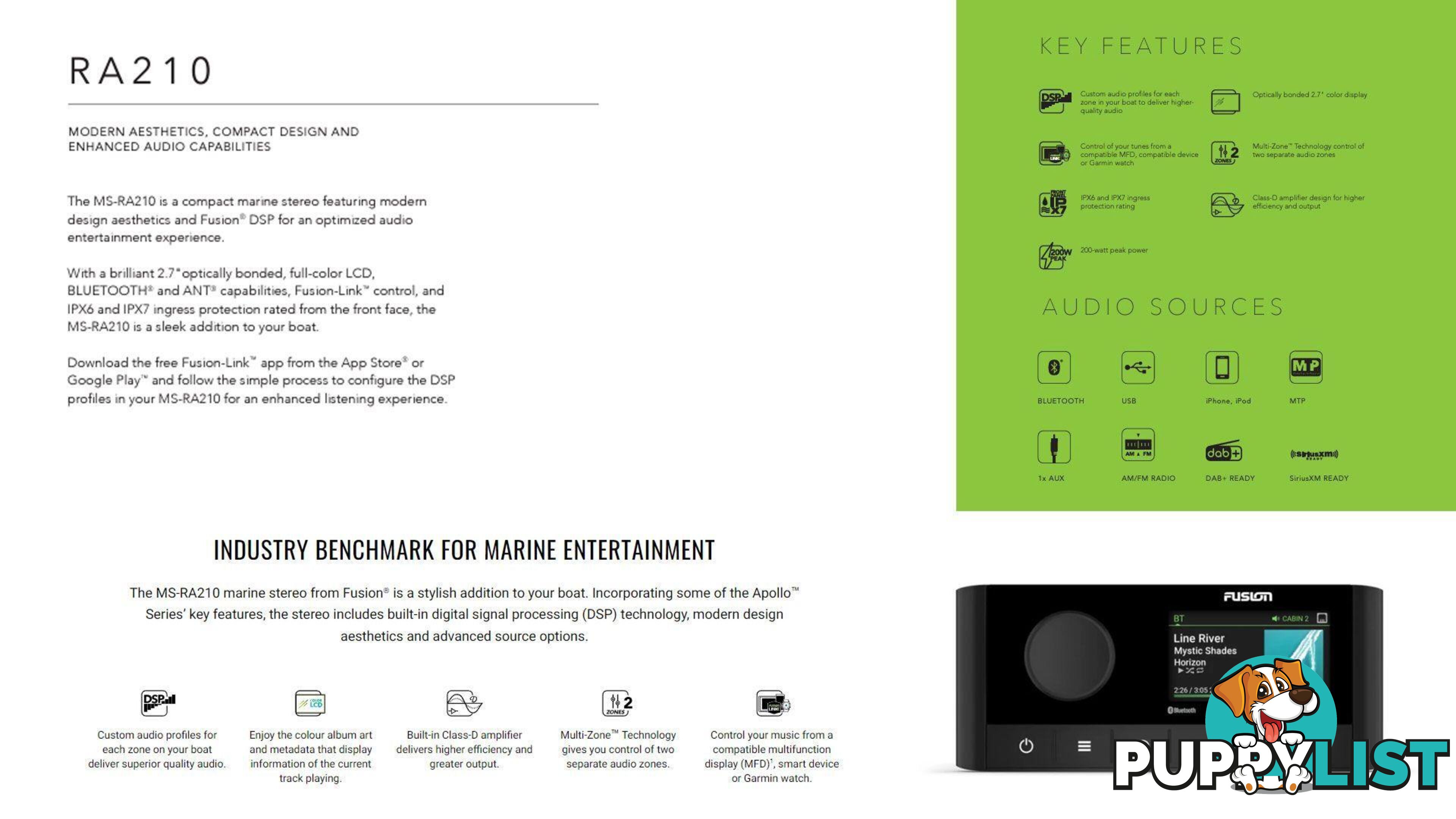

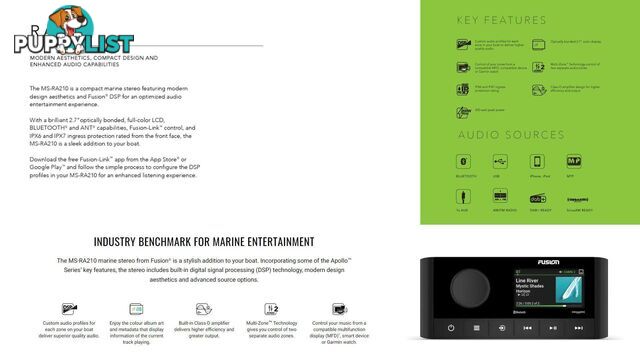

FUSION RA210 SOUND SYSTEM + 2X SPEAKERS - Brilliant 2.7"optically bonded, full-color LCD, BLUETOOTH® and ANT® capabilities, Compatible with your smart device via the Fusion-Link App, and IPX6 and IPX7 ingress protection, Quality marine grade sound system and speakers
GARMIN 215i AIS MARINE RADIO - Very high-end unit that integrates with Garmin GPSMAP chartplotters, Displays Automatic Identification System (AIS) on the chartplotter, Digital Selective Calling (DSC) functionality(improves your chances of a rapid rescue in case of trouble), 25-watt transmit power with built-in GPS, All international frequency bands
DUAL MARINE BATTERIES & ISOLATION SWITCH - Australian made marine rated battery with warranty

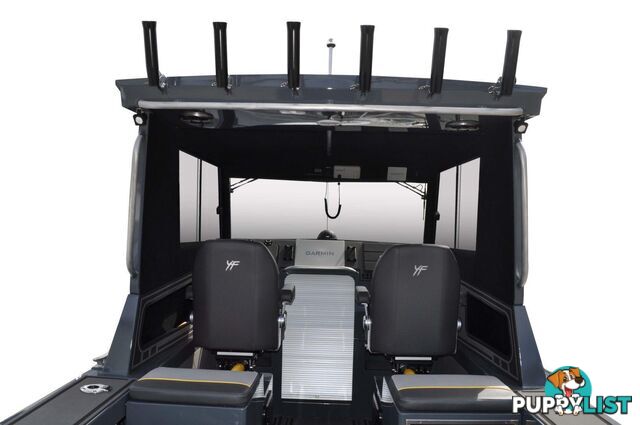

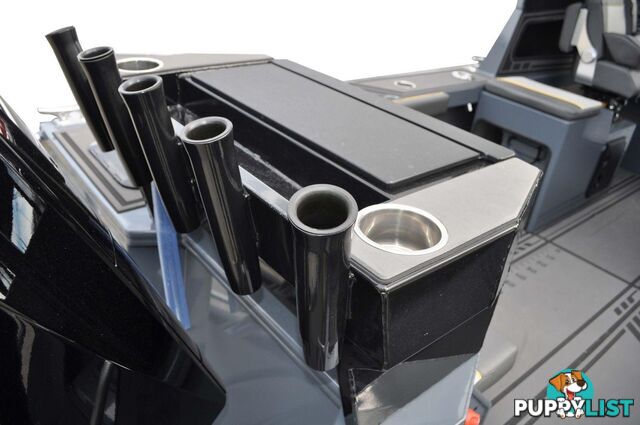

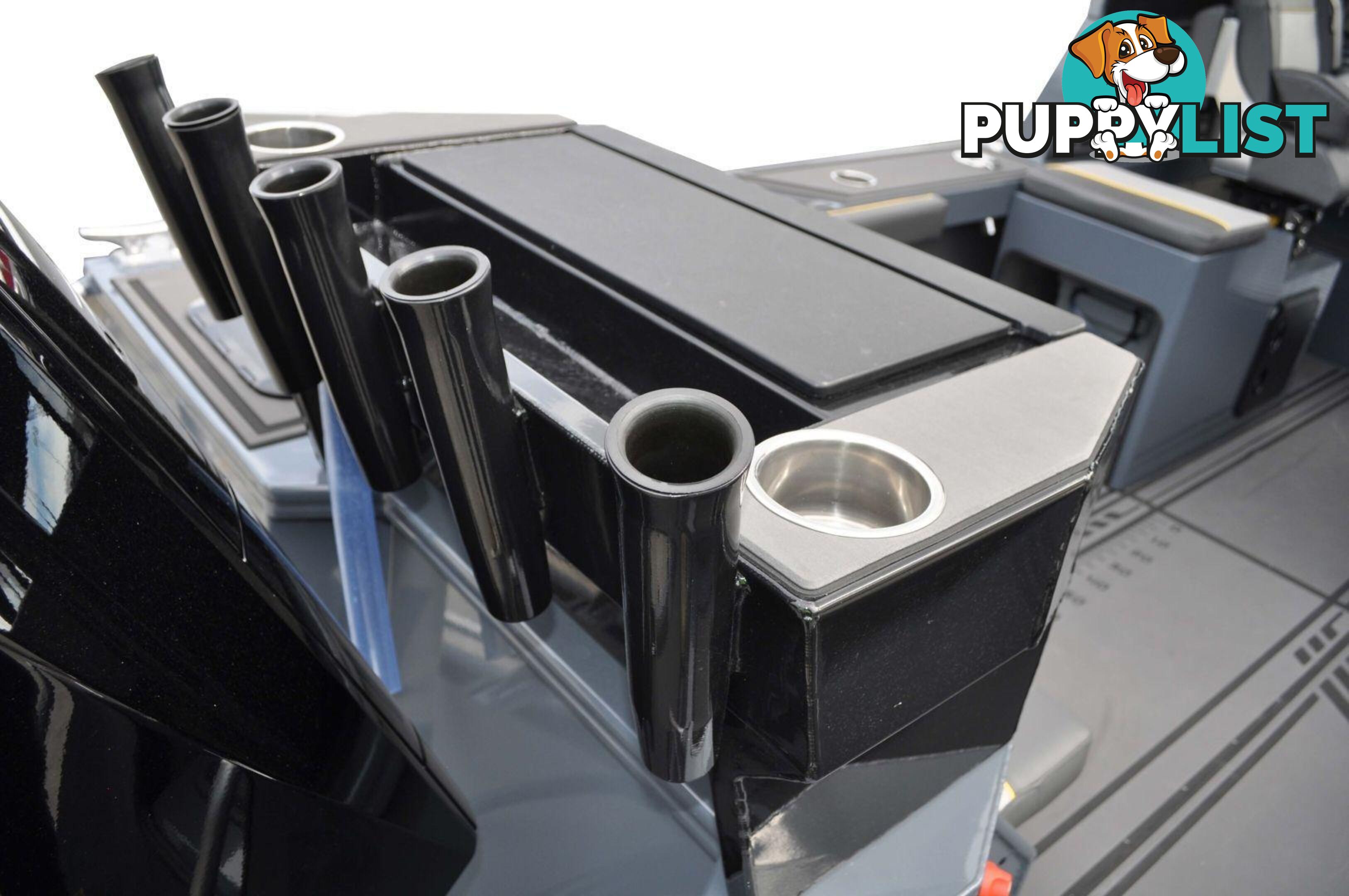

FISHING EDITION 6X ROD RACK HOLDER UPGRADE
FISHING EDITION DARK FLOOR TRIM UPGRADE

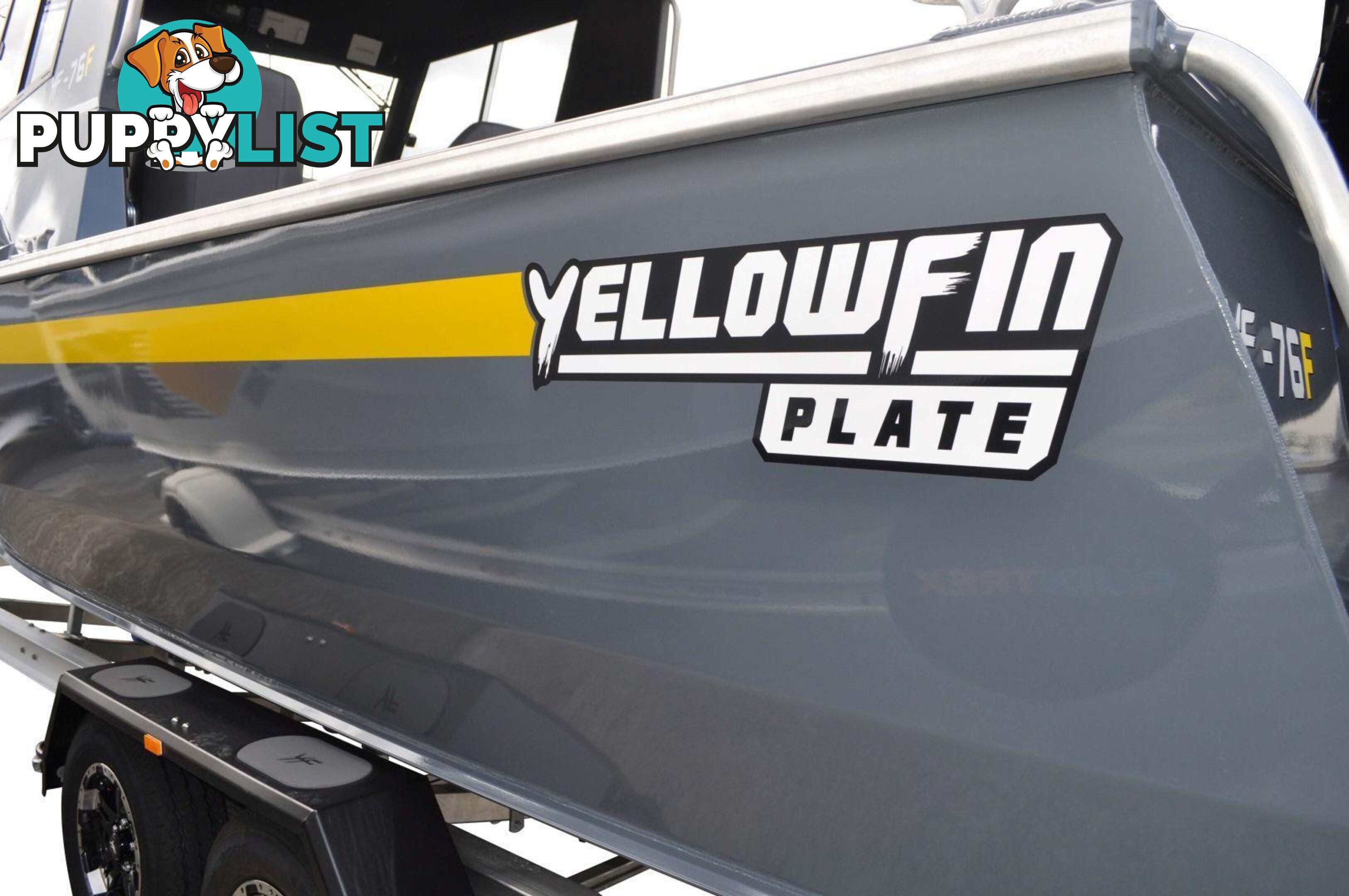

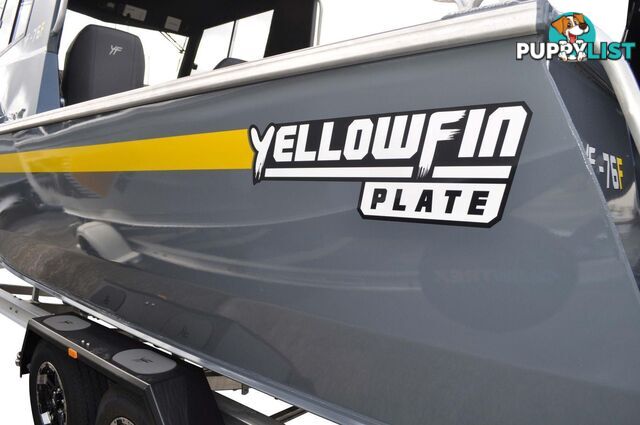

FISHING EDITION YELLOW STRIPE
FISHING EDITION DARK STEERING WHEEL
FISHING EDITION DASH TRIM
YELLOWFIN SUPER BAG 150 - Storage bag for your catch

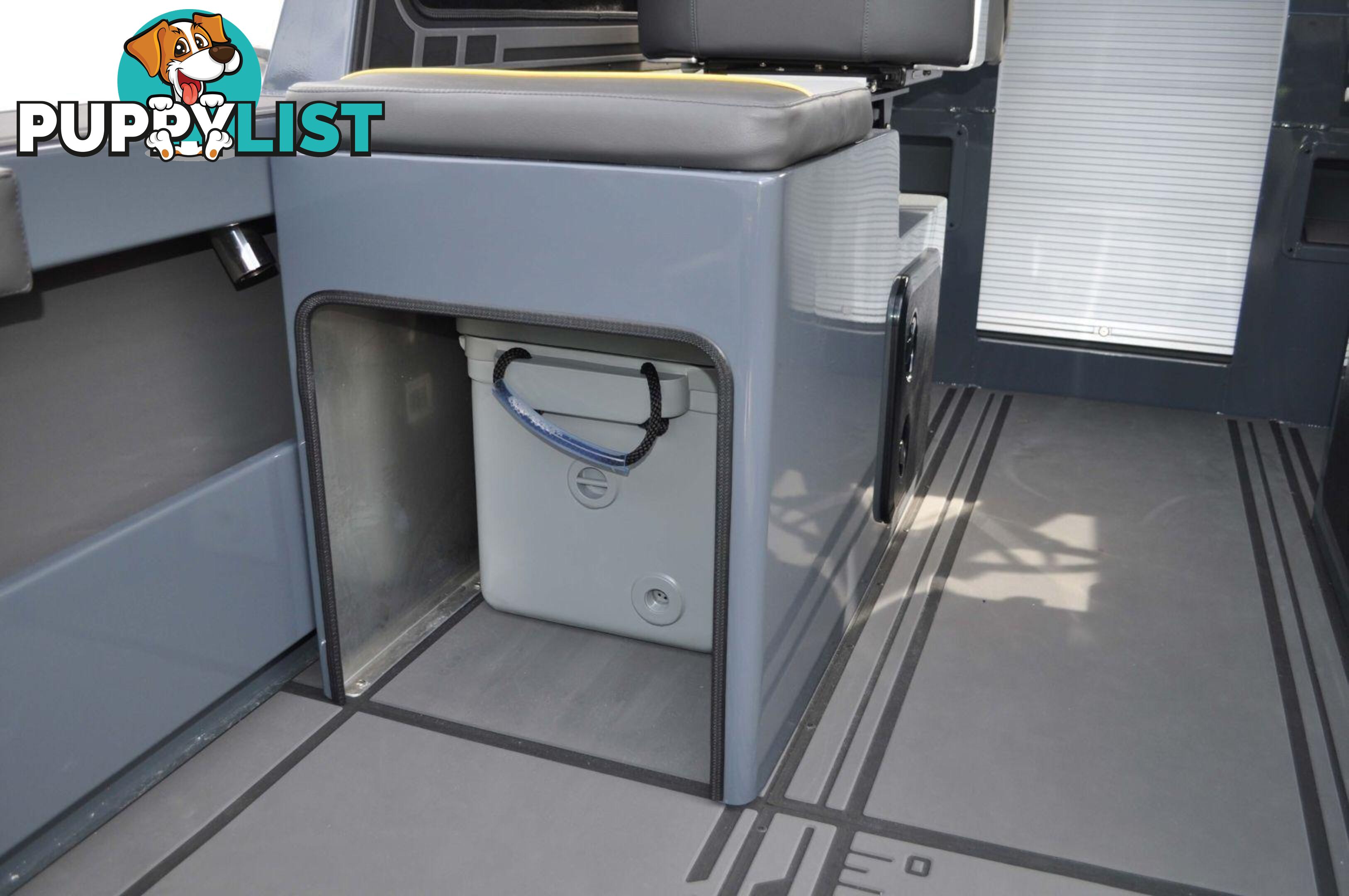

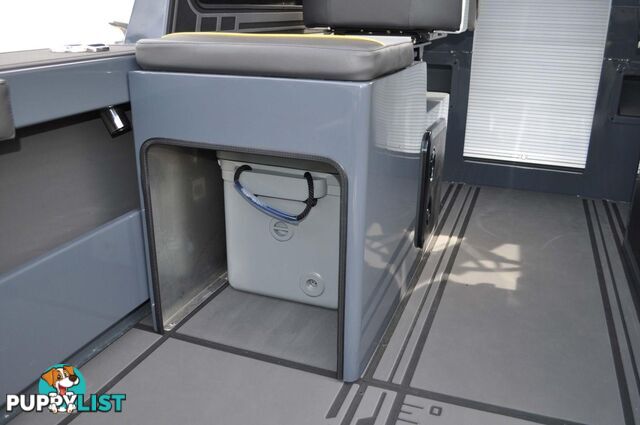

YELLOWFIN SPLIT-LID 75L COOLER

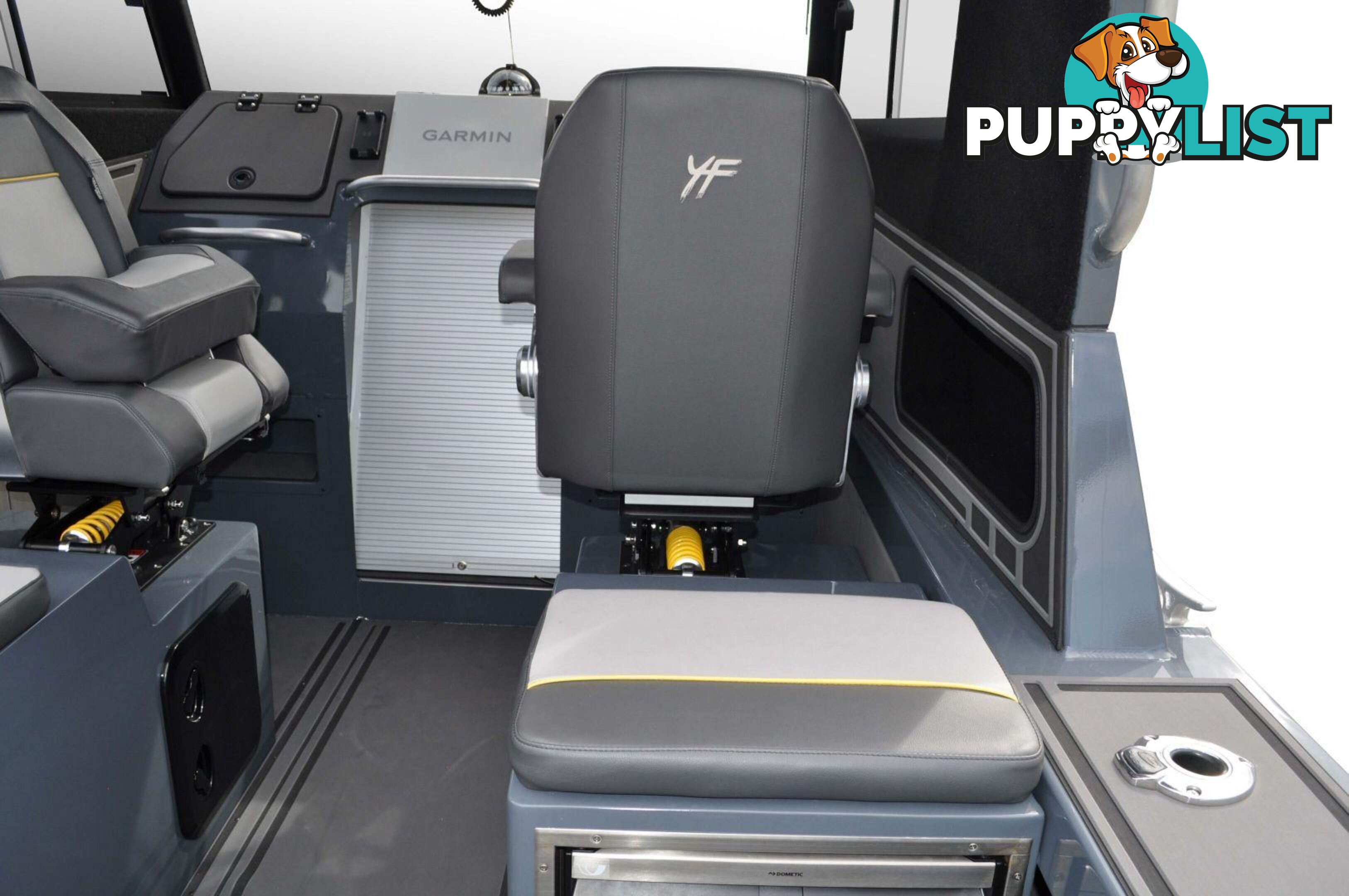

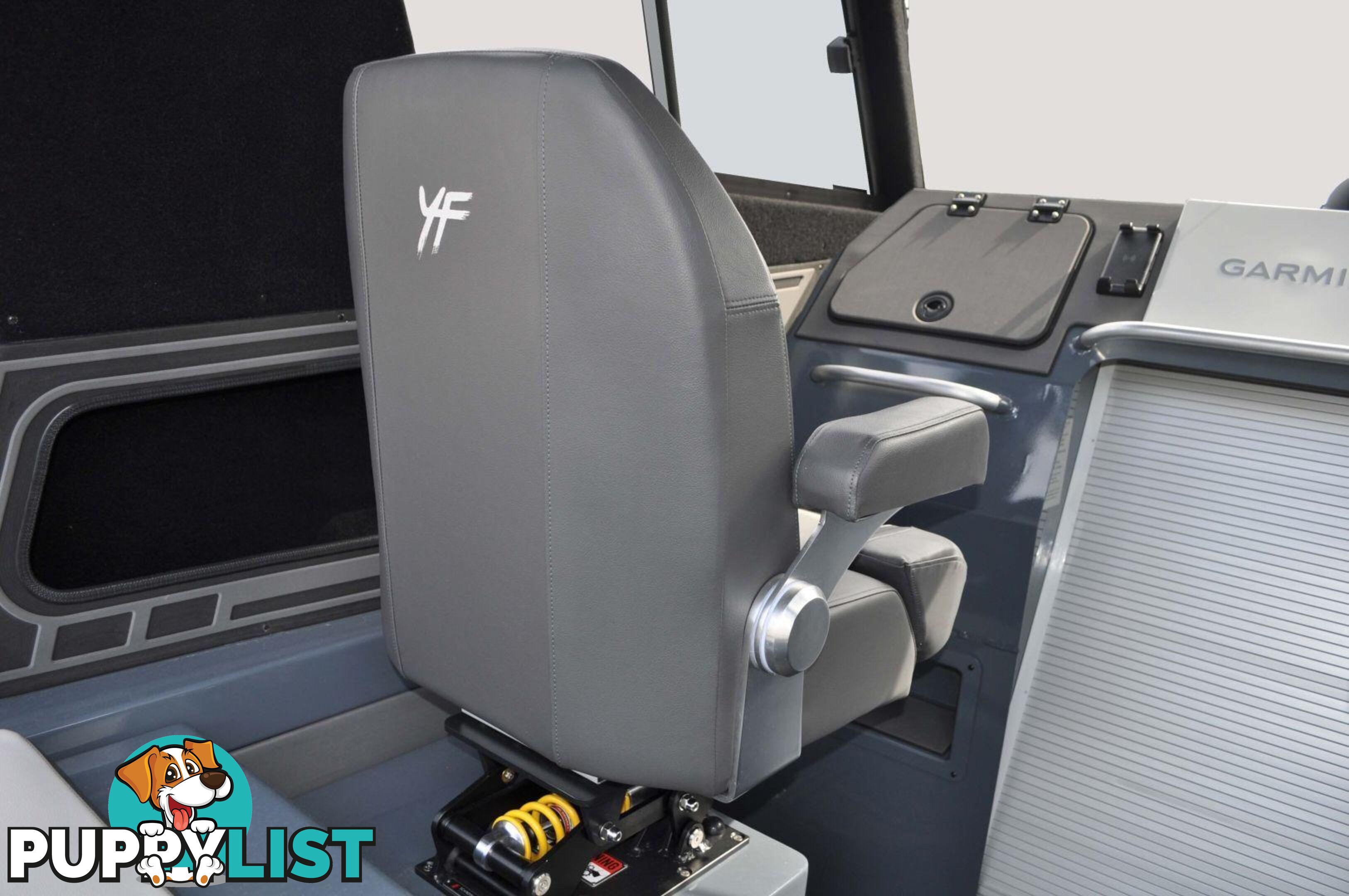

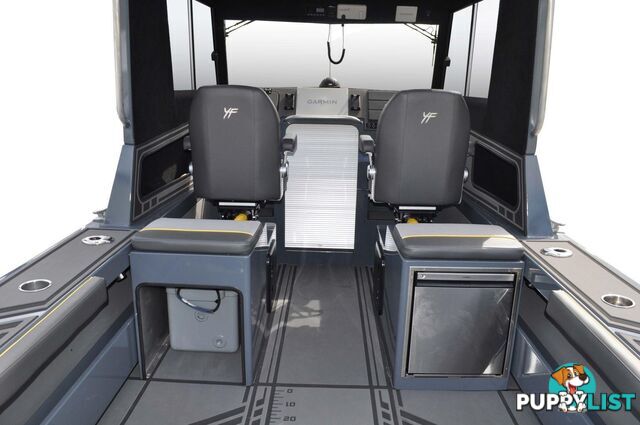

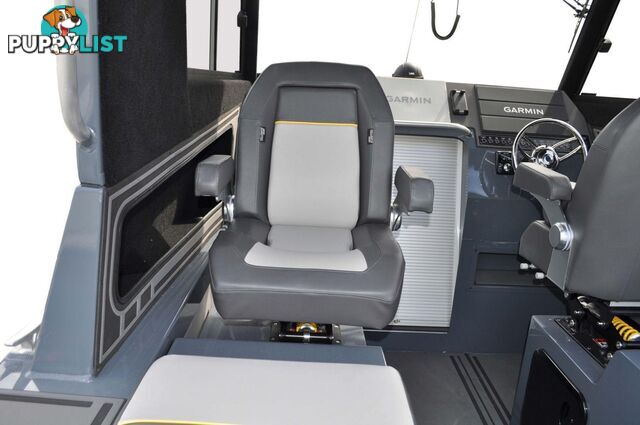

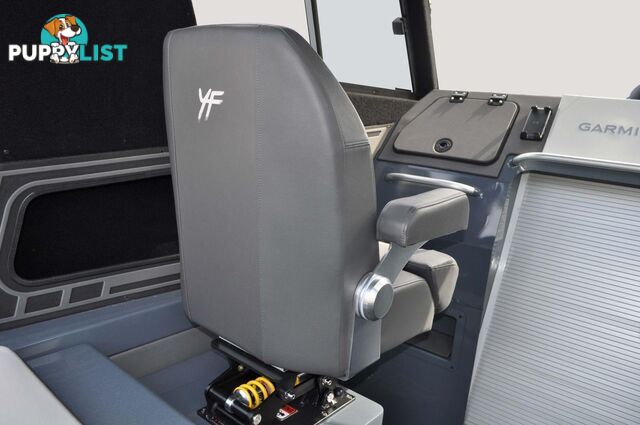

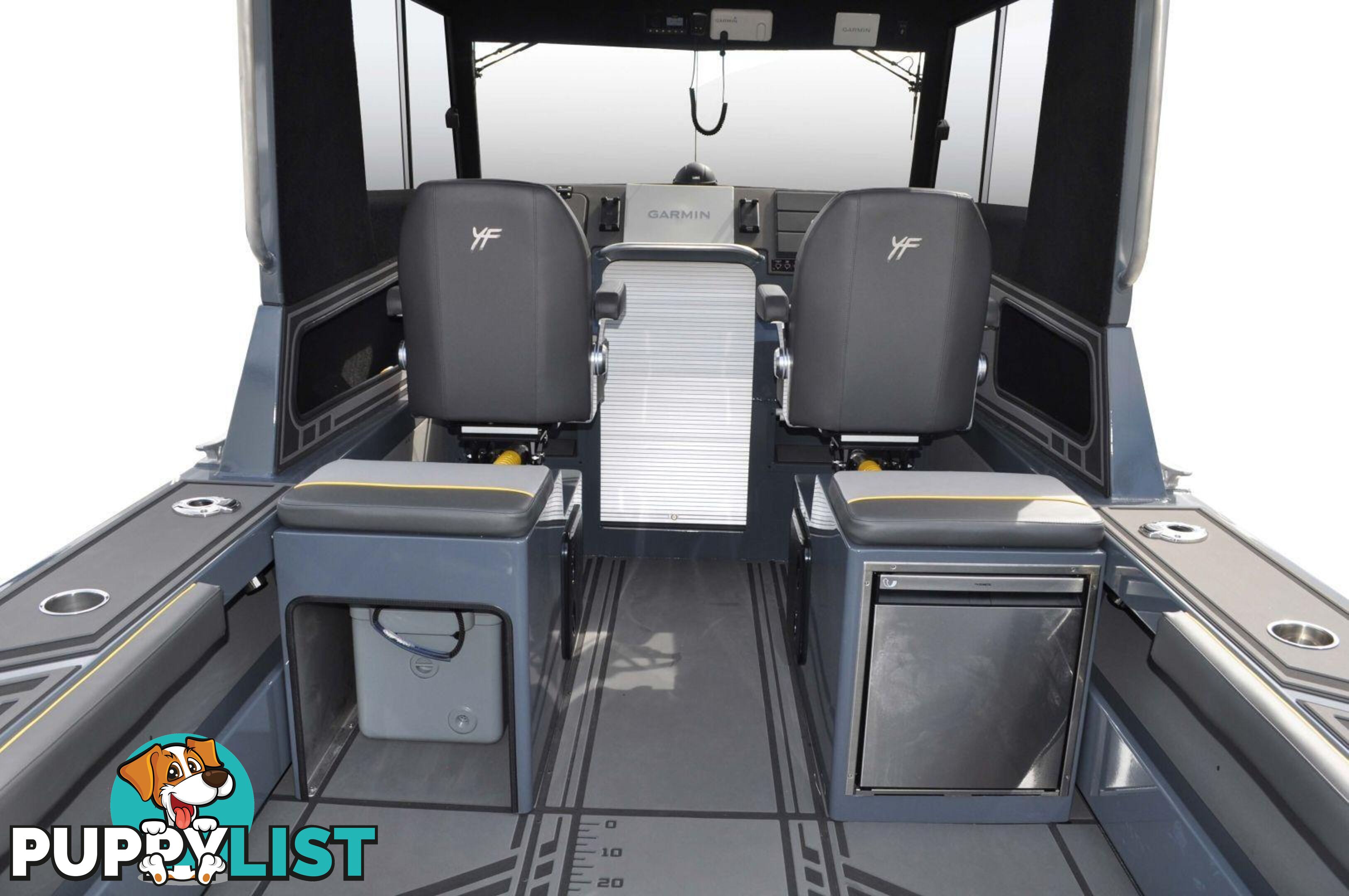

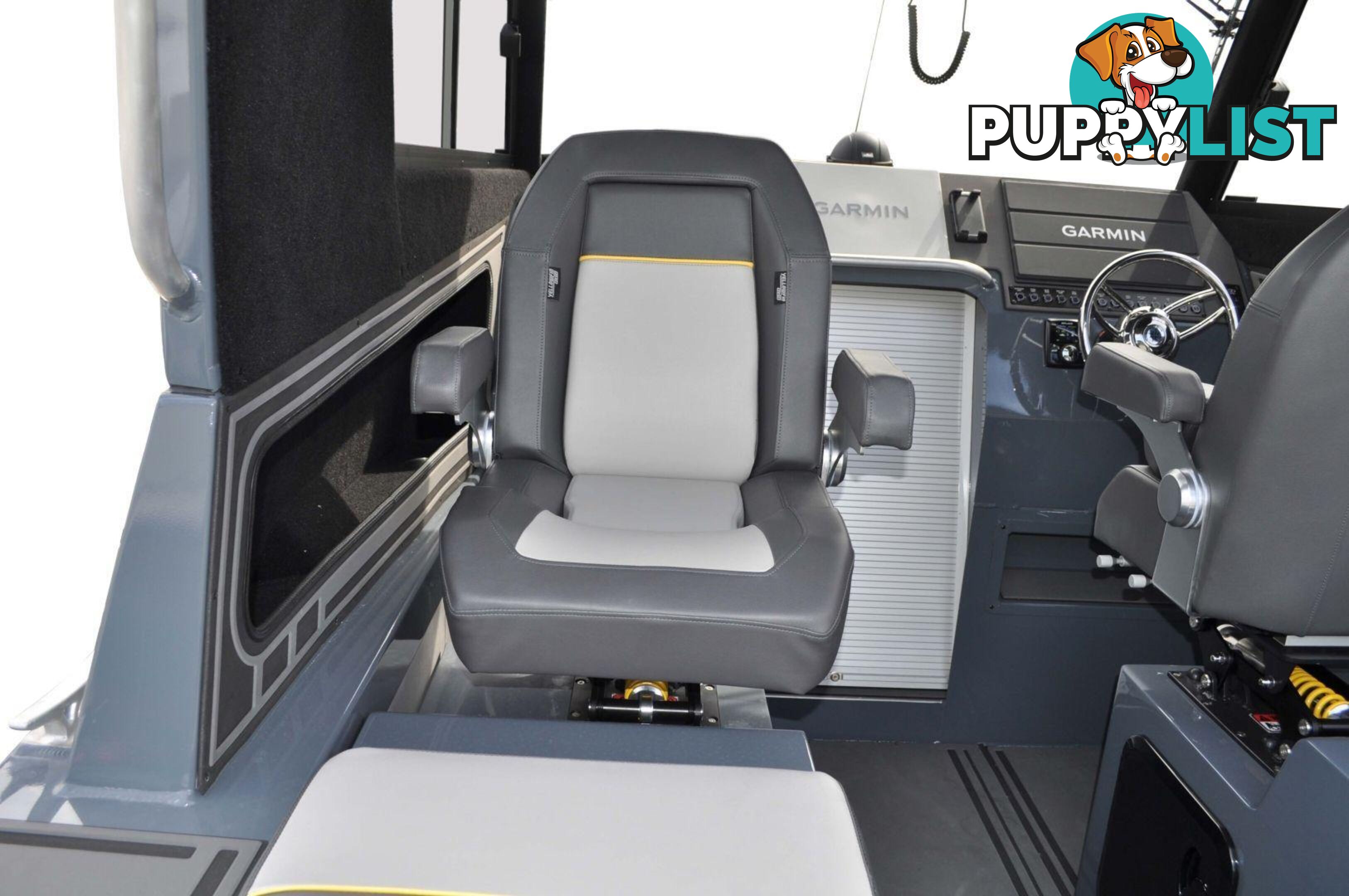

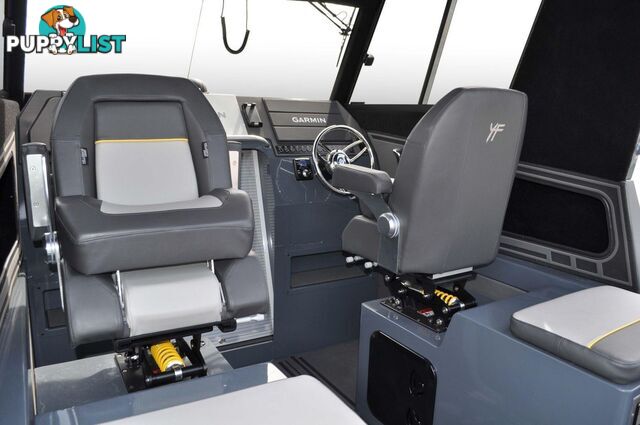

UPGRADED HELMSMAN AND NAVIGATOR SEATS WITH SUSPENSION

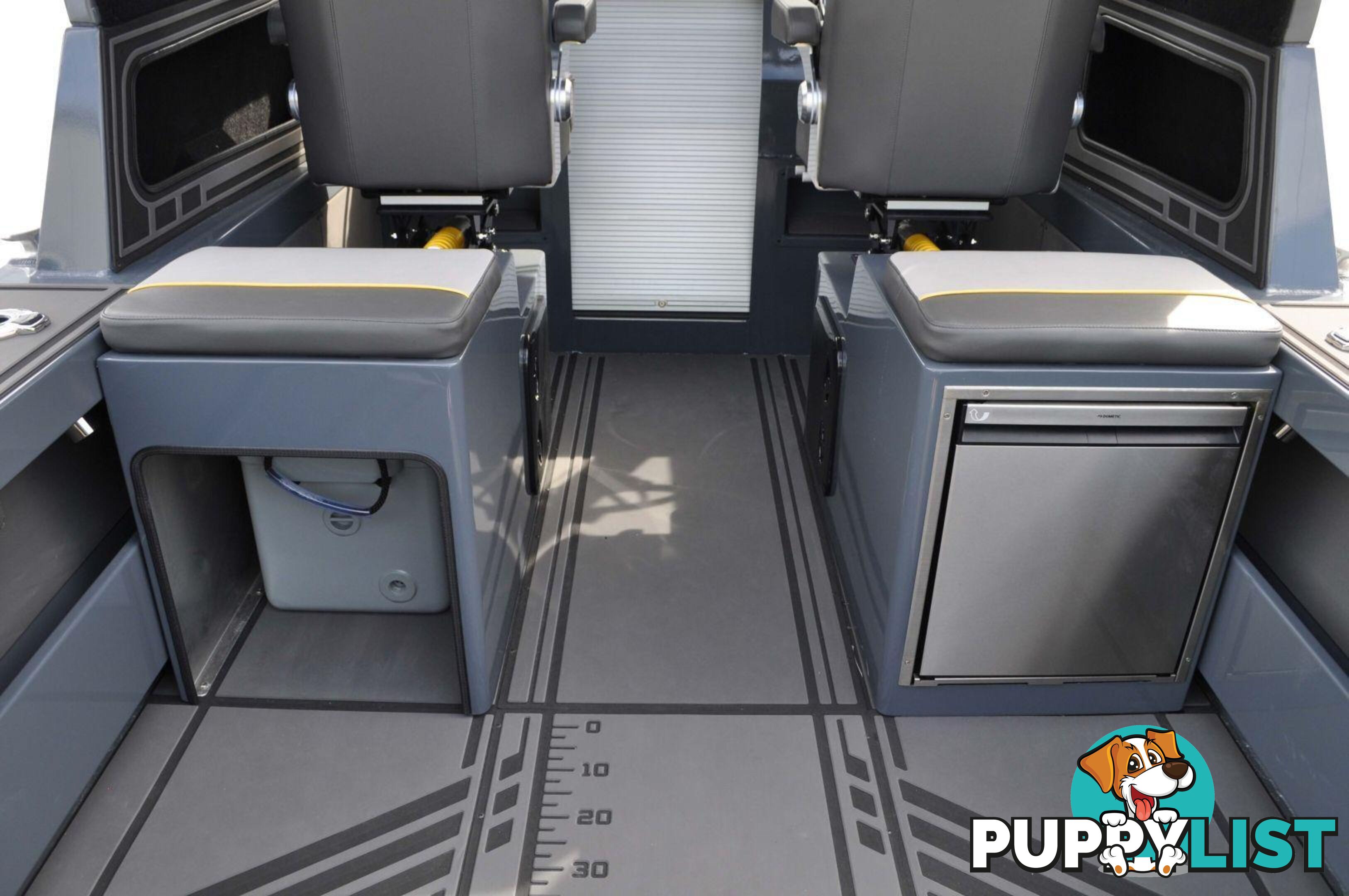

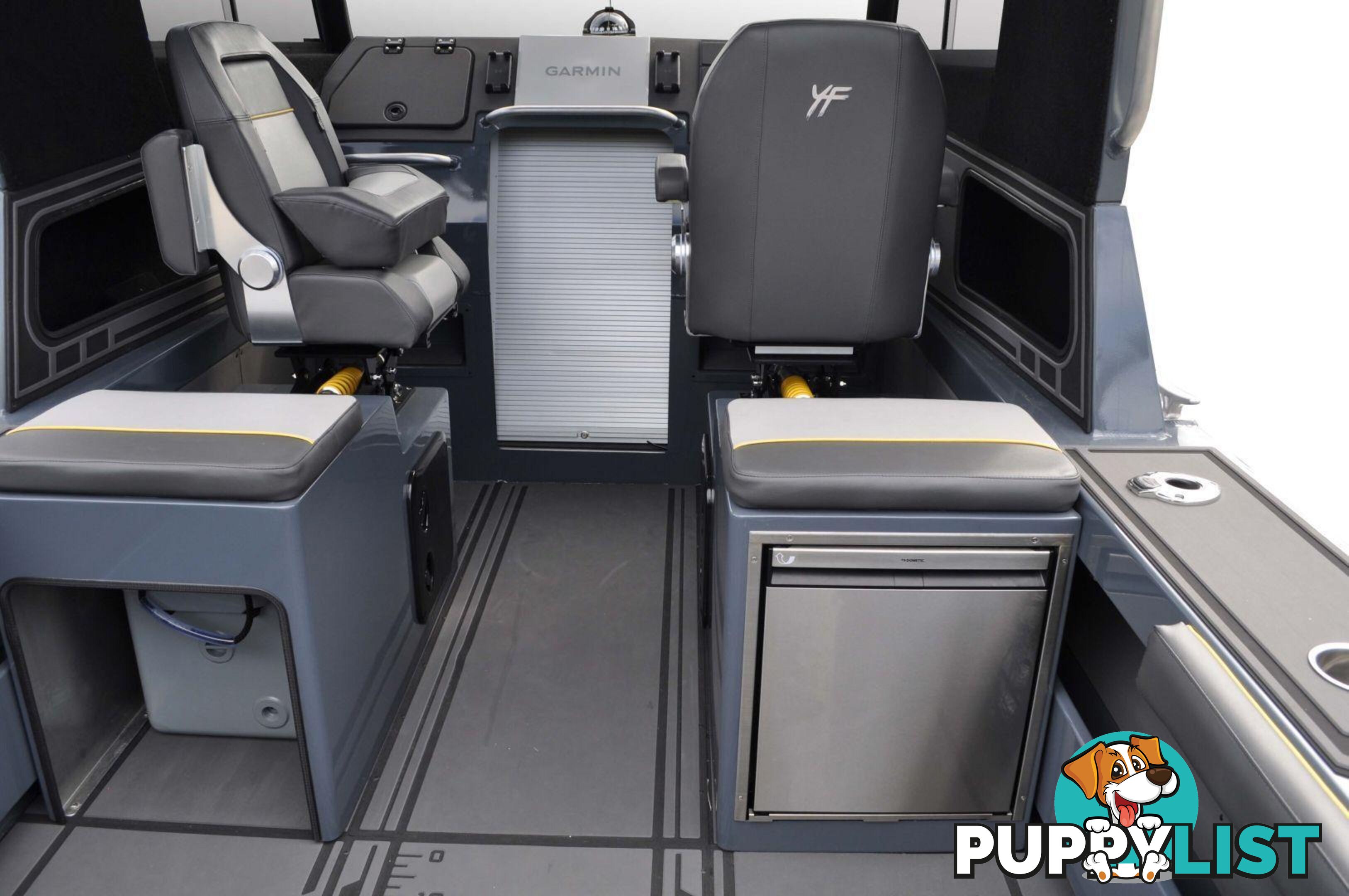

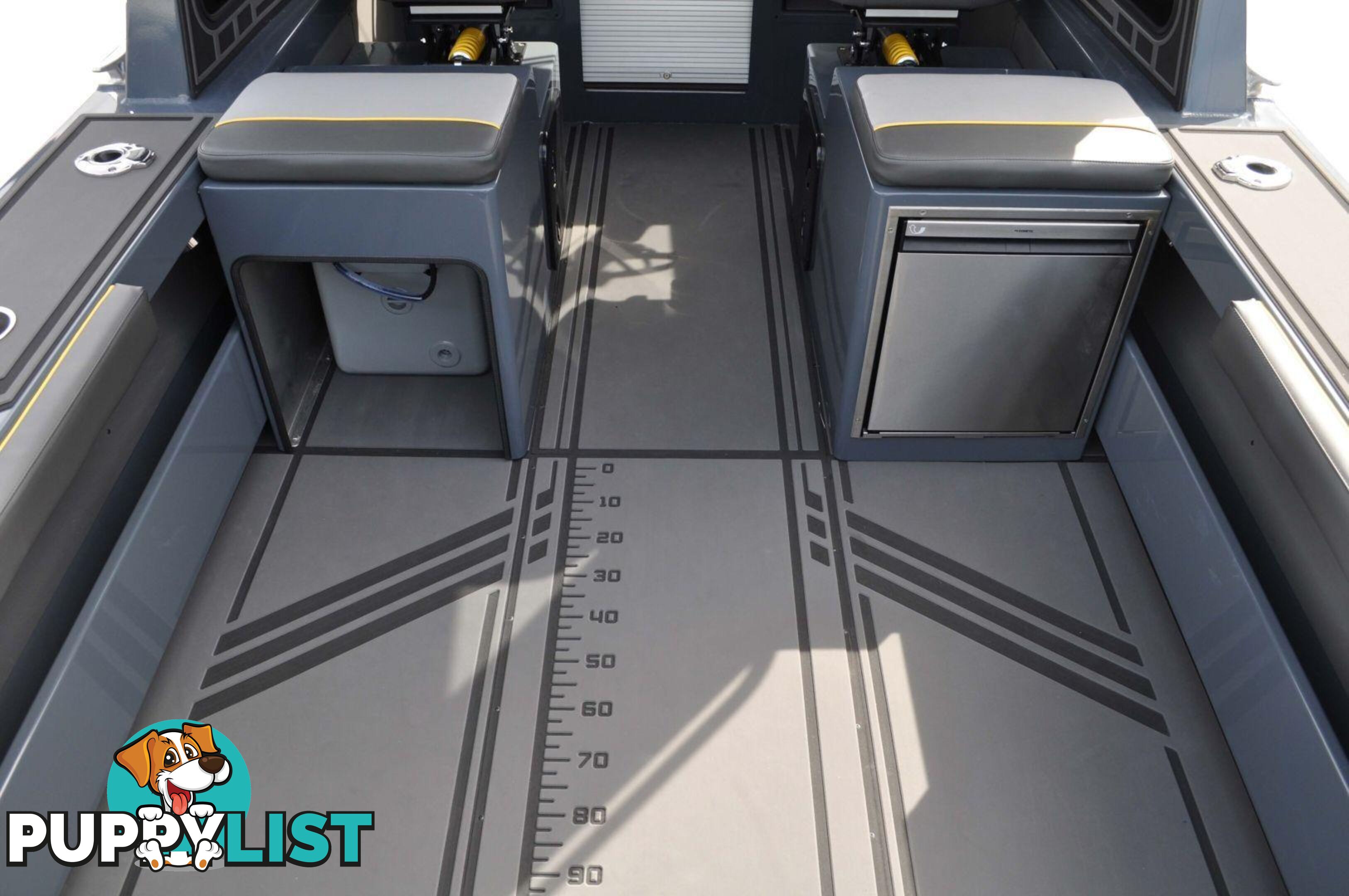

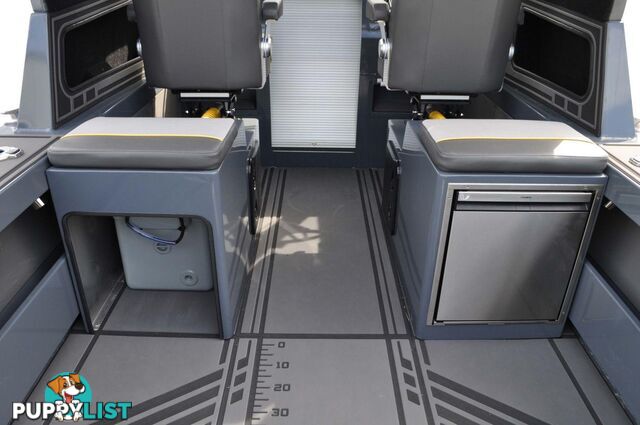

LARGE HELMSMAN SEAT BOX WITH UPRIGHT FRIDGE

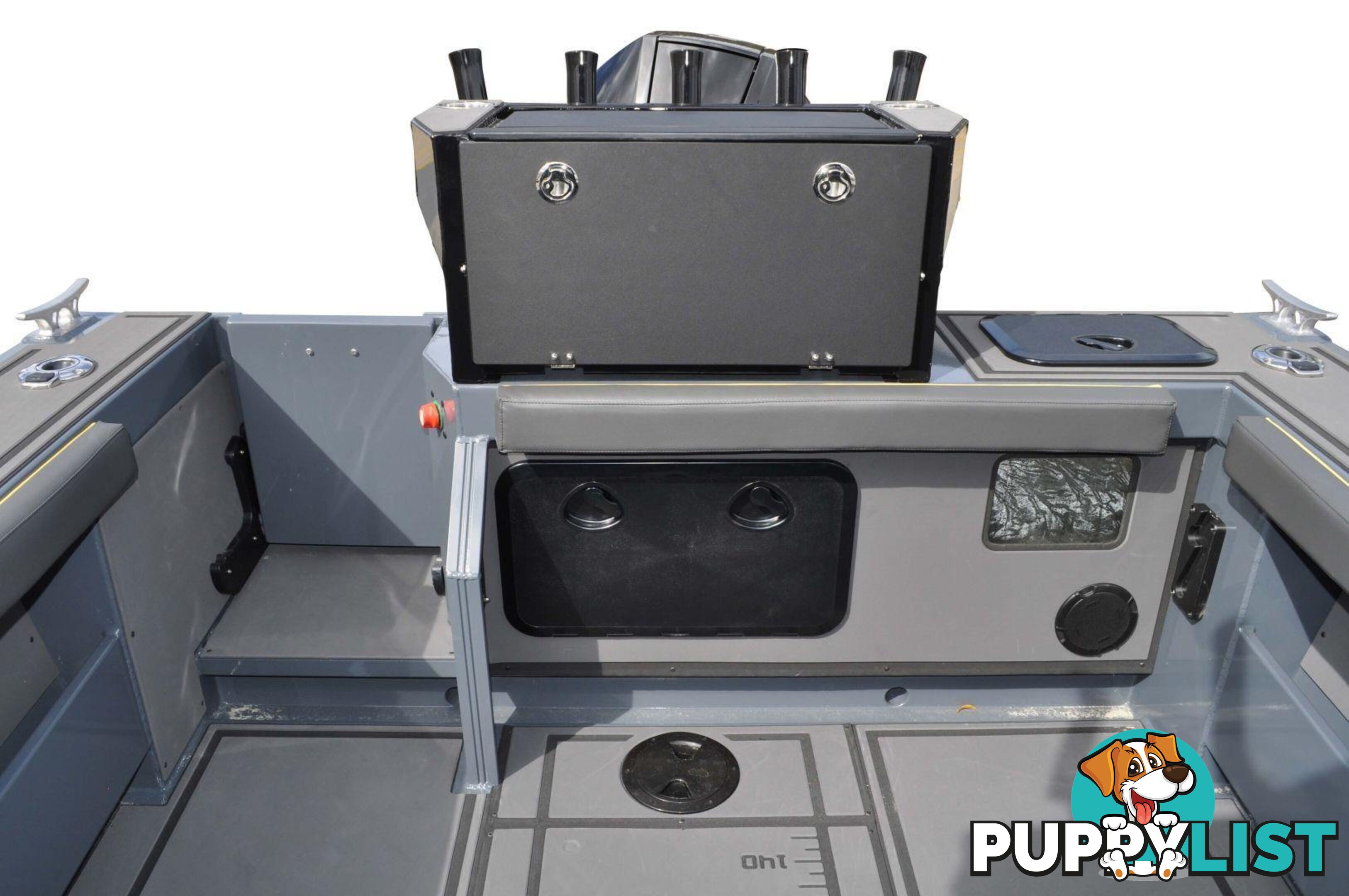

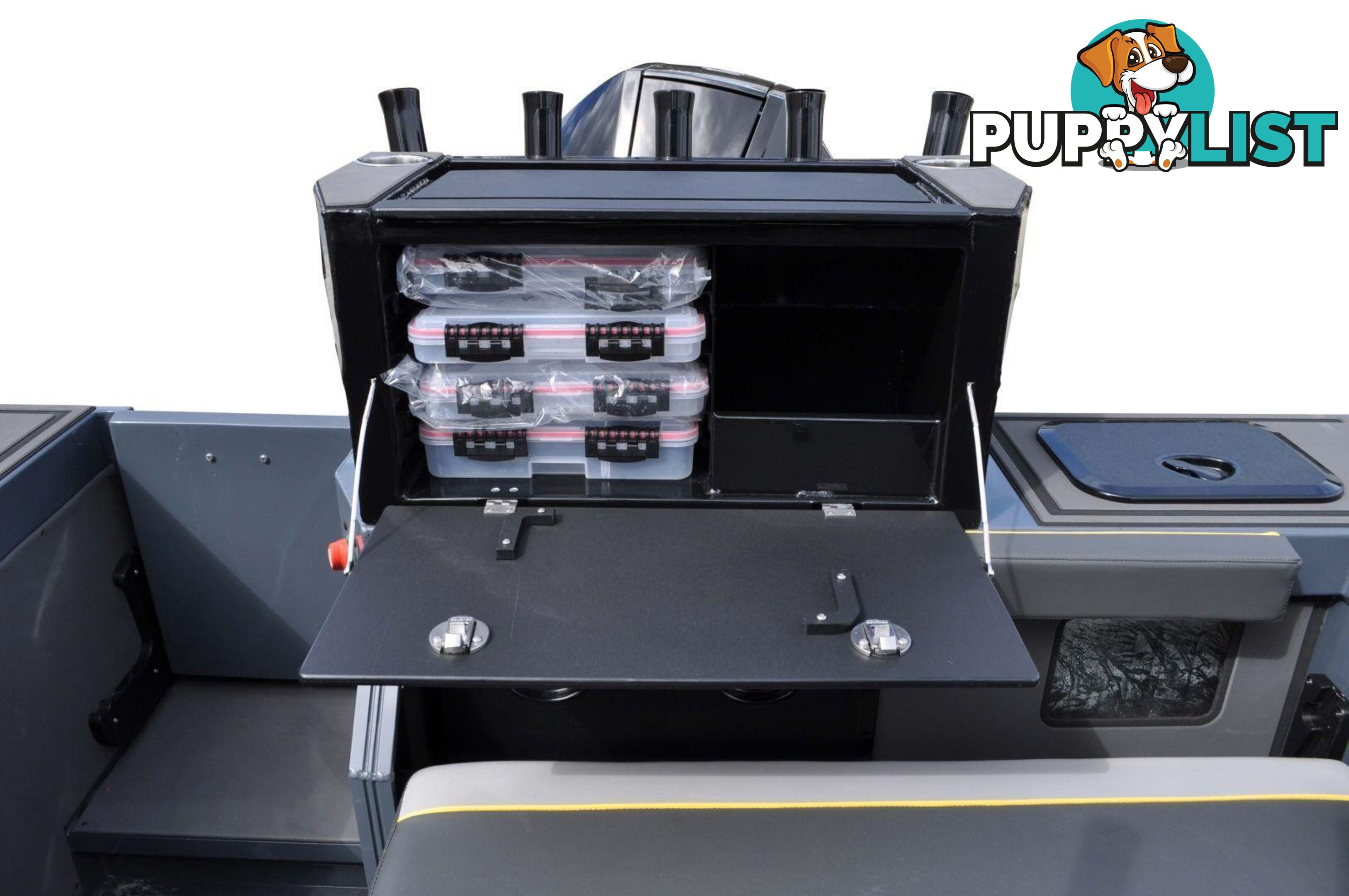

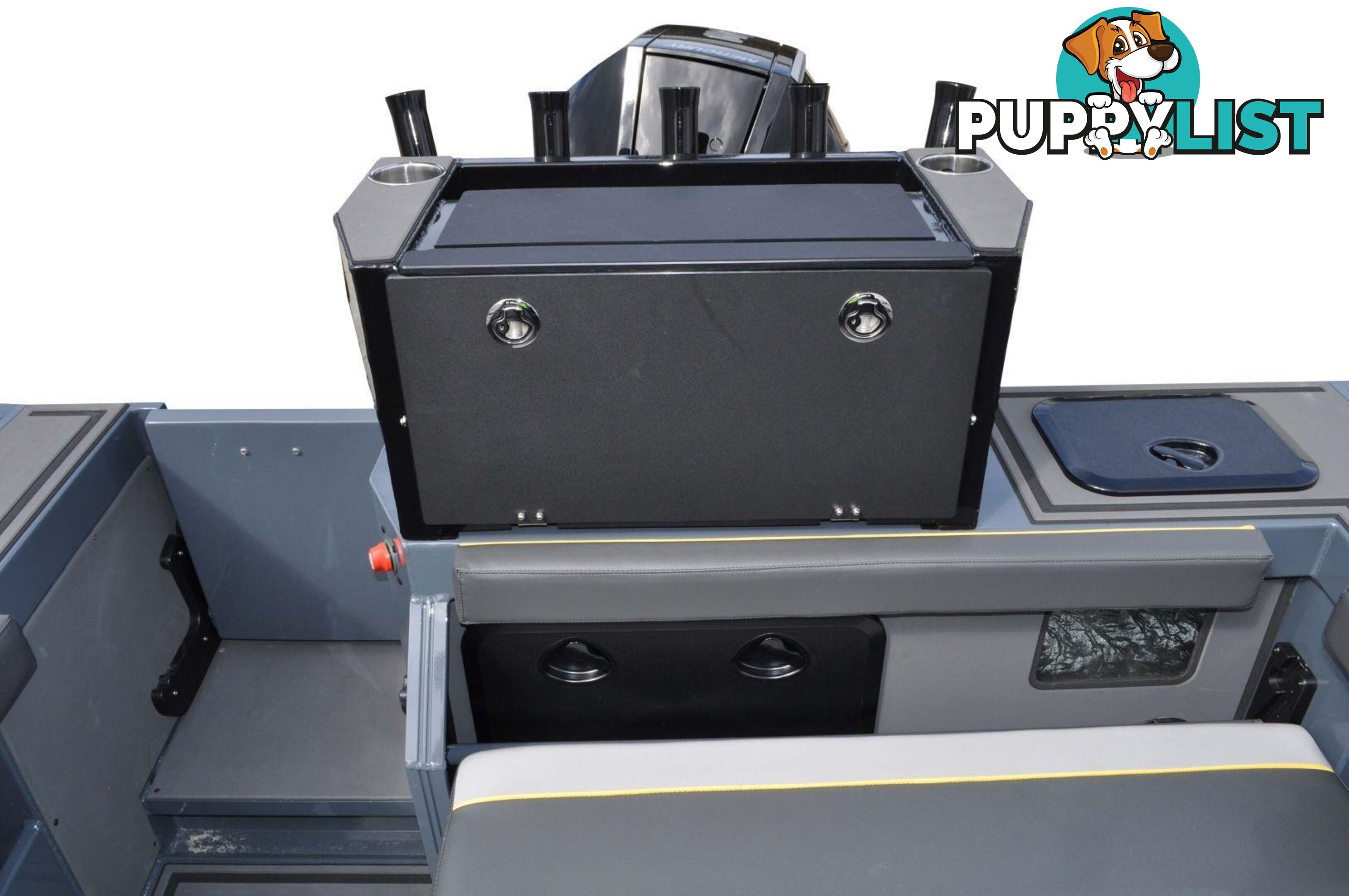

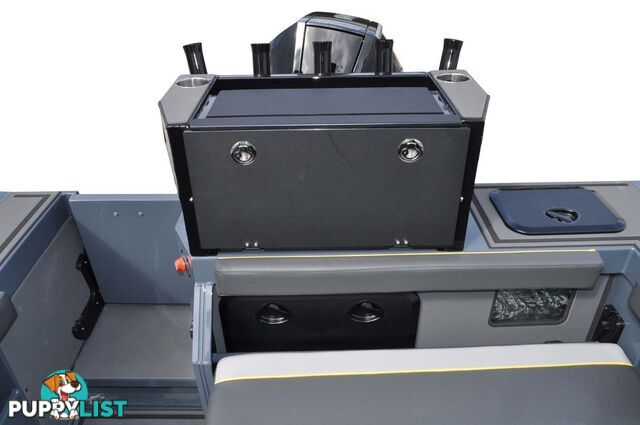

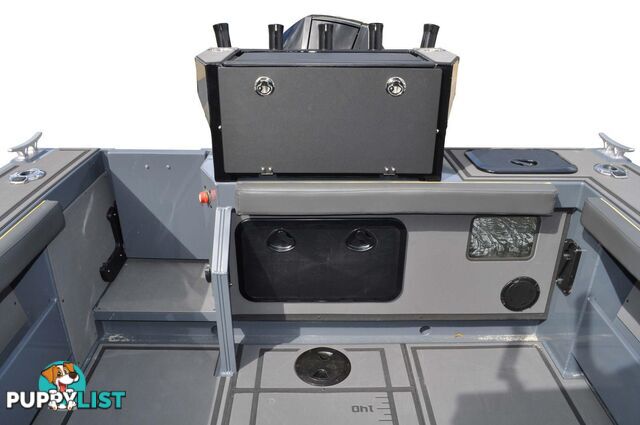

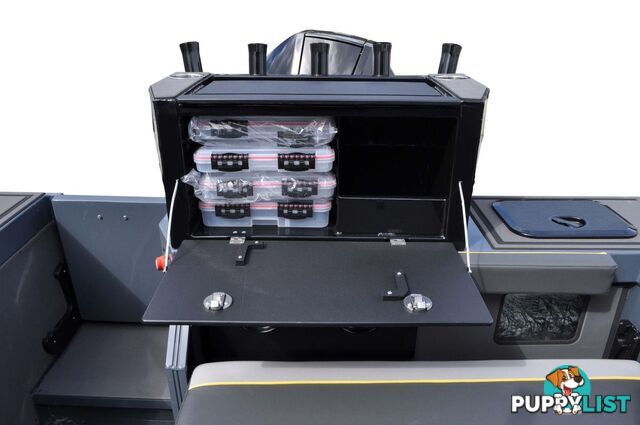

DELUXE BAIT FISHING STATION UPGRADE

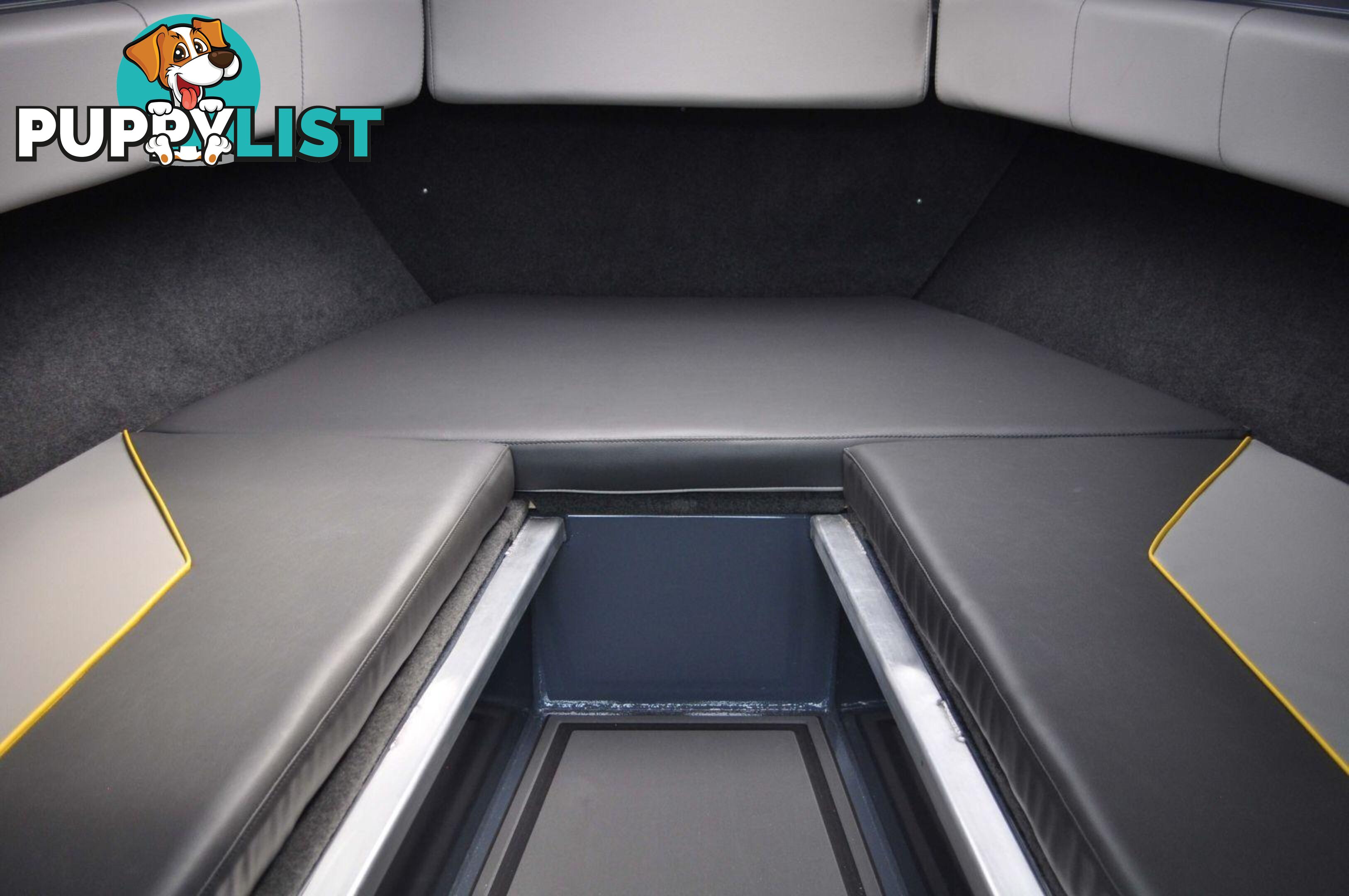

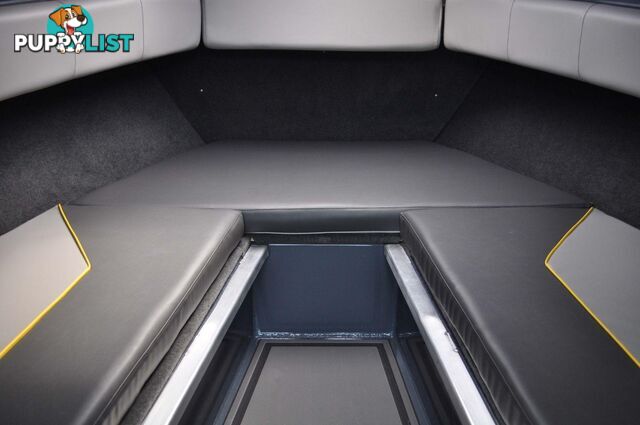

CABIN CUSHIONS AND CUSHION INFILL

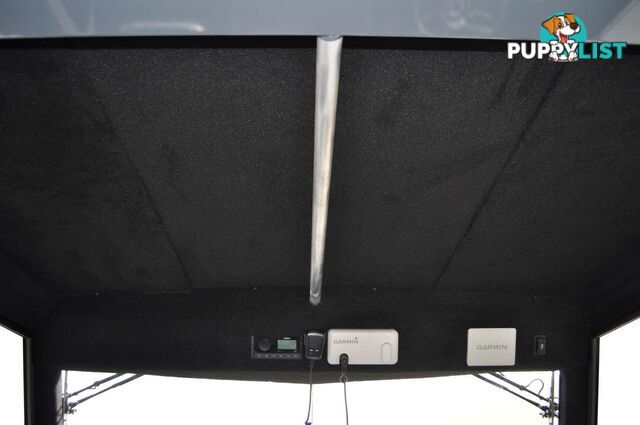

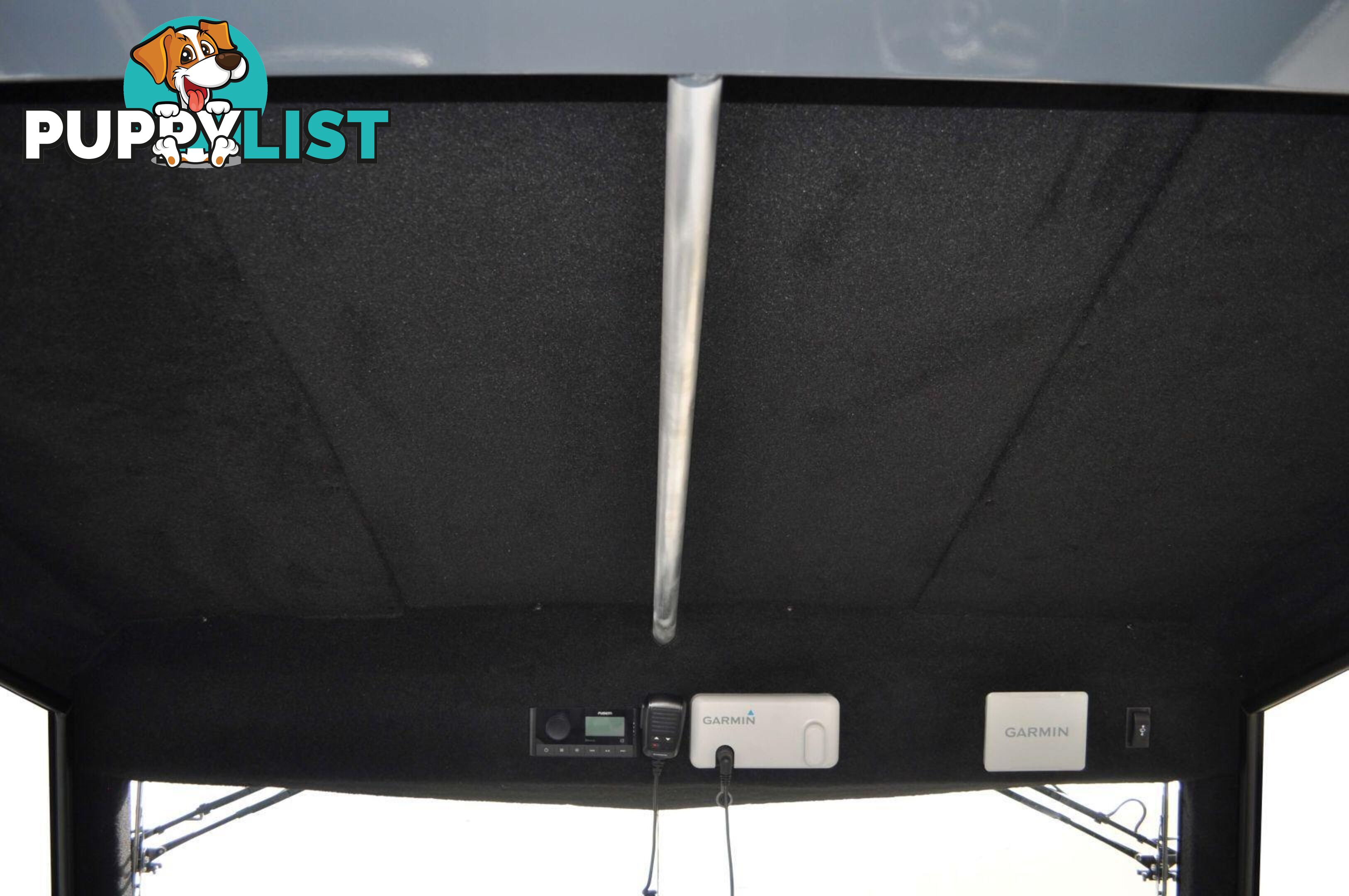

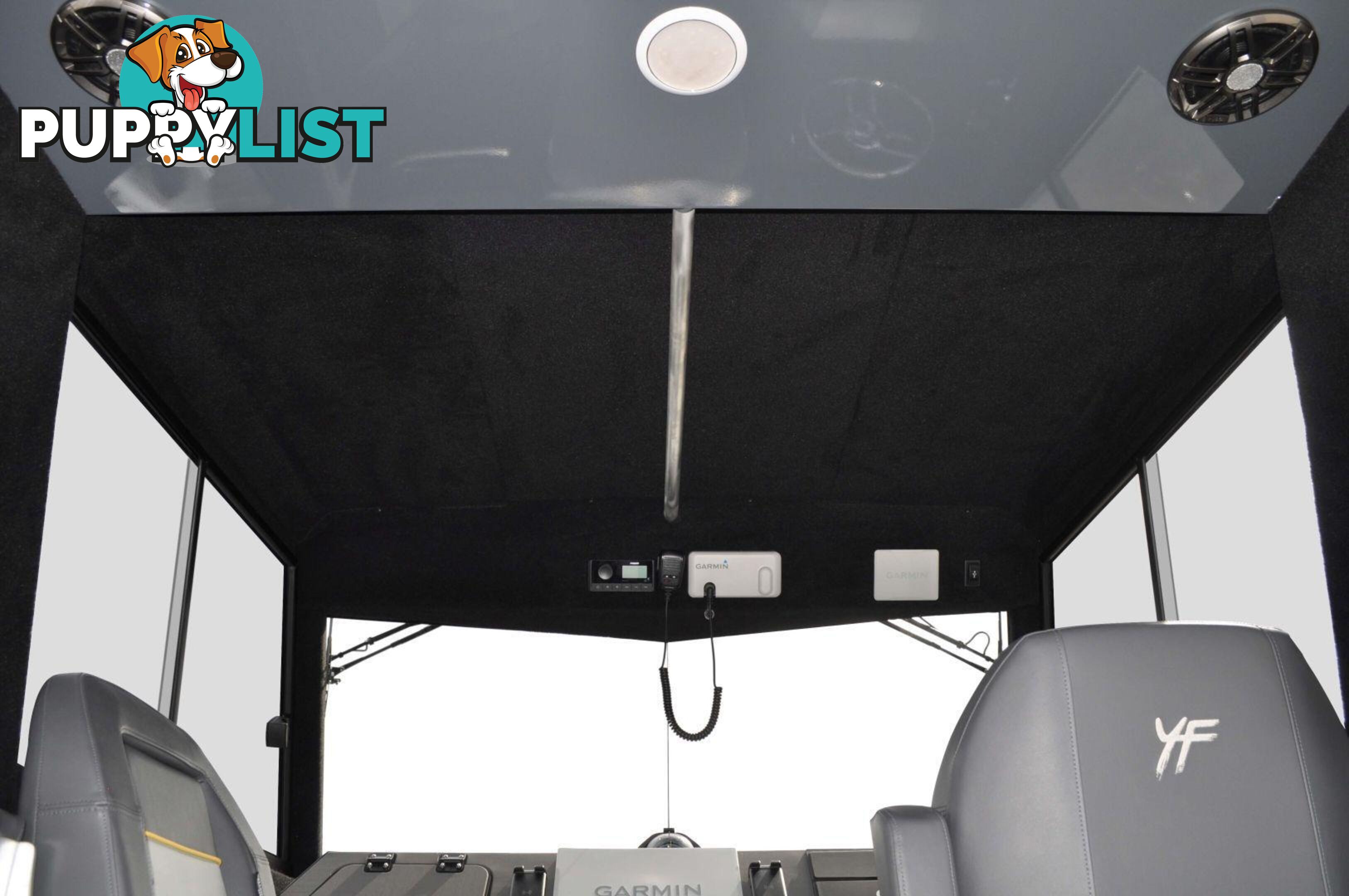

CARPETED CABIN LINING - Provides more insulation, sound dampening, and prevents condensation

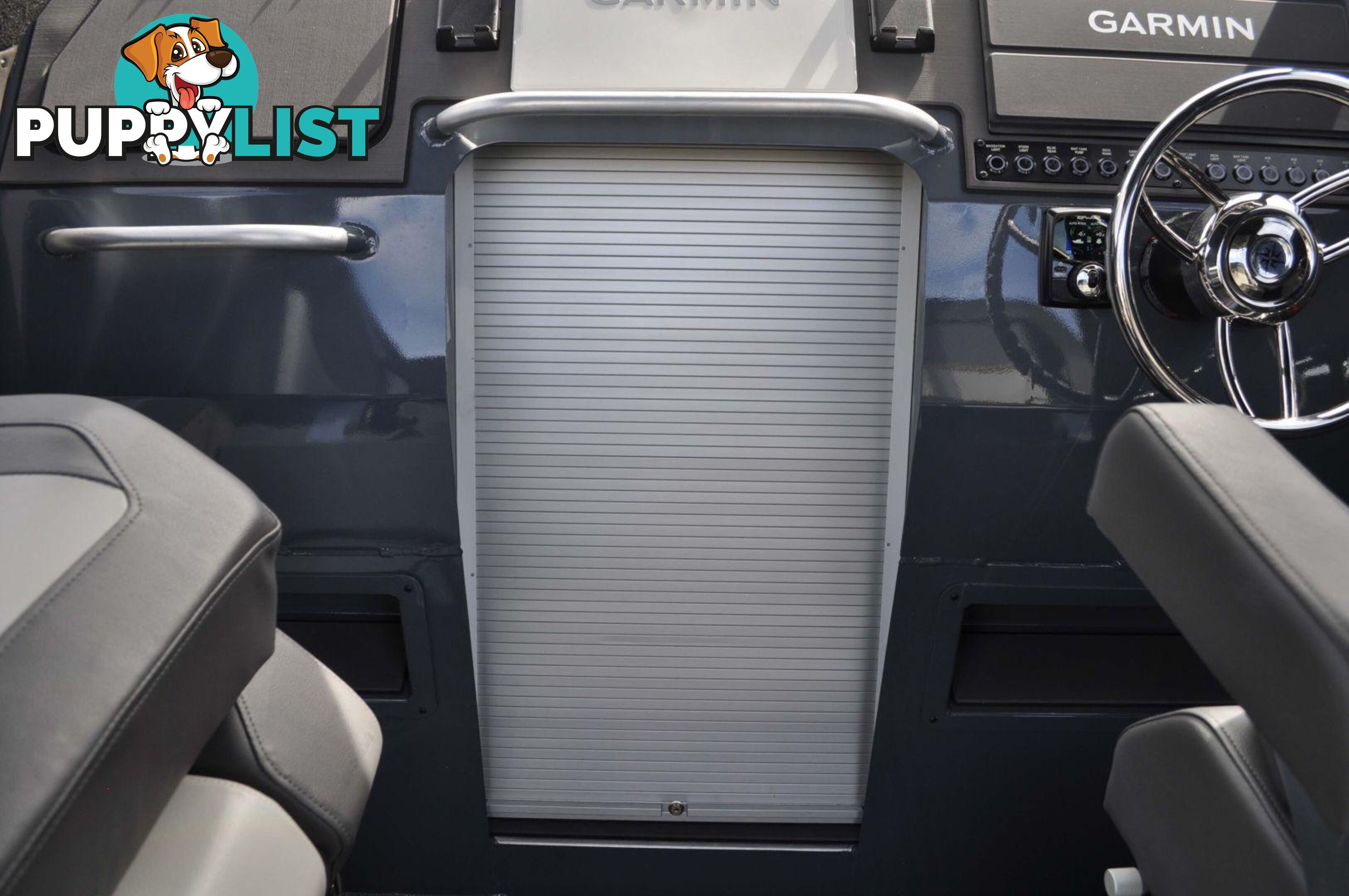

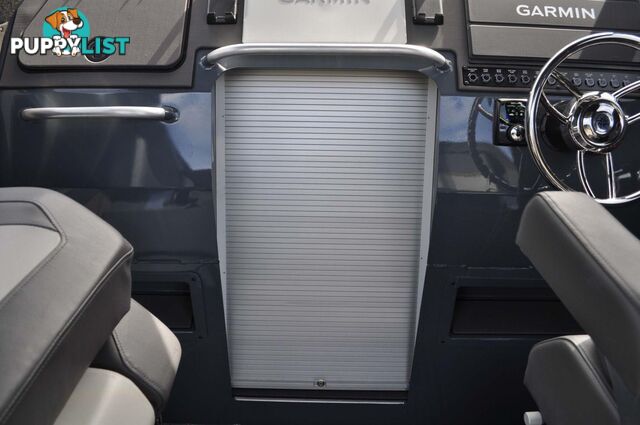

CABIN ROLLER DOOR - Lockable
ELECTRIC TOILET IN CABIN
SIDE COMBINB CUSHIONS

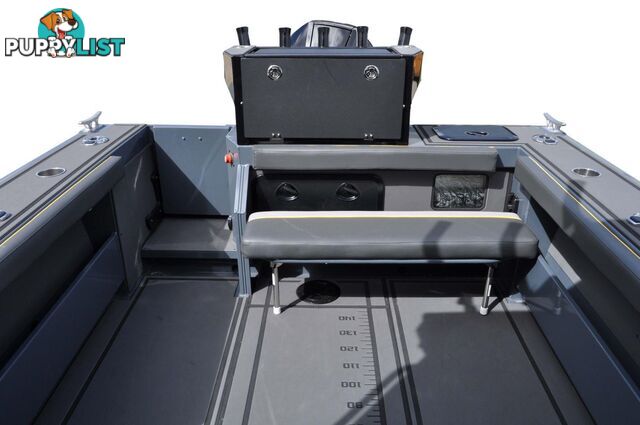

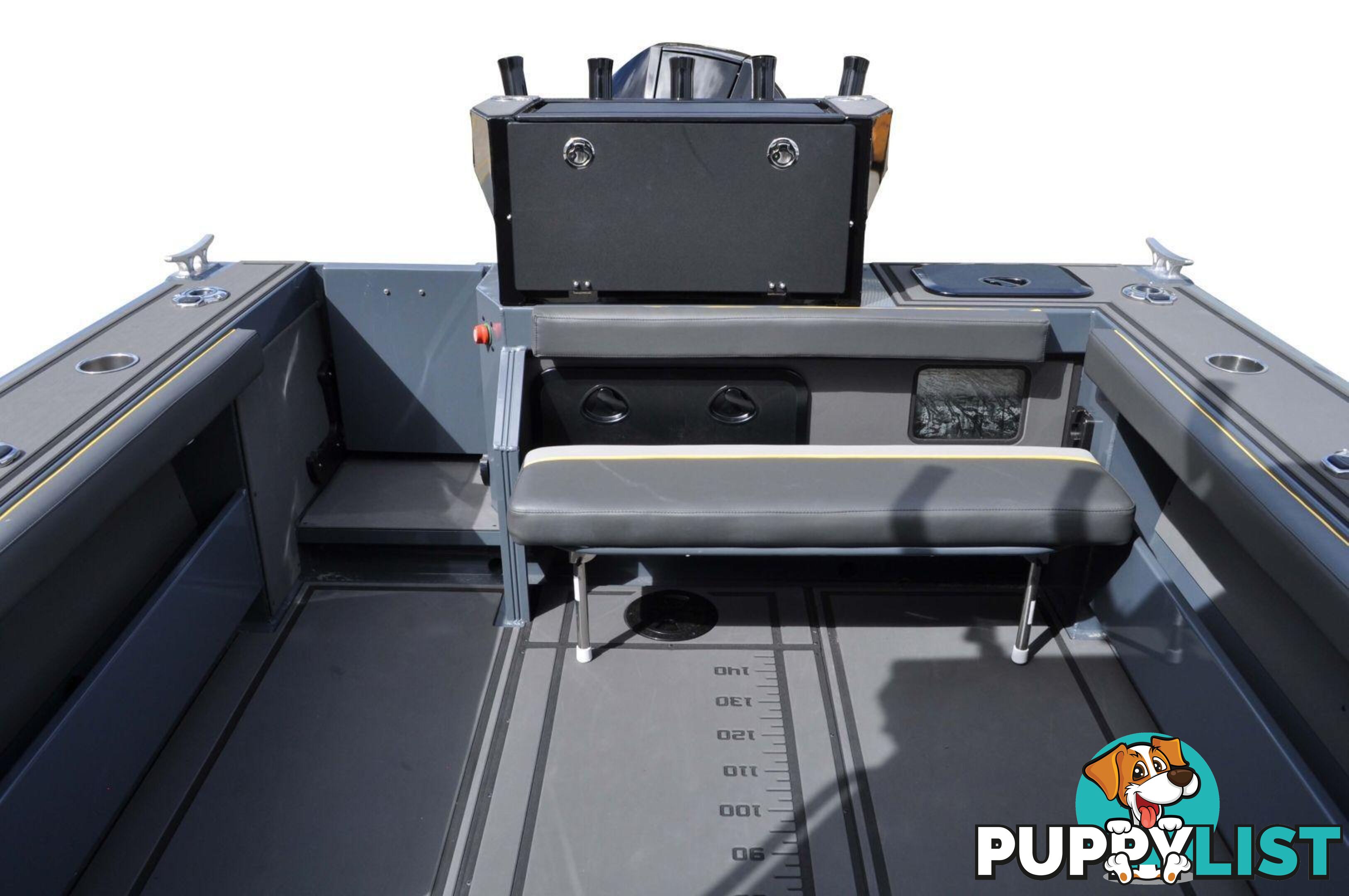

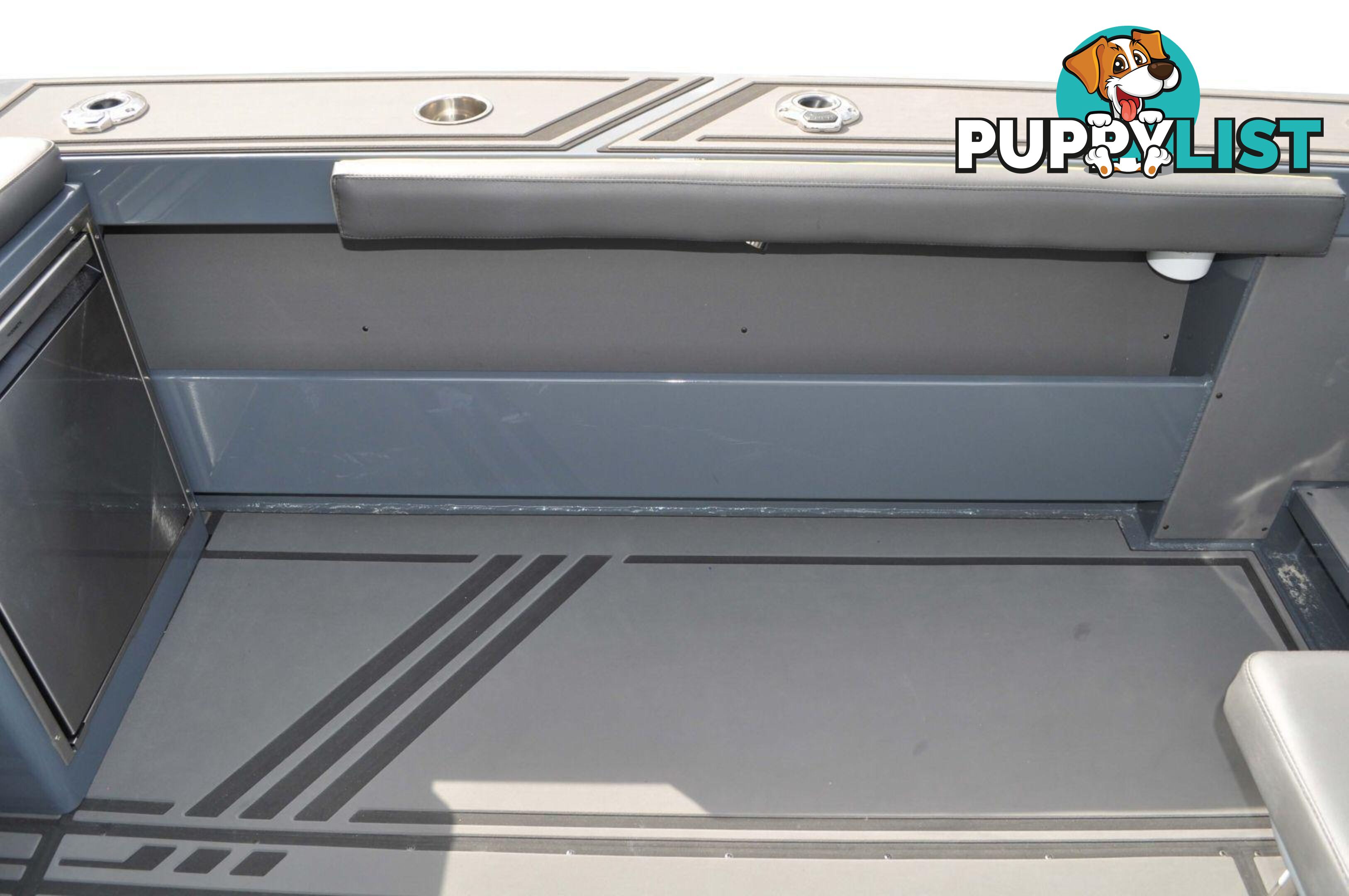

REAR LOUNGE WITH BACKREST

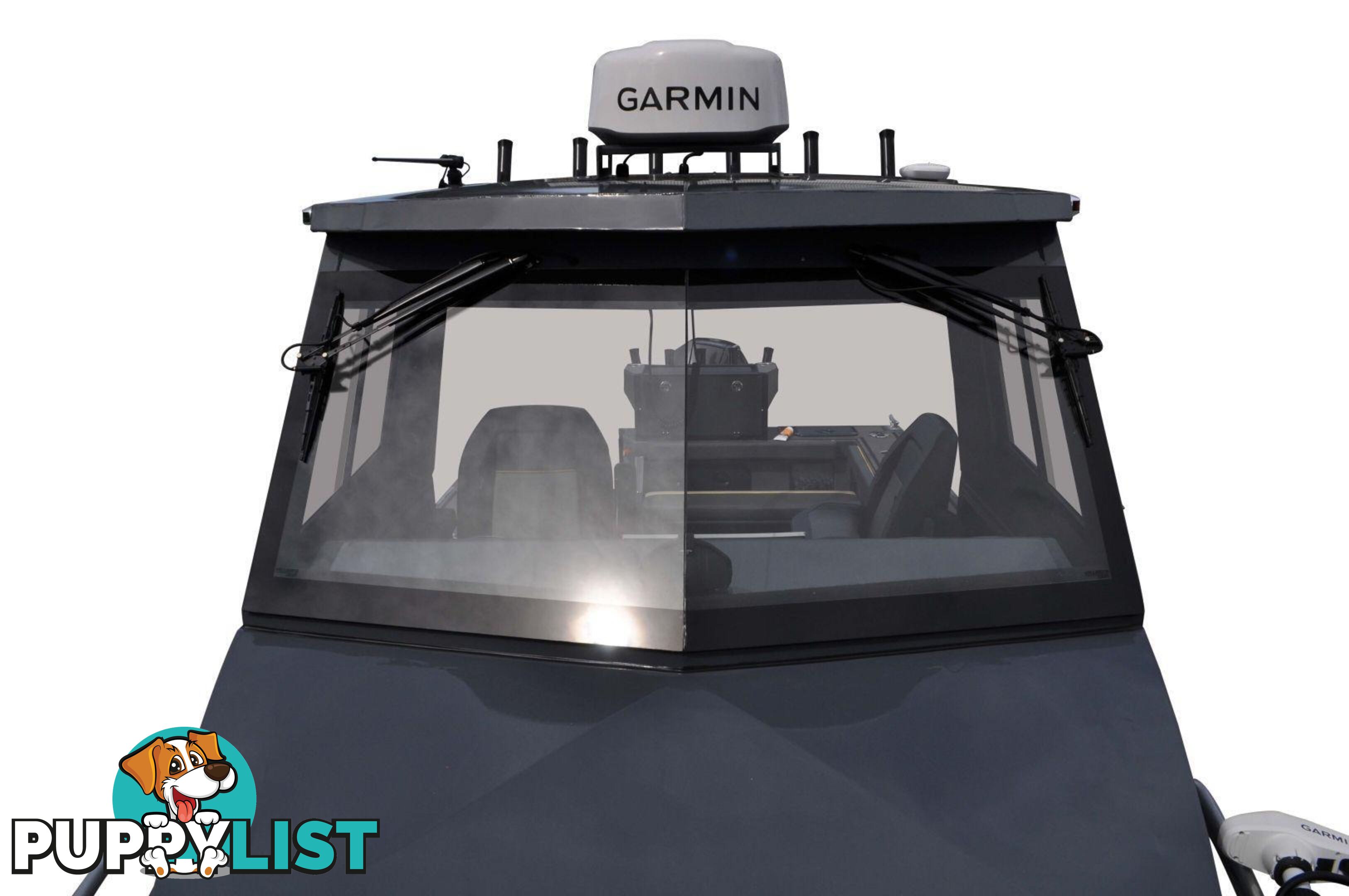

DUAL WINDSCREEN WIPER KIT
LED LIGHT KIT

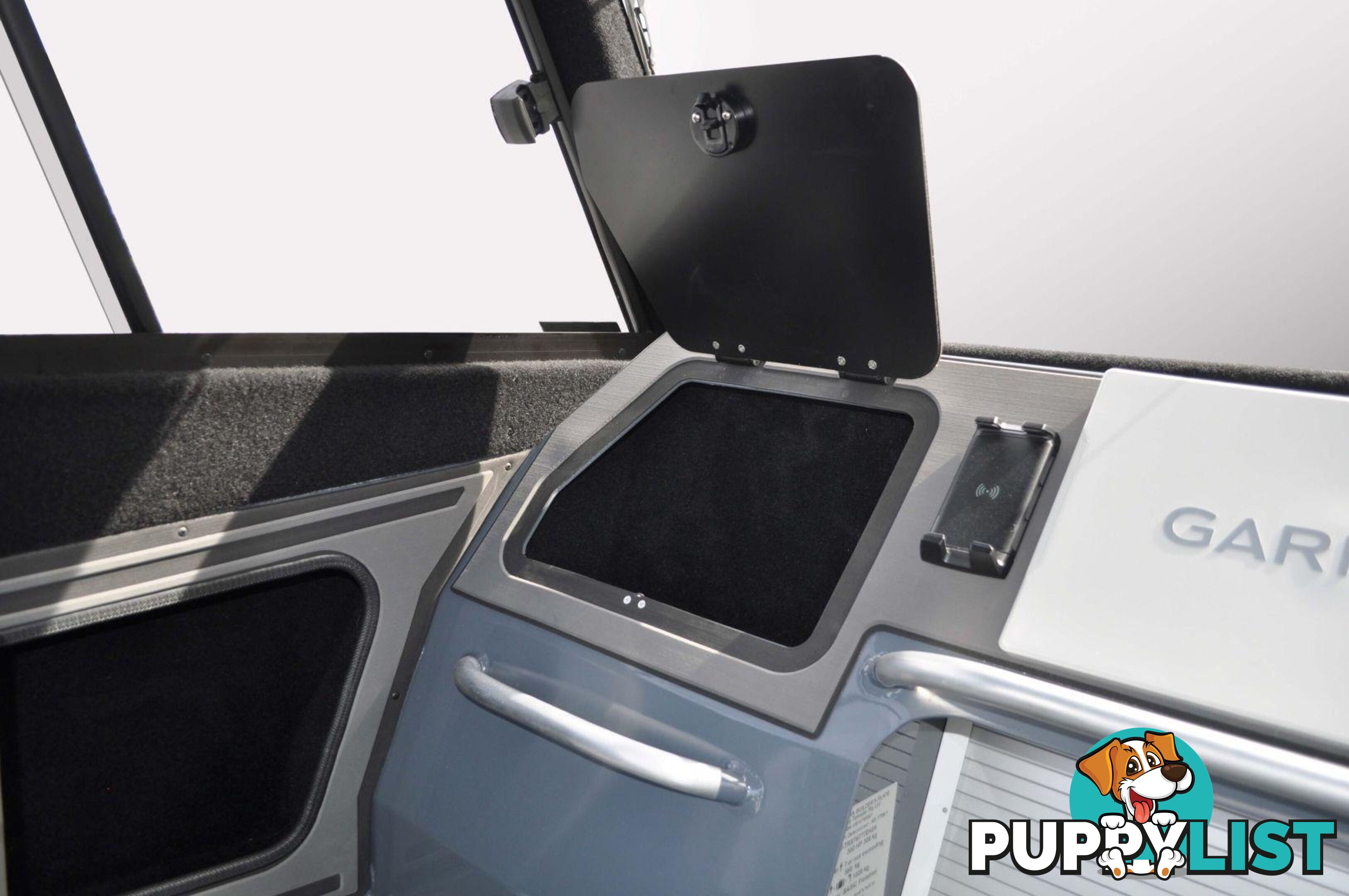

ADDITIONAL WIRELESS PHONE CHARGER - Mounted on dash
HIGH-PRESSURE DECK WASH
HAND WASH
STORAGE TRAYS
BURLEY BUCKET KIT

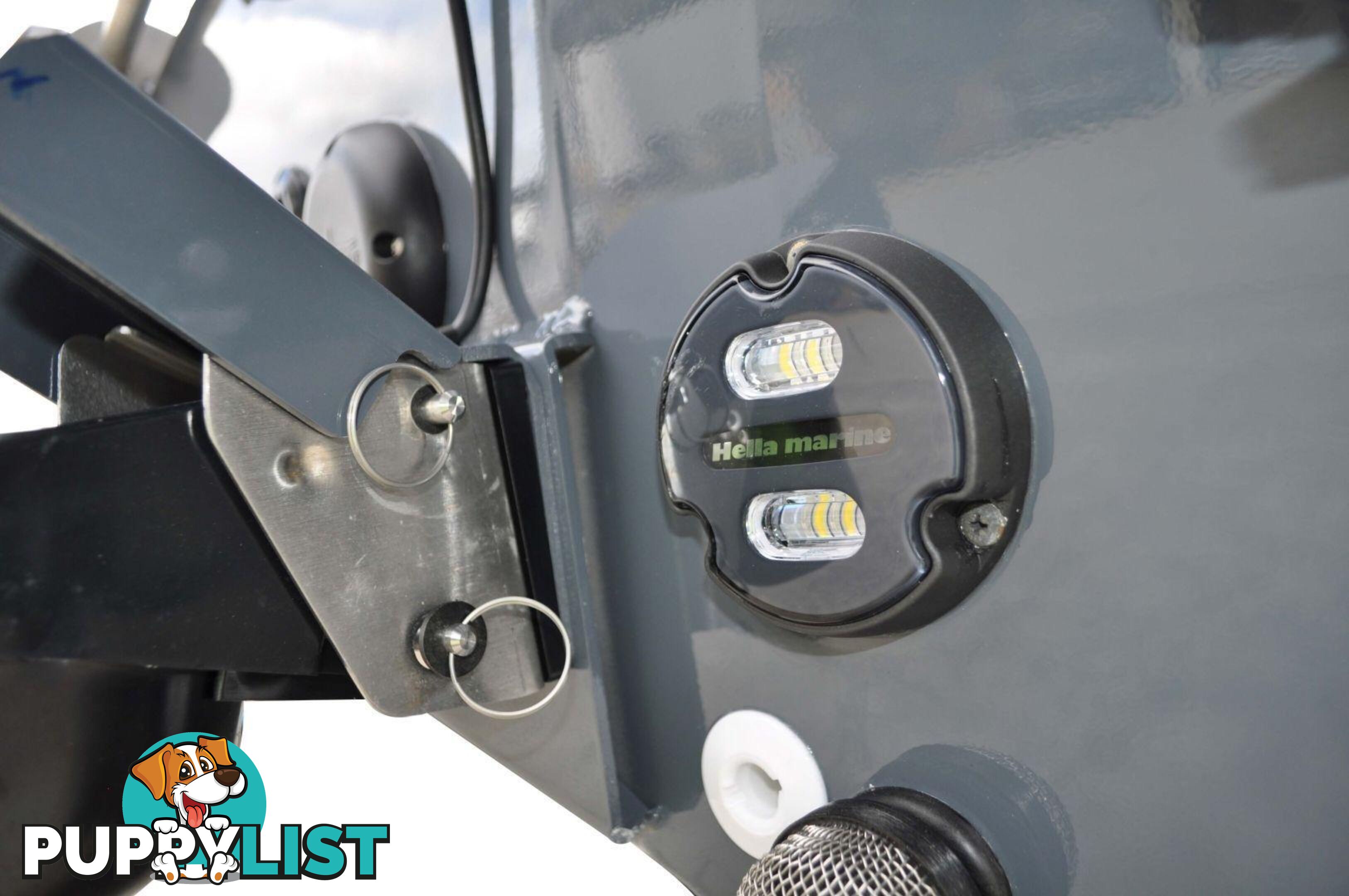

2X UNDERWATER LIGHTS - Blue & White
12-MONTHS Show Address REGISTRATION FOR BOAT AND TRAILER - Includes fitted custom made boat registration stickers with high-quality outdoor rated vinyl
FULL IN-SHORE SAFETY GEAR(4.8m+) - 70L Water, proof bag, 4x PFD(type 1) life jackets, LED torch, V-Sheet, Signal Mirror, 2x Telescopic Paddles, Anchor Kit with Rope & Chain, Inshore Flares(2x red, 2x orange), 1kg Fire Extinguisher, EPIRB
SPECIFICATIONS
Length Maximum: 7.475m

Beam: 2.39

Max. HP: 300hp

Number of People: 7

Fuel Tank: 380 L

Boat Weight: 1457kg

Motor Weight: 275kg

Transom Shaft Length: XLS

Top Sides: 4mm

Bottom Sides: 6mm

Depth: 1.15m

Transom Material: 6mm
FEATURES
U-Dek Trim

Automatic Bilge Pump

Carpet: Cabin Storage & Lids

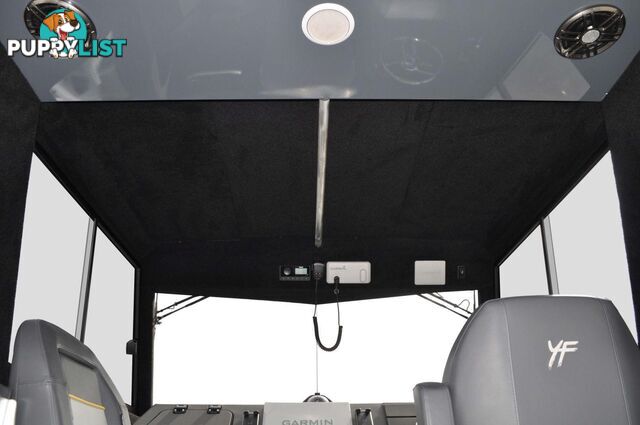

Carpet: Roof

Cutting Board Transom

Live Bait Tank

Offshore Compass

Outrigger Mounting Plates

Push Button Switch Panel

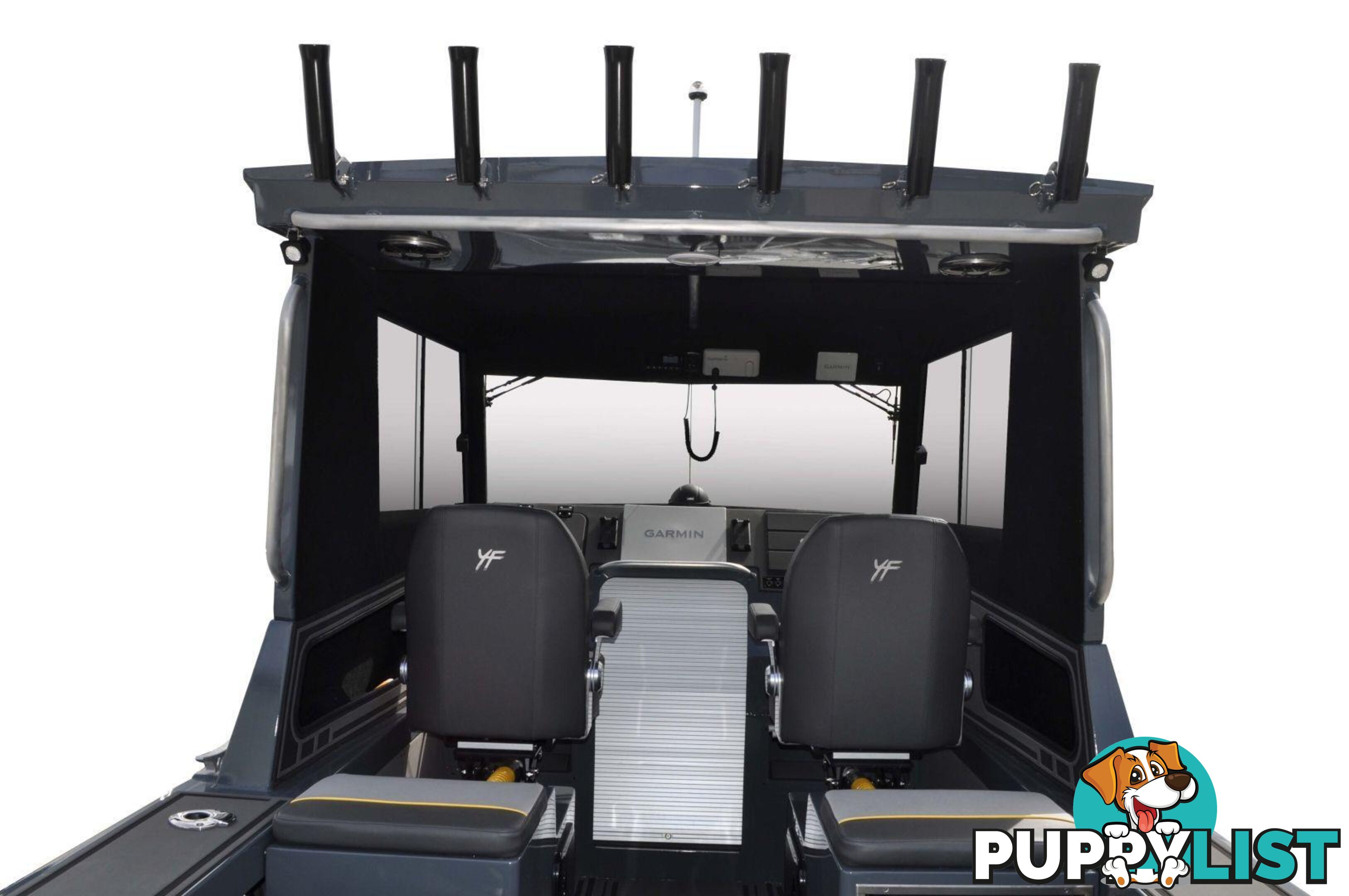

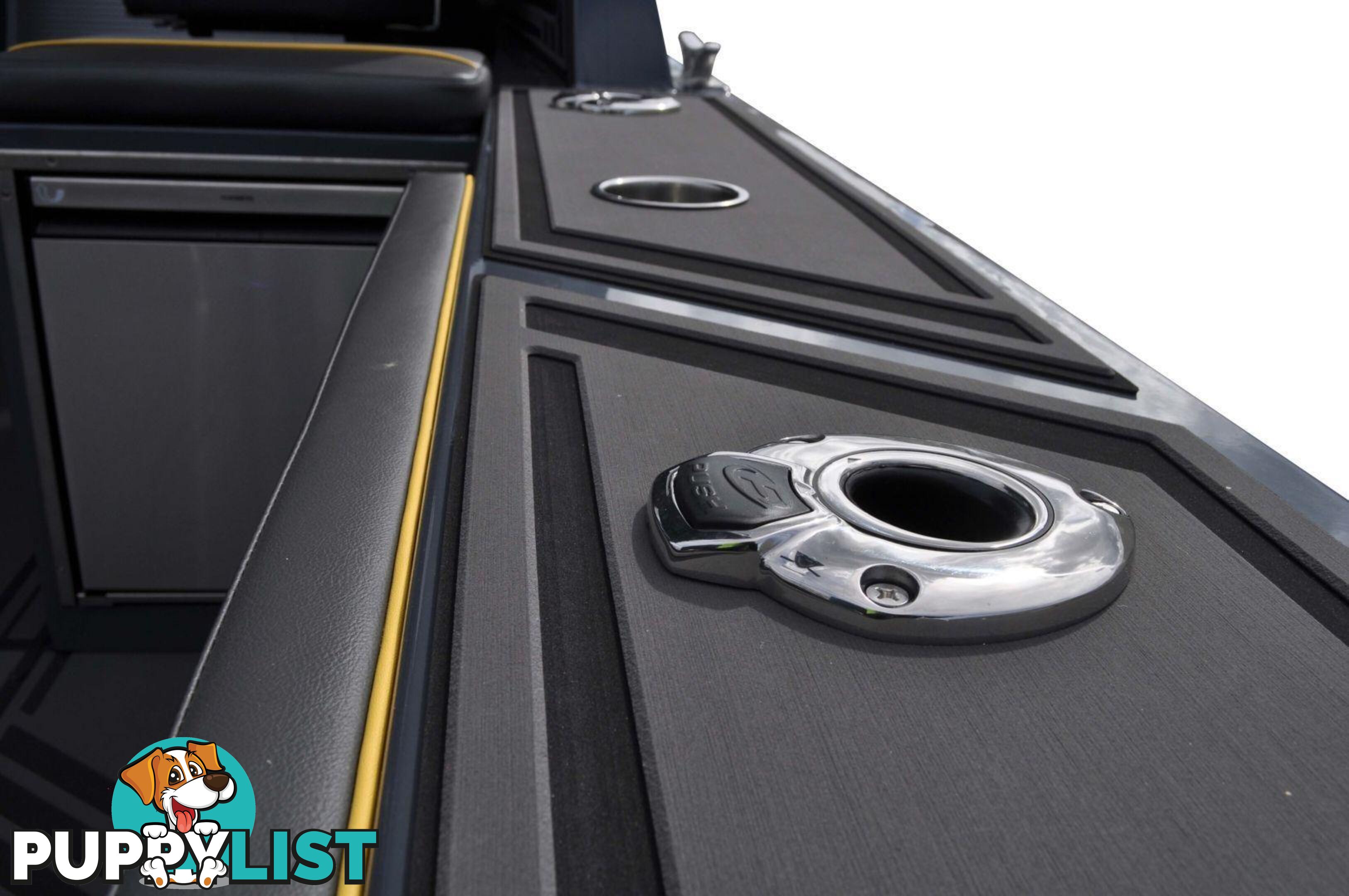

Rod Holders (6)

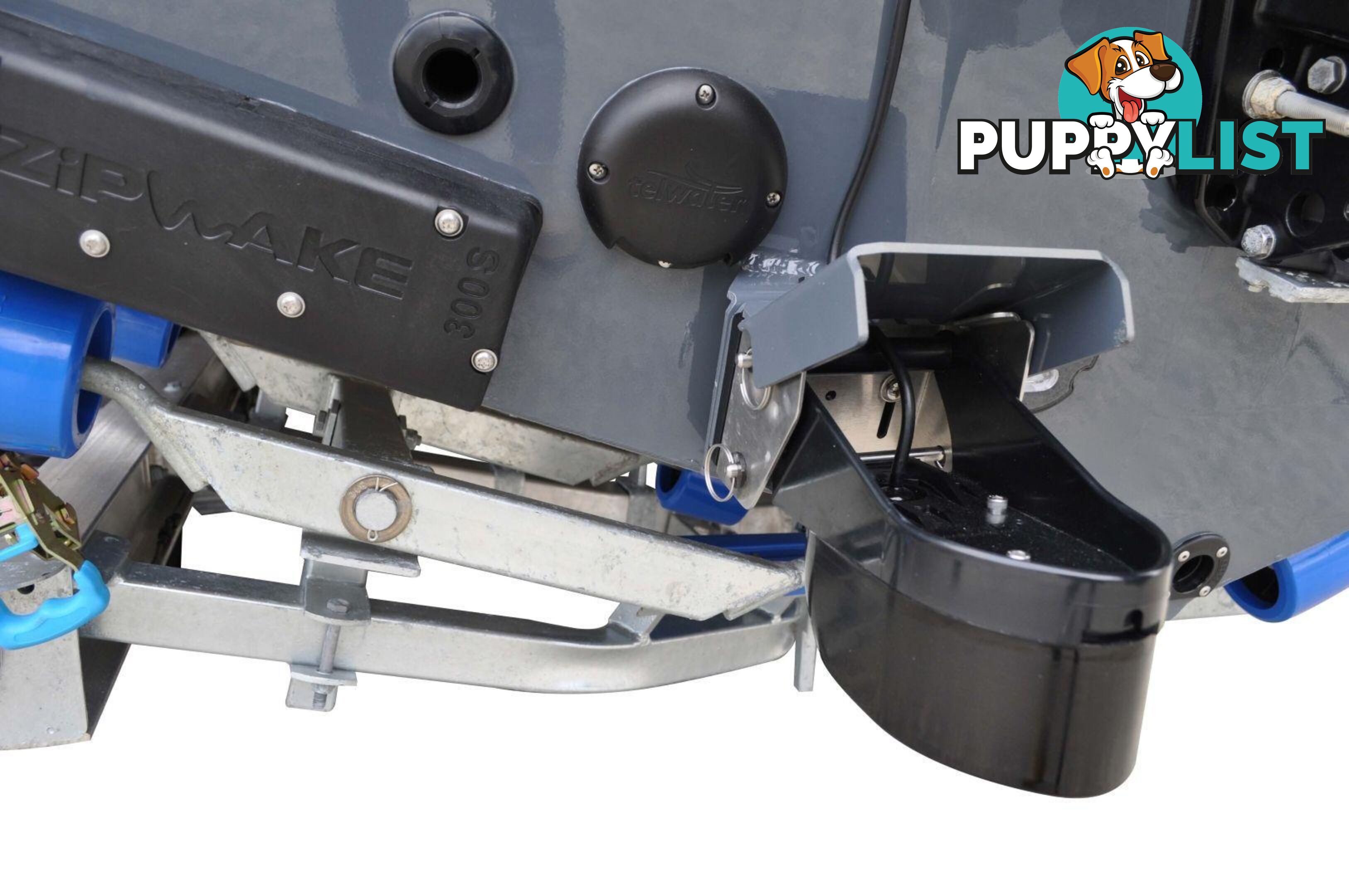

Trim Tabs (Zipwake)

Twin Battery Box & Switch

Windscreen Wiper

Fully-Sealed Floor

Self Drain Floor

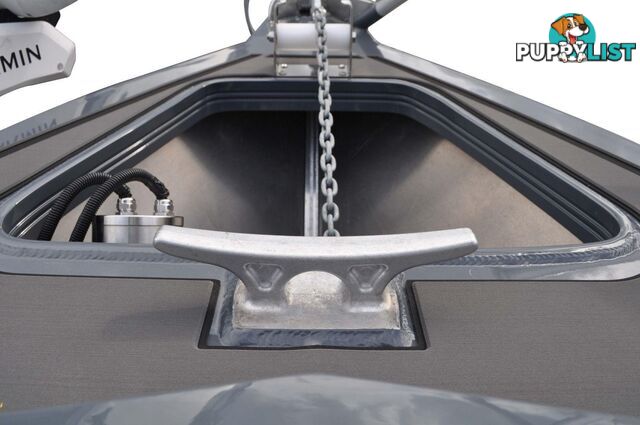

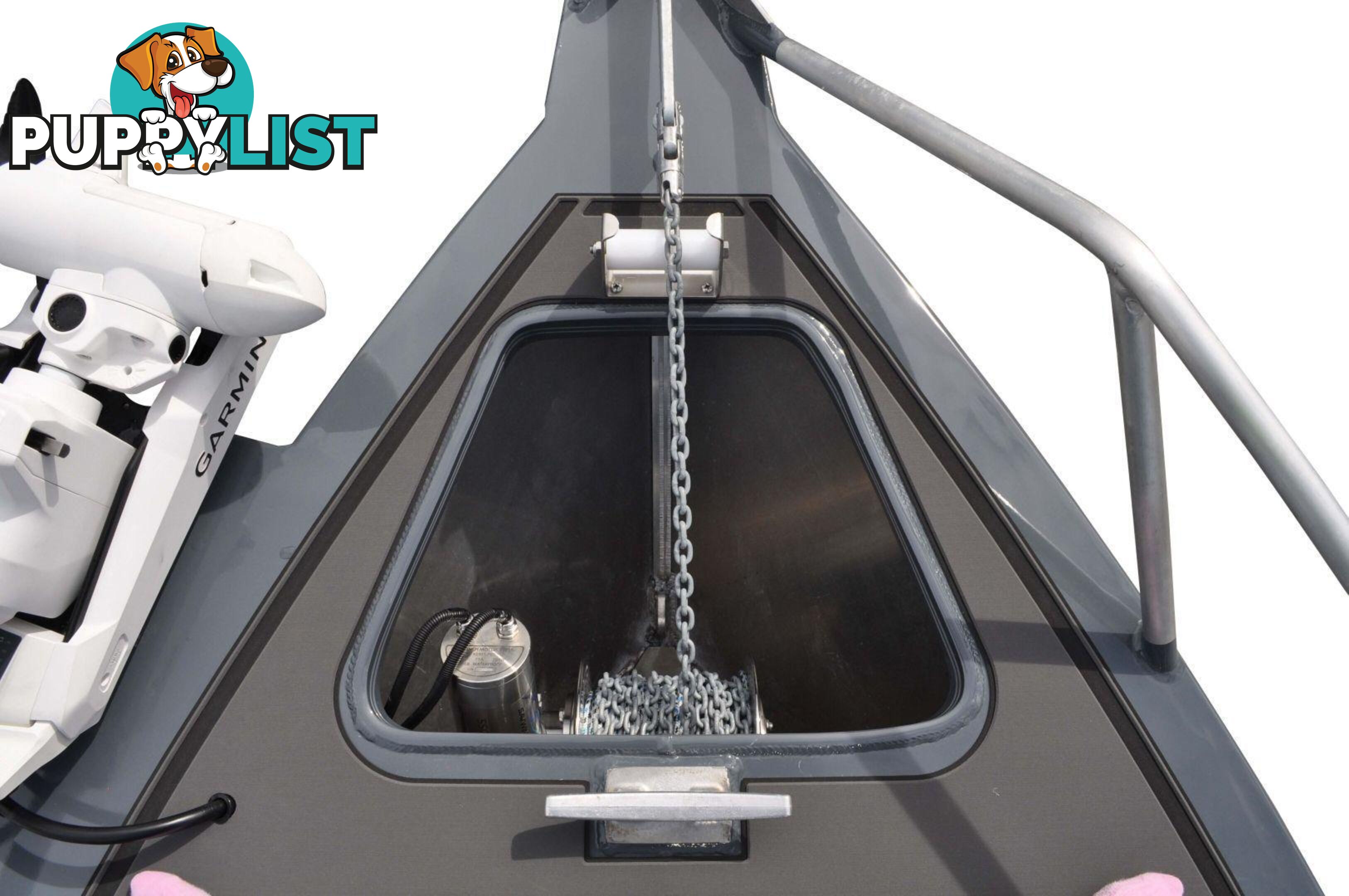

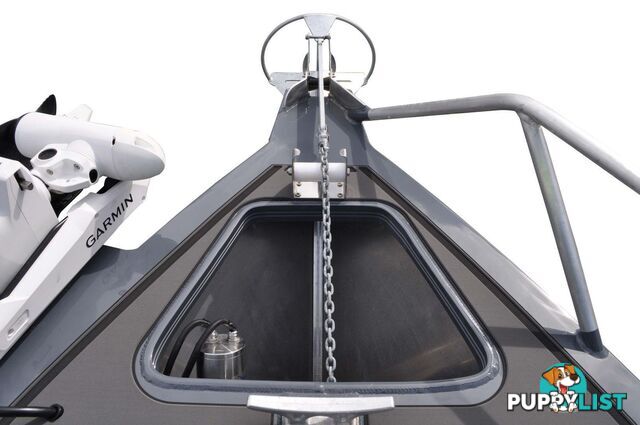

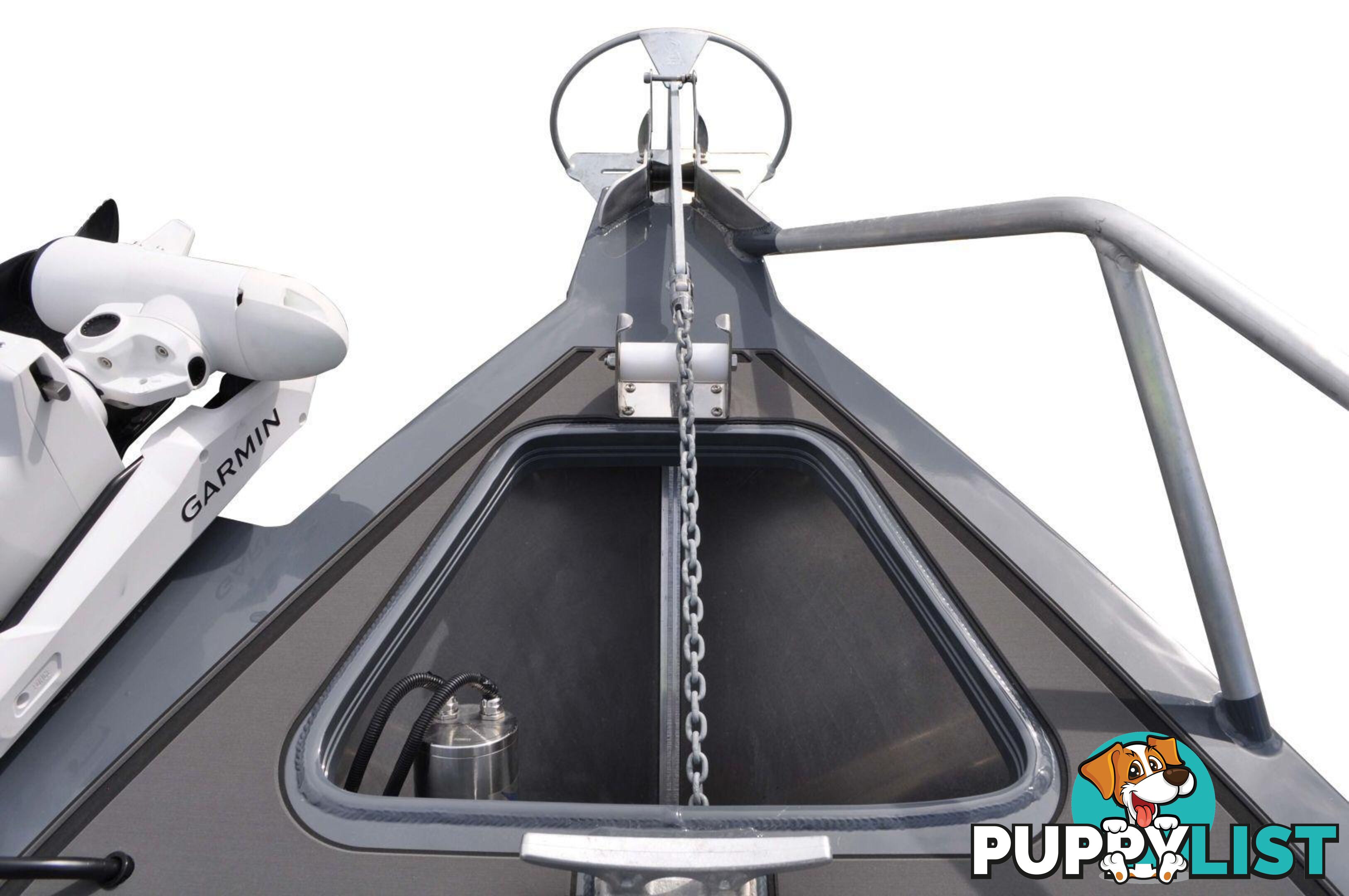

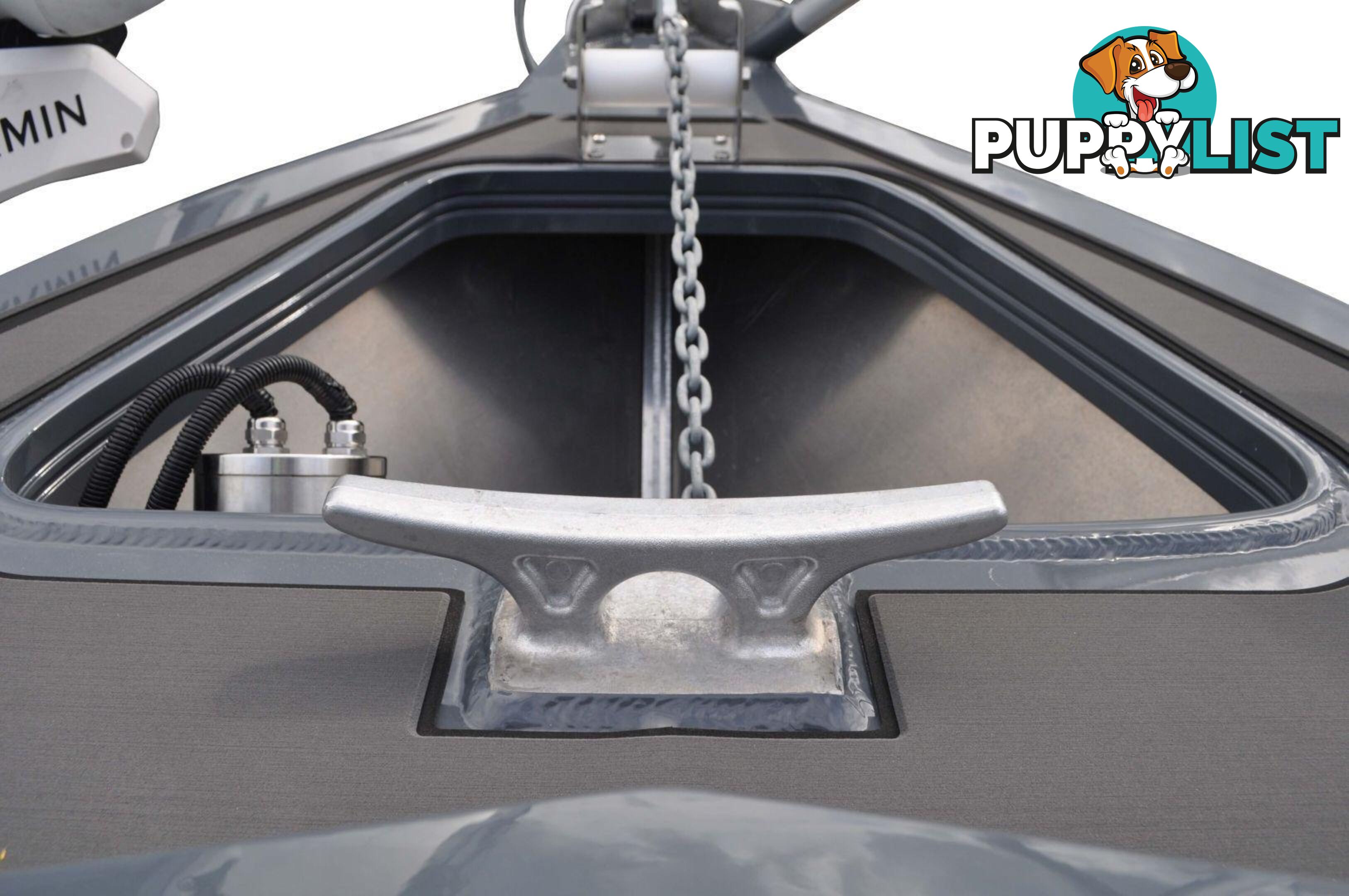

Anchorwell

Cabin Footrest

Heavy Duty Cleats (5)

Rod Holders (6) Reel Easy

S.S. Bowroller

Side Pockets

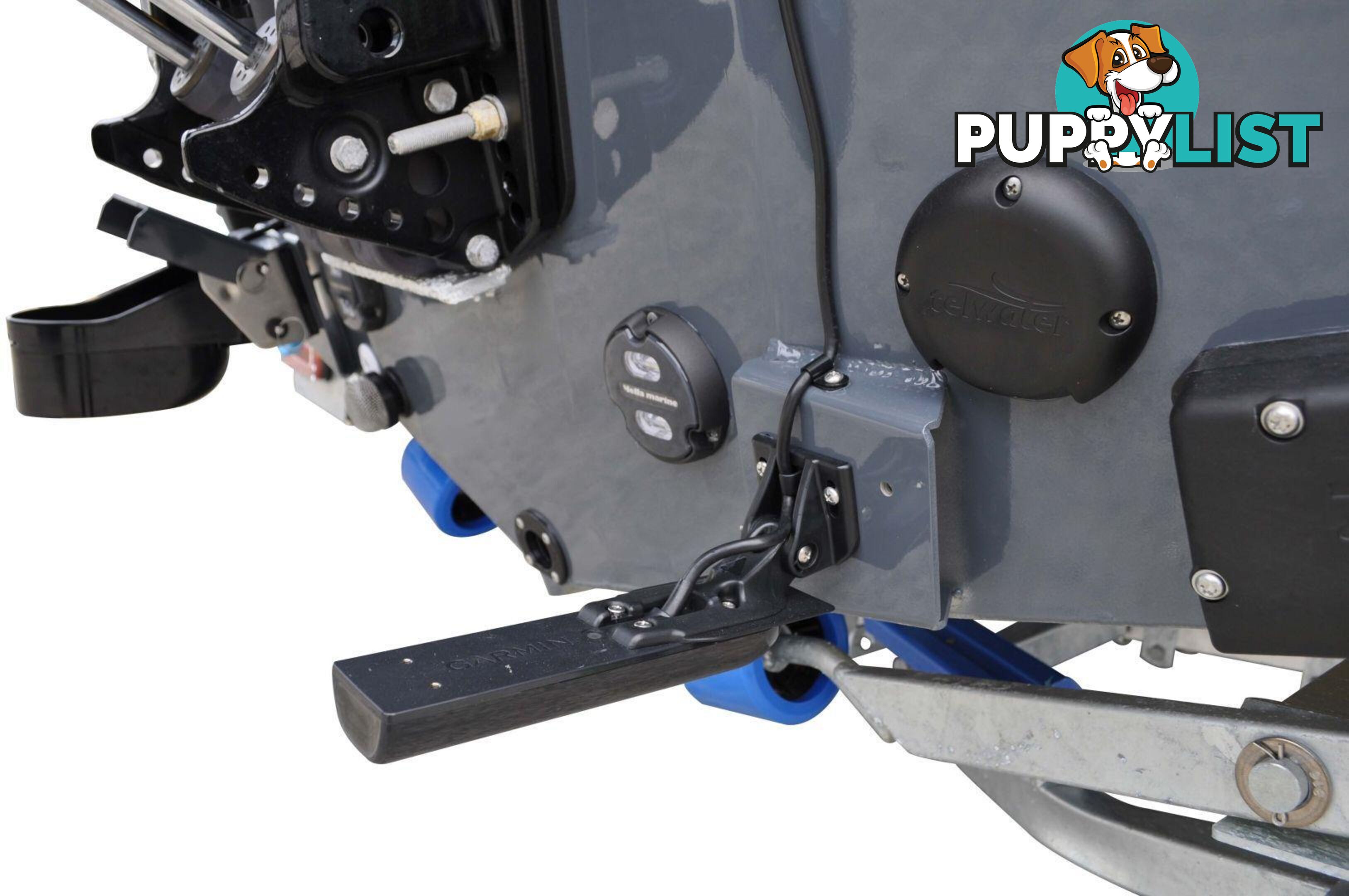

Transducer Brackets x 2

Trolling Motor Bracket

Rails: Bowrails

Rails: Cabin Grabrail

Rails: Dash Grabrail

Rails: Hard Top

Rails: Internal Cabin Grabrail

Rails: Transom

Cabin Hatch

Sliding Cabin Windows

Windscreen

Seats: Cabin Backrest

Seats: Extreme

Seats: Small Helm Seat Box with Hatch

Seats: Small Nav. Seat Box

Hydraulic Steering

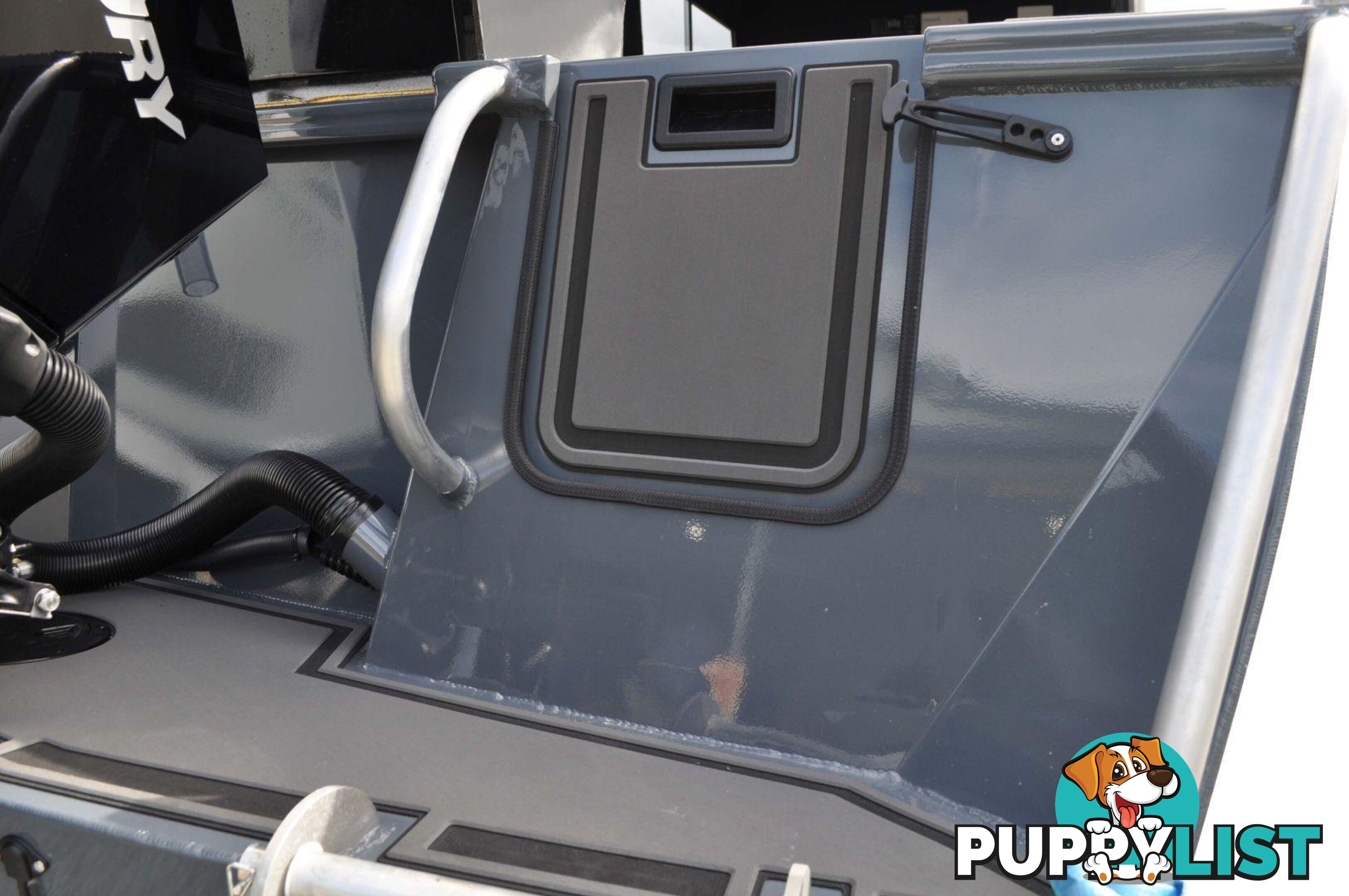

Transom Door
OPTIONS
Covers: Storm Cover

Burley Bucket

Carpet: Cabin Lining

Deck Wash

Deluxe Bait Fishing Station

Dual Windscreen Wiper

Electric Toilet

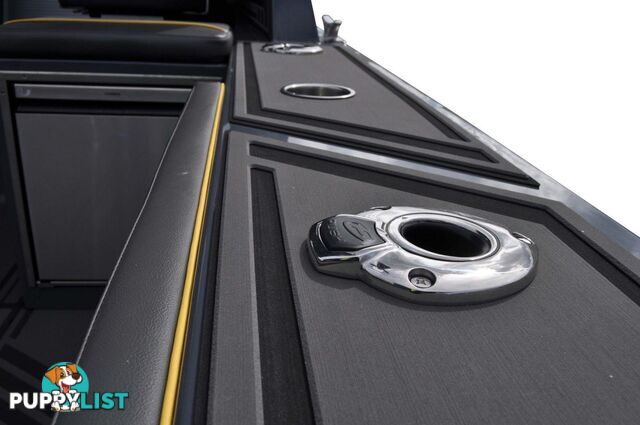

Exploding Fish Rod Holders (6)

Extra Wireless Phone Charger

LED Lights

Lockable Cabin Roller Door

Savwinch 1000CS

Savwinch Electronic Free Fall

Sound System & Speakers

Storage Tray

Checkerplate Floor

Hand Wash

Fishing Edition

Paint Two Tone

Painted Two Tone

75L Split Lid Cooler

Seats: Large Helm Seat Box with Hatch

Seats: Large Nav. Seat Box with Hatch

Seats: Rear Lounge & Backrest

Seats: Suspension

GPS Map

Radar Bracket

Seats: Cabin Cushions & Infill

Seats: Side Combing Cushions
Old/New model comparison table:
Garmin TD50 5” MFD, 215i VHF Radio, GT54 Transducer, Wireless Phone Charger. Or have the experienced fitters at Brisbane Yamaha fit whatever electronics you would like.
Upgraded Package
Electronics
Standard
Optional
Sinker Cups
Standard
Optional

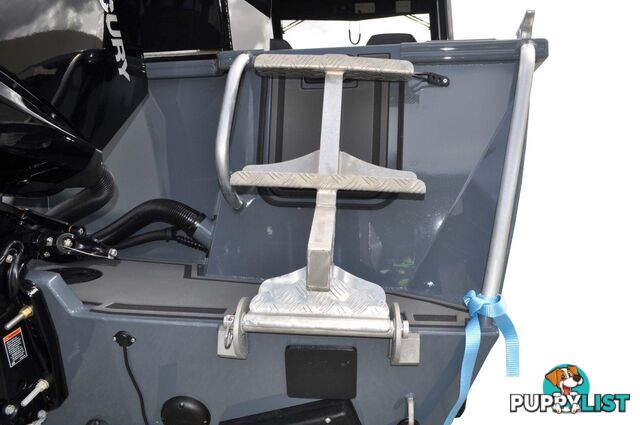

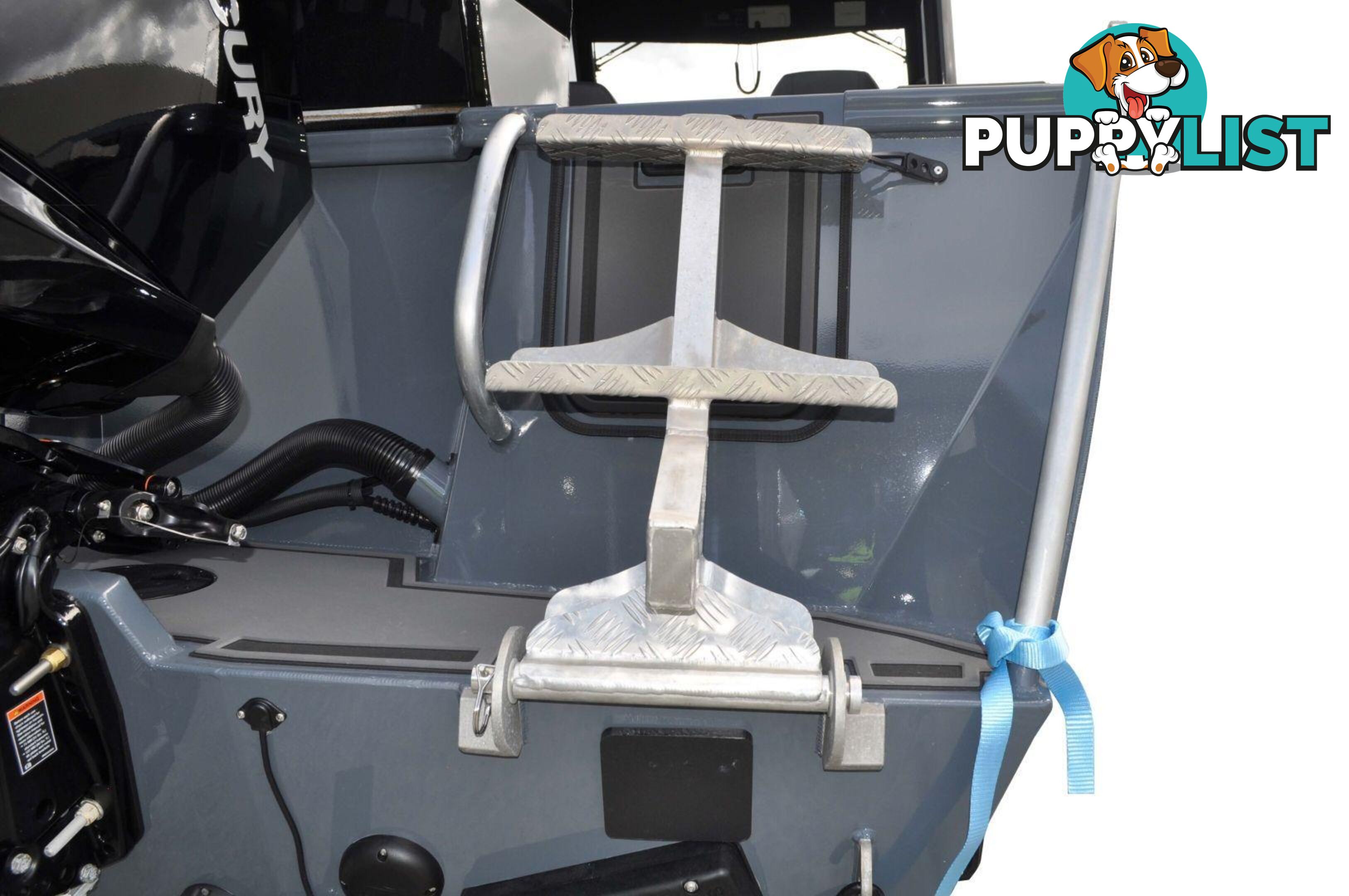

Diver Ladder
Standard
Optional
Cutting Board
Standard
Optional
Electric Motor Bracket
New updated brand logo for a modernised aesthetic.
Updated
Logo
New refreshed stripe treatment for an aesthetic update.
Updated
Stripe
New Deep Ocean Blue paint option added.
New Blue
Paint
Recessed into the cabin and fitted with U-Dek for improved ergonomics.
Integrated
External
Footrest

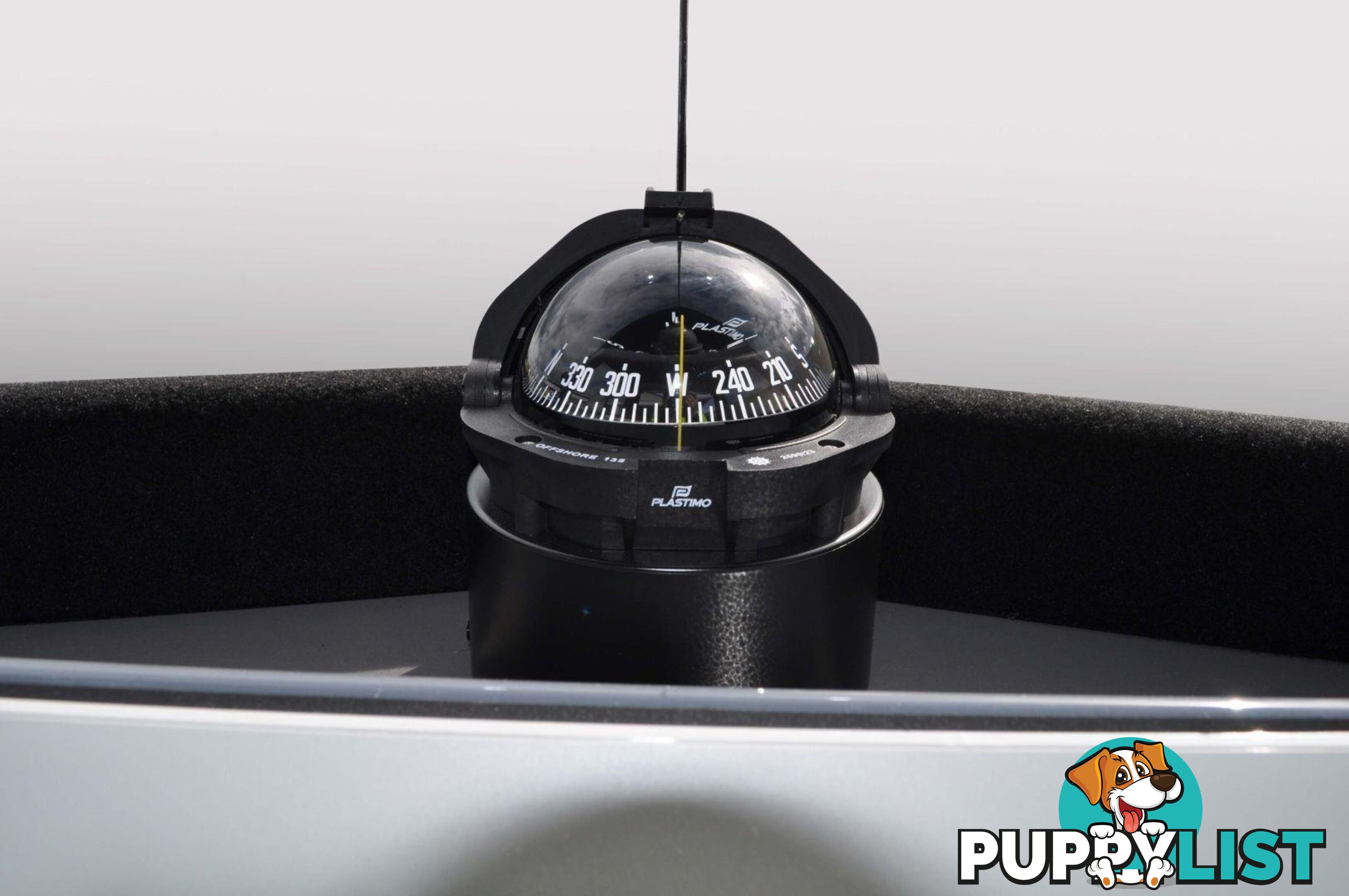

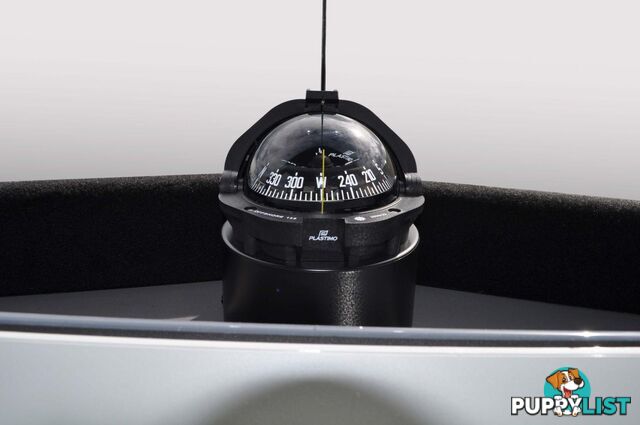

Plastimo offshore compass.
Standard
N/A
Compass

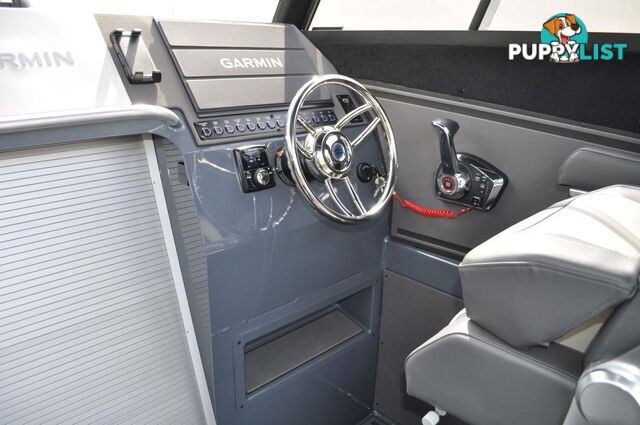

New colour coded steering wheel to match upholstery & U-Dek.
Upgraded
Steering Wheel
1 in the cabin and 1 in the dash.
Dual
Single
12v Power
Backlit and labelled switches.
Premium
Basic
Switches
More suitable for this kind of boat.
Savwinch
Muir
Drum Winch
More functional and performs better in rough weather.
Improved Design
Sliding Windows
Eliminate water ingress.
Sealed
Unsealed
Transom Extrusion
Rounded corners for improved water flow.
Upgraded
Live Bait Tank
More power for accessories with improved presentation
Upgraded Harness
Wiring
The new raised position eliminates water-ingress.
Transom
Duckboard
Rigging Tube Location
A new roof-mounted wiper system improves effectiveness and reduces failure rate.
Roof Mounted
Cabin Mounted
Wipers
Flooring, Gunwales, Dash, Anchor well, Side Pockets, Transom & Duckboard
Multiple Locations
N/A
U-Dek
Increased Width
Gunwales
Portside
Starboard
Fuel Filler

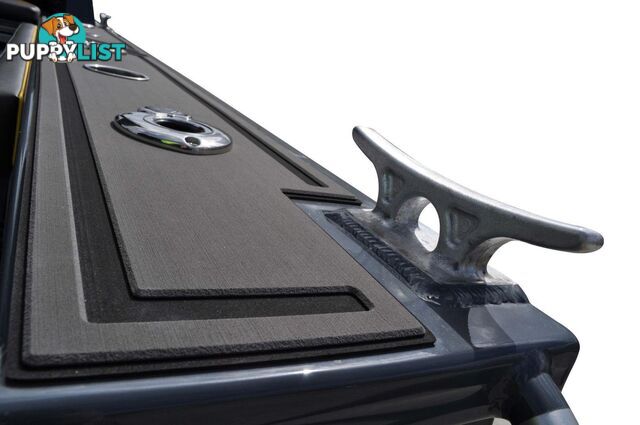

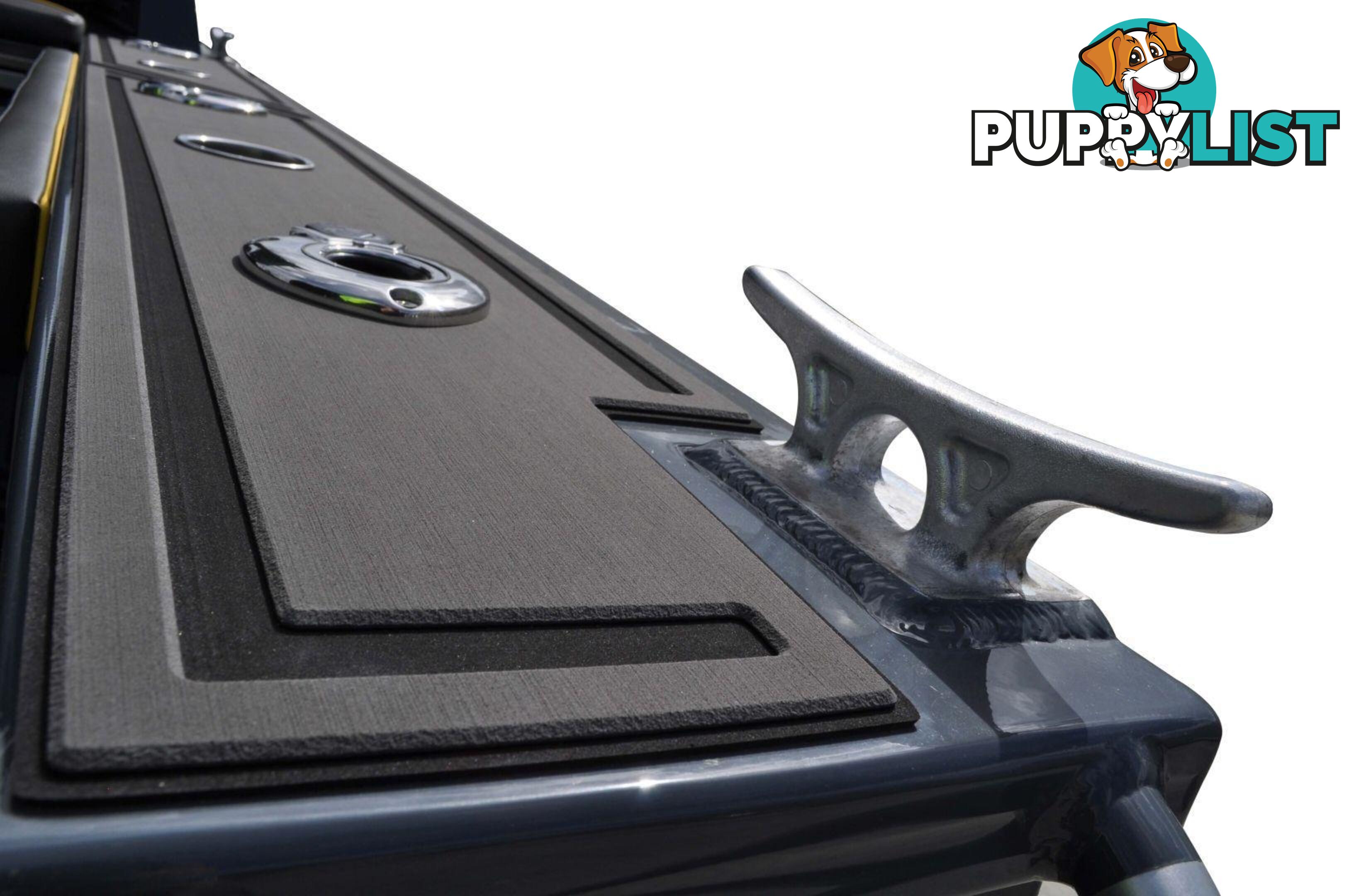

Upgraded heavy duty cleats with two additional cleats midships.
Heavy Duty
Cleats
Both on driver and passenger side with integrated cup holders.
Larger Cabin Pockets
Storage
2 new grabrails on dash and full length hard top grab rail overhead.
Increased Quantity
Grabrails
Signature Yellowfin trim used on rear lounge, backrest, cabin and coaming cushions.
Updated Custom Design
Upholstery
Seat cushions included on both seats in signature Yellowfin trim.
Updated Custom Design
Seat Boxes
Includes bolster, folding armrests and signature Yellowfin trim.
Updated Custom Design
Seats
250 on YF-70
225 on 7000
Horsepower

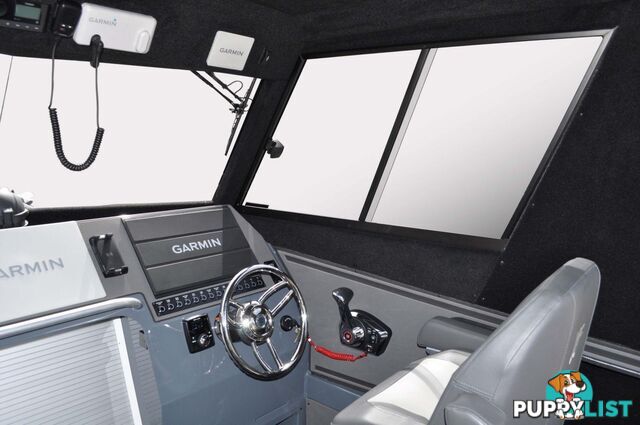

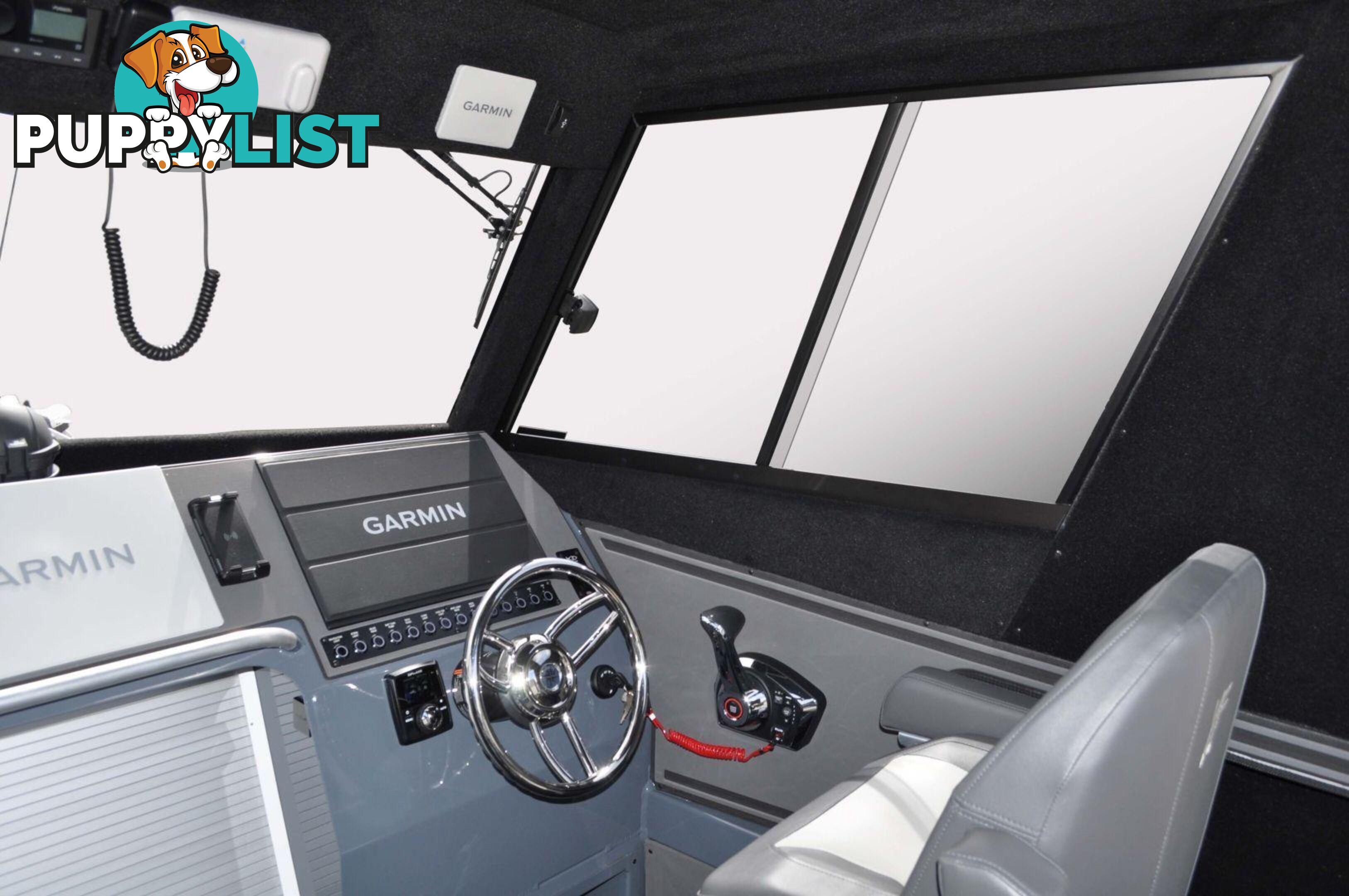

Can fit a 19” and 16” screen side by side. Integrated glove box. Recessed parcel shelf.
Increased Size
Dash
17% more volume in YF-70. 45% more volume in YF-76.
Increased Size
Hard Top

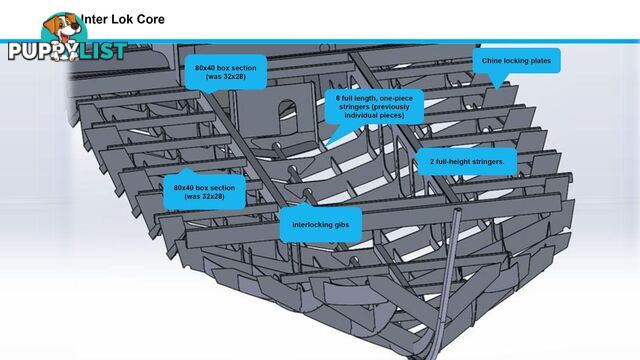

See “Inter-Lok Core” image for full details.
Inter-Lok Core
Marine Core
Construction
Extended planing strakes for more bow lift and trim responsiveness.
HD-R
HD
Hull
Change/Upgrade Description
Extended Cabin (Current Model)
Southerner (Previous Model)
Standard Features
Options and Trailer comparison table
Yellowfin branded Icey Tek coolers and fish bags.
Branded Yellowfin
N/A
Coolers
New option based on dealer and consumer feedback.
Optional
N/A
Underwater Lights
New upgrade option with a more functional design and higher grade materials
Exploding Fish
Rod Holders

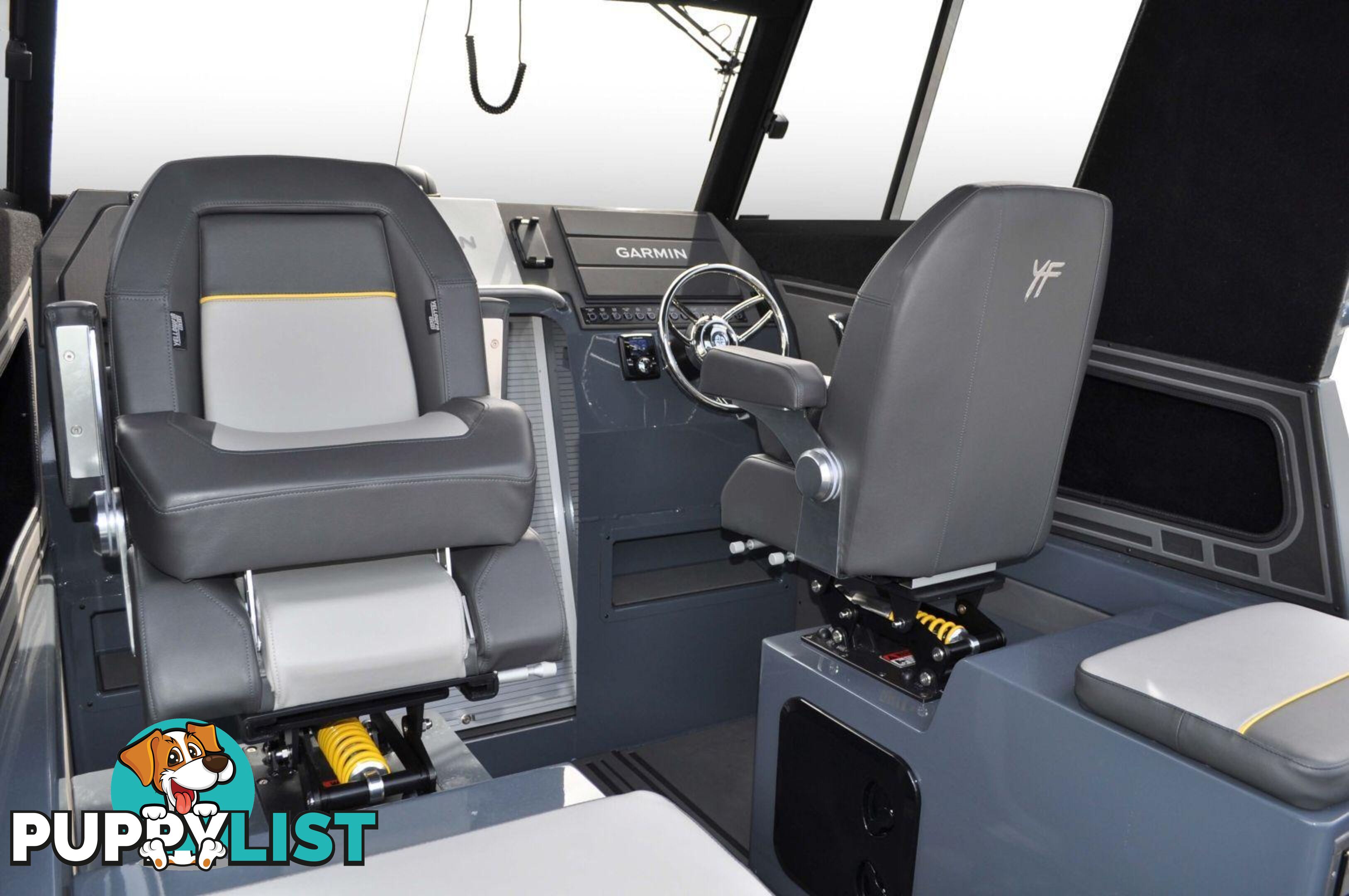

New Scandinavian brand with custom yellow spring and adjustable tension which can be installed without changing the seat box or seat height.
Upgraded

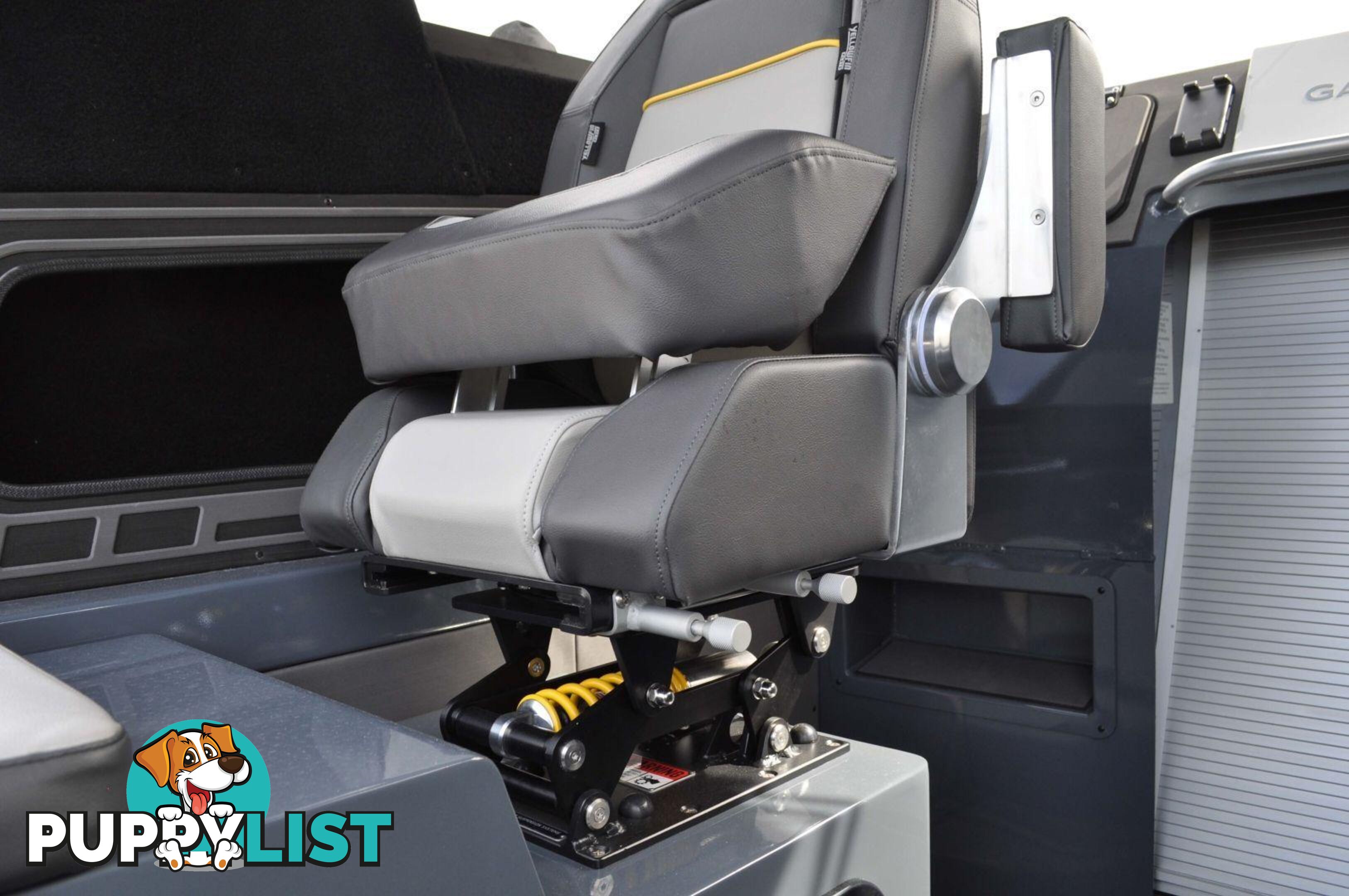

Suspension Seating

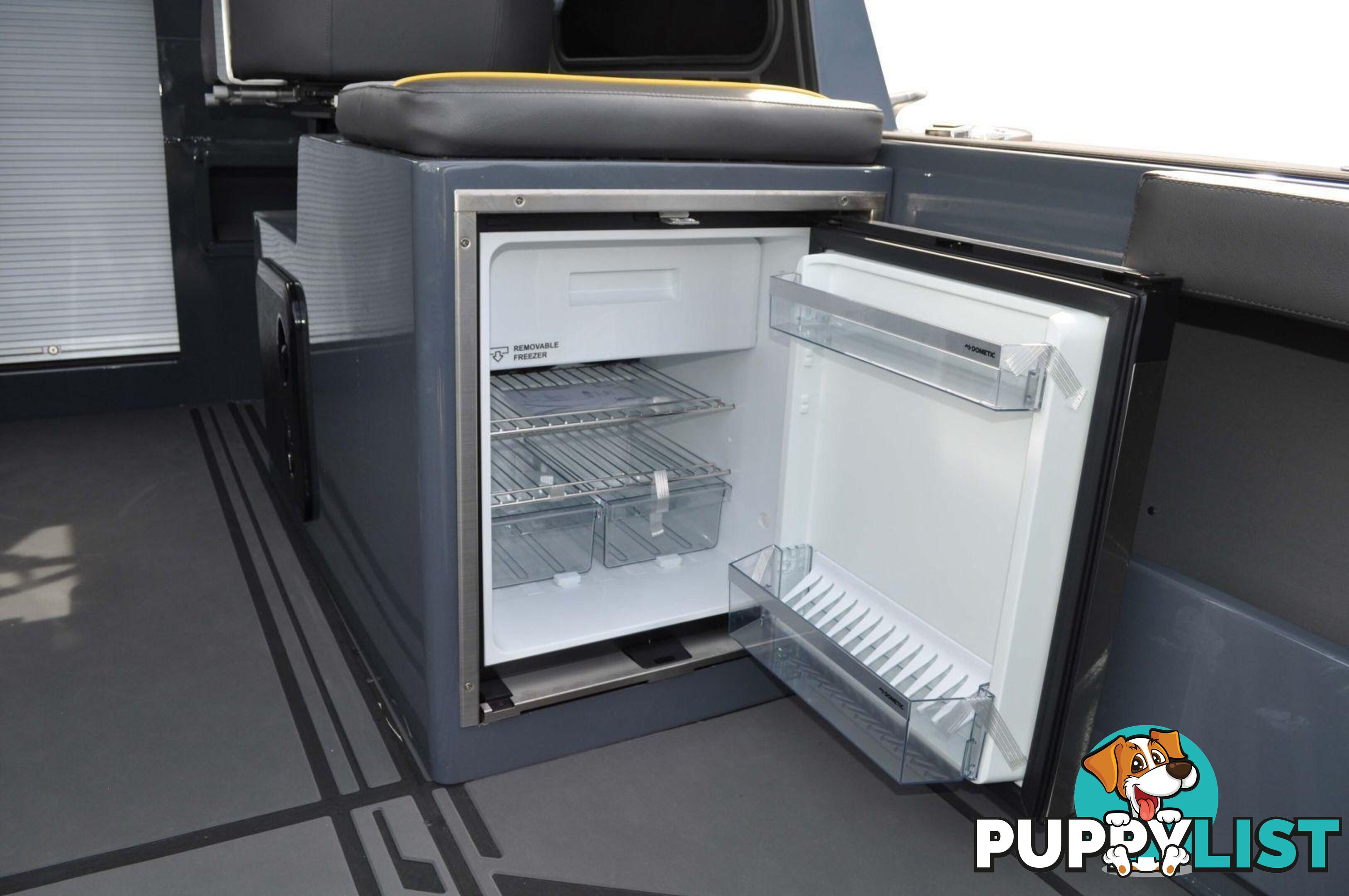

Optional upright fridge available integrated into drivers seat box.
Dometic
N/A
Fridge
Change/Upgrade Description
Extended Cabin (Current Model)
Southerner (Previous Model)
Options
Spare wheel, spare wheel carrier, spare wheel cover. Custom marine trim shop available at Brisbane Yamaha. We can do any custom marine trimming to suit your requirements.
Standard
Optional
Other
Fulton Heavy Duty
Jockey Wheel
Fulton 2 Speed
Winch
3.5 Tonne Lockable
Coupler
Larger, more durable roller with yellow colouration.
Upgraded
Winch Post Roller
Stronger material and colour matched.
Black Nylon
Skids
Stronger material and colour matched.
Black Nylon
Rollers
Greater rust protection and durability.
Stainless Steel
Pistons
Greater rust protection and durability.
Stainless Steel
Calipers
Greater rust protection and durability.
Stainless Steel
Brake Lines
Change/Upgrade Description
Extended Cabin (Current Model)
Southerner (Previous Model)
Trailer
Please note that some of the images may include options that are not included in this package. Please refer to the package listings. Additionally we do not stock all packages that are advertised on line, these packages are to give you an idea of price and inclusions. Please allow us the opportunity to quote you on your requirements.
